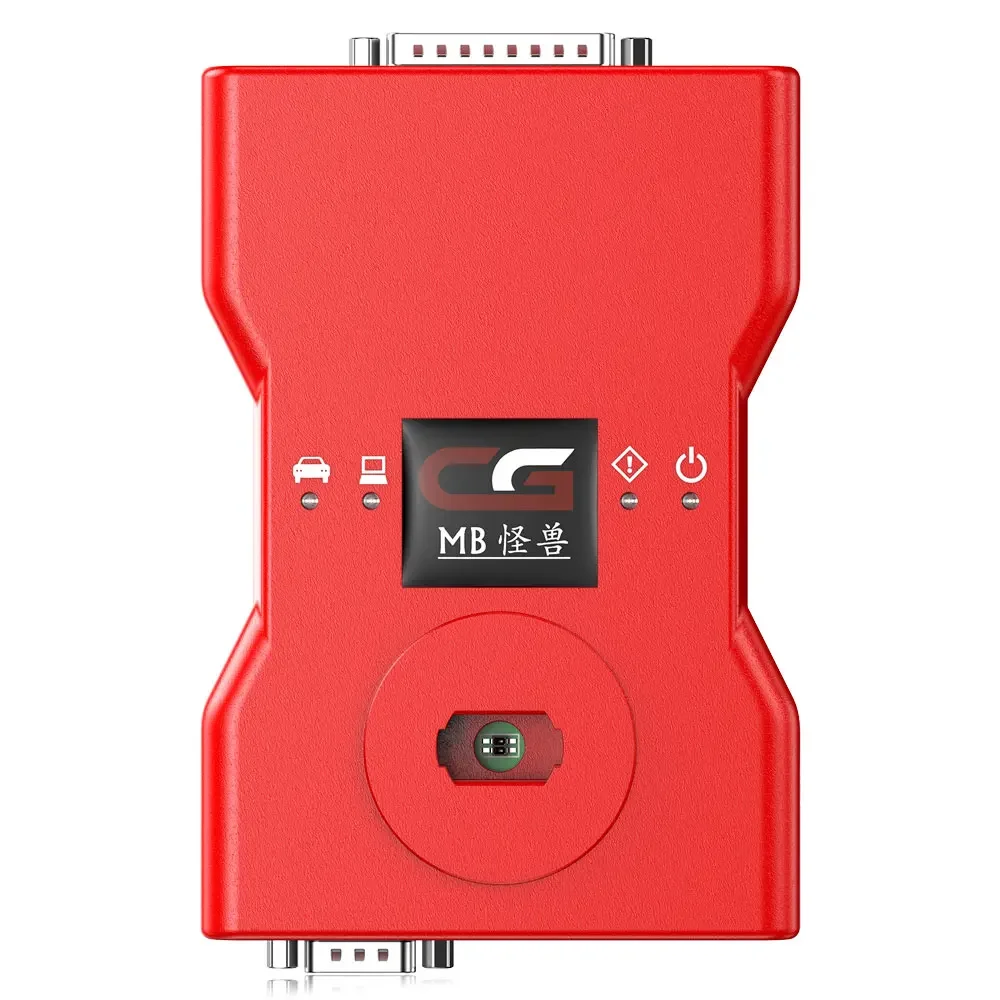

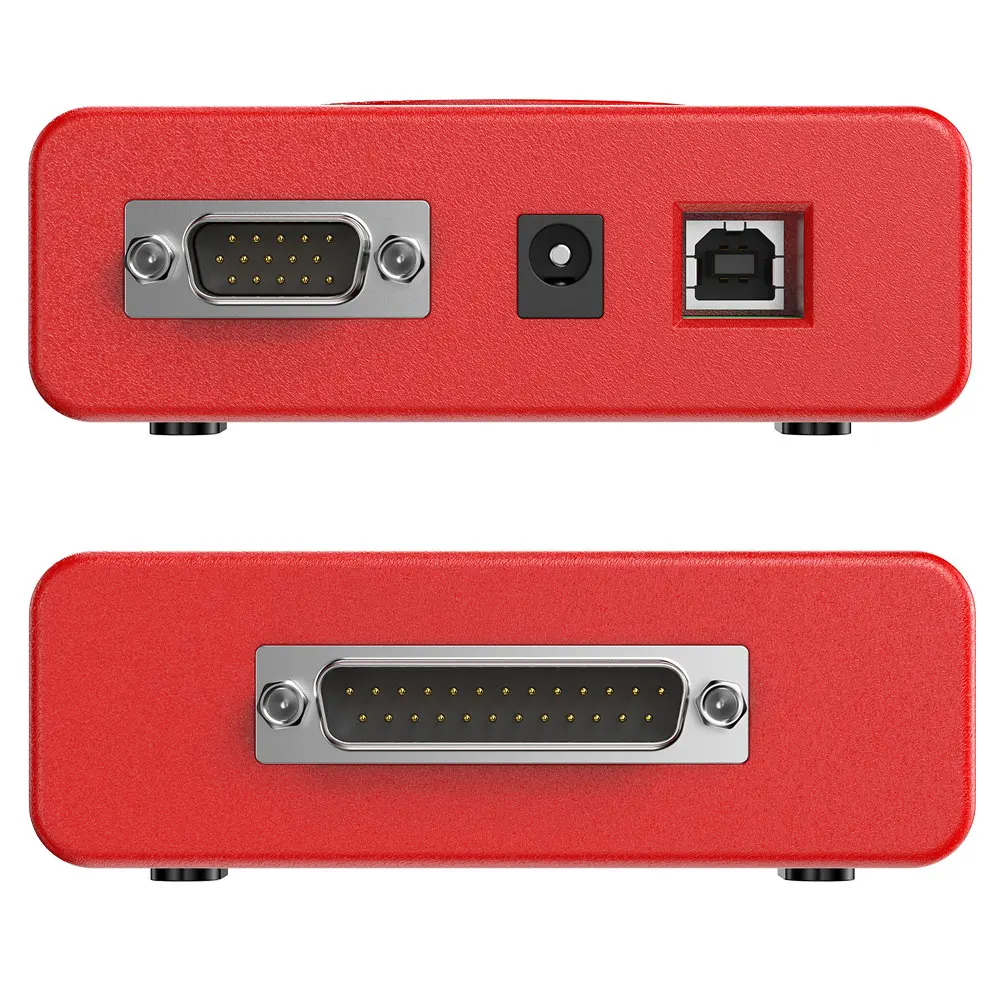

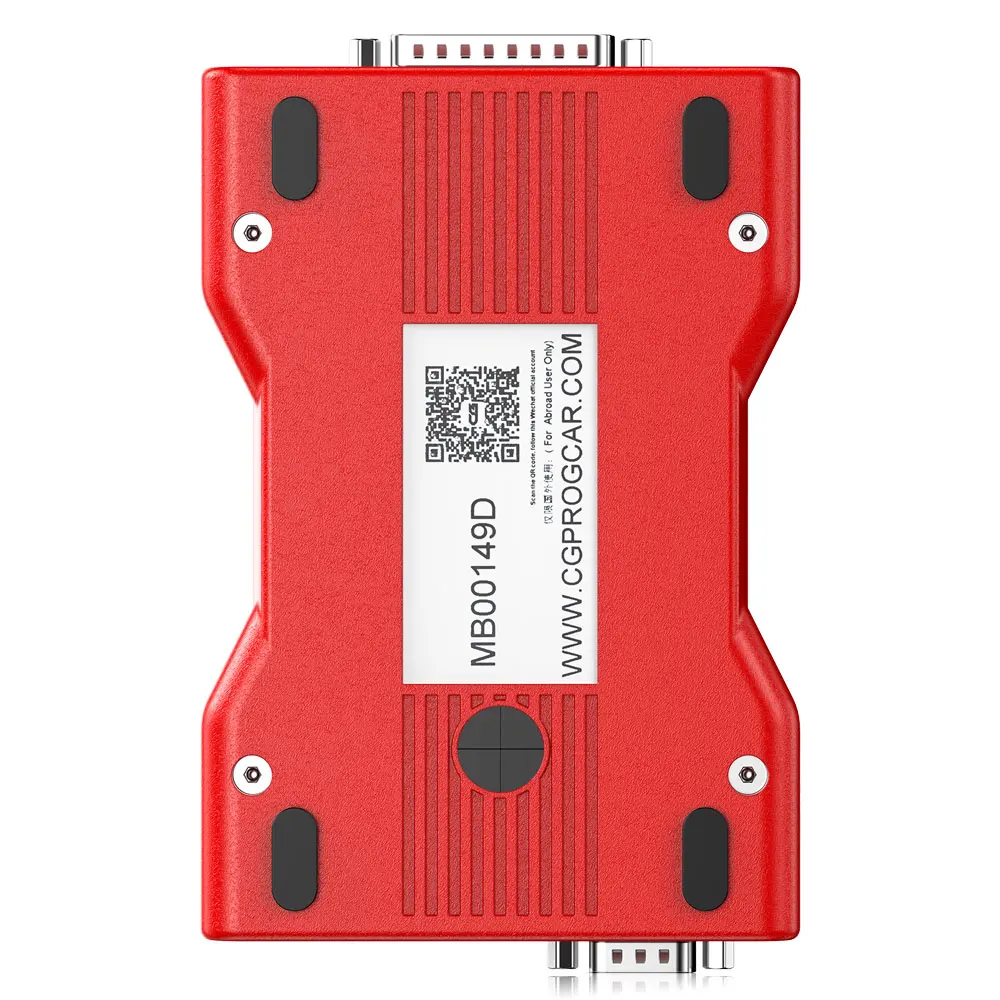

CGDI MB for Benz Key Programmer Support All for Mercedes to FBS3 Work on Both Be and Original Keys

CGDI Prog MB for Benz Key Programmer Support Password Calculation Function

Top 9 Reasons to get CGDI Prog MB Key Programmer:

1. Supports fastest for Benz Car key add: collection time 1'50s, password calculation time 40s, 99% get password for one time calculator, it is the fastest key programming tool to calculate the password at present.
2. Work with both BE key and original key
3. With new Diode equipped, which makes infrared more sensitive to keyless go key. No need to replace diode chip yourself anymore
4. CGDI MB All Key Lost Support List:
W164, W216 (2009-)
W164, W216 (2009-)(Fast)
W164 (Old), W221 (-2009)
W164 (Old), W221 (-2009)(Fast)
W166, W197, W212(Old),  W212, W246
W169
W169 (Fast)
W172, W204, W207, W209, W211
W172, W207, W209, W211(Fast)
W202, W203, W208, W210, W463, W639 (K)
W202, W203, W208, W210, W463, W639 (K)(Fast)
W215 W220
W230
W639 (CAN 2009-)
W639 (CAN 2009-)(Fast)
W906
List keeps updating
5. Support more for old Mercedes cars key programming by OBD compared to for other Mercedes key programmer like VVDI MB Tool, such as
W210, W203, W639, W220,W215, W169
for Mercedes E Series W210 before year 2004
for Mercedes C Series W203 before year 2005
for Mercedes V Series V639 before year 2008
for Mercedes A Series W169 before year 2009
for Mercedes B Series W169 before year 2009
for Mercedes S Series W220 before year 2005
for Mercedes E Series W211 before year 2008
6. With cluster calibration and Gateway Read/Write Authorization (Since March 2nd, 2019), but this authority need to pay extra money.
Cluster calibration Support Mercedes List:
C(W204) / GLK(X204) / CLK(207) /E(W212) /SLS(197) /CLS(W218) / R-Class(W251) /GL(X164) / ML(W164) / E-Class(W211) / CLS(W219) S-Class(W211) / CL(216) C-Class(W203/ CLK(W209) / SLK(R171), Keep Updating...
7. CGDI MB support ECU renew on these models at present:
ME9.7, MED17, CR3.xx, CR4.xx, CR5, CR60.xx, CRD.11, CRD2.xx, , SIM266, SIM271DE2.0, SIM271KE2.0, SIM4LE, SIMELKE
Support Gearbox Renew on EGS 7G
8. Free Update Online, please download latest software
9. Language: English, Spanish, French, German and Chinese

Notice:
Please don't disassemble CGDI device yourself, or it will get damaged.
There is an encrypted battery inside machine, once device open, it will get power failure automatically and need to return for repairing.


​How to Activate CGDI Prog MB?
​
​CGDI Prog MB needs activation when you receive it. Please follow the steps as below:
​1. Download for Benz Monster Latest software Here, there will be user manual too in the software catalogue
​2. Install software on your laptop, activate device yourself from menu Online Store.
​You can get "5 Free Tokens Valid 180 days" when you first register the device.
​
​CGDI MB Token Policy:
​
​5 Free Tokens Valid 180 days.
​When license gets expired, please pay $160 for Token Service 360 Days for CGDI MB. After you pay for it, can calculate online 5 days each day for one year.
​
​And when you need more tokens, please pay additional $9.9 Only One Token for CGDI MB.

CGDI MB Prog Programming Key Features:
1) Automatically identify the basic key information (including how many times you used SSID)
2) Can directly read pin code of BE keys via infrared, can erase BE keys.
3) NEC adapter can write the original for Benz smart key and common key.
4) Can write for Benz original key via infrared.
5) Can restore the data of key and EIS with the key password.

CGDI MB Prog Function List:
1) Able to add keys for Mercedes Benz and program a new key when all keys are lost.
2) Add new for Mercedes Benz keys: Data acquisition for 1 minute 50 seconds, pin code for 40 seconds and 99% success.
3) Program a new key to the following models when all keys are lost: 211, 209,204, 207, 212, 166,246,197,172,164+, 216 etc.
4) Can read EIS data via OBD, no need to distinguish the EIS/EZS model.
5) Can display the key status and directly disable the key position.
6) Can display EIS Number, can distinguish the for Benz model
7) Can display EIS status.
8) Automatically identify EIS model.
9) Automatically identify CAN protocol
10) Can directly read key pin code via infrared on parts of 209/211/220/215 EIS.
11) Can read/write EIS via infrared.
12) Can generate the key data of HC05/908/912/9S12/NEC EIS/EZS with only 26s,format include:11/ 41/51 (41 format is smart key data)

CGDI MB Prog for Mercedes Benz Car List:
for Mercedes-Benz A series (2004 -)
for Mercedes-Benz B series (2005-)
for Mercedes-Benz C Series (2001 - , including 210)
for Mercedes-Benz E Series (2001-, including 203)
for Mercedes-Benz CL series (2001-)
for Mercedes-Benz GLK (2004-)
for Mercedes-Benz ML series (2003 -)
for Mercedes-Benz R series  (2003 -)
for Mercedes-Benz G series (2003 -)
for Mercedes-Benz S Series (2001 -, including 220)
for Mercedes-Benz SLK  (2003- )
for Mercedes-Benz SLS (2004 -)
for Mercedes-Benz Vito (2003-)
for Mercedes-Benz Sprinter (2003 -)
for Mercedes-Benz Vito (2003 -)
Add more later...

CGDI Prog MB Latest Update Information:
CGDI MB for BenzMonster V3.1.0.0 (2021.04.14)
1. Fix known issues and optimize user experience.

CG-MB for BenzMonster  V3.0.4.0 (2020.09.28)
1. Added CGDI keyless go key upgrade function.
2. Added the EIS ytpe of W215/220/230 for all key lost.
3. Added W215/220/230 for all key lost with fast collection.
4. Added the function of reading FBS4 EIS SSID.
5. Added the function of reading FBS4 key SSID.
6. Added the function of obtaining SSID from the instrument.
7. Improved the K-line EIS writing method.
8. Optimized the collection function of the old W221 all key lost.
9. Optimized the display of car computer and ELV wiring diagram.

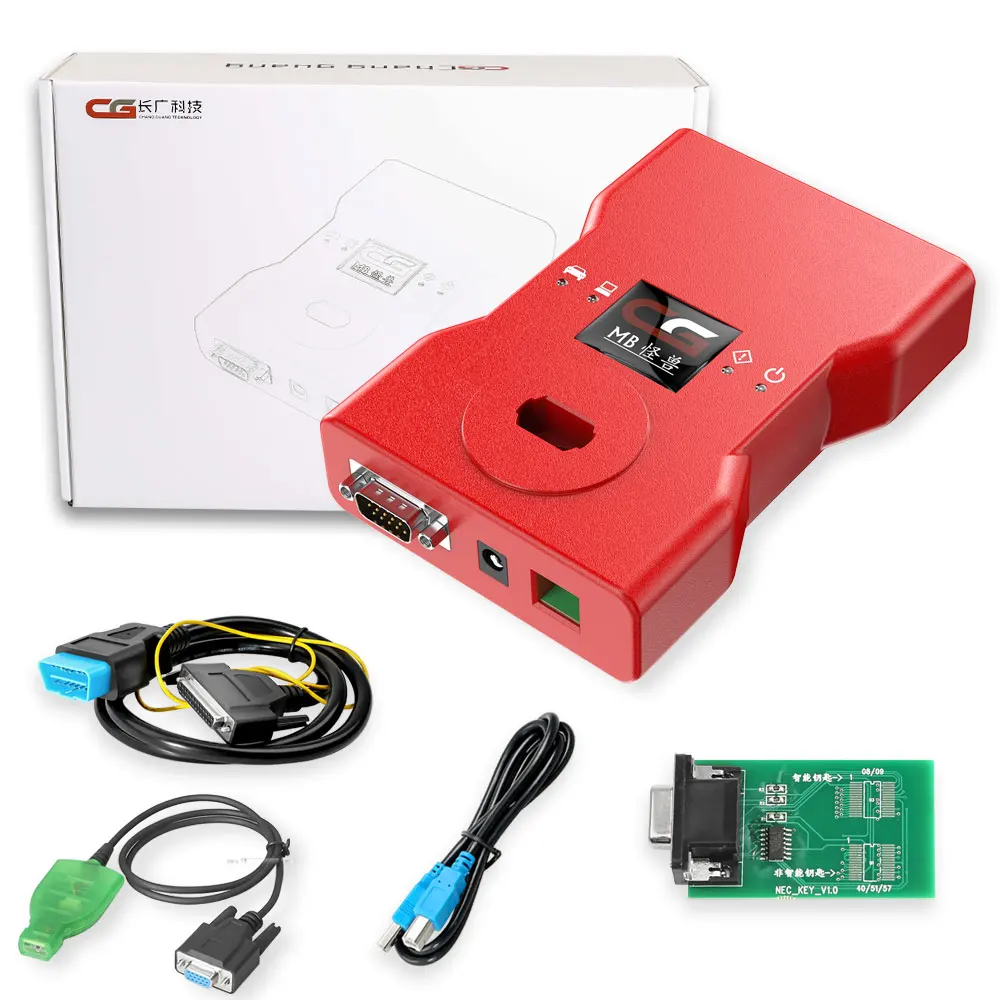

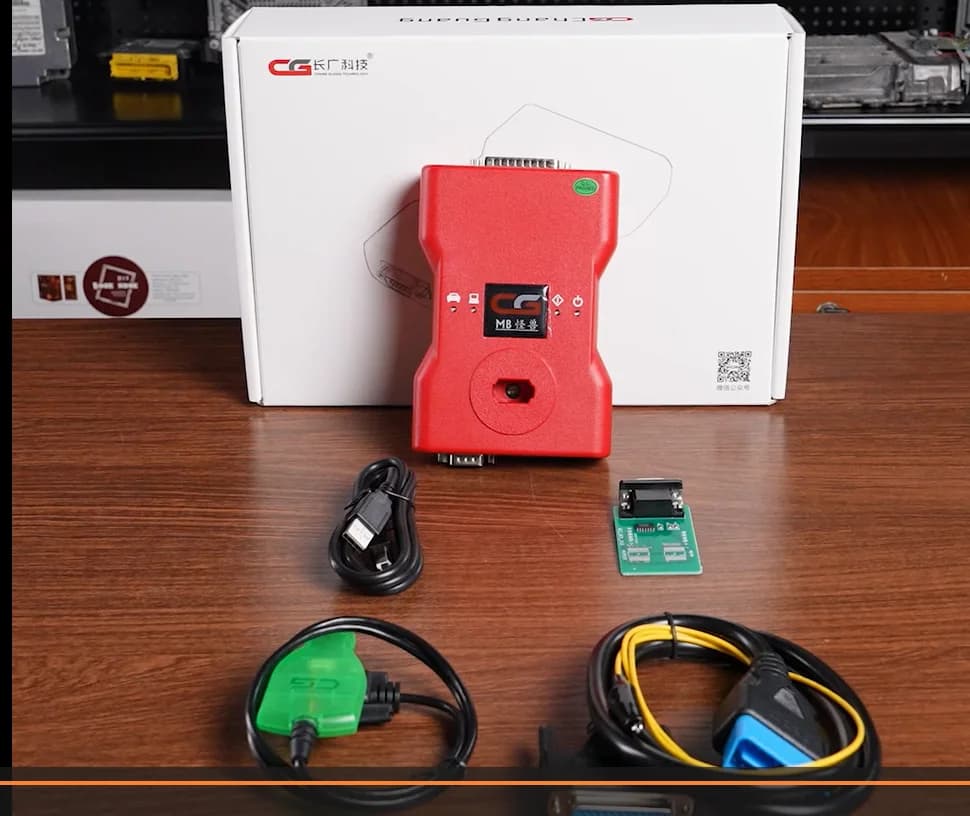

CGDI MB Prog Package List:
1pc x CGDI MB Multiplexer
1pc x NEC Key Adapter
1pc x IR Adapter
1pc x OBD Cable
1pc x USB Cable
Tech Support
For Mercedes Benz W166 all keys lost and program new keys, CGDI MB Pro is good choice, here share user manual with pictures.
Guide:
Select Lock(EIS)

Click on “Read EIS data” then “Computer password”

Click on “Copy key without key” then “Collect Data”.

Prepare to collect data, please wait…

Please insert the simulation key into the lock in 30 seconds.

CGDI MB programmer is collecting data.

Data acquisition succeed, save it by default.

Click on “Upload data” then open the data you saved.

Upload data successfully.

Click on “Query password”

Wait for 2 minutes, query password succeed.

Click on “Lock (EIS)” then CGDI MB display password, copy it.

Click on “Paste password”
