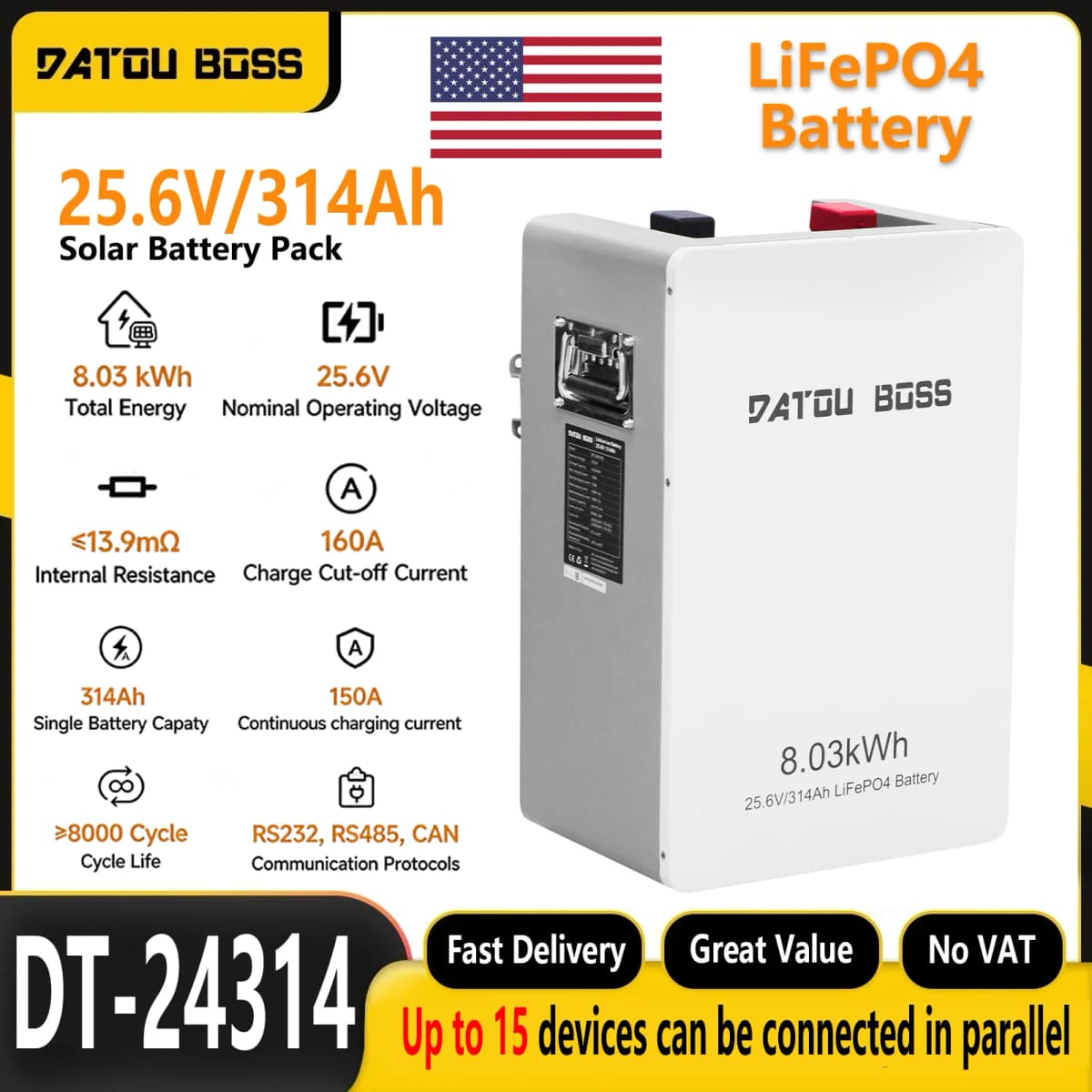

25.6V 314Ah 8.03kWh Wall‑mount LiFePO4 Battery Built‑in BMS RS232 RS485 CAN Bluetooth APP Monitor Up to 15 Units Parallel 8000+ Cycles Solar Energy Storage Battery for Home Commercial UPS Backup Power

The DT‑24314 is a high‑performance wall‑mount LiFePO4 battery designed for U.S. customers pursuing energy independence, lowering electricity bills, and acquiring reliable backup power. It serves as the premium energy storage core for residential, commercial and industrial solar microgrid systems.

✅ 25.6V 314Ah 8.03kWh Large‑Capacity LiFePO4 Battery, 8000+ Long Service Cycles

Adopts premium lithium iron phosphate cells, delivers 8.03kWh usable energy storage. Achieves ≥8000 cycles @25℃ with 80% SOH. Low internal resistance reduces heat generation and energy loss for high charge‑discharge efficiency. Wall‑mount design fits home, industrial, commercial and UPS uninterrupted backup power scenarios.

✅ Built‑in Comprehensive Smart BMS Multi‑Dimensional Safety Protection

Equipped with integrated intelligent BMS system, provides full protection: short‑circuit, high‑voltage, low‑voltage, over‑charge, over‑discharge, over‑current, overload and temperature protection. Adopts dual‑circuit power‑off hardware to improve system safety. IP20 protection grade, equipped with air main switch for safe local operation.

✅ Rich Communication Interfaces & Bluetooth APP Wireless Monitoring

Comes with RS232, RS485 and CAN communication ports for data interaction with inverters and host computers. Supports parallel communication between batteries. Built‑in Bluetooth module, you can check real‑time battery data via mobile APP, easily monitor SOC, voltage, current and temperature status for your solar storage system.

✅ Support Up to 15 Units Parallel for Flexible Capacity Expansion

Allows up to 15 batteries connected in parallel to expand total energy capacity to meet large‑scale energy‑storage demands. Equipped with portable handles and mounting bracket for quick wall installation. Complete matching accessories including communication cables, power cables, installation screws and user manual are included in package.

✅ Wide Application for Multi‑Scenario Energy Storage

Perfect for home solar storage, industrial energy supply, commercial business power and UPS emergency backup power. Specs: 355×260×565mm, weight ≤61kg. Charge:0℃‑55℃; Discharge:-20℃‑55℃. Please follow user manual for wiring, parallel setting and communication configuration. Professional technical support is available for installation debugging.
