Metal Mini Lathe Machine, 36W 20,000RPM Precision Lathe for Wood & Soft Metals (Copper, Aluminum) in DIY, Model Making, Crafts & Education

Applications:
​Youth Activity Center, School General Technical Room, Science and Technology Activity Room Equipment, Science and Technology Museum Student Science and Technology Creation, DIY hobbyist.

Main parts of the machine:
​The main components of the headstock, intermediate block, connecting block, tailstock, large slider, small slider, hand wheel, bases and so on are made of metal. The quality of the product is improved, more durable and more precise.

Description:
​36W power tools: It is driven by 12V safe direct current transformer. It is helpful for improving manual ability and independent thinking, thus effectively improving intelligence of children. So as to be a good didactical tool for children. It is also an ideal tool for DIY hobbyist and modelmaker to make various craft. Wear goggles when using. Children need to be guided by adults.

Parameter:
​Input voltage: AC100V~240V 50/60HZ
​Output voltage : DC12V 3A/4A
​Motor rated power: 36W
​Motor speed: High speed motor 20000r/min±15%
​Spindle speed: high speed motor 3000r/min±15%
​Spindle jump: <0.1mm
​Large slider stroke（Z axis）: 45mm
​Small slider stroke（X axis）: 35mm
​Center height: 25mm
​Center distance: 110mm
​Turning tool size: 3.5*3.5mm
​Maximum processing diameter: 0-10mm positive claw, 10-45mm reverse claw
​Three-jaw chuck clamping diameter: 0-10mm claw, 10-45mm reverse claw
​Handle scale: 0.1mm/division

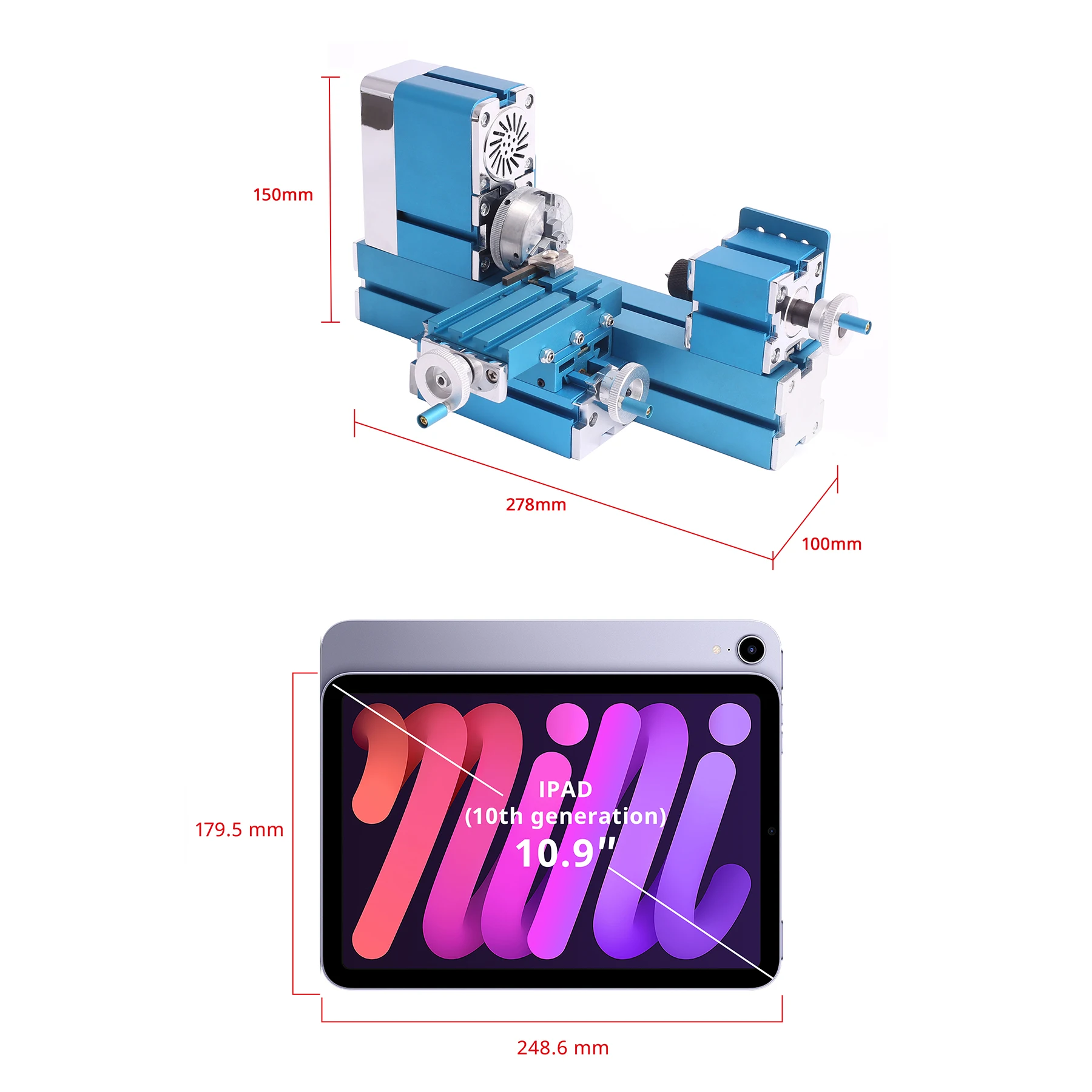

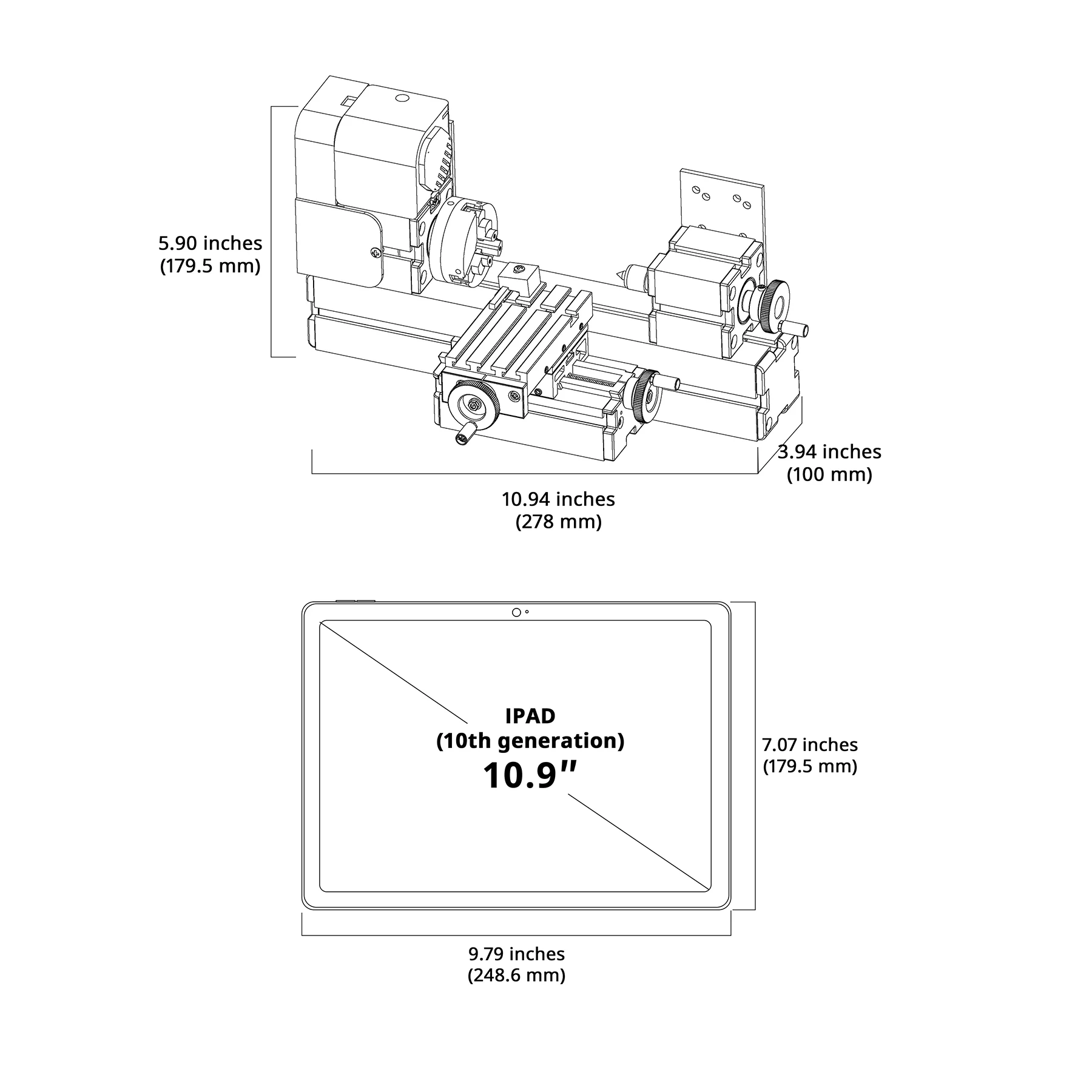

​Production size:278*100*150 mm
​Packing size: 325mm*200mm*240mm
​Weight: 3.7KGProcessing ability: It can process wood, plastic and soft metals (pure copper and pure aluminum).

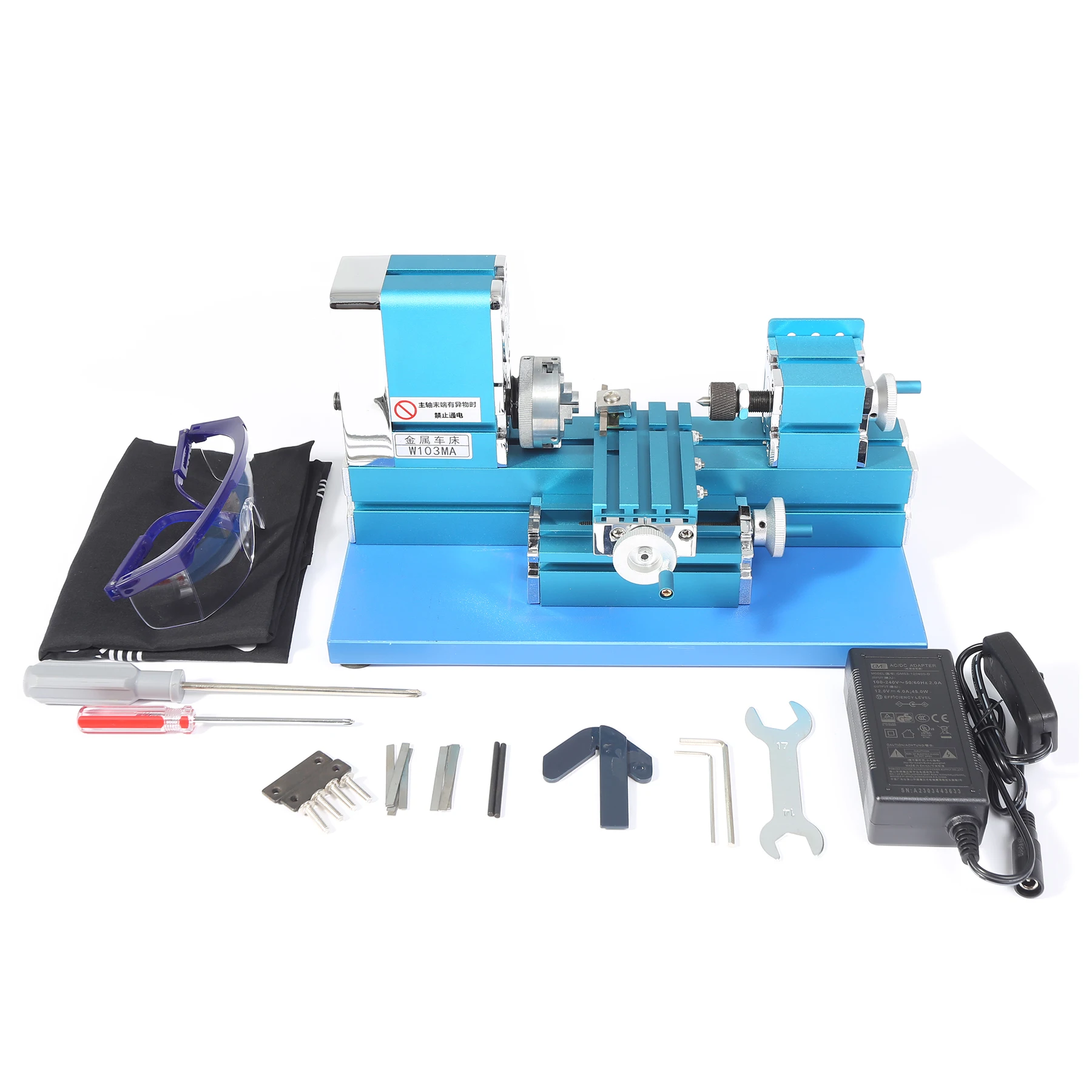

Package include：
​1 set of lathe
​1 set of apron
​1 set of goggles1 set of Accessories: inner hexagon spanner 2pcs(S=2\3)
​double-headed wrench 1pcs(S=14\17)
​cross screwdriver 1pcs
​turning tool 1pcs(3.5*3.5mm), on machine
​shim 5pcs(0.3mm)
​shim 5pcs(0.4mm)
​center finder 1pcs
​three-jaw chuck locking rod 2pcs
​two hole clamping plate 2pcs
​screw 2pcs(M4*16)
Kindly Note:
​This is only a mini metal lathe machine, only suitable for DIY hobbyist and educational projects, not suitable for processing hard metal and large projects.

Q&A
​1.Q: What material is the lathe made of?A: The main structure is made of high-grade aluminum alloy, offering an excellent balance of rigidity and lightweight design for small-scale work.

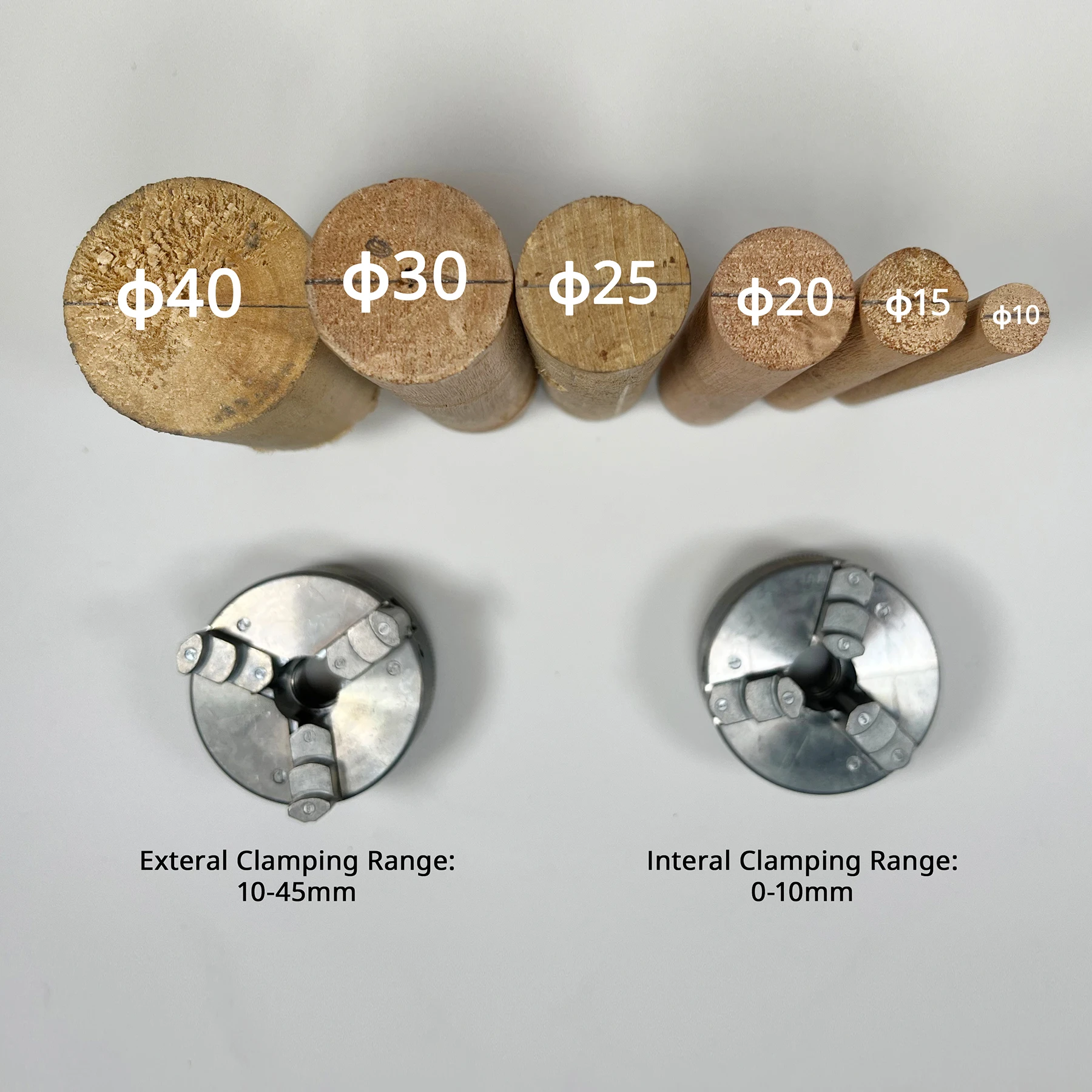

2.Q: What is the chuck size and gripping range?
​A: It comes with a 3-jaw self-centering chuck. The gripping range is:
​• Standard (Positive) Jaws: 2mm to 14mm.
​• Reversible (Outside) Jaws: 16mm to 40mm.
​This provides great flexibility for holding a wide variety of small workpieces.
3.Q: What is the maximum swing over the bed?
​A: The standard maximum swing (largest diameter workpiece that can clear the bed) is 45mm.
​Pro Tip: For machining larger diameters up to 45mm, we offer an optional "W006 Intermediate Connection Piece" (riser block). This accessory increases the center height, significantly expanding your lathe's capacity. Please contact us for details.
4.Q: What is the size of the included cutting tool?
​A: The included high-speed steel (HSS) turning tool has a square shank size of 3.5mm x 3.5mm. This is a standard size for miniature lathes, and a set of adjustment shims is included for precise tool height alignment.

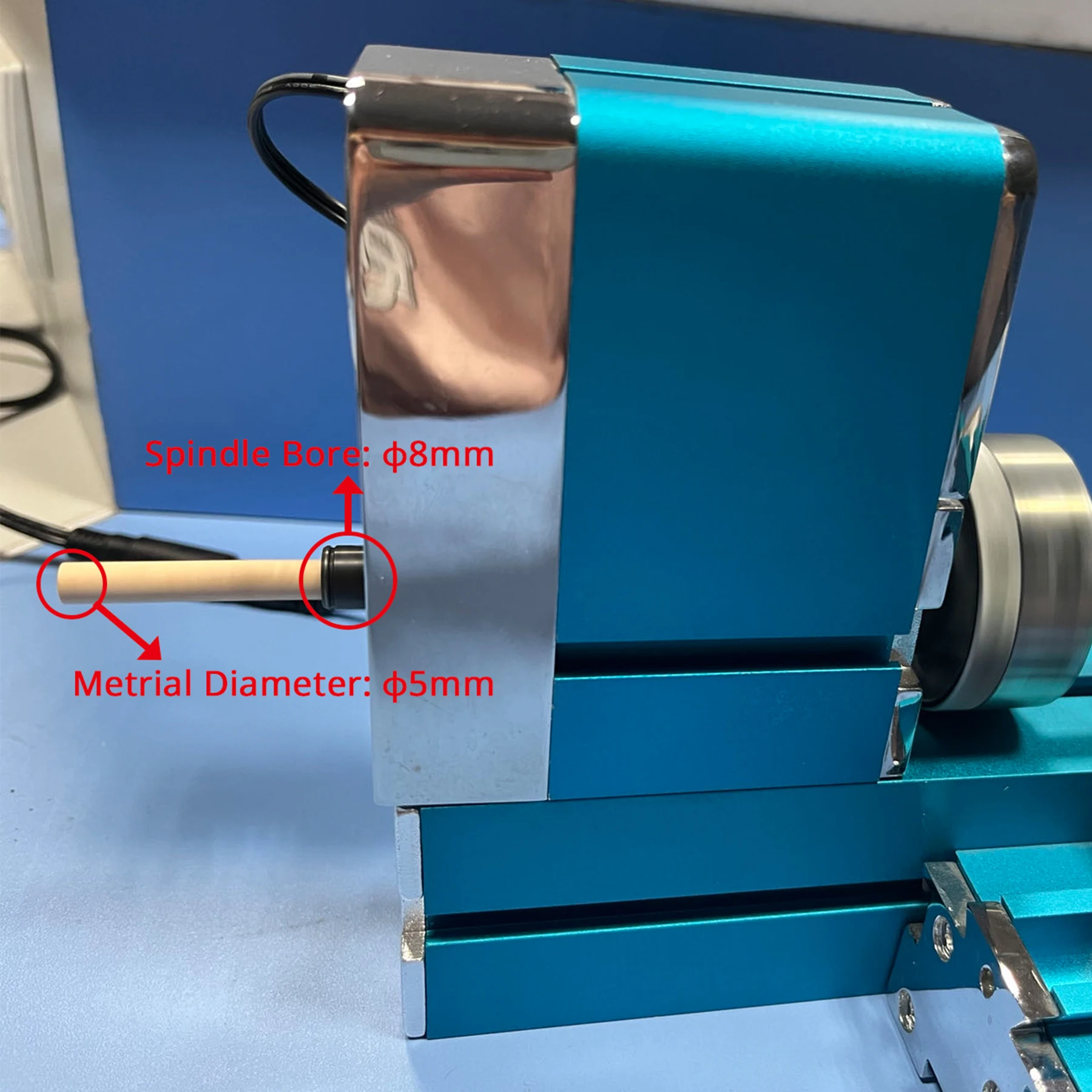

5.Q: What is the spindle bore size?A: The spindle has a through-hole of 8mm. This means you can feed bar stock up to 8mm in diameter directly through the headstock for longer workpieces, which is a key feature for efficient batch production.
6.Q: Is the spindle speed adjustable?A: This model operates at a fixed spindle speed of approximately 3000 RPM (within ±15% variance). This speed is optimally set for processing soft materials like wood, plastics, and non-ferrous metals with small diameter cutters, ensuring simplicity and reliability.
7.Q: What materials can I machine with this lathe?
​A: It is perfectly suited for:
​• Wood & Plastics
​• Soft Non-Ferrous Metals (e.g., pure aluminum, pure copper, brass).
​Important Note: When machining harder materials, the achievable depth of cut will be smaller. For optimal results and tool life, we recommend using sharp HSS tools and taking light finishing cuts on harder alloys.
8.Q: Can I replace the live center on the tailstock with a drill chuck?
​A: Absolutely. You can remove the live center and install your own. For convenience, we also offer a range of collets (sizes ф1, ф2, ф2.5, ф3, ф3.5, ф4, ф5, ф6mm) as optional accessories, perfect for holding small drill bits and end mills.
9.Q: Is this a manual or automatic lathe?
​A: This is a fully manual benchtop lathe. All movements (carriage, cross-slide, tailstock) are controlled by handwheels, giving you complete tactile control—an excellent way to develop fundamental machining skills and feel for the material.
10.Q: What is the maximum swing over the bed?
​A: The standard maximum swing (largest diameter workpiece that can clear the bed) is 25mm.
​Pro Tip: For machining larger diameters up to 45mm, we offer an optional "W006 Intermediate Connection Piece" (riser block). This accessory increases the center height, significantly expanding your lathe's capacity. Please contact us for details.
11.Q: Is lubrication required? How do I maintain it?
​A: Regular maintenance ensures longevity. Key points include:
​• Apply a small amount of light machine oil to the guide rails and leadscrew before each use.
​• Keep the chuck and spindle taper clean from dust and chips.
​• Periodically check and tighten any fasteners.
