KINGBOLEN Ediag Plus Thinkdiag 2 OBD2 Scanner Support CAN FD 16 Reset Bidirectional Control ECU Coding OBD2 Diagnostic Scanner

KINGBOLEN EDIAG Plus Bluetooth Diagnostic Scan Tool same Function as Thinkdiag2 scanner

Ediag plus and thingdiag 2 can work with diagzone app

About the Serial Number: The serial number only has 12 digits, like 988430XXXXXX, no letters.

EDIAG PLUS/THINKDIAG 2 Highlights:

1. Can work with DZ APP

2. CANFD+ FCA AutoAuth+ 134 car brands: EDIAG plus professional scanning tool supports most car models after OBD2 1996 of 134+ car brands, added CAN-FD protocol, which supports the latest for GM vehicles, and AutoAuth can unlock the protected FCA vehicle SGW module on for Chrysler, for Dodge, for Jeep, for Alfa Romeo, and Fiat vehicles manufactured after 2019.

3. All System Diagnose+Full OBDII Functions

4. Bidirectional Control/Actuation Test: Ediag plus car scanner diagnostic tool Features Full bi-directional control capability, to send commands to vehicle systems/components, to verify system input/output without using vehicle controls. Such as: turn on the radiator fan, adjust the throttle, open/close windows, operate mirrors, Injector Test, turn on interior & exterior lights, sound horn, test door lock actuators and so on.

5. ECU Coding: Customize your car, expand hidden features, or disable annoying features (turn off the rear beep, turn off the seat belt buzzer); Re-identify adaptive data for certain components after repairs or replacements. (Note: Do not support programming).

6. 16+ Powerful hot reset functions;

including OIL RESET.Steering Angle Calibration.Electronic Parking Brake Reset.Battery Register & Battery Maintenance.ABS Bleeding.Electronic Throttle Position Reset & Learn.Diesel Particulate Filter (DPF) Regeneration.Tire Pressure Monitor System Reset.Gear Learning.Anti-theft Matching.Injector matching.Air Suspension Reset. Gearbox Reset.Sunroof RESET.AFS Reset.EGR Reset

7. Supports AutoAuth for FCA SGW ;

Allows you to unlock protected FCA vehicle SGW module on for Chrysler, for Dodge, for Jeep, for Alfa Romeo, and Fiat vehicles manufactured after 2019 and perform diagnostics, such as read/clear codes, data stream, etc.(*Only provide AutoAuth login portal, and need purchase the registration number on the AutoAuth website by yourself.)

8. Supports 22 languages:

English .French . Spanish . German . Italian . Portuguese . Japanese 8. Russian . Polish . Traditional Chinese . Turkish . Greek . Korean . Hungarian . Dutch . Vietnamese . Arabic . Persian . Khmer . Lao . Burmese . Thai

9. other Hidden Features ;

Live Data Stream Graphing + Data Record+Print Vehicle Health Report Print +Feedback online +Vehicle owner community -Auto vin

10 . 1 Year Free Update online.

11 .Support IOS and Bluetooth.

Tips: Internet connection is recommended when using it. Some functions may not be available or diagnostic result error without connecting network.

EDIAG PLUS/THINKDIAG 2 is the update version of EDOAG/THINKDIAG !!!

The most significant difference between ediag/thinkdiag and EDIAG plus/thinkdiag 2 is CAN FD protocols. EDIAG plus/thinkdiag 2 has a built-in CAN FD protocol. It is the only product in this price range that is compatible with CAN-FD protocol and supports the latest GM vehicles manufactured after 2020. Thinkdiag 2 adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products, and reduces the risk of undetected errors to enhance the user experience significantly.

Ediag plus Added CANFD protocol , supports more cars .

Automotive OBD2 scanner is the only product in this price range that is compatible with CAN-FD protocol and supports the latest GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

Supports For Chevrolet Onix 2020-2021 year

Supports For Chevrolet Tracker 2020 year

Supports For Chevrolet Suburban 2021 year

Supports For Chevrolet Tahoe 2021 year

Supports For Buick

Supports For Cadillac Escalade 2021 year

Supports For Cadillac Escalade 2021 year

Supports For GMC Yukon 2021 year

Supports For GMC Yukon XL 2021 year

Supports For Holden

Supports For DAEWOO

Supports For Alpheon

Supports For Ravon

Supports For Pontiac

Supports For Saturn

Supports For Hummer

22 Languages:

English .French . Spanish . German . Italian . Portuguese . Japanese 8. Russian . Polish . Traditional Chinese . Turkish . Greek . Korean . Hungarian . Dutch . Vietnamese . Arabic . Persian . Khmer . Lao . Burmese . Thai

Languages are being added, stay tuned...

Full system Diagnosis:

KINGBOLEN Ediag plus obd2 scanner supports reading all vehicle systems (including ENG, ABS, SRS, ABS, AFS, EBD, TCS, chassis, body and electrical and electronic equipment system, etc.) error code, cleaning code, read data flow, freeze frame. It can also perform all the commands that a mechanic needs to know if the product problem is caused by the car's electrical wiring or car components.

Advanced diagnostic function:

ECU Coding(Online/Offline Coding):

Online Coding: The corresponding configuration of each chassis number of Volkswagen will be recorded in the server. Through online coding, the correct vehicle code can be provided to ensure the normal use of the function. Compatible for Volkswagen/for Audi;

· Offline Coding: Compatible for Volkswagen/for Audi/for Mercedes/for BMW/for Land Rover/for Jaguar/for Porsche;

· Unlock the hidden functions: To activate or disable some functions ;

· Match/Initialize components adaptive data after replacing some components.

· Programmable Module Installation:This function is used to match new module data. When replacing the ECU with a new module, copy the recorded data of the original vehicle module into the new module to code the new module,which is compatible for Ford/for Lincoln/for Mazda.

Active Test (Bi-directional control)

The advantage of Ediag Plus is that it supports full bi-directional control capability to send commands to the vehicle's systems/components to verify system inputs/outputs without using the vehicle controller. like Shutter Grill Relay Test, Low-Pressure EGR Actuator Test, High-Pressure EGR Actuator Test, Intake Pressure Control Valve Actuator Test, Low-Pressure EGR System Test, Low-Pressure EGR Differential Pressure Sensor Test, 2 stages turbocharger boost test, VTEC low V/T check, Compression Test, IMT (IMRC) test, VTEC Test, VTEC(VCM) Test.

Support 16+ Maintenance Functions:

1.Oil Reset Service

2.Steering Angle Calibration

3.Electronic Parking Brake Reset

4.Battery Register & Battery Maintenance

5.ABS Bleeding

6.Electronic Throttle Position Reset & Learn

7.Diesel Particulate Filter (DPF) Regeneration

8.Tire Pressure Monitor System Reset

9.Gear Learning

10.Anti-theft Matching

11.Injector matching

12.Air Suspension Reset

13. Gearbox Reset

14.Sunroof RESET

16.AFS Reset

16.EGR Reset

Support 10 OBD2 Full Function

This diagnostic software can test vehicle Engine systems.All models with engine meeting SAE J1850,ISO9241-2,ISO14230-4,ISO15765 Standard in OBD2&EOBD.

1.View freeze frame date

2.support graph data stream

3.O2 Sensor test

4.Evap system test

5.On-Board monitor test

6.Read & Clear DTCs

7.Identify VIN information

8.DTC code look up

9.Turn off MIL(Malfunction Indicator Lights)

10.I/M Readiness status test

4 Data display in 1 Graph

EDIAG PLUS will Read vehicle’s live data, and present by graph. Optional combination of multiple data.

Auto Scan Car VIN Code

EDIAG PLUS can automatically scan the car's information, include VIN number, release year, model and engine type.

Print the vehicles report

Support do a OBD vehicles diagnostic report, and print the vehicles report from pc it help you to understand car's problem.and make you know how to repair car.

Support ISO and Bluetooth and Android

What's More?

1.Auto Detect car's vin in 1o seconds

2.Support printed car health report

3.Remote Diagnosis

4.Community support

How to Operate EDIAG PLUS When get ?

Step 1 : Download App from Google play / App store

Step 2 : Register & Login

Step 3 : Active ediag plus ( the serial number is in the back of it , the password is in the white sticker in manual book )

Step 4 : Go to download All softwares

Step 5 : Connect ediag plus to car , go to read the VIN , it will diagnose !

Support 95% Car Modles (Cover 134 Brands, and Counting)

For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with following protocols:

-ISO 14230-4 (KWP2000)

-ISO 15765-4 (CAN)

-ISO 9141-2 (iso)

-ISO 14229 (uds)

-SAE J1850 (VPW & PWM)

-Original protocols of makers

For advanced functions as active test, all system diagnostics, and maintenance service, it covers 95% of car models available in the market including:

-Asia:

for D-aewoo, for H-oda, for JP Isuzu, for K-ia, for M--da, for Mit-subishi, for N--an, for SGM, for Su-baru, for S-uzuki, for T-o-ta,for H-undai, for Ssa-ngyong

-Europe:

for A-ston Martin, for A-di, for B--z, for B-W, for C-itroen, for F--rrari, for F-at, for L-and Rover, for M-aserati, for O-pel, for P-rsche, for can clip, for R-ver, for Sa-ab, for S-eat, for S-koda, for S-mart, for Sprinter, for V*-o, for V-W, for P-eugeot

-America:

for Chrysler, for USA-F--d, for G-M

And keep updating.

Parameter :

Bluetooth: hardware supports 5.0BLE, Bluetooth dual mode

Diagnostic interface: DB15

Working voltage: 12V

Working temperature: -10℃~50℃

Storage environment: ﹣20-60℃

Overall size: 120.5mm*65mm*29mm

Shell material: ABS+PC+TPU rubber sleeve

Lenth of obd Cable : 0.65 meter

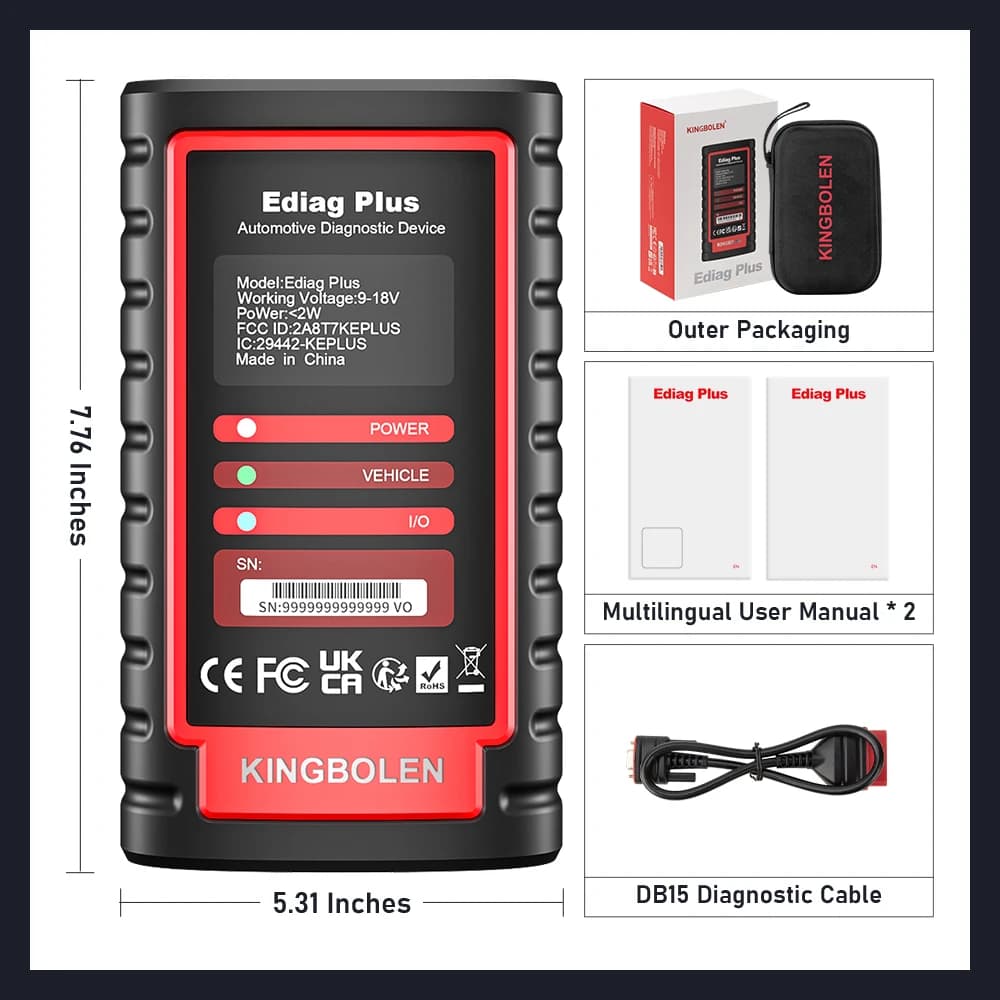

Packing List

1.EDIAG PLUS OBD2 Scanner

2.User Manual

3.OBD2 Diagnostic Cable

4.EVA Storage Bag
