Active Equalizer Balancer 5A 3S 4S 5S 6S 7S 8S 14S 16S 17S 18S 19S 20S 21S Lifepo4/Lipo/LTO Battery Energy Capacitor
45.11$
16.1$
Quantity:
1
Availability:
Color
Ships From
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Feature

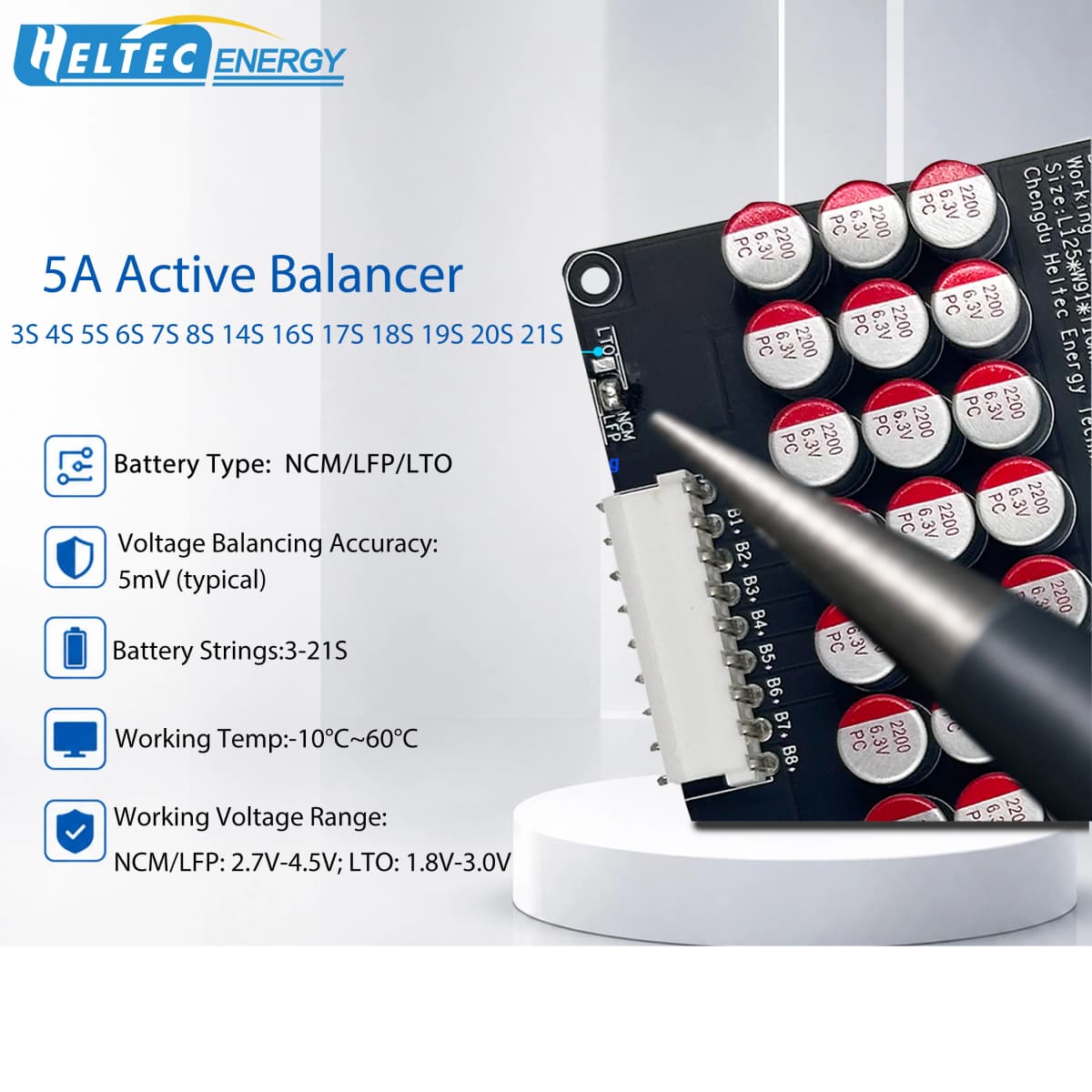

Technical IndexProduct Model (SKU by default):0855A/1004A/0877A/1400/0999A16/1323

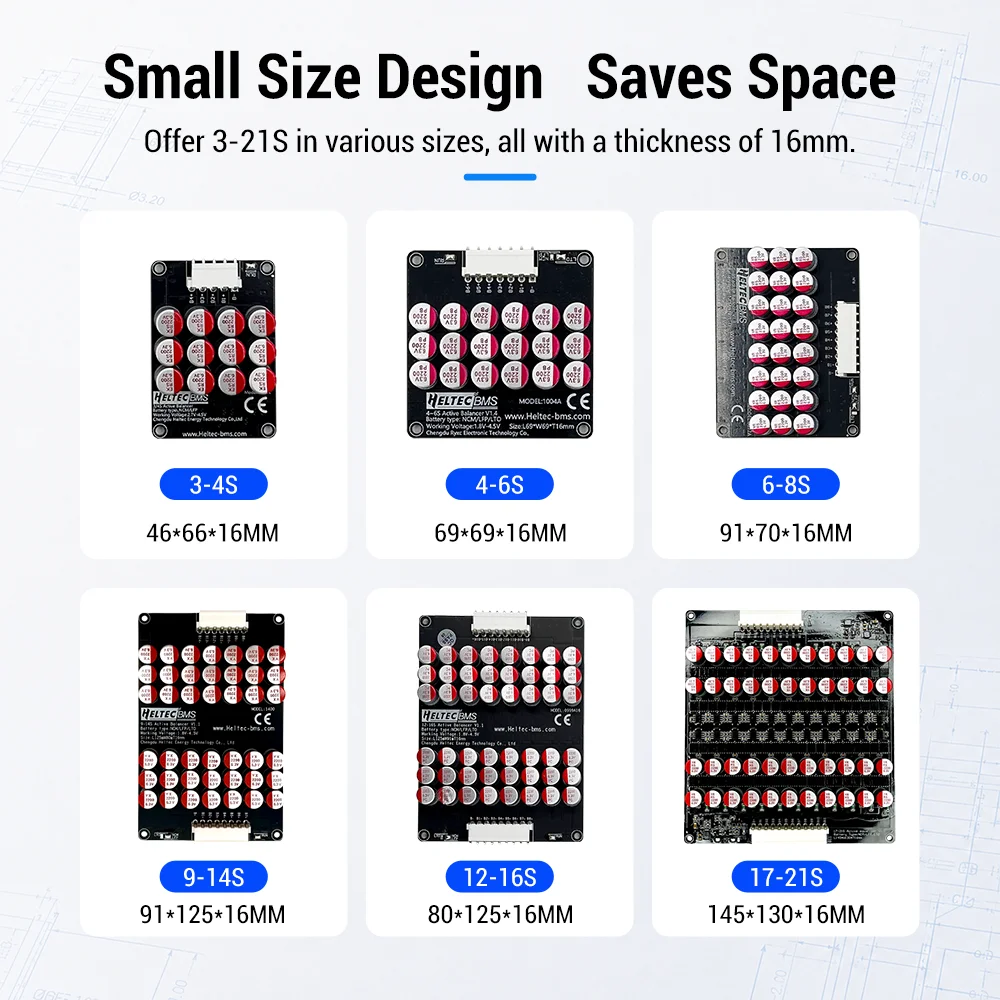

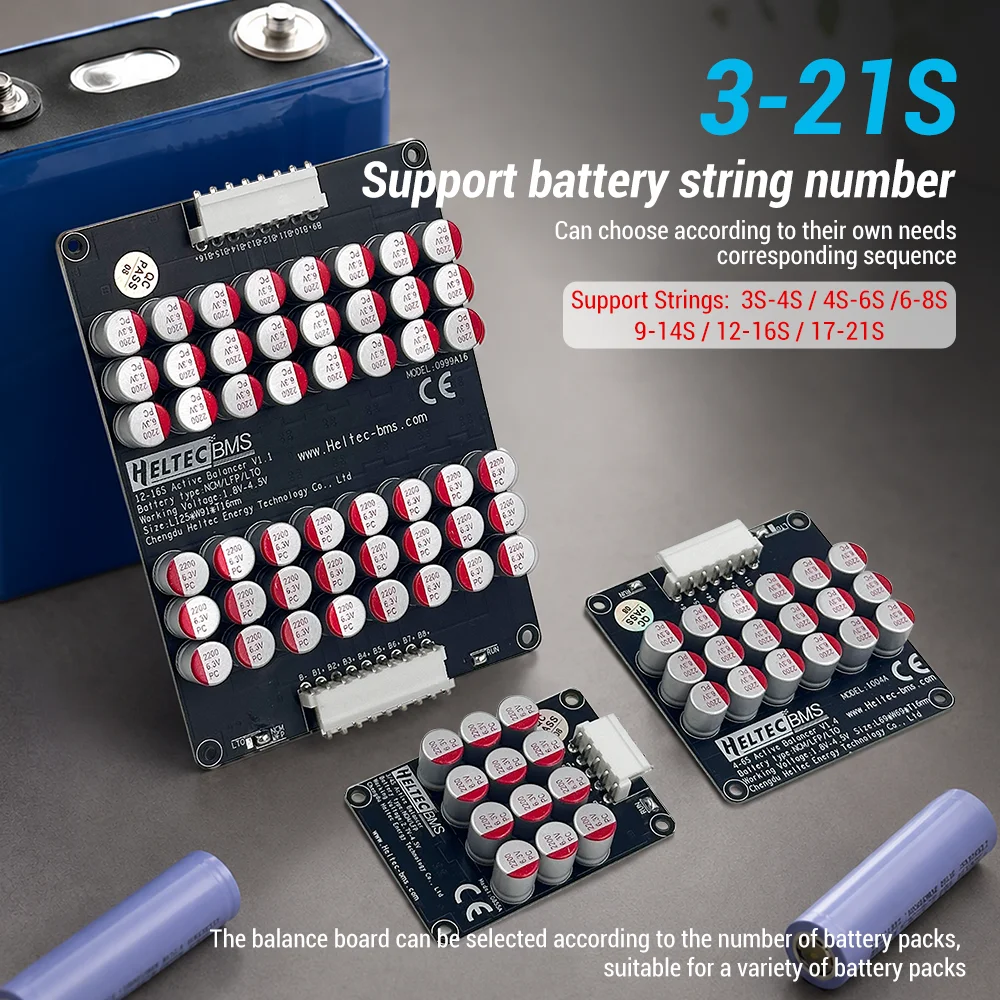

Battery Strings:3S‑4S/4S‑6S/6S‑8S/9S‑14S/12S‑16S/17S‑21S
Battery Type:NCM/LFP(3-4S) NCM/LFP/LTO
Working Voltage Range:NCM/LFP: 2.7V‑4.5V; LTO: 1.8V‑3.0V

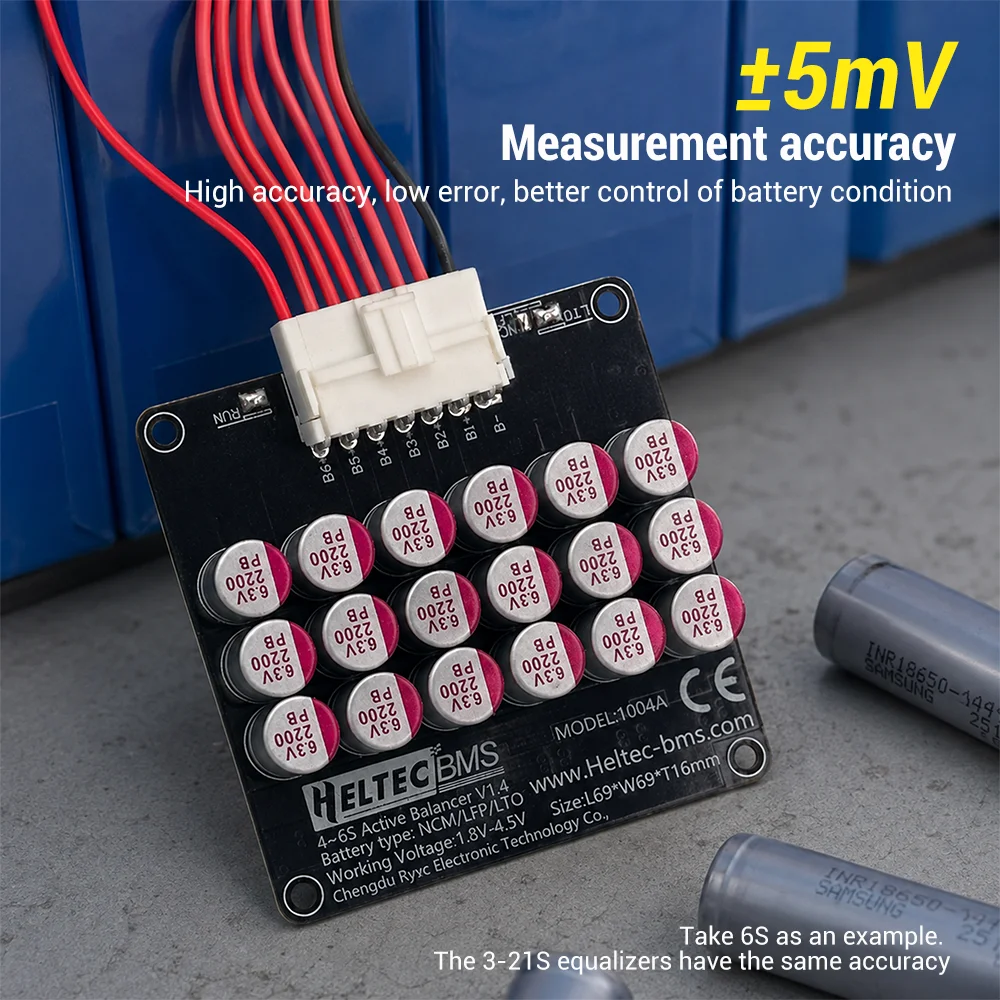

Voltage Balancing Accuracy:5mV (typical)
Balance Mode:The whole group of battery participate in the active equalization of energy transfer at the same time
Balancing Current:0.08V differential voltage generates 1A balance current. The maximum allowable balance current is 5.5A.
Static Working Current:13mA/8mA/8mA/15mA/17mA/16mA
Working Temp:‑10℃~60℃
External Power:No need for external power supply, it relies on the internal energy transfer of the battery to achieve the whole group balance.
