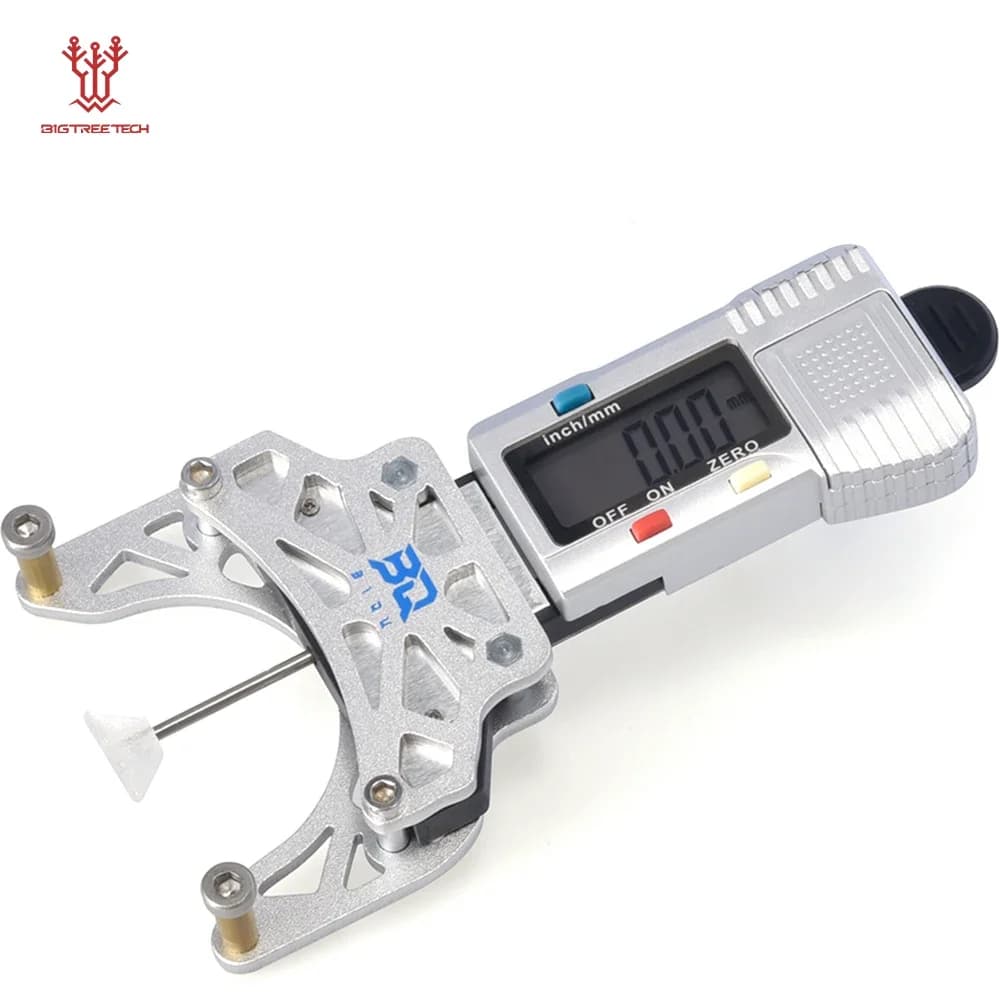

BIGTREETECH Belter Belt Tension Tool Digital Display Electronic Sensor Belt Elastic Tensiometer For Voron VZBOT LDO Motor S2DW

Why Belter？

High Precision

Digital Display

User-Friendly

Calibrate Belt Tension with Detailed Precision.Not Guesswork

Achieve accurate measurements effortlessly across all belts, making adjustments smoother and more convenient.

Intuitive Digital Readout

Provides clear and easy-to-read tension readings.

Precision Engineered

Lightweight-designed aluminum alloy bracket to produce accurate results.

Single-Hand Operation

Features a custom single-hand operation model for quick and hassle-free belt tension measurment.

Step 1

1. Engage Zero.

2. Grip the printed model with both your index and middle fingers.

3. Use your thumb to press the middle push lever, extending the standoff.

4. Insert the standoff into the toothed side of the belt.

5. Release your thumb; the probe will touch the belt surface automatically.

6. The value displayed is the belt tension.

Step 2

Repeat steps for the second belt.

Step 3

Compare Data

A larger value indicates a looser belt, while a smaller value indicates a tighter belt.

Step 4

Provide a table of Belter value-tension converters to assist users in converting readings into belt tension (N).

Parameters

Material: Aluminum Alloy Oxide Sandblasting

Unit Switching: inch/mm

Power Source: 1x CR2032 3V Button Battery (Included)

*Please download the Model and Tension Calculator table files from: https://bttwiki.com/belter.html
