GODIAG GD101 J2534 Diagnostic Cable Support J2534&ELM327 Diagnose J1979 Compatible Vehicles for Toyota/ Honda Acura/Ford/Mazda

GODIAG GD101 J2534 is a device that works between diagnostic software and vehicle. It is compatible with J2534 Passthru and ELM327

Highlights:

1. Support J2534 and ELM327 mode in one device. Switch mode automatically.

2. More speedup. Faster communication and reprogramming.

3. More stability. Never let you down while reprogramming.

4. Portable and convenient. Small package and easy to carry.

Product Functions:

1. Support most all of J2534 compatible software (HDS, TIS, JLR SDD,...).

2. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster...).

3. Support ECU reprogramming in J2534 mode with programming voltage.

4. Supply free software for diagnosing J1979 compatible vehicles.

5. Support Windows 8/10/11, 32/64bit

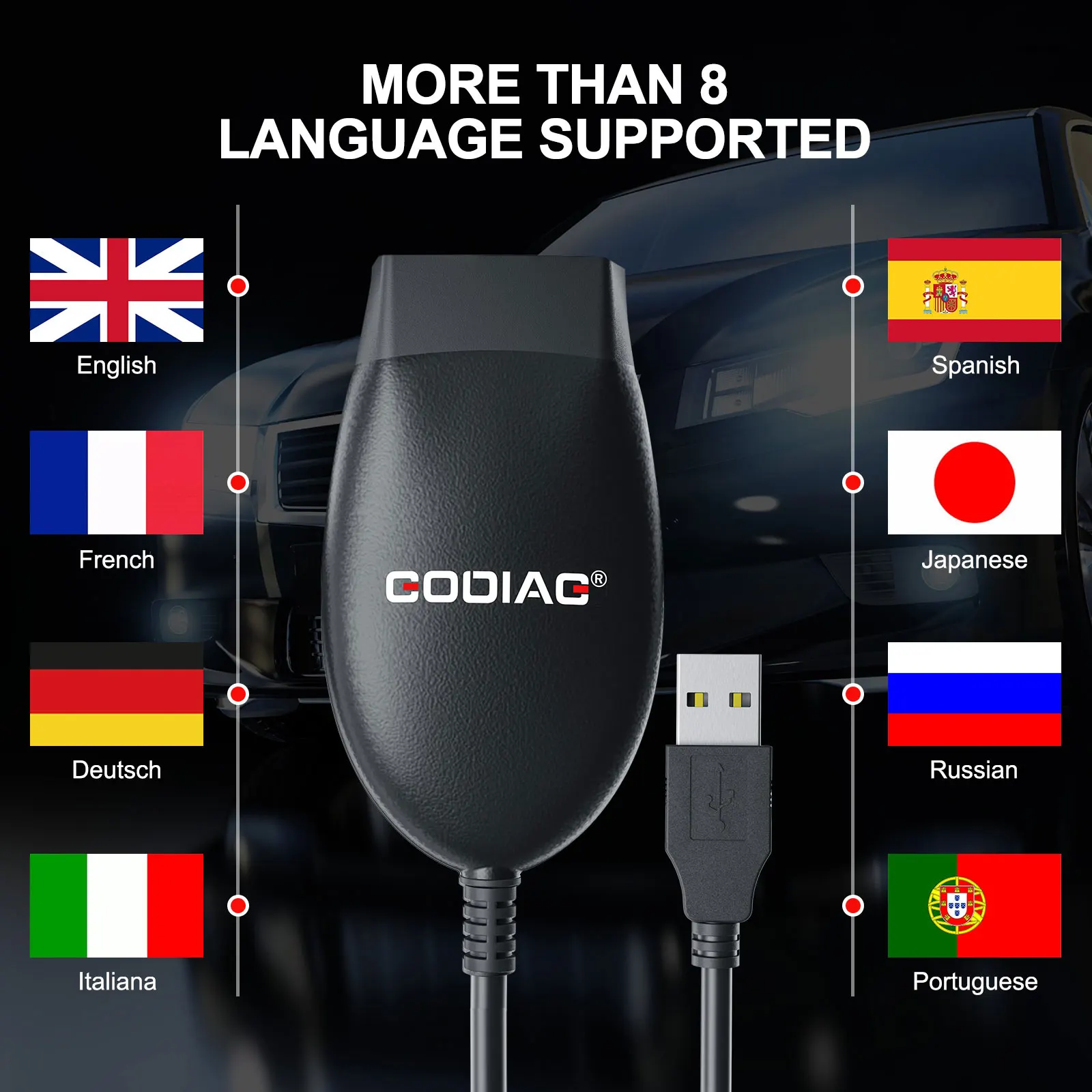

6. Supported languages:

for ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,

Russia, Greece, Chinese

for Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese

for Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese

for JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean

for Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian

for Scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian

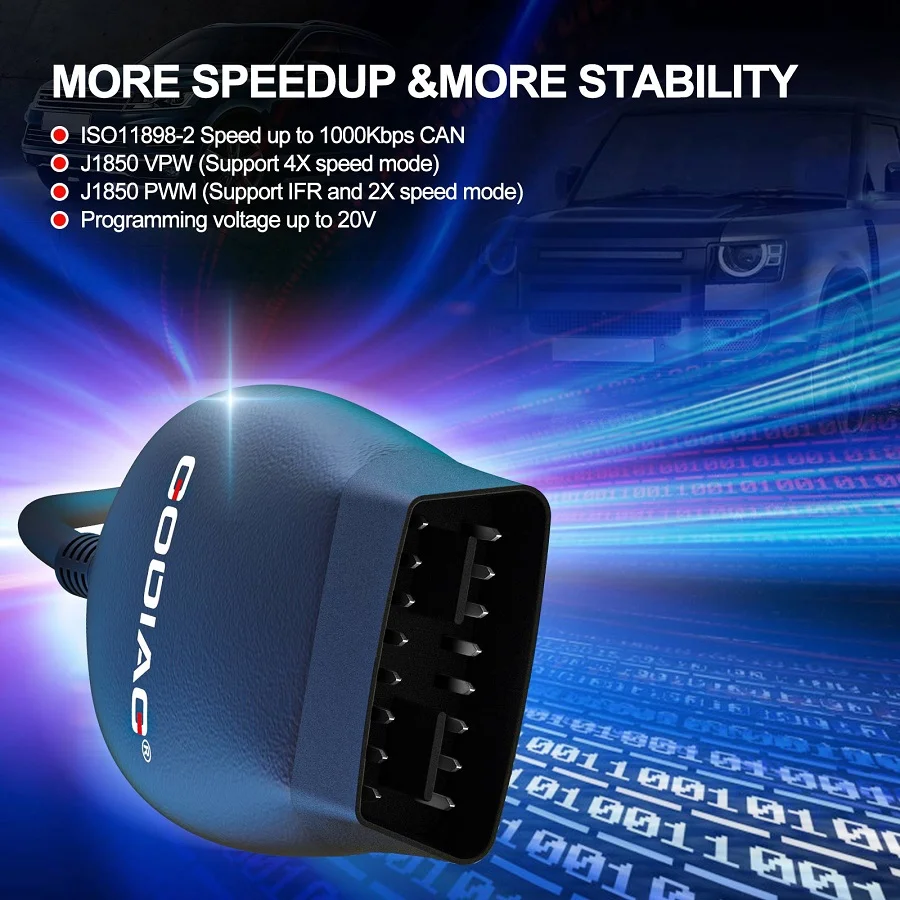

GODIAG GD101 J2534 Protocol Configuration:

1. ISO15765 (Standard/Extended frame).
2. ISO9141.
3. ISO14230.
4. J1850 PWM (Support IFR and 2X speed mode).
5. J1850 VPW (Support 4X speed mode).
6. Programming voltage.
7. Short to ground.
8. ELM327 with command set version 1.5a

GODIAG GD101 J2534 Hardware Configuration:

1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
3. J1850 PWM (OBDII PIN 2 and PIN 10).
4. J1850 VPW (OBDII PIN 2).
5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).
7. Dimension(L*W*H): 95mm*55mm*23mm
8. Environmental:-20℃-45℃(-4℉-113℉)
9. Vehicle voltage requirements: 8-18V DC

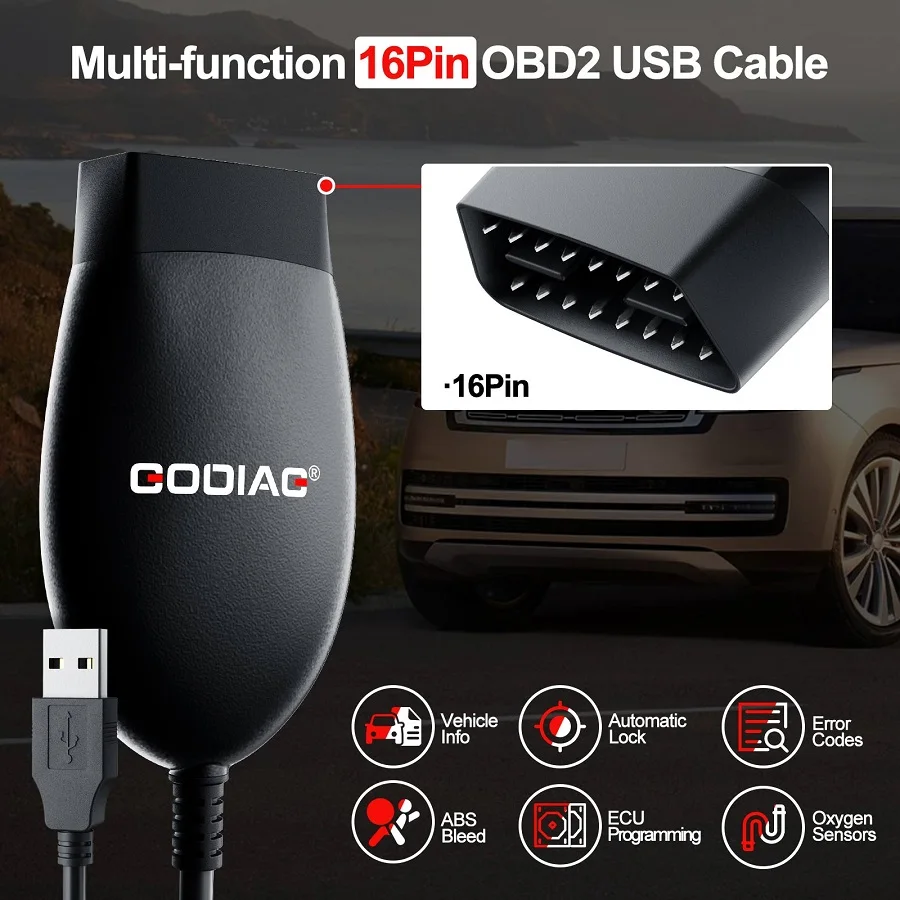

10. Vehicle connection: Molded DLC3(OBDII-16)
11. Host connection: USB 2.0

Package Includes:

1pc x GODIAG GD101 J2534
