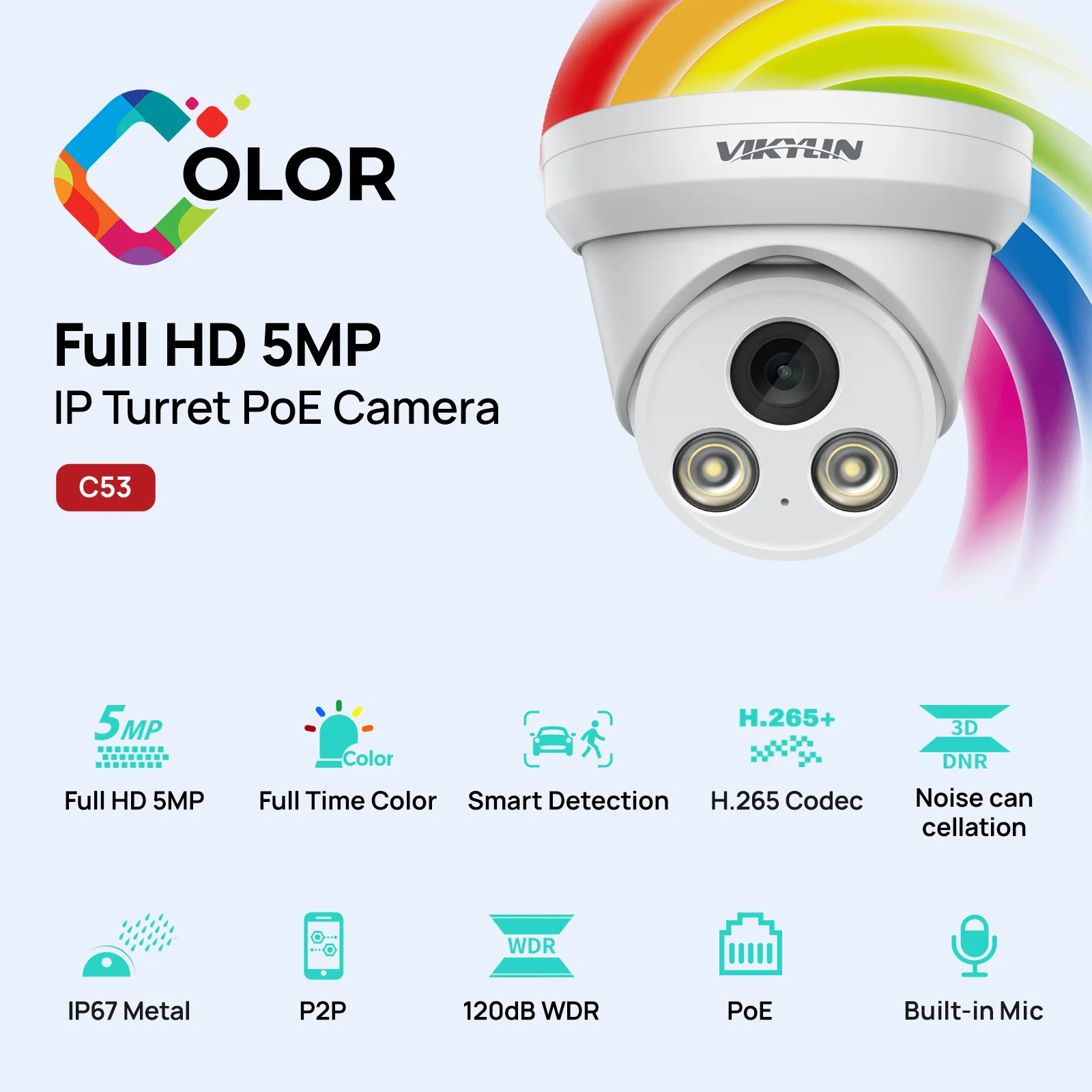

VIKYLIN 5MP Full Color IP Camera Outdoor POE H.265 Onvif Wide Angle 2.8mm AI Humanoid Detection Home CCTV Surveillance Camera

Customer Support

Specifications:

*5MP realtime resolution 2880x1620@25fps
*Warm Light range to 30m(98ft)
*Support Alarm Snapshot to Email, FTP
*Motion Detection, Human & Vehicle detection
*1/3" Progressive Scan CMOS
*H.265 &H.265+&H.264
*Built-in Mic
*Metal, POE, IP67
*Weight： 0.510kg

Full Color 24/7 Monitoring

When daylight is out, the colorvu camera with built-in LED lights continues to record in full color. This will bring more visual details that help identify people and cars than black-and-white videos.
Using F1.0 large aperture lens, the amount of incoming light isgreatly increased up to 4 times. With wide dynamic and backlight compensation technology, it can output HD images and restore the real scene.

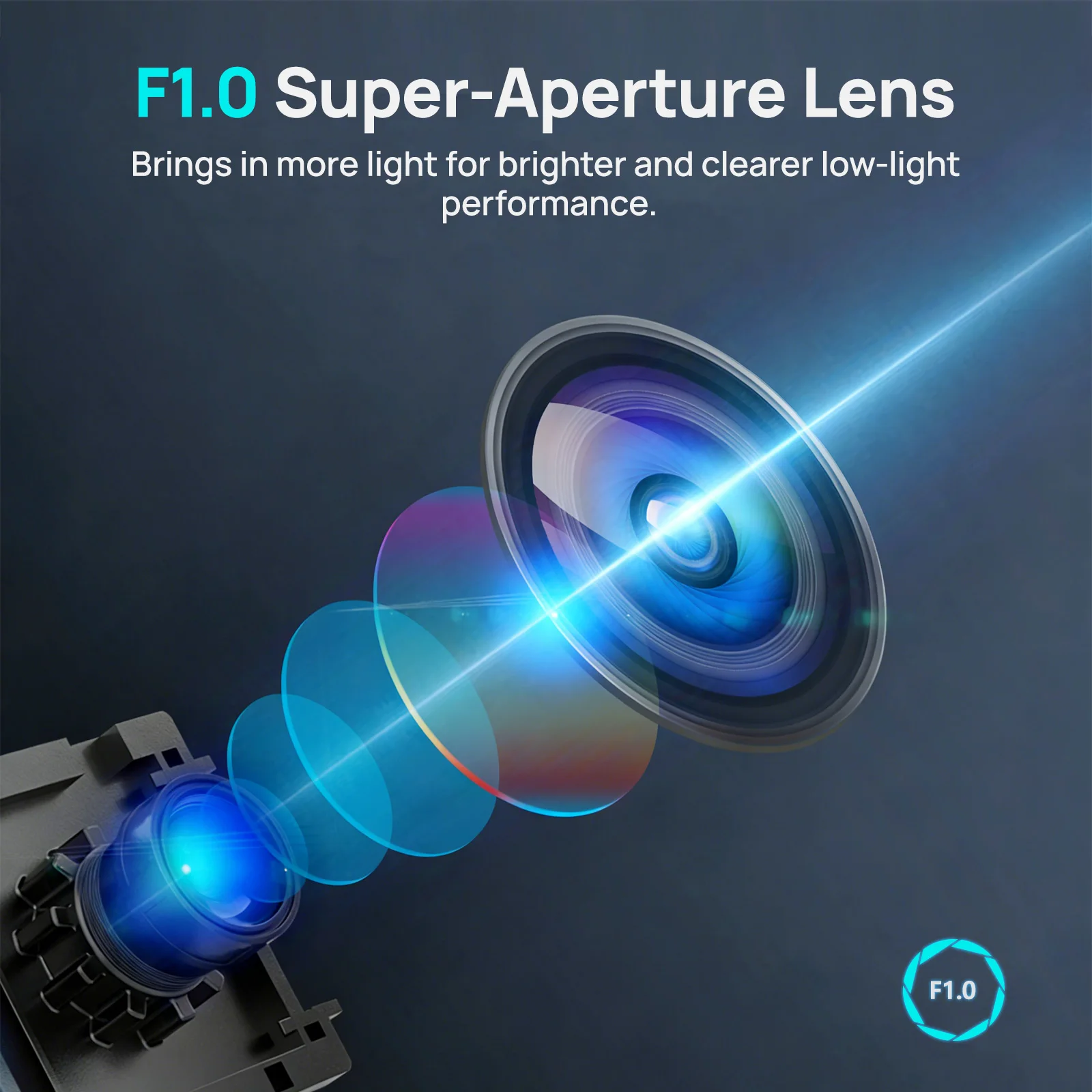

F1.0 Super-Aperture Lens

Brings in more light for brighter and clearer low-light performance.

Smart Human & Vehicle Detection

Triggers alerts for moving objects in monitored areas; also supports human and vehicle detection.

Built-in Microphone

Delivers real-time clear audio for comprehensive monitoring.

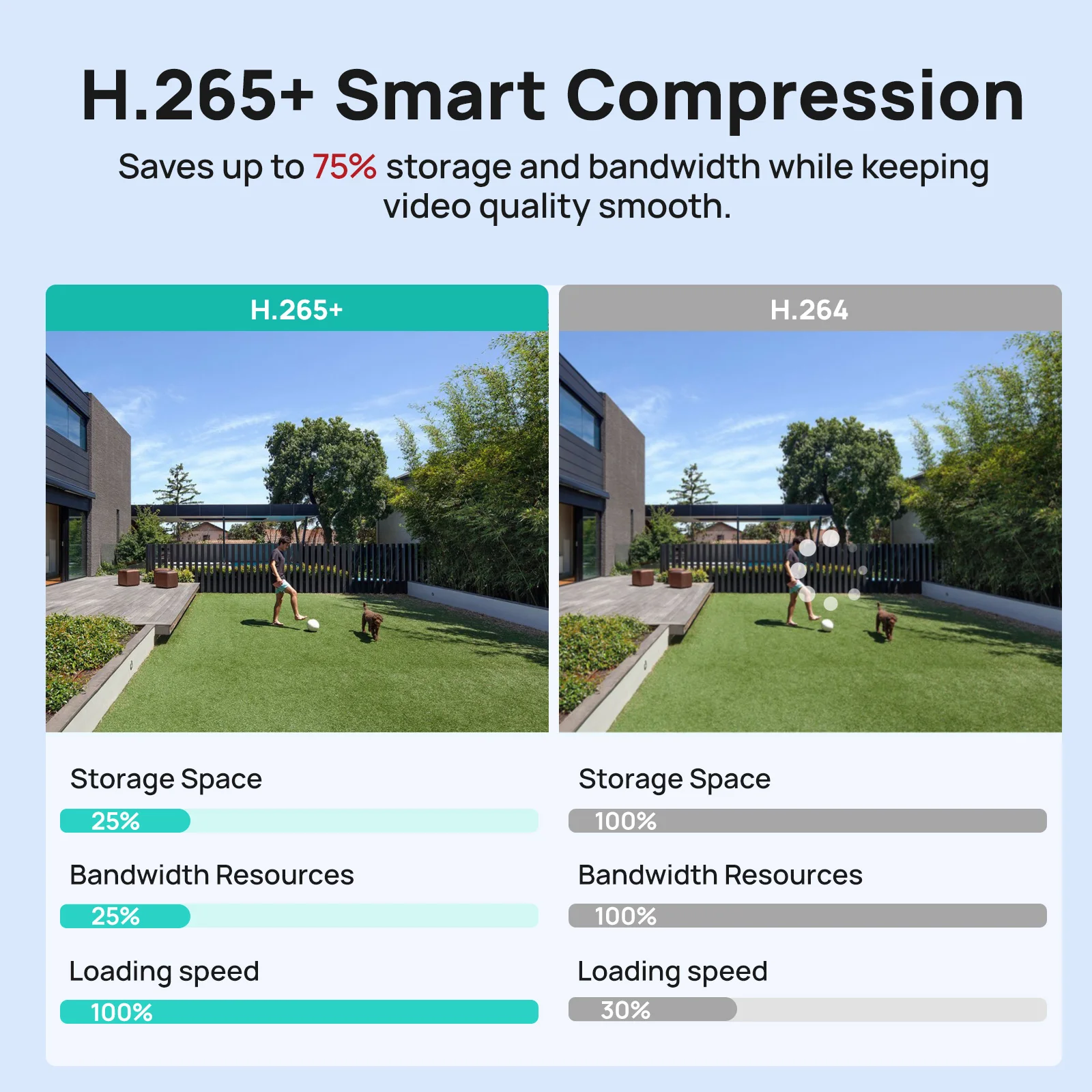

H.265 Smart Compression

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Easy PoE Installation

The PoE security IP camera uses a single cable to transmit both data and power. Simplified wiring means easier and clean installation. It is the best choice for DIY enthusiasts.

3DNR Enhanced Clarity in Low-Light Situations

Your camera uses DNR (Digital Noise Reduction) technology to filter out noise from low-light settings as well any noise caused by motion. By eliminating graininess, your camera provides a cleaner, more accurate image with better clarity, sharpness, and improved motion detection, enhancing your HD experience even in the dark! Not only does DNR reduce noise, but it reduces video file sizes as well, giving you greater disc space for storage.

WDR (Wide Dynamic Range) technology: Using short shutter exposure in the background area, and enabling.Using a long shutter exposure to generate a composite image can not only reveal the details in the dark areas of the image, but also prevent the bright areas from being overexposed. Wide dynamic range
The state-of-the-art technology can achieve clearer and more vibrant images than the backlight compensation technology.

BLC (Backlight Compensation) technology: It allows the camera to find the reference brightness for capturing the best image, and then automatically provides an appropriate amount of light compensation to help users identify objects with strong backlighting effectively. Backlight compensation is often effective for specific areas of the target image.

HLC (Highlight Compensation) technology: It detects the presence of bright spots and then applies appropriate suppression to the bright areas to obtain a clear image. This function is useful for reading license plates at night.

IP67 Weatherproof

The IP67 protection rating provides excellent protection for your equipment. Whether it's a dusty environment, an accidental splash or even a short immersion, there's no need to worry.

Durable Metal Housing

Delivers superior strength, impact resistance, and long-lasting
outdoor reliability.

Motion Detection

Alerts for activity in monitored areas.also support human/verhicle detection.

SUPPORT ONVIF

Works with most ONVIF-based NVR systems on the market.

Warm Light VS Harsh White Light

See the Difference,Feel the Comfort.

4 Programmable Privacy Masks

Help comply with privacy regulations and shield sensitive areas.

Engineered for Blue Iris& VMS

POE Connection, Don't need Power Supply,No POE need USE 12v Power

A real play and plug security! It features POE (Power over Ethernet), with a single cable connecting each IP camera to the NVR for both power supply and video and single transmission. Easy wiring - the wiring process can't be simpler for DIY enthusiasts and beginners

Connection Method

Package list

Frequently Asked Questions:

1.Why can’t I open the default IP address 192.168.1.110 via web browser ?
​
​A:The default IP address may not match your LAN’s IP scheme. Check your
​computer’s IP address before accessing the camera. If the IP address does not match
​the 192. 168. 0.x scheme, please install the IP search tool from the download website
​to modify the camera’s IP address. Make sure the IP address of the camera matches
​the LAN IP scheme. For example, if the your LAN is 192. 168.1.xxx（192. 168.2.xxx）...,
​ then set the IP camera to 192. 168.1. 123（192. 168.2.123）... and so on.
​For details about how to change the IP address, please refer to 3.1
​
​2.How to reset the password ?
​A:The default Username: admin, Password: 123456. If you lost the password or want to
​reset the camera’s setting, please install the search tool Ajdev to search the
​camera IP and click Batch Reset button.
​
​3.How to upgrade the IP camera ?
​A:①Ask the supplier for the suitable firmware.
​ ②You can use the web browser, Ajdevtools, or PC client to upgrade the camera.
​③Go to the Configuration > System >update, click browse and select the firmware,
​then click Upgrade button and wait for the operation to complete.
​
​4.How to fetch the RTSP video stream and http snapshot ?
​A:①Main Stream : rtsp://admin:123456@IP address/stream0
​②Sub Stream: rtsp://admin:123456@IP address/stream1
​③Main stream snapshot：
​http://192.168.20.131/snapshot.cgi?stream=1&username=admin&password=123456
​④Sub Stream snapshot：
​http://192.168.20.23/snapshot.cgi?stream=0&username=admin&password=123456
​
​5.Why does the NVR not show image after adding your IP camera ?
​A:①Make sure you selected the right protocol and enter the correct username and
​password when adding the cameras
​②Make sure the NVR and IP camera are the same IP segement.(eg. NVR:192.168.1.x,
​and IP camera:192.168.1.y).
​③Try changing the camera encode mode to H.264 if the NVR can’t support
​H.265. (Configuration -> Camera -> Video > Encode mode: H.264)
