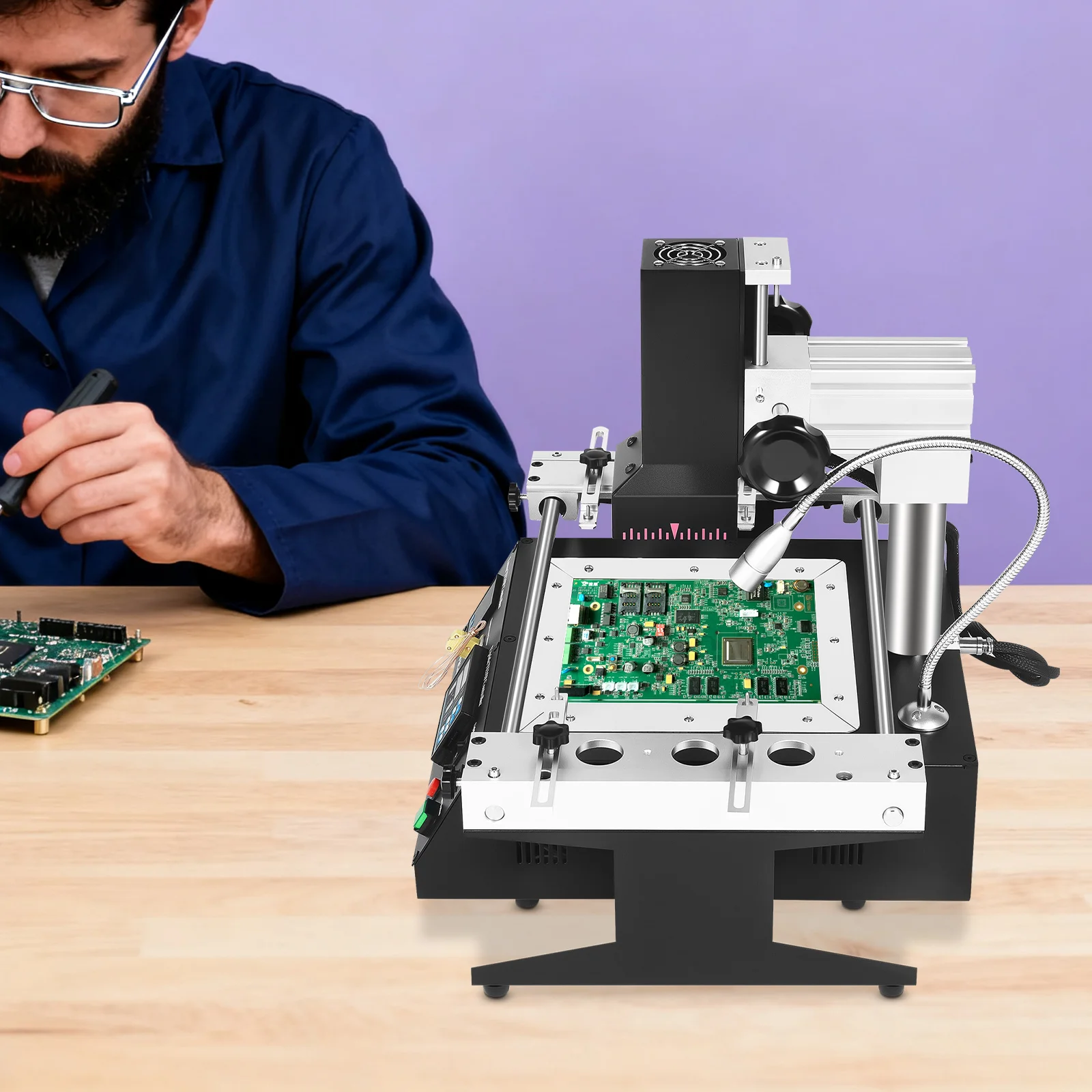

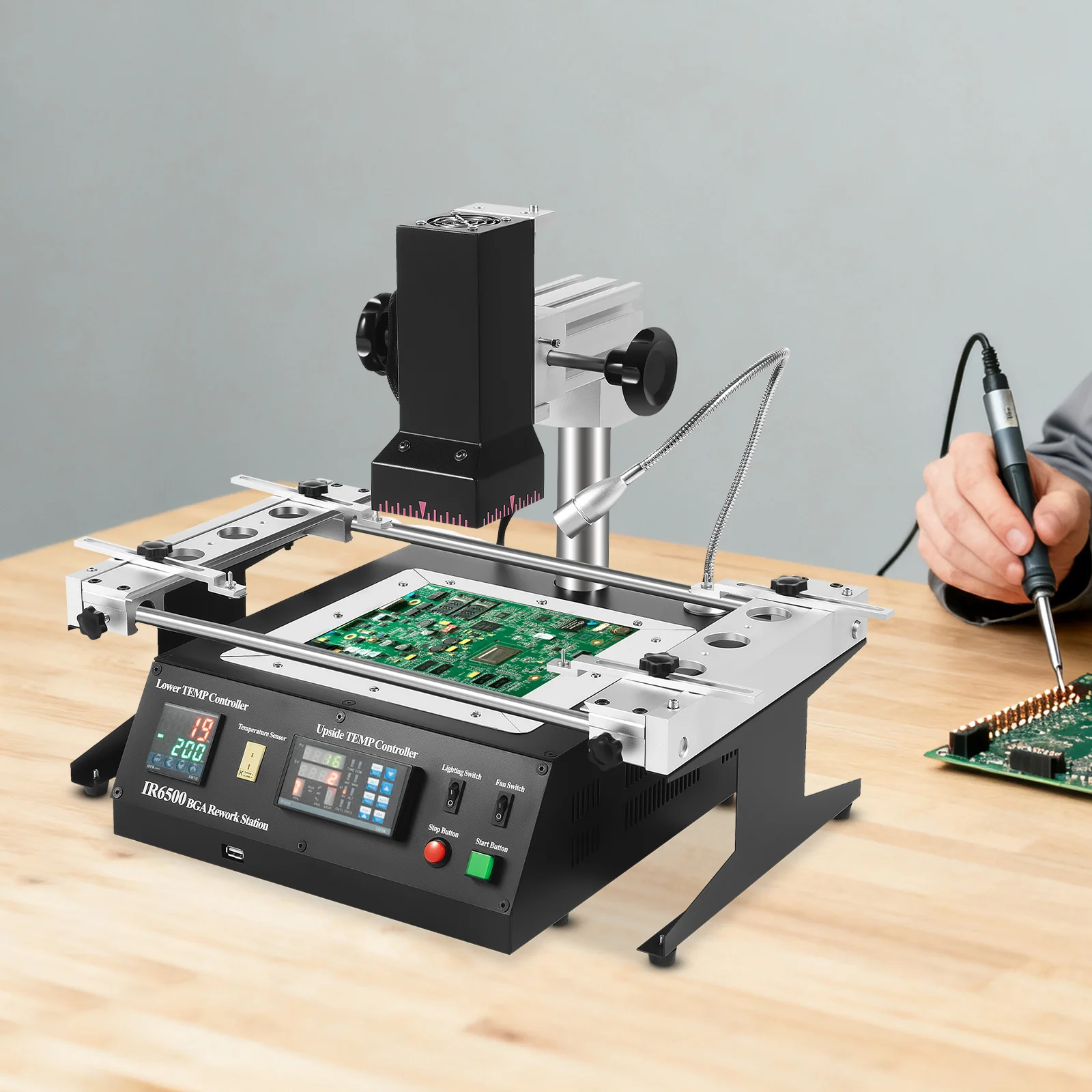

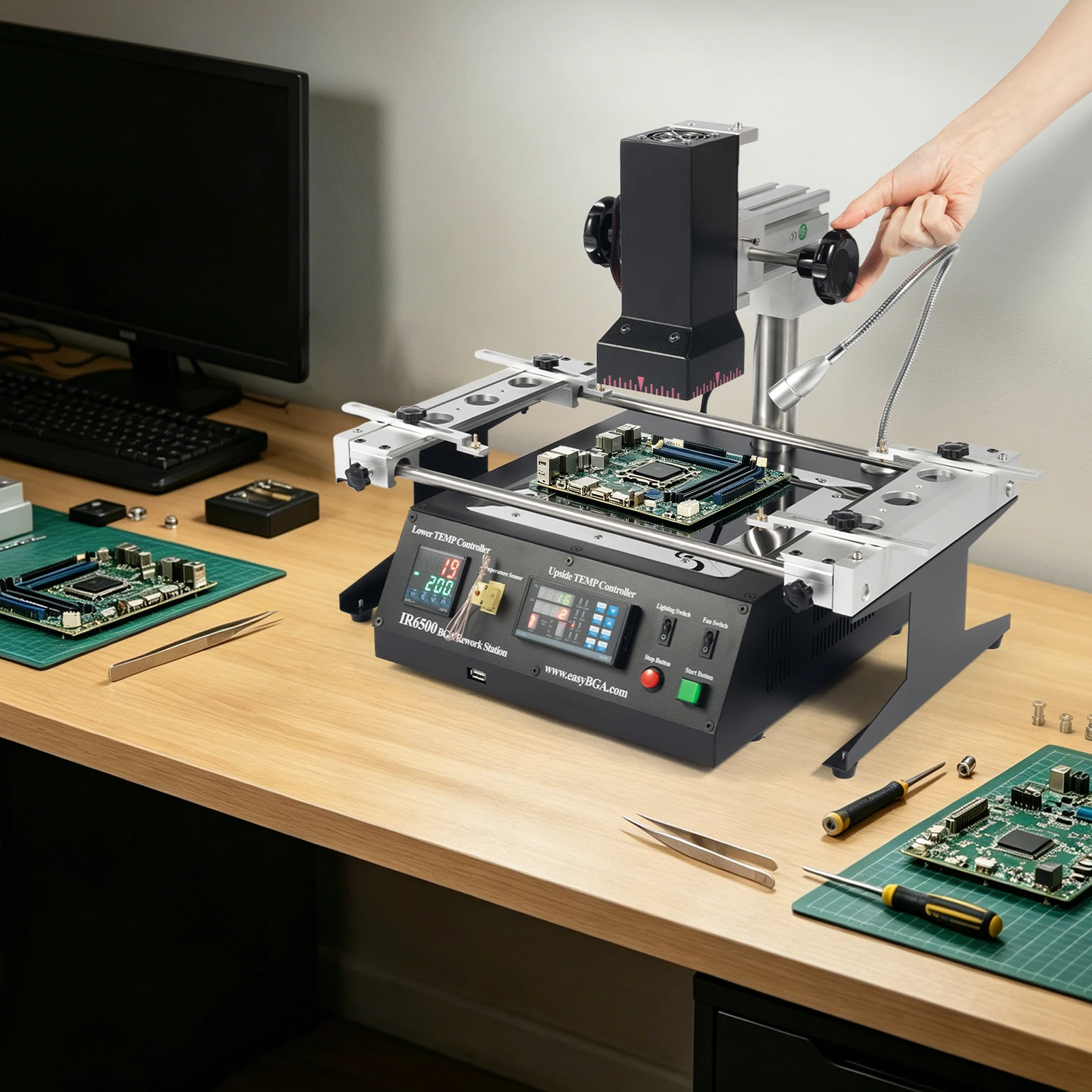

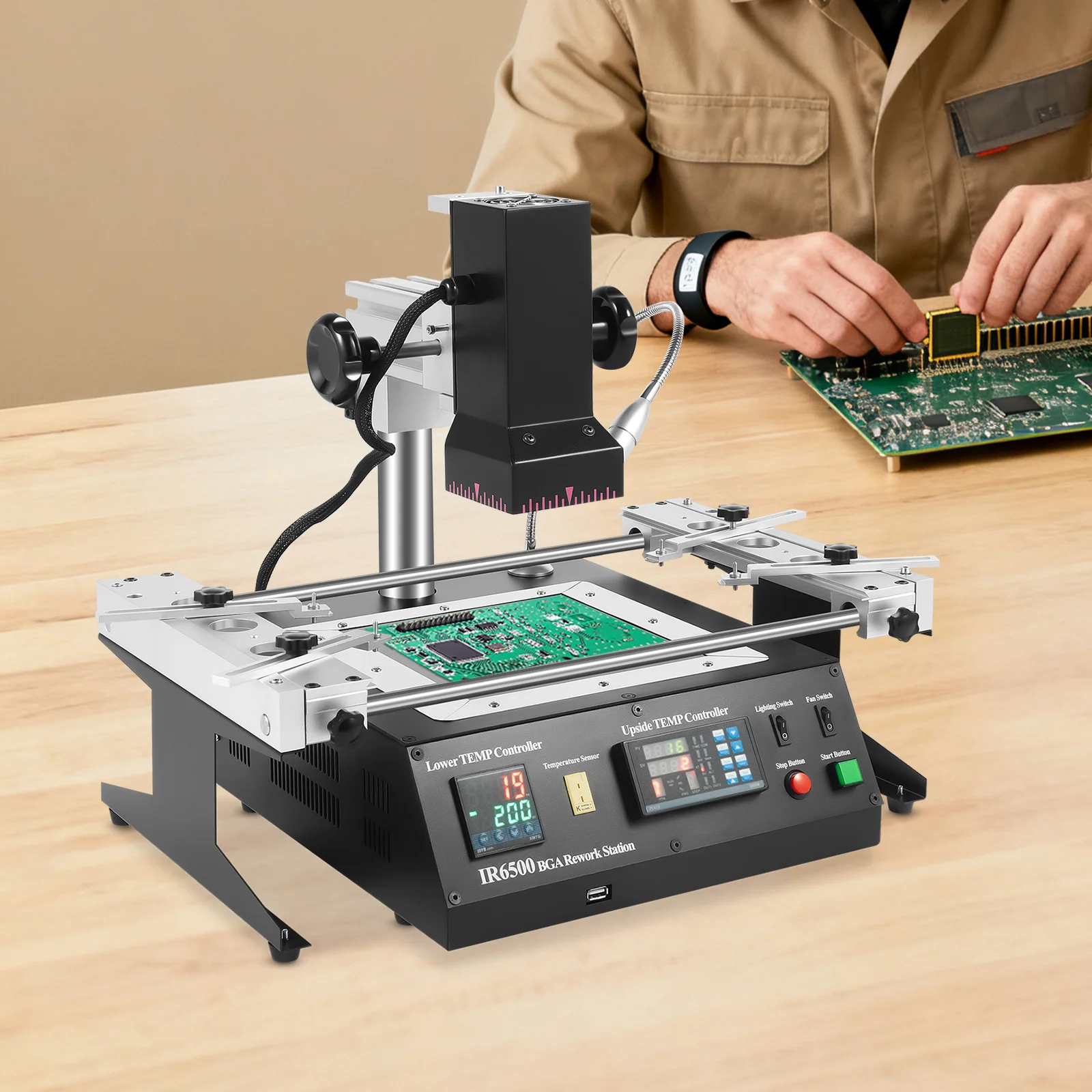

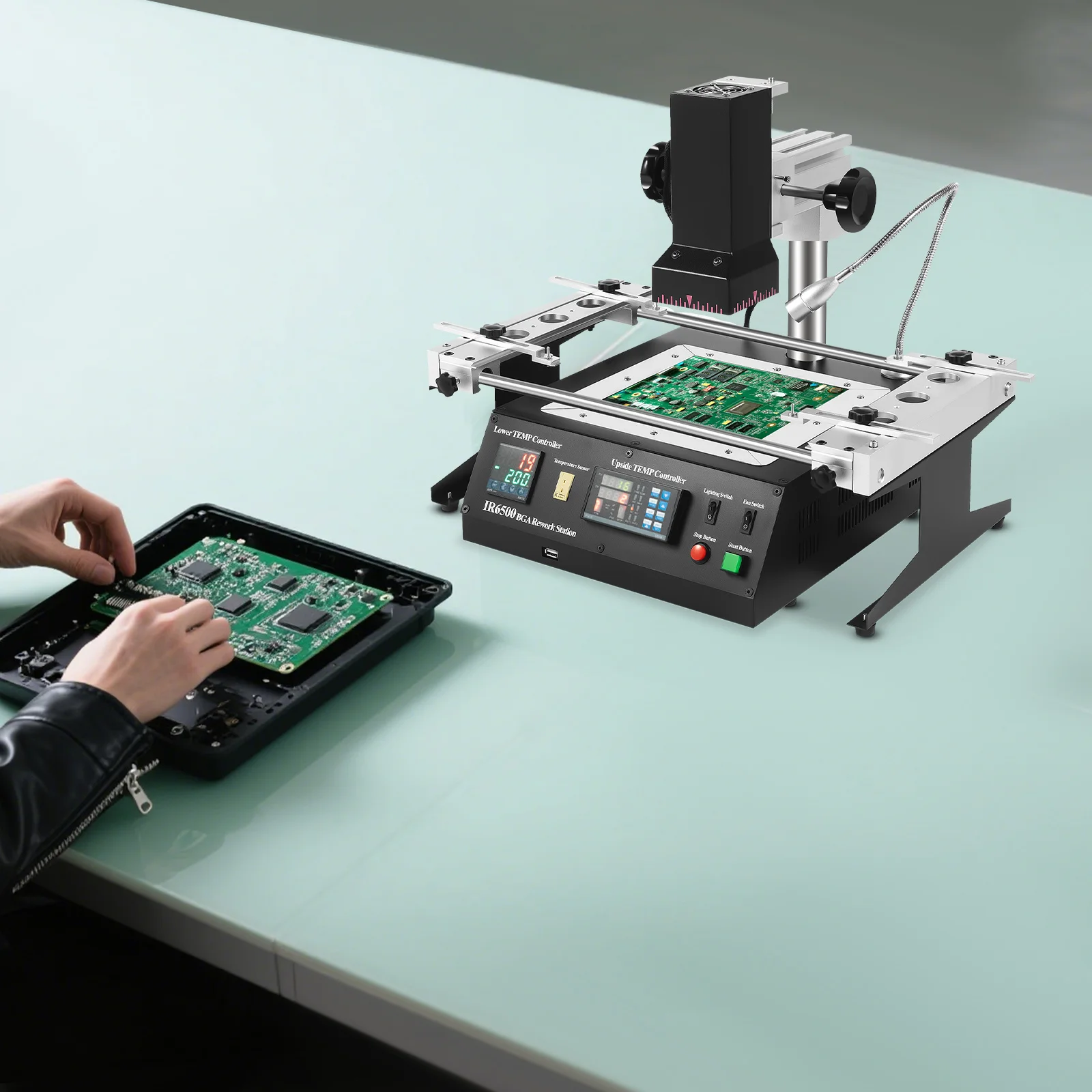

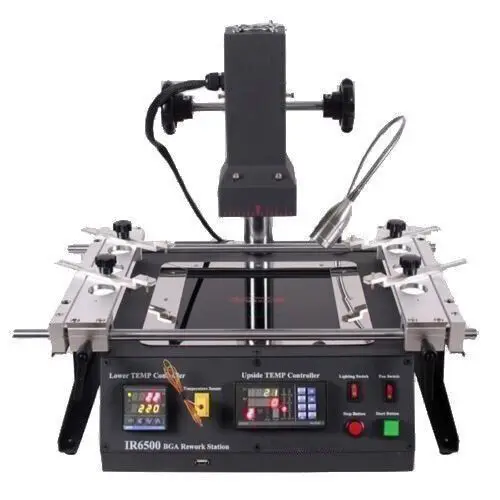

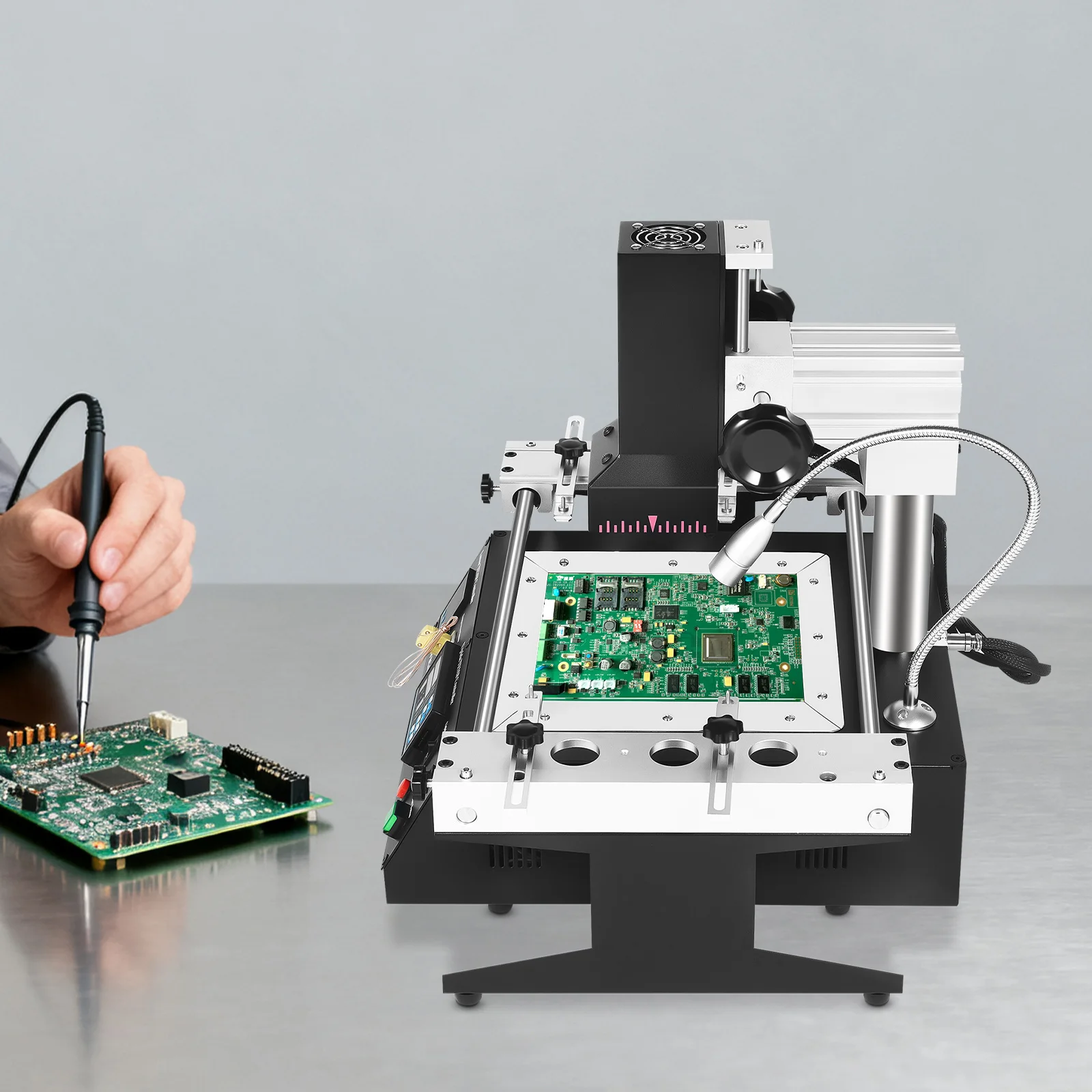

IR6500 BGA Rework Station， IR Welding Workstation Upper & Bottom Heating with USB Connect，for PCB Motherboard Repair

Are you looking for a good welding tool? This BGA rework station is made of high-quality materials that ensure a long service life. It is very powerful and has a simple operating panel that allows you to perform welding, repairing, and other tasks with ease. Moreover, it can be connected to a computer via USB, making work even easier. It will surely become your ideal assistant!

Specification

Plug Type: US Standard
Power: 110V
Color: Black
Style: Modern
Material: Aluminum Alloy, Iron
Process: Oxidation, Spray Coating
Assembly Required: No
Power Source: Corded Electric
Heating: IR
Upper Heating: IR
Bottom Heating: IR
Upper Heating Consumption: 400W
Bottom Heating Consumption: 800W
General Power: 1250W
Upper Control Mode: Independent temperature control, high-precision closed-loop control, precision ± 0.5%, Alarm.
Bottom Control Mode: Independent temperature control, high-precision closed-loop control, precision ± 0.5%, No Alarm.
SMD: Suit for welding, removing, or repairing package devices, such as BGA, PBGA, CSP, multi-layer substrates, EMI metallic shield products, solder / lead-free rework, and welding.
Upper Heating Size: 80*80 mm/ 3.15*3.15in
Bottom Heating Size: 180*180mm/ 7.09*7.09in
Applicable Chip Size: ≤70*70 mm/ 2.76*2.76in
Applicable PCB Size: ≤400*305 mm/ 15.75*12.01in

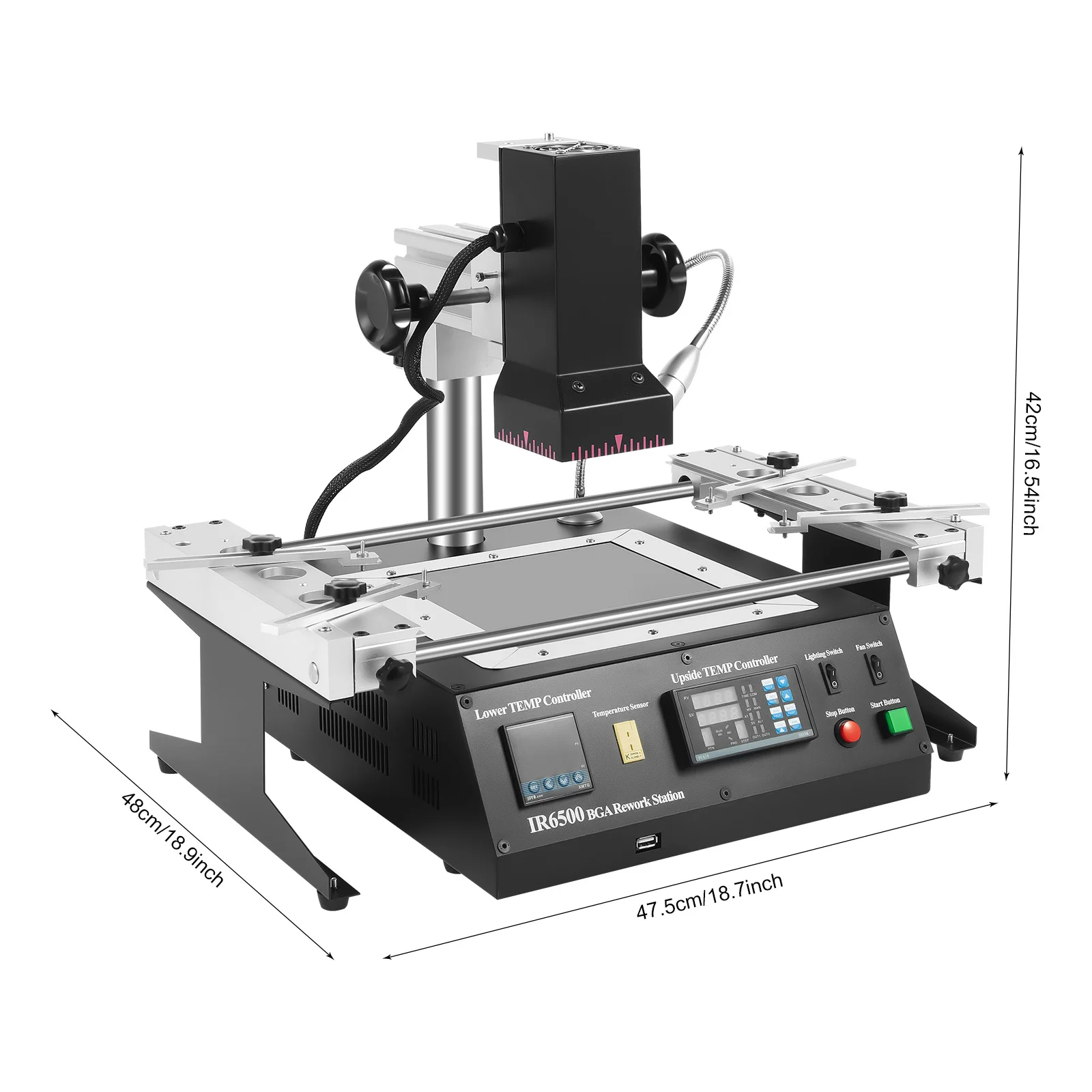

Product Size: 47.5*48*42 cm/ 18.7*18.9*16.54in

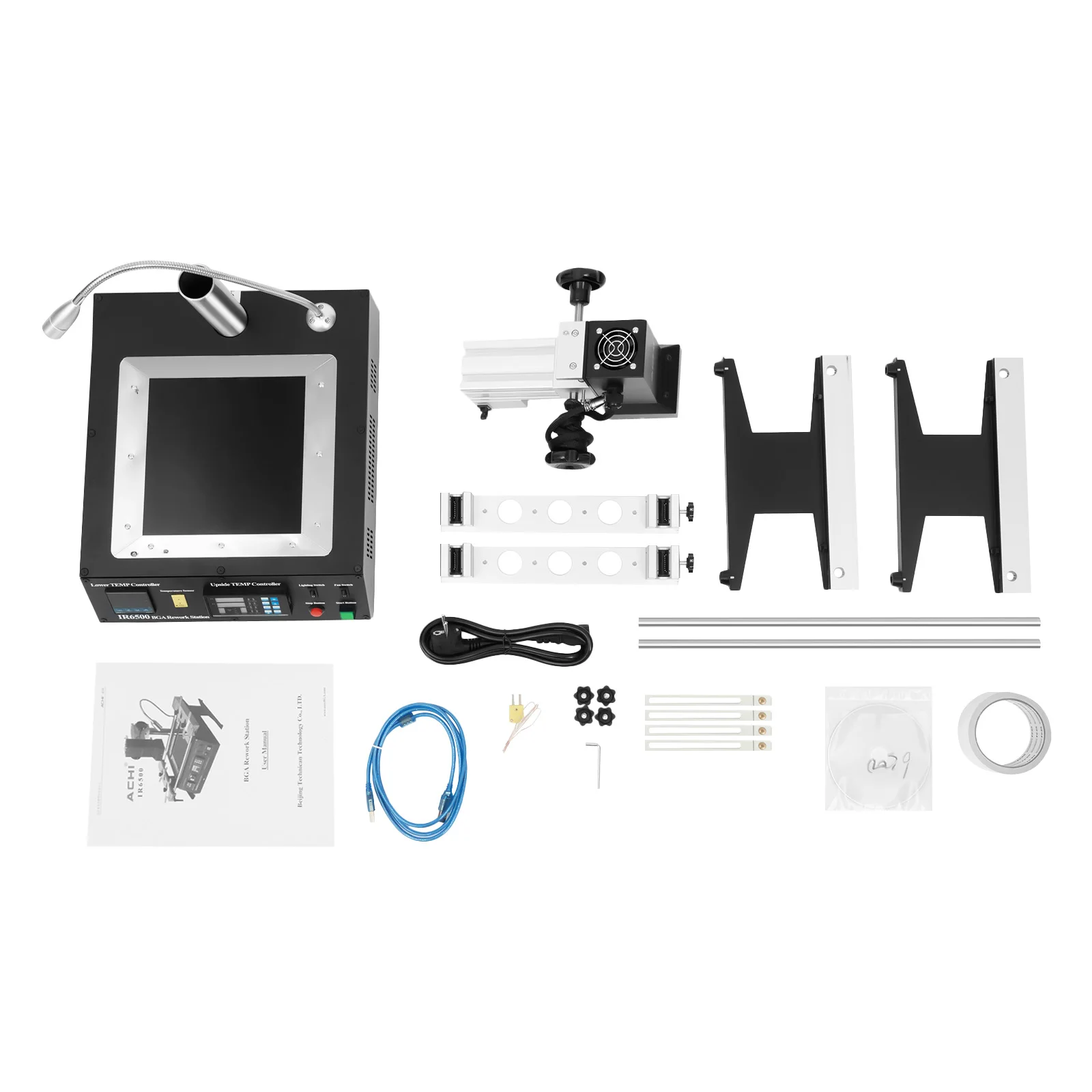

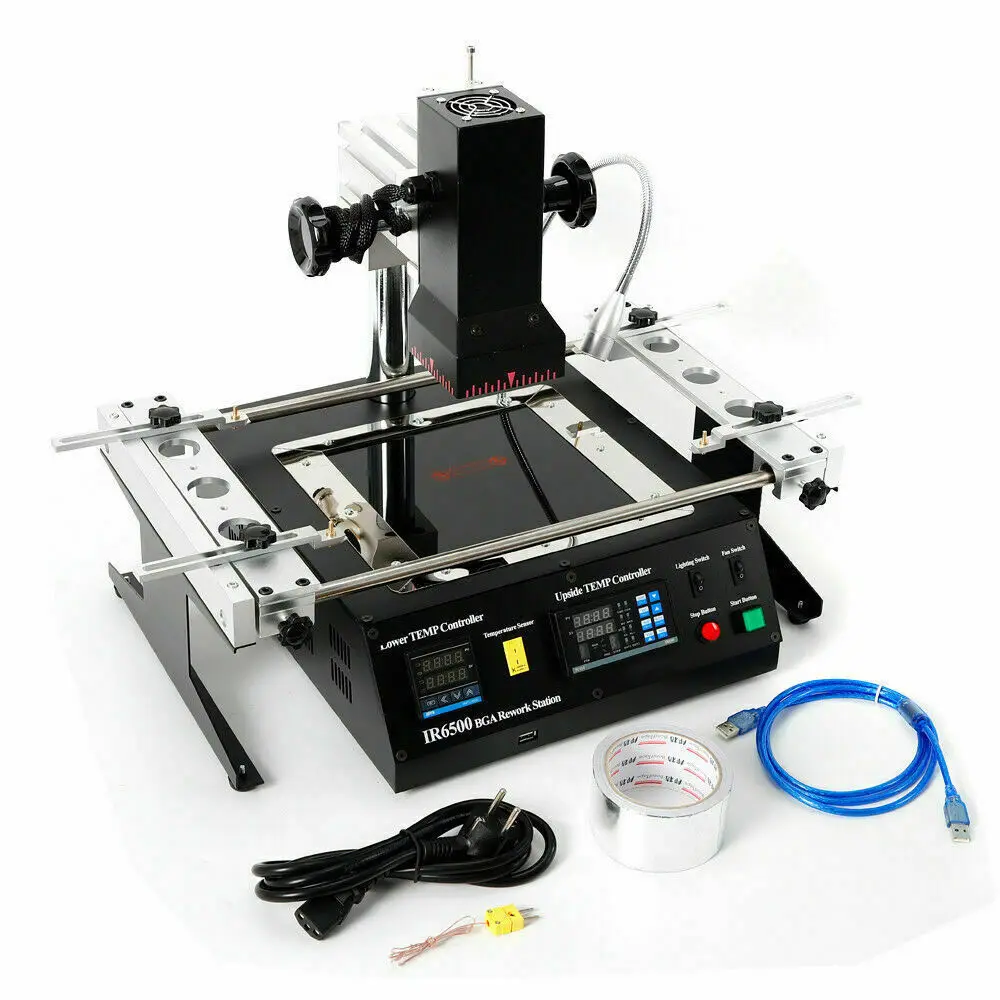

Package Included

1* BGA Rework Station
1* Power Cord

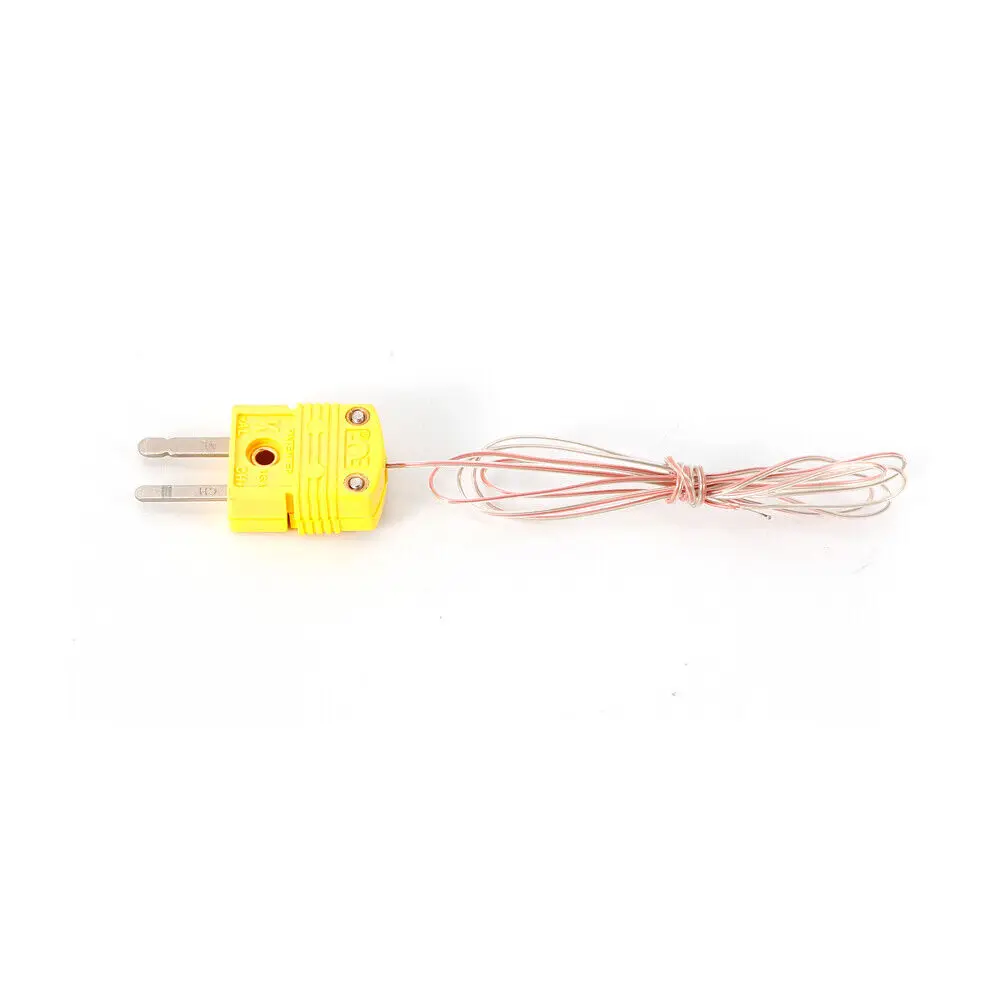

1* Sensor Wire
1 Roll* Tinfoil

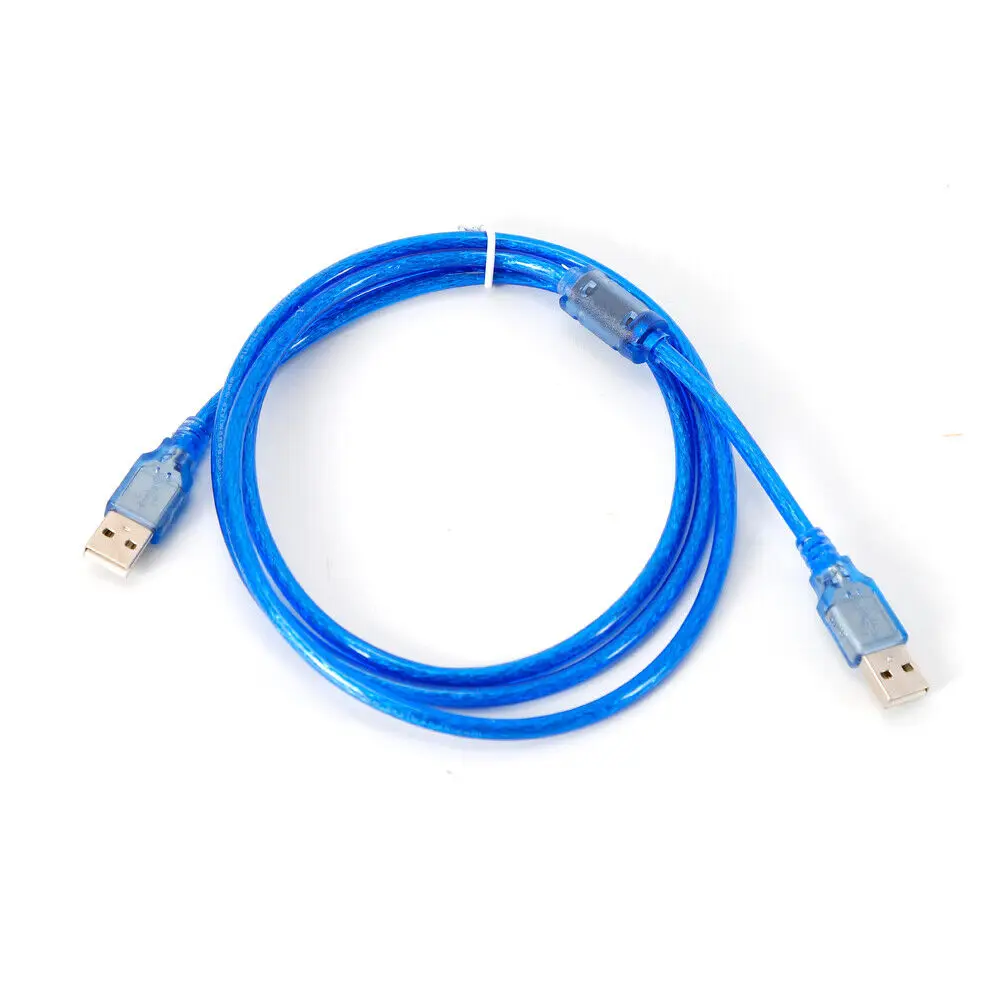

1* USB Cable

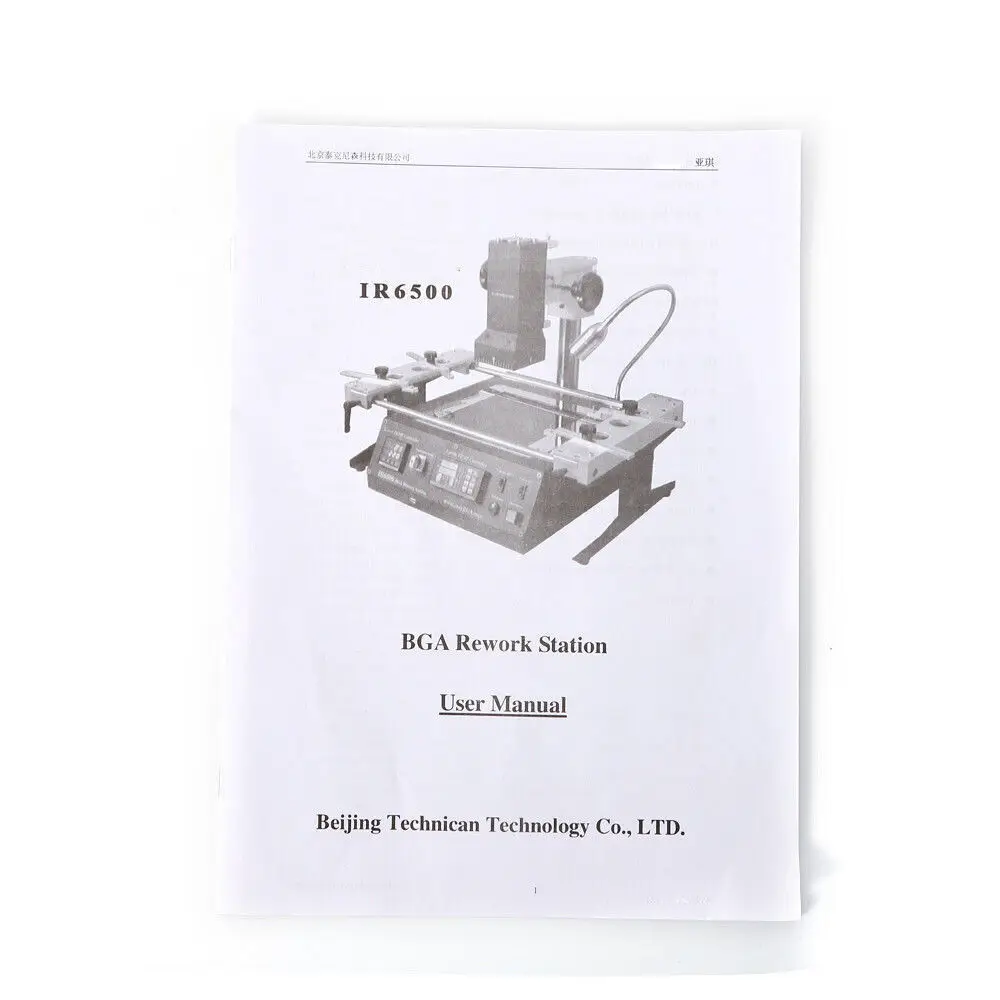

1* English Manual

Key Features

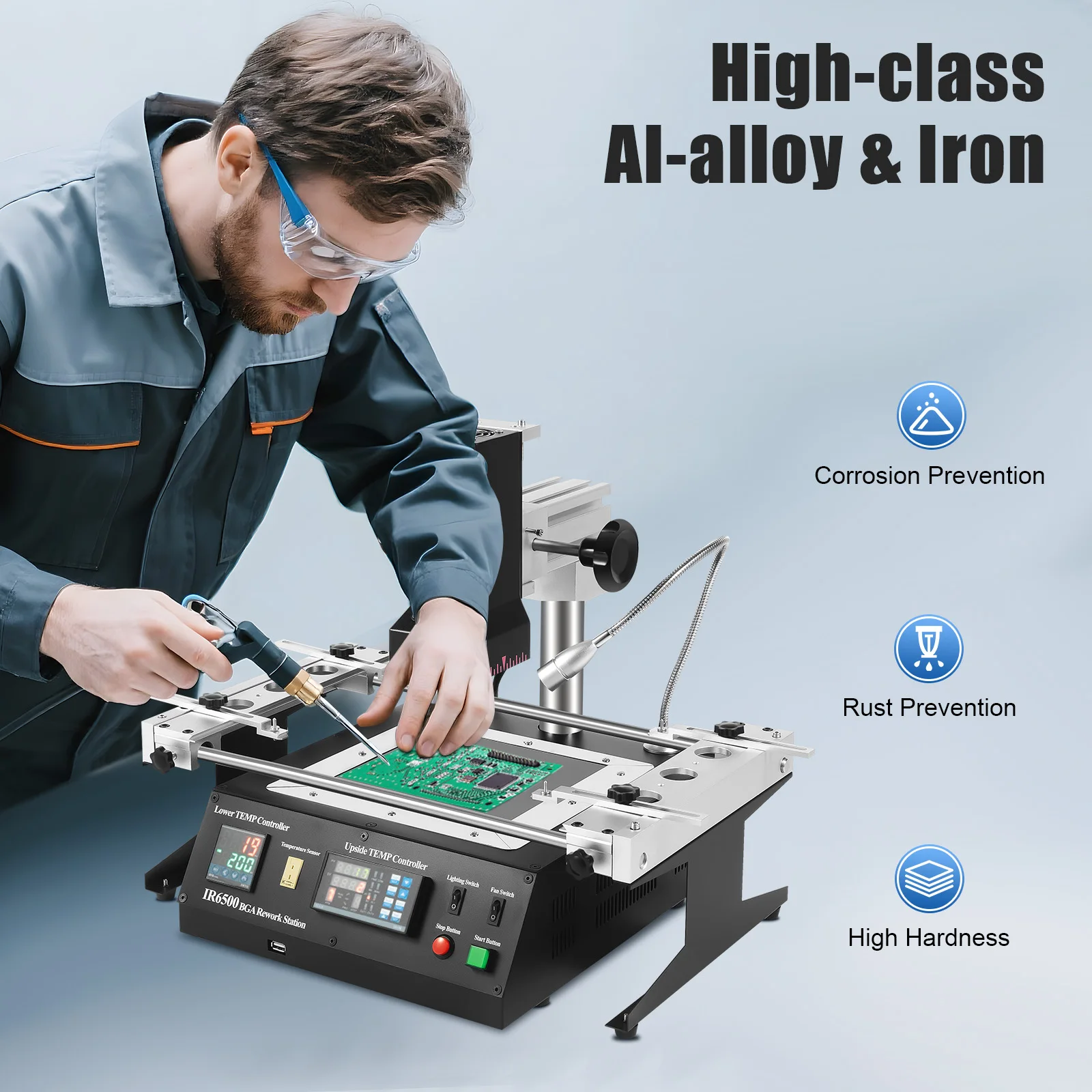

Long Service Life: High-quality aluminum alloy and iron with oxidation and spray coating processes make the product hard, wear-resistant, corrosion-resistant, rust-resistant, sturdy, and durable.

Innovation Design: It effectively solves the problem that the general infrared rework station is easily affected by airflow leads to inaccurate temperature control, and can easily deal with lead-free soldering rework.

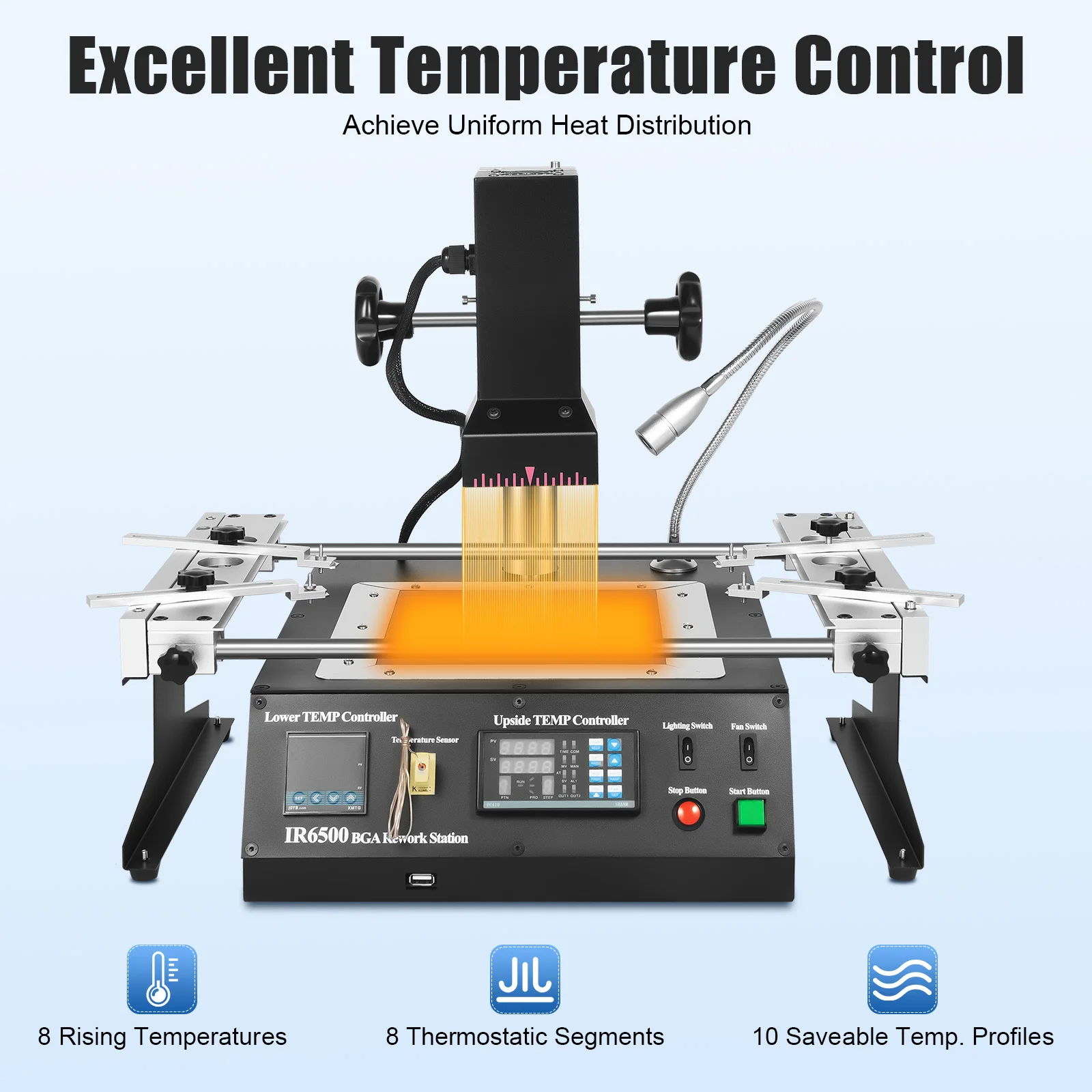

Excellent Temperature Control: With 8 rising temperature segments, 8 thermostatic segments, 10 saveable temperature profiles, two upper and lower temperature heaters, and sensitive temperature measuring sensors, the temperature of the operating process can be controlled easily and precisely. In addition, closed-loop temperature control technology ensures precise temperature processes and uniform heat distribution.

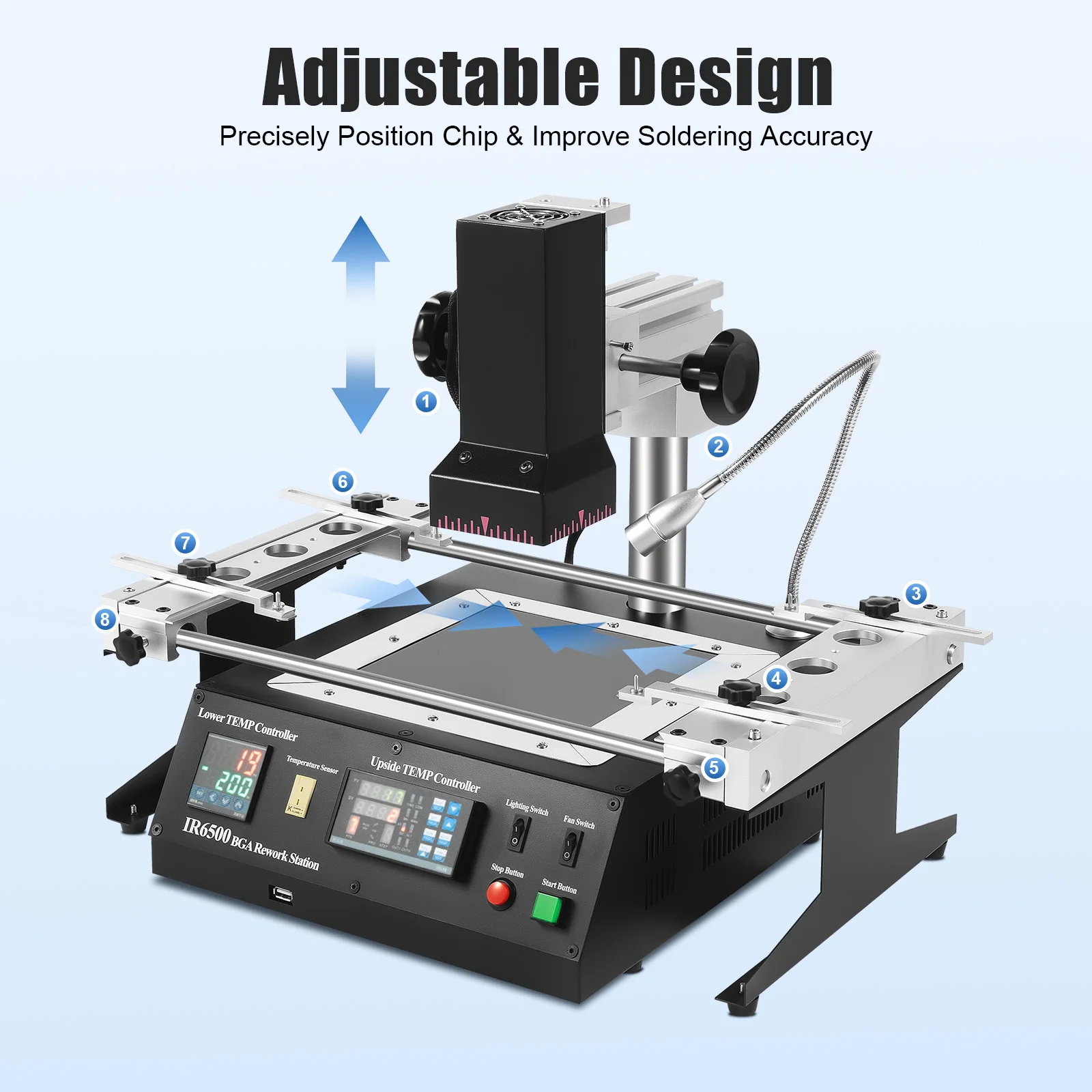

Integrated Workbench: It is small in size but powerful in function, without cable mixing and disorder. Its linear guide-type bracket with abnormality poles can be adjusted and locked by rotating the handle, and it is very convenient to fix the PCB board, which can effectively prevent the PCB board from deformation.

Easy to Control: It can be connected to a computer, and can be controlled more conveniently with a built-in USB connector and proprietary software.

Powerful Function: You can use it to easily rework a variety of CPU seats, and shielded enclosures, replace various component slots, and easily handle lead-free solder rework.

Ideal Gift: Practical and high quality, this product can be used as an ideal birthday and holiday gift for friends and family members who need to do welding work.

Good Customer Service: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details

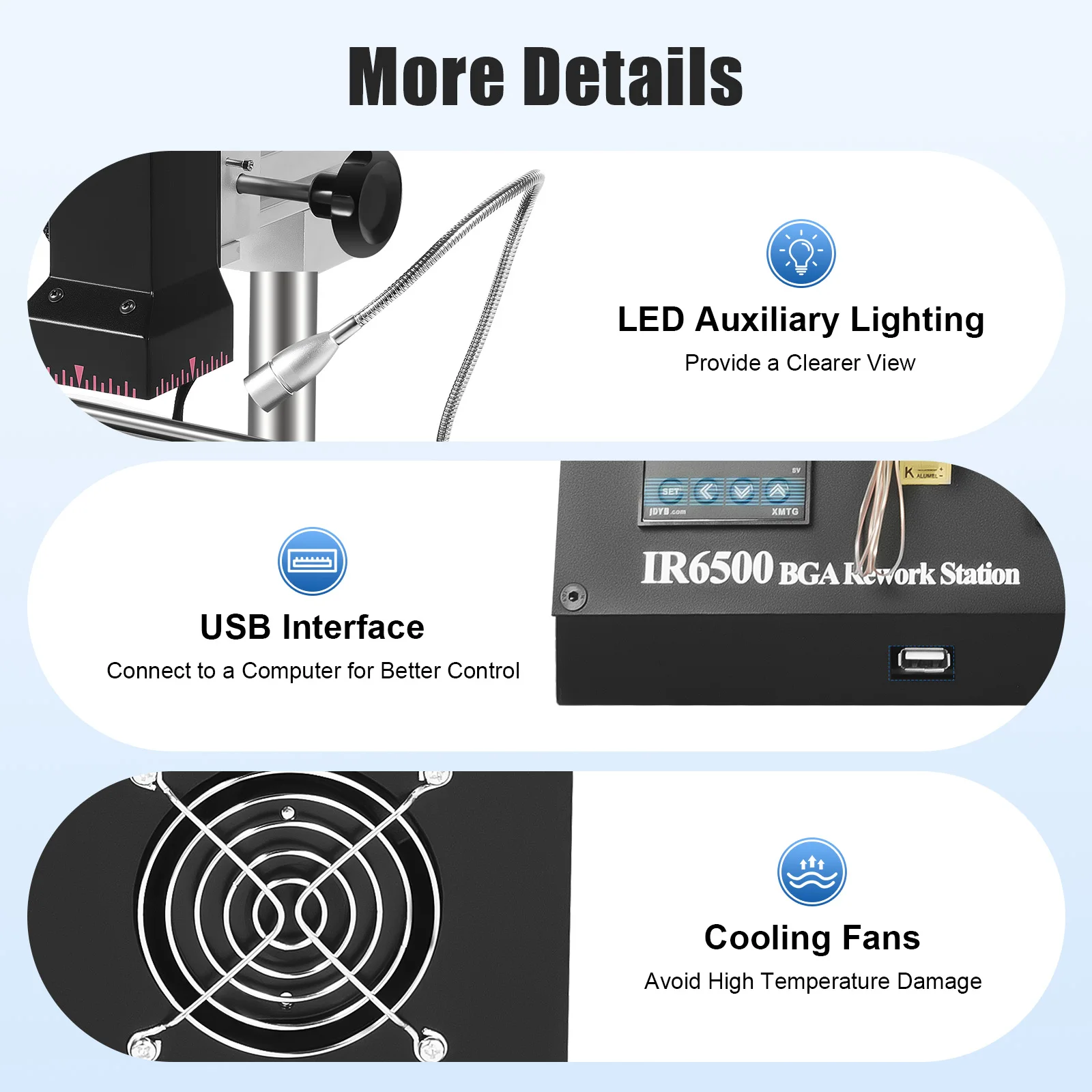

LED Auxiliary Lighting: It provides a clearer view and facilitates your precision operations.

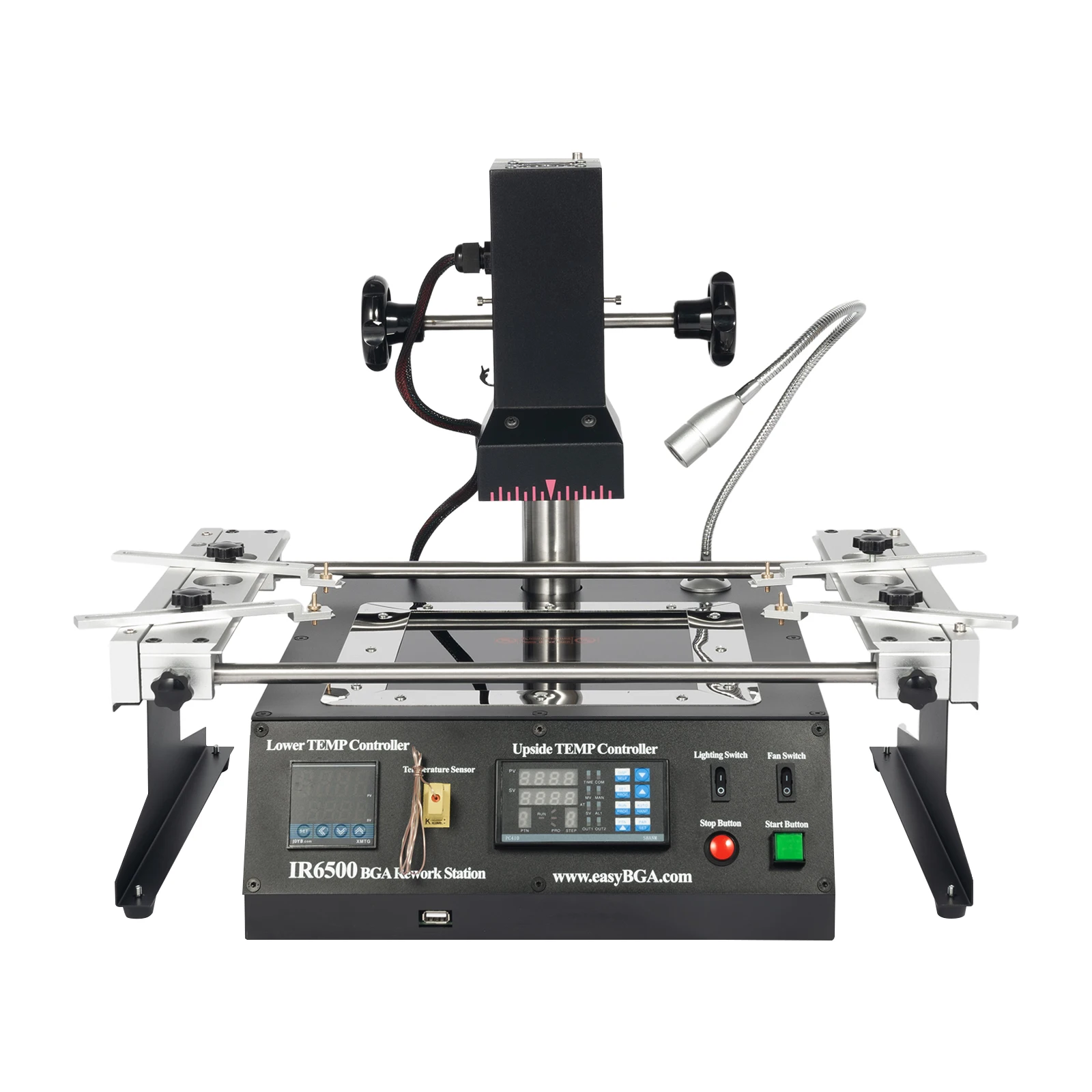

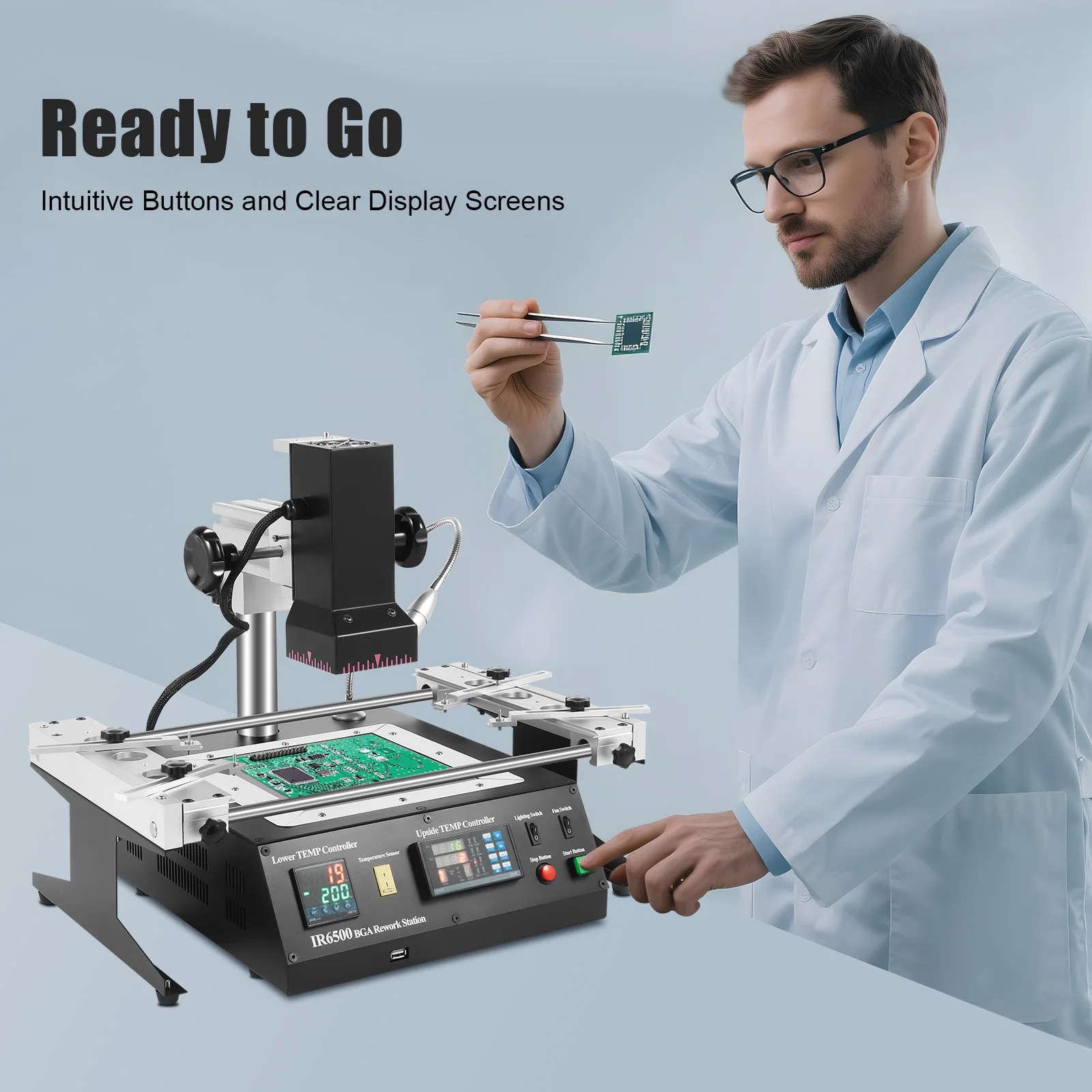

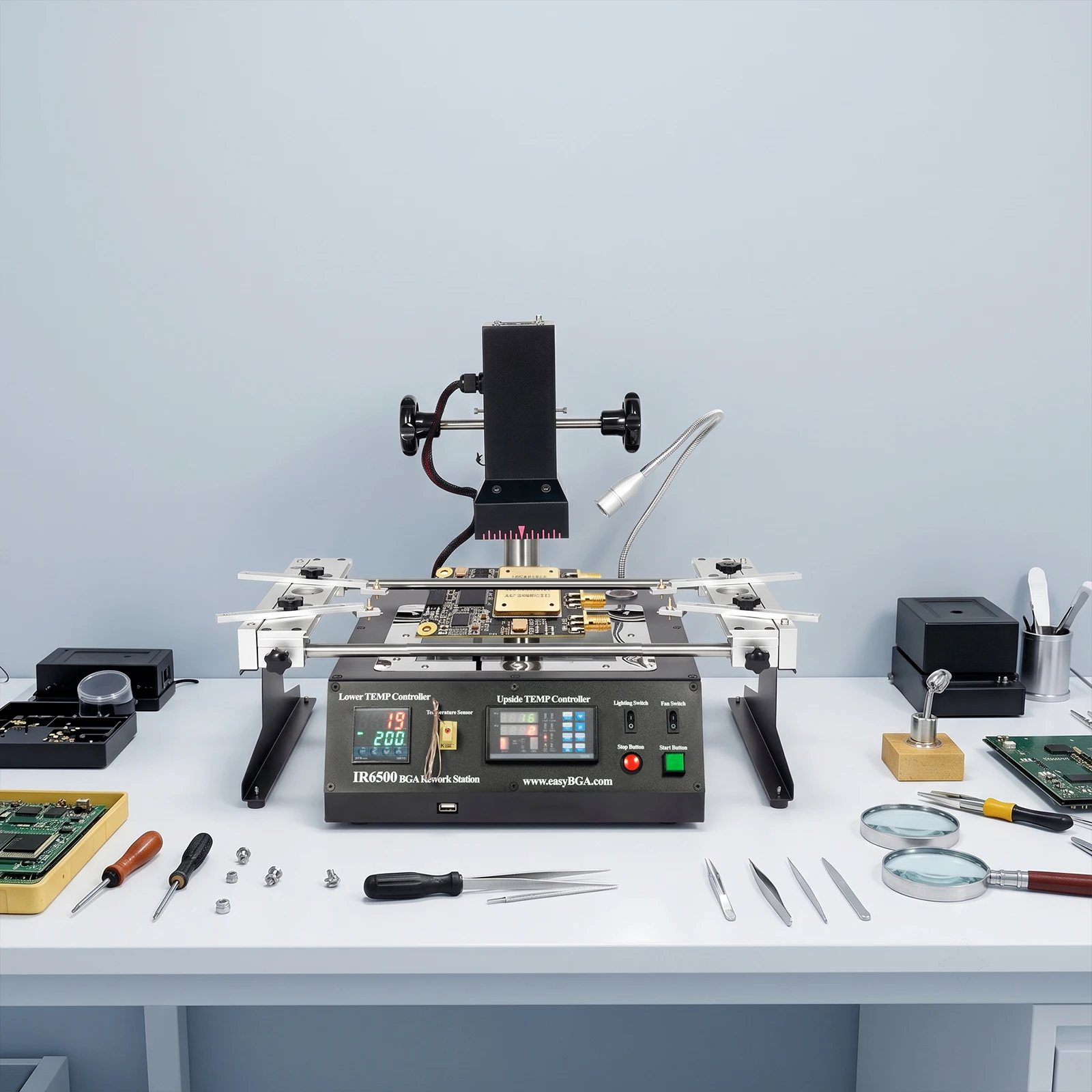

Convenient Panel: The control panel has a variety of clear buttons for controlling the temperature, lights, and power, making it easy for even novices to complete the operation.

Cooling Fans: The cooling fans on the top and the back can dissipate the heat for the product timely and effective, avoiding high temperature damage to the machine.

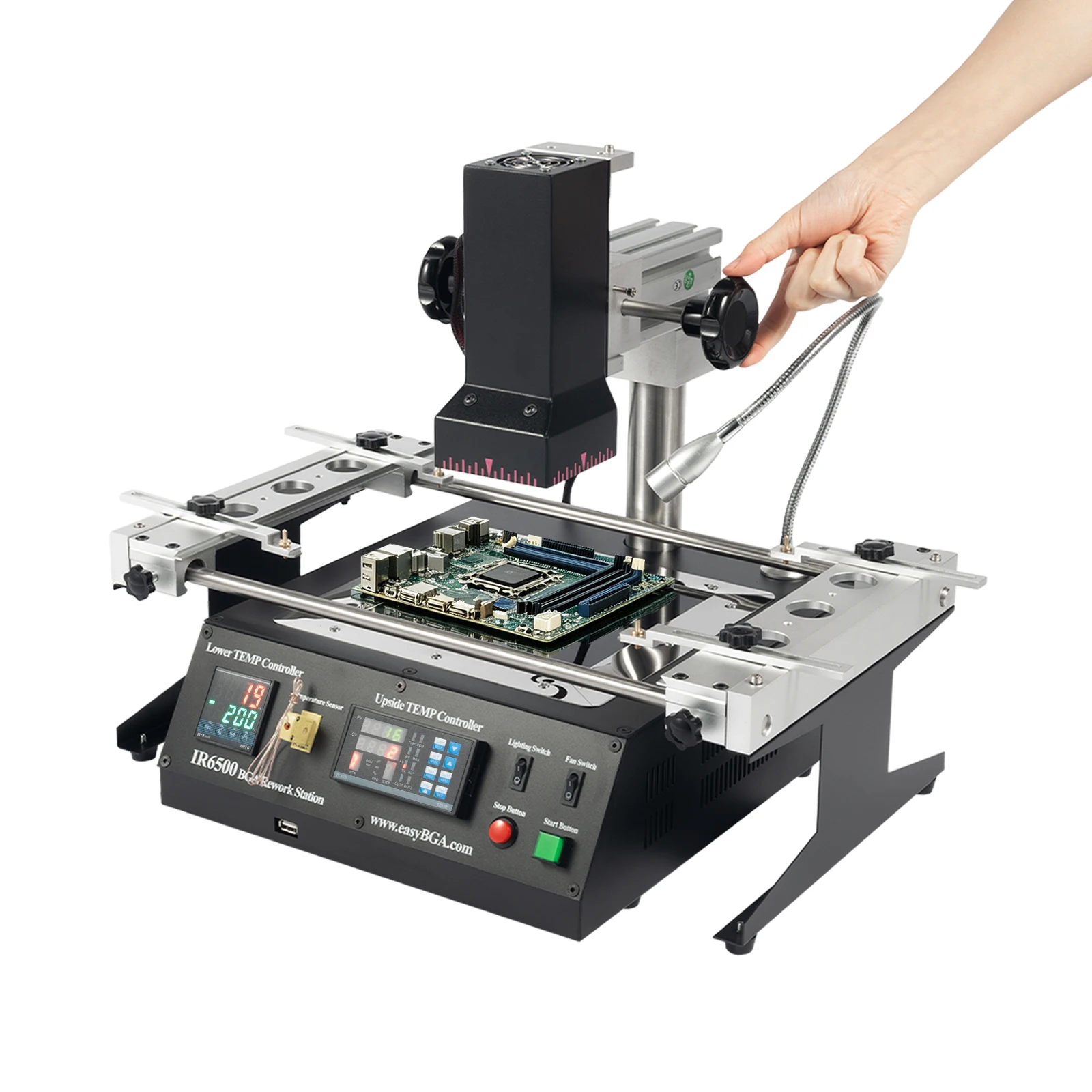

X-Y Lifting Regulator: It is convenient for you to adjust the height of the upper heater according to the actual situation.

Application

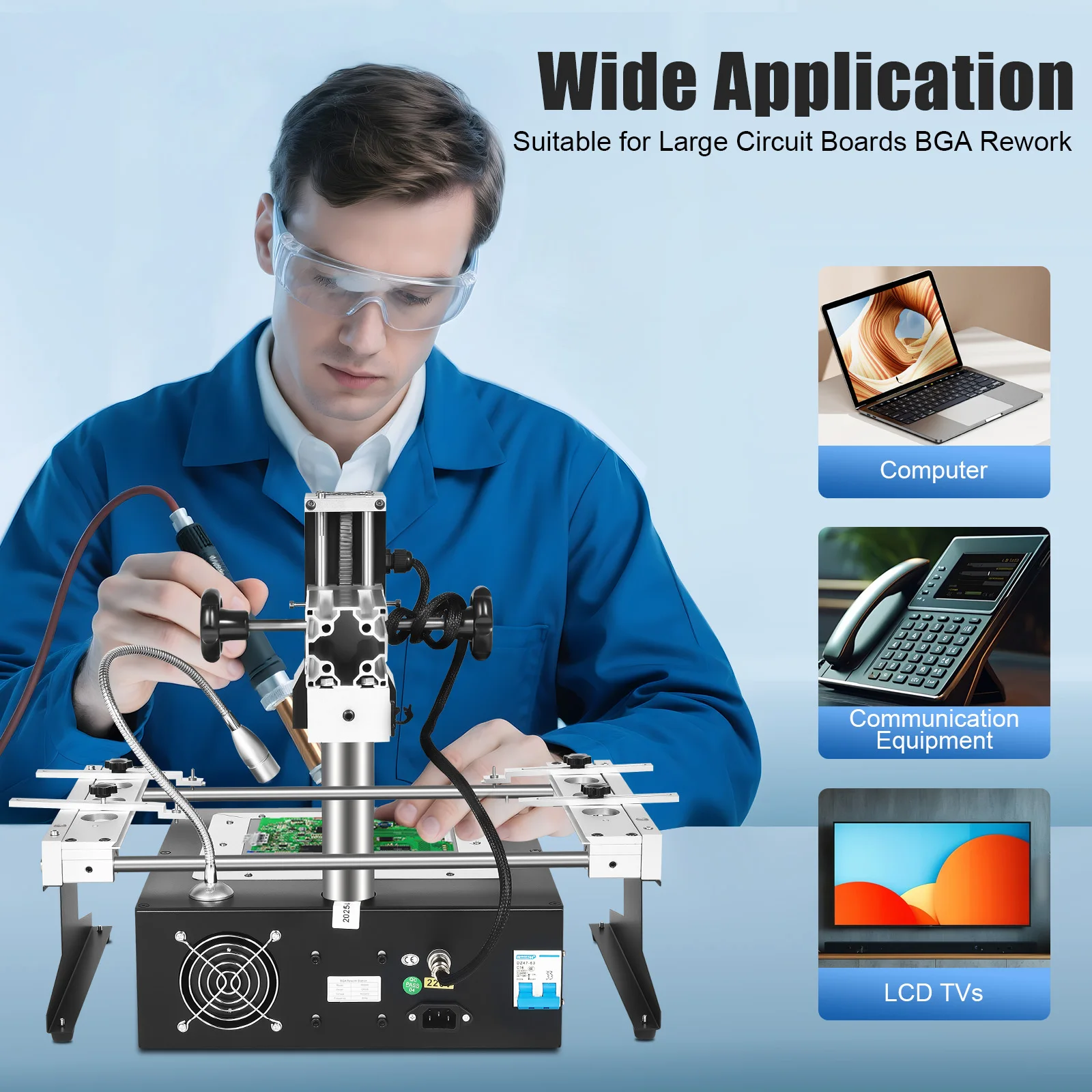

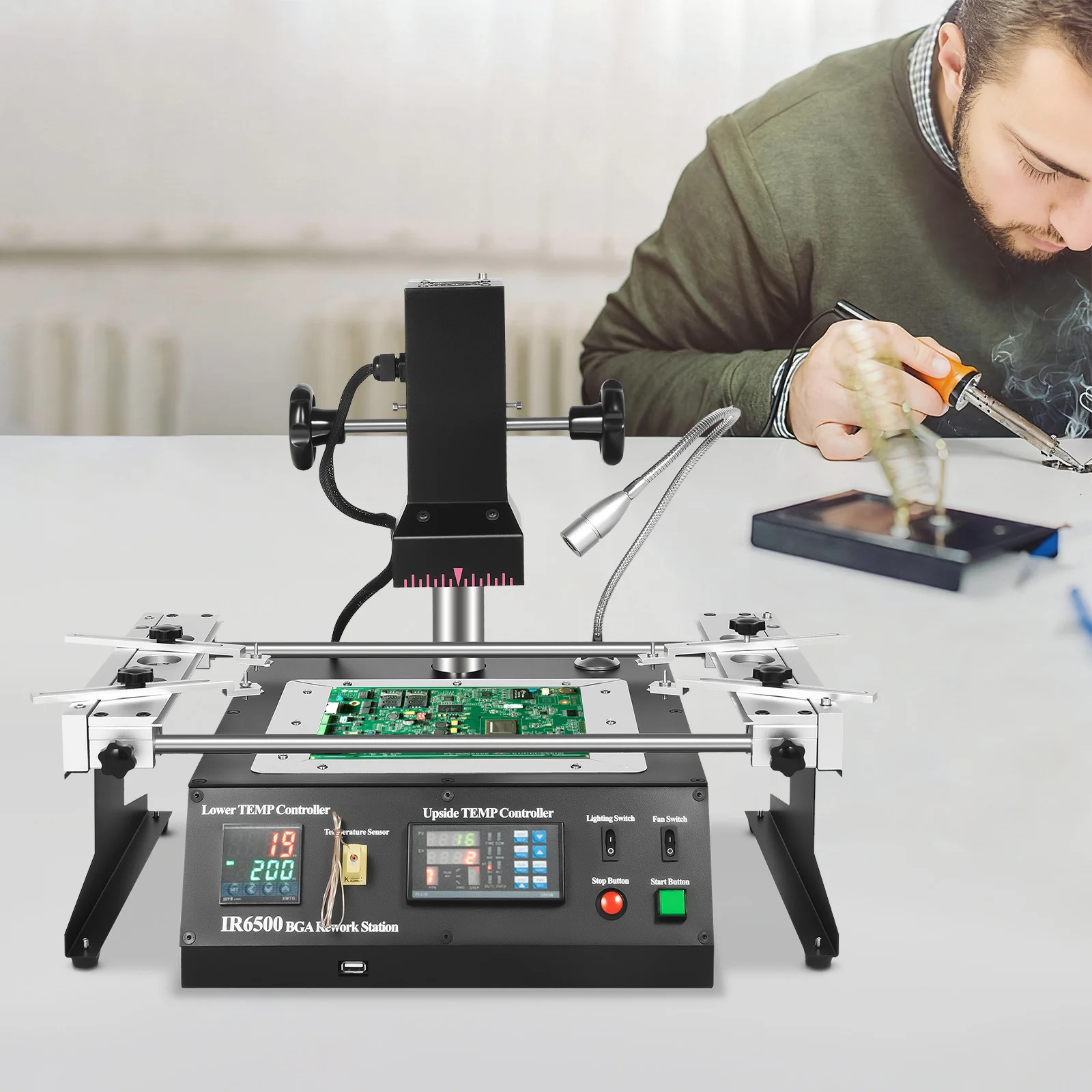

This product is suitable for laptop motherboards, desktop computer motherboards, server motherboards, industrial computer motherboards, various types of game motherboards, communication equipment motherboards, LCD TVs, and other large circuit boards BGA rework.

Notes

1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
