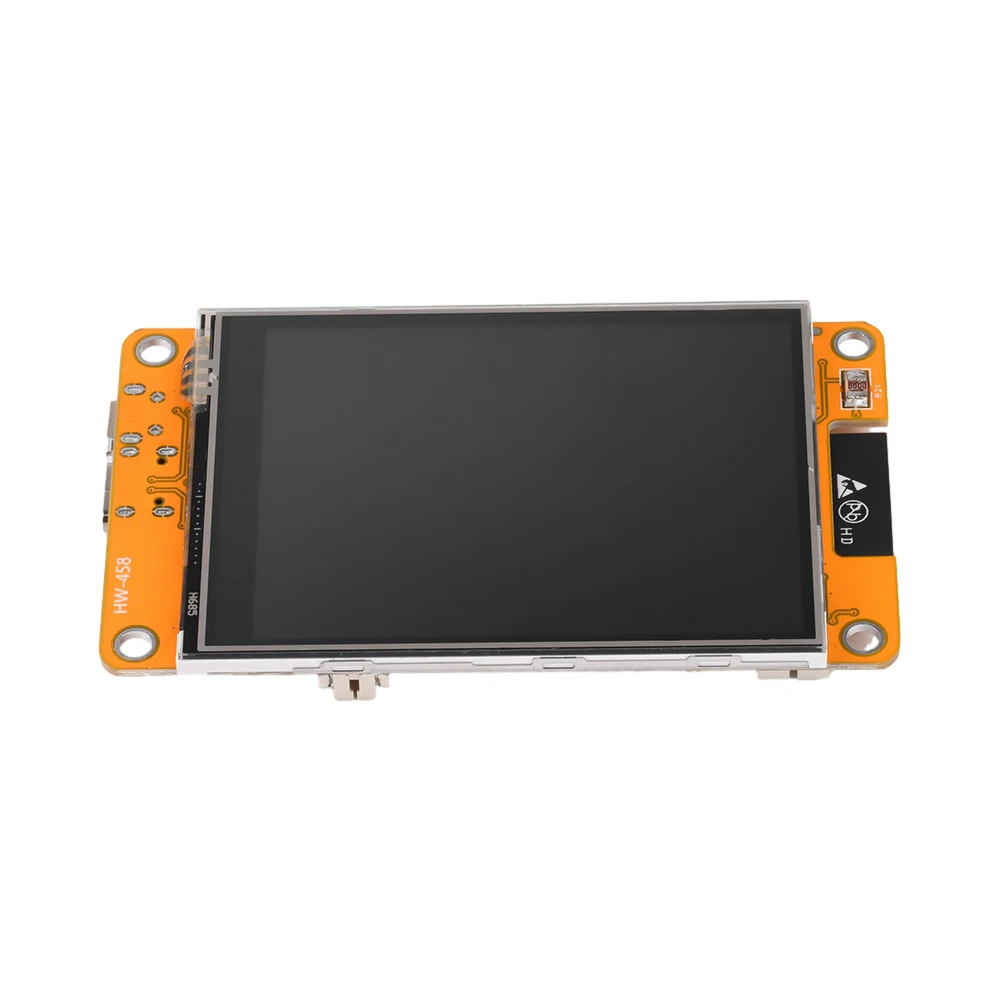

EEP32 Wifi Bluetooth Dual-Mode Development Board Display 2.8-Inch Lcd Development Board Display Tft Module With Touch Screen

Product Features

1. Low power dual core 32-bit CPU, can be used as an application processor

2. With a clock frequency of up to 240MHz and a computing power of up to 600DMIPS

3. Built in 520KB SRAM

4. Support UART/SPI/PWM/DAC/ADC and other interfaces

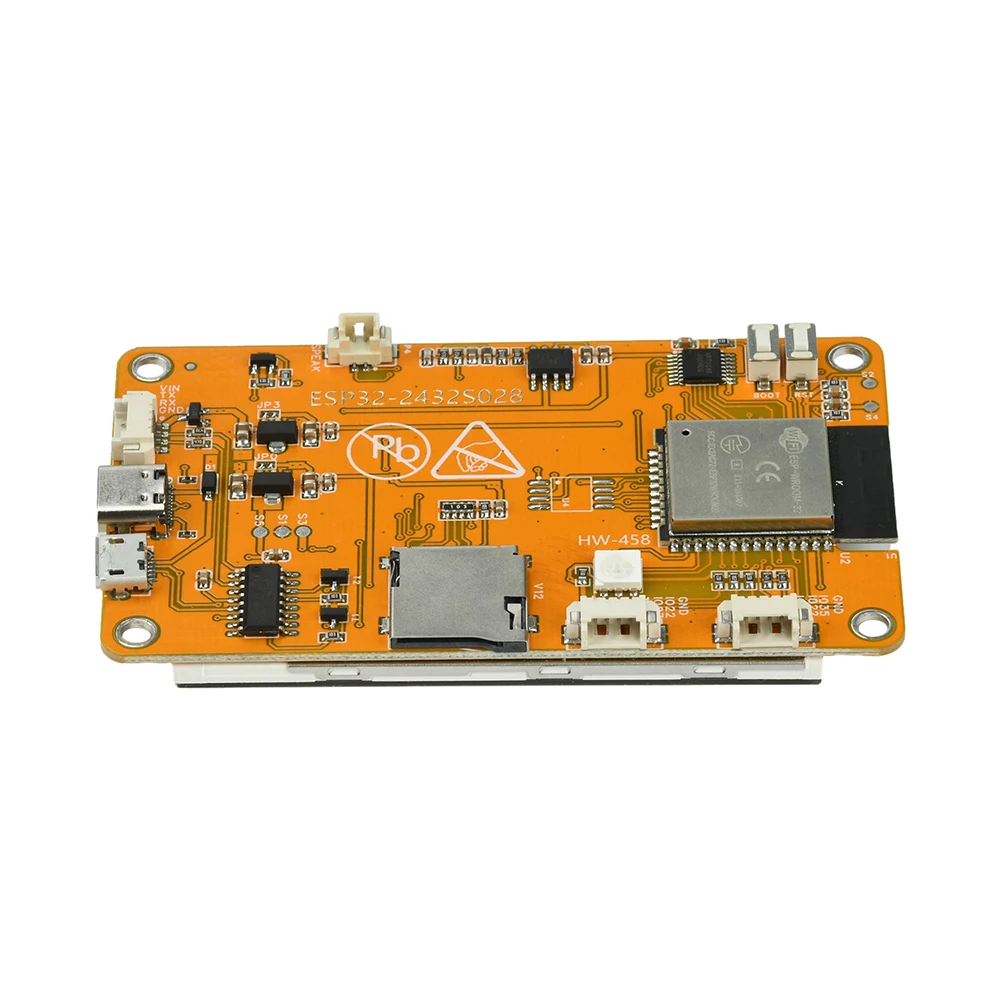

5. Equipped with a TF card slot for easy expansion of storage

6.2.8-inch color screen, supporting 16 bit RGB 65K color display

7. Support Smart Config/Airkiss one click distribution network

Product Parameters

Product Name: ESP32 WIFI+BT Dual Mode Development Board Display Screen

Display color: RGB 65K color

Specifications: with/without casing (optional)

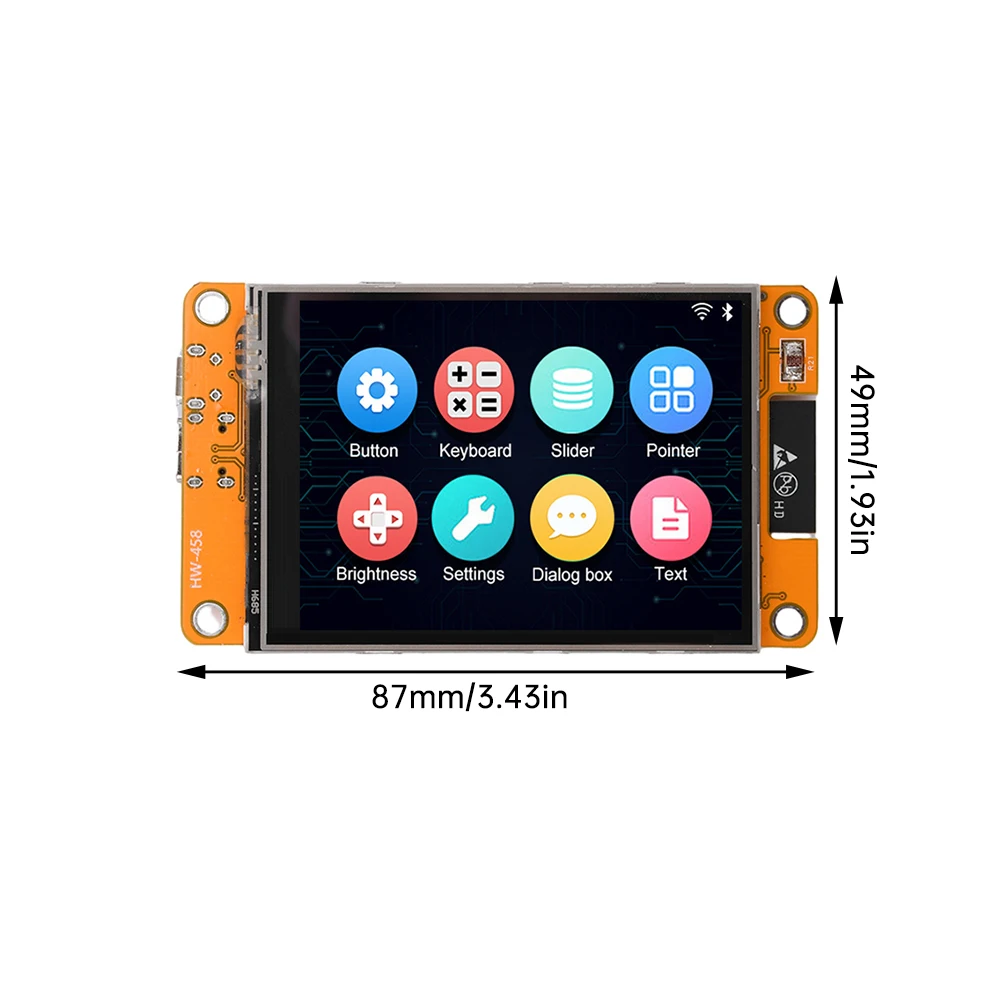

Size: 2.8 inches

Type: TFT

Driver chip: ILI9341

Resolution: 320 * 240

Visible area: 43.2 * 57.6mm

Perspective:>60 °

Working temperature: -20~70 ℃

Working voltage: 5V

Power consumption: 115mA

Bluetooth: Bluetooth 4.2BR/EDR and BLE standards

WIFI：802.11b/g/n/

Supported interfaces: UART, SPI, SDIO, I2C, IR, ADC, DAC, PWM

IO ports: 22

Serial port speed: default 115200bps

Spectrum range: 2412~2484MHz

Antenna form: onboard PCB antenna, gain 2dBi

Security: WPA/WPA2/WPA2 Enterprise/WPS

Transmission power: 802.11b: 17 ± 2dBm (@ 11Mbps)/802.11b: 14 ± 2dBm (@ 54Mbps)/802.11b: 13 ± 2dBm (@ MC57)

Interface sensitivity:

CCK,1Mbps:-90dBm

CCK,11Mbps:-85dBm

6Mbps(1/2BPSK):-88dBm

54Mbps(3/464-QAM):-70dBm

MCS7(65Mbps,72.2Mbps)-67dBm

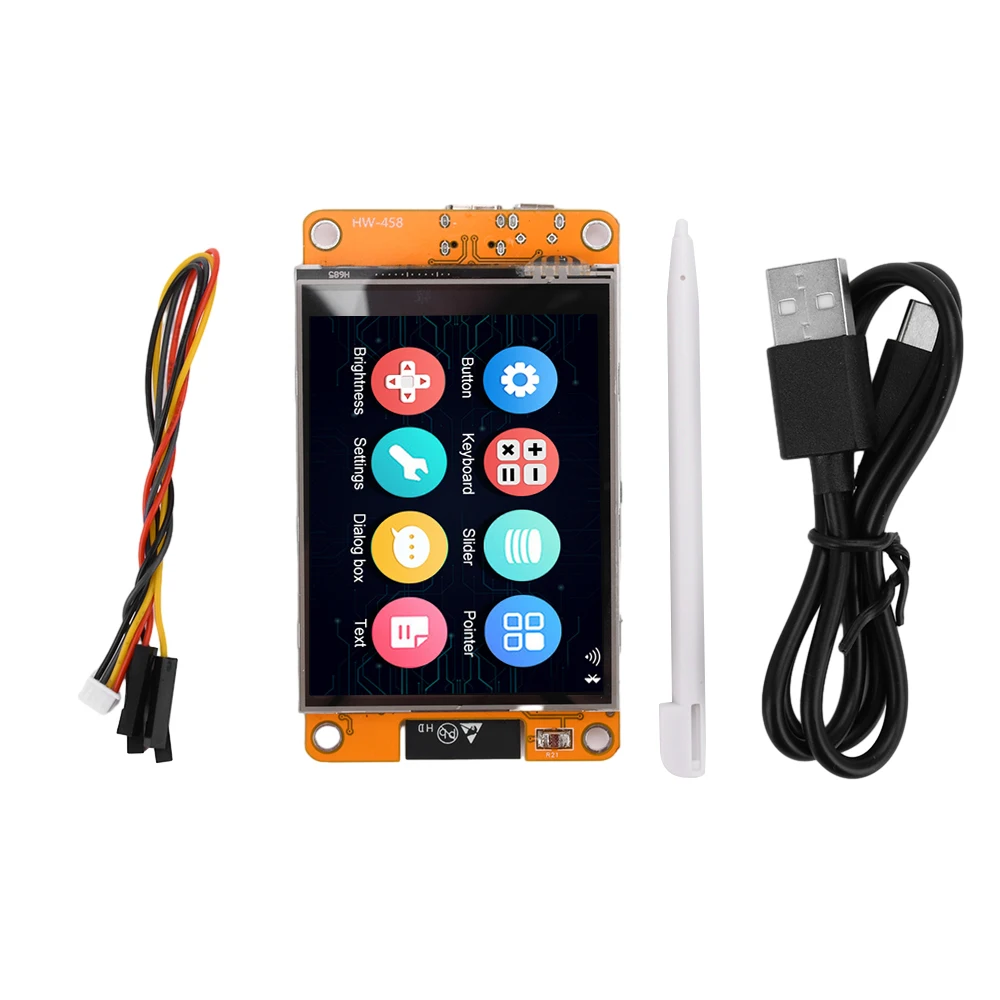

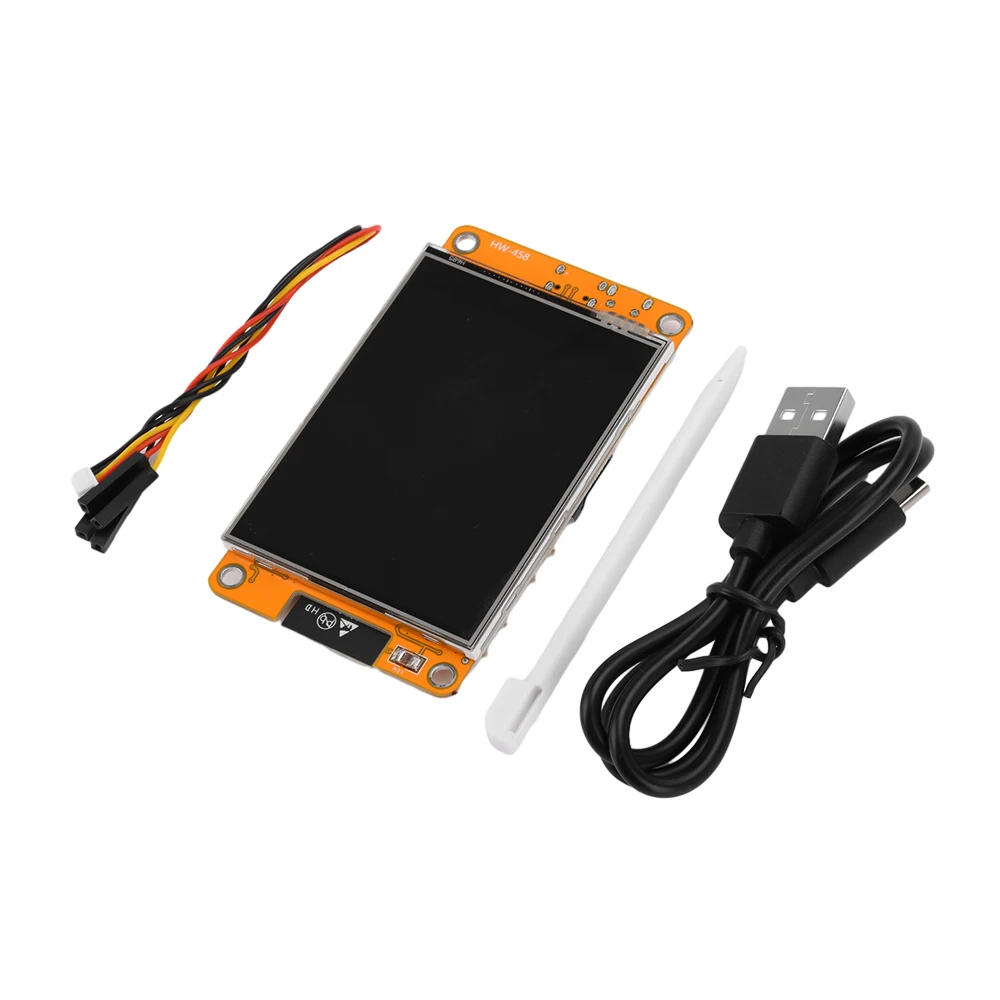

Shipping List

Display *1

Touch pen * 1

TYPE-C data cable * 1

4P terminal to DuPont wire * 1
