CONTEC MS710 Spirometer Calibration Barrel for Spirometer Pulmonary Calibrate Medical Device 2L/3L Handle Calibration Spring

Aviso:   Para compradores brasileiros, se você está interessado neste produto e gostaria de comprá-lo pelo preço original, entre em contato comigo no WhatsApp +86 13731396681, eu vou ajudá-lo a resolver o problema de pagamento.

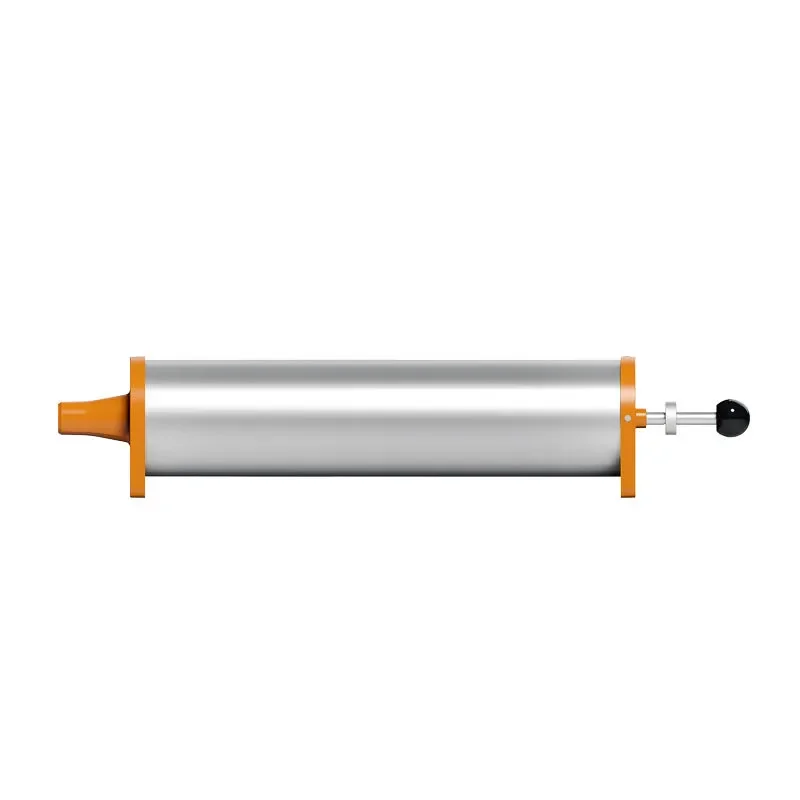

CONTEC MS710 Pulmonary Calibration Syringe 2L/3L Handle Calibration Spring

 Can be used for CONTEC SP10/10W,SP70B/SP80B/SP90/SP100/SPM-A/SPM-D

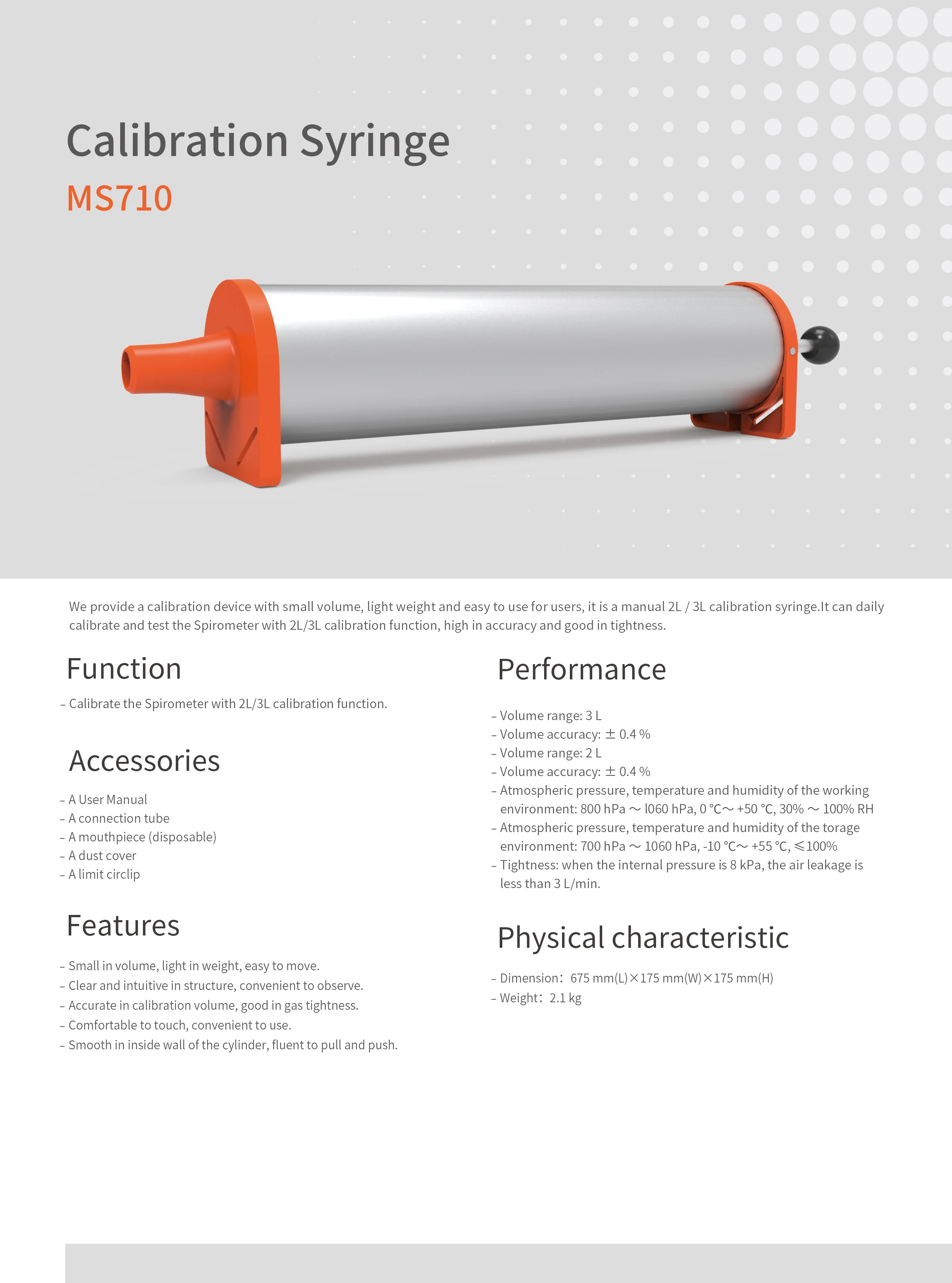

Introduction

We provide a calibration device with small volume, light weight and easy to

use for users, it is a manual 2L / 3L calibration syringe，It can daily calibrate

and test the Spirometer with 2L/3L calibration function, high in accuracy and

good in tightness.

Functions

Calibrate the Spirometer with 2L/3L calibration function.

Performance

1）Volume range: 3 L

2）Volume accuracy: ± 0.4 %

3）Volume range: 2 L

4）Volume accuracy: ± 0.4 %

5）Atmospheric pressure,temperature and humidity of the working

environment:800 hPa～l060 hPa,0 ℃～+50 ℃,30%～100% RH

6）Atmospheric pressure,temperature and humidity of the torage

environment:700 hPa～1060 hPa,-10 ℃～+55 ℃,≤100%

7）Tightness: when the internal pressure is 8 kPa, the air leakage is less

than 3 L/min.

Accessories

A. A User Manual

B. A connection tube

C. A mouthpiece (disposable)

D. A dust cover

E. A limit circlip

Physical characteristic

Dimension：675 mm(L)×175 mm(W)×175 mm(H)

Weight：2.1 kg
