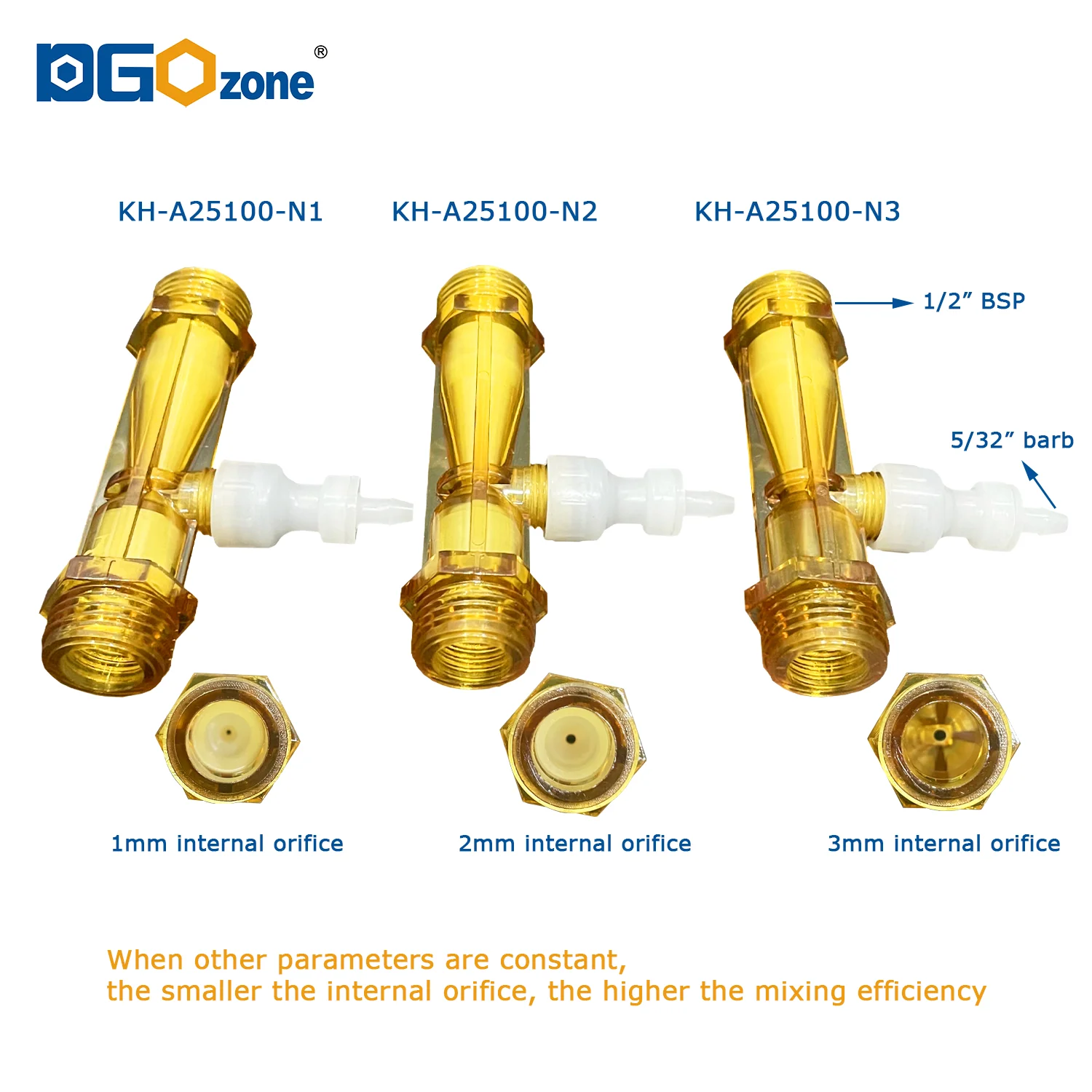

DGOzone PVDF KH-A25100-N 1/2" Venturi Injector with valve Orifice 1mm/2mm/3mm Mixing Gas Liquid for Spa Garden Irrigation

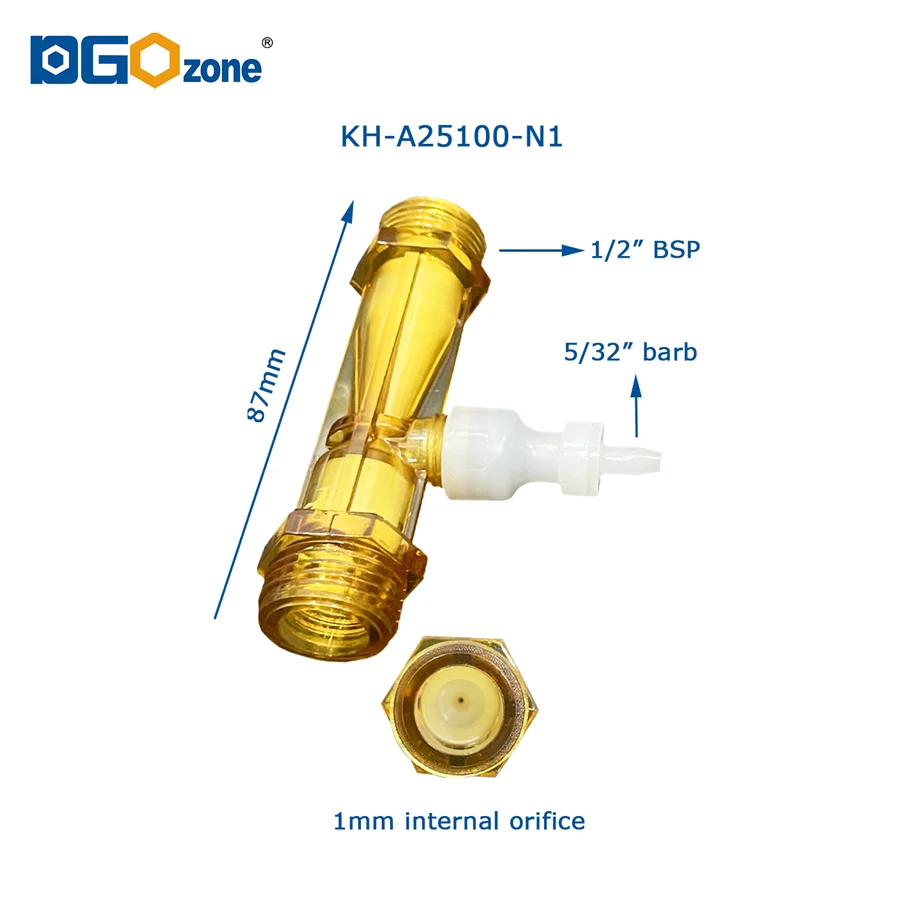

1/2" Venturi Injector with valve Ozone proof PVDF material Mixing Gas Liquid for Spa KH-A25100-N

(1) The injector is composed by pressure inlet, suction chamber, and nozzle. It is a gas water mixed mode according to the jet negative pressure principle.

(2) .High-speed flow produces negative pressure in mixing tube's throat, which causes vacuum condition in inhaled indoor.

Universal Fit: Pvdf venturi injector Compatible with ozone generator, sewage treatment, agriculture fertilizer irrigation, swimming pool, Dosing device, aquaculture aeration.

PVDF Material Performance:Durable pvdf material has excellent of anti-chemical,corrosion, anti-oxidation, anti-solvent characteristics as fluoride plastic.

Extra Part:Check valve included in injection port.

Installation

1. The venturi is usually installed horizontally, if installed vertically, the water must go from the bottom to the top. Never go from the top to the bottom, or it won't generate negative pressure.

2. the water tube diameter should be at least the same size as that of the venturi tube, so as to make sure water can go out freely without any resistance.

3. please choose the right size venturi according to your real application, without enough water flow, there won't form negative pressure.

If you need catalogs, welcome to contact us any time. Thank you!
