1Pcs DC 5V 6V 500 Metal Brush Geared Motor Micro Peristaltic Pump Dosing Liquid Water Squeeze Pump For Lab Ink Sampling Pump

Description:
Micro Peristaltic Pump DC 5V 6V Small 500 Metal Brush Geared Motor Dosing Liquid Water Squeeze Pump for Lab Ink Sampling Pump
Feature:
Micro peristaltic pump with a 500 motor for a precious metal brush, which drives the rollers (three rollers) after deceleration, alternately squeezes the silicone tube to transport liquids. Due to its high conveying pressure, peristaltic pumps are suitable for transporting viscous/non viscous liquids, such as ink or viscous liquids. This batch of peristaltic pumps is a relatively low-end variety, but due to the limited variety of peristaltic pumps on the market, it can provide DIY enthusiasts with a good opportunity to learn or experiment

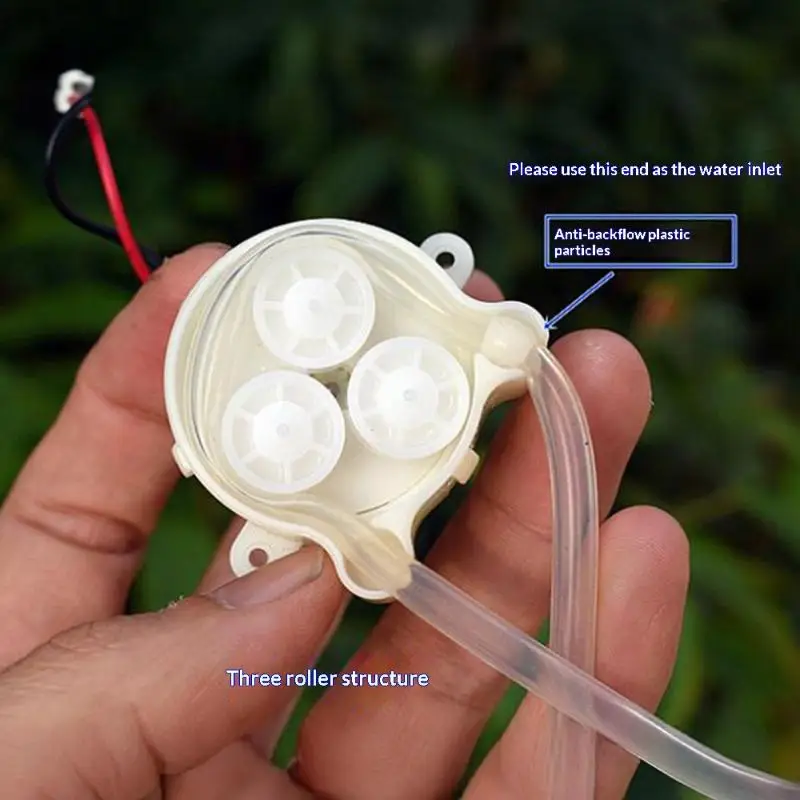

The 500 motor is a DC motor with a precious metal brush, which can rotate forward and backward. Theoretically, peristaltic pumps are also suitable for forward and reverse rotation, meaning that the inlet and outlet can be interchanged. However, after removing the mask, it was found that this batch of pumps only have plastic particles at one end for positioning. The function of the positioning plastic particles is to prevent movement and prevent the silicone tube from being pulled and displaced when the roller presses it. Therefore, it is recommended to use the end with plastic particles as the inlet, because if the end without plastic particles is selected as the inlet, it may be due to the silicone tube being pulled and displaced, and wrinkles may occur inside the pump, causing the pump head to be stuck. Therefore, it is still recommended to use the end with plastic particles as the inlet. If it is necessary, it is recommended to use the end with plastic particles as the inlet. The end serves as the water inlet, and the mask can also be pried open to manually change the position of the plastic particles.
Specifications:
Voltage: DC 5V Working Current: 0.3A
Voltage: DC 6V Working Current: 0.35A
Material: Plastic+Metal
Packing: 1pcs
Note:
The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.
