Electric Bike Display EKD01 CAN/UART Protocol Bluetooth Navigation Multilingual eBike Computer 9 PAS For BAFANG Motor Protocol 5PIN IP6

Varstrom EKD01 CAN BUS Display

—— Your Smart E-Bike Co-Pilot 🧭⚡

Control your ride with clarity and intelligence. The Varstrom EKD01 is a feature-packed, Bluetooth-enabled display designed for the modern e-bike, offering navigation, security, and deep

customization in a rugged package.

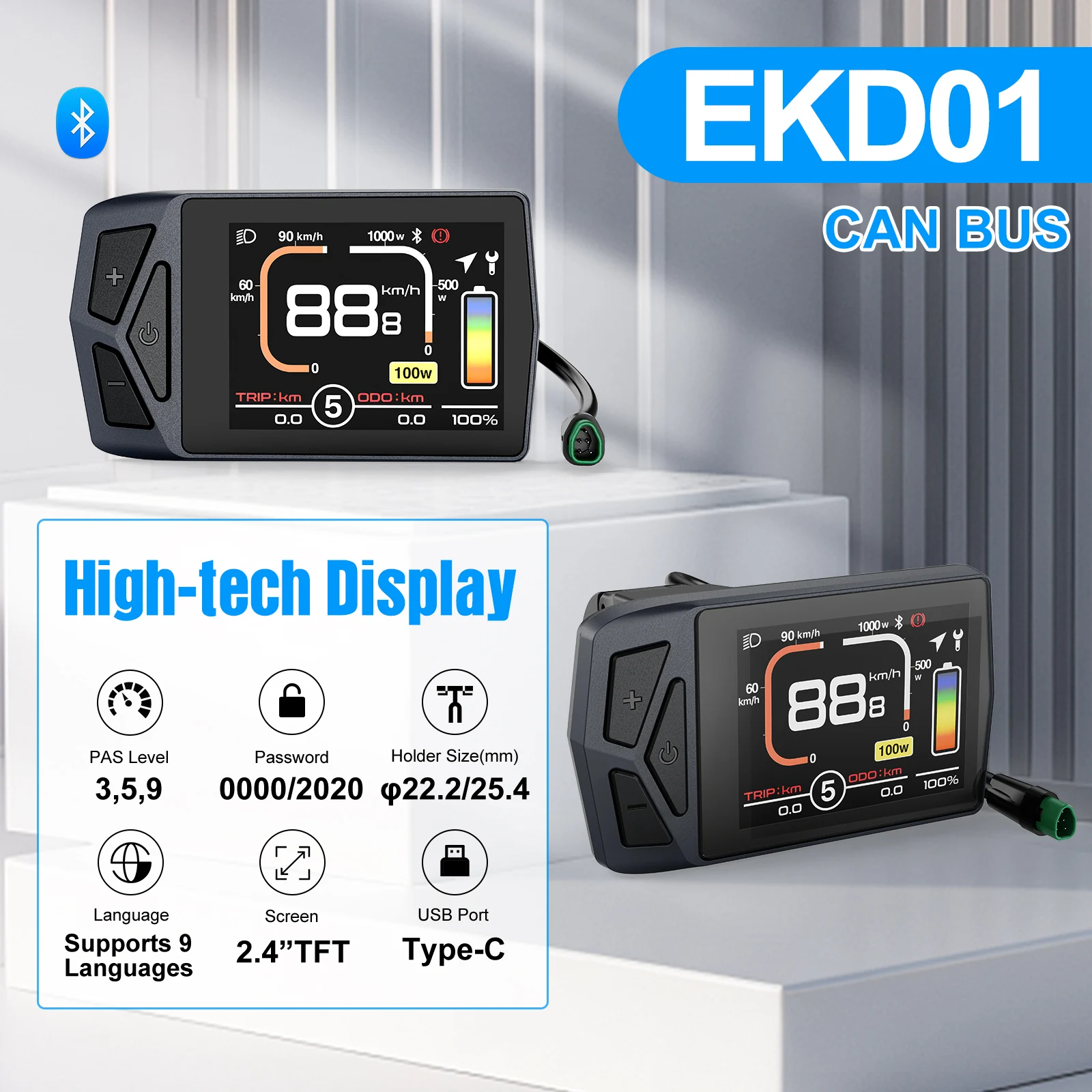

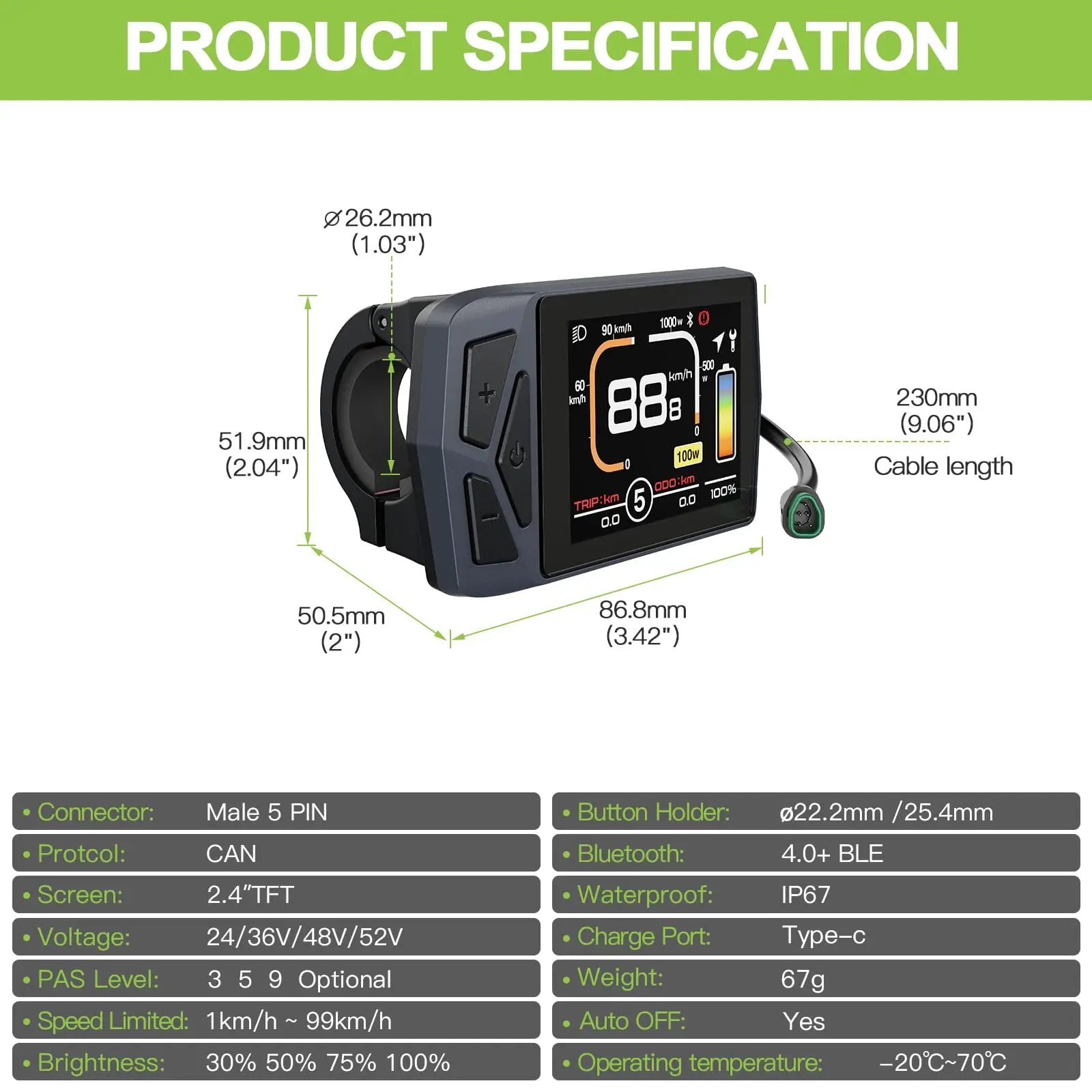

1. 📐 Size, Build & Durability

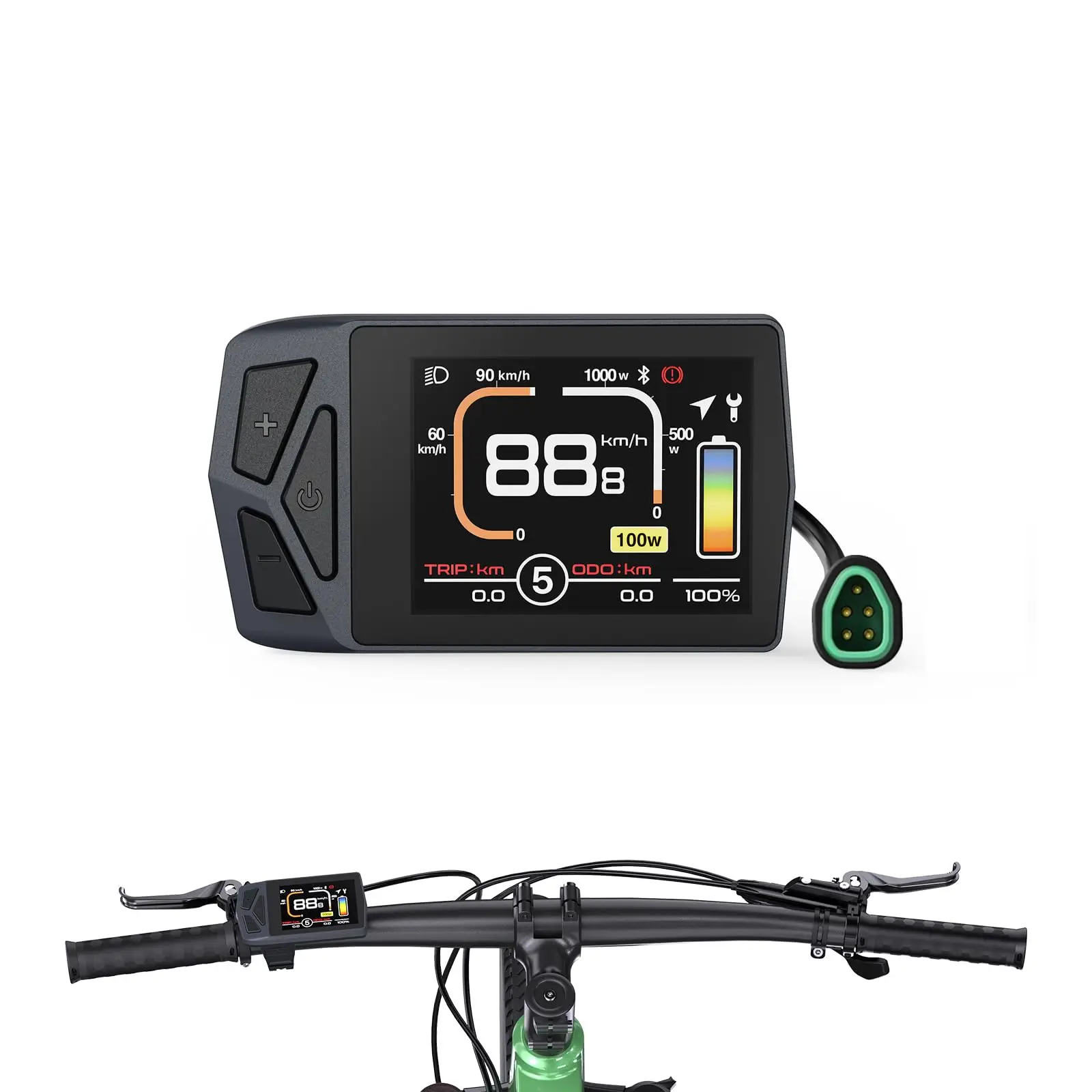

 · Screen: Vibrant 2.4-inch TFT color display for excellent readability.

 · Body: Made from tough PC plastic, built to last.

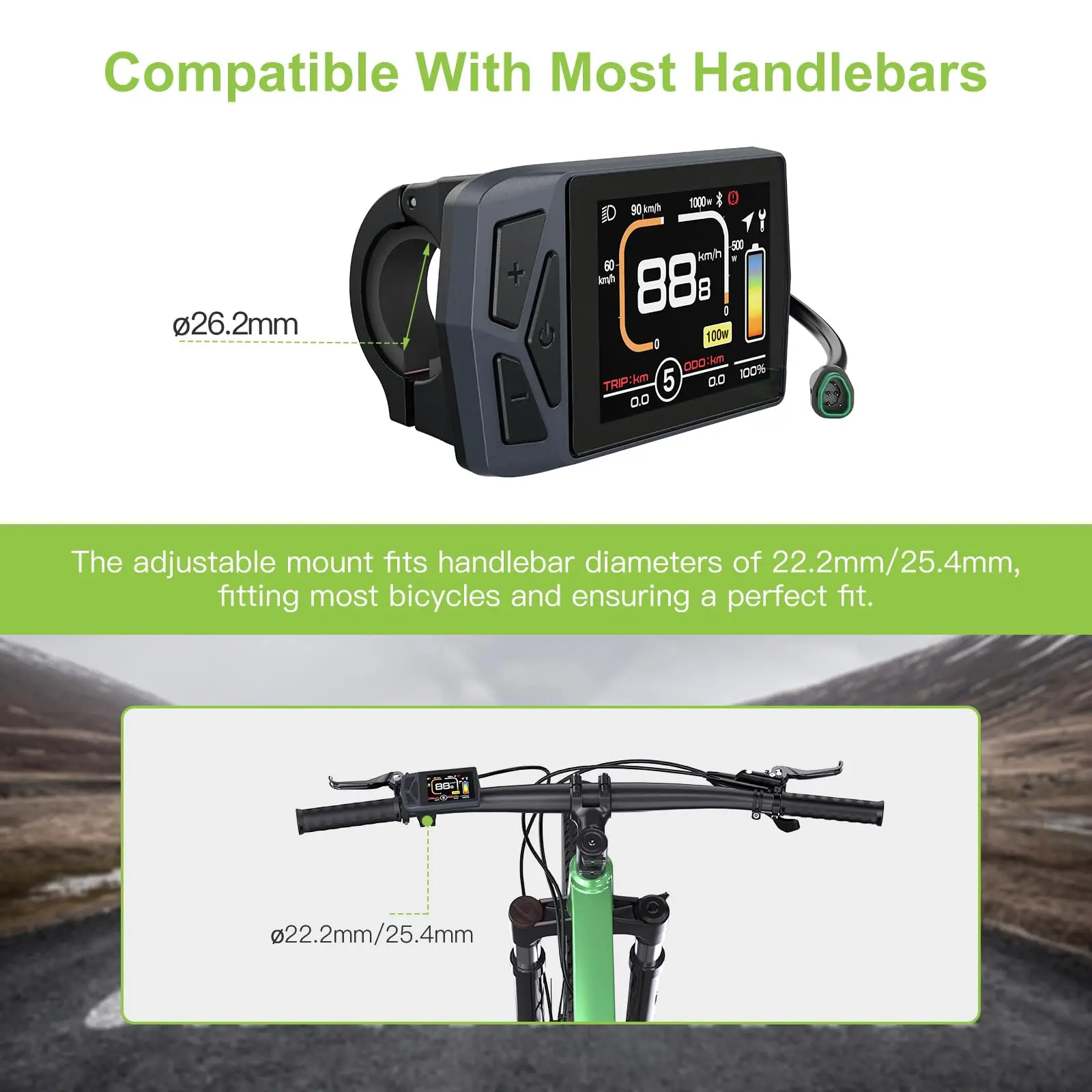

 · Mount: Fits standard 22.2mm or 25.4mm handlebars.

 · Protection: Rated IP67 – fully dustproof and waterproof, ready for any weather. 🌧️

2. 🔌 Compatibility & Security

 · Voltage: Works with a wide range of systems (24V, 36V, 48V, 52V).

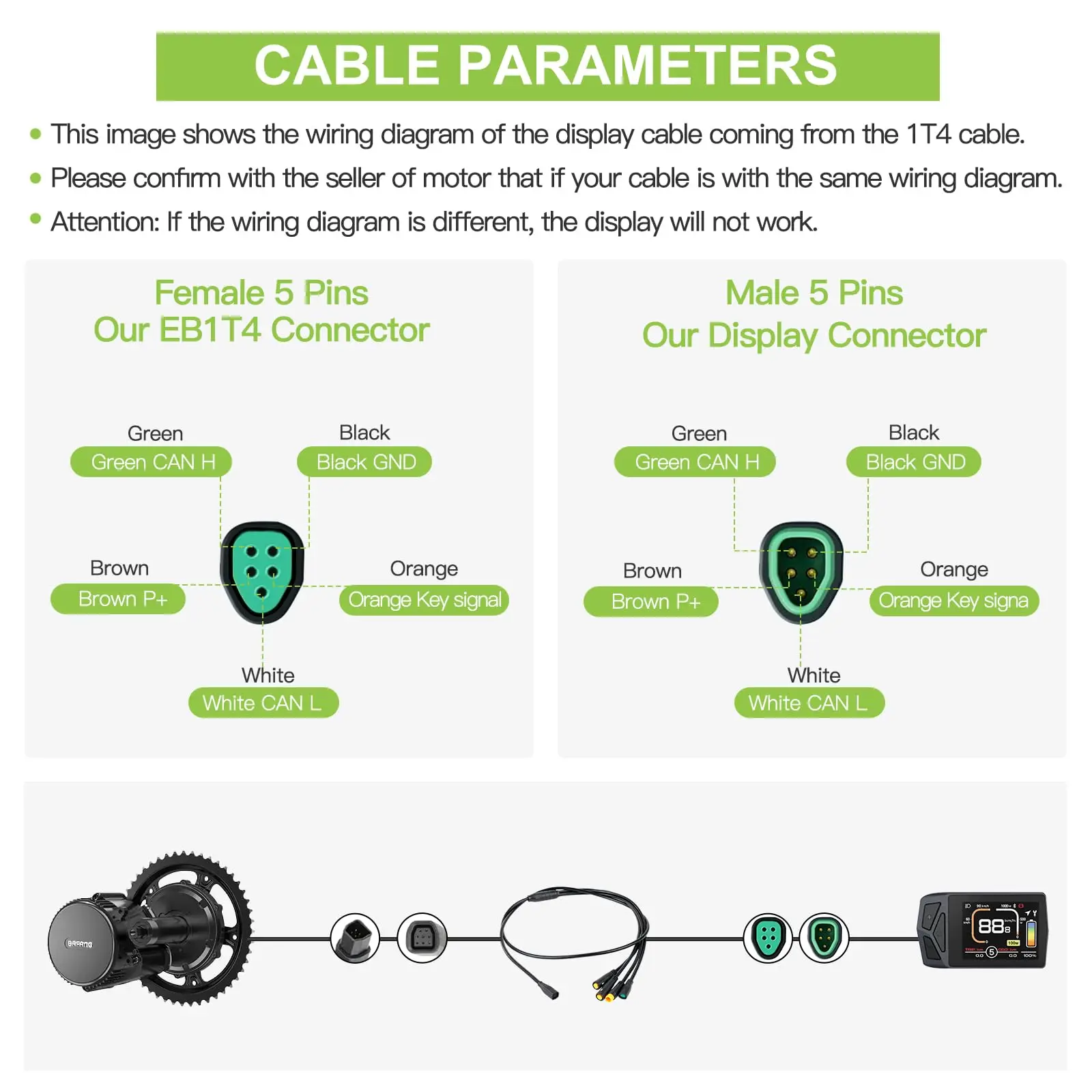

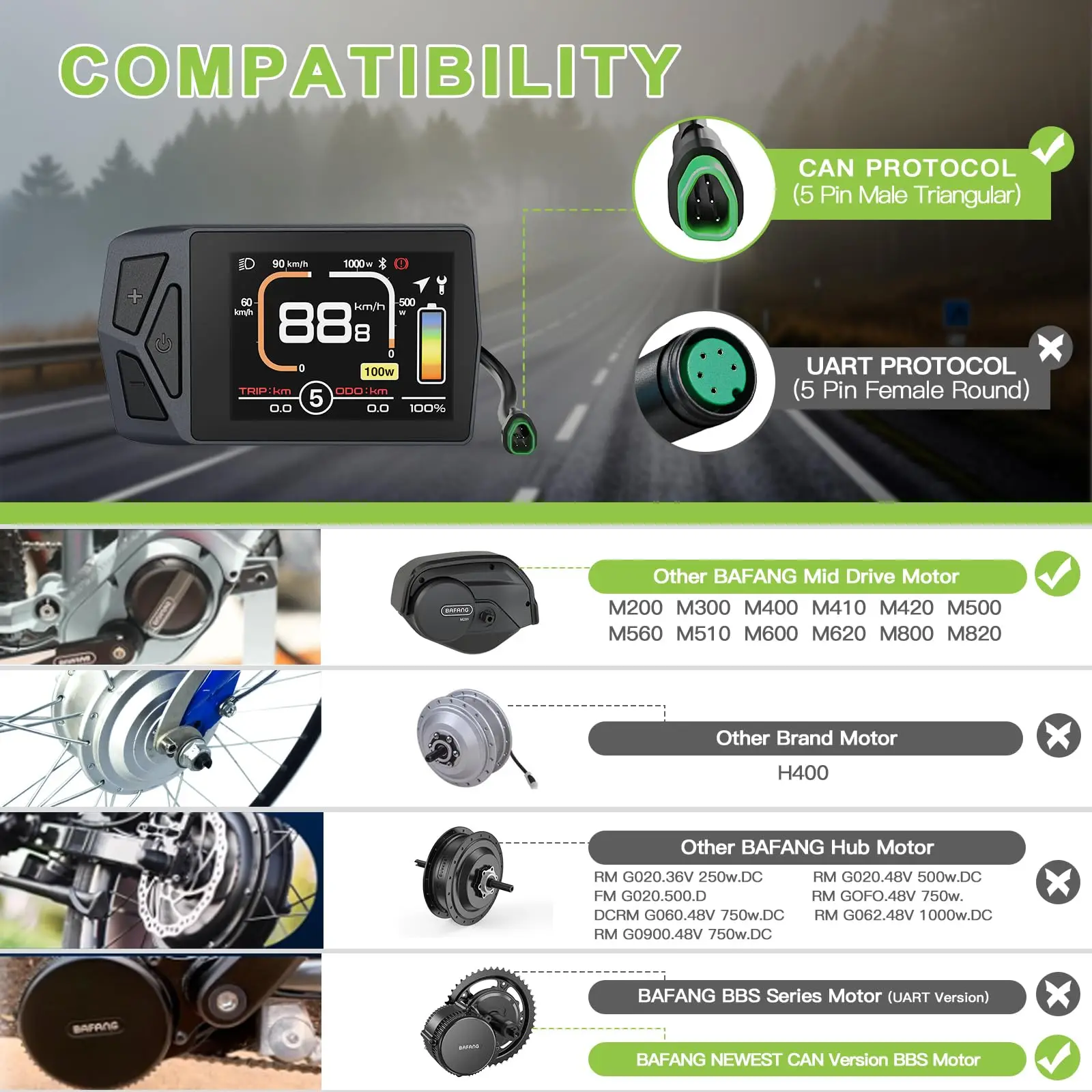

 · Protocol: Designed for CAN Bus motor systems.

 · Security: Features a Bluetooth lock (via BIKEGO app) and password protection (default: 0000).

 · Password Recovery: Forgot your code? Press - five times, then + once to reset.

3. 🎛️ Key Functions & Button Control

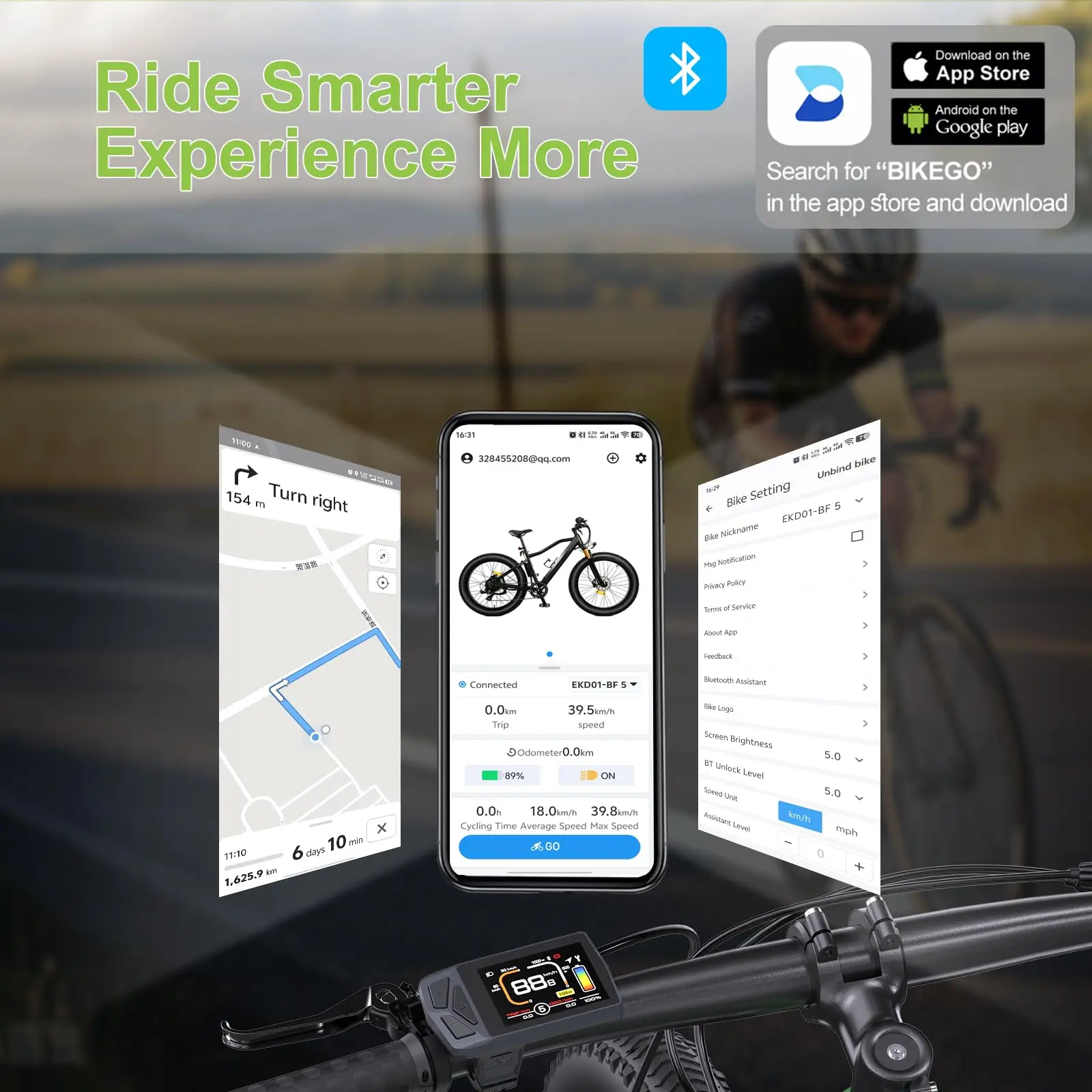

 · Smart Navigation & App: Get turn-by-turn navigation and full ride data tracking through the  · BIKEGO app. Supports OTA updates for new features.

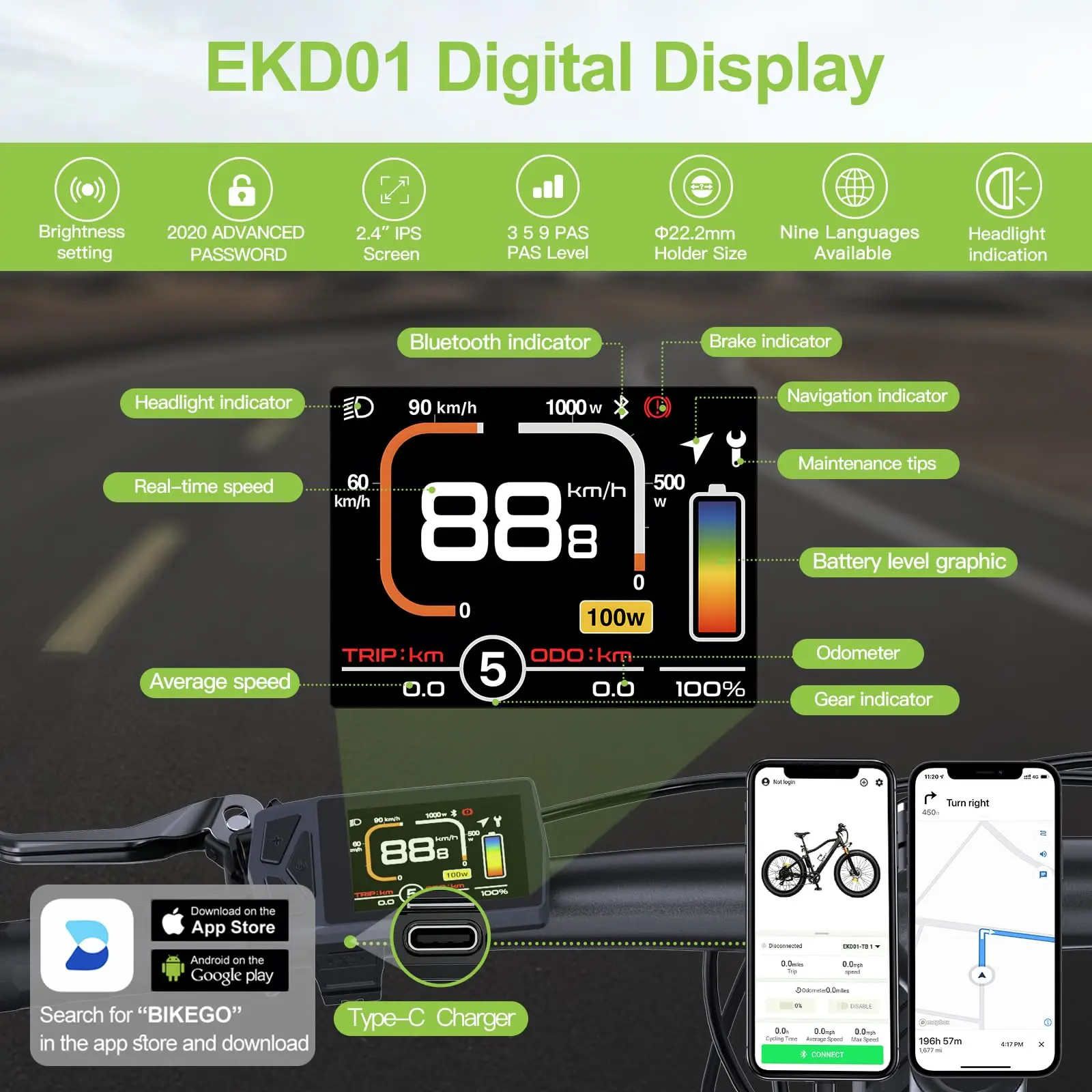

 · Essential Ride Data: Shows speed (current, avg, max), distance (trip/total), battery (%), power, time, and error codes.

 · Handy Shortcuts:

    · Quick 25 km/h Limit: Hold + and - together.

    · Headlight Control: Long press +.

    · Walk Assist (6 km/h): Dedicated button function.

 · Customizable Assist: Choose from 3, 5, or 9 levels of pedal assist (PAS).

4. 🌍 Language & Custom Settings

 · Languages: 9 options: English, French, Spanish, Italian, German, Czech, Dutch, Polish, and Chinese.

 · Fully Adjustable System:

    · Speed & Power: Set limits per assist level (1-99 km/h).

    · Bike Setup: Adjust wheel size (6-34 inches) and acceleration response.

    · Display: Control backlight brightness and auto-off timer (1-10 min).

    · Unit: Switch between km/h and mph.

Upgrade to the EKD01 for a smarter, safer, and more connected riding experience. It’s not just a display; it’s your bike's command center. ✅🚲
