Nice-Power Adjustable DC Power Supply 30V 10A Lab Power Supply 300W Voltage Regulator Stabilizer 60V 5A Switching Bench Source

Nice-Power Adjustable DC Power Supply 30V 10A Lab Power Supply 300W Voltage Regulator Stabilizer 60V 5A Switching Bench Power Source

The power supply uses advanced technology PWM, voltage, current can be continuously adjustable from 0 - 30V/60V/120V Rating obtain Ultra-low ripple. High-precision reference voltage source, rational circuit design, the ability to provide highly accurate output. High-power MOS devices Application, to ensure adequate power supply, improve the long-term stability of the power at full load work. Perfect protection function, in order to protect the load And the power supply are not damaged. Simple operation, and a plurality of power supply can be directly connected in series, parallel, expanded power Range of applications.

Product Features

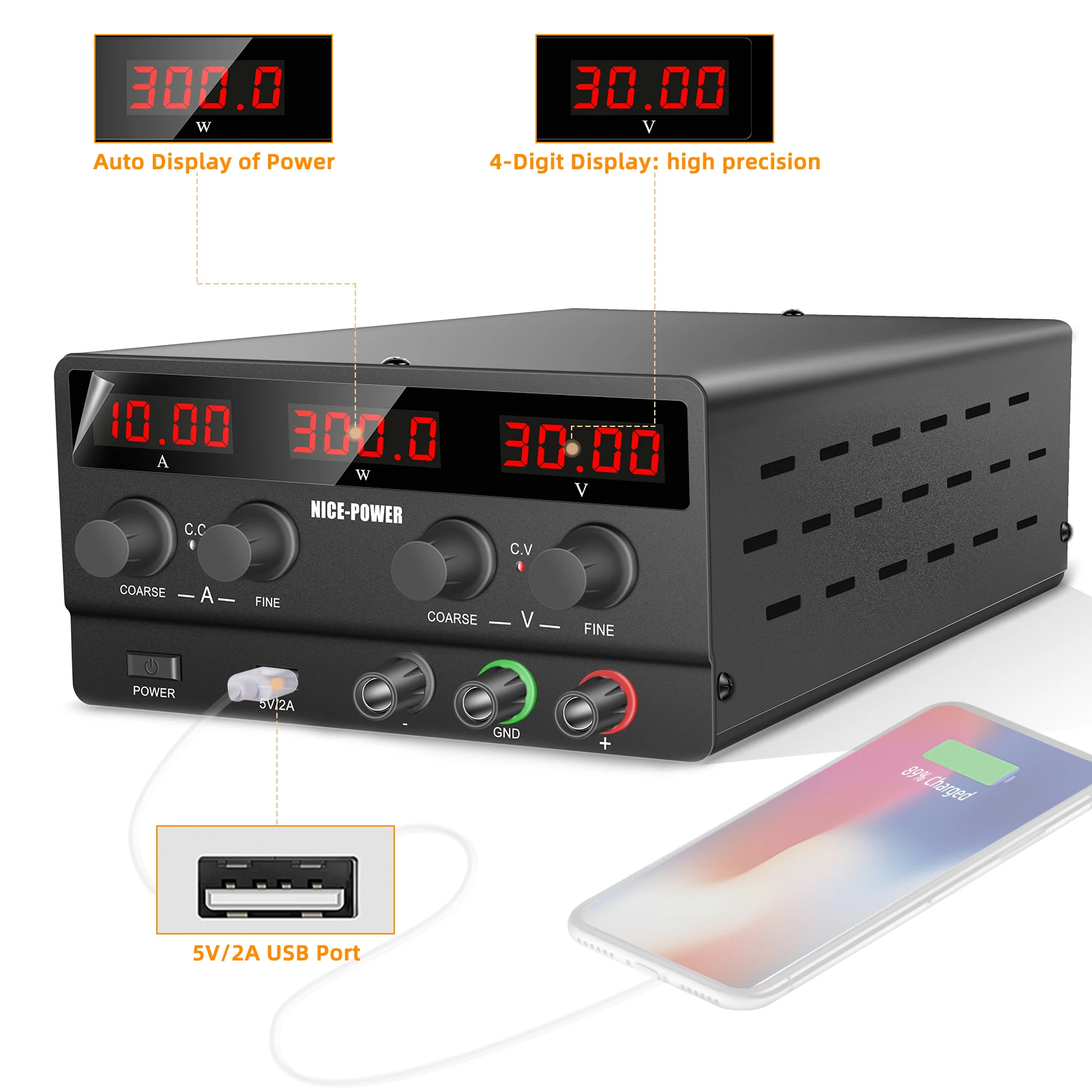

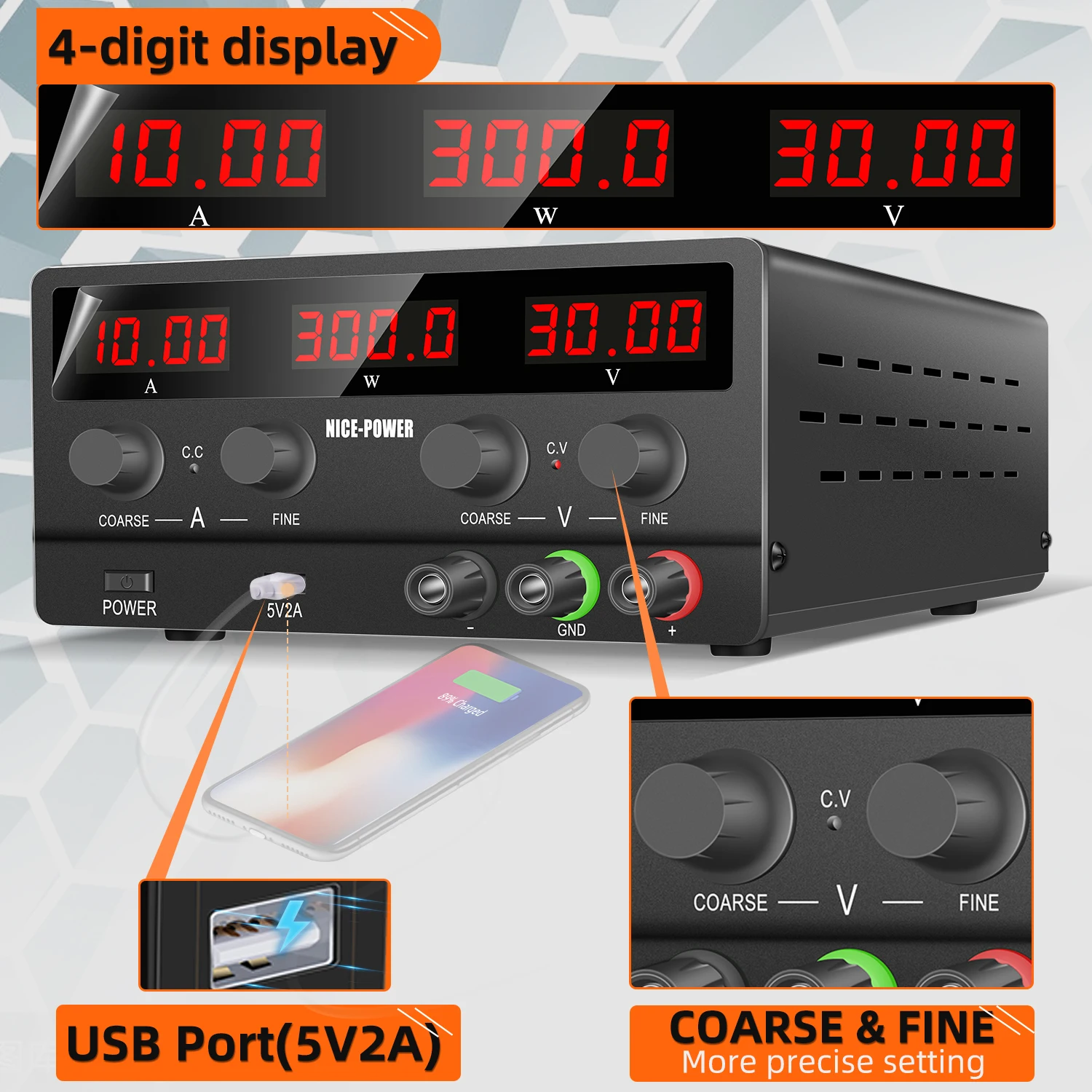

1. High-precision LED digital display, intuitive and clear.
2.8 cm smart fan, excellent heat dissipation, effectively extend fan life and reduce noise.
3. The use of advanced technology to effectively reduce the weight of the power and convenience of mobile power.
4. A variety of protection, current limiting protection (OCP), over temperature protection (OTP), Over Power Protection (OPP).

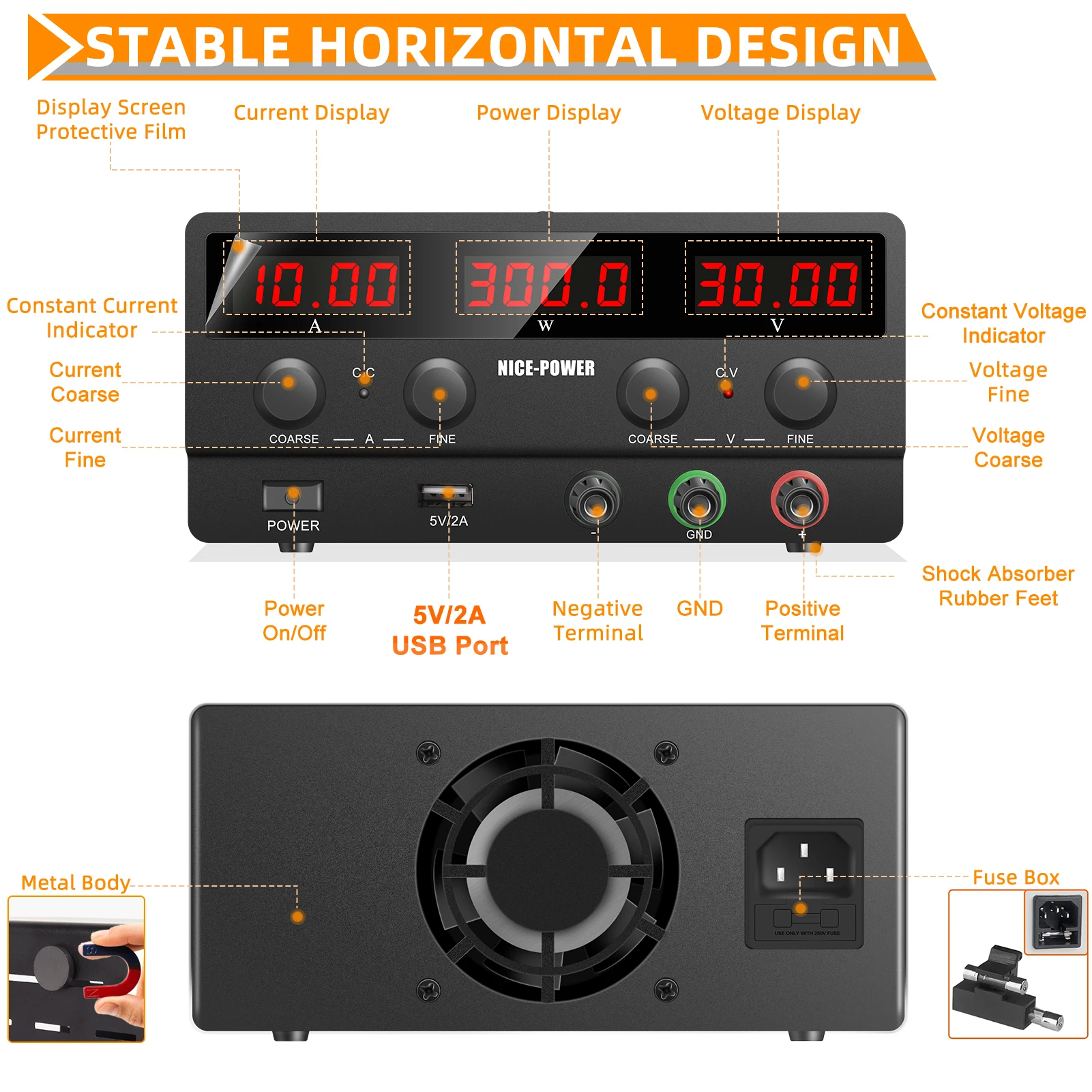

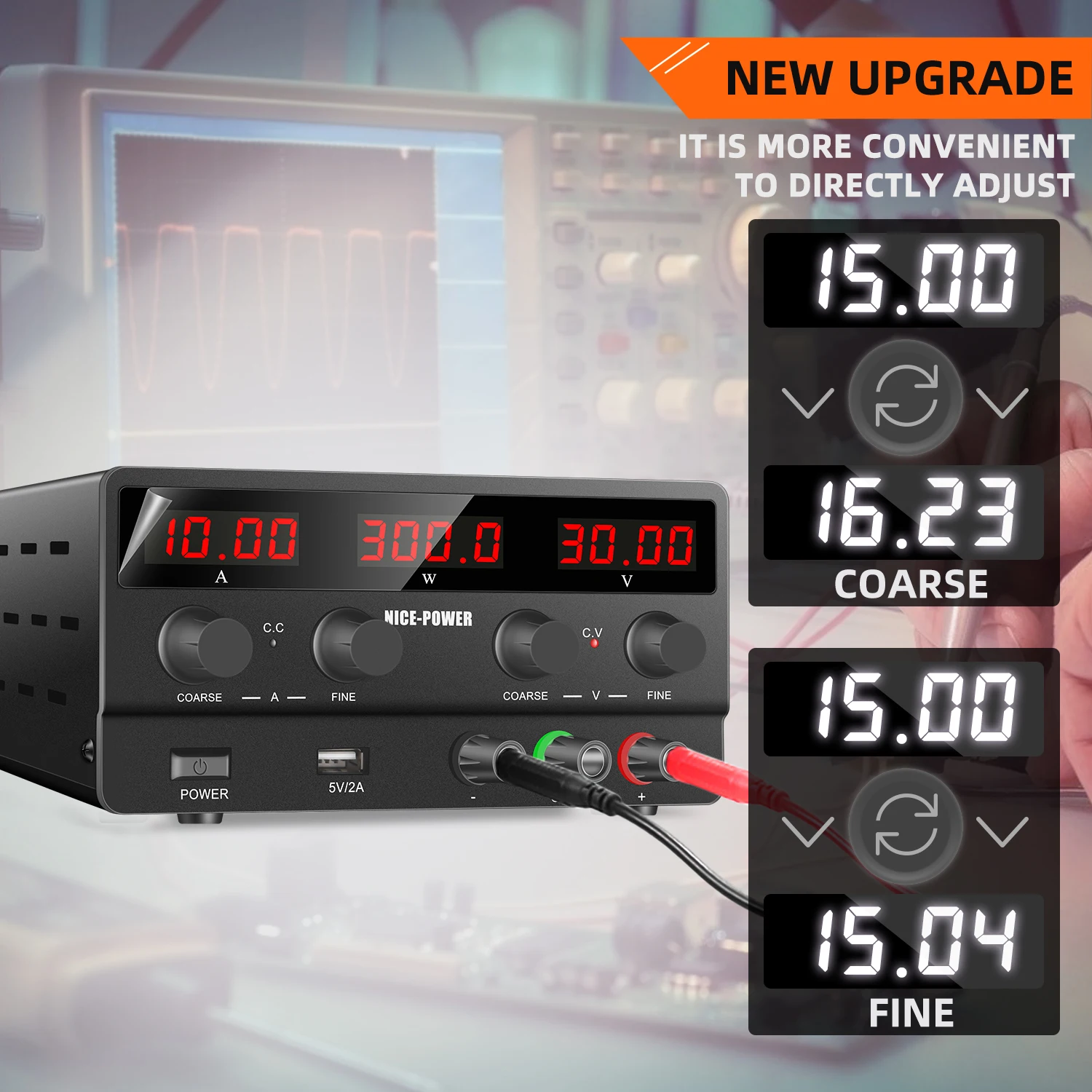

5. plastic panels, more beautiful, voltage, current, coarse and fine adjustment knob to set the settings to be more precise.
Application areas:
. Car DVD, Car Audio.
. Aging products, such as resistors, capacitors, relays, DC motors, LED and the like.
Laboratory, factory, repair power supply.
Other DC power supply all the needs of the occasion.

Technical Details:

1. Input voltage: 220V 10% @ 50Hz 5Hz
110V 10% @ 60Hz 5Hz
Switch or a single voltage input
2. Output voltage: DC 0- 30V/60V/120V Ratings V (see Table I)
3. Output Current: DC 0-3A/5A/10A rated A (see Table I)

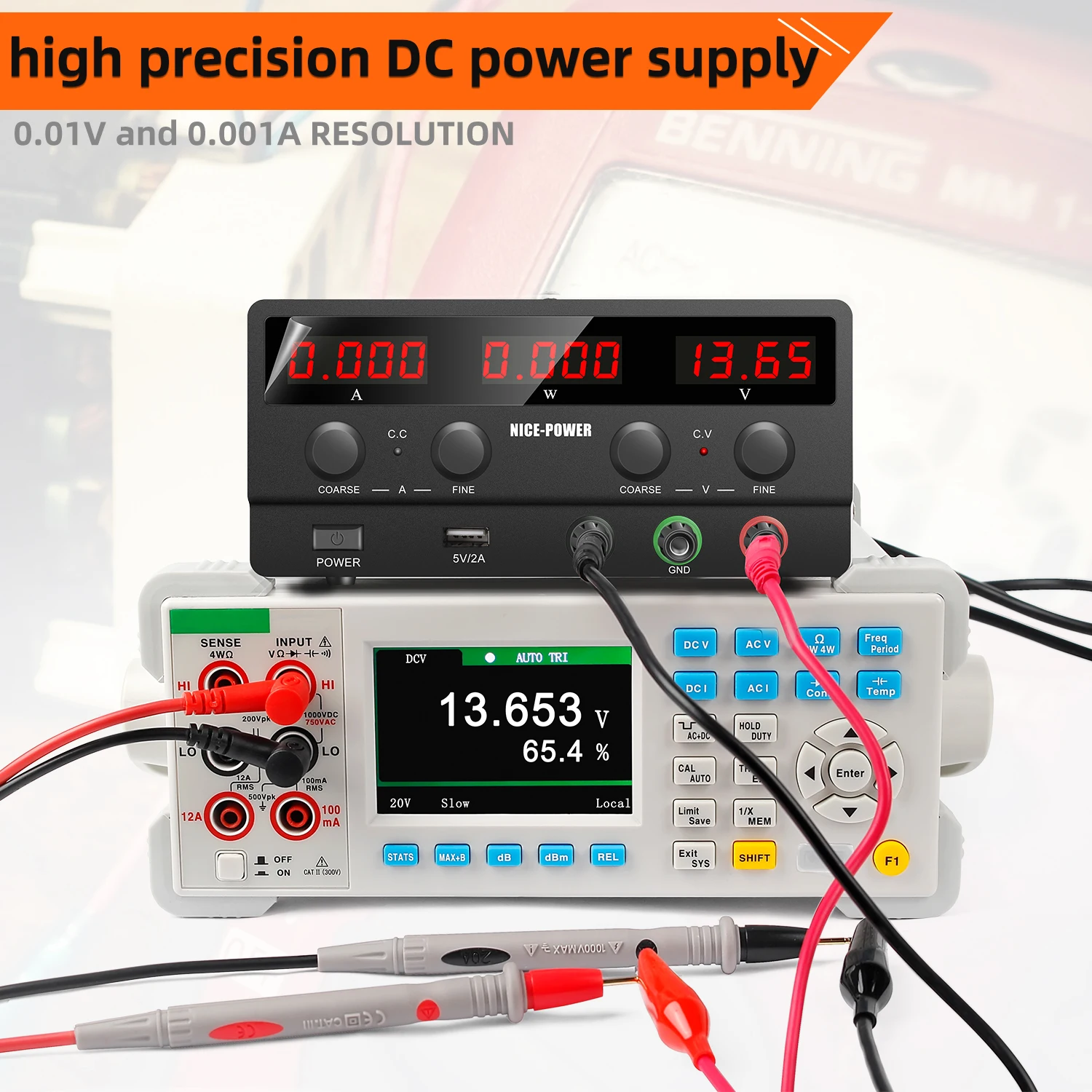

4. Display Accuracy:
1% 1 word (three / three and a half digital display, voltage resolution 0.1V, current resolution 0.1A)
0.1% 1 word (four / four semi-digital display, voltage resolution 0.01V, current resolution 0.01A)
5. boot delay: 1-2S Shutdown Delay: 1-6S (depending on the load)
6. Voltage Stability: ≤0.05% + 1mV
7. The current stability: ≤0.1% + 10mA
8. Load stability: CV≤0.05% + 1mV
CC≤0.05% + 10mA
9. Ripple and Noise: CV≤10mV
CC≤20mA (RMS)
10. Overall efficiency: ≥80% (under full load test)
11. Working environment: -10 - + 40 Relative humidity 20% -80% (non-condensing)
12. Storage Environment: -20 - + 80 Relative humidity 20% -70% (non-condensing)
13. Pressure test: Input - Output: 1.5KVAC / 1 Minute
Input - Housing: 1.5KVAC / 1 Minute
Output - Housing: 500VAC / 1 Minute
14. Ground Resistance: <20mΩ

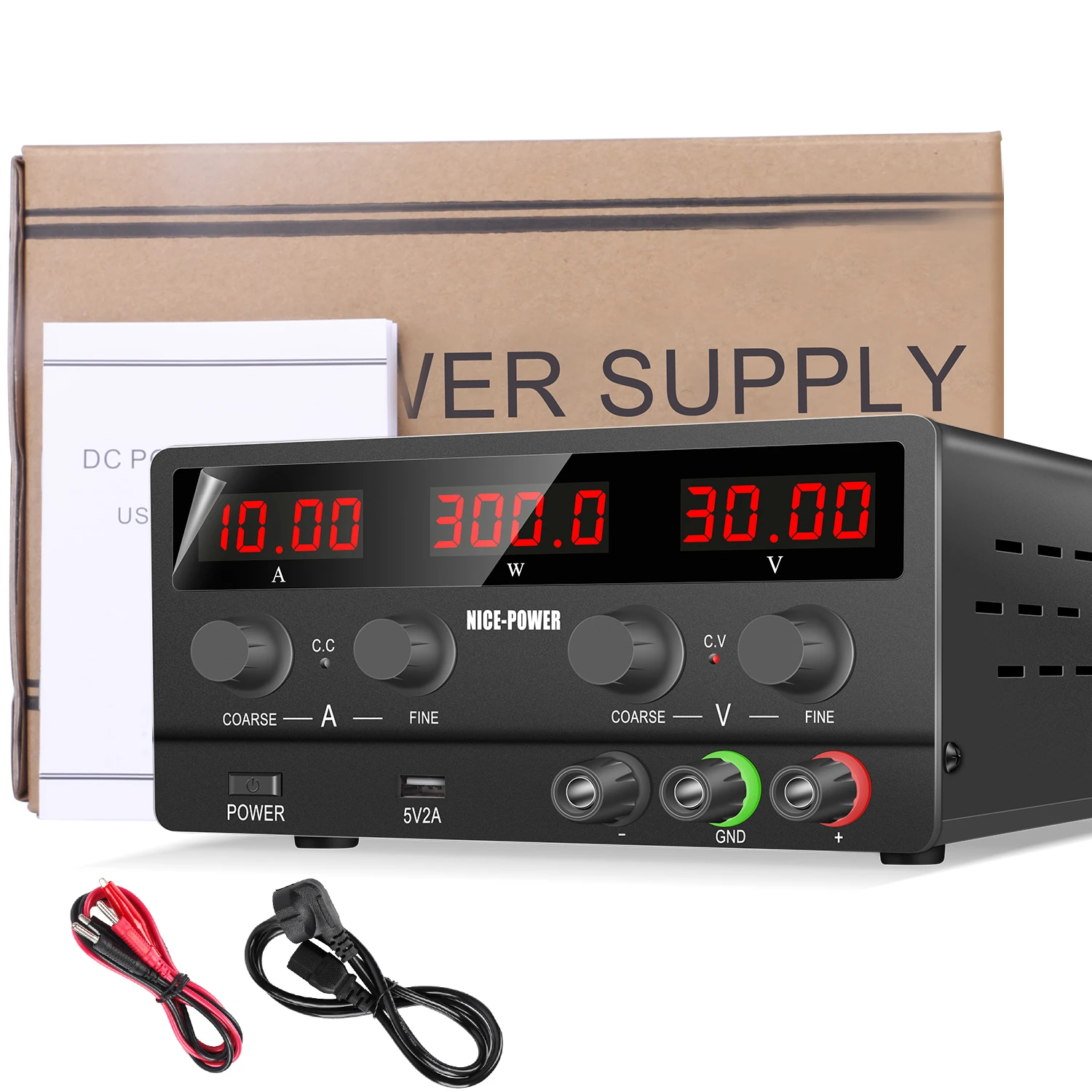

Package List :

1*Power supply
1*Power Adapter(EU/AU/UK/US optional)
2*output line(gift)
1*Instruction Book (English)
1*Package Box
1*Certificate of conformity
