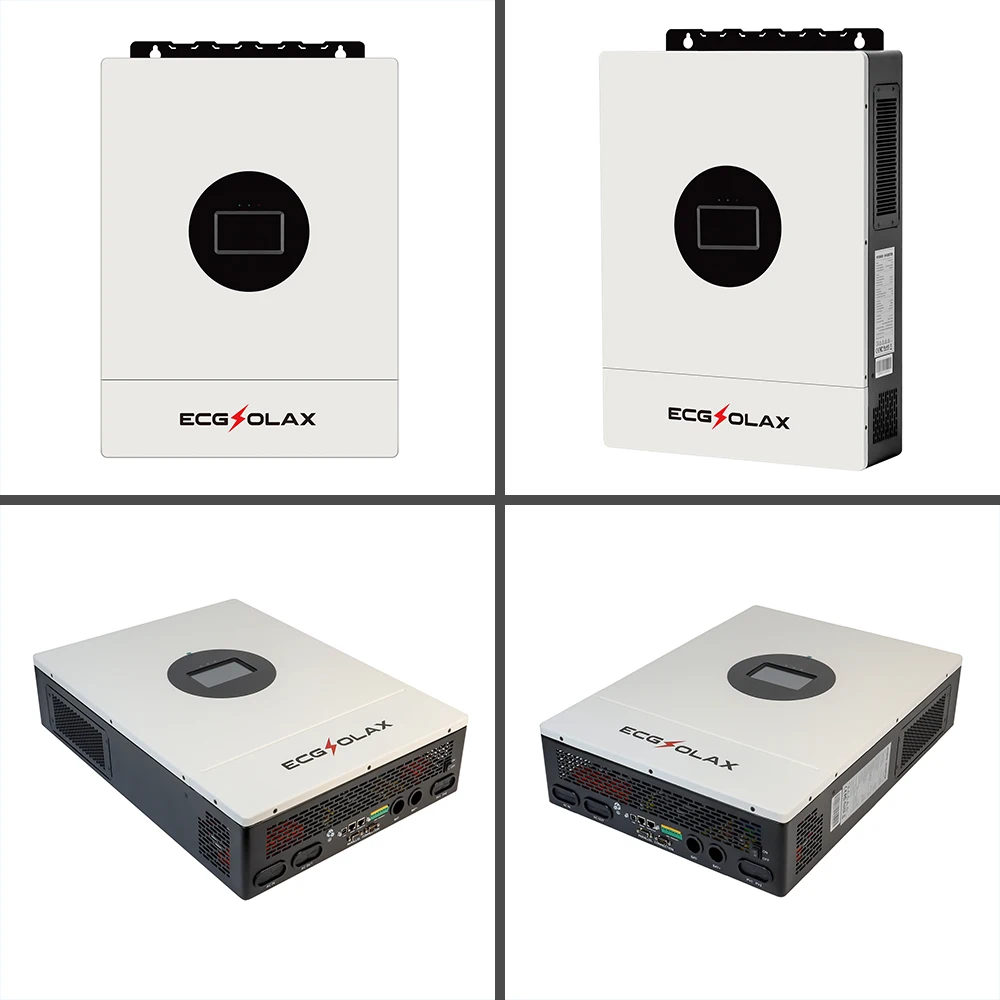

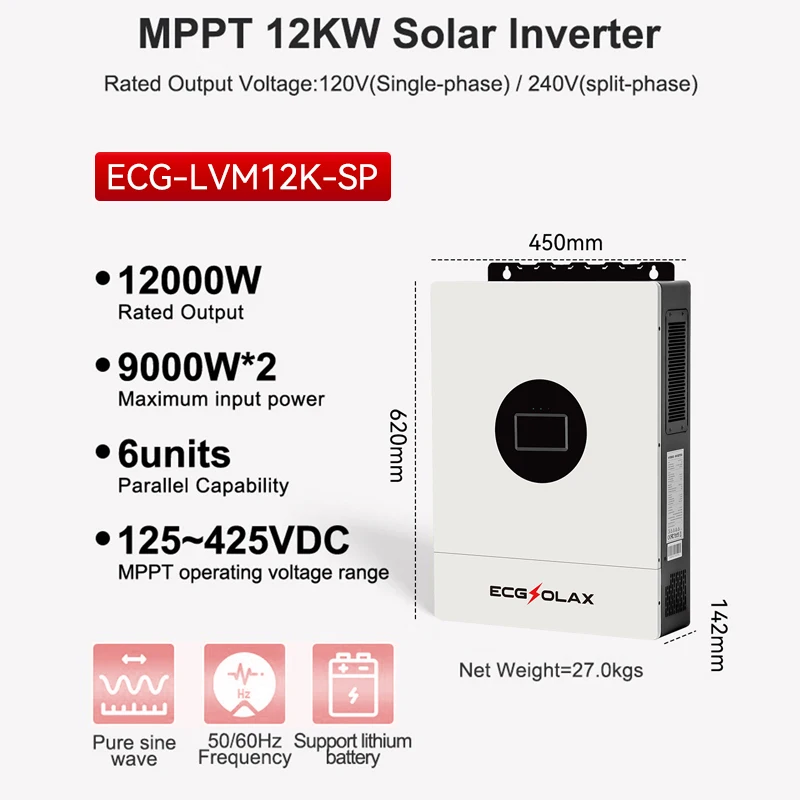

ECGSOLAX 12KW Hybrid Solar Inverter 48V 110V/240V Split Phase Hybrid Inverter With MPPT 200A Charging controller Built-in WIFI

ECGSOLAX 12KW Hybrid Solar Inverter 48V 110V/240V Split Phase Hybrid Inverter With MPPT 200A Charging controller Built-in WIFI

Introduction:

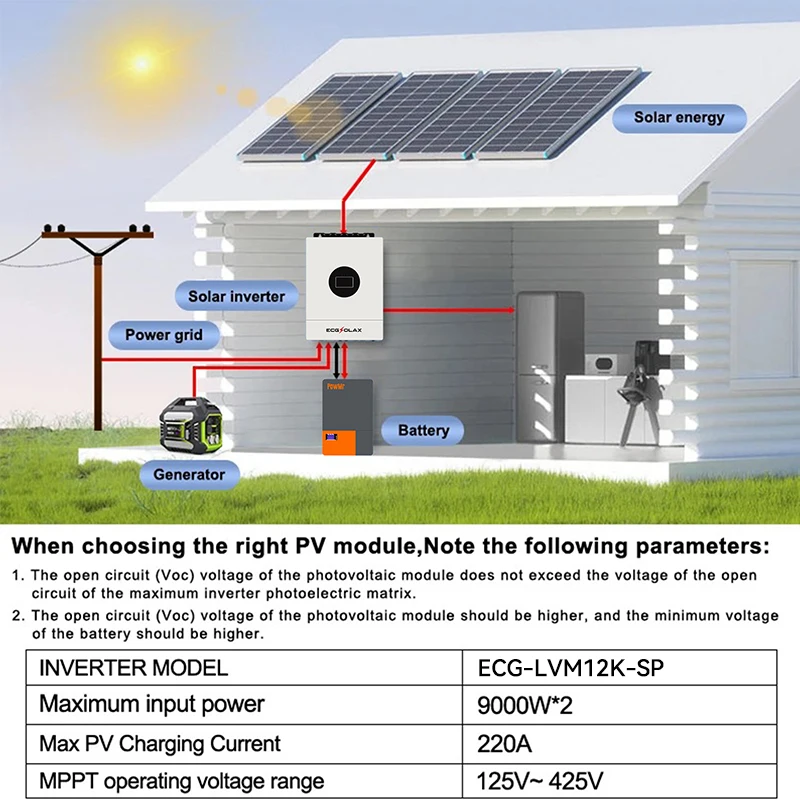

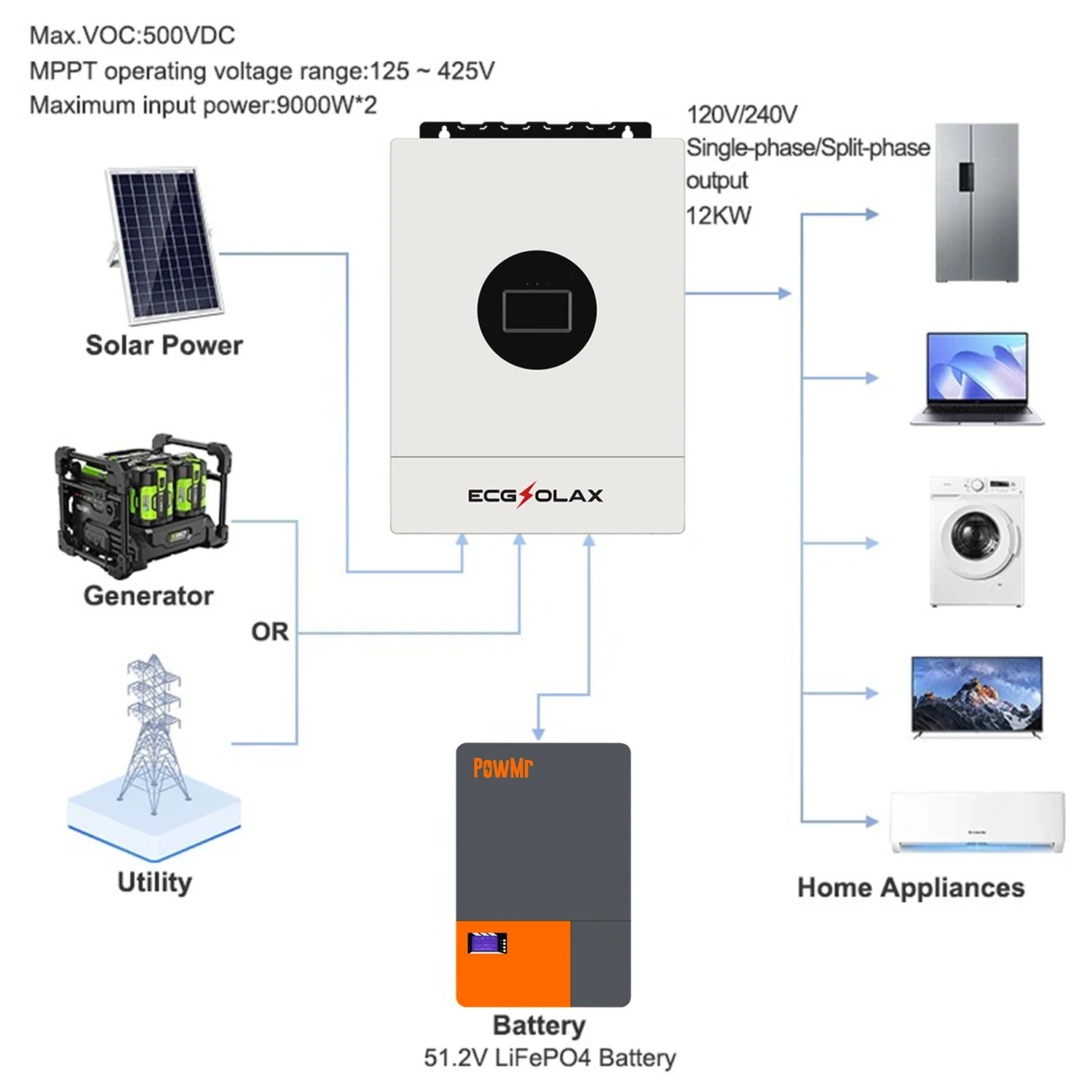

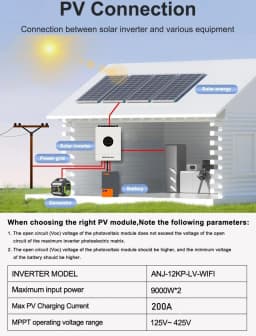

Energy storage hybrid inverter through the connection and overall control of photovoltaic, energy storage battery, grid and load, for home, commercial and industrial users to provide stable, safe

and clean electric energy, to meet the energy needs of different scenarios.

Features:

1. Supports multiple types of energy storage batteries such as lead-acid batteries and lithium ion batteries

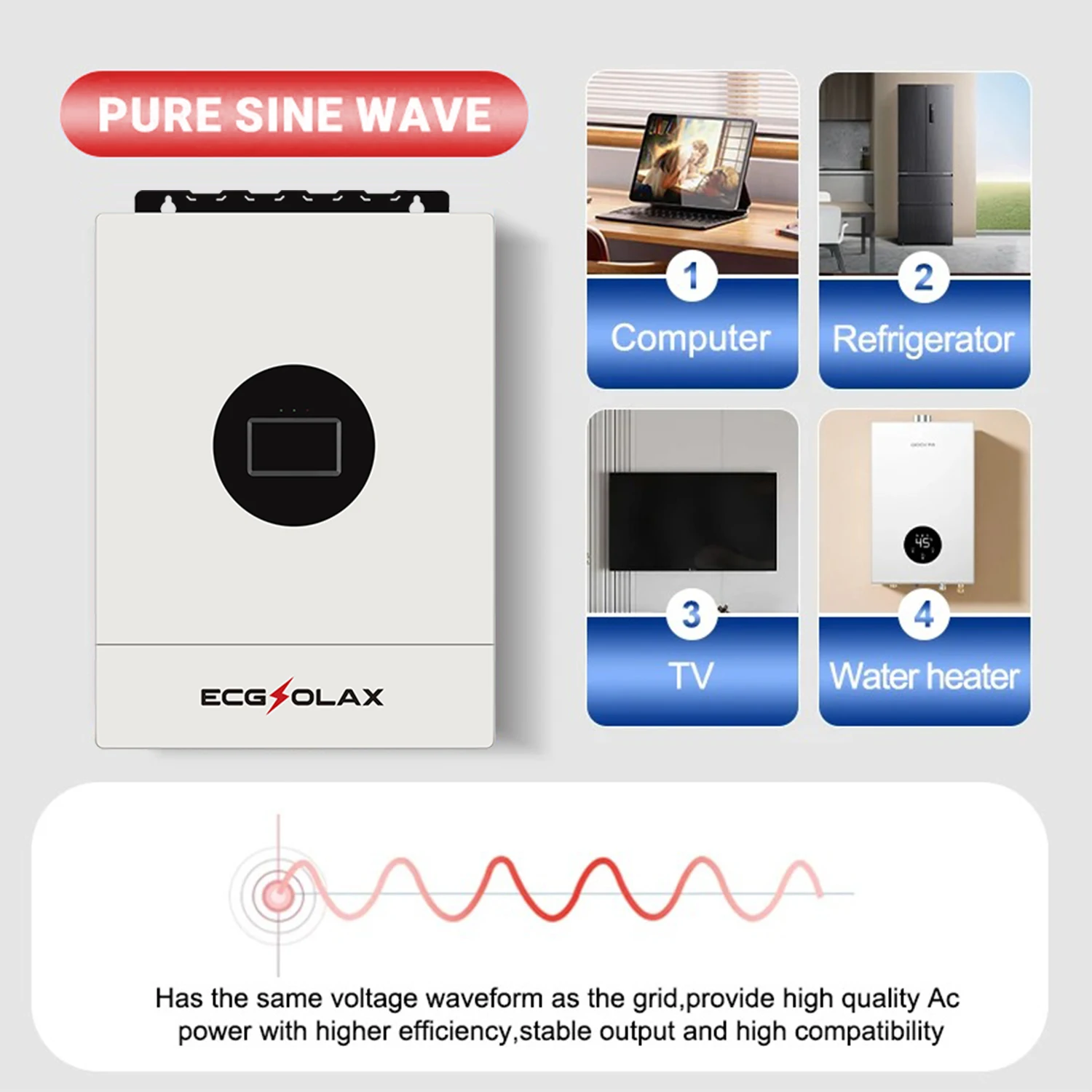

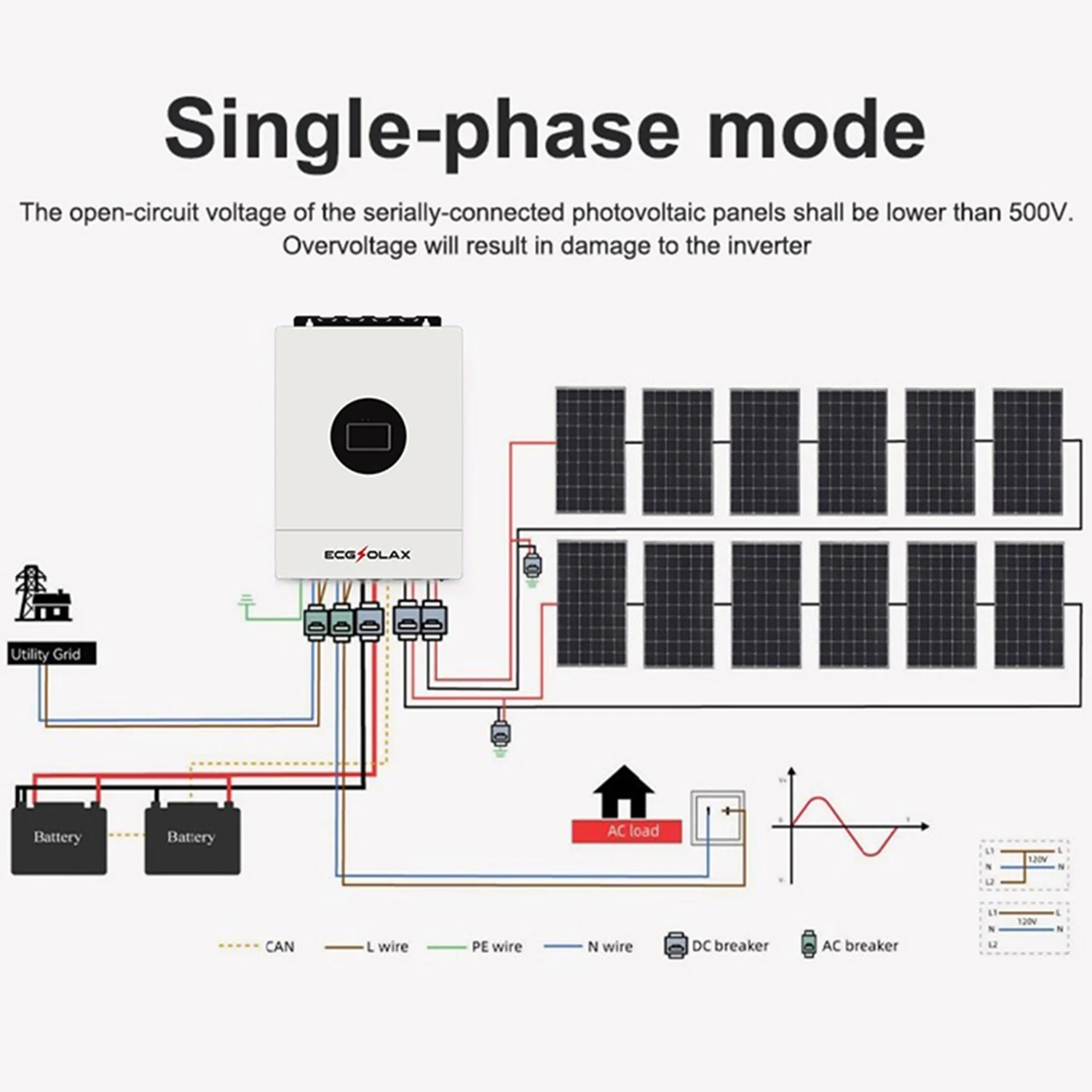

2. Support single-phase and split-phase pure sine wave output

3. Support each phase voltage adjustment in the range of 100~130Vac

4. Support two photovoltaic inputs, with the function of tracking the maximum power charging/carrying capacity of two MPPT simultaneously. The MPPT efficiency is up to 99.9%, and the maximum current of a single channel is 22A

5. Has two output modes of mains bypass and inverter output, with uninterrupted power supply function

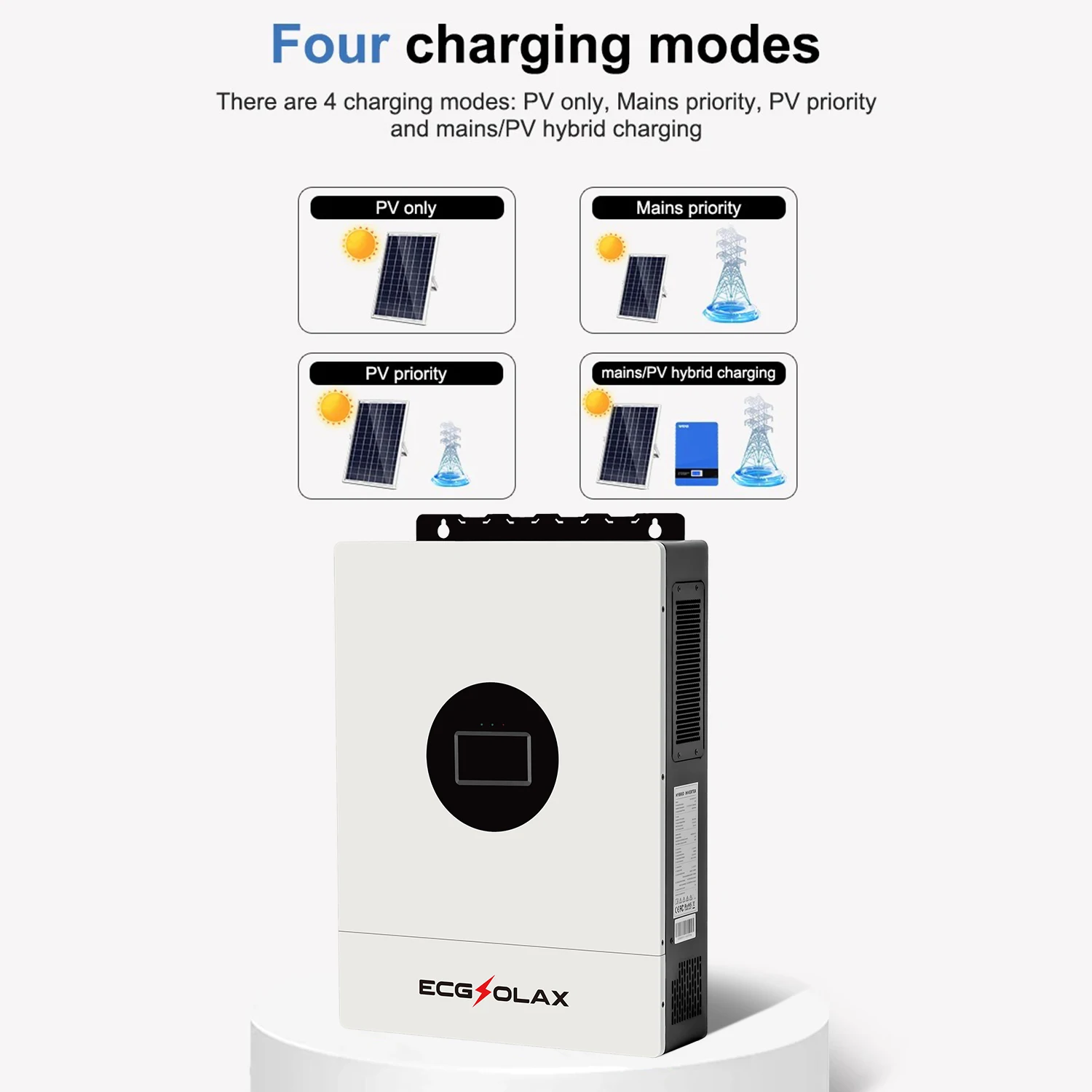

6. There are 4 charging modes: PV only, Mains priority, PV priority and mains/PV hybrid charging

7. Support for timed battery charging and timed battery discharge

8. Energy saving mode function of single machine to reduce no-load energy loss

9. With a variety of protection functions, fully protect the safety of photovoltaic panels, batteries, loads and the controller itself.

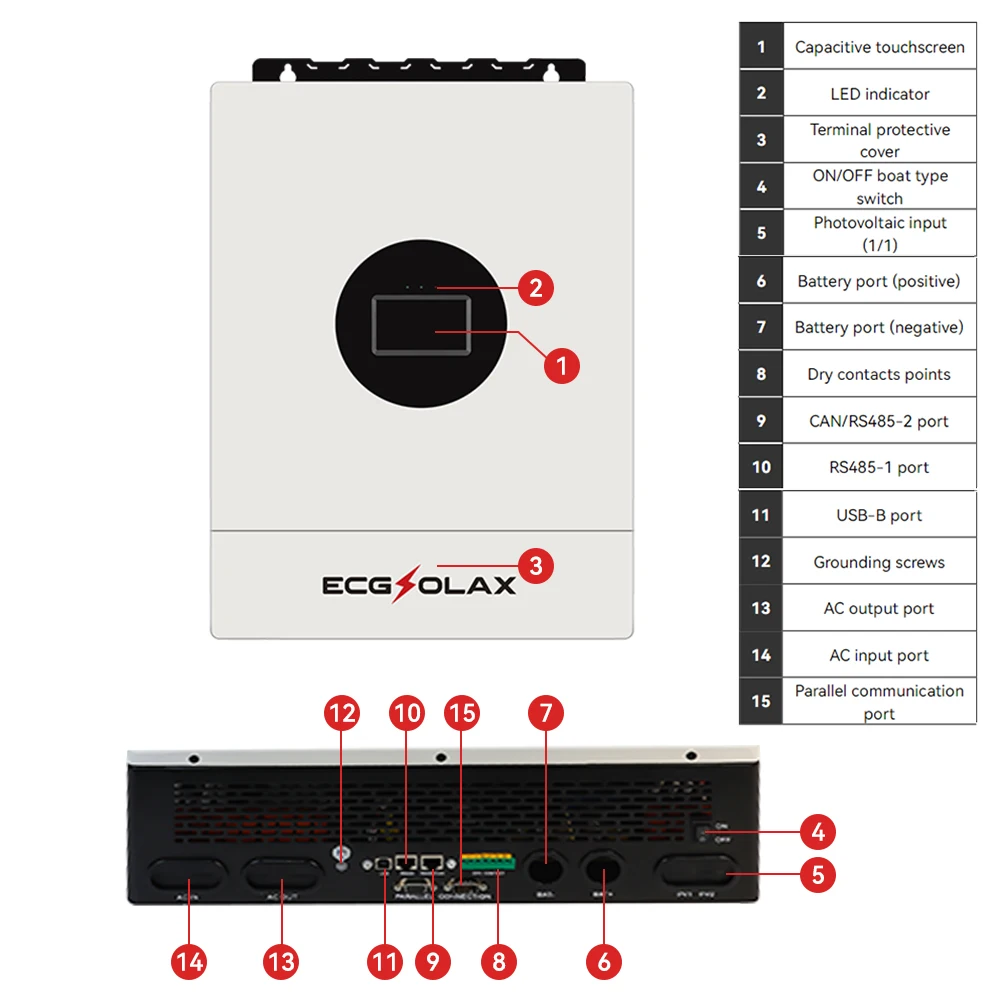

10. Capacitive smart touch large screen, menu operation, intuitive and convenient parameter setting.

11. Support 256 event records; Supports 1024 days of historical data storage.

12. Built-in Bluetooth and WIFI interface, providing native cloud platform access ability, automatic time after connection.

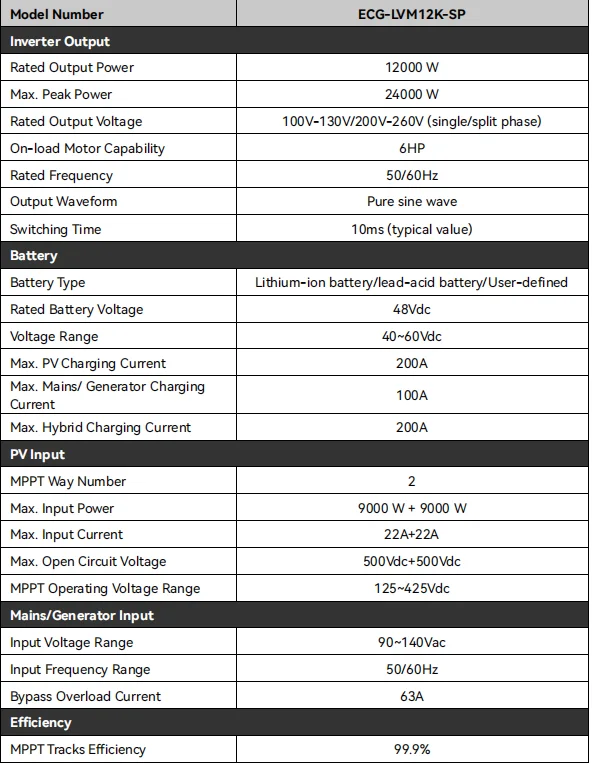

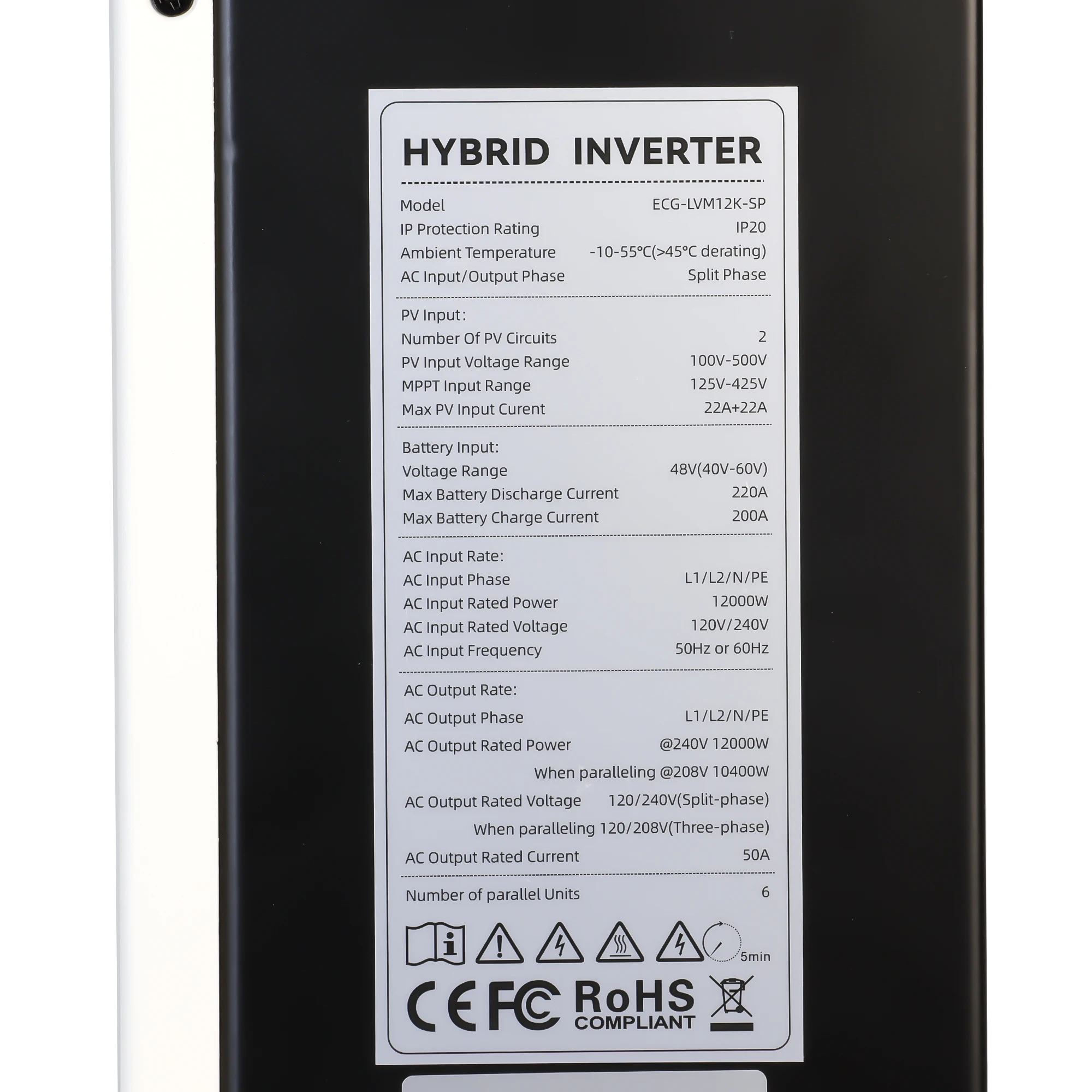

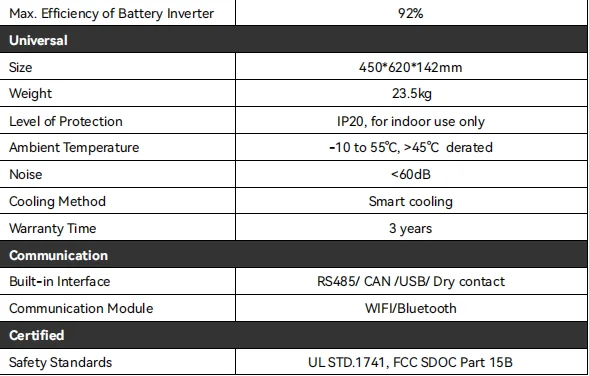

Specification:
