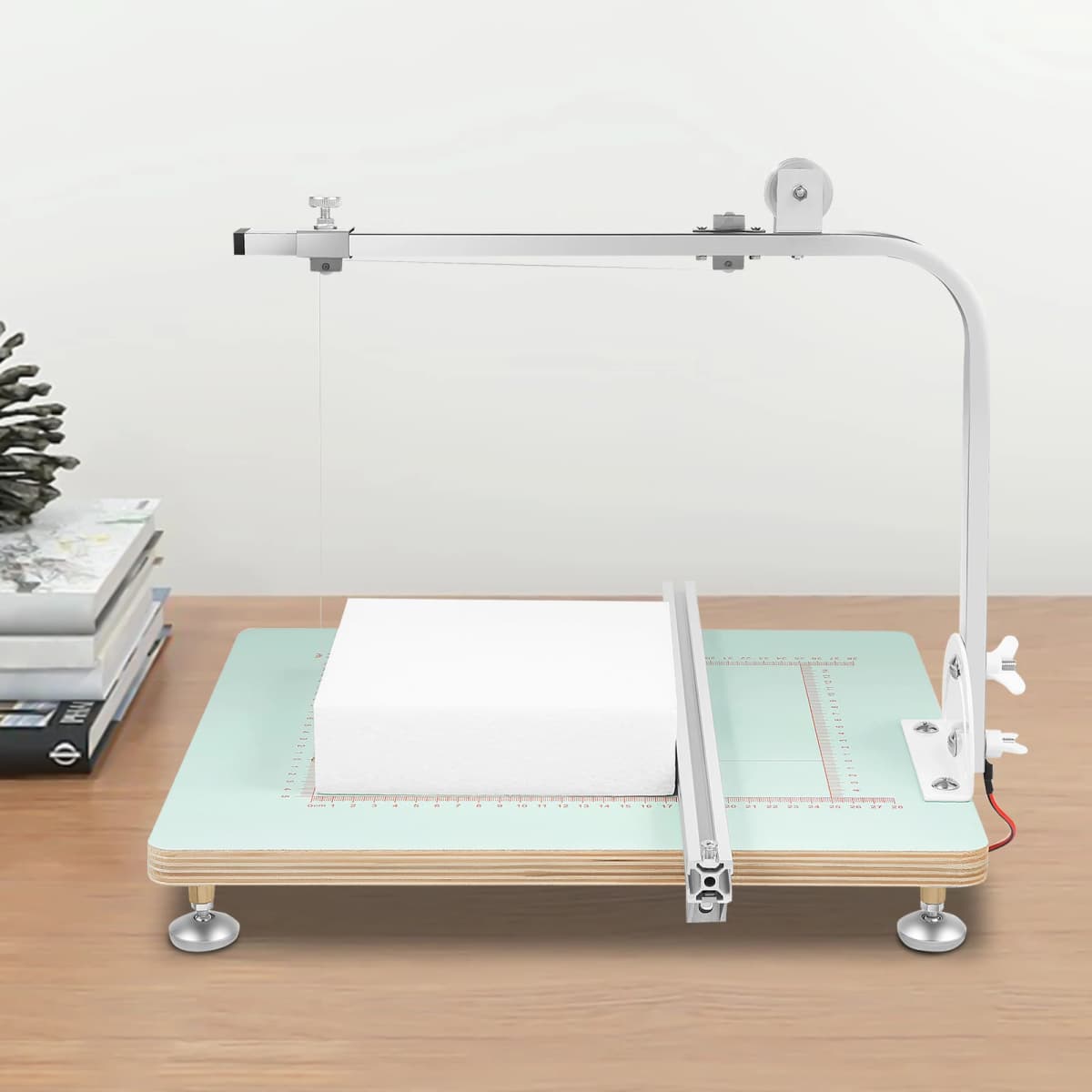

Foam Cutting Machine, Hot Wire Cutter Portable with Adjustable Stand, Precision Cutting Tool for Styrofoam, Craft, Model Making

Application
It can be used to cut foam, sponge, pearl cotton, ribbon, KT board, etc. It can cut angles, cylinders, sharp cones, rings, cones, straight lines, and other shapes.

How to Install
1.Take out the semicircular angle board, align two holes on the angle board with two holes on the worktable, and tighten them with screws.
2.Take out the L-type stainless steel square pipe support, and align two holes on the pillar with two holes on the angle board. Put on the bolt, cover the copper nose (copper nose is conductive zero line, and very important), and tighten the nut.
3. Pull out the heating wire about 11.81in from the wire wheel.
4.Thread the heating wire through the small hole of the worktable, and then make a ring on the heating wire and hang it on the spring at the machine's bottom. It should not fall off.
5.Rotate the aluminum alloy wire wheel on the bracket to tighten the heating wire. The heating wire is moderately tight and naturally elastic.

Specification
Material: Multilayer Board, Stainless Steel, Aluminum Alloy
Color: Light Blue, Silver
Mount Type: Countertop
Assembly Required: Yes
Plug Type: US Standard
Power Supply: Corded Electric
Adapter Input: 100-240V
Voltage: 18V
Power: 72W
Preheating Time: 0-5 Seconds
Cutting Height: 0-25cm/0-9.84 in
Cutting Width: 0-28cm/0-11.02in
Cutting Diameter: 0-10cm/0-3.94in
Adjustable Bracket Angle Range: 0-180°
Power Cord Length: 222.5cm/87.6in
Heating Wire Diameter: 0.28mm/0.01in
Adjustable Temperature Range: 0~300℃/32~572℉
Workboard Size: 39*33cm/15.35*12.99in
Package Size: 44.5*11.5*39cm/17.52*4.53*15.35in
Gross Weight: 3.3kg/7.27 lbs
Net Weight: 3kg/6.61 lbs

Package Included
1* Foam Cutting Machine
1* Power Adapter
1* English Manual
Other Accessories for Assembly

Notes
1.Please read the manual completely before installation and use.
2.Please do not touch the heating wire of the cutting machine when the power is on. Please keep a certain distance from the heating wire. If necessary, wear gloves to avoid scalding. The heating wire should not be too red, otherwise, it is easy to break, and the life of the adapter will be affected.
3.Please use the product in a ventilated environment. It is not advisable to allow small children to play with this machine.
4.Please turn off the power when the product is not in use. Long-time idle burning may cause damage to the machine.
5.Please note that it is not suitable for fireproofing materials. When cutting, the cutting wire temperature is high, and attention should be paid to keeping away from flammable and explosive products.
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
