Electric Wheelchair Joystick Controller 50A DC24V ML2P+ Connection Aluminum Alloy Body 5-Speed Adjustment for Replacement Parts

Description

We have designed a practical electric wheelchair joystick controller to make your life more convenient. It is like a thoughtful companion, able to help you achieve a smooth start-up, sensitive acceleration and deceleration, ensuring that you feel relaxed and enjoy unparalleled fun during use. Our goal is simple: to fill your days with laughter!

Application

This product is suitable for electric wheelchairs, intelligent robots, entertainment equipment, and various mobile products.

Specifications

Item Type: Electric Wheelchair Controller

Color: Black

Material: Aluminum, ABS

Connection Mode: ML2P+ Adapter Cable

Supply Voltage: DC 24V

Operating Voltage: DC19-32V

Peak Voltage: DC 35V

Output Current: 50A

Brake Voltage: DC24V

Brake Current: 3A Max. For Single Circuit

Battery Charging Current: Maximum 6A(Through the Controller Charging)

Standby Current(Stationary): ≤ 50mA

Standby Current(Power Off): 0.1 ± 0.05mA

Operating Temperature: -25~60°C/-13~140℉

Storage Temperature: -45~ 80°C/-49~176℉

Applicable Drive Motor: 24V DC Brush Motor

Mounting Hole Distance: 40mm/1.57in

Drive Mode: PWM Duty Cycle Adjustment, Soft Start, Electrical Differential

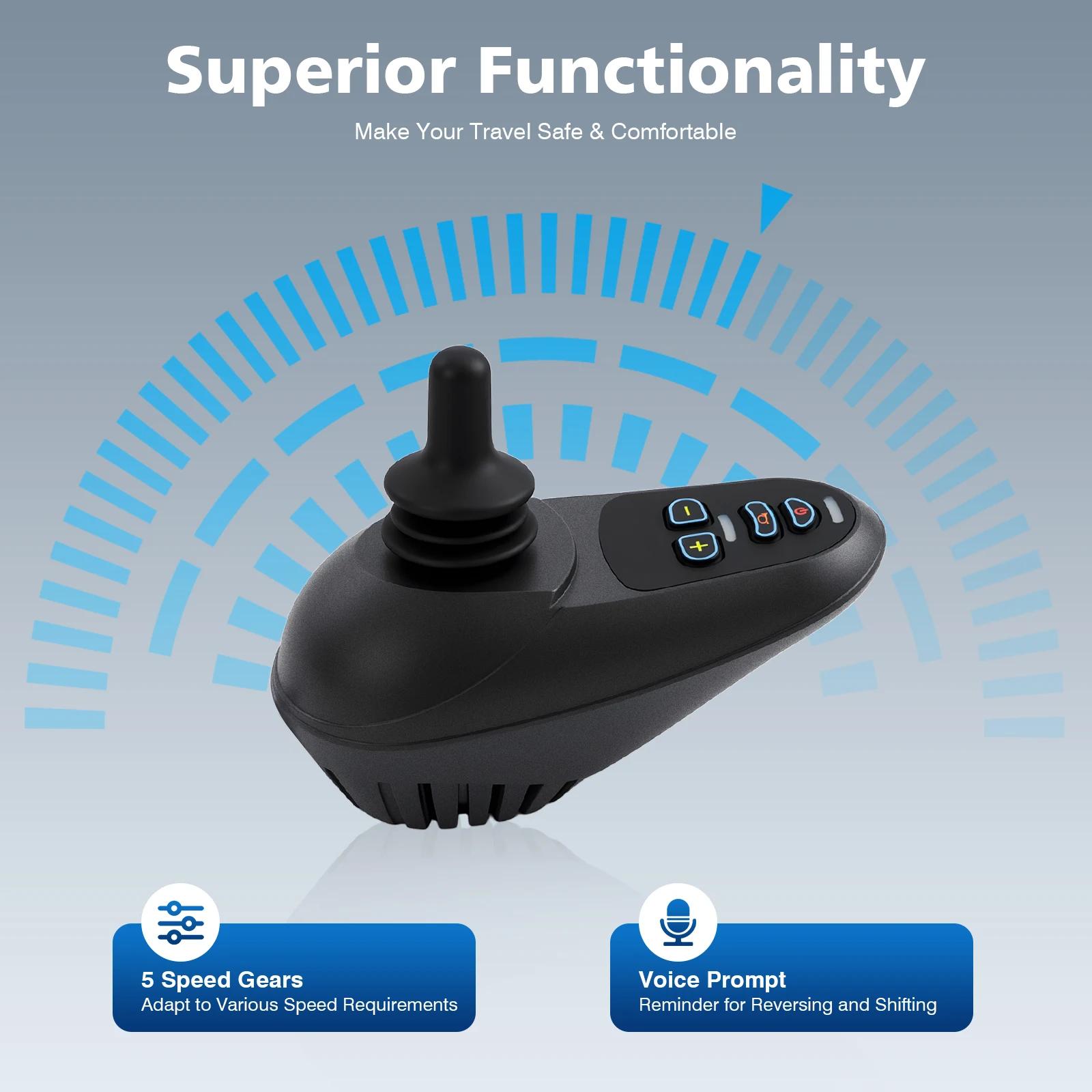

Adjustable Speed: 5 Gears

Waterproof Level:  IPX3

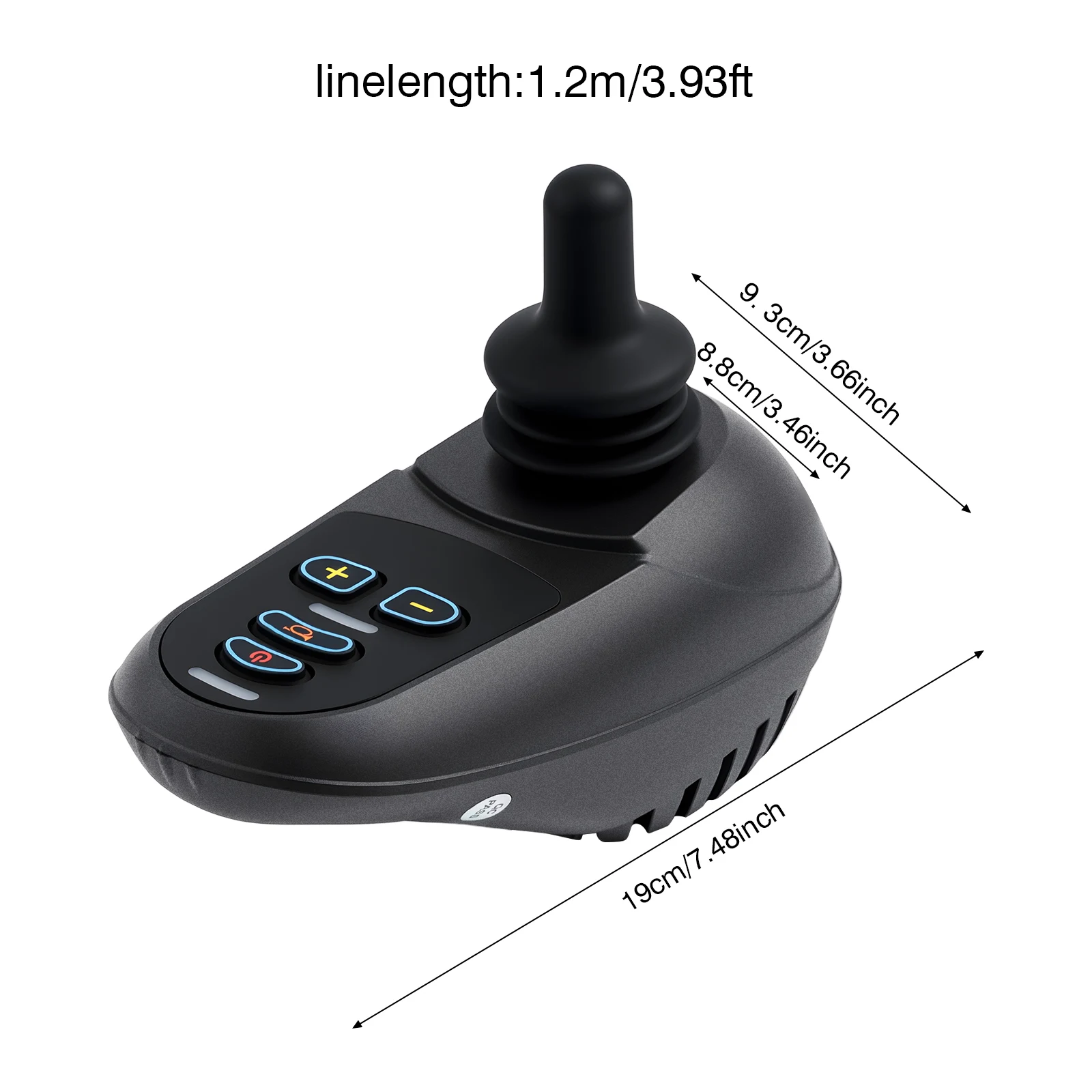

Line Length: 1.2 m/3.93ft

Product Size: 19*9.3*8.8cm/7.48*3.66*3.46in

Package Size: 23*13*16cm/9.06*5.12*6.3in

Gross Weight: 1.3kg/2.87 lbs

Net Weight: 1.24kg/2.73 lbs
