24V DC Deep Well Submersible Pump 320w Stainless Steel Water Pump 4500r/Min Submersiblewater Pump for Farm Irrigation Garden

4500r/min High-Efficiency Submersible Water Pump|Electric Deep Bore Well Water Pump for Agricultural and Industrial Use

Specification

Color: Silver

Model: ZQB-24-1

Material: Stainless Steel, Aluminium, Copper

Process: Electroplating, Painting

Motor Type: Pure Copper Motor

Power Source: Electric Powered

Voltage: 24V

Power: 320W

Speed: 4500r/min

Protection Class: IPX8

Max. Flow Rate: 3m³/h

Max. Lift: 25m/82ft

Number of Impellers: 4

Cable Wire Length: 16m/52.5ft

Water Outlet Size(D*L): 2.5*5cm/1*1.9in

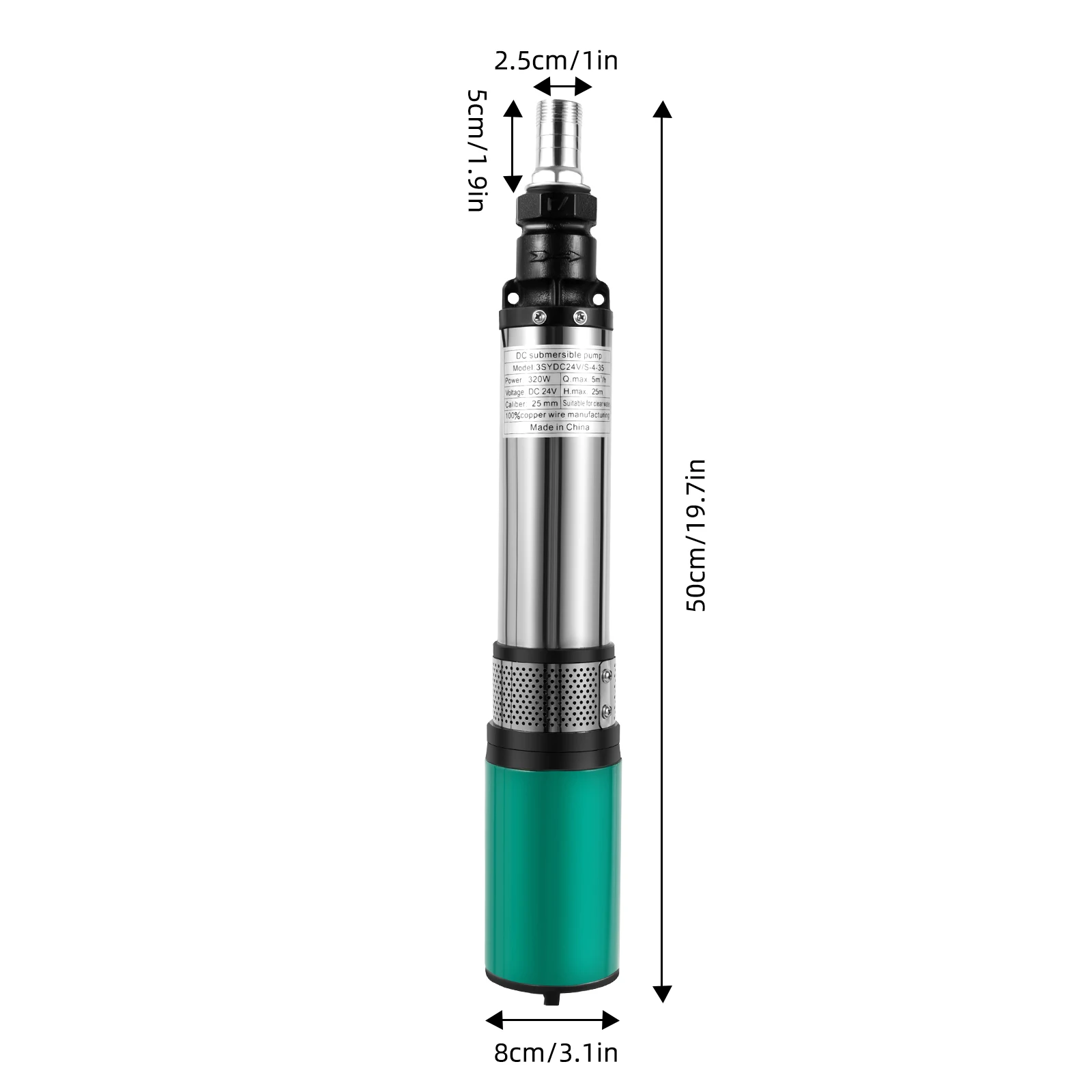

Product Size(D*H): 8*50cm/3.1*19.7in

Package Included

1* Deep Well Pump

Key Features

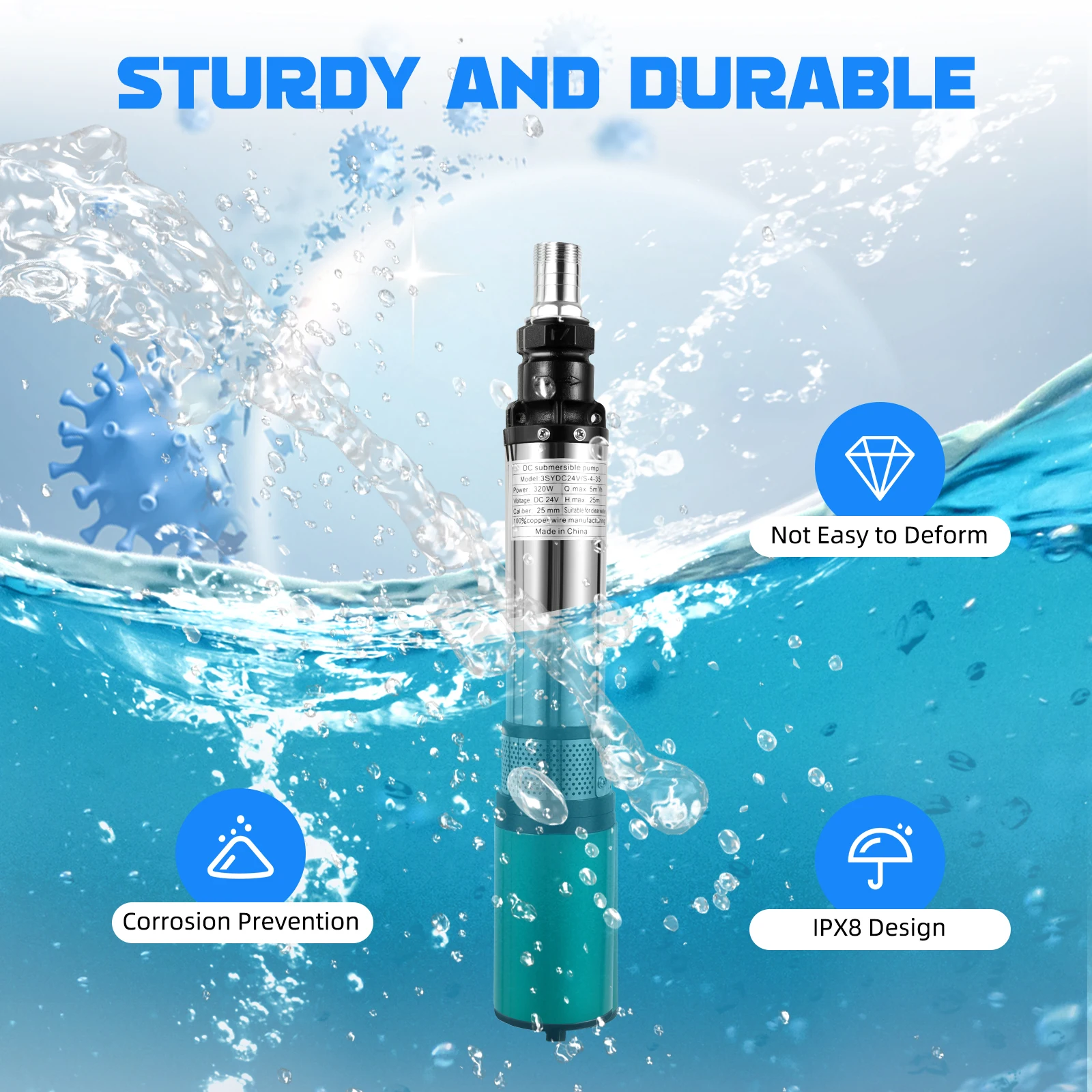

Sturdy and Durable: High-quality stainless steel, aluminum, and copper motor with exquisite electroplating and painting processes make this product corrosion-resistant, waterproof, not easy to deform, and can ensure long-term use

High Efficiency: It uses a high-quality pure copper motor to enable the pump to reach a speed of 4500r/min, which can lift water to 25m/82ft , so a large amount of water(3m³/h) can be pumped quickly and efficiently.

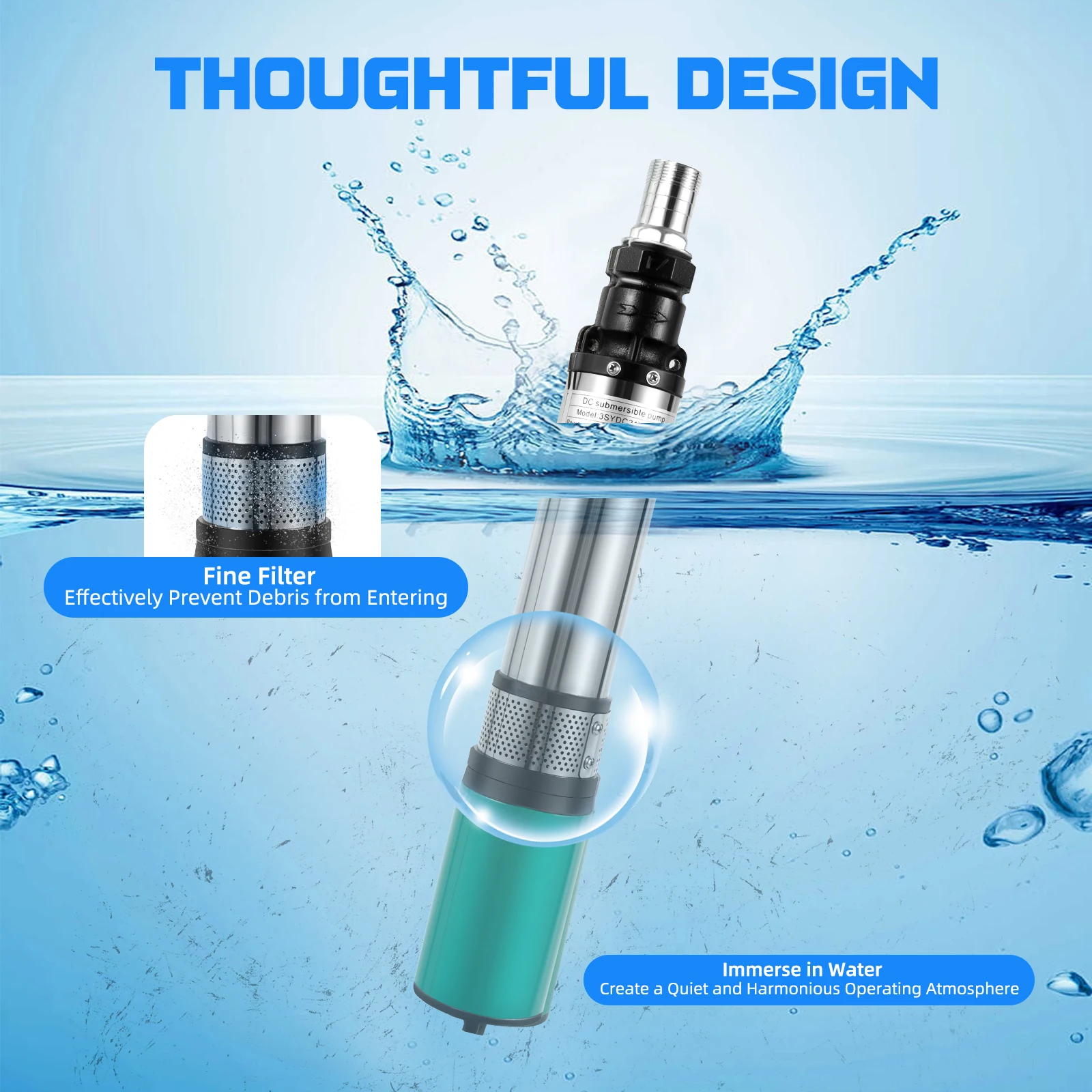

Thoughtful Design: The fine filter effectively prevents debris from entering. The submersible operation mechanism cleverly absorbs and reduces noise transmission by immersing the machine in the medium, creating a quiet and harmonious operating atmosphere.

High Applicability: This product has no special requirements for wells and water pipes, which means that the pump can be used in steel tube wells, grey tube wells, or earth wells. Where pressure permits, it can also be used with steel pipe, hose, or plastic pipe as water mains. Its bottom suction design allows it to maximize fluid absorption and eliminates the need for an induction sleeve.

Small Footprint: This deep well pump is designed to resemble a carefully crafted underground gushing artifact thanks to its delicate and compact dimensions(8*50cm/3.1*19.7in). A great alternative to traditional, bulky deep-water well pumps, it is an efficient and portable way to dive into deep wells and harness the veins of underground water.

Safety Guard: The IPX8 protection level ensures that the unit works completely submerged in water.

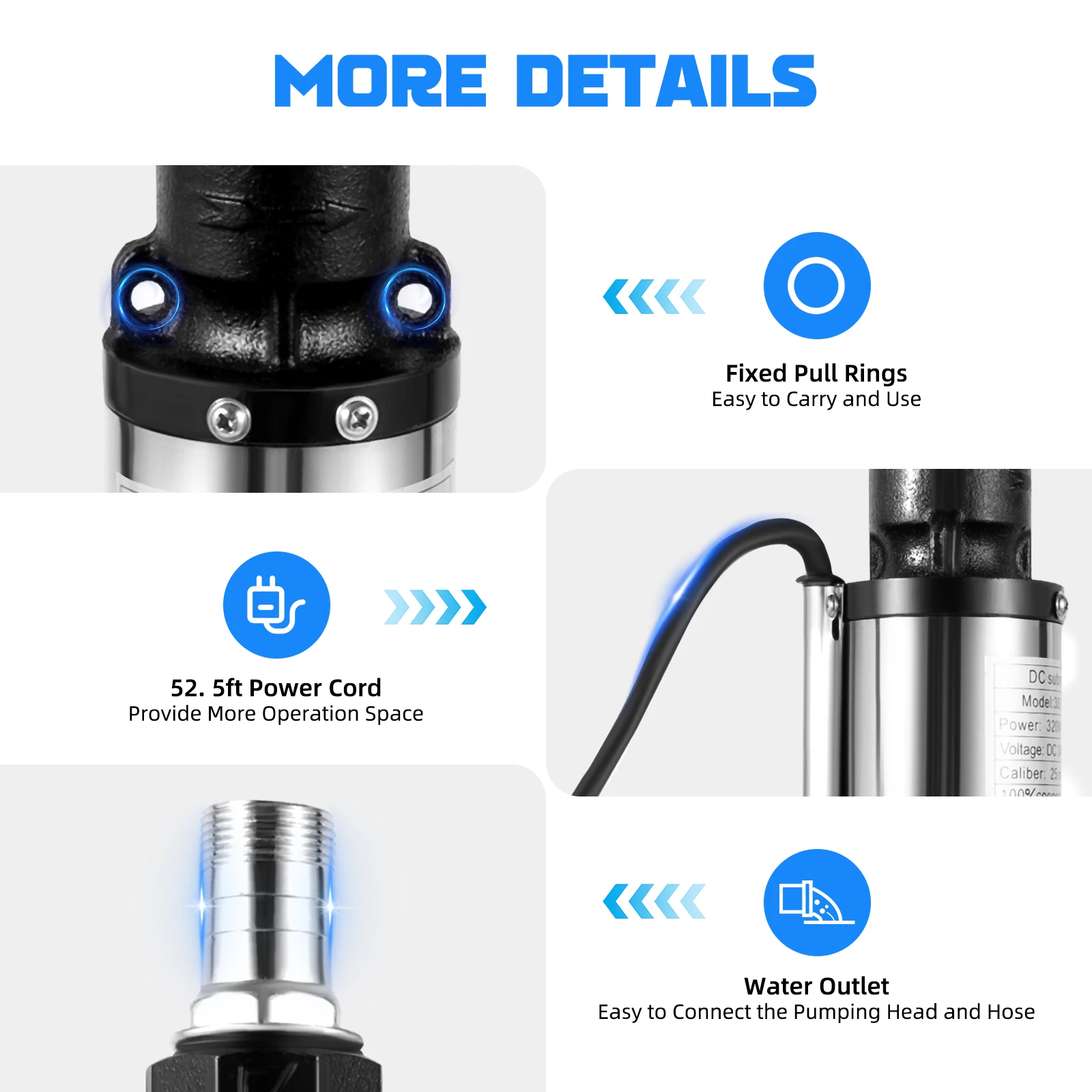

Details
Fixed Pull Rings: They are convenient to use with steel wire rope or nylon rope(not included) when going down the well.

Long Power Cord: The 16m/52.5ft power cord makes you more convenient and flexible when connecting to the power source.

Water Outlet: The diameter of a 2.5 cm/1 in outlet makes it easy for you to connect the pumping head and hose, saving you time and effort.


Application
It is suitable for extracting groundwater from deep wells and can supply water to septic tanks, villages, homes, farmlands, family lawns, gardens, and farms, etc. It can also be used in rivers, reservoirs, canals, and other water-lifting projects. It is used for both farmland irrigation and mountainous areas for water supply for people and animals, and also for drainage of cities, factories, railways, and mines.

How to Install
1. Wrap the adapter with PTFE tape (not included).
2. Attach connector to outlet.
3. Secure the pump lifting rope (not included). Please note that the use of cables as lifting ropes is strictly prohibited!
4. Secure with clips (not included).
5. Installation is complete.

Notes
1.Please note that the wellhead must be larger than the pump body to be placed inside the well for pumping. The pumping speed is related to the depth at which the water pump enters the water, and the deeper the depth, the lower the speed.
2.The water pump prohibits the use of 110V for household use. (Pump voltage and input voltage are to be used in voltage pairs).
3.Forbidden to use in water with sediment to prevent the sediment from jamming the pump and burning the motor.
4.Please note that this product is only suitable for pumping clear water, not oil, chemical raw materials, and other liquids.
5.Please note that this product does not include water pipes.
6.Please note that for newly drilled wells with excessive particulate deposits, we recommend that you add a layer of gauze (not included) in front of the filter screen inlet.
7.Please carefully check the cable and power supply before use and take protective measures to avoid potential safety hazards.
8.Please do not use without water or with a low water level to avoid idling.
9.Deep well pumps need to be installed vertically. Please install an additional check valve (not included) at the outlet to prevent backflow.
