1200W Solar Grid Tie Micro Inverter, W/ Data Monitoring Display LCD Screen IP65 Pure Sine, for 30V/36V Solar Panels NEW (Silver)

Product Description

Details
Gasket: The inverter is equipped with two gaskets to help you install the photovoltaic support, making the inverter more stable.
Heat Dissipation Holes: The inverter is provided with heat dissipation holes, which can play a good role in heat dissipation and prolong the service life of the inverter.
Application

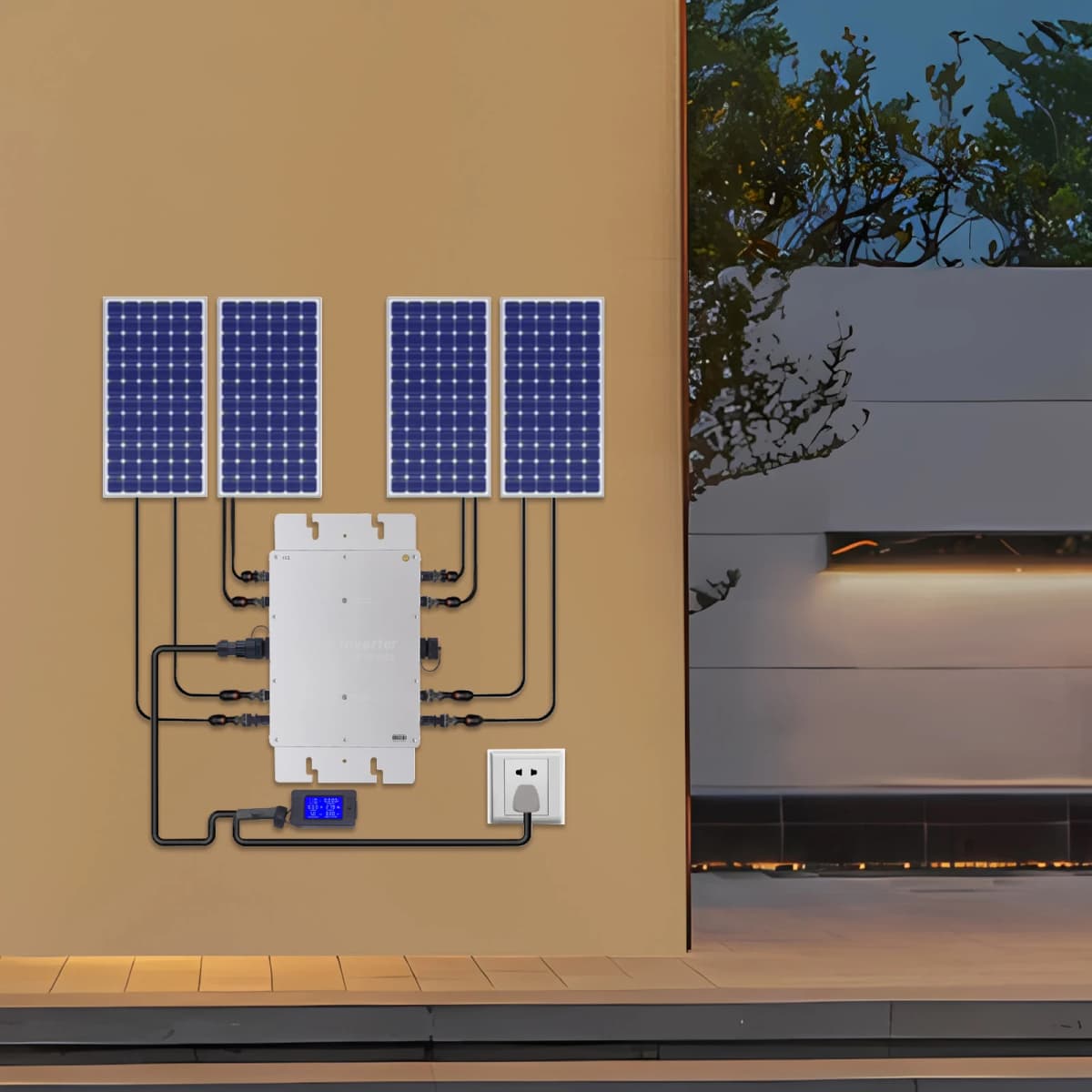

This product is applicable to 30V or 36V solar panels, 36V batteries. The inverter can be widely used in residential or commercial areas for turning the direct current generated by solar panels into alternating current.

Specification
Model: WVC-1200W
Color: Silver
Material: Aluminium Alloy
Power: 1200W
Voltage: 110V
Plug Type: US Standard
Maximum Input DC Voltage: 54V
Peak Power Tracking Voltage: 22-45V
Operating Voltage Range: 17-50V
Min/Max Start-up Voltage: 22-50VDC
Maximum DC Short Circuit Current: 80A
Maximum Input Operating Current: 54.4A
Peak Power Output: 1200watt
Rated Output Power: 1150watt
Rated Output Current: 9.58A
Rated Voltage Range: 80-160VAC
Rated Frequency Range: 57-62.5Hz
Power Factor: ＞99％
Max Unit Per Branch Circut: 3pcs(Single-phase)
Static MPPT Efficiency: 99.5%
Maximum Output Efficiency: 91.2%
Night Time Power Loss: <1W
Total Flow Distortion: <5%
Ambient Temperature Range: ﹣40℃~60℃/﹣40℉~140℉
Waterproof Rating: IP65
Cooling Method: Self-cooling
Communication Mode: Power Line Carrier
Power Transmission Mode: Reverse Transmission, Load Priority

Gross Weight: 4.08kg/8.99lbs
Net Weight: 2.88kg/6.35lbs
Product Size: 21*37.4*4cm/8.27*14.72*1.57inch
Package Size: 47.5*34*11.5cm/18.7*13.39*4.53inch
Package Included
1* Micro Inverter
1* Power Cord
1* English Manual
Other Accessories for Installation

LCD Display: The inverter is equipped with an LCD display screen to monitor voltage, power, frequency, current, etc. so you can see the machine clearly in operation.
Small Footprint: With a size of 8.27*14.72*1.57inch, the inverter adopts high-frequency telephone, micro processing, and other technologies, so it is smaller, lighter, and won’t occupy too much space.
Electrical Isolation: The output and input of the system are completely electrically isolated, the insulation performance of the entire power distribution system is good, and the fully isolated booster circuit is safer and more reliable.
Digital Control: The inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the product strong anti-interference ability, fast operation speed, high intelligence, and a powerful functional system, which can meet the needs of users.
Premium Material: The inverter is made of aluminum alloy, which is durable, and not easy to rust. You can use it for a long time without frequent replacement, and your cost can be saved.
