Air Compressor Pump,Heavy Duty Air Compressor Piston Head Twin Cylinder Air Compressor Pump Head Piston Style Lubrication Pump for Chemical, Light Industry, Textile Occasions

Product Description

An exquisite air compressor pump head is a paramount ally in your professional endeavors, elegantly merging utility with efficiency to augment your work. With its precision-engineered mechanics, this indispensable tool breathes life into your projects, transforming mundane tasks into symphonies of productivity.
Specification
Color: Silver and Black
Model: 2065
Material: Aluminum and Iron
Process: Painting
Assembly Required: Yes
Mounting Type: Mounting on Air Compressor(Not Included)
Matching Motor Power: 2.2KW
Discharge Volume: 250L/66Gal/min
Rated Exhaust Pressure: 0.8mpa
Maximum Pressure: 1.0mpa
Horsepower: 3HP
Cylinder Diameter: 65mm/2.56in
Pulley Outer Diameter: 260mm/10.24in

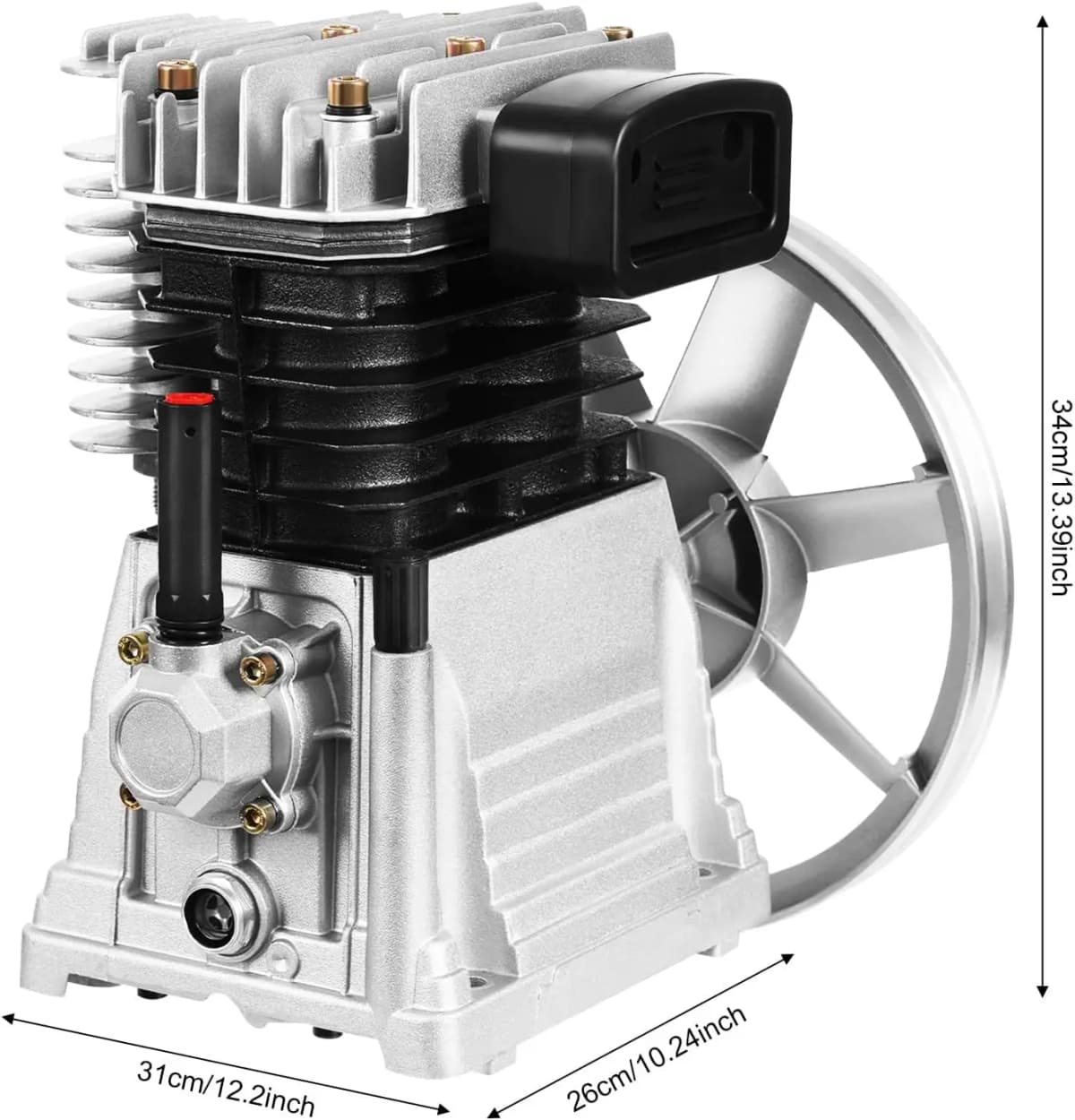

Product Size: 31*26*34cm/12.2*10.24*13.39in
Package Size: 34*33.6*25.5cm/13.39*13.23*10.04 in
Net Weight: 11kg/24.25 lb

Thoughtful Design
It adopts suction and exhaust valve design and mainframe belt design to ensure that the mainframe operates in balance, while the strong cooling fan blade provides good heat dissipation effect.

Powerful Function
It can be matched with 3HP engines, with an exhaust capacity of up to 66Gal/min, rated exhaust pressure of 0.8mpa, and a maximum pressure of 1.0mpa and extended cylinder, providing you with strong support for use.

Durable and Sturdy
It is made of high-quality aluminum and iron with a painting process, which is sturdy and wear-resistant, and has a long service life.With complete accessories, and simple structure, you can finish installing it yourself, very time-saving and convenient!

Maintenance
1. The air filter needs to be cleaned once a month, and needs to be replaced after 500 hours of work.
2. Please change the oil in the crankcase after shutdown. Change the oil once in the first week of a new machine and every 500 hours (after shutdown) thereafter.
3. Regularly check the parts to prevent oil and air leakage.
4. Regularly check the safety valve, air release valve, pressure gauge, safety valve air hole.
5. Comprehensively maintain the machine once a year by cleaning the air valve, removing oil and carbon deposits, and checking the valve discs.
6. If the machine is shut down for more than one year without use, it should do anti-rust blowing treatment, and clean and check the oil level when it is activated.

Application
It can be used in the automotive industry, pneumatic tools, decoration, chemical industry, light industry, textile, food, health, electronics, machinery, mining, construction, scientific research and other sectors that require high quality compressed air.
Details
Round Edges: Smooth, burr-free edges are not only comfortable to touch but also enhance safety in use.
Air Filter Muffler: It can deliver clean, contaminant-free air to the pump with low noise.
Package Included
1* Air Compressor Pump Head
Other Accessories for Use

Notes
1. Before matching, you should pay attention to the air supply pressure, exhaust volume per minute, rated power, mounting aperture, header connecting pipe caliber, and the number of cylinders.
2. Before use, please carefully check the cable, power supply, etc., and take good protective measures to avoid potential safety hazards.
3. Before repairing, maintaining or disassembling the machine, please make sure to stop the machine and cool it down after relieving the pressure before operation.
4. Please note that the parts need to be cleaned and dried after assembly and please do not use too much force when disassembling and assembling parts.
5. Please note that the machine is rated pressure and can not be adjusted upward.
