【US】550W, 750W, 1.1kW, 2200W 220V AC Brushless Servo Motor Kit for Lathes and Various Machinery

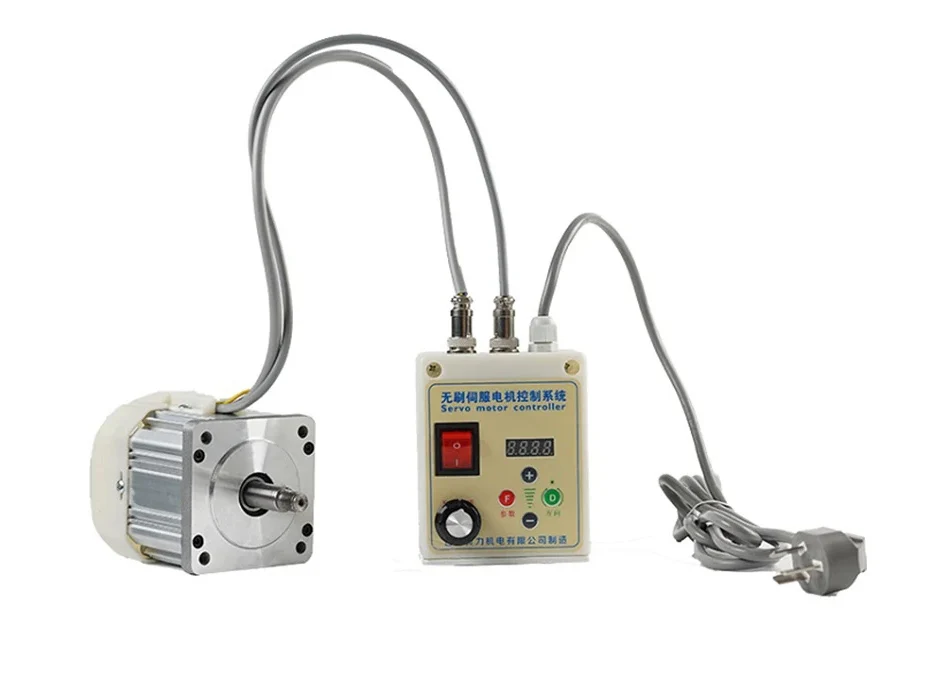

Package include:

1 x motor (550W /750W /1100W/1500W / 2200W )

1 x speed controller

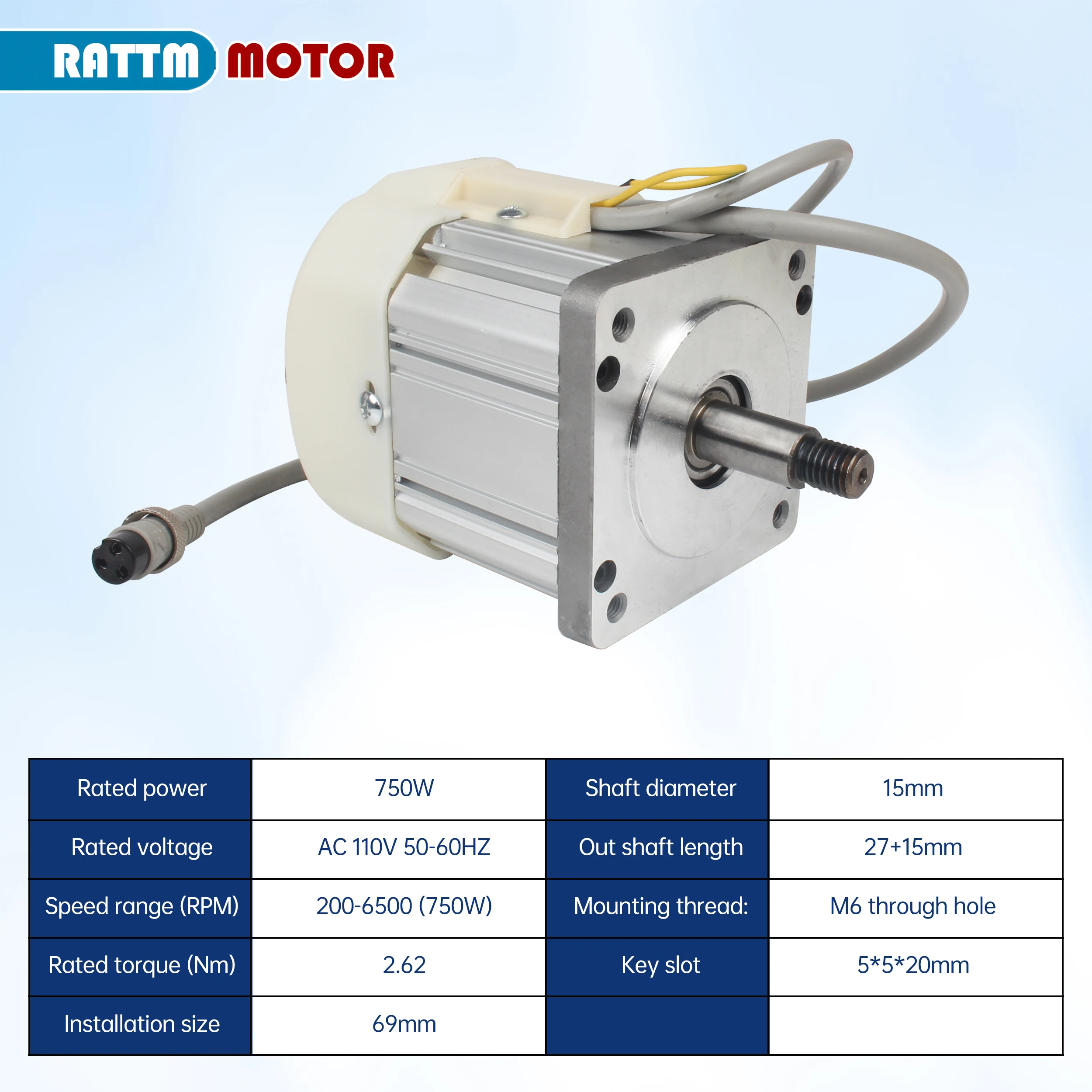

Parameters:

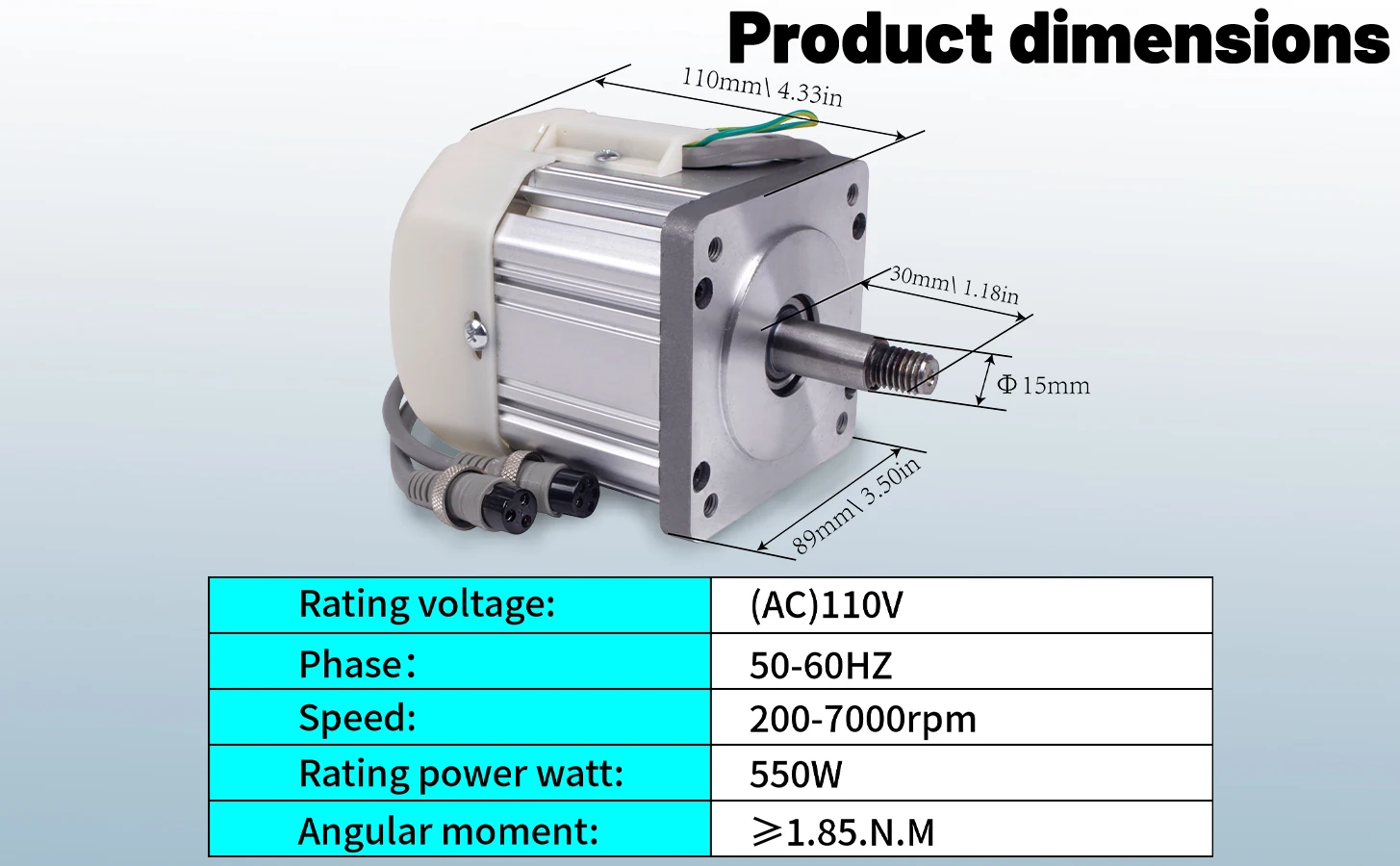

1. Rated power: 550W/750W/1100W/1500W/2200W

2. Rated voltage: AC110V 50-60Hz

3. Speed range (RPM): 200-7000 (550W); 200-6500 (750W); 200-6000 (1100W); 200-5000 (1500W); 200-4500 (2200W)

4. Rated torque (Nm): 1.85 (550W); 2.62 (750W); 3.55 (1100W); 5.02 (1500W)

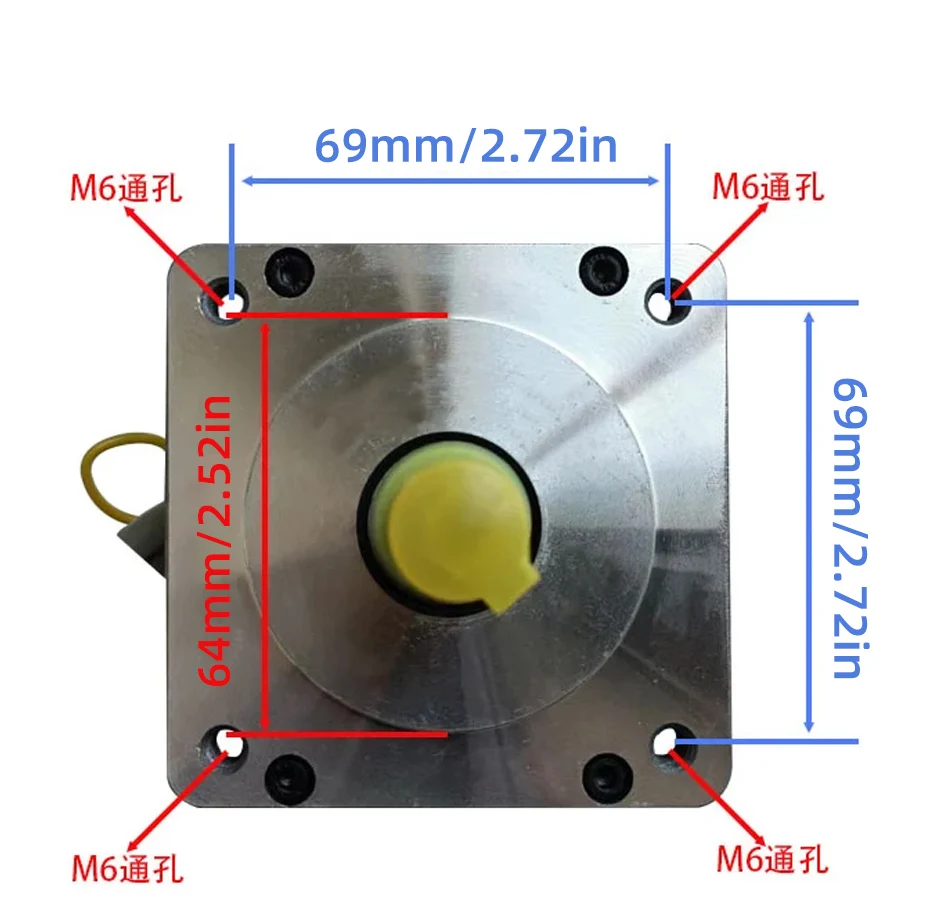

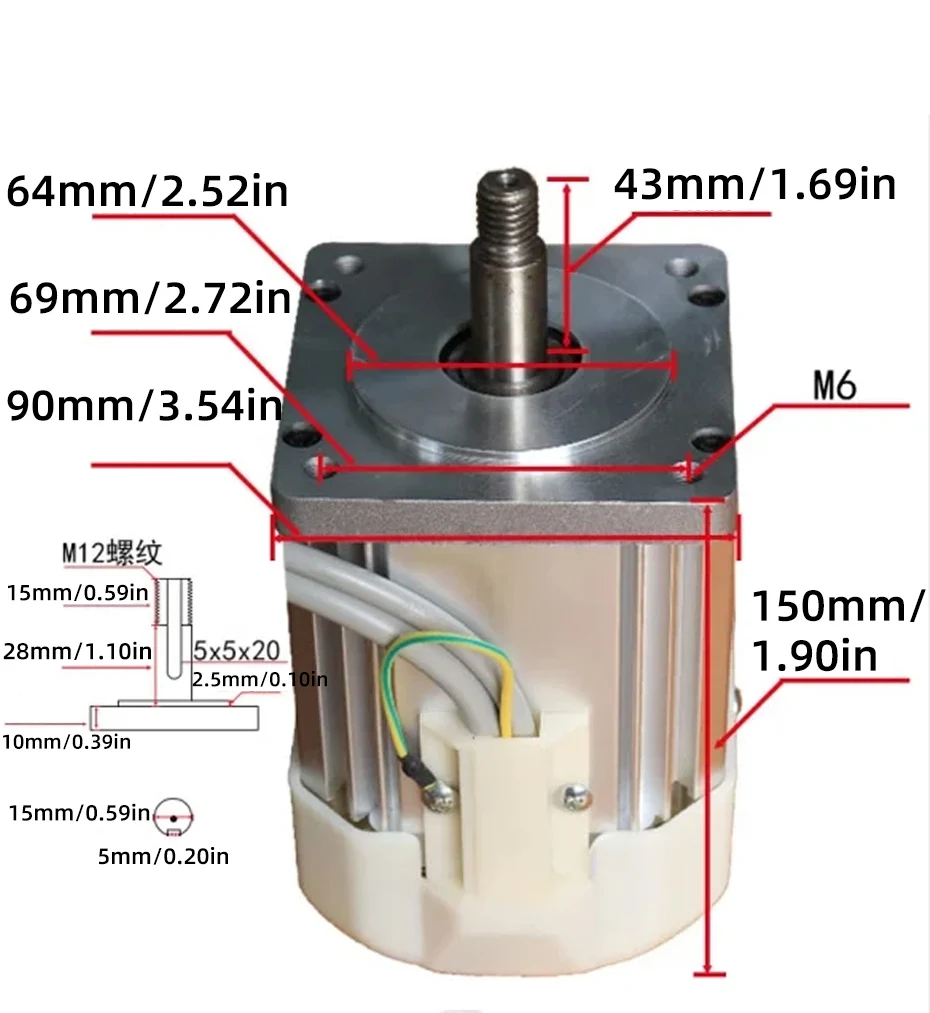

5. Installation size: 69mm

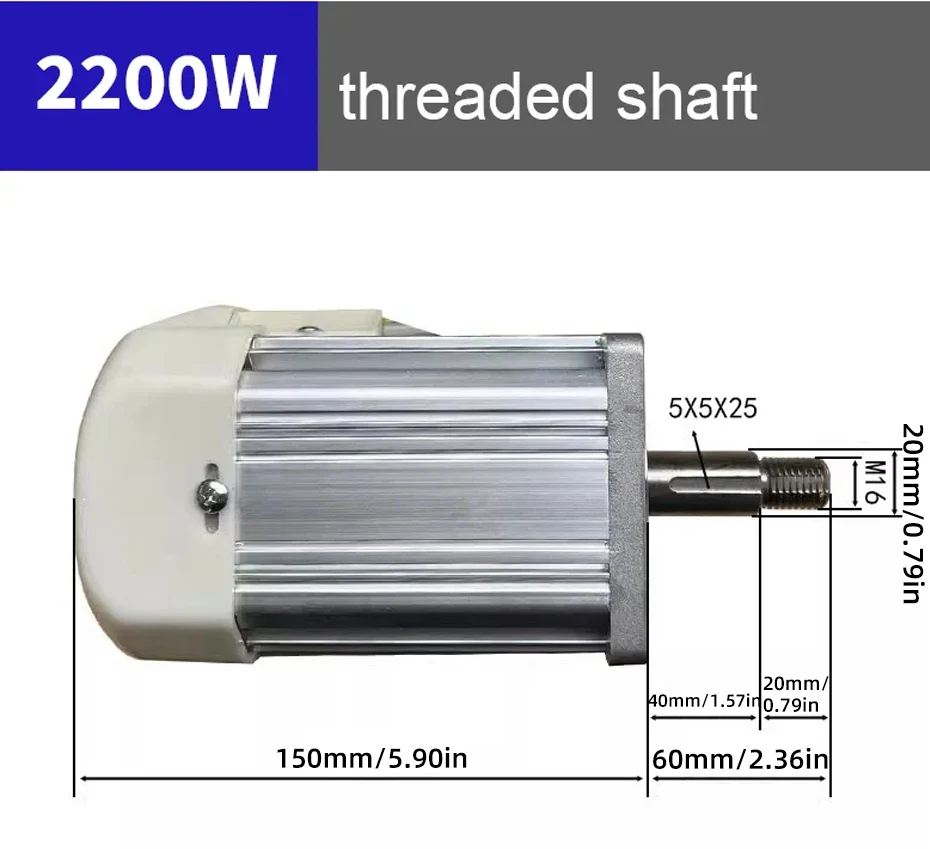

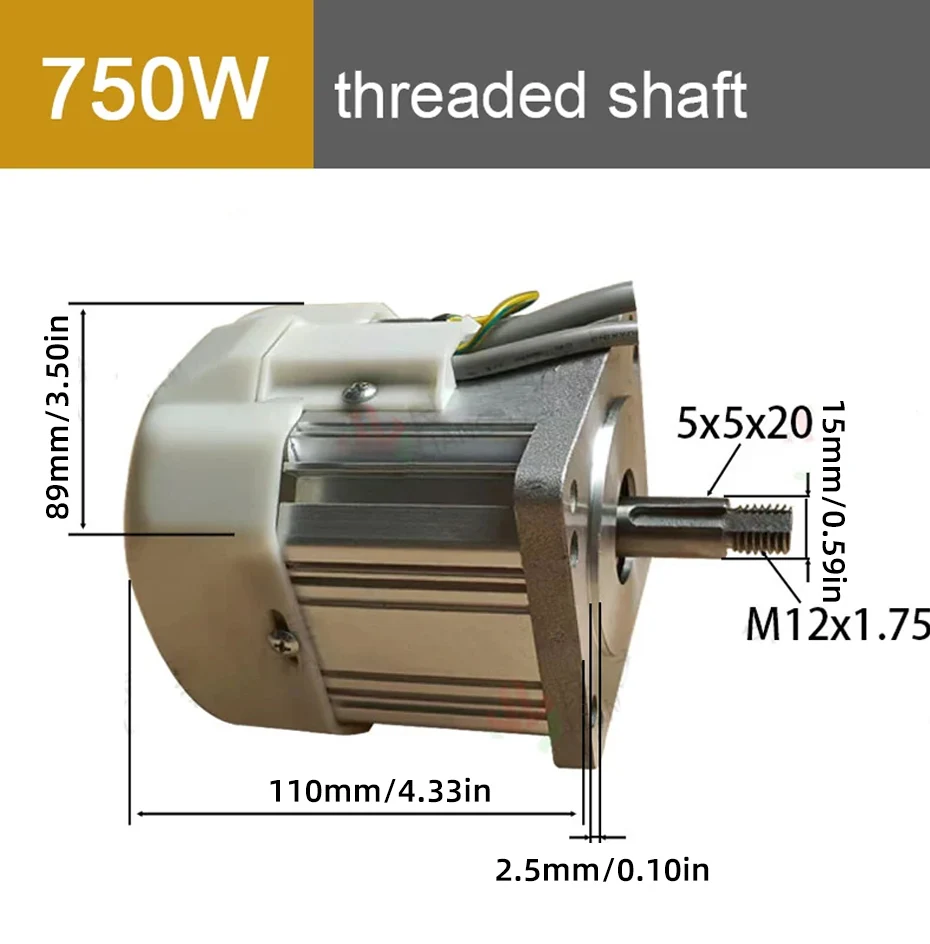

6. Shaft diameter: 15mm

7. Out shaft length: 27+15mm

8. Mounting thread: M6 through hole

9. Key slot: 5*5*20mm

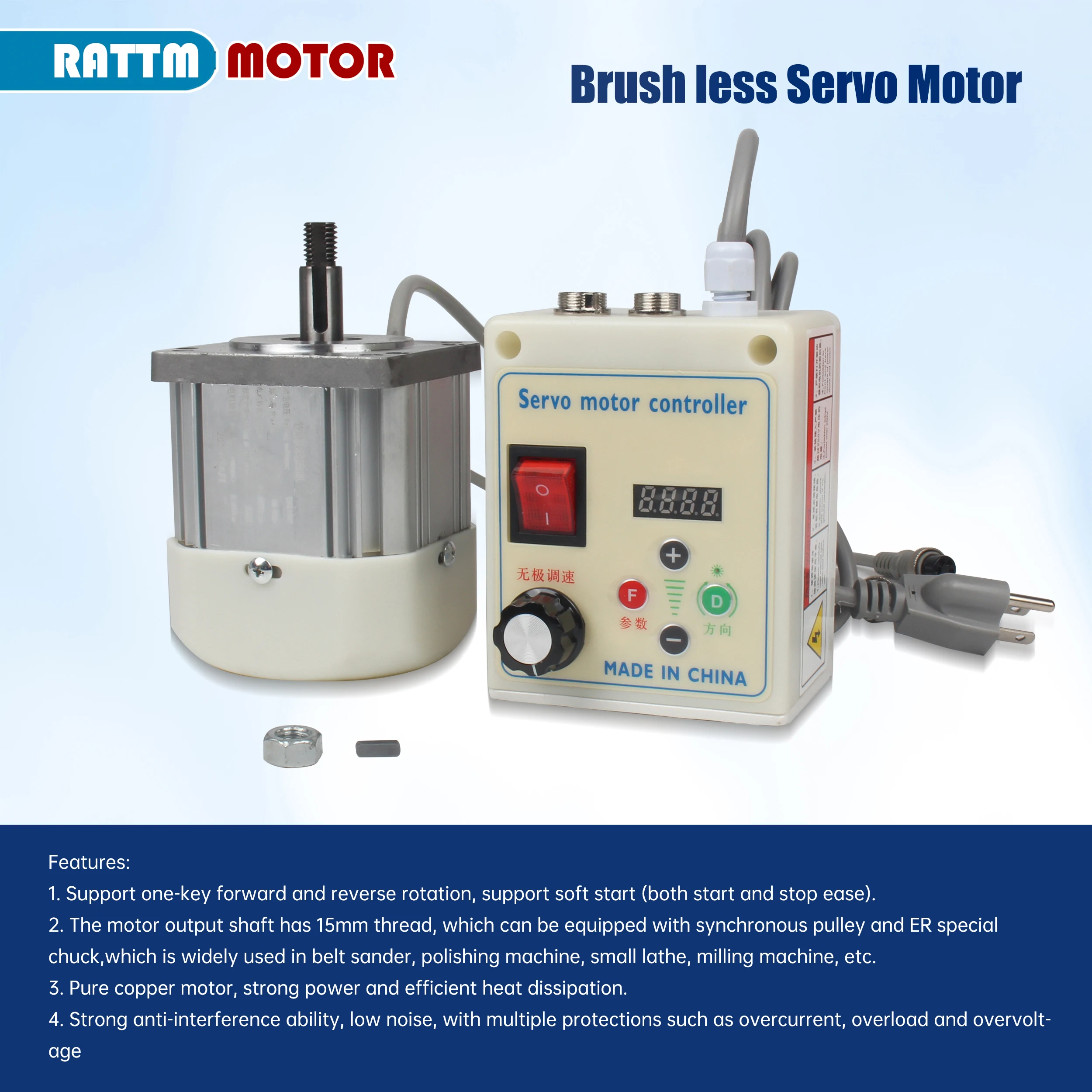

Features:

1. Support onekey forward and reverse rotation, support soft start (both start and stop ease).

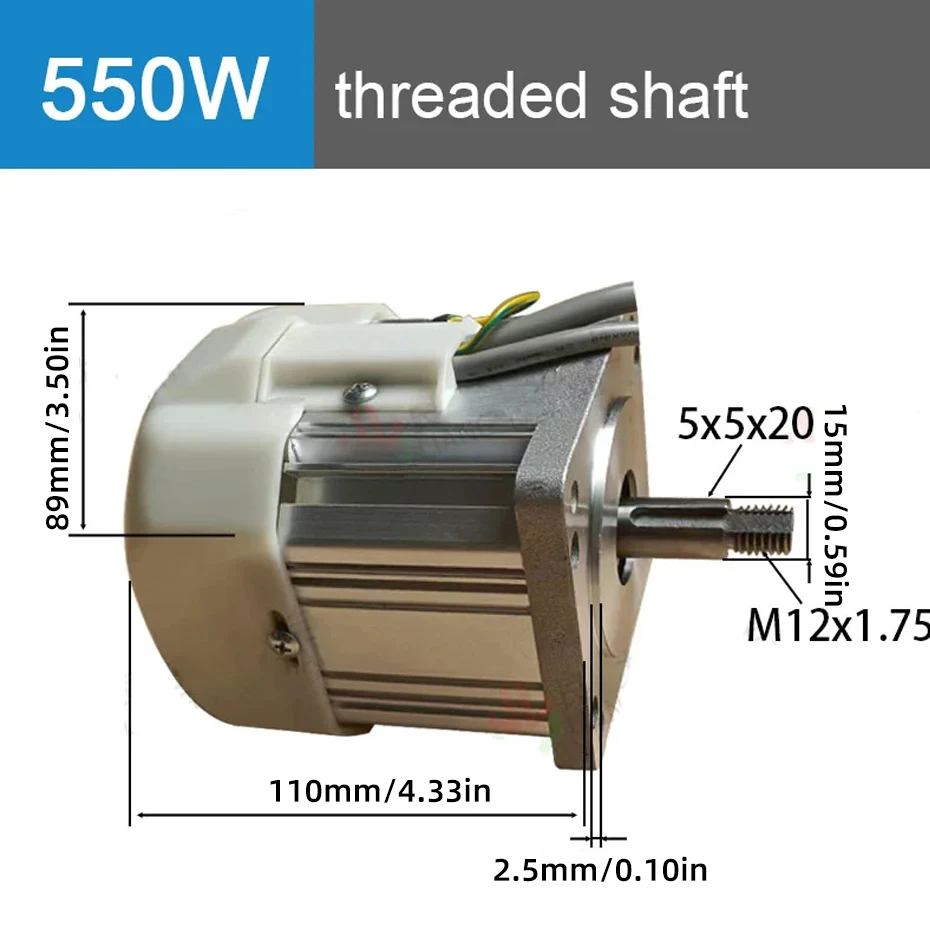

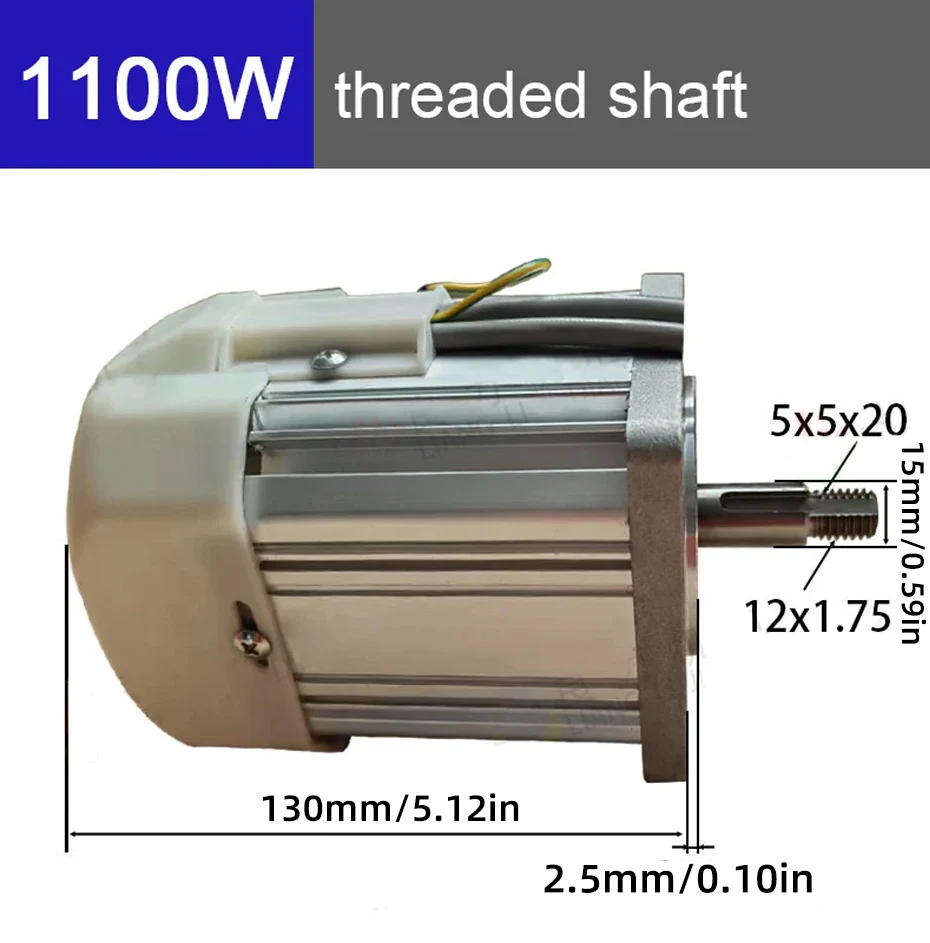

2. The motor output shaft has 15mm thread, which can be equipped with synchronous pulley and ER special chuck, which is widely used in belt sander, polishing machine, small lathe, milling machine, etc.

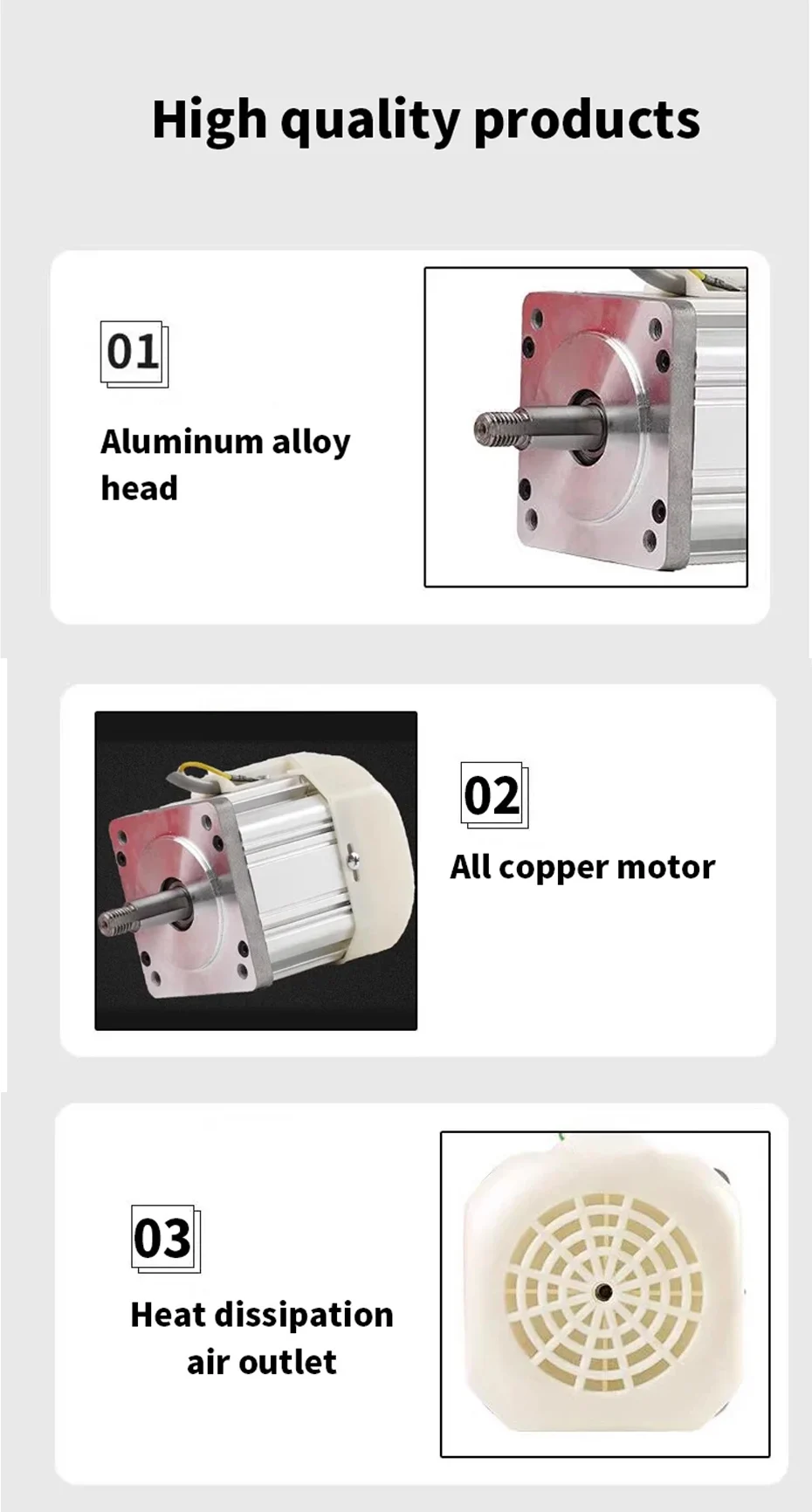

3. Pure copper motor, strong power and efficient heat dissipation.

4. Strong anti-interference ability, low noise, with multiple protections such as overcurrent, overload and overvoltage

Power range:

550w

Model: Brushless Servo Motor Control System

Motor torque: ≦3N.M

Voltage range: 200-240v

Motor pole pairs: 8 pairs

Input frequency: 50-60hz

Motor category: permanent magnet brushless servo motor

Insulation class: F class

Speed range: 200-6500 rpm

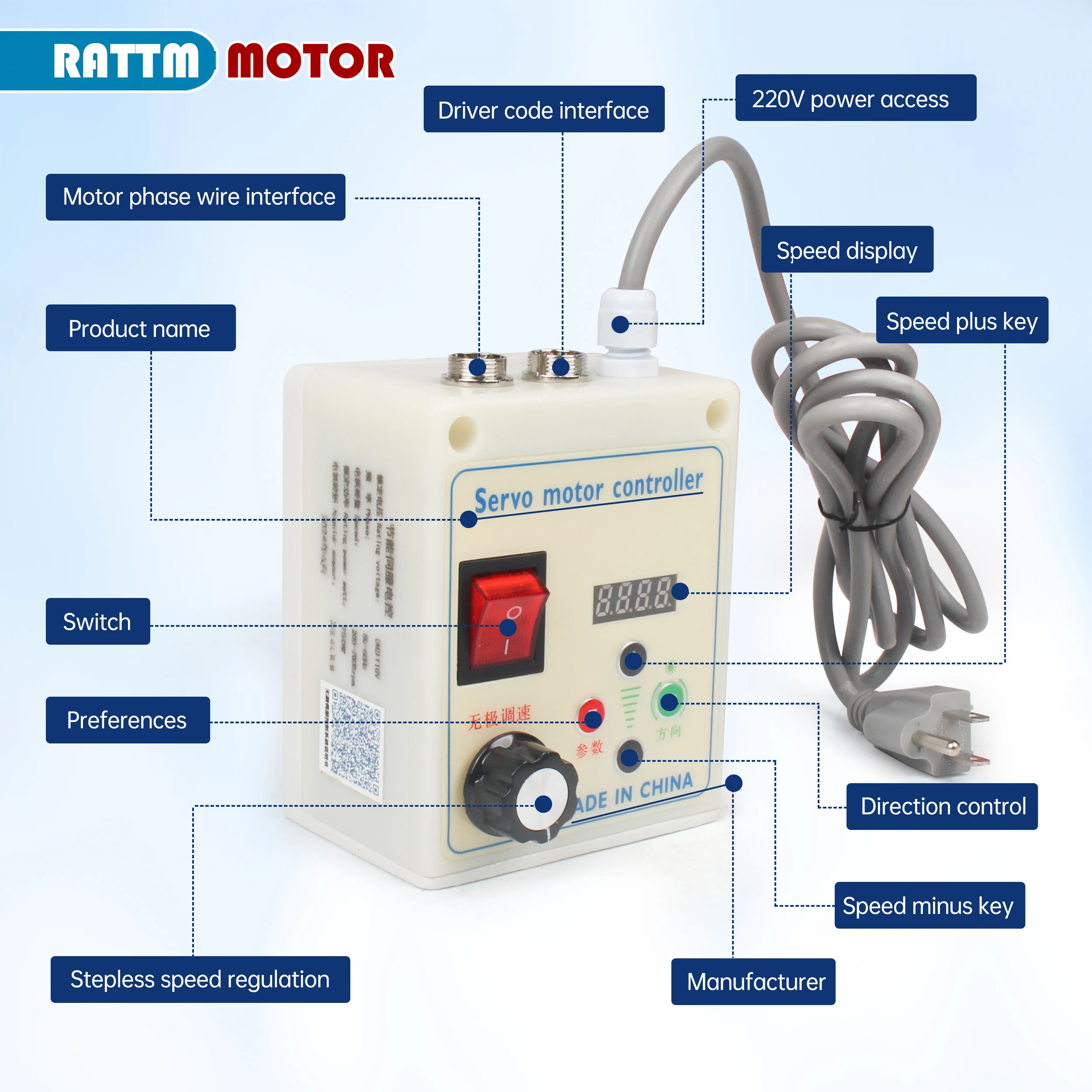

Control method: turn on the power, adjust the speed with the knob

Protection mode: overcurrent, overvoltage, short circuit protection, locked rotor protection

Power range:

750w

Model: Brushless Servo Motor Control System

Motor torque: ≦4N.M

Voltage range: 200-240v

Motor pole pairs: 8 pairs

Input frequency: 50-60hz

Motor category: permanent magnet brushless servo motor

Insulation class: F class

Speed range: 200-5000 rpm

Control method: turn on the power, adjust the speed with the knob

Protection mode: overcurrent, overvoltage, short circuit protection, locked rotor protection

Power range:

1100w

Model: Brushless Servo Motor Control System

Motor torque: ≦5N.M

Voltage range: 200-240v

Motor pole pairs: 8 pairs

Input frequency: 50-60hz

Motor category: permanent magnet brushless servo motor

Insulation class: F class

Speed range: 200-3500 rpm

Control method: turn on the power, adjust the speed with the knob

Protection mode: overcurrent, overvoltage, short circuit protection, locked rotor protection
