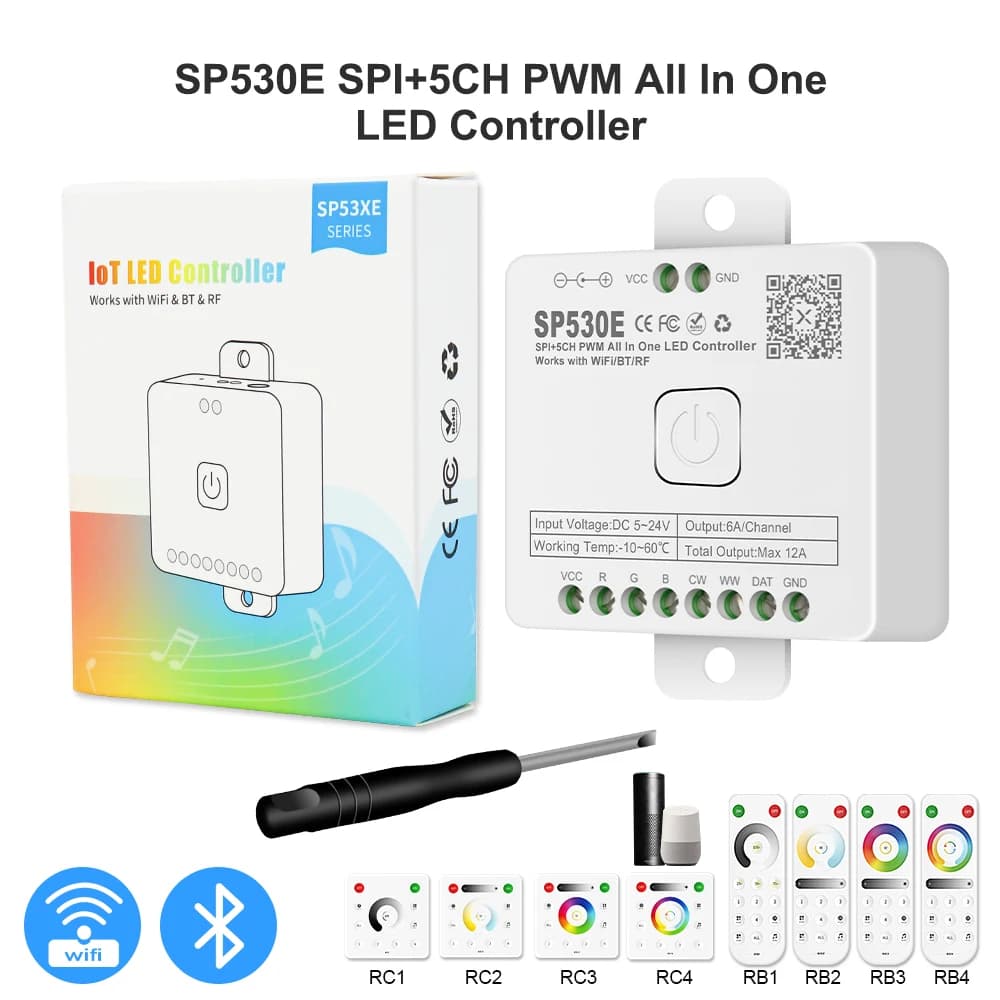

SP530E All In One LED Controller Wifi Alexa Google Home BT 5CH PWM SPI Pixels LED Strip Light WS2811 WS2812B SK6812 FCOB 5V-24V

SP530E Controller Parameter

Product name: SP530E LED Controllers
Working Voltage: DC 5~24V
Ways of control: Wifi + Bluetooth + RF remote
APP name: BalanX
LED light type: SPI IC chip LED strip and PWM LED strip
Support Alexa and Google Assistant.
Support IC QTY: max 600 IC for (Single color + CCT + RGB), max 450 IC for (RGBW), max 300 IC for (RGBCCT)
Support IC Chip SPI: WS2811,WS2812,WS2813,WS2814,WS2815,TM1804,TM1812,UCS1903,UCS1909,UCS1912, UCS2903,UCS2909,UCS2912,TM1829,TM1914A,GW6205,GS8206,GS8208 etc.
Support PWM Chip: all single color, CCT, RGB, RGBW, RBCCT COB and SMD led strips.
Waterproof Level: IP30 Non-waterproof.
Operation Temperature: -4℉~140℉ ( -20℃~+60℃ ).

SP630E Controller Parameter

Product name: SP630E LED Controllers
Working Voltage: DC 5~24V
Ways of control: Bluetooth APP BalanX, match with RF remote
LED light type: SPI IC chip LED strip and PWM LED strip
Support IC QTY: max 600 IC for (Single color + CCT + RGB), max 450 IC for (RGBW), max 300 IC for (RGBCCT)
Support IC Chip SPI: WS2811,WS2812,WS2813,WS2814,WS2815,TM1804,TM1812,UCS1903,UCS1909,UCS1912, UCS2903,UCS2909,UCS2912,TM1829,TM1914A,GW6205,GS8206,GS8208 etc.
Support PWM Chip: all single color, CCT, RGB, RGBW, RBCCT COB and SMD led strips.
Waterproof Level: IP30 Non-waterproof.
Operation Temperature: -4℉~140℉ ( -20℃~+60℃ ).

Notice

1.  The SP530E and SP630E controllers are suitable for all led strips.
2. The RF remote need to buy additionally. It's not included with the controller.
3. There's no battery in the remote, it needs 1pcs CR2025 or CR2032 battery.

Difference between SPI (with IC) strips and PWM (without IC) strips

Features of SPI and PWM:
IC : SPI--- With IC; PWM---Without IC.
PIN : SPI---3PIN/4PIN (with DATA wire) ; PWM---2PIN/3PIN/4PIN/5PIN/6PIN ( Similar to +,R,G,B,W ).
Controller : SPI---ESP8622,Rasp Pi,Arduino,SP611E,SP105E,SP107E,SP108 etc. ; PWM---WIFI WB5, Zigbee LM052, Bluetooth LM053.

Features

1. High performance, low power consumption Bluetooth microprocessor.
2. Compatible with 12 kinds of type of LEDs.
3. Support App control, 2.4G touch remote control and 2.4G touch 86-type control panel.
4. The RB and RC remote control panel can be set up for zone-control (can be divided into 4 zones), or unified control (ALL).
5. Support to set kinds of on/off animations and the default power-on state.
6. Support for modifying device name, color order correction and setting timers.
7. Support 3 kinds of music capture modes: cell phone microphone, player streaming, on-board microphone.
8. 5 major control pages in the App: dynamic, static, music, custom and setting. select different types of LED correspond to different App page content.
