AC Triac LED Dimmer 220V 230V 110V with 2.4G Wireless RF Touch Remote Control Lamp Push PWM Dimmer Switch S1-B Dimming for Home

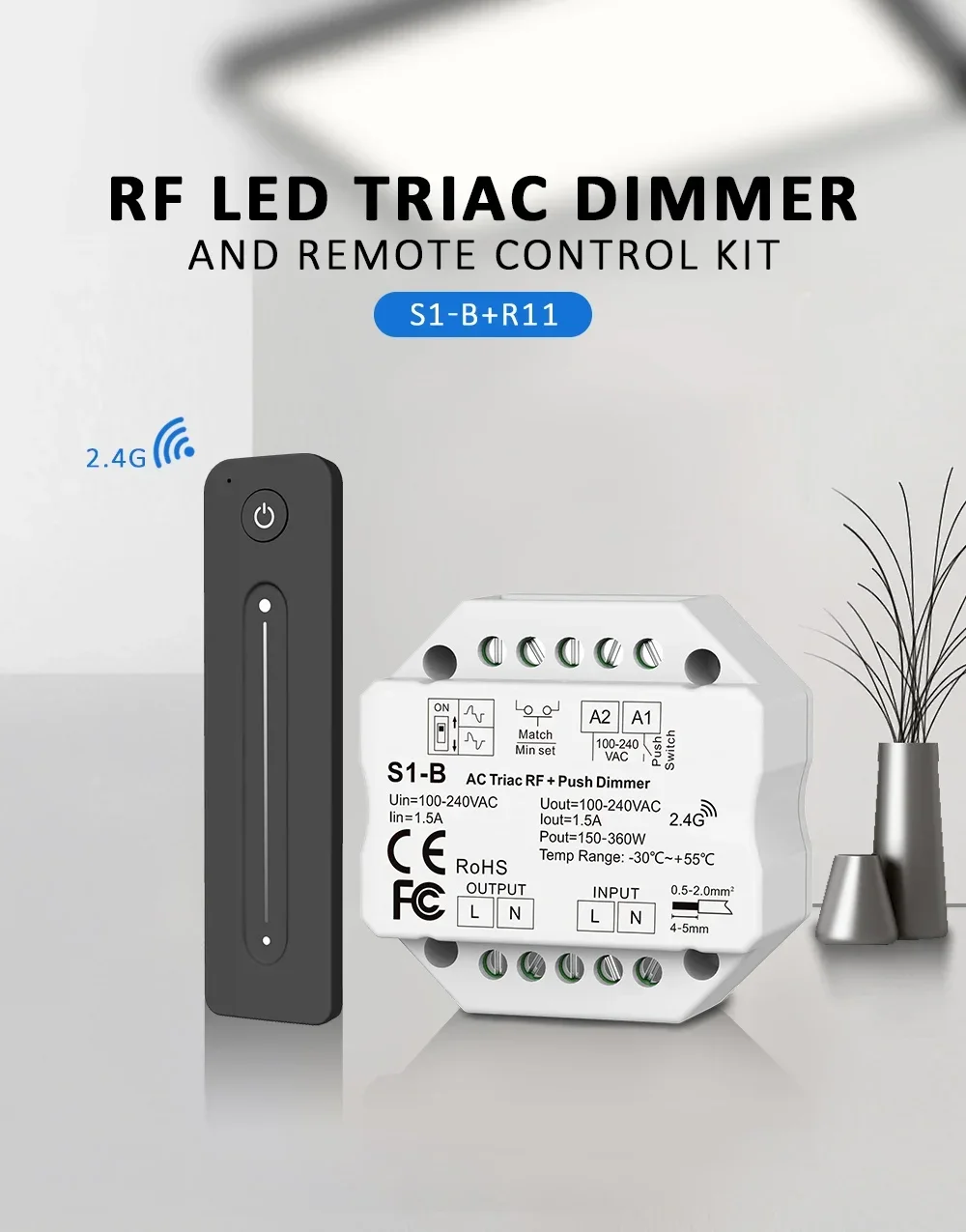

AC Triac Push Dimmer +RF Remote Control (MJJCLED-S1-B+R11 Set)

RF dimming/Leading edge or trailing edge/Min brightness settable/Push Dim/Wall junction box mounting

Features:

● RF + Push AC phase-cut dimmer, 1 channel output.

● To dim and switch single color dimmable LED lamps,

traditional incandescent and halogen lights.

● 256 levels 0-100% dimming smoothly without any flash.

● Leading edge dimming or trailing edge dimming set by dip switch.

● Min brightness can be set by key.

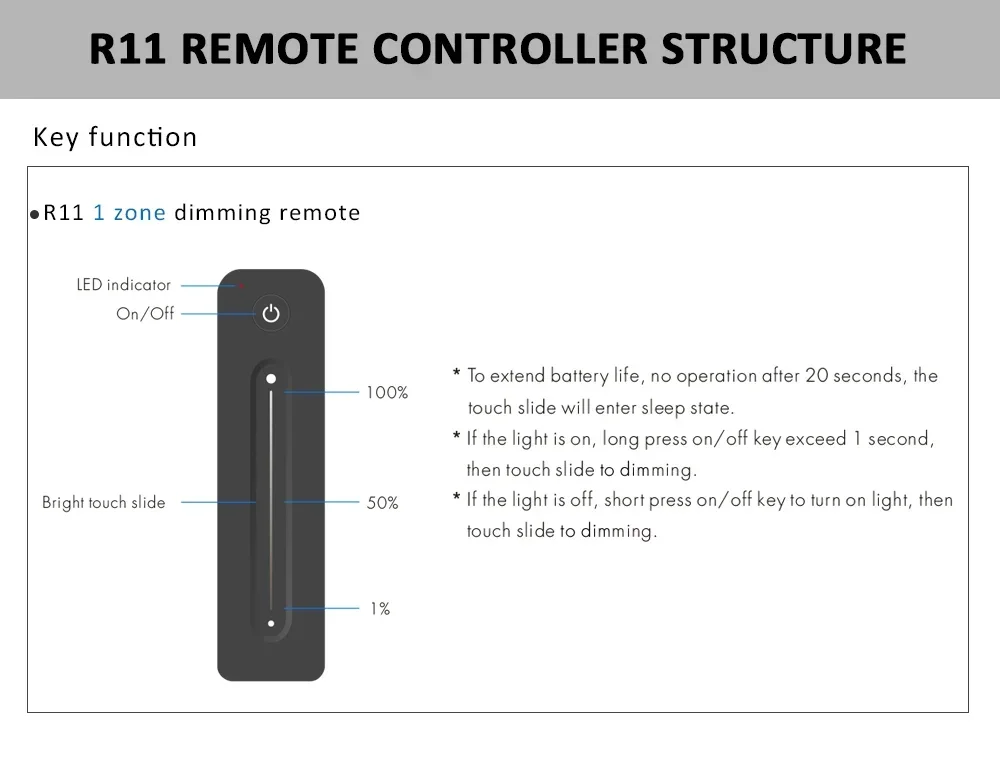

● Compatibility with MJJCLED’s 2.4G single zone or multiple zone dimming remote control.

● Connect with external push switch to achieve on/off and 0-100% dimming function.

● Easy to be placed in standard wall junction box behind a push switch.

NOTE :

The S1-B cannot work with WiFi

If you want a WiFi S1-B, please kindly buy S1-B(WT) tuya version from our store.

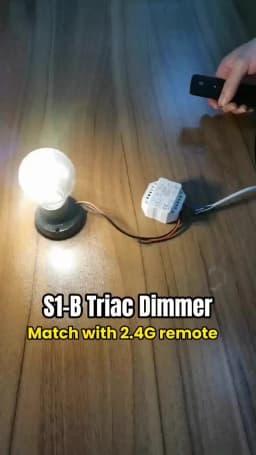

How to Match Remote Control?

End user must be pair the remote to the receiver before using,the steps as follows:

*** Match:

Short press match key, immediately press on/off key of the remote.

*** Delete:

Press and hold match key for 5s to delete all match,

The light blinks 5 times means all matched remotes

were deleted.

What kind of Lamps compatiable with ?

● Dimmable LED lamps, Maximum load 200W @ 220V, 100W @ 110V, Due to variety of LED lamp designs, maximum number of LED lamps

is further dependent on power factor result when connected to dimmer.

●Triac Dimmable LED drivers,Maximum load 200W @ 220V, 100W @ 110V, Maximum permitted number of drivers is 200W divided by driver nameplate power rating, and make sure the surge current is no more than 2 times 65A.

●Incandescent lighting and HV Halogen lamps, Maximum load 400W @ 220V, 200W @ 110V.

Main Functions:

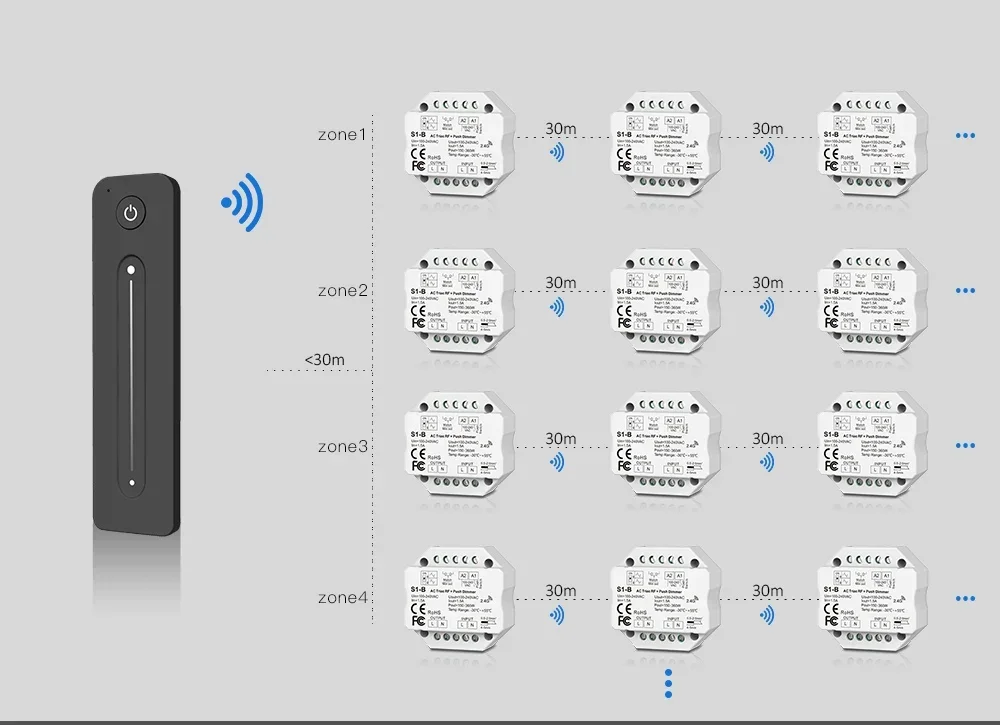

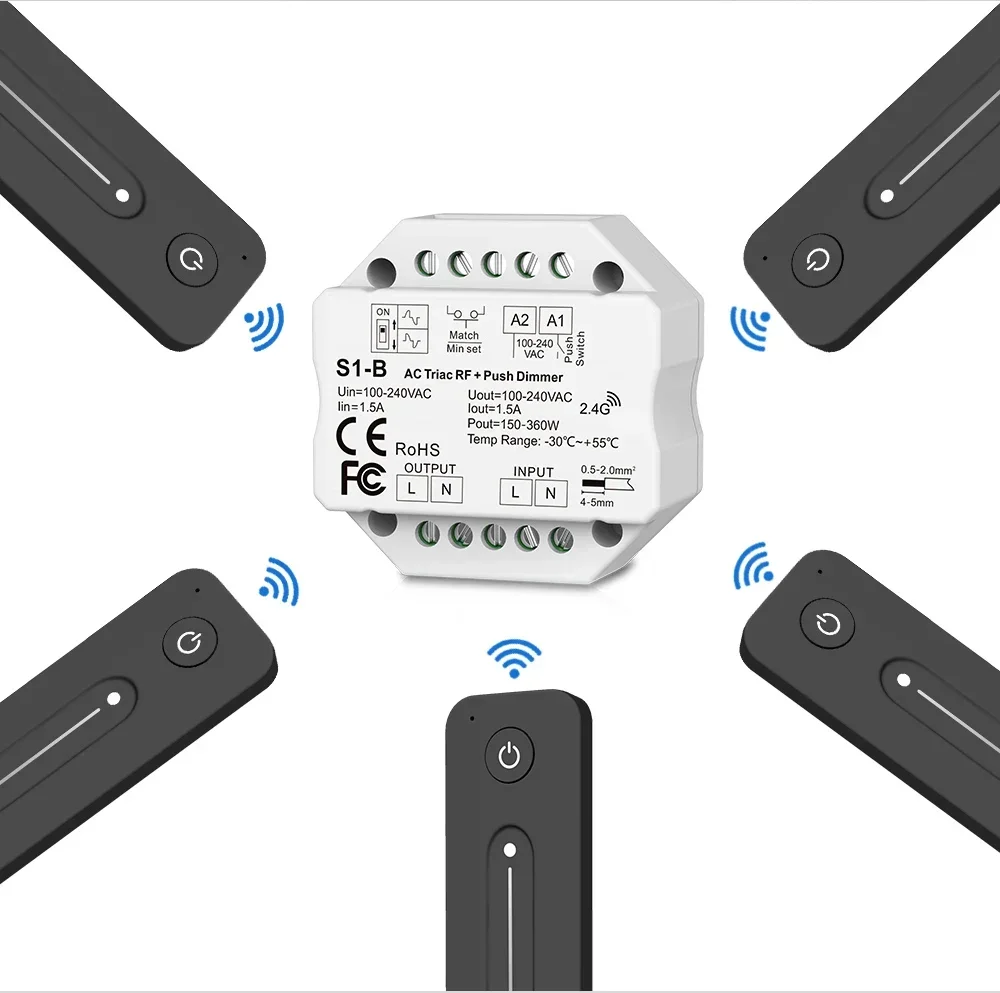

One MJJCLED S1-B receiver can be controlled by max 10 pieces remote within 30m distance

1. All the receivers sync working in the same zone.

Auto-transmitting: One receiver can transmit the signals from the remote to another receiver within 30m, as long as there is a receiver within 30m, the remote control distance can be limitless.

Auto-synchronization: Multiple receivers within 30m distance can work synchronously when they are controlled by the same remote.

Receiver placement may offer up to 30m communication distance. Metals and other metal materials will reduce the range.

Strong signal sources such as WiFi routers and microwave ovens will affect the range.

We recommend for indoor applications that receiver placements should be no further apart than15m.

2. Multi-Zone independently working in different zone.

Each receiver(one or more) in a different zone, like zone 1, 2, 3 or 4.

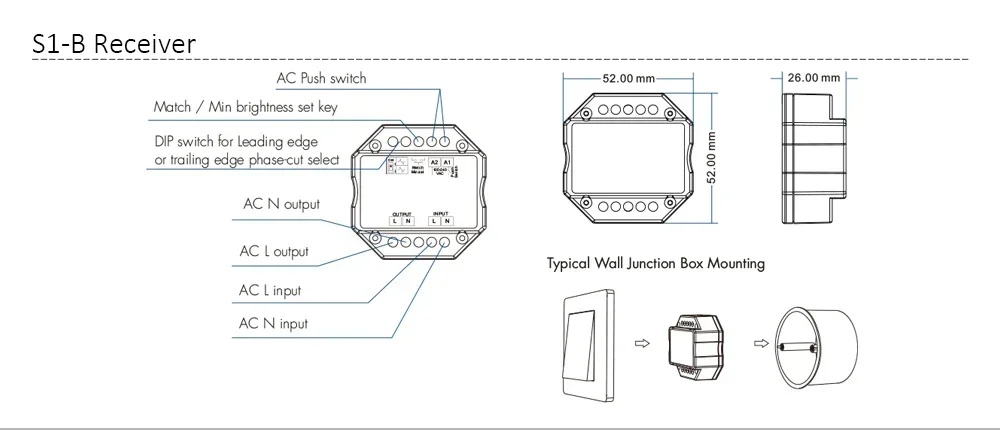

S1-B(Receiver) and RF Remote (Sender):

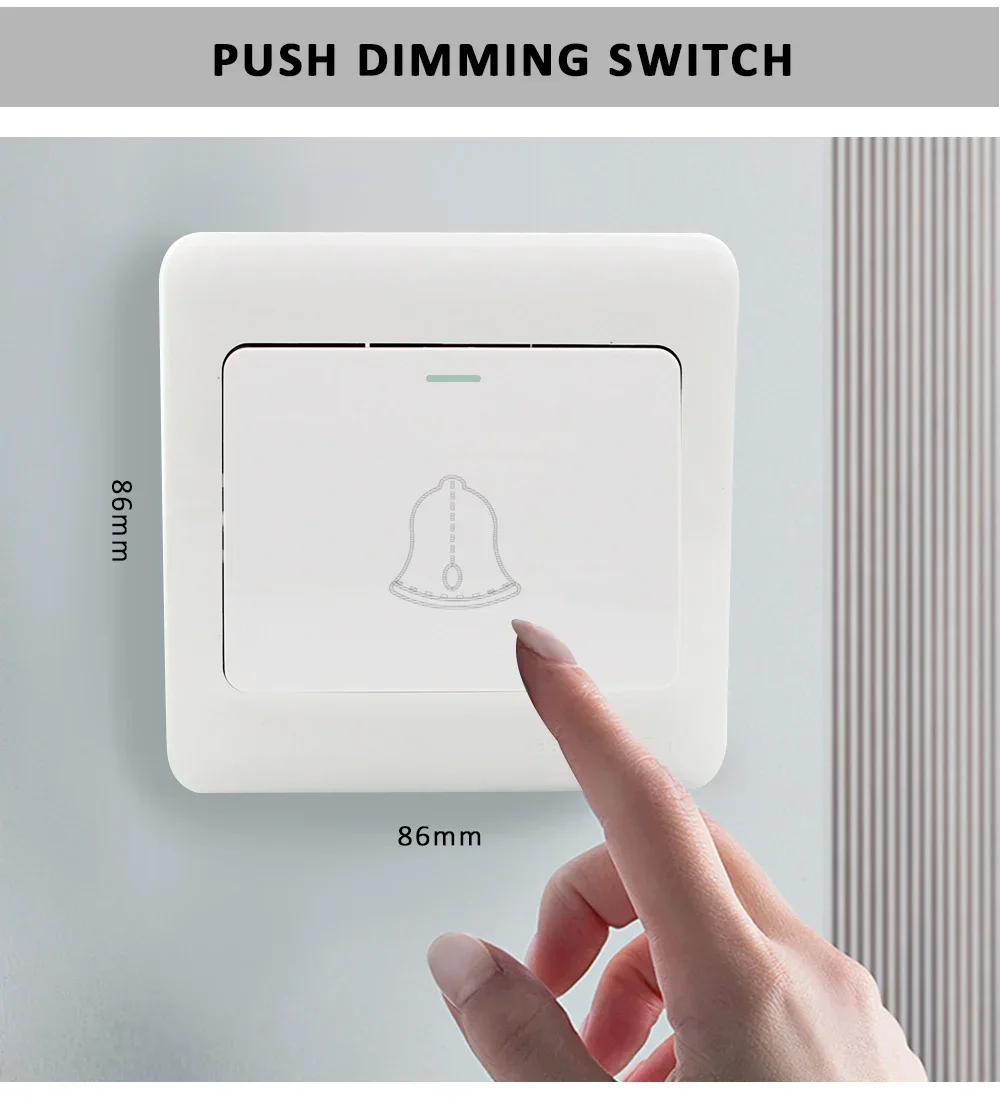

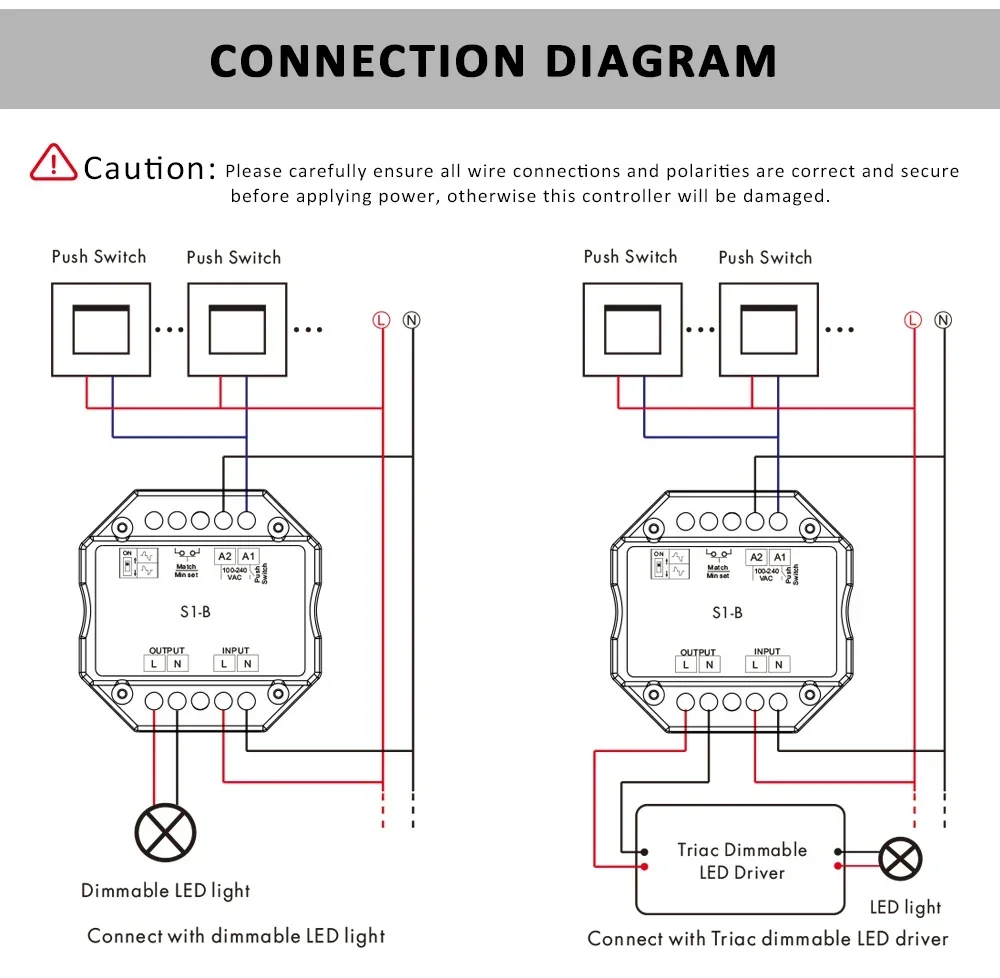

Push Dim Function:

You can also add a push switch to realize dimming.

● Short press: Turn on or off light.

● Long press (1-6s): Press and hold to step-less dimming,

With every other long press, the light level goes to the opposite direction.

● Dimming memory:

Light returns to the previous dimming level when switched off and on again, even at power failure.

Note:

When calculating the maximum number of load lamps or drivers, the input power or input current

parameters of a single lamp or driver must be used, the output power parameters can not be used.

In addition, the maximum surge current of the dimmer is 65A, the sum of surge current of multiple dimmable LED drivers should not exceed 2 times. otherwise, the product will be overloaded and damaged.

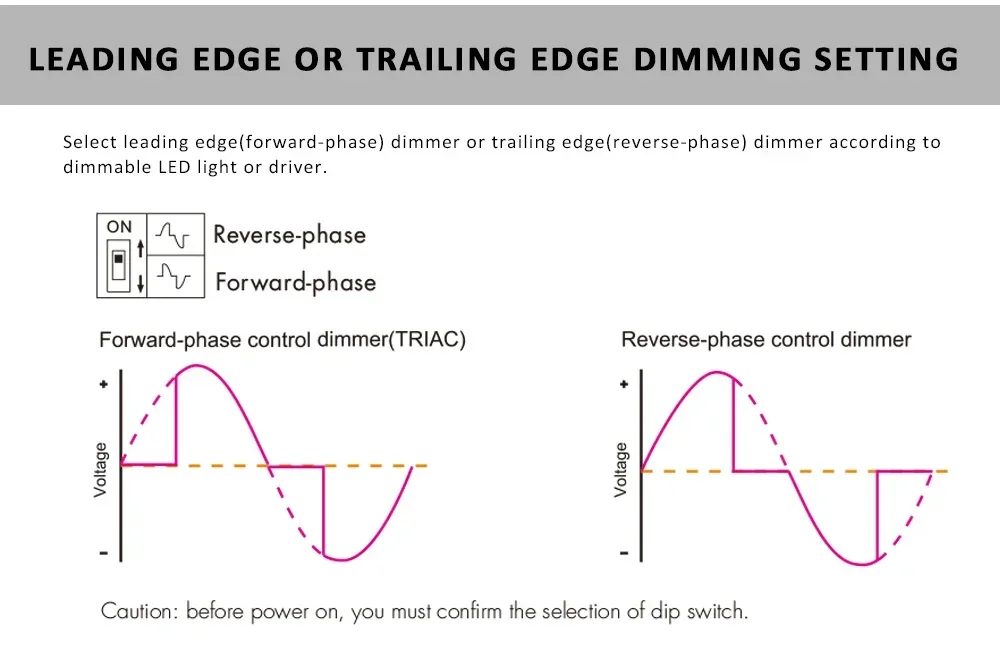

Leading edge or trailing edge dimming setting:

Select leading edge(forward-phase) dimmer or trailing edge(reverse-phase) dimmer

according to dimmable LED light or driver.

Min brightness setting:

● Long press Min set key for 2s, the light blink 2 times, ready for min brightness set,

● Short press Min set key 1-6 times, to get 6 min brightness: 5%, 10%, 15%, 20%, 25% or 30%,

the light will output the current min brightness immediately,

● Long press Min set key for 2s or wait 8s, quit min brightness set, the light will output 100% brightness automatically

Packing List:

The package contents depends on the type you selected.

The Set with 1 X S1-B + 1 X Remote + 1 X Remote Holder, kindly check the model carefully before the payment.

R11 Remote Only= 1 X Remote

Push Switch Only= 1 X Push Switch

Note:

The parcels is not with battery for safety shipping.
