5V WS2812 WS2811 Programmable LED Strip – RGBIC Dream Color Individually Addressable Fairy Lights, 3-Wire Cable, Pixel Lighting

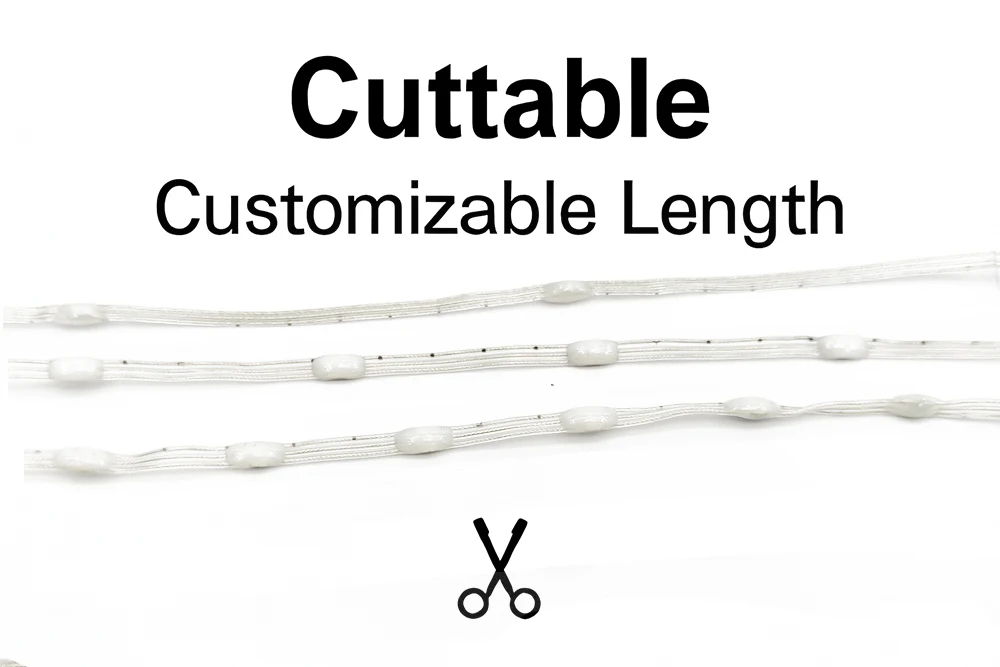

Please note: the working volage is 5V other voltage will burn the strip Current suggests to be 1A or above, Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want. The package only includes the led strips, if you need the controller as above video, contact us.

Specification:

Working Input Voltage: DC5V.

Protocol: WS2811/WS2812

Emitted Color:      WS2811/WS2812 RGB IC,addressable RGB full color

Color Order: R G B (not RGB)

SMD: SMD3240

Output Power: 0.01W/pcs led.

Out R/G/B output current: 5.5mA

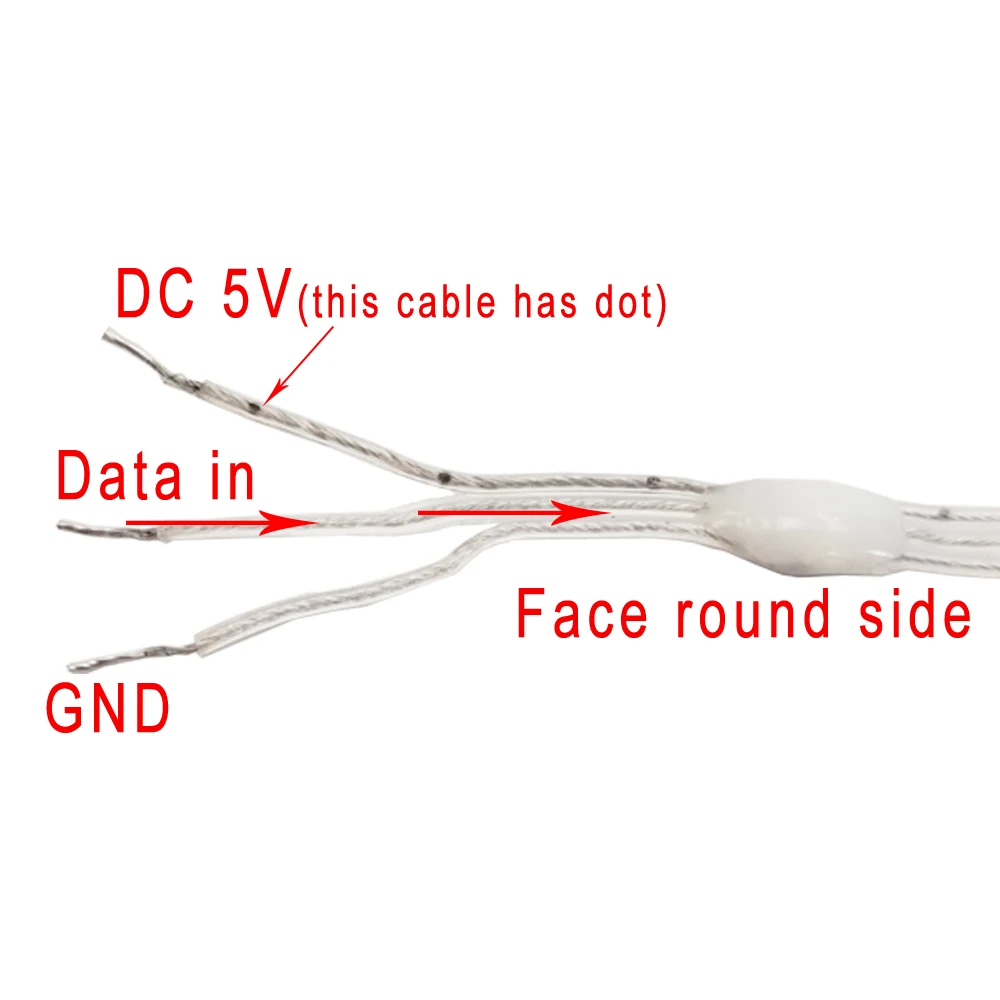

Wire: #26AWG, 3PIN wire (VCC+,DATA,GND)

LED Space: 1.5cm, 3cm, 5cm, 10cm optional, and other LED spacing for further consulting

Wire length:

1.5cm led spacing; so 1000 pixels/string is 15m long

3cm led spacing; so 1000 pixels/string is 30m long

5cm led spacing; so 1000 pixels/string is 50m lonTOCOM RSS3g

10cm led spacing; so 1000 pixels/string is 100m long

Power Injection suggestion:

Warm Tips: Because of voltage drops, ifLED quantity above 300LEDs, suggest to cut them to use.

If use 1000pcs leds at most, just add power on end. please contact me for further questions

View Angle: 360 degree.

Long Life: more than 50000 hours.

Working Tempreture: -35~50°.

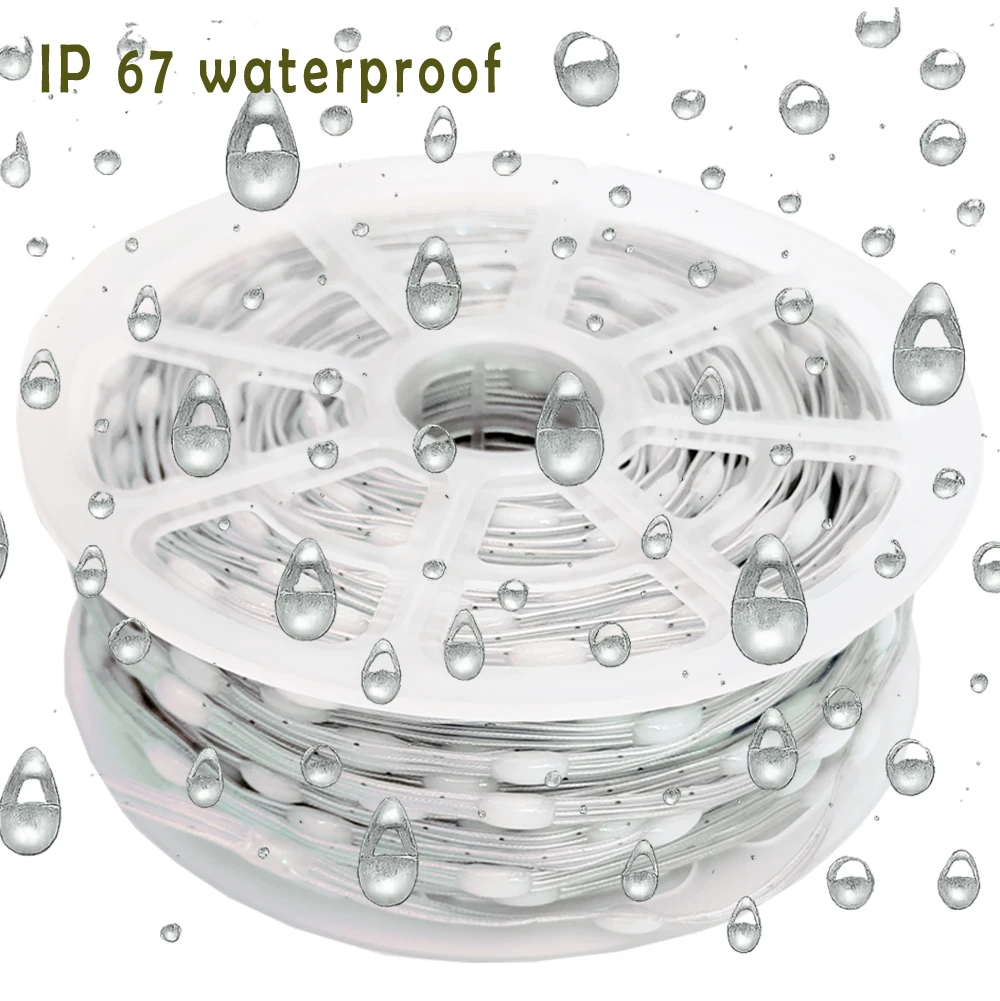

Waterproof level:IP67 Waterproof

Warranty: 2 Year.

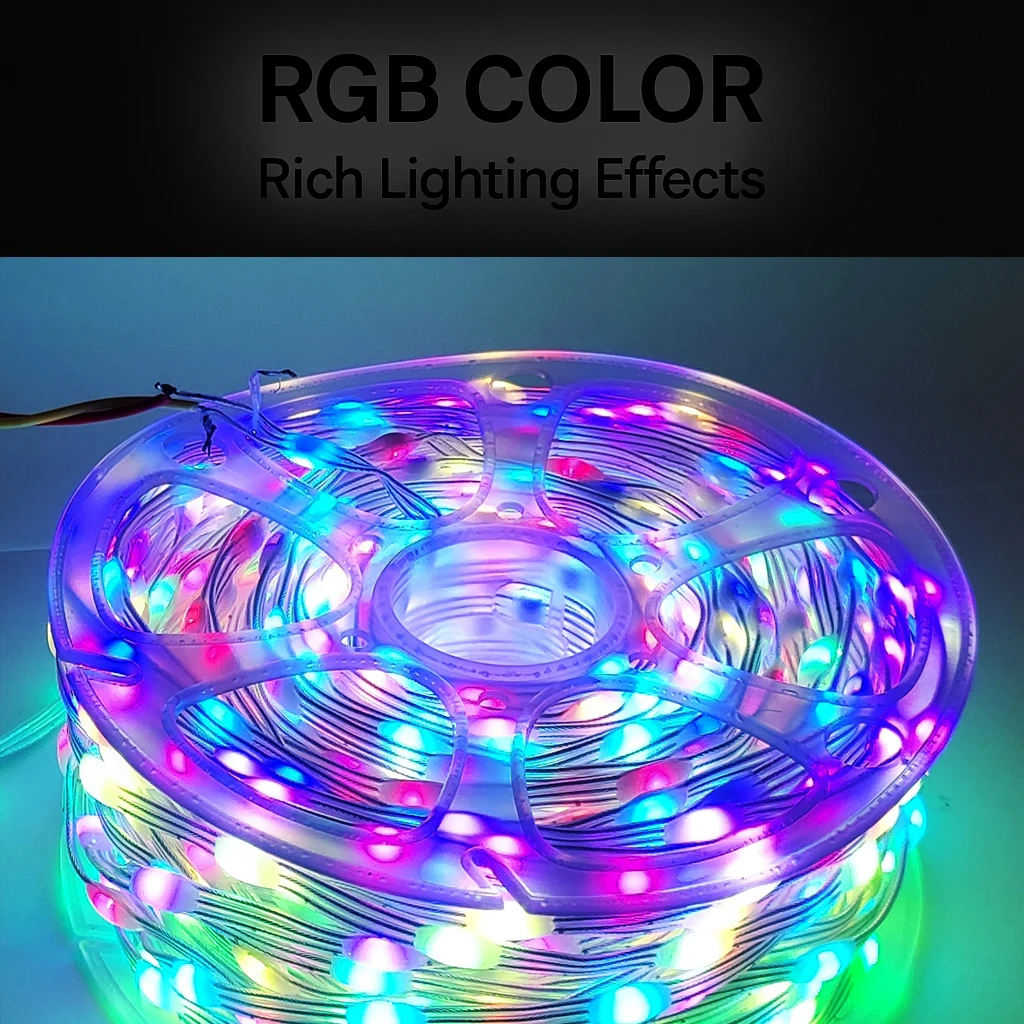

Individually Addressable WS2811 RGBIC Chip：Dream full color Programmable LED String. Chasing Lighting, Rainbow ,Fire ,Meteor, rhythm, etc all kinds of scenes and special effects.

DIY Controllers: Each pixel can have its own color and brightness as your wish. Compatible with Arduino, Raspberry Pi, Teensy, T1000S,K1000C etc programmable controllers. Support SP110E SP105E SP108E SP110E SP601E etc Bluetooth APP IR controllers, CSY07 CSY08 X2 SP106E SP107E SP601E SP608E SP611E etc music bluetooth APP controllers,SP511E SP501E etc smart WiFi Alexa music Controllers. also contact us for purchasing the controllers

real show:
