Skydance S1-D S1-D1 S1-DR AC Triac DMX Dimmer DIN Rail 2CH*1.5A 2CH*1A 1CH*2A AC Phase-cut DMX LED Dimmer Controller AC110V 220V

DMX512 Series

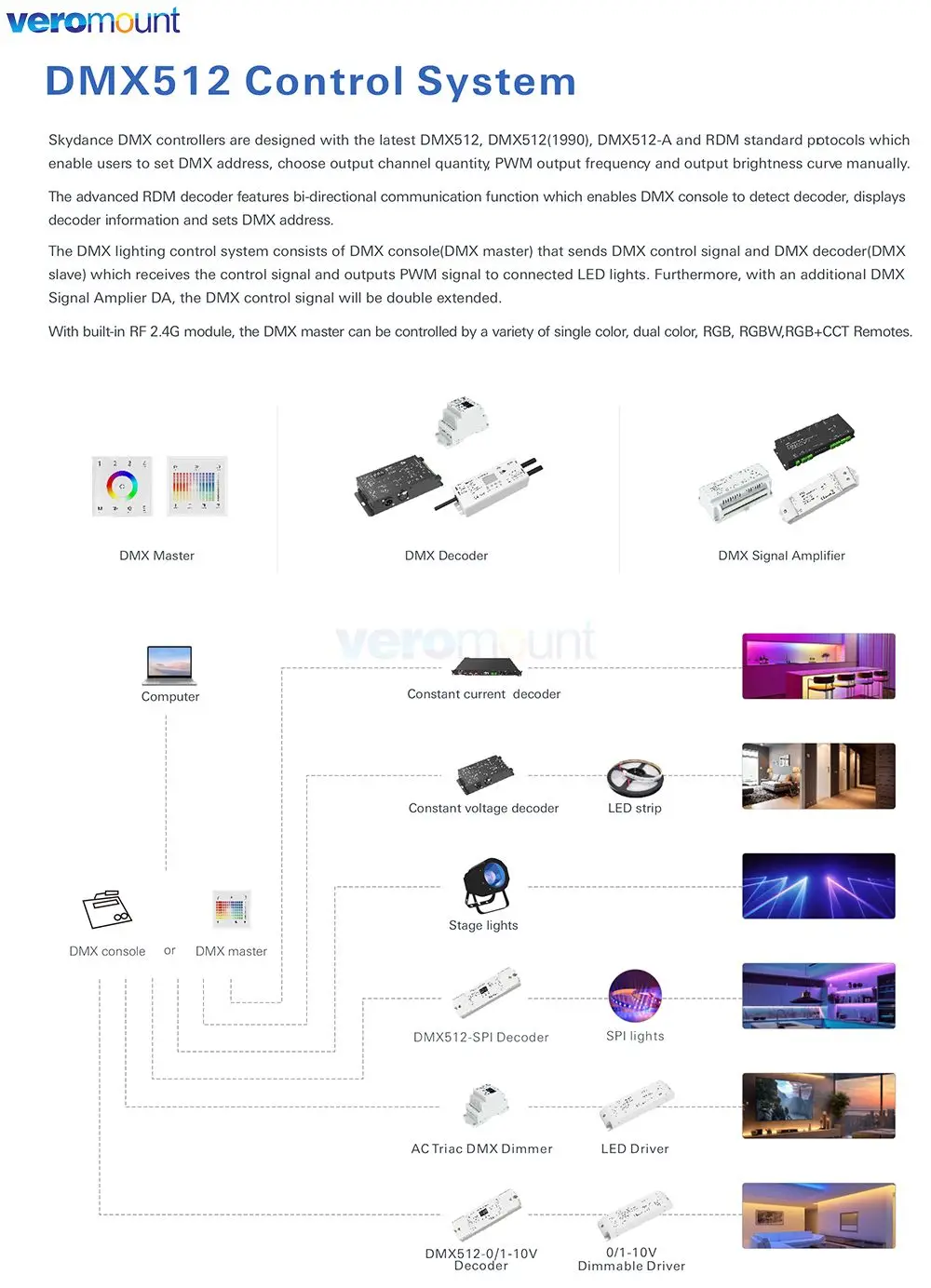

Skydance DMX512/RDM series products are compatible with latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) international standard protocols,including RF DMX master, panel DMX master, DMX constant voltage or constant current decoder, signal converter and signal amplifier, providing a complete DMX lighting control solution.
1. The DMX512 console or master controls single color, color temperature, RGB, RGBW, RGB+CCT and other LED lights.
2. DMX decoder or signal converter converts the standard DMX512/1990 signal into constant voltage PWM, constant current PWM, AC Triac, 0/1-10V or SPI signal for control of constant voltage or constant current lamps, Triac dimmable LED driver or lamps, 0/1-10V dimmable LED driver or SPI digital LED strip.
3. Skydance DMX decoder supports RDM function, and the DMX address can be set on the decoder or set remotely by RDM console.
4. Set the DMX address via a digital tube display /OLED screen key or a 10-pin DIP switch.

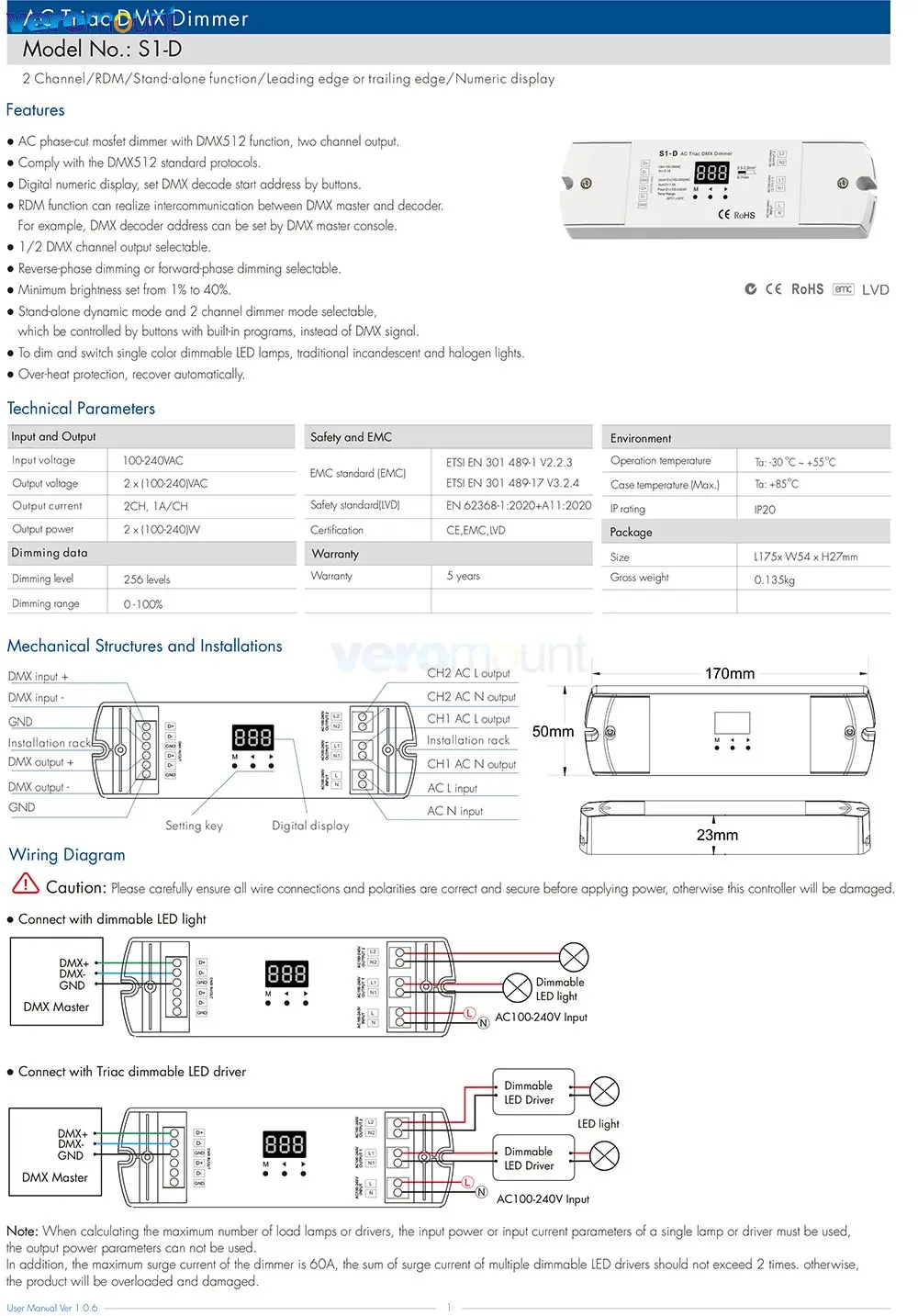

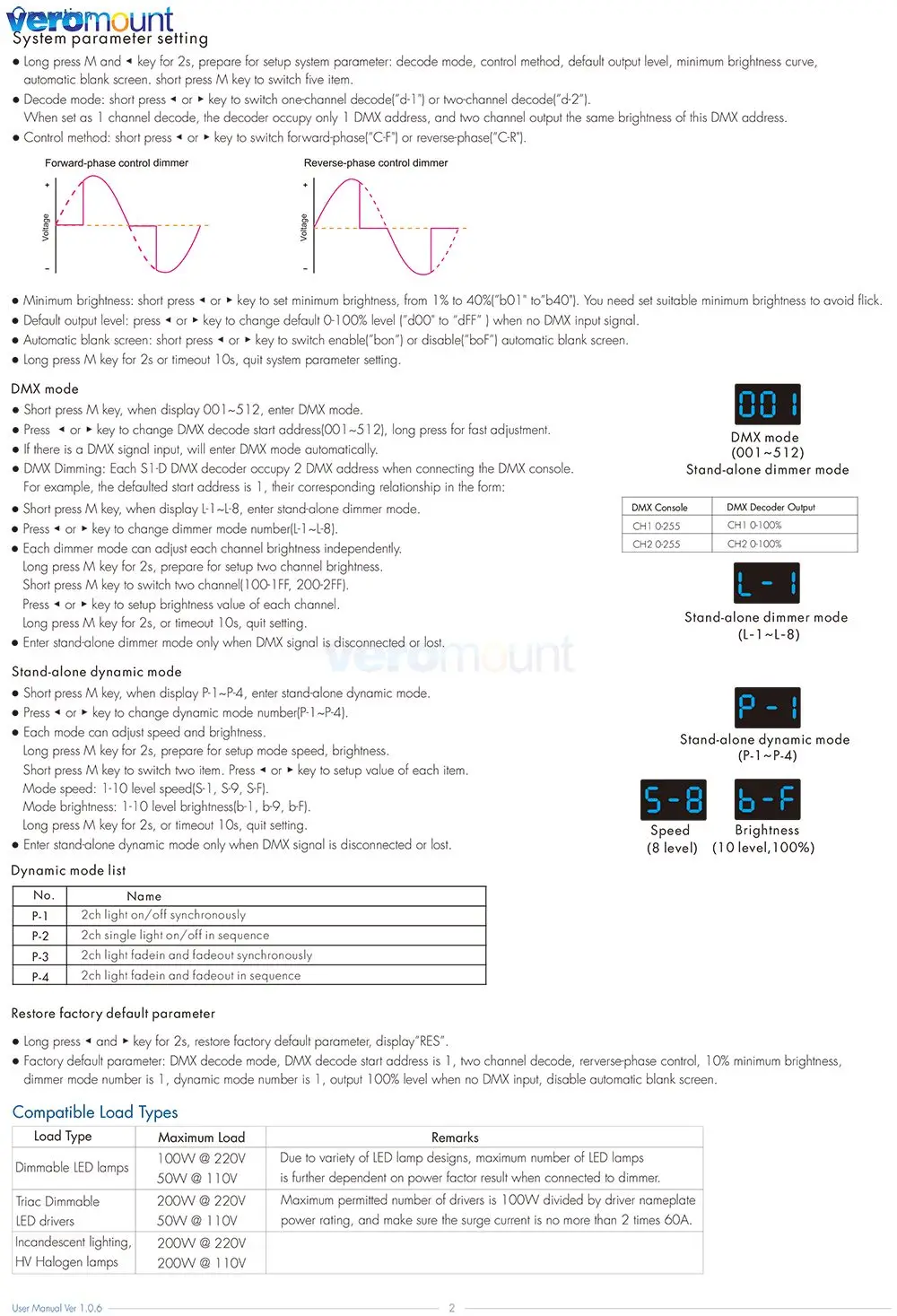

2CH*1A AC Phase-cut DMX Dimmer S1-D

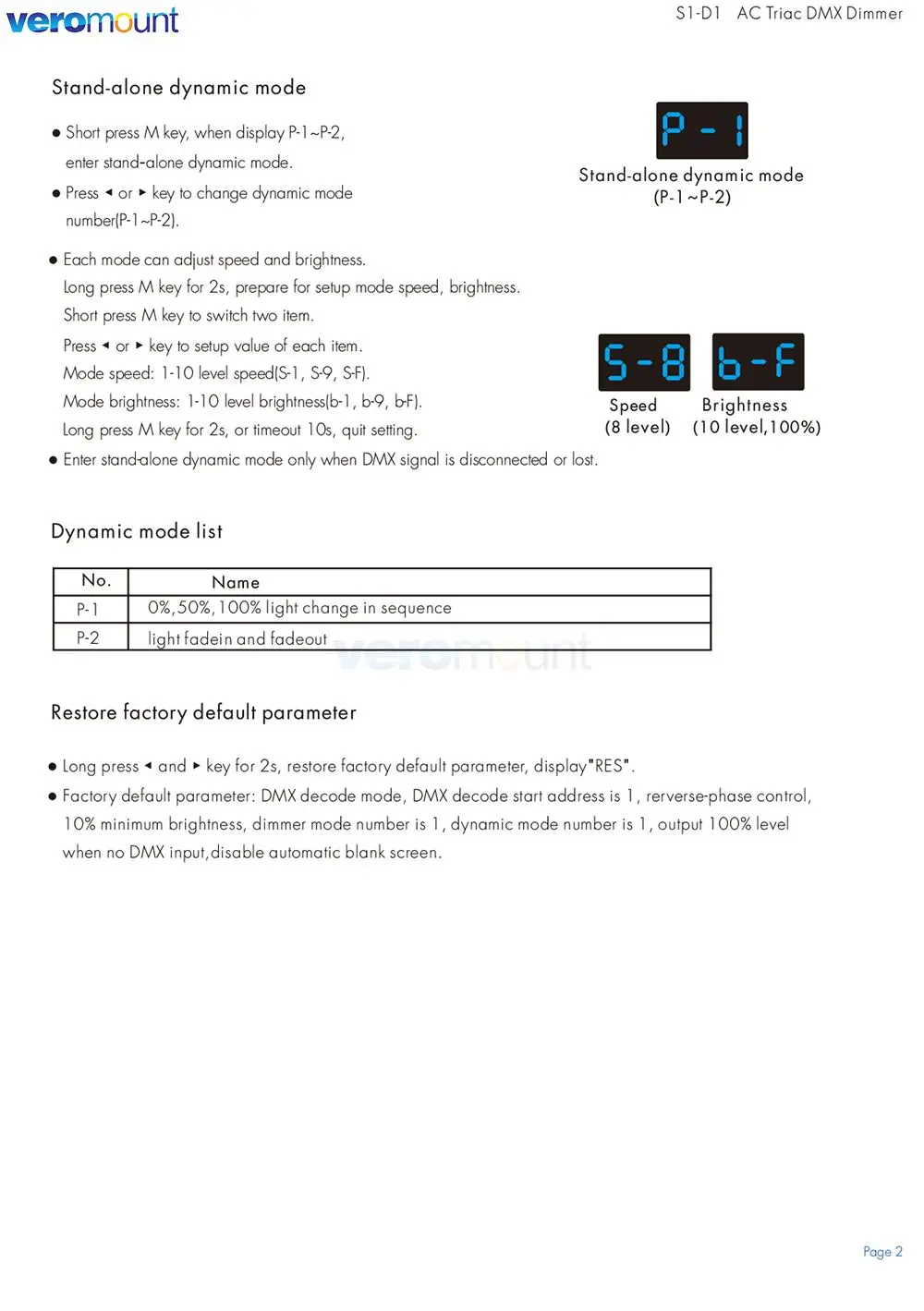

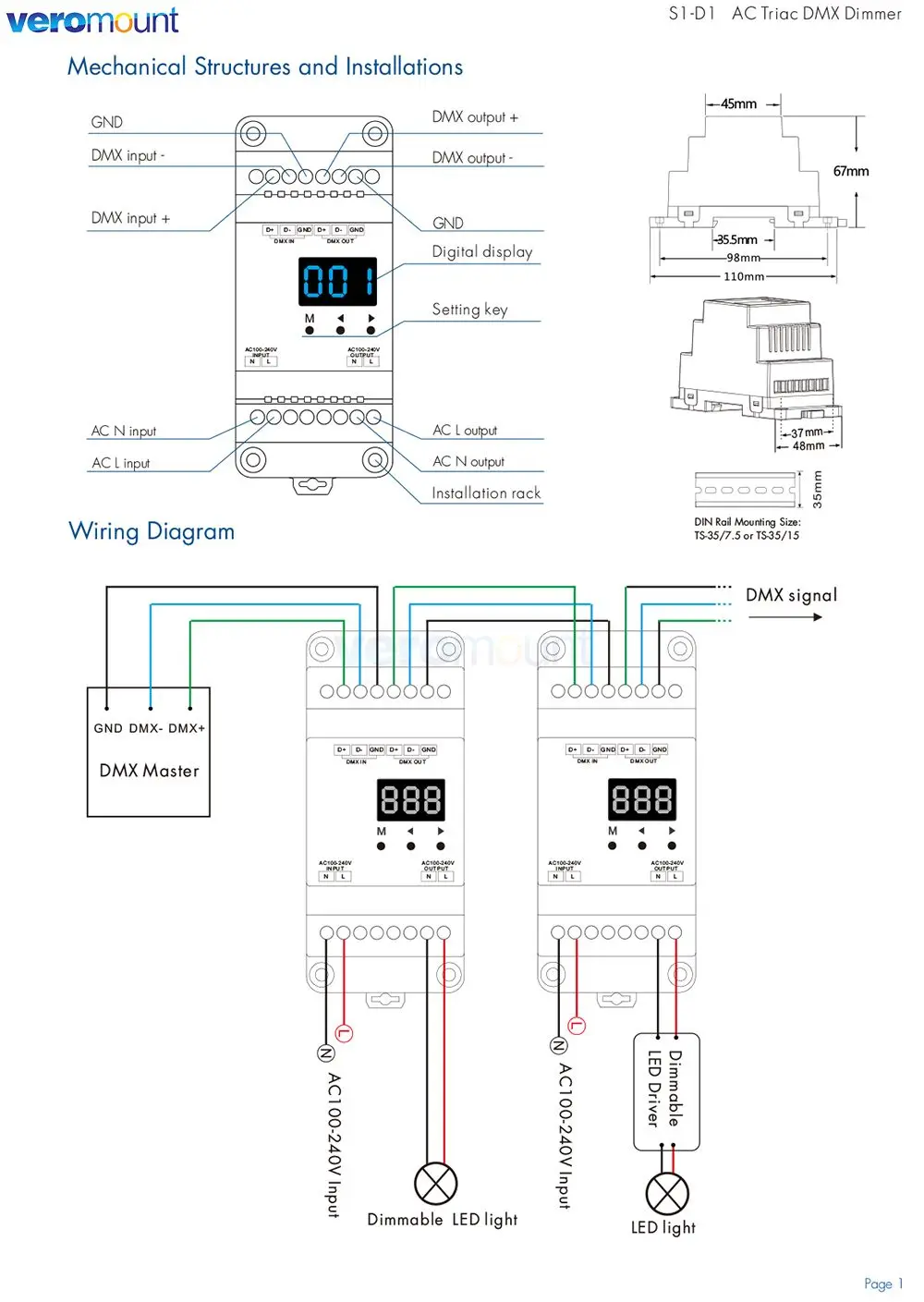

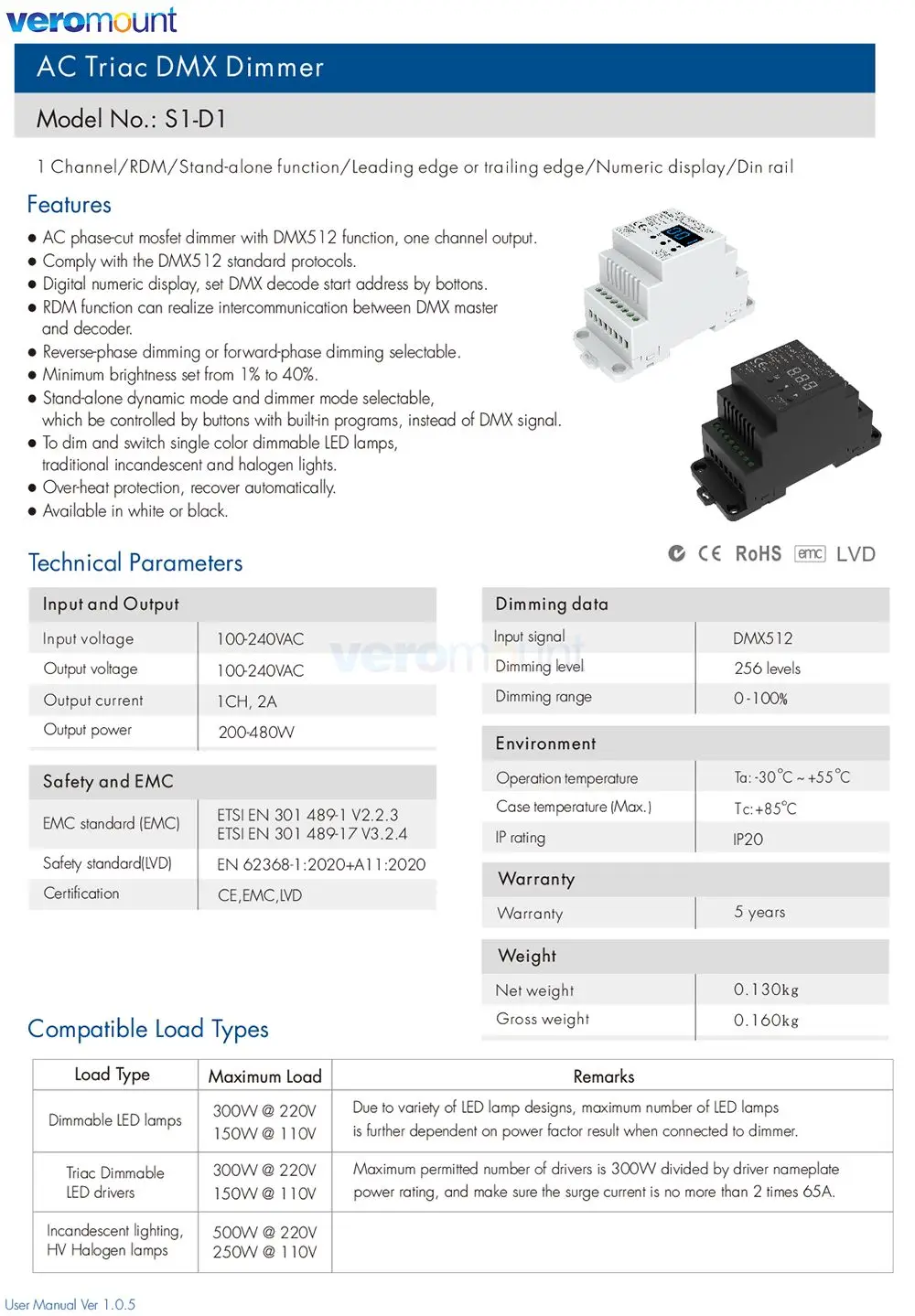

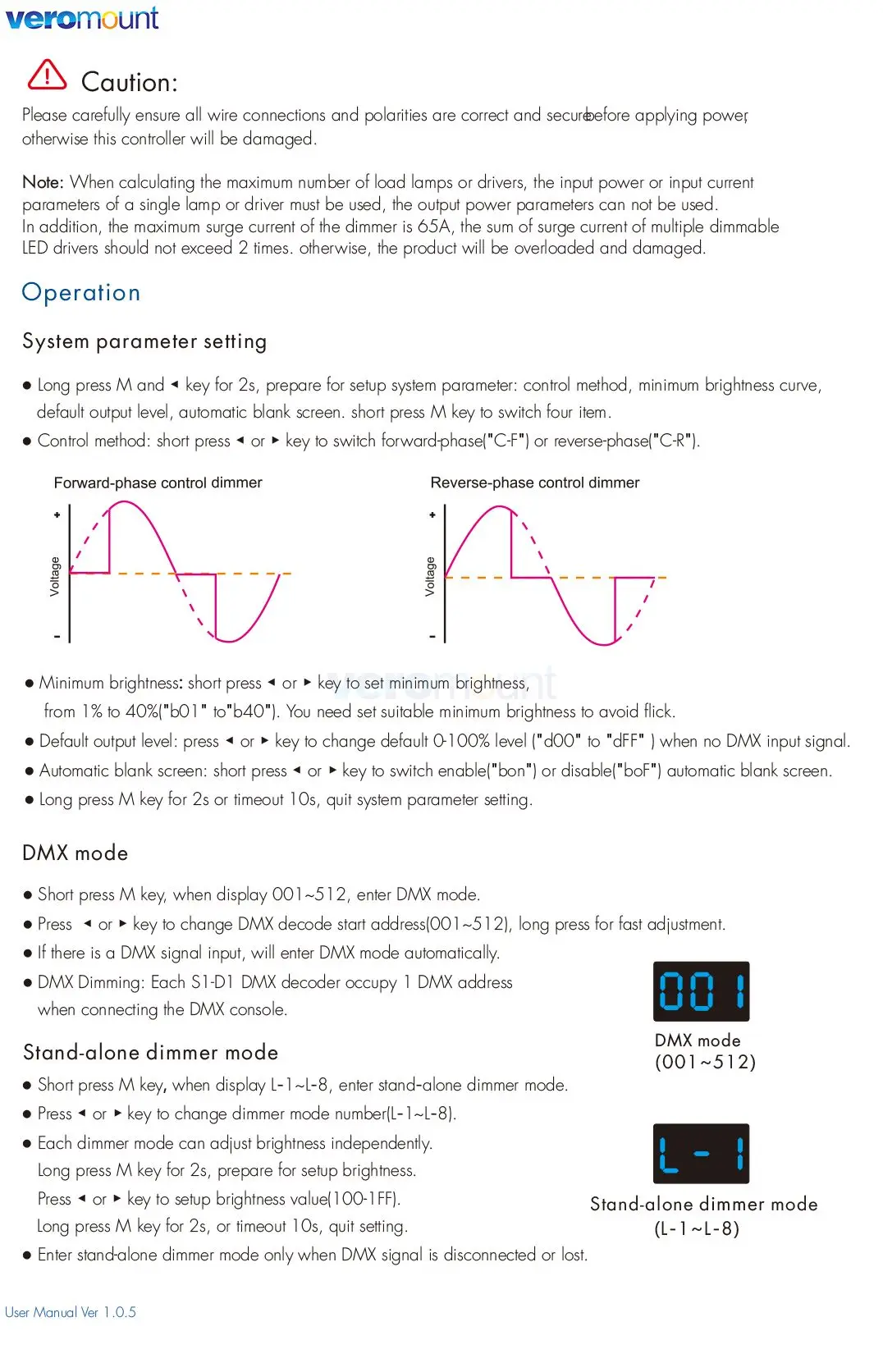

1CH*2A AC Phase-cut DMX Dimmer S1-D1

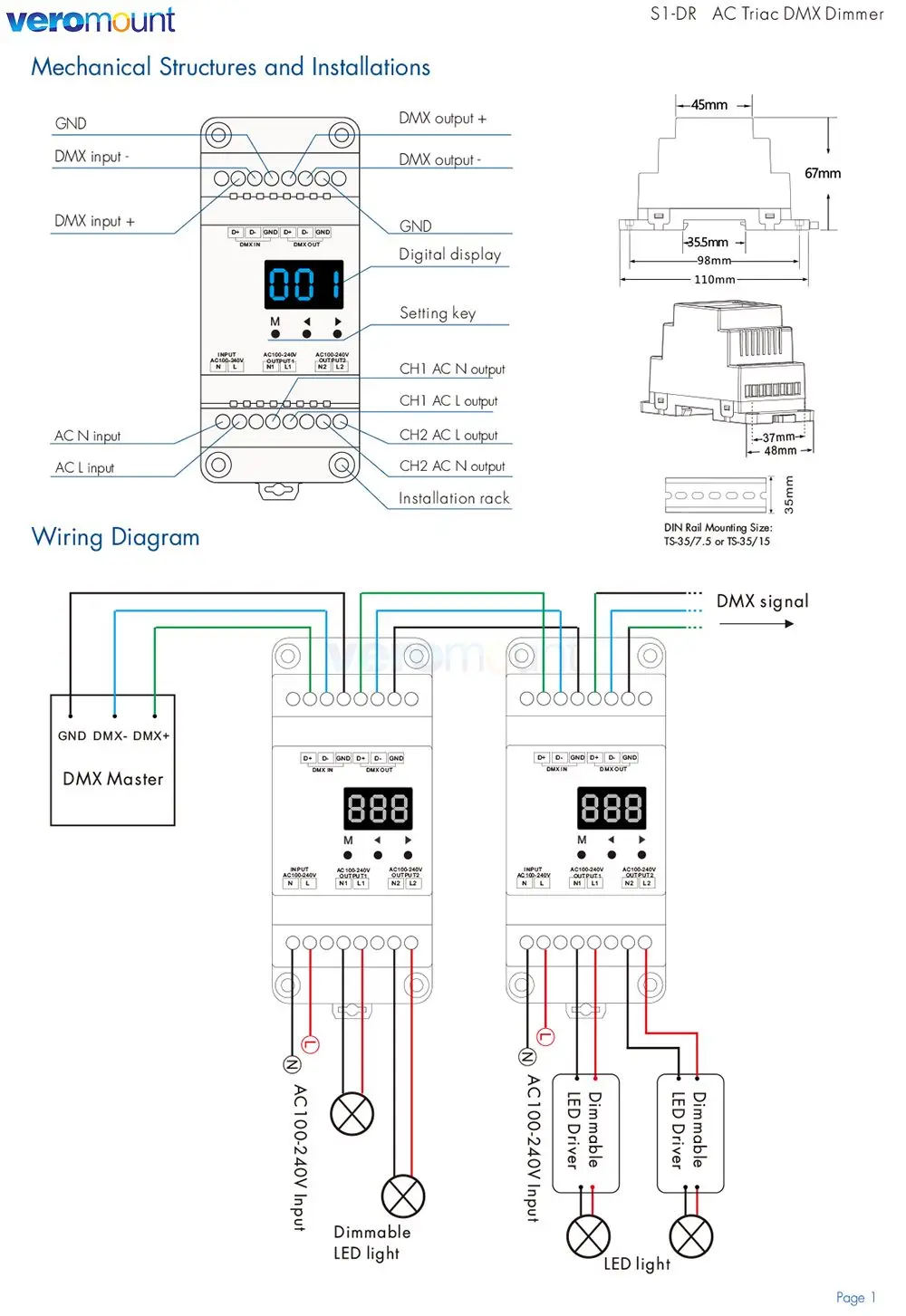

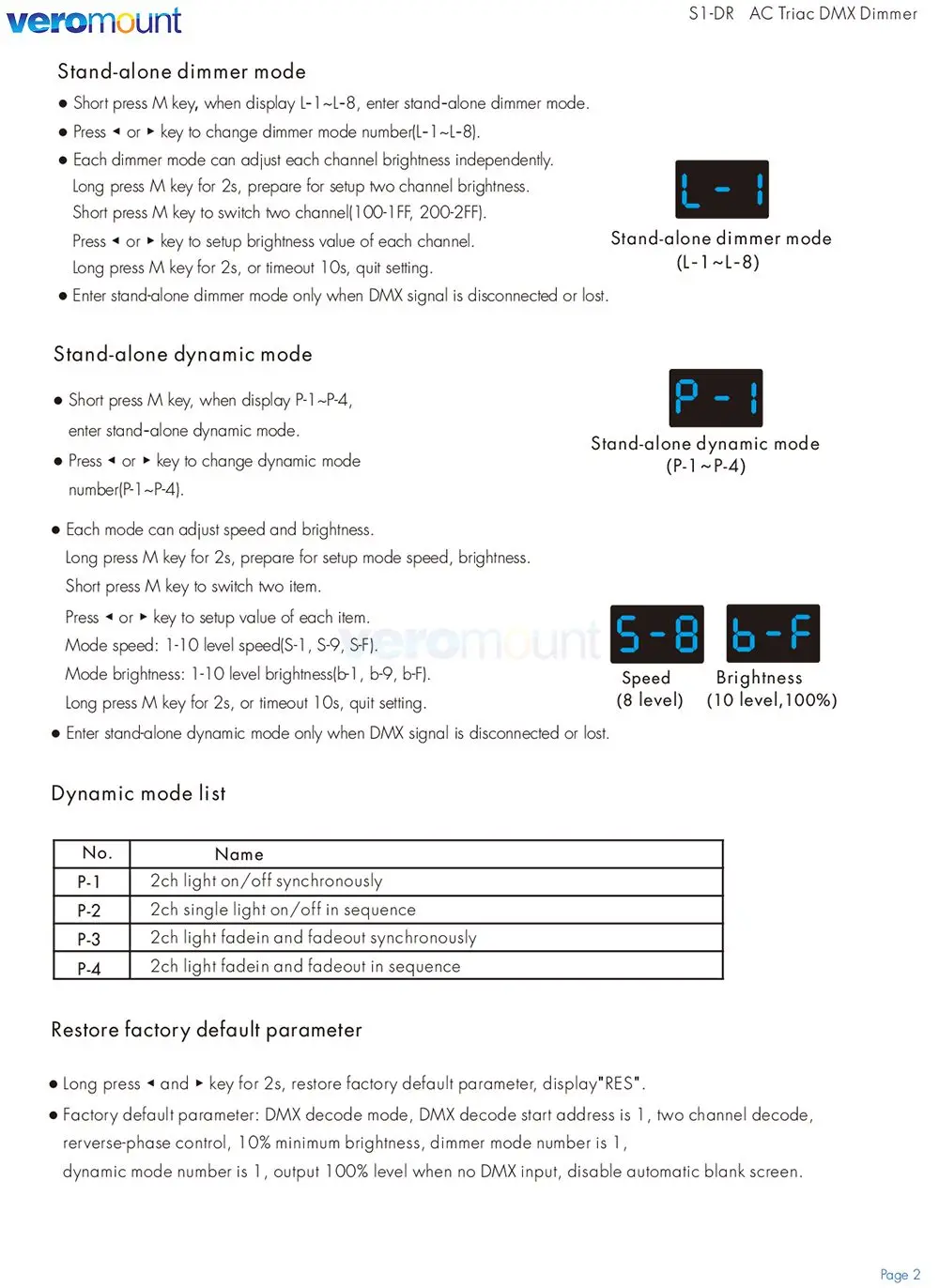

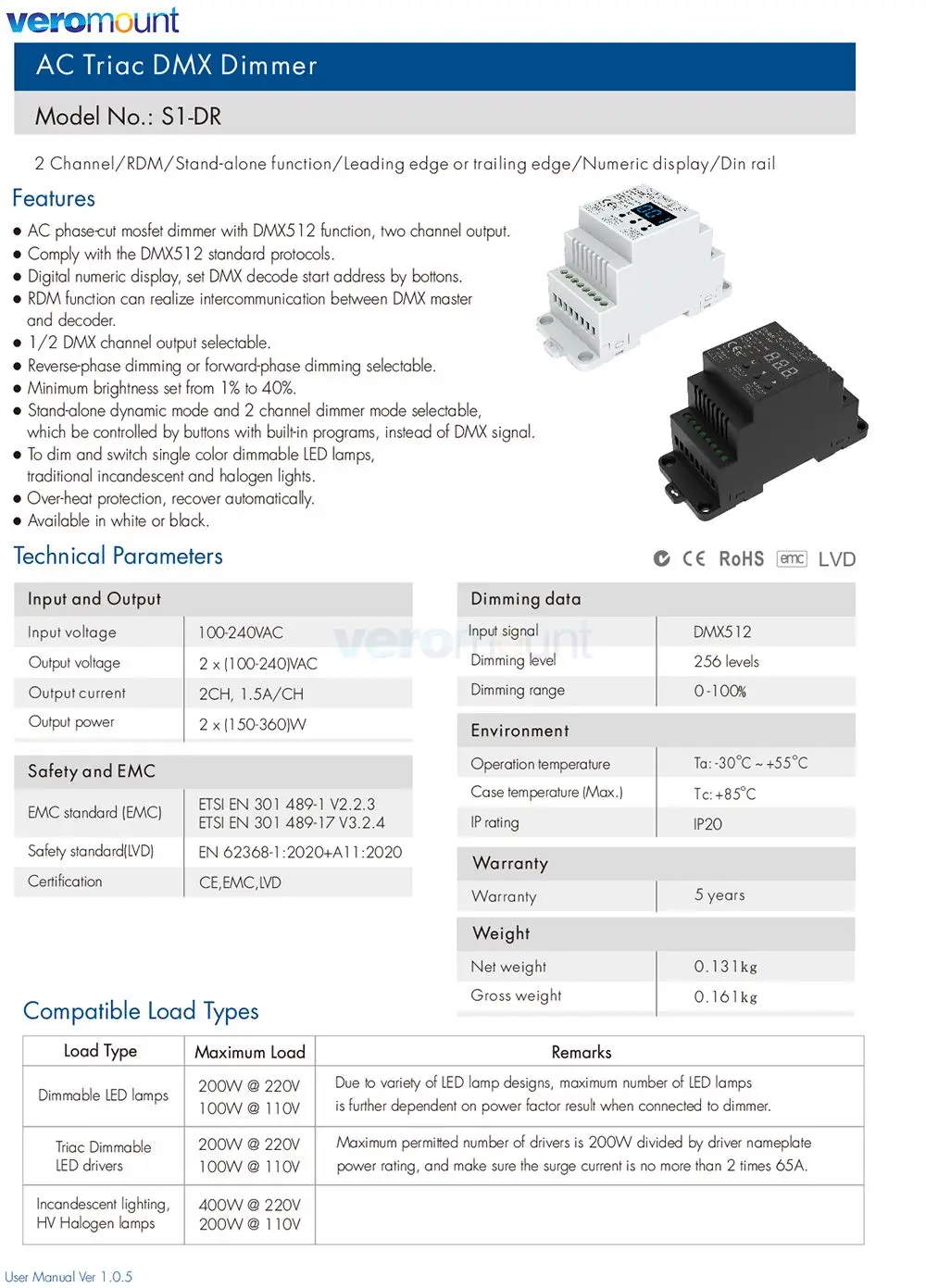

2CH*1.5A AC Phase-cut DMX Dimmer S1-DR

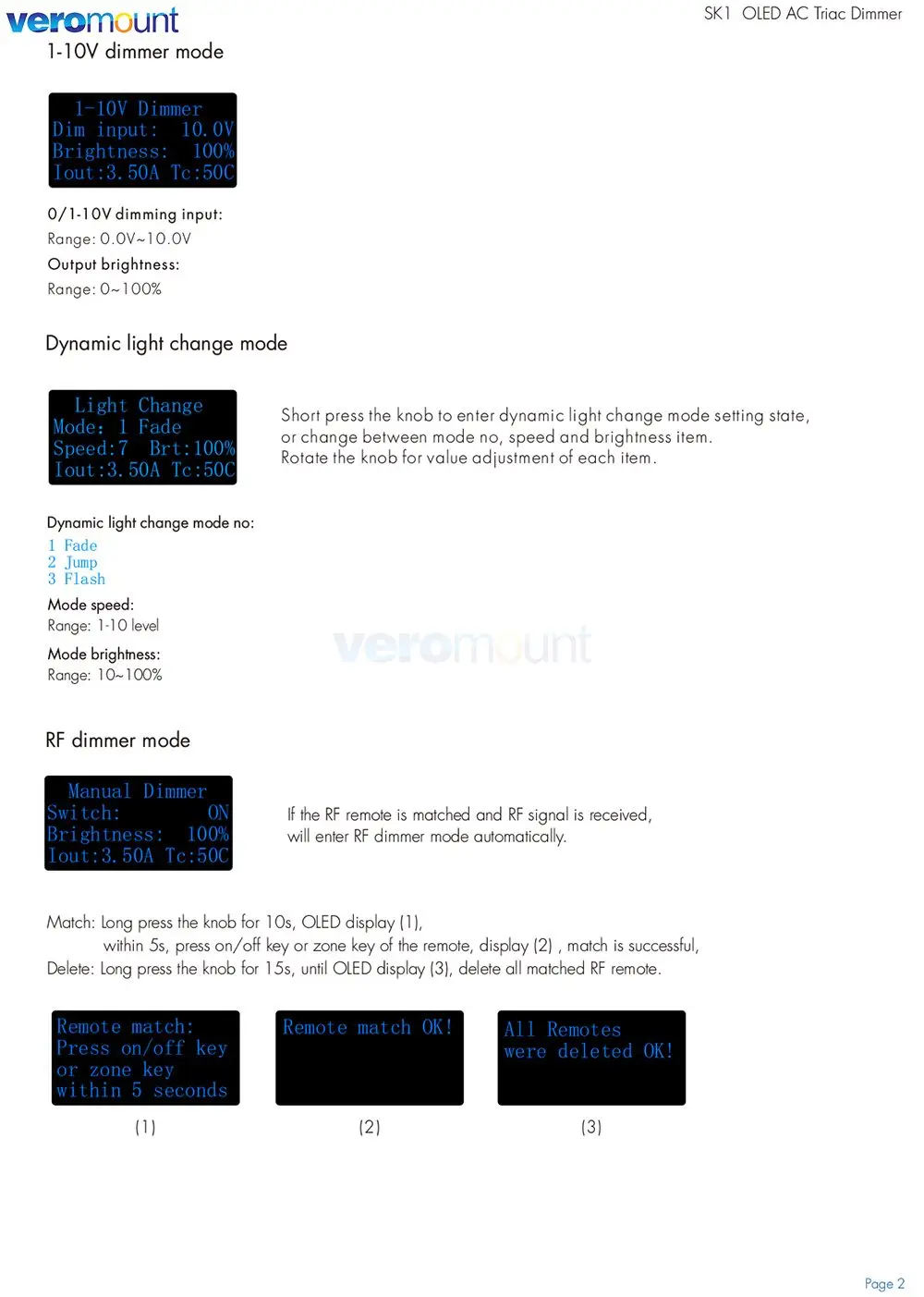

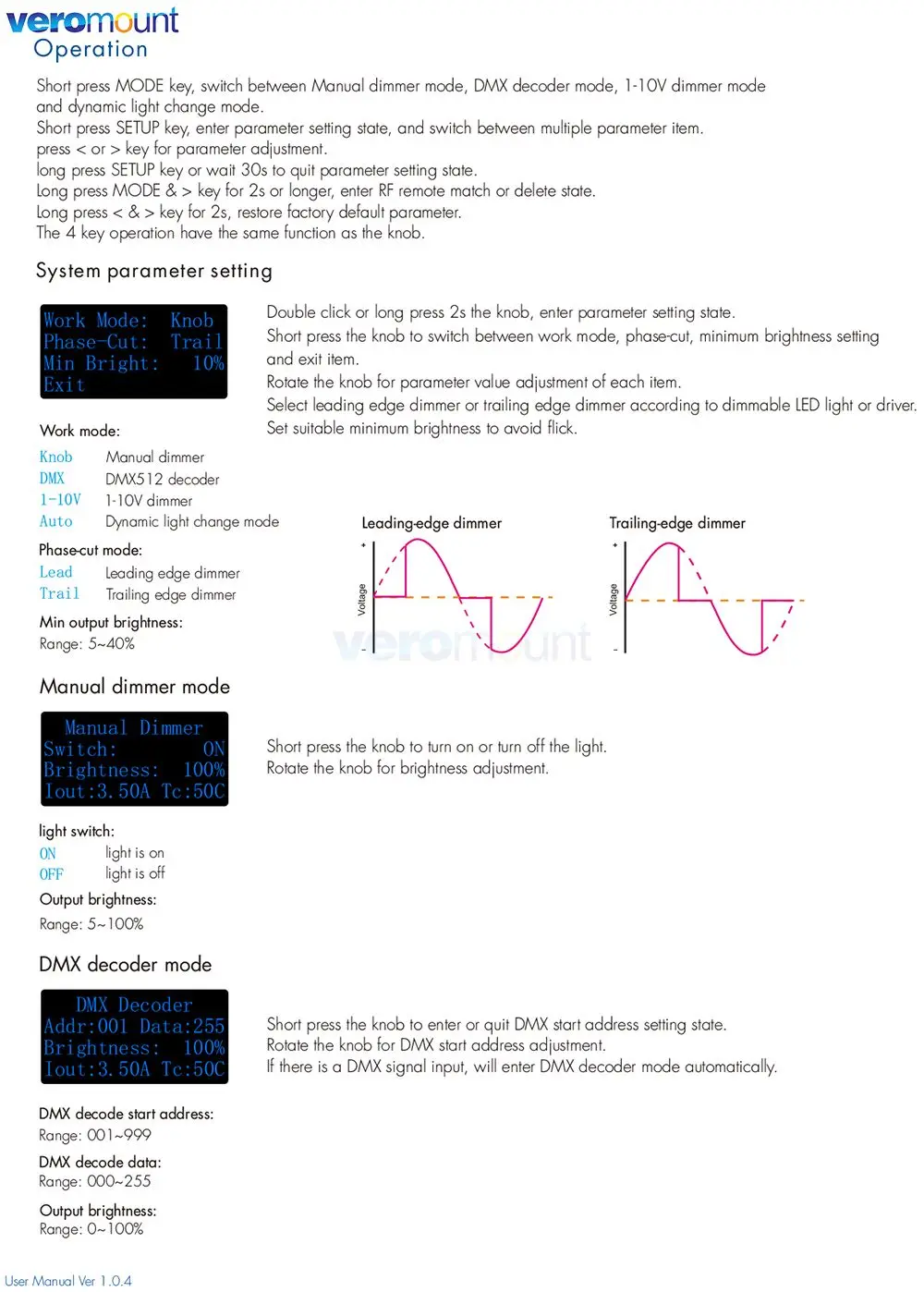

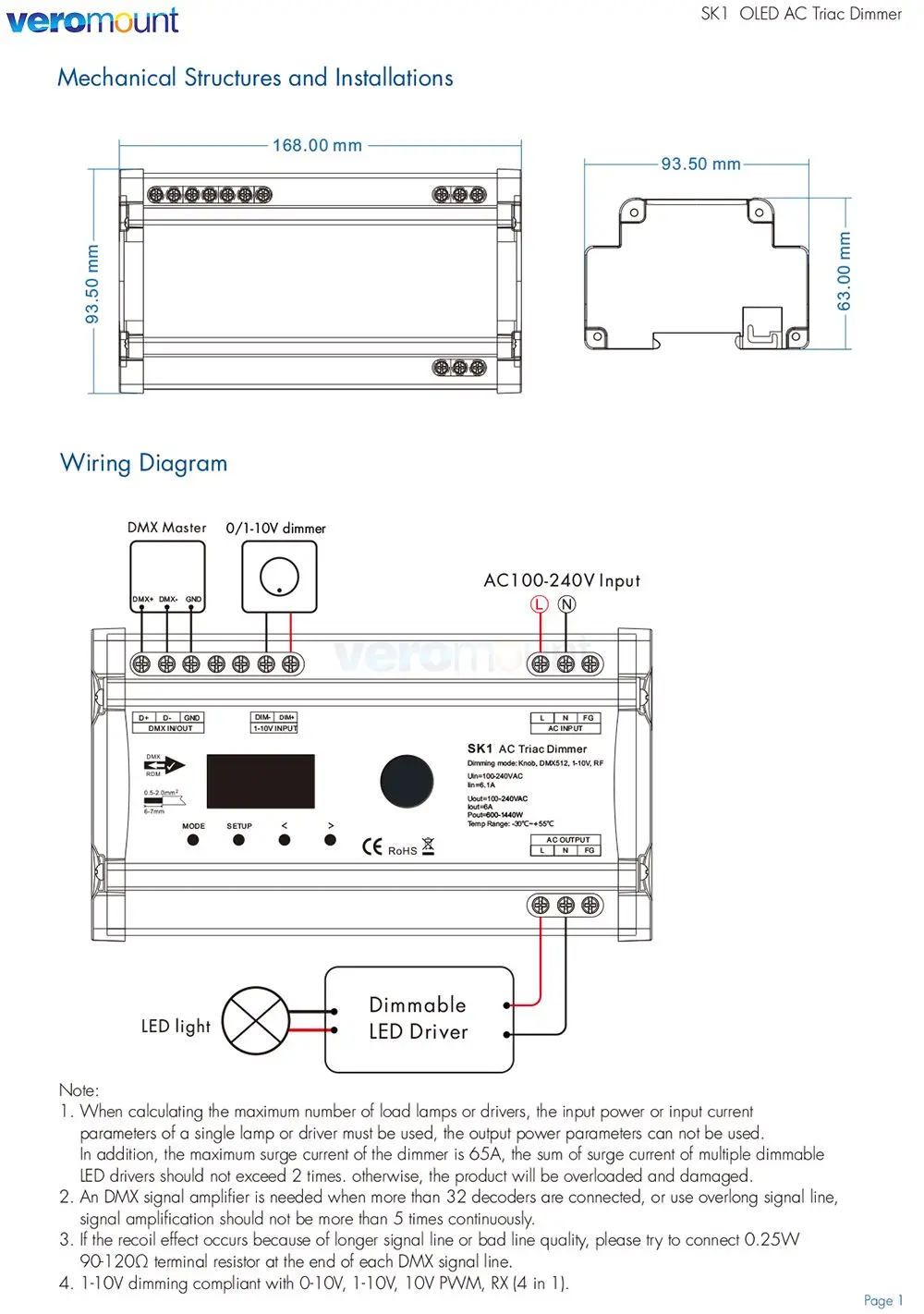

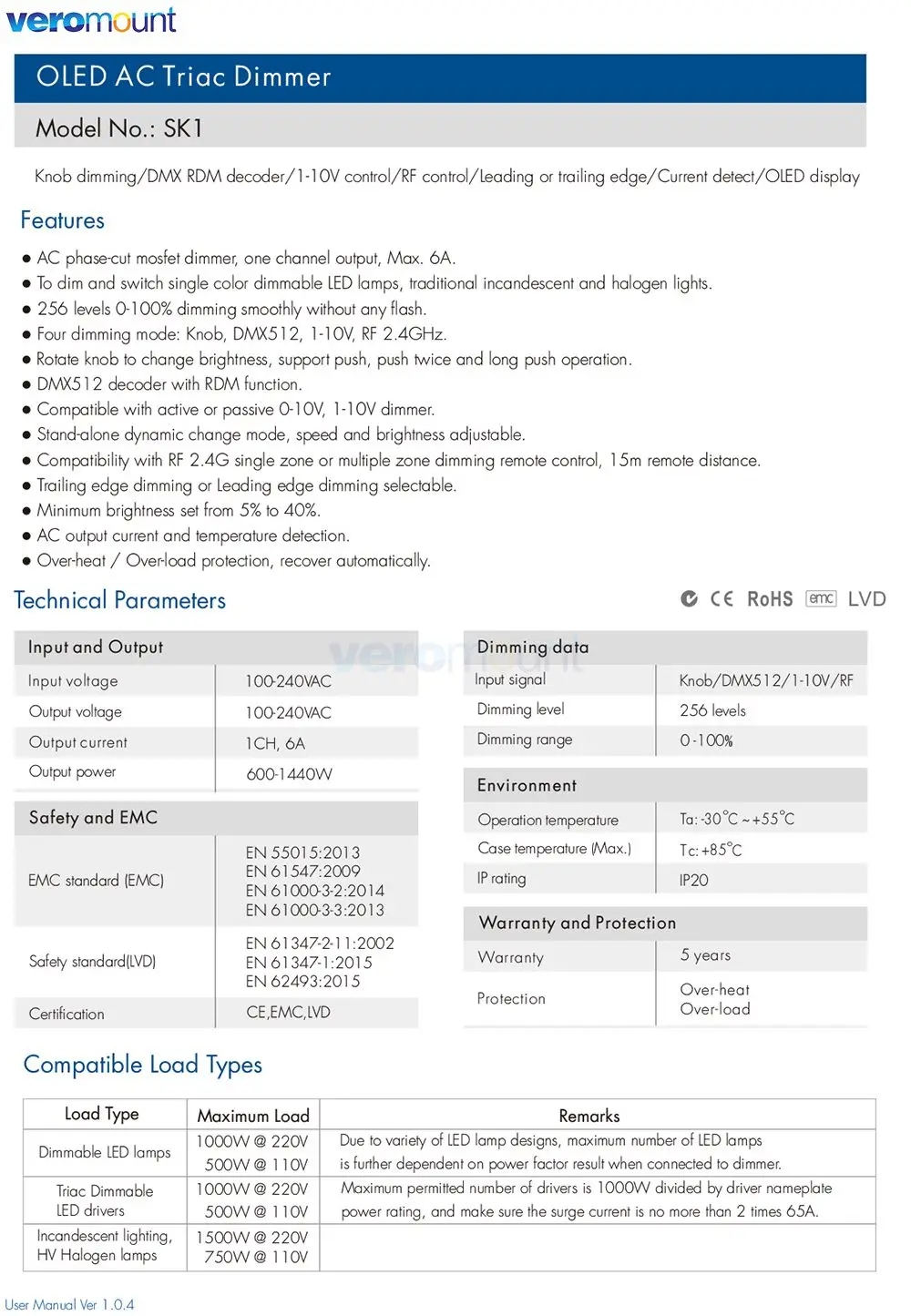

1CH*6A RF AC Triac Dimmer SK1（Knob, DMX512, 1-10V）

Package Include:
as selected!
