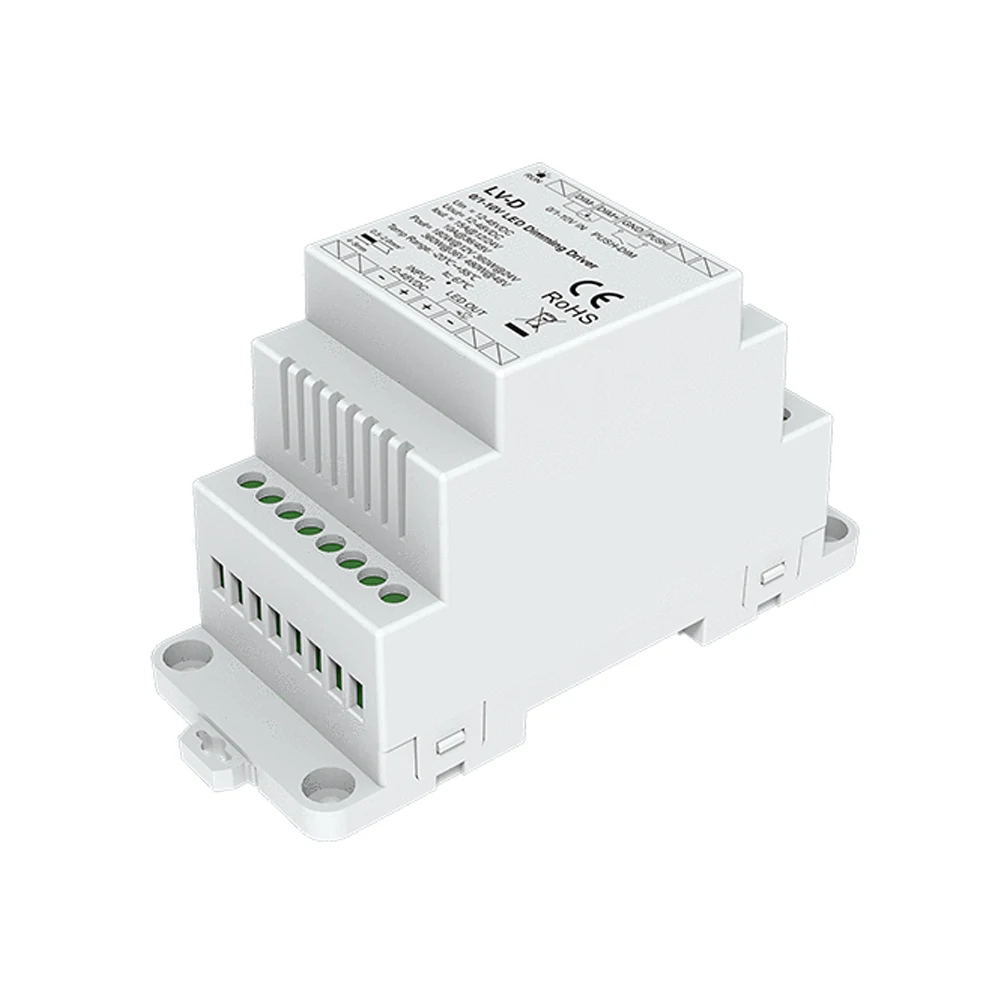

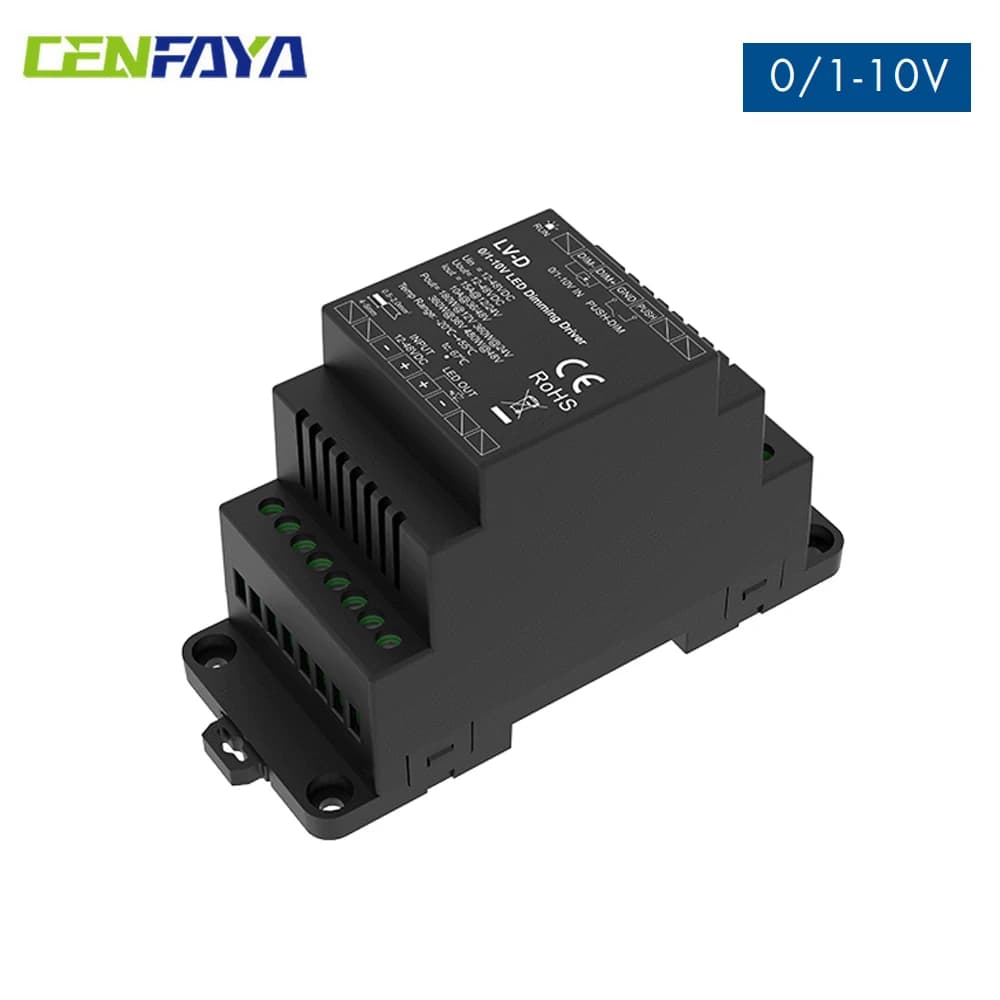

CENFAYA 0/1-10V LED Dimming Driver with Push Dim 12-48VDC Input 480W Output PWM Freq Adjustable DIN Rail Mount for LED Strip

CENFAYA 0/1-10V LED Dimming Driver with Push Dim 12-48VDC Input 480W Output PWM Freq Adjustable DIN Rail Mount for LED Strip

MODEL NO : LV-D

Features

● 1 channel 0/1-10V LED dimming driver with push-dim function.

● 1 channel 0/1-10V input, 1 channel PWM constant voltage output.

● Compatible with active or passive 0-10V,

1-10V dimmer, can solve the uorescent lamp dimming system

compatible with LED lighting.

● PWM frequency 500Hz, 2kHz, 8kHz or 16kHz selectable

● Over-heat / Over-load / Short circuit protection, recover automatically.

Main parameters

● Input voltage ： 12-48VDC

● Output voltage : 12-48VDC

● Output current : 15A@12/24V

10A@36/48V

● Output power : 180W@12V

360W@24V

360W@36V

480W@48V

● Output type : Constant voltage

● Input signal : 0/1-10V + Push Dim

● Dimming range : 0 -100%

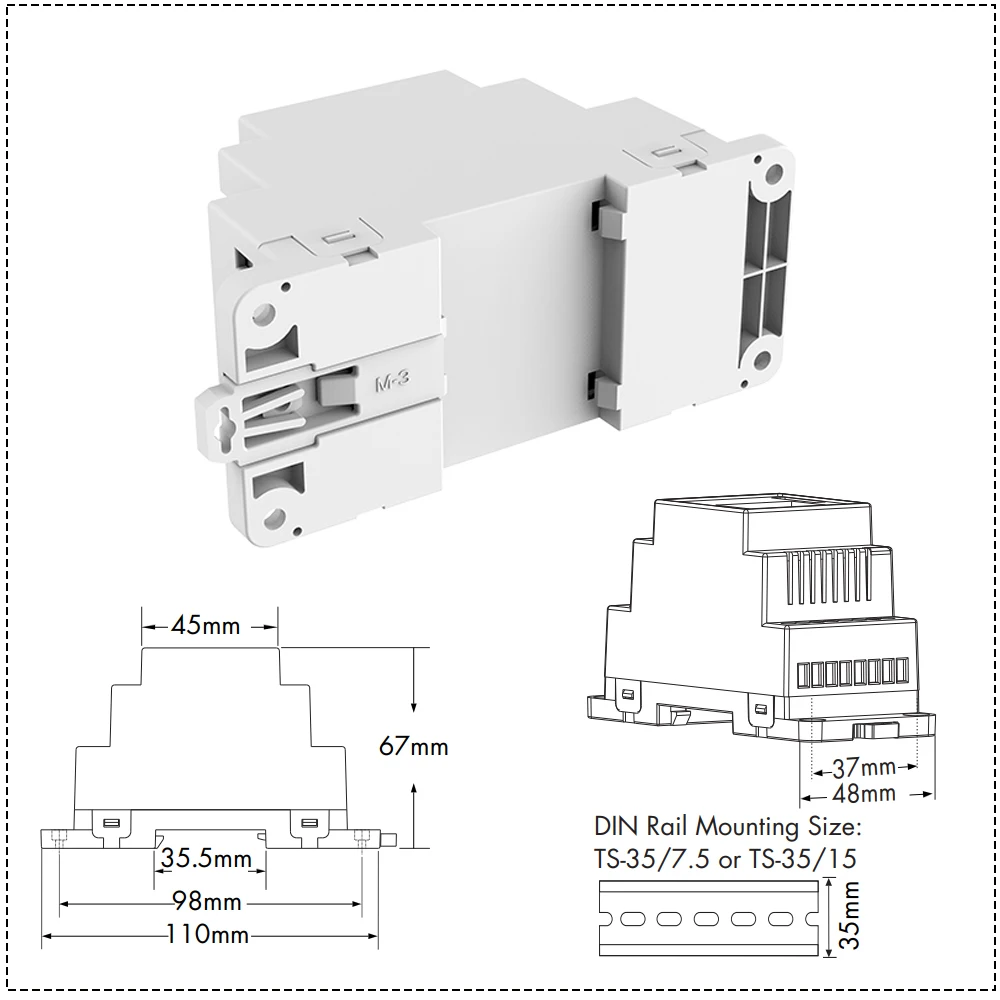

● Size : L120 x W78 x H55mm\

● Gross weight : 0.124kg
