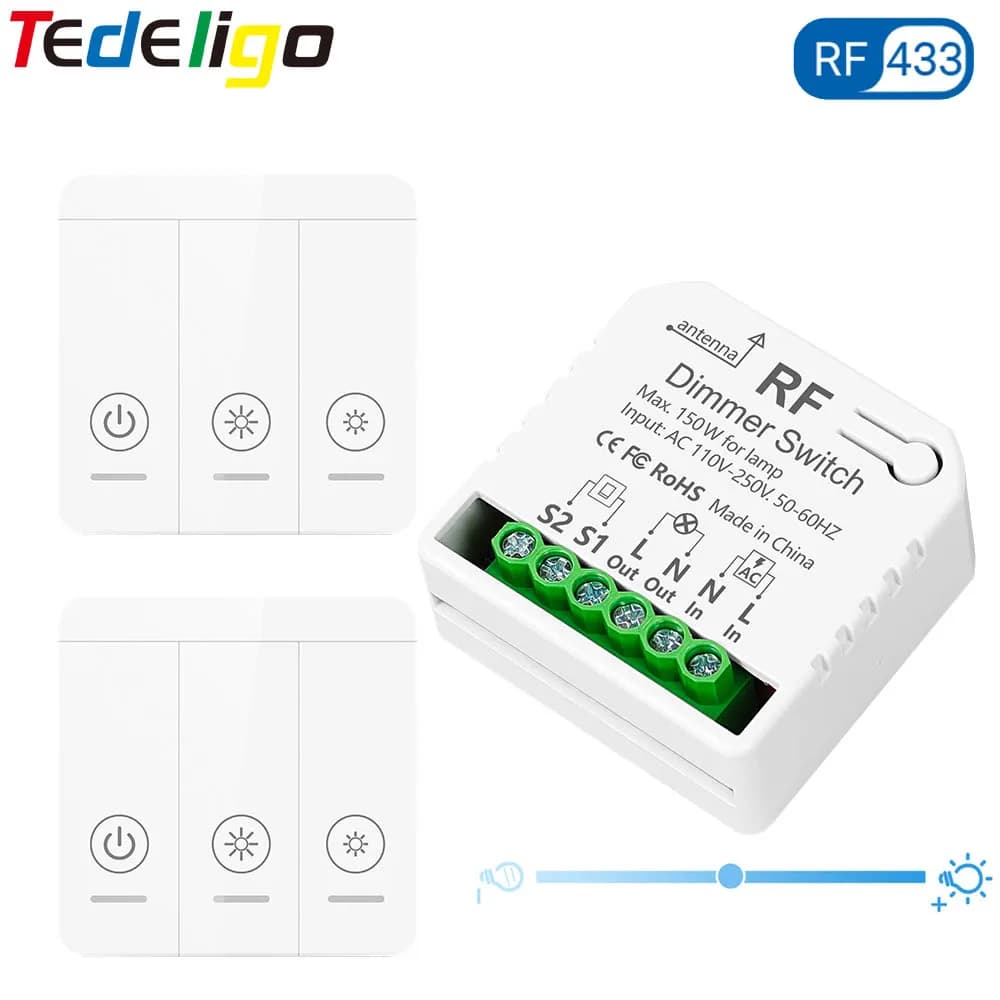

Tedeligo RF 433mhz LED Dimmer Switch 110V 220V 150W Light Brightness Adjustable Module Support 2 Way Wired and Wireless Control

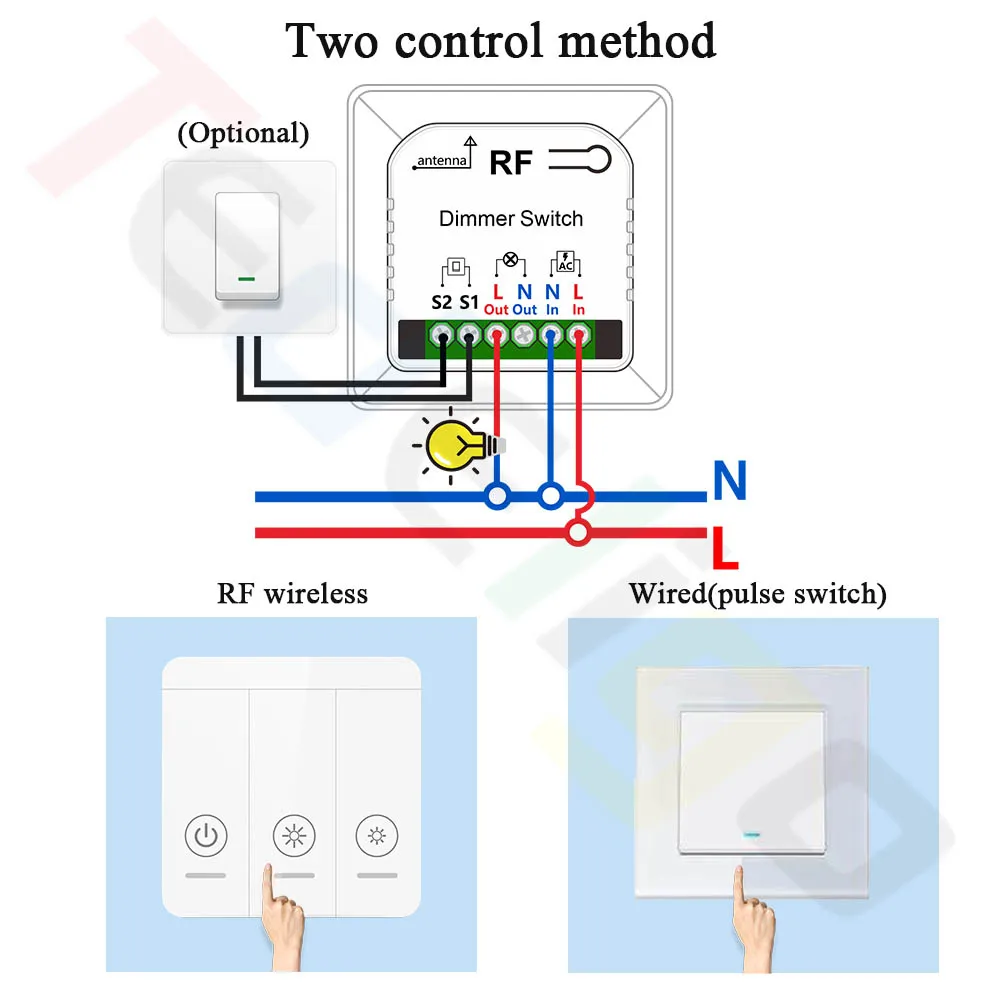

It supports RF wireless + Traditional wired control two ways

--work with RF 433mhz remote or wall switch and Traditional pulse wall switch

For AC 110V-250V 150W lights

--Can adjust LED Halogen and other lights brightness

Wireless RF remote control:

--Remote range up to 50m in open space

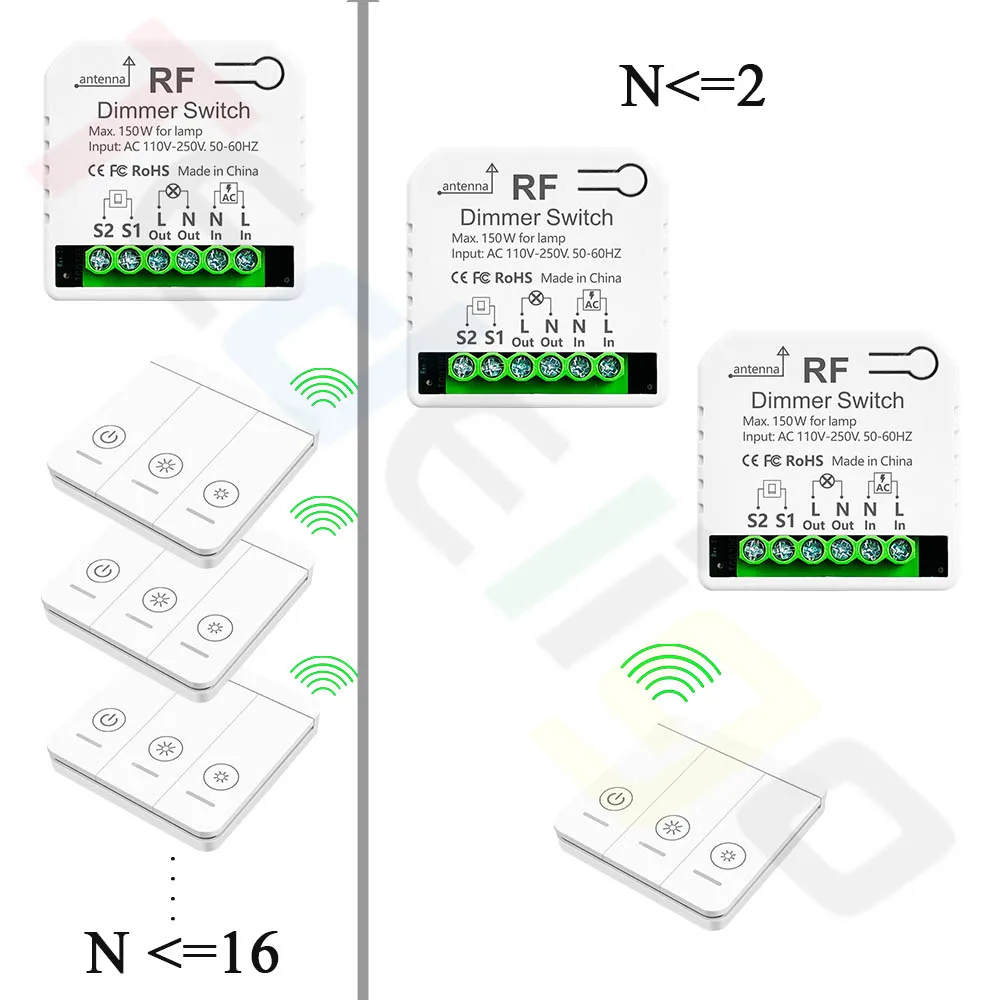

Rf multi control

--One controller can be controlled by 16pcs wall switches

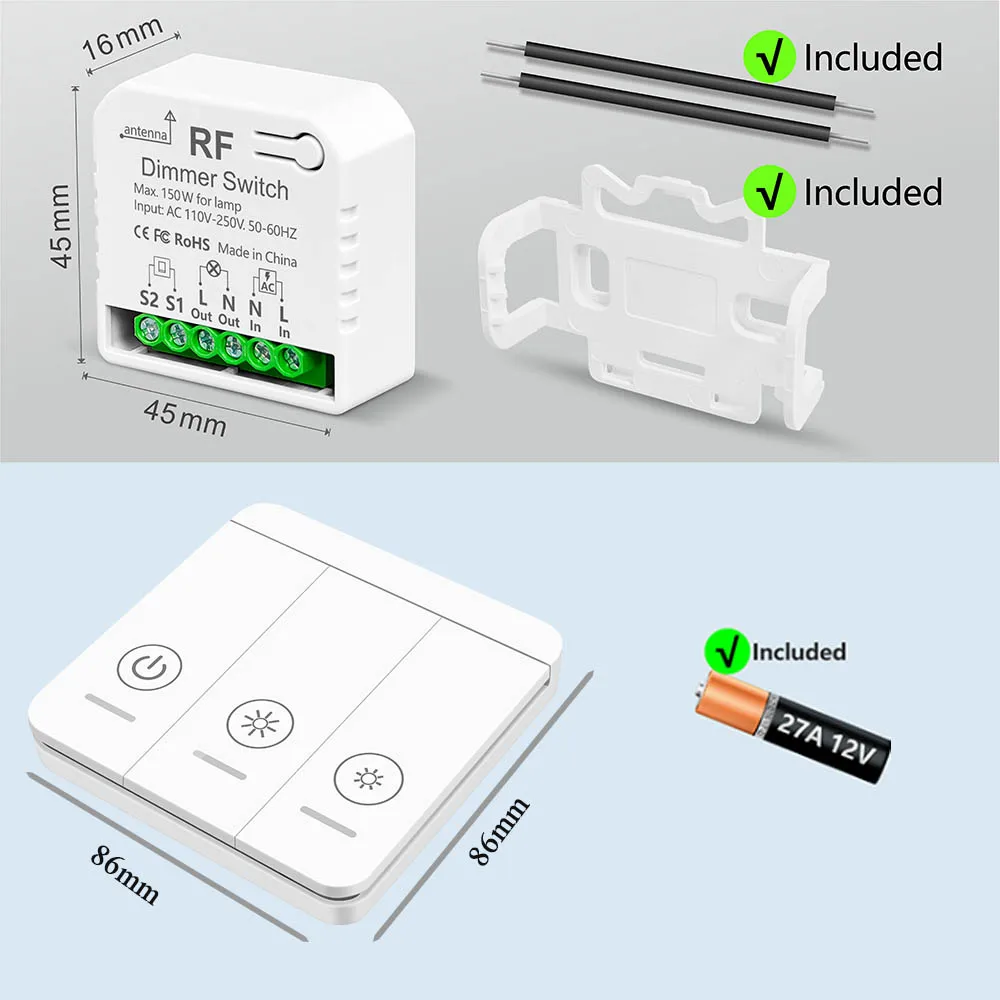

Dimmer controller parameter

Input power: AC 110-250V 50/60Hz
RF frequency: 433.92 MHz
Size: 45*45*16 mm
Max load: 150W
RF Code: 1527 learning

Wall switch parameter

Remote size: 86*86 mm
Remote battery: 1*27A12V (Include)
Remote range: Up to 50m
Material: plastic
Working voltage: 12V

Note

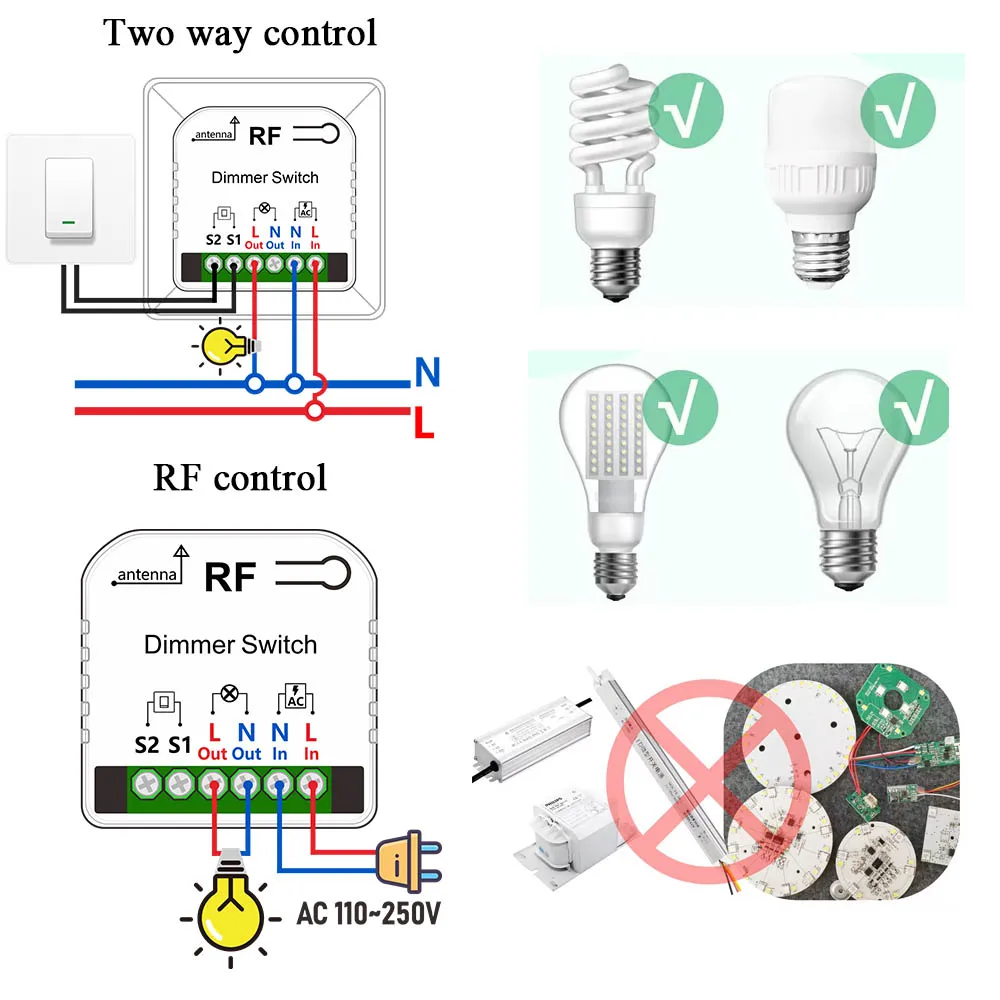

1.It works with traditional pulse wall switch
2.It can control LED , lamp, Halogen and other lights
3.Please check the manual or video for the first use, and use it after pairing the signal.

How to get rf signal

1.Press learning button on the dimmer switch 1 time ,the blue indicator will flash
2.Press remote/wall switch button once,succeed.

How to delete:

Press learning button for about 8 seconds(you will see indicate flash several times),succeed.
