MJJC V1 LED Dimmer 12V 24V 36V 5V 8A RF 2.4G Wireless Touch Remote LED Push Dimer Siwtch for 2835 COB Single Color Strip Light

Features:

● Remote control or connected with external push switch to achieve on/off and dimming function

● Ultra sensitive brightness adjustment touch slide

● Smooth dimming and switch without any flickering

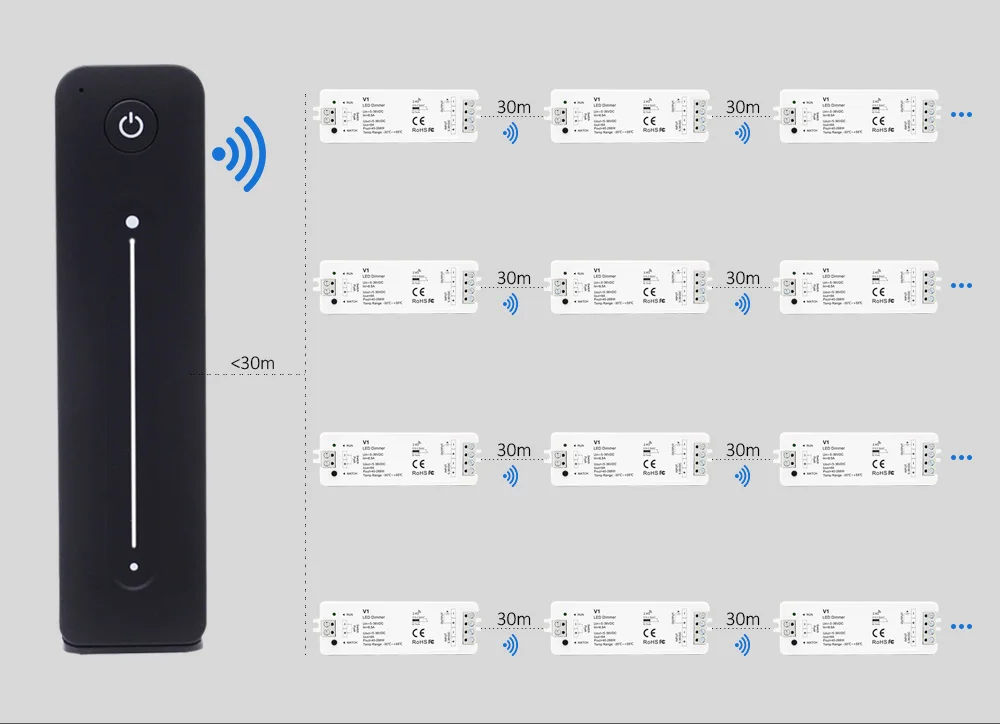

● Auto-transmitting function: Controller automaticly transmit signal to another controller with 30m control distance

● Synchronize on multiple number of controllers

● Magnet on the back which can be easily stuck on back holder or any metal surfaces

Match Remote Control:

End user must be pair the remote to the receiver before using,the steps as follows:

*** Match:

Short press match key, immediately press on/off key of the remote.

*** Delete:

Press and hold match key for 5s to delete all match,

The light blinks 5 times means all matched remotes

were deleted.

Main Functions:

One V1 receiver can be controlled by max 10 pieces remote within 30m distance

* To extend battery life, no operation after 20 seconds, the touch slide will enter sleep state.

* If the light is on, long press on/off key exceed 1 second, then touch slide to dimming.

* If the light is off, short press on/off key to turn on light, then touch slide to dimming.

***Note: The battery is not included, because of the safety consideration during the shipping, hope you understand.

How to connect longer Led strip ?

1pc V1 led dimmer can control max 12v 96w/24V 192W led strip,if you want to control more than 96w/192W led strip light, you have 2 solution:

1. Buy more V1 receivers,wireless connection, Sync effects 99%.

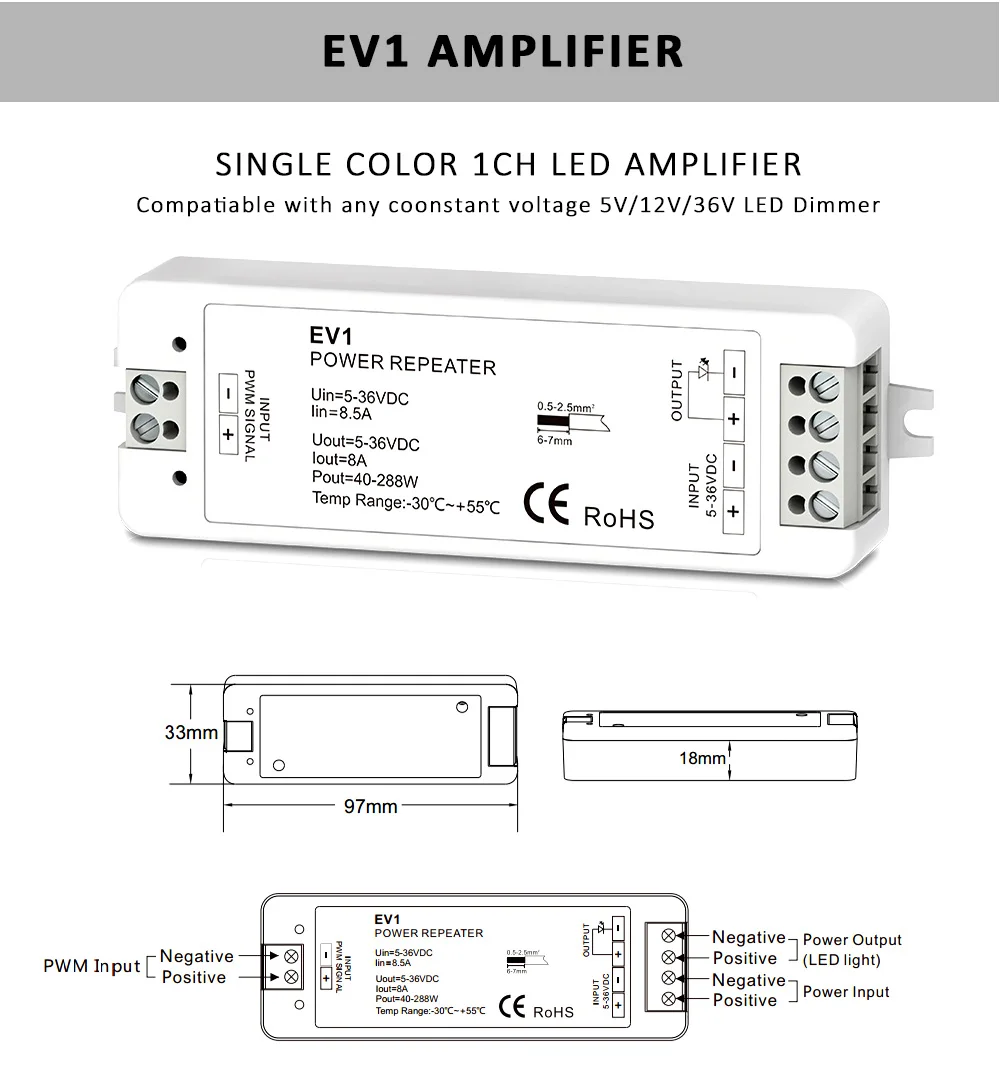

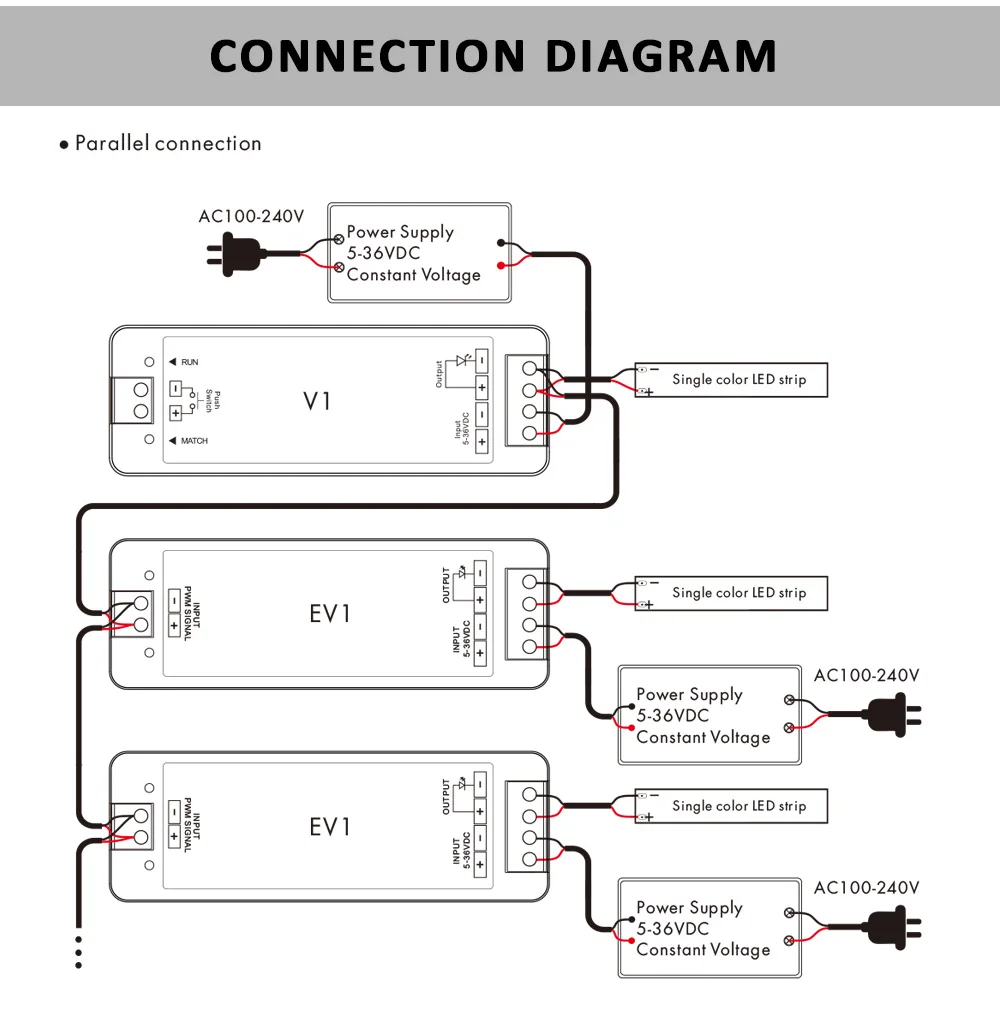

2. Buy more EV1 LED amplifier, wire connection, Sync effects 100% through the following parrallel connection diagram.

Push Dimming Switch:

You can also add a push switch to realize dimming.

The provided Push-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switchs.

● Short press:

Turn on or off light.

● Long press (1-6s):

Press and hold to step-less dimming,

With every other long press, the light level goes to the opposite direction.

● Dimming memory:

Light returns to the previous dimming level when switched off and on again, even at power failure.

● Synchronization:

If more than one controller are connected to the same push switch, do a long press for more than 10s,then the system is synchronized and all lights in the group dim up to 100%.

This means there is no need for any additional synchrony wire in larger installations.

We recommend the number of controllers connected to a push switch does not exceed 25 pieces,

The maximum length of the wires from push to controller should be no more than 20 meters.
