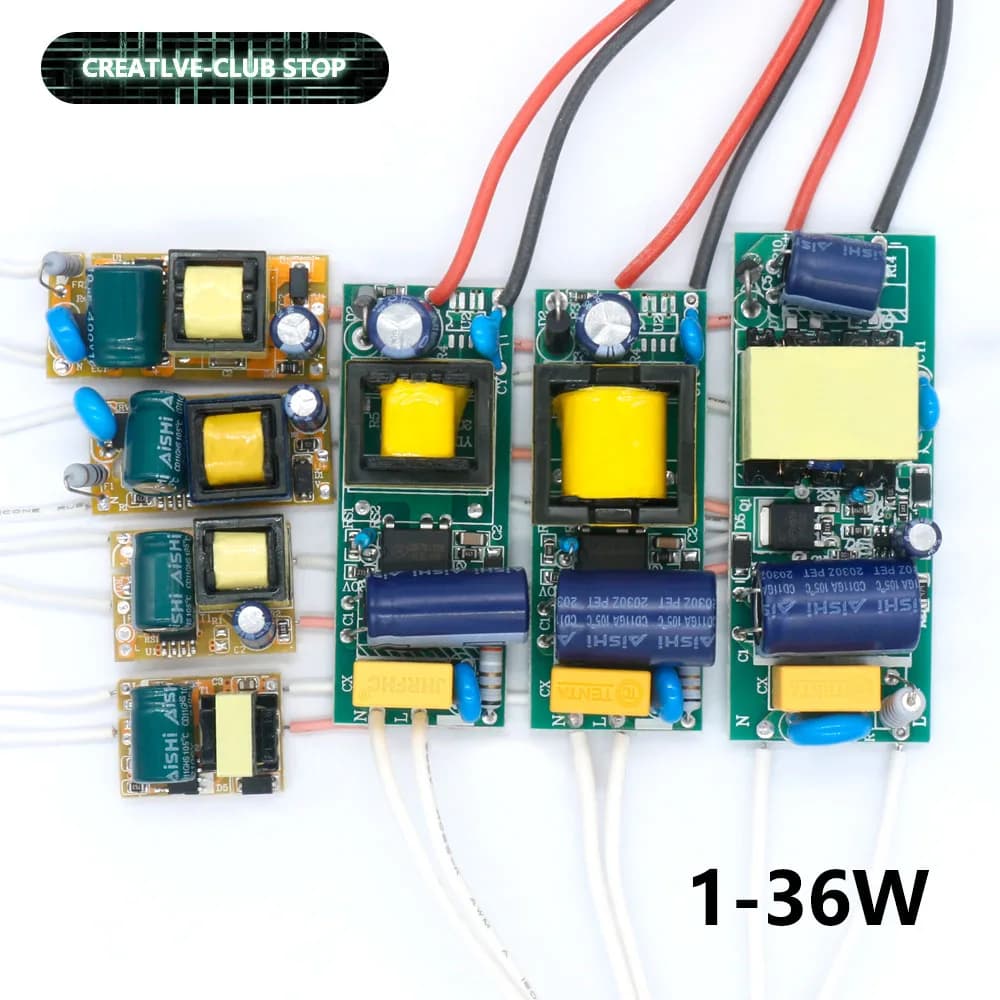

LED Driver 300mA 8-12W 1-3W 5W 4-7W 12W 18-25W 25-36W LED Power Supply Unit Lighting Transformers For Driver LED Strip Light DIY

Tip

Tip 1: How to choose the right driver for the LED? I met a lot of buyers and didn't know how to choose the right LED driver. First, you need to determine the lamp's input voltage and input current by 100%, then select the matching voltage and current of the LED driver. Example: We detected a bulb voltage of 40V and a current of 290mA. So we should choose the 8-12W 280-300mA option.
Tip 2: Dear buyer, if you need a full power LED driver, please choose 280-300 current product, this is a full power LED driver.
Tip 3: The no-load test is forbidden. The voltage is too large and the data is inaccurate, so be sure to enter the bulb load test. All Isolated Driver Feature The LED Driver will automatically lit by balancing the voltage according to the lamp performance.

Advantage

Advantage ：
1-Transformer Bold copper wire Power is sufficient and temperature is low.
2-Chip Adopting the first-line brand IC-Aishi High quality intelligent constant current Overvoltage protection, overload protection, overheat protection, short circuit protection No flicker
3-Electrolytic Capacitor High frequency low resistance capacitor In theory, if the LED driver is used for 8 hours a day, it can be used for 3 years. If the LED driver uses a temperature below 70 ° C, it can even be as long as 5 years.
4-Processing Technology All use mechanized patches, efficient and stable. Eliminate manual soldering and lead to poor contact of electronic components.
5-Application Place LED track light / LED bulb LED Spotlight / LED Bulb / LED Corn Light LED Strip Light / LED Tube Light / LED Table Lamp LED panel light / LED chandelier / living room lamp

Specification

1-3W LED Driver

1-3W LED Driver (Use 3 years)
Size: 23*17*13mm(0.91*0.67*0.51inch)
​Input Voltage: AC85-265V
​AC230V load test Output Voltage: DC3-12V
​Output Current: 280-300mA
​AC230V no-load test: Output Voltage: DC27V±10%
Load (voltage not tested with LED beads)
(Danger! No-load testing is forbidden, and the test data is inaccurate.)

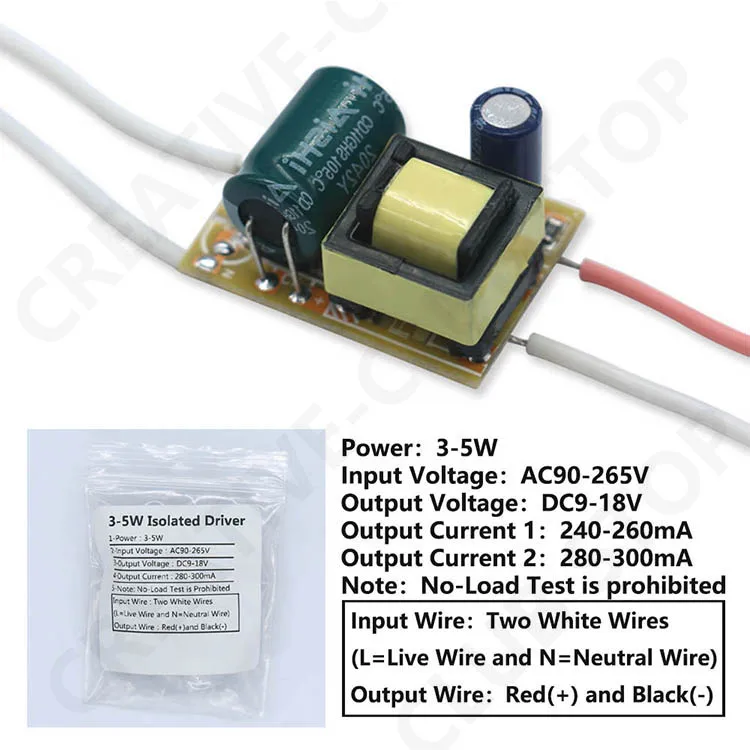

3-5W LED Driver

3-5W LED Driver (Use 3 years)
Size: 29*17*12mm(1.14*0.67*0.47inch)
​Input Voltage: AC85-265V
​AC230V load test Output Voltage: DC9-18V
​Output Current: 280-300mA
AC230V no-load test: Output Voltage: DC29V±10%
Load (voltage not tested with LED beads)
(Danger! No-load testing is forbidden, and the test data is inaccurate.)

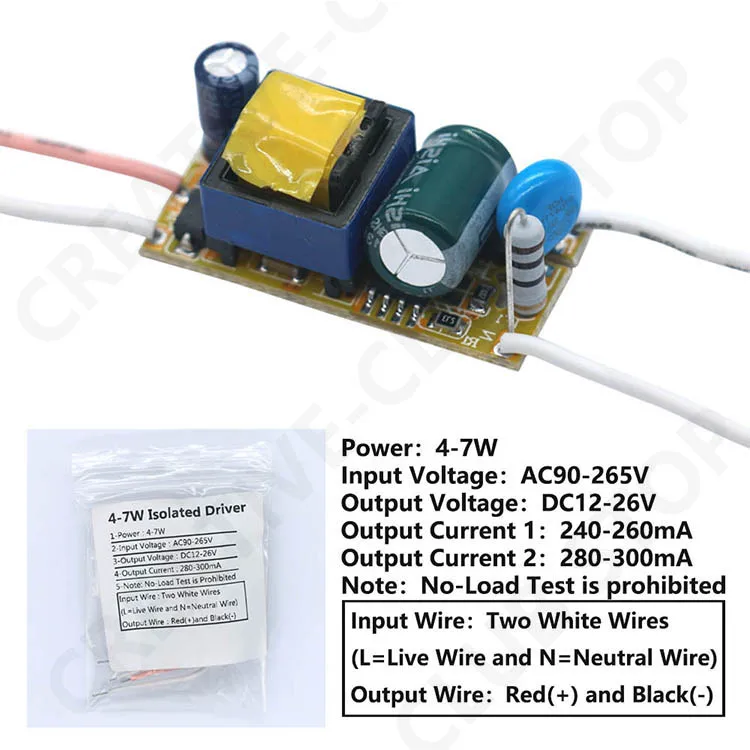

4-7W LED Driver

4-7W LED Driver (Use 3 years)
Size: 32*15*13mm(1.25*0.59*0.51inch)
​Input Voltage: AC85-265V
​AC230V load test Output Voltage: DC12-26V
​Output Current: 280-300mA
​AC230V no-load test: Output Voltage: DC43V±10%
Load (voltage not tested with LED beads)
(Danger! No-load testing is forbidden, and the test data is inaccurate.)

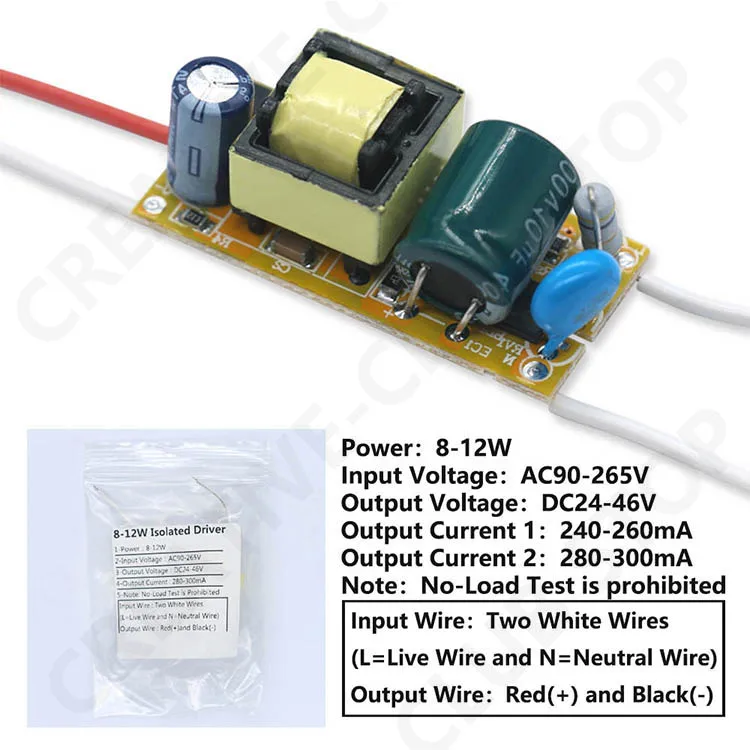

8-12W LED Driver

8-12W LED Driver (Use 3 years)
Size: 37*17*14mm(1.46*0.67*0.55inch)
​Input Voltage: AC85-265V
​AC230V load test Output Voltage: DC24-46V
​Output Current: 280-300mA
​AC230V no-load test: Output Voltage: DC59V±10%
Load (voltage not tested with LED beads)
(Danger! No-load testing is forbidden, and the test data is inaccurate.)

12-18W LED Driver

12-18W LED Driver (Use 3 years)
Size: 59*23*15mm(2.32*0.91*0.59inch)
​Input Voltage: AC85-265V
​AC230V load test Output Voltage: DC36-65V
​Output Current: 280-300mA
AC230V no-load test: Output Voltage: DC85V±10%
Load (voltage not tested with LED beads)
(Danger! No-load testing is forbidden, and the test data is inaccurate.)

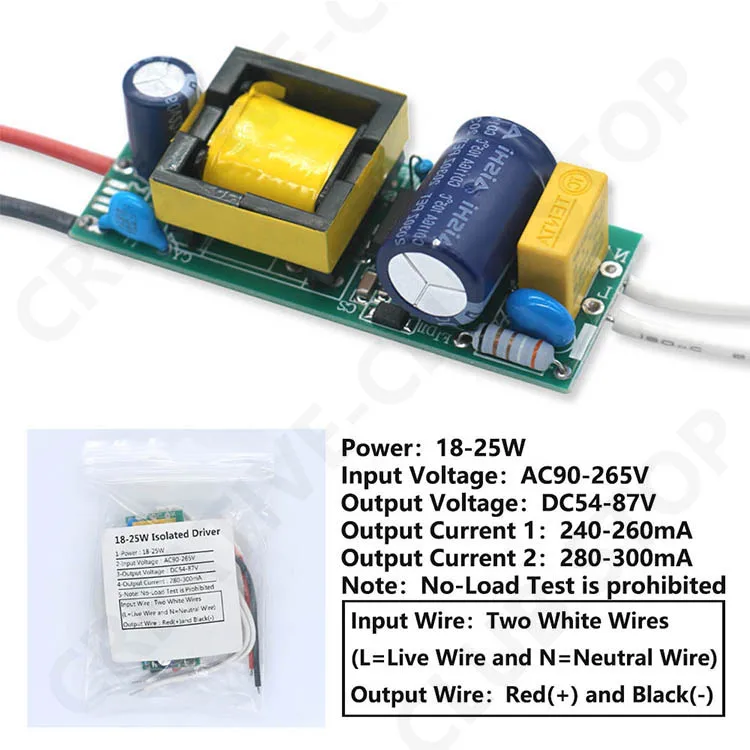

18-25W LED Driver

18-25W LED Driver (Use 3 years)
Size: 59*23*16mm(2.32*0.91*0.63inch)
​Input Voltage: AC85-265V
​AC230V load test Output Voltage: DC54-87V
​Output Current: 280-300mA
AC230V no-load test: Output Voltage: DC108V±10%
Load (voltage not tested with LED beads)
(Danger! No-load testing is forbidden, and the test data is inaccurate.)

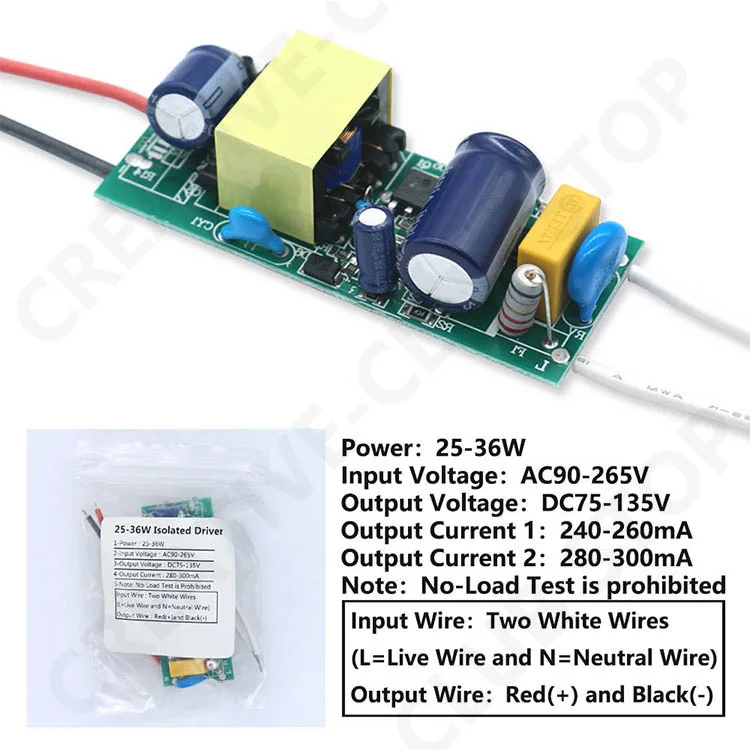

25-36W LED Driver

25-36W LED Driver (Use 3 years)
Size: 68*28*17mm(2.68*1.10*0.67inch)
​Input Voltage: AC85-265V
​AC230V load test Output Voltage: DC75-135V
​Output Current: 280-300mA
AC230V no-load test: Output Voltage: DC182V±10%
Load (voltage not tested with LED beads)
(Danger! No-load testing is forbidden, and the test data is inaccurate.)

Features

Real picture from buyer
