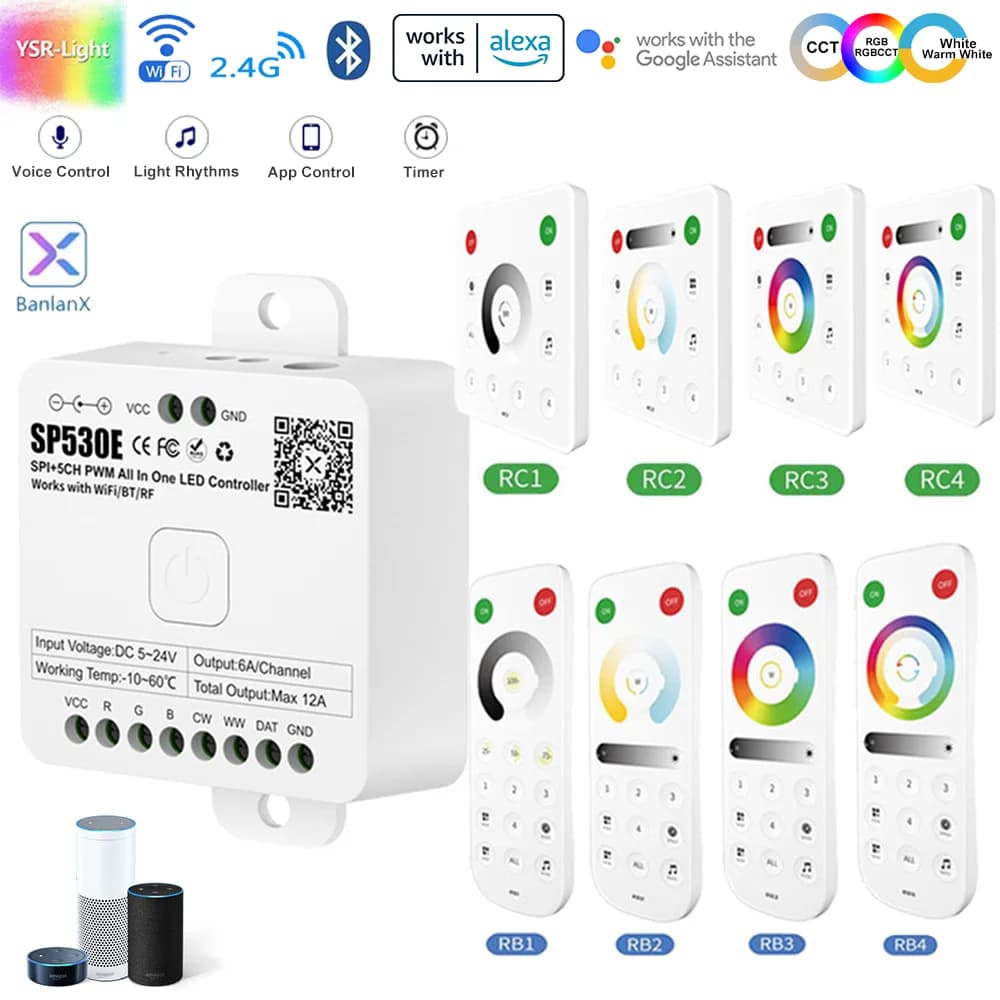

Wifi BT Led Controller SP530E SPI+RF ALL-in-1 5CH PWM 5050 RGB RGBW RGBCCT WS2811 COB PWM Remote Control For Alexa Google Home

NOTE:
Be careful Not for Tuya Wifi!
For safety consideration,the package not include battery.SPI CCT/RGB MAX Pixcel 1200/1800
SPI RGBW MAX Pixcel 900
SPI RGBCCT MAX Pixcel 600/720
SPI RGB+1CH PWM Single Color MAX Pixcel 1200
SPI RGB+2CH PWM CCT MAX Pixcel 1200
Description：
SP530E is SPI+5CH PWM all in one led controller, it can compatible with multiple types of LEDs. Such as 1/2/3/4/5CH W/CCT/RGB/RGBW/RGBCCT PWM/Addressble LEDs and Addressble+PWM combined LEDs.
Supports OTA firmware upgrades,keeping the device in its optimal state.
Features:
☆ Support Multiple Control Methods ---APP control,smart speaker voice command control,and 2.4G RF remote control,providing flexible use ways!
☆ All-new Upgraded Music Effects---Multi-segment LED strip music effects and Matrix LED music spectrum effects.It can offer you even more unique music spectrum effects!You can DIY the music light effects you want.
☆ Various Music Collection Method---Supports various music collection methods including phone microphone,player streaming,and onboard microphone.
☆ Stronger Functions---Supports power on/off dynamic effects setting,timer settings,playful on/off triggering settings,and default power-on status setting.
☆ 12 Different Types of LED---Compatible with up to 12 different types of LED.
☆ 5 Major Control Pages in the App ---Dynamic,static,music,custom and setting.Select different types of LED correspond to different App page content.
☆ Easily Control 4 Zone ---The RBX and RCX remote control panel can be set up for zone-control(can be divided into 4 zones)or unified control(all).
APP:
1. SP530E supports App control for iOS and Android devices.
2. Apple devices require iOS 10.0 or higher, and Android devices require Android 4.4 or higher.
3. You can search "BanlanX"in App Store or Google Play to find the APP, or scan the QR code to download and install.Technical Parameters：
SP530E
Working Voltage:DC5V~24V
Working Current:20mA~85mA
PWM Single Channel Maximun Output Current:6A
PWM Total Maximun Output Current:12A
Working Temp:-10℃~60℃
Size:78*56*20mm2.4G Remote/Panel
Working Voltage:3V(CR2032)
Quiescent Current:36μA
RF Frequency:2.4GHz
Remote Range:30M
Remote Size:135*48*10mm
Panel Size:86*86*12mmPackage Include:
SP530E:
1*Color box
1*SP530E Led Controller
1*Screwdriver
1*Manual
2.4G Touch Remote/Panel(Based on the model you purchased)
1*Color box
1*2.4G Remote/Panel
1*2.4G Remote/Panel Manual
1*3M sticker(only 86-Type Panel)
