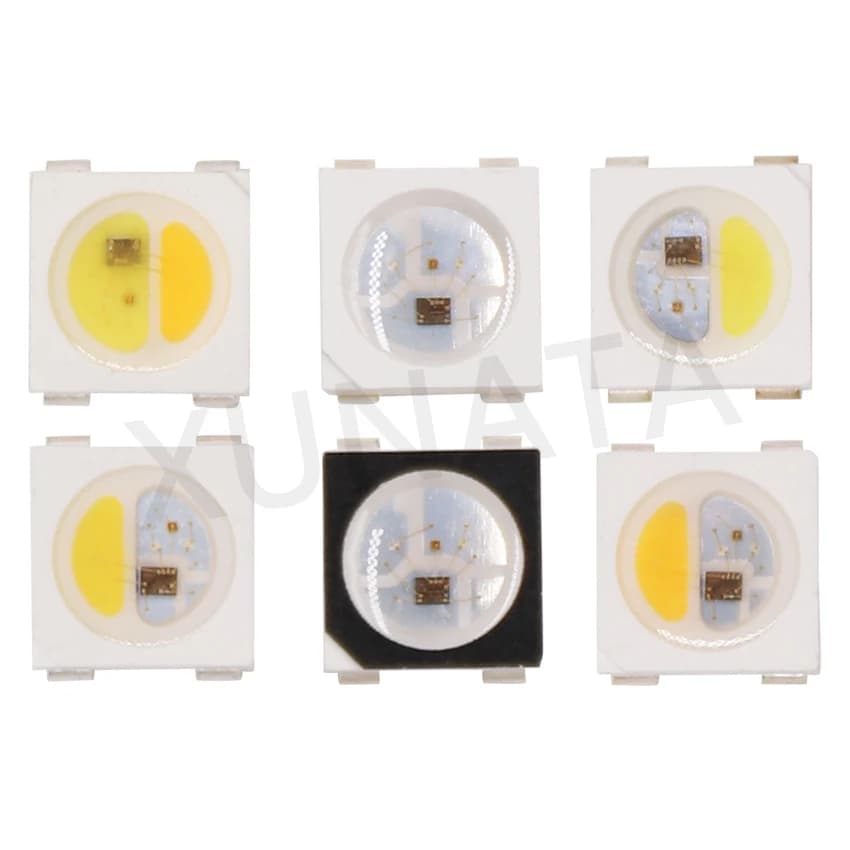

2-1000pcs 4 Color in 1 Individually Addressable LED Chip Pixel 5V SMD 3535 5050 SK6812 RGBW RGBWW RGBNW WWA RGB as WS2812B

Kindly Note: This product is similar to the WS2812B protocol, and plenty of code is available for Arduino and other platforms. And can be controlled by DC5V WS2811/WS2812B controller.

Product Description：
White (6000-7000k)
Warm White (3200-3500k)
Natural White (4000-4500k)

RGBW = RGB + White
RGBWW= RGB + Warm White
RGBNW= RGB + Natural White
WWA = White + Warm White + Amber

Main Application Field:
1. Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube，LED appearance / scene lighting
2.LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical equipment etc..

Features:
1.Top SMD internal integrated high quality external control line serial cascade constant current IC;
2.control circuit and the chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;
3.built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
4.The built-in power on reset and reset circuit, the power does not work;
5.gray level adjusting circuit (256 level gray scale adjustable);
6.red drive special treatment, color balance;
7.line data transmission;
8.plastic forward strengthening technology, the transmission distance between two points over 10M;
9.Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec

Specification:
Voltage: 5.0V
Watt:0.3W
Current: 20ma per color, 60mA total at full brigtness
Color/Wave :WWA (Warm white 2700-3000K/ Cool white 6000-6500K/ Amber 1800-2000K)
RGB (R 620-630nm/G 515-525nm/B 460-470nm)
RGBW (R 620-630nm/G 515-525nm/B 460-470nm/WW 2700-3000K/ CW 6000-6500K)

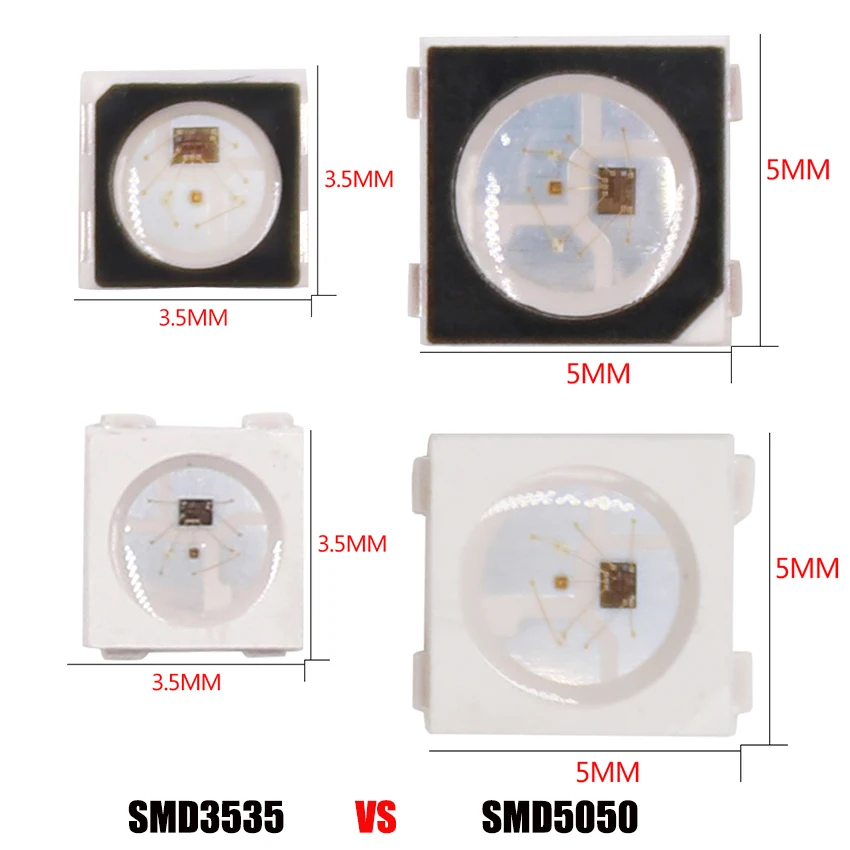

SMD3535 size: 3.5*3.5mm(Mini)
SMD5050 size: 5.0*5.0mm
Viewing angle: 120 degree.

Package Include：
Individually Addressable LED Chip Pixel


Product Overview :

1.SK6812WWA is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator. The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed. The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above

2.SK6812RGBW/RGBWW/RGBNW is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of thepixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator. The data protocol being used is unipolar NRZ communication mode. The 32-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed. The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.

3.SK6812 WWA(White+Warm white+Amber)/White is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The controlcircuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator. The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixelis reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limitedby signal transmission speed.The LED has a low driving voltage (which allows for environmental protection and energy saving),high brightness, scattering angle, good consistency, low power,and long life. The control circuit is integrated in the LED above.

4.SK6812 RGB (3535 / 5050 SMD) is a set of smart control circuit and a light emitting circuit in one of the controlled LED source. The outer type is the same with a 5050LED chip, each element is a pixel. Pixels contained within the intelligent digital interface data latch signal shaping amplification circuit,power supply circuit, a built-in constant current circuit, high precision RC oscillator, the output is driven by the patented PWM technology,effectively guarantee the pixels in the color of the light high consistency. Data protocol using unipolar NRZ communication mode, the pixel is reset after the end of DIN, accept the data transmitted from the controller to the 24bit, the first to send data by the first pixel to pixel extraction, internal data latch, the remaining data after the internal plastic the processing circuit after shaping amplification through the DO port output began to turn to the next cascade of pixels, each pixel through a transmission signal, reduce. Pixel using automatic shaping forwarding technology, makes the number of cascade without signal transmission limit of the pixel, only limited signal transmission speed.The LED has a low driving voltage, environmental protection and energy saving, high brightness, scattering angle, good consistency, low power,long life and so on. The control circuit is integrated in the LED above,more simple circuit, small volume, easy installation.
