24V WS2811 IC Running Water COB Led Strip Light 5M 10M 15M Flow Chasing Flexible FCOB Led Tape Ribbob Lamp for Room Decoration

Product Name: WS2811 IC COB Horse Race Led Strip

LED Type: COB LED Diodes

LED Qty: 360LEDs/M

PCB width:10mm

Max Power: 10-12W/M

Working Voltage: DC 24V

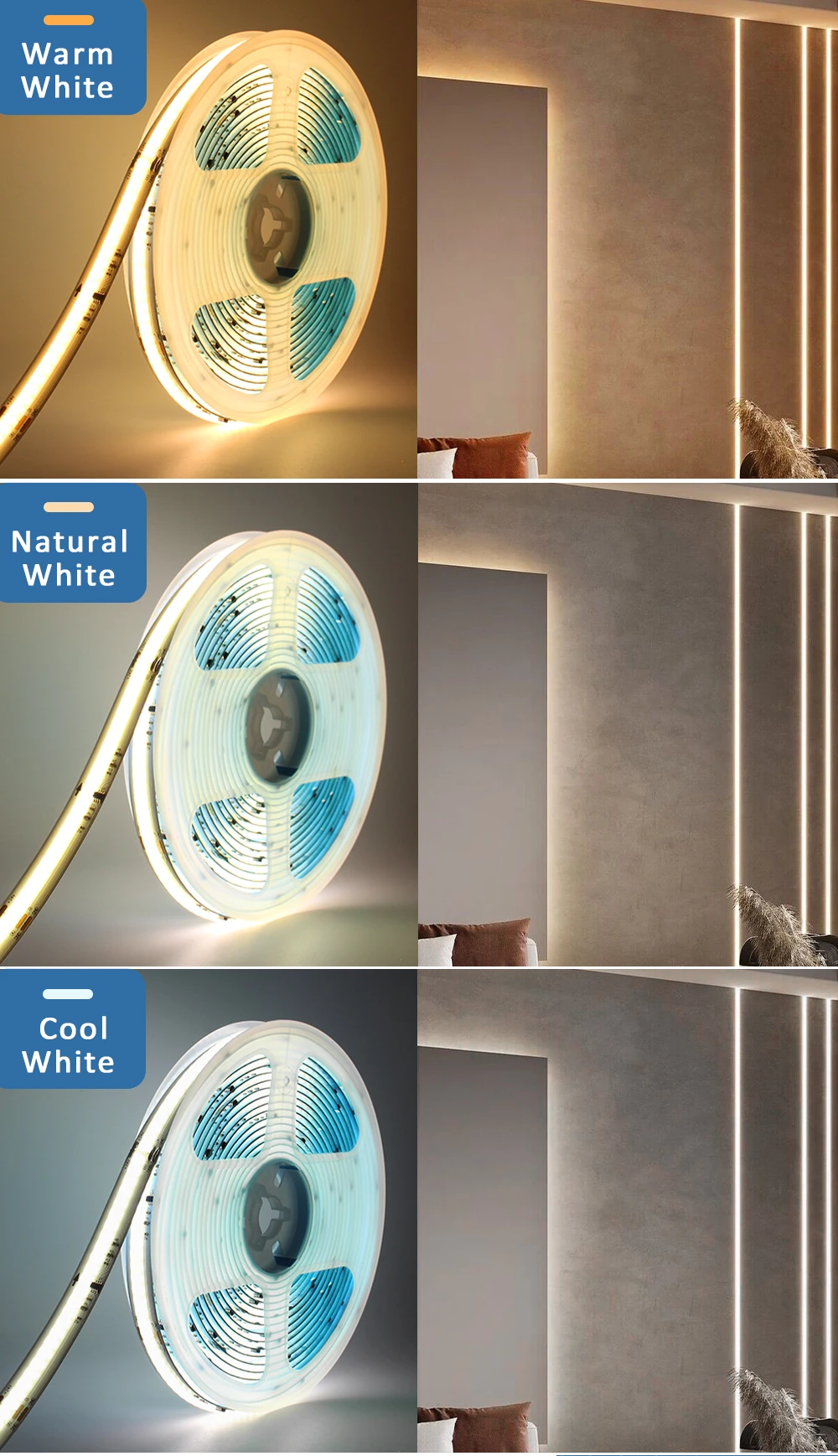

Color: Cool White / Warm White / Natural White

Color Temperature: Cool White 6000K / Warm White 3000K / Natural White 4000K

IP Rate: IP20 Non-waterproof

Connector: 3 Pin Male & Female Connector

Package: 5M/Roll

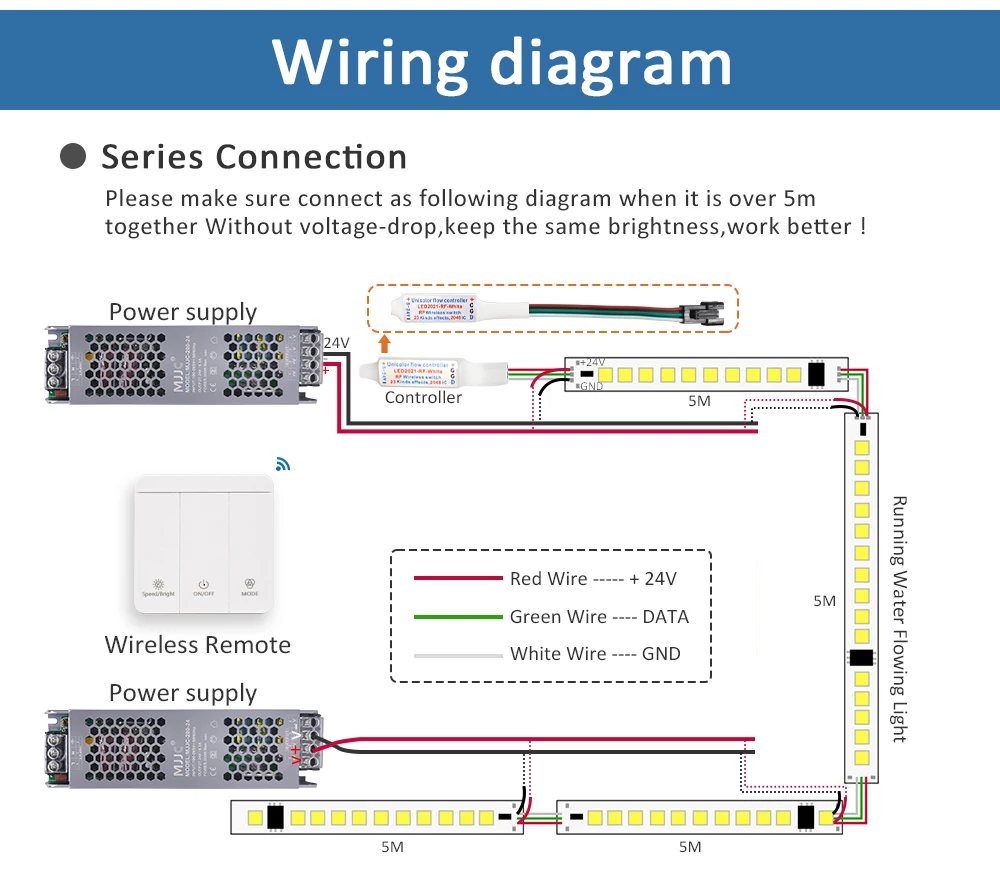

Connection:

Red Wire: +24V

Green Wire:DI/DATA

White/Black wire: GND / -24V

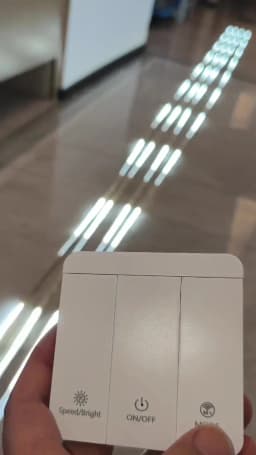

Wireless RF Controller with 3-Keys Panel Remote:

Working Voltage: DC 24V

Max Control Pixels: 3200 Pixels

Effects Mode:Up to 23 Kinds effects. Speed and Brightness adjustable

Remote: 3 Buttons, Speed/Brightness - ON/OFF - MODE

Battery Powered by CR2032 Button Cell ( Battery not included)

Our controller has short-circuit protection function

*** How to setting pixels number?

Step 1: Turn OFF the lights

Step 2: Long press "Mode" keys 5 seconds,press "Speed" keys to increase the pixels quantity, Press "Mode" keys to decrease the pixels quantity.

Step 3: Press " ON/OFF" to save, Exit.

Default factory setting is 80pixels,max up to 3200pixels. If you found some led strip is not light, please kindly do pixel setting as above steps.

*** How to pair Remote to the Receiver,make them working 1 to 1 independently ?

Step 1: Turn OFF the power supply.

Step 2: Long press "Mode"keys 3 seconds within 2seconds after powering ON.
