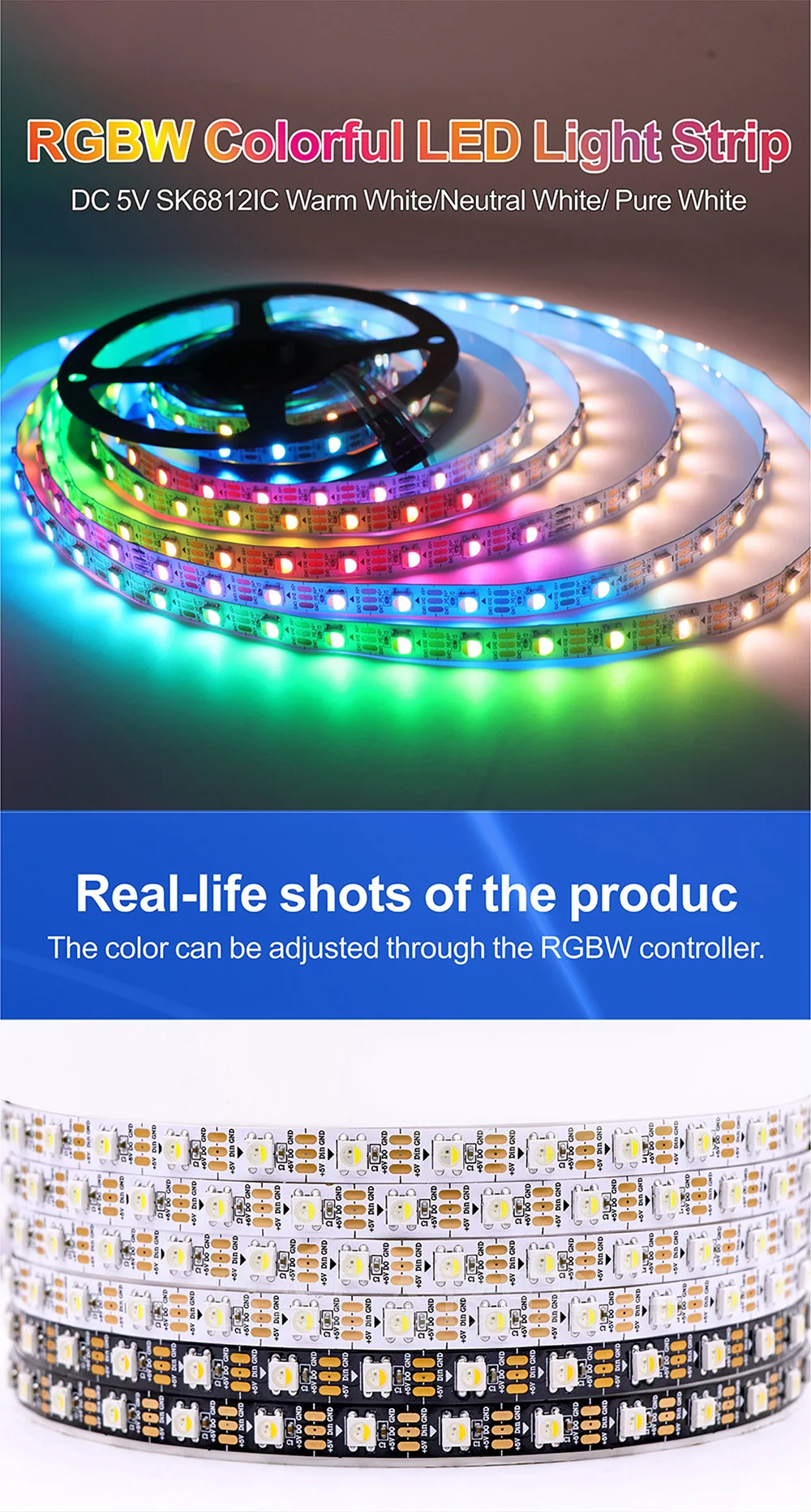

DC12 SK6812 RGBW (Vergelijkbaar Met WS2812B) 4-in-1 30/60/144 Leds/Pixels/M Individueel Adresseerbaar Ledstriplicht 1-5M IP30/IP

**Please Note:**

1. The price only includes the LED strip. Power supplies and Pixels controllers are not included.

2. For SK6812 RGBW, use the corresponding 5V/12V power supply and pixel controller based on the voltage of the LED strip.

3. There are solder joints every 0.5 meters, which is normal in electronic products and not a quality issue.

4. The LED strip can be cut between each LED to customize the length. Avoid sharp bends.

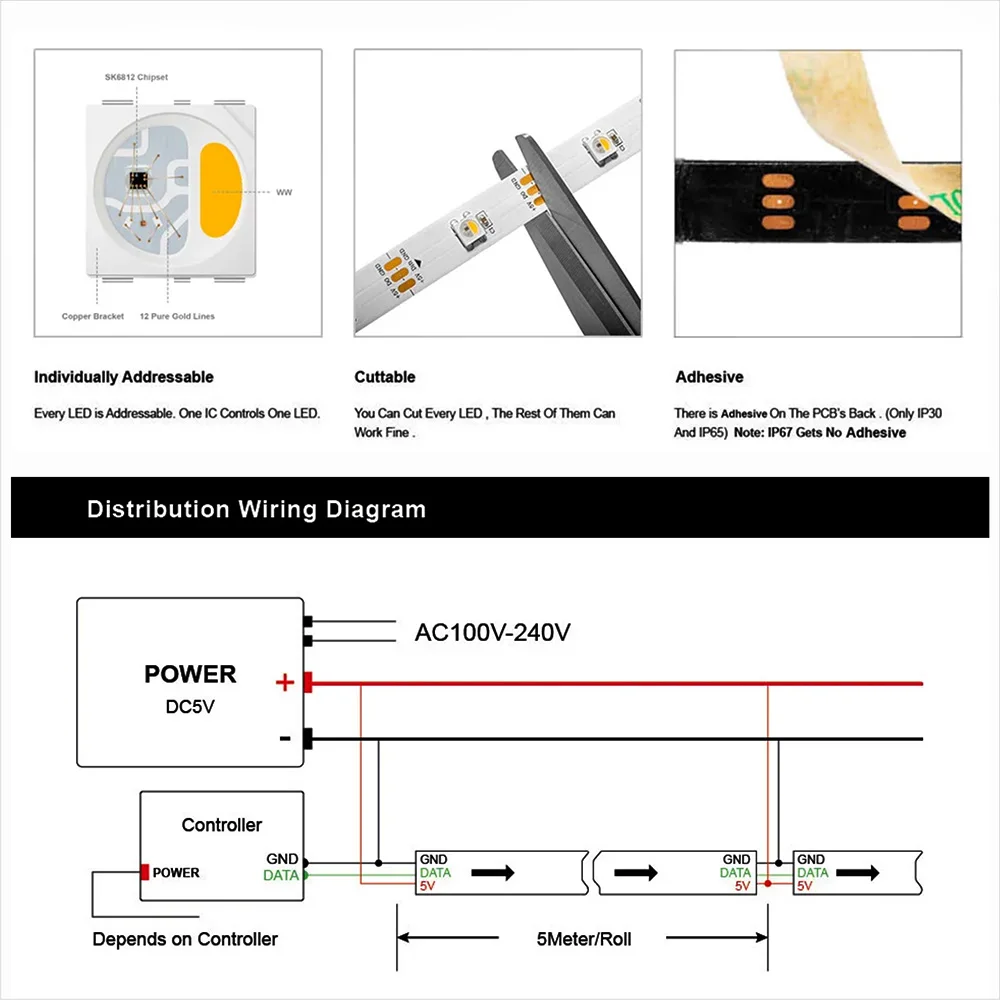

5. The 3-pin SM connector of the LED strip includes: Red: VCC, White: GND, Green: DATA.

6. The PCB of the LED strip has adhesive tape on the back (except for IP67). Please ensure the installation surface is smooth, clean, and dry.

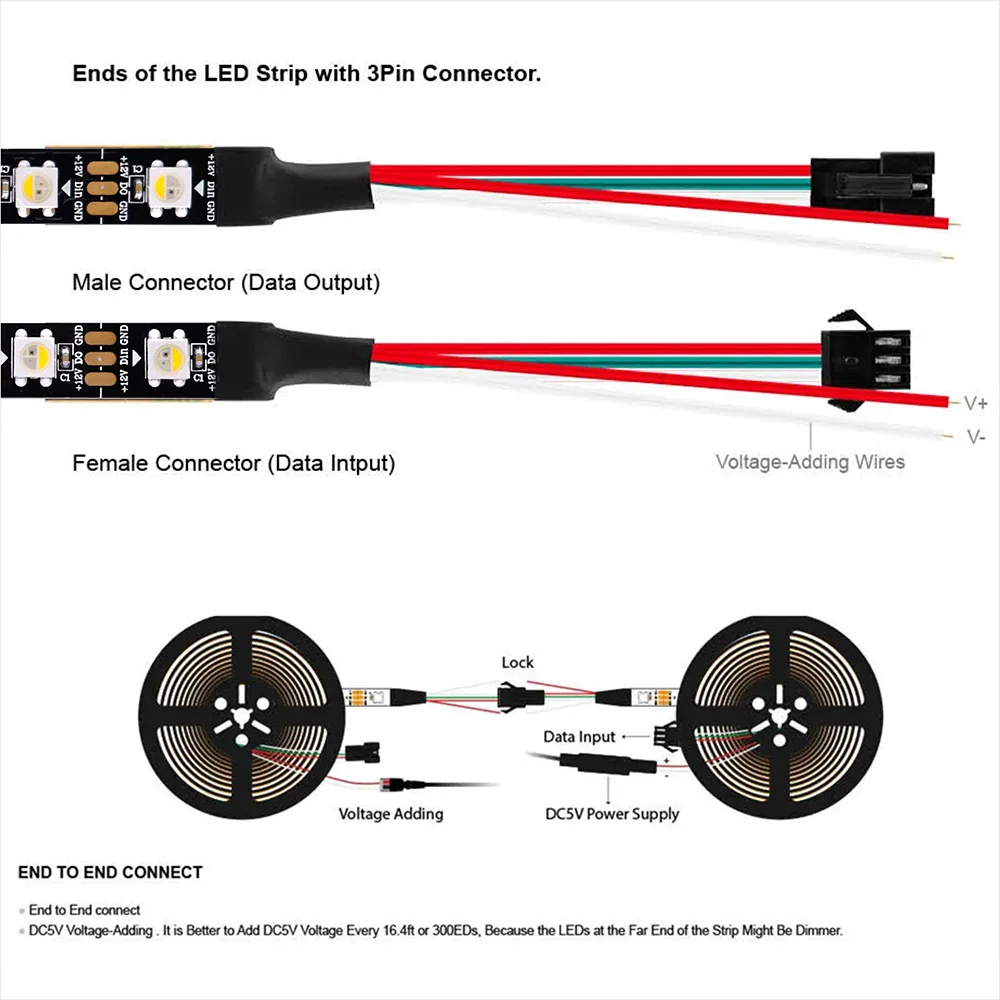

7. To extend the LED strip wiring, add power to the 2-pin power cords at both ends to reduce voltage drop.

**How to Choose an LED Power Supply and Pixels Controller?**

First, calculate the power of the entire LED strip.

Each LED chip is approximately 0.3W. For example, if you buy a 5-meter strip with 60 LEDs per meter (300 LEDs in total), the total power is 0.3W * 300 = 90W.

Then, select a suitable LED power supply.

If this LED strip supports DC5V power supply, then 90W / 5V = 18A (at least 18A or higher).

Finally, choose your preferred Pixel controller.

The SK6812 RGBW LED strip is controlled by a dual-data-line pixel controller.

You can choose from our store: we have IR remote + Bluetooth app SP617E, Bluetooth app SP630E, WiFi app SP530E, and computer controllers, etc.

If you can't identify them, feel free to contact us. We are happy to help.

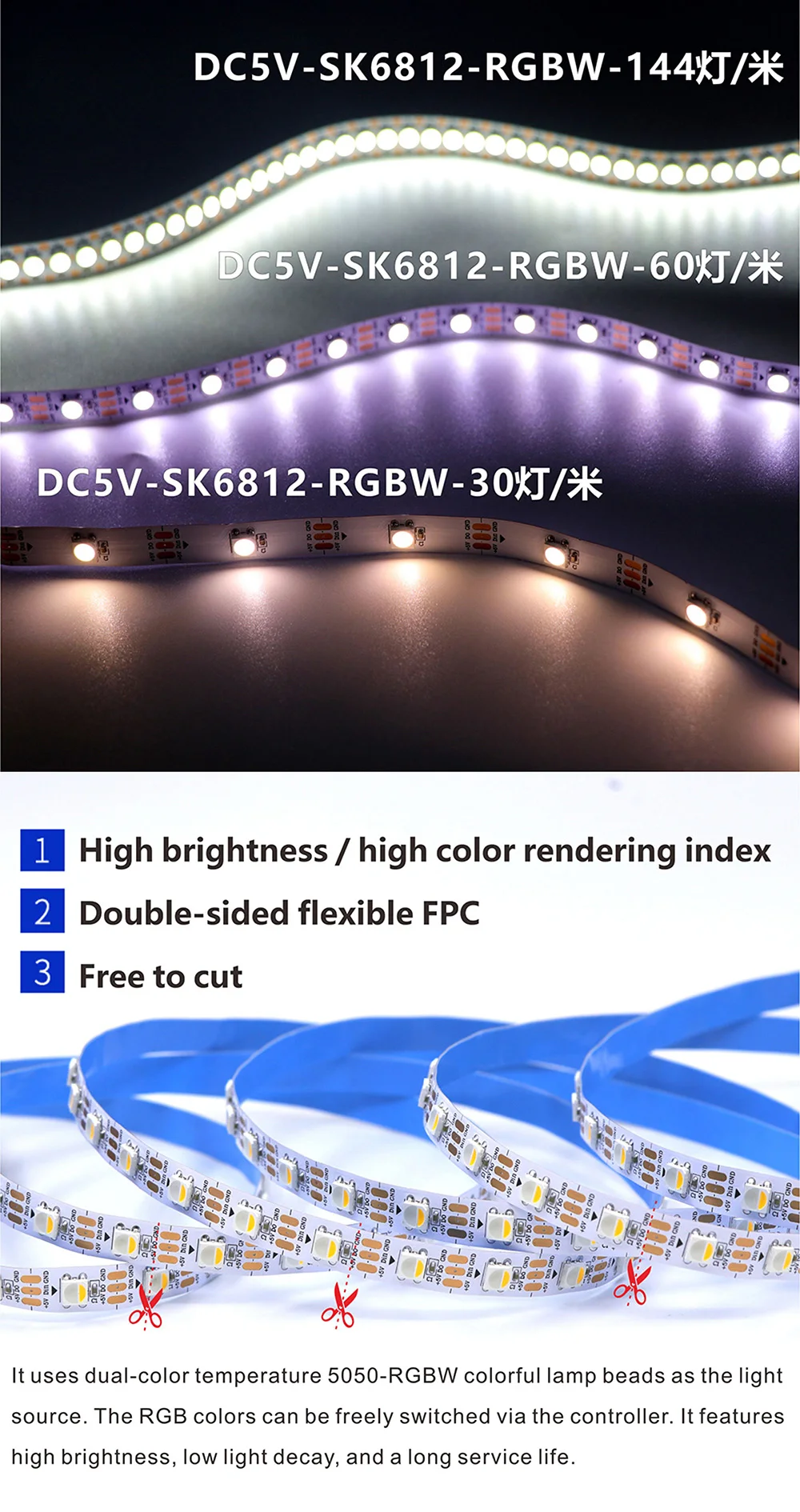

30 LEDs/m, 60 LEDs/m, 144 LEDs/m.

IP30: Non-waterproof. IP65: Waterproof with silicon coating. IP67: Waterproof with silicon tube.

IP30 and IP65 models come with self-adhesive tape on the back for easy installation.

LED Source: 5050SMD RGBW with built-in SK6812 chipset.

Voltage: DC5V/12V

Power: 144 LEDs/m - 43.2W/m; 60 LEDs/m - 18W/m; 30 LEDs/m - 9W/m

IC Type: SK6812 RGBW IC

LEDs per Meter: 30, 60, 144 LEDs/m (each LED is individually controllable)

ICs per Meter: 30, 60, 144 ICs/m (1 IC drives 1 LED chip)

Pixels per Meter: 30, 60, 74, 96, 144 pixels/m

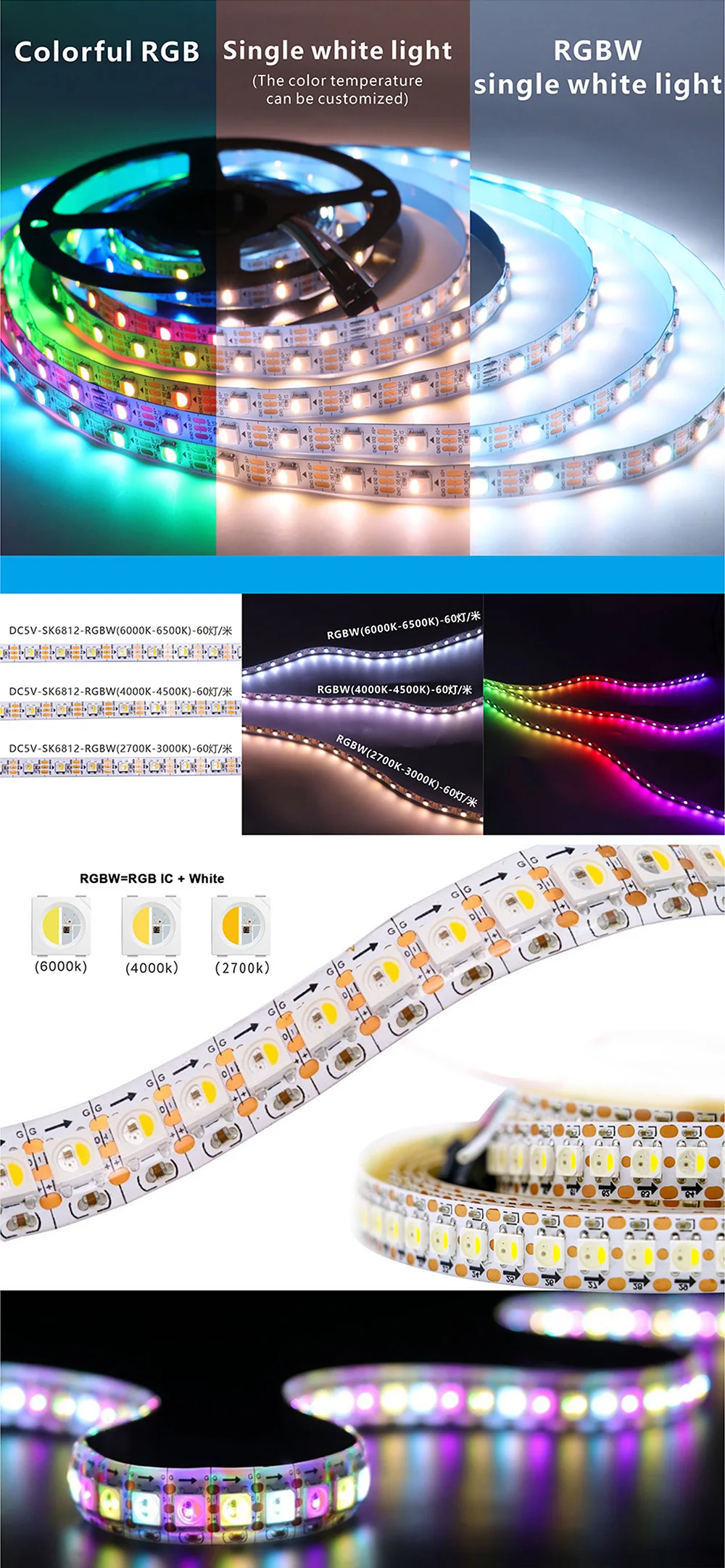

Colors: RGBW (WW 2700-3000K; CW 6000-6500K; NW 4000-4500K)

PCB Color: White/Black (optional)

Package Includes:

Only SK6812 RGBW LED strip (power supply and SPI pixel controller not included)

Package Includes:

SK6812 LED strip (1m/2m/3m/4m/5m options)

Note: Power supply and controller sold separately. Always match voltage (5V/12V) with compatible components.
