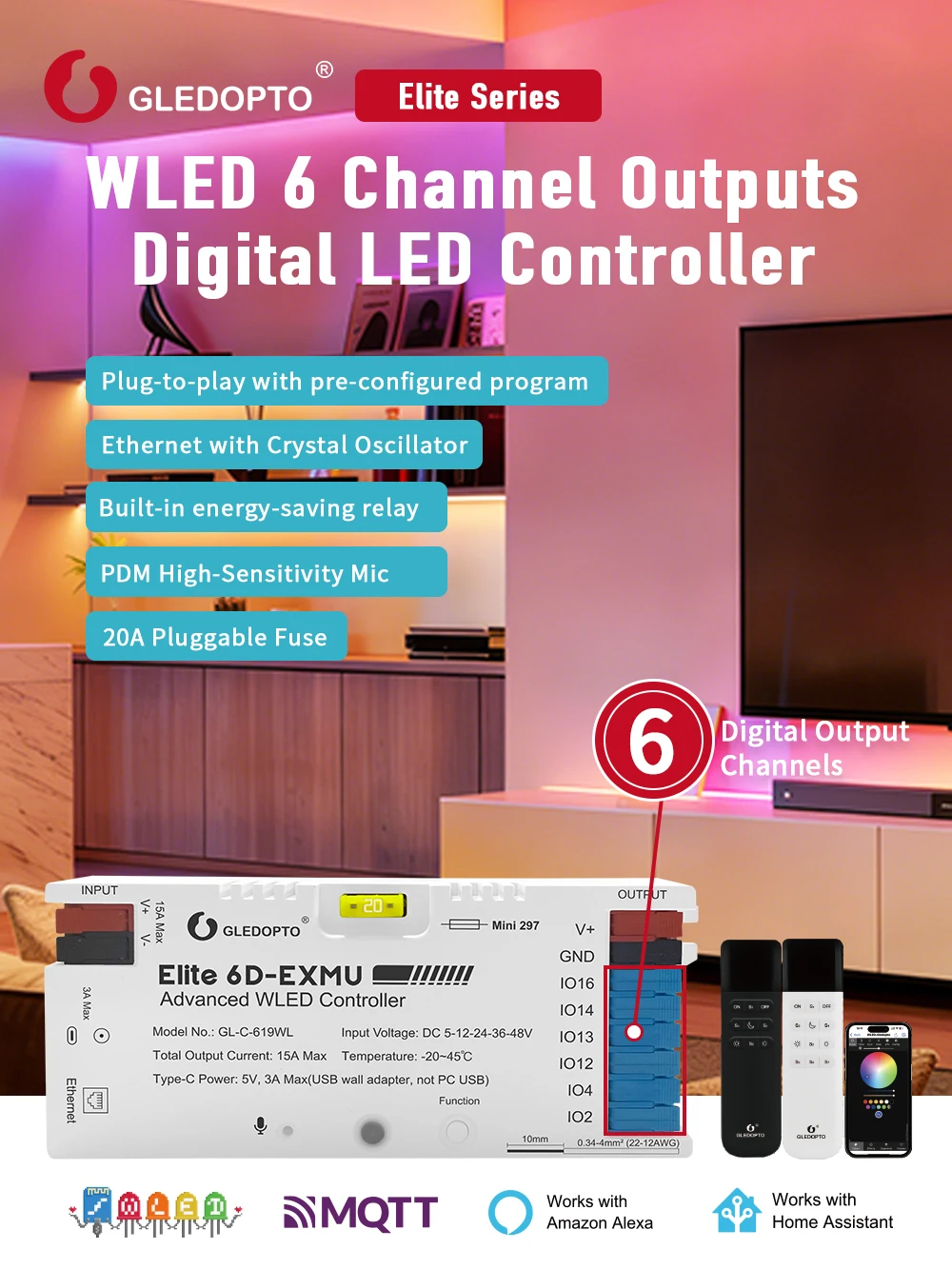

GL-C-619WL 6D GLEDOPTO ESP32 WLED Digital LED Controller Microphone function Type-C WS2811 SK6812 WS2815 611 PWM5IN1 Strip Light

1-10PCS Gledopto ESP32 WLED LED Controller with 4/6 Outputs Ethernet Microphone UART Energy SPI RGBIC PWM 5 IN 1 Elite ESP32 WLED Strip Controller Dynamic Mic Sound Reactive 20A Fuse UART Energy Save Relay Addressable RGB IC Strip

ATTENTION:

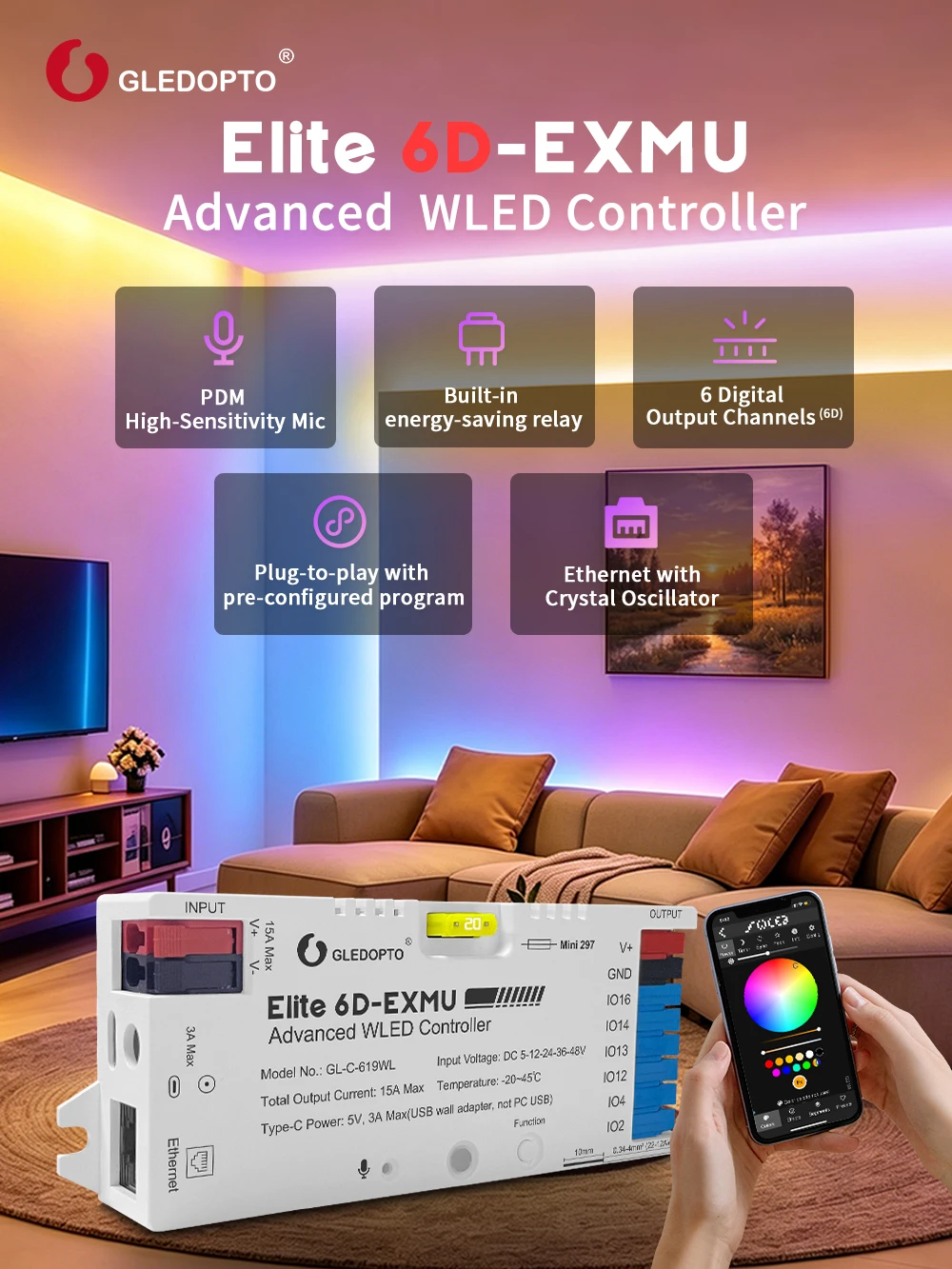

GLEDOPTO 2026 NEW Elite Series WLED LED Controller

GLEDOPTO ESP32 Smart LED Controller: Ethernet Connectivity, GLEDOPTO GL-C-619WL/GL-C-611WL/GL-C-620WL

Professional WLED Controller

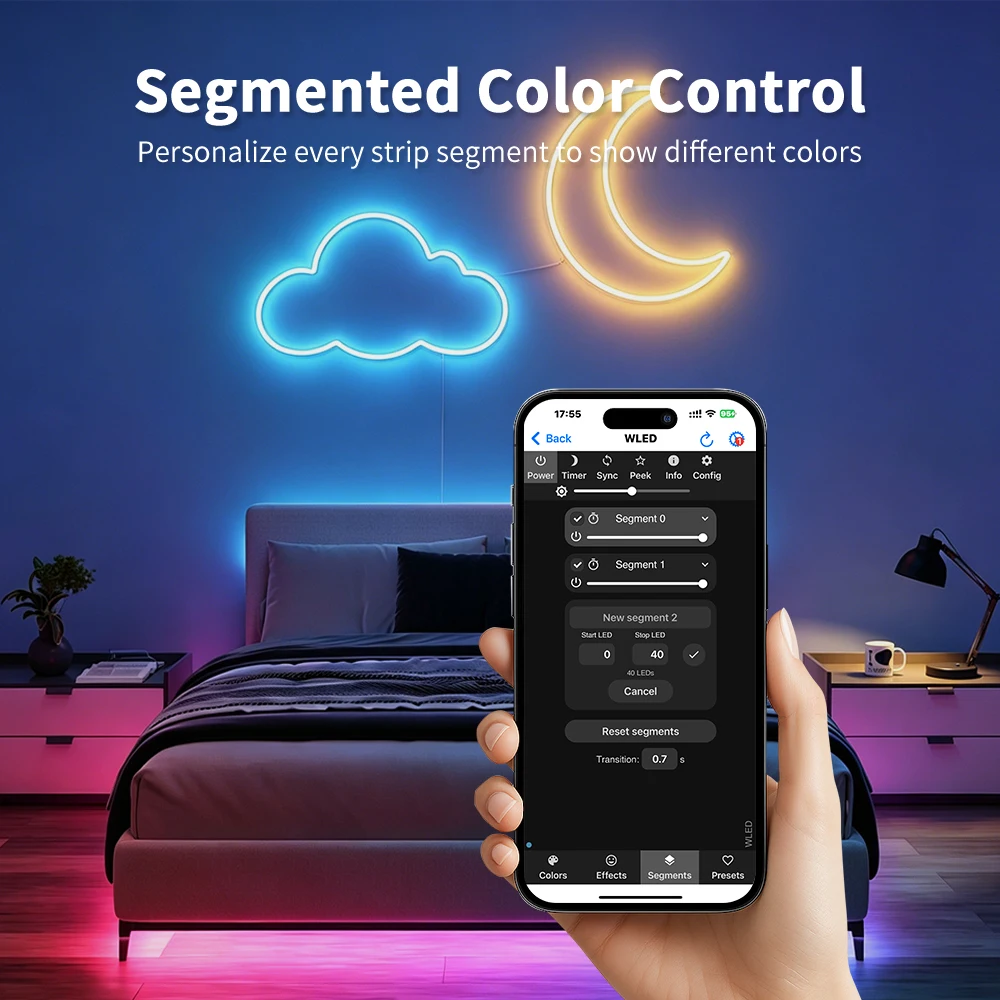

Dual Output: Addressable + PWM 5 IN 1 CCT, 4/6-Zone Digital RGB Output, Compatible with Home Assistant & Alexa for Music-Synced Lighting

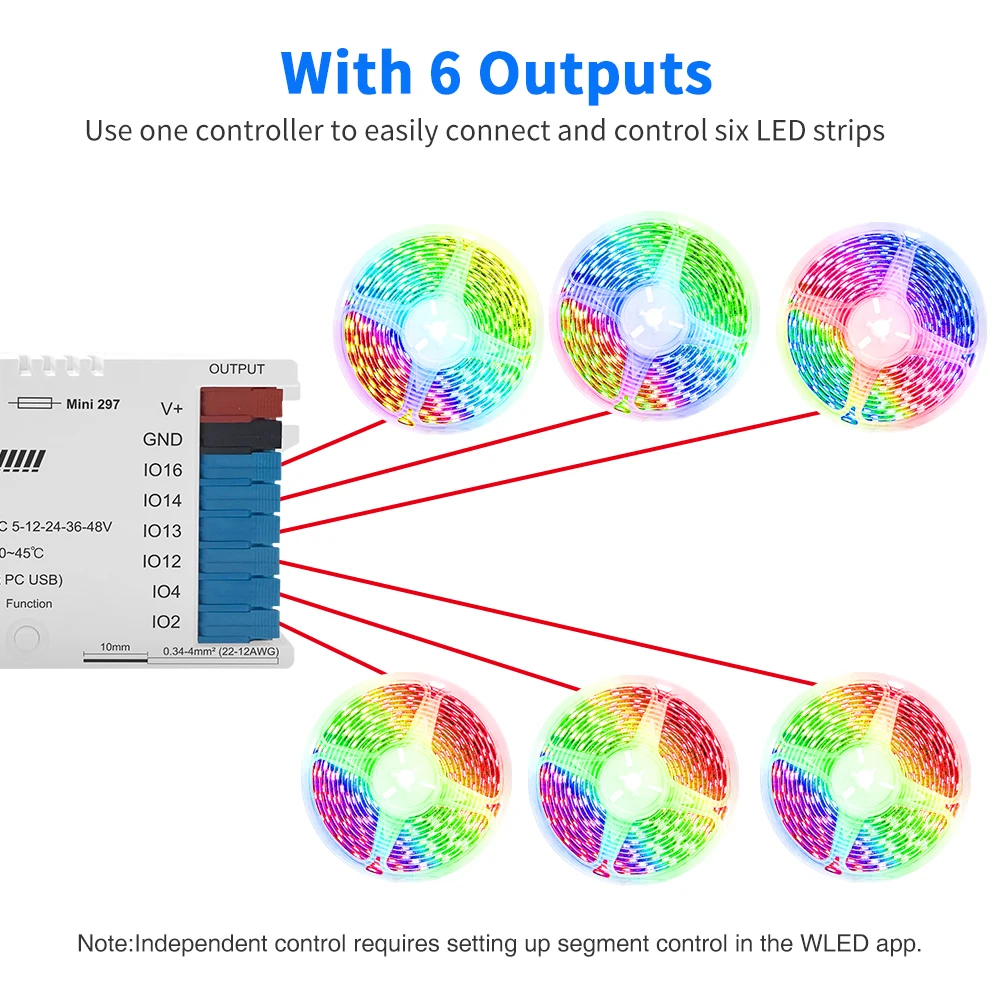

✅️ Versatile 4/6-Channel LED Control

✅️ Wi-Fi & Ethernet Dual Network

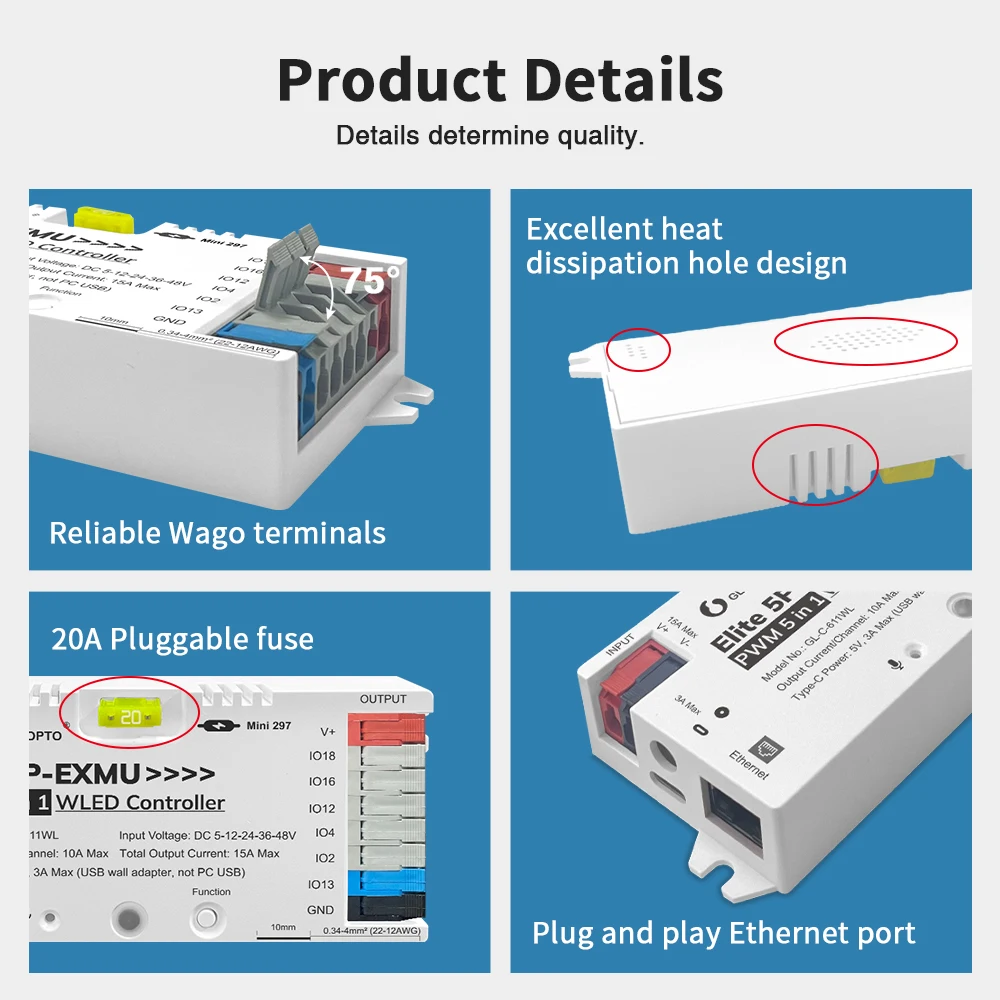

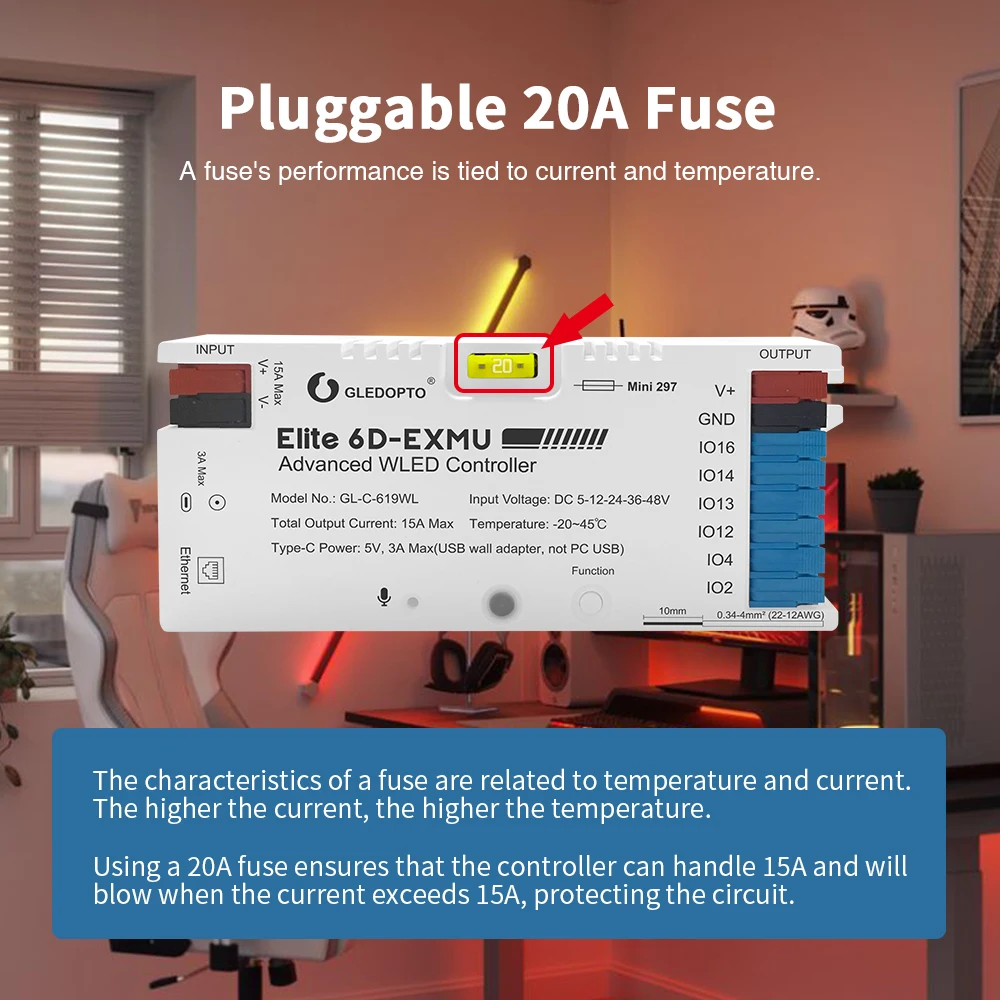

✅️ 20A Pluggable Fuse Protection

✅️ Music Audio-Reactive Effects

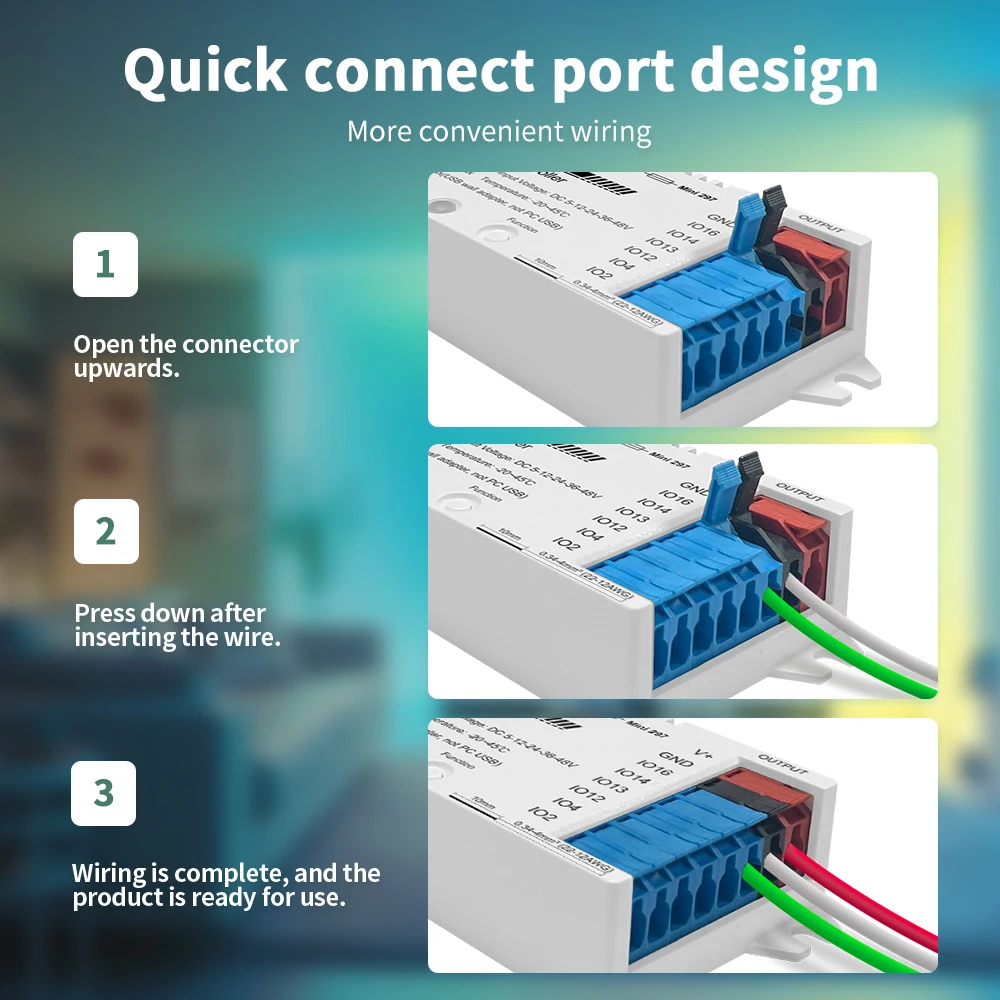

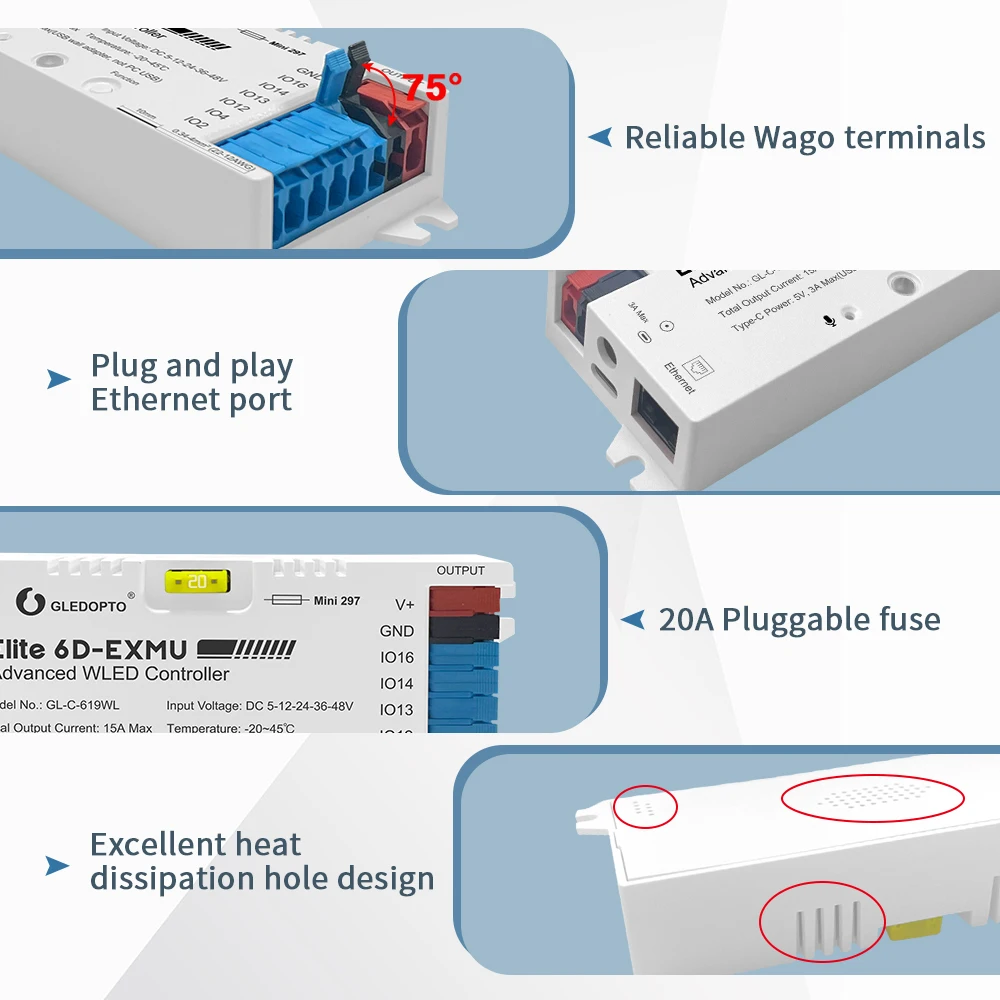

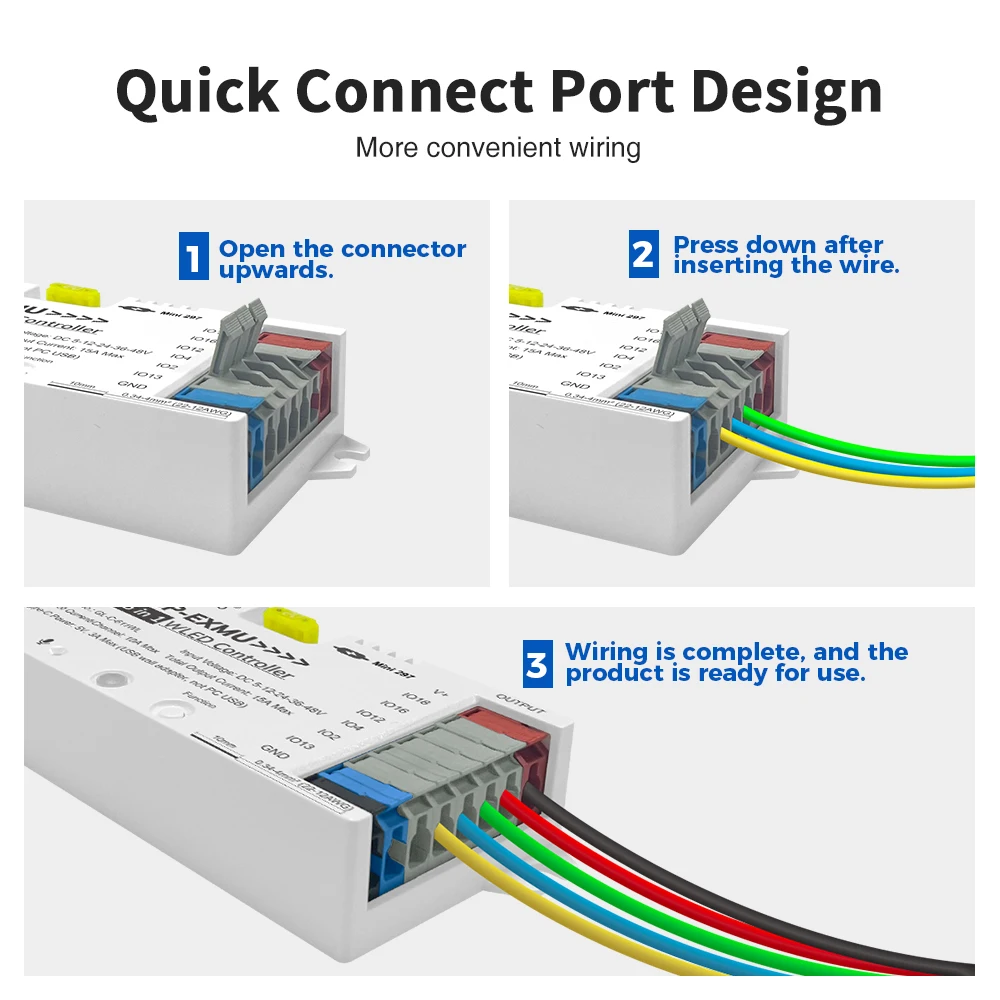

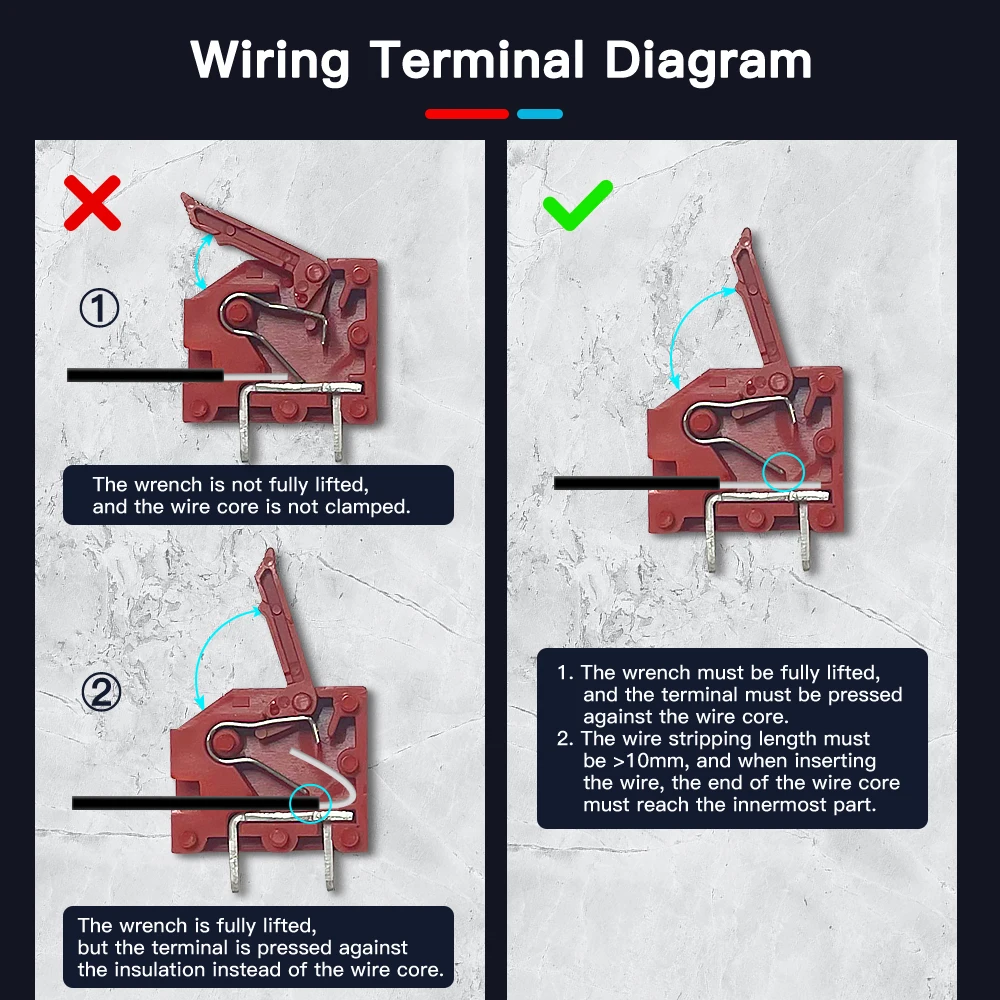

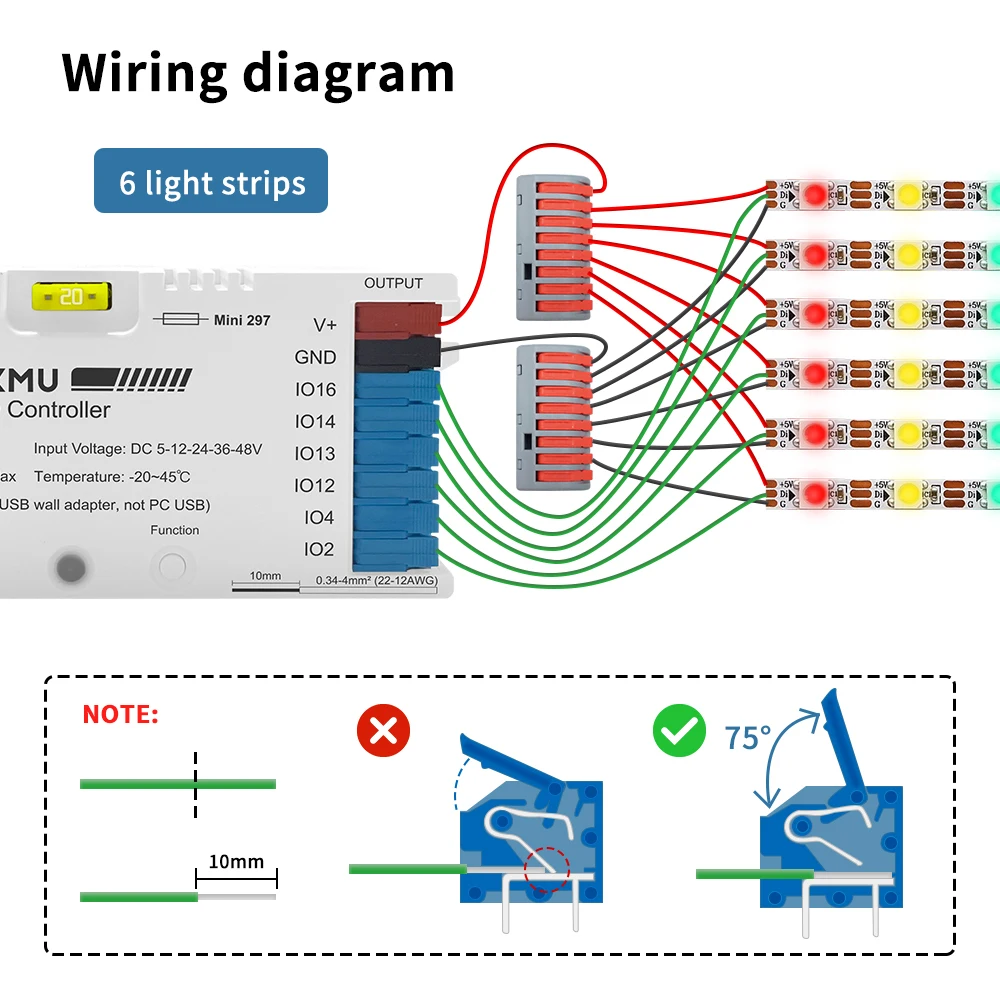

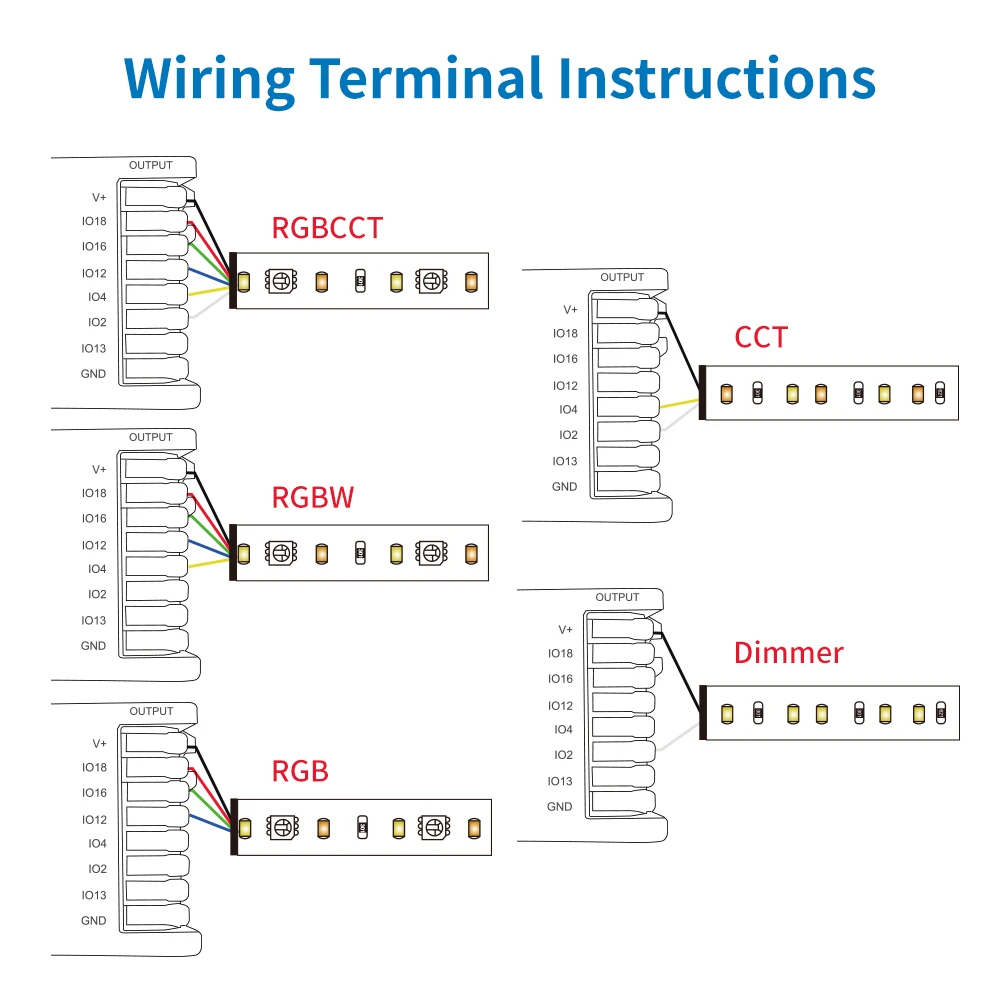

✅️ Wago Terminal for Easy Setup

✅️ Energy-Saving Relay/

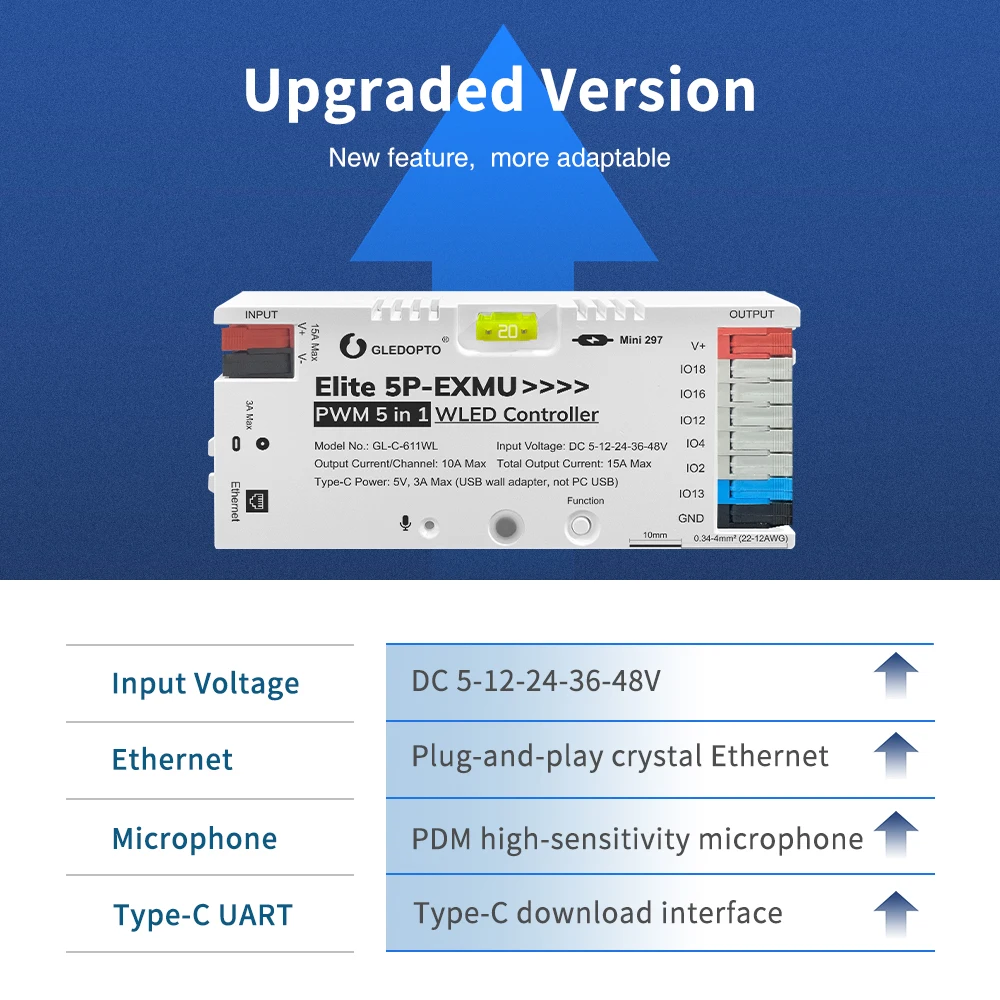

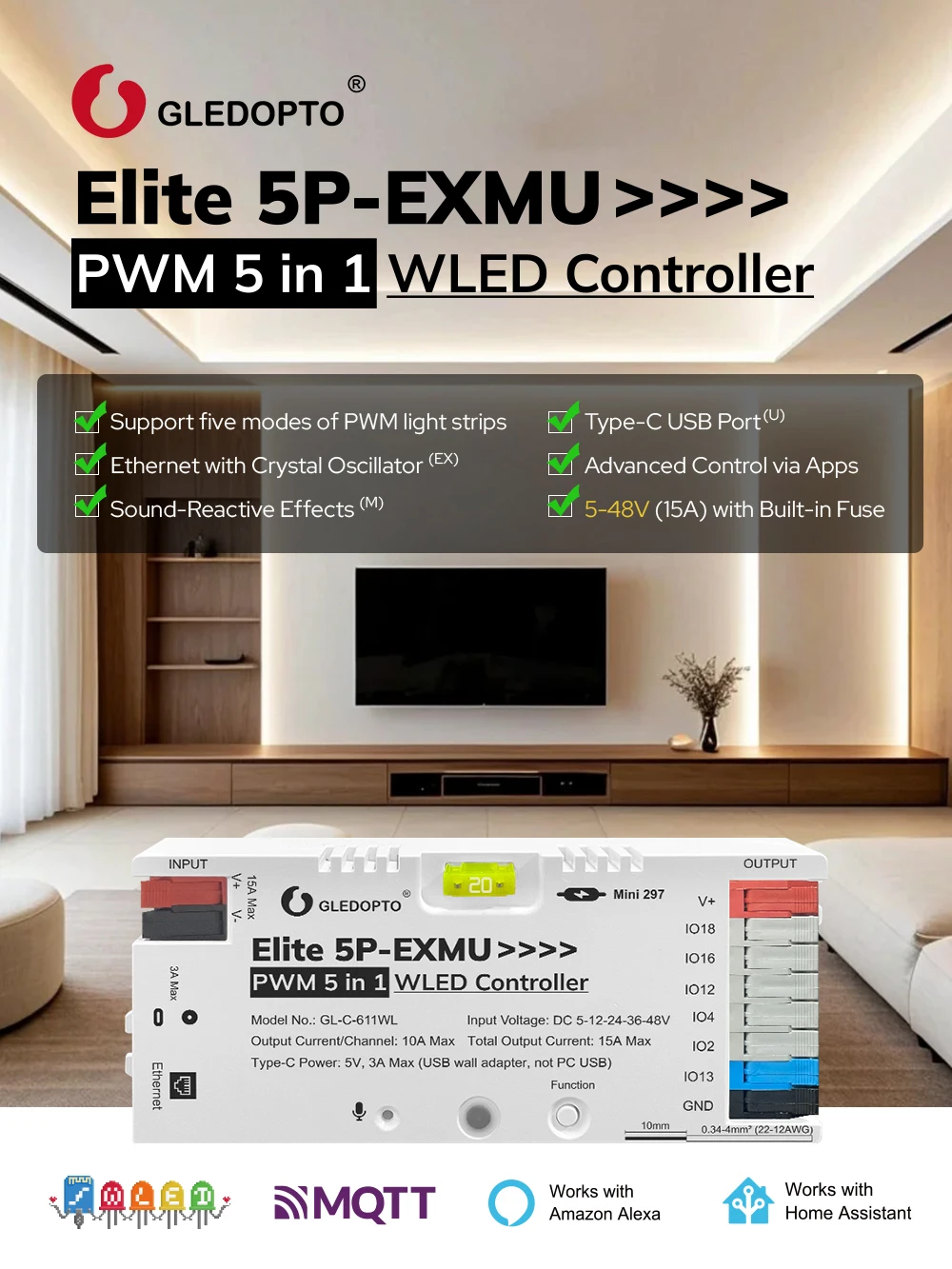

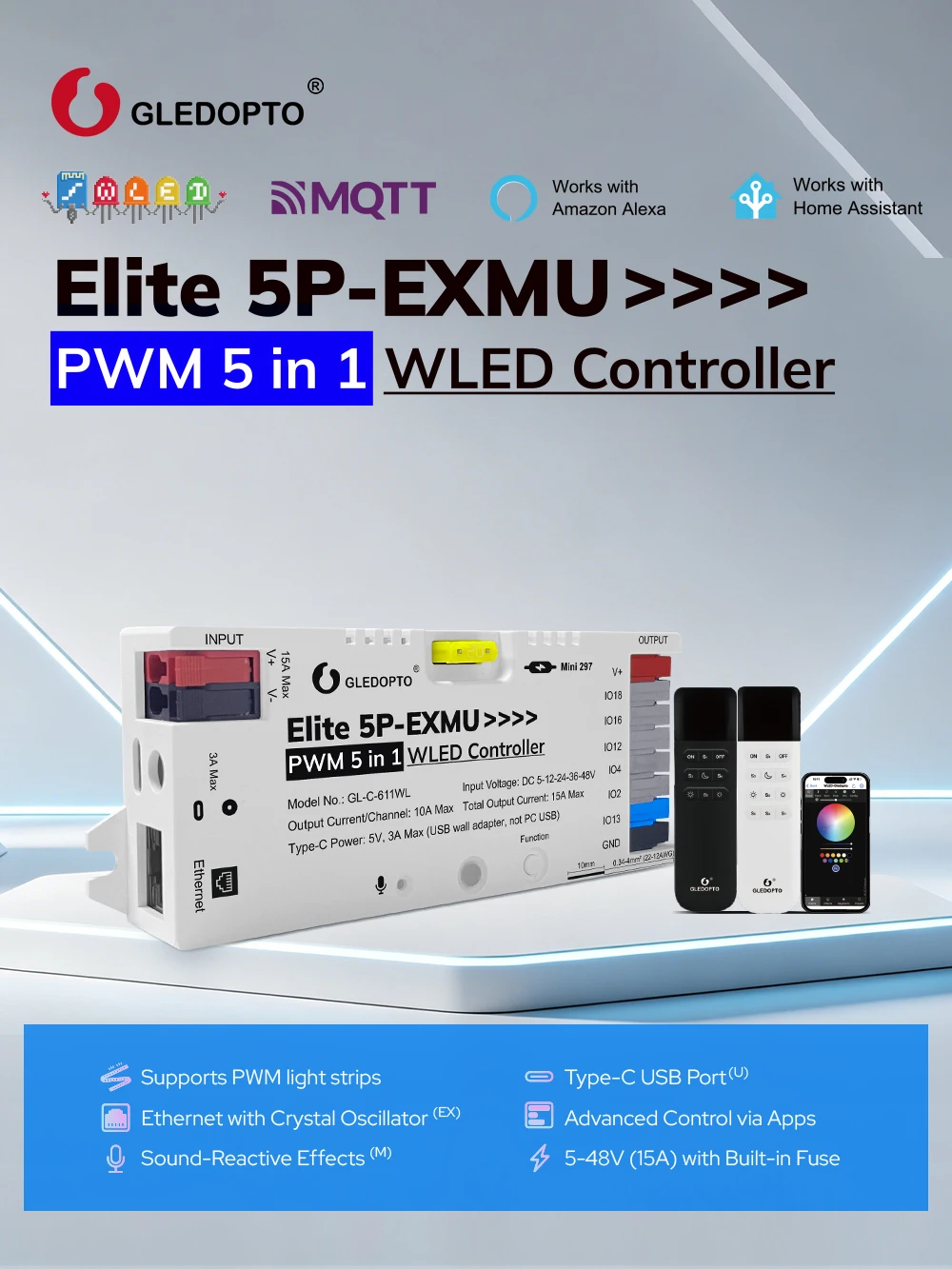

GLEDOPTO GL-C-620WL/GL-C-611WL

Professional WLED Controller

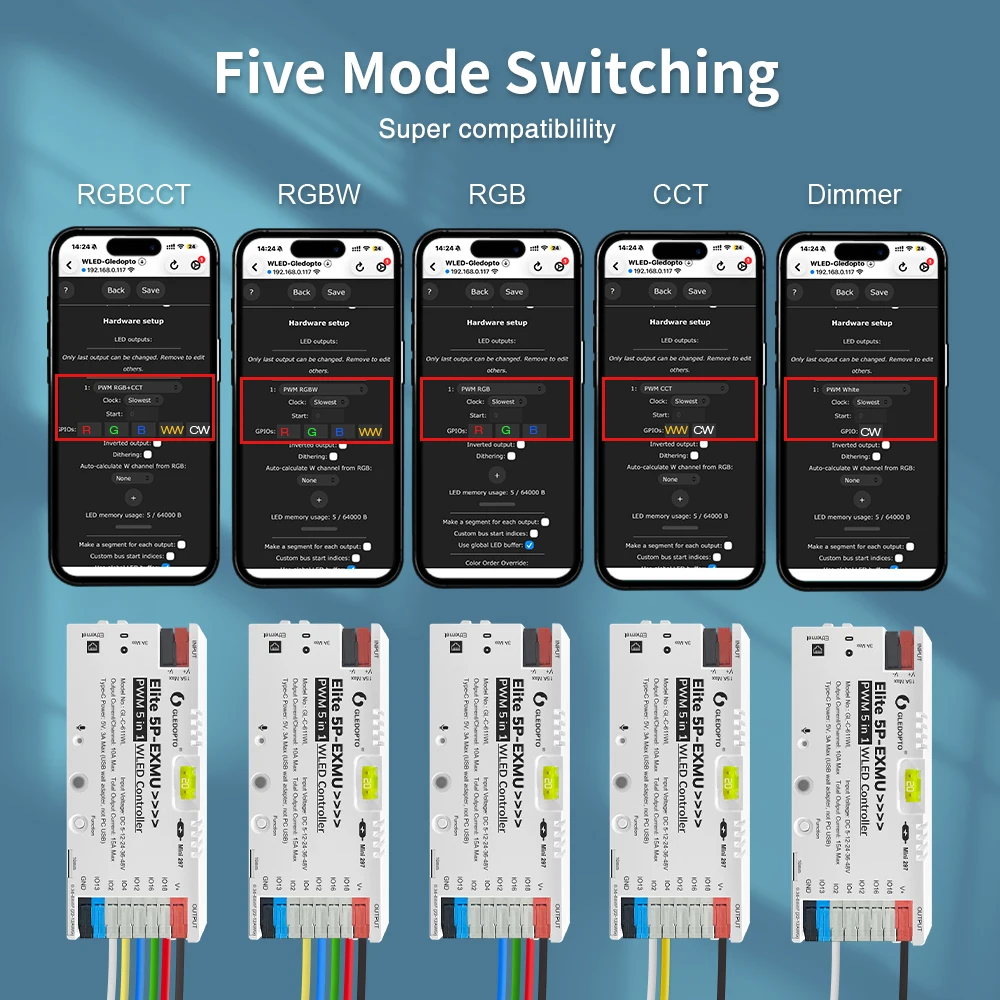

Dual Output: Addressable + PWM CCT 5 IN 1

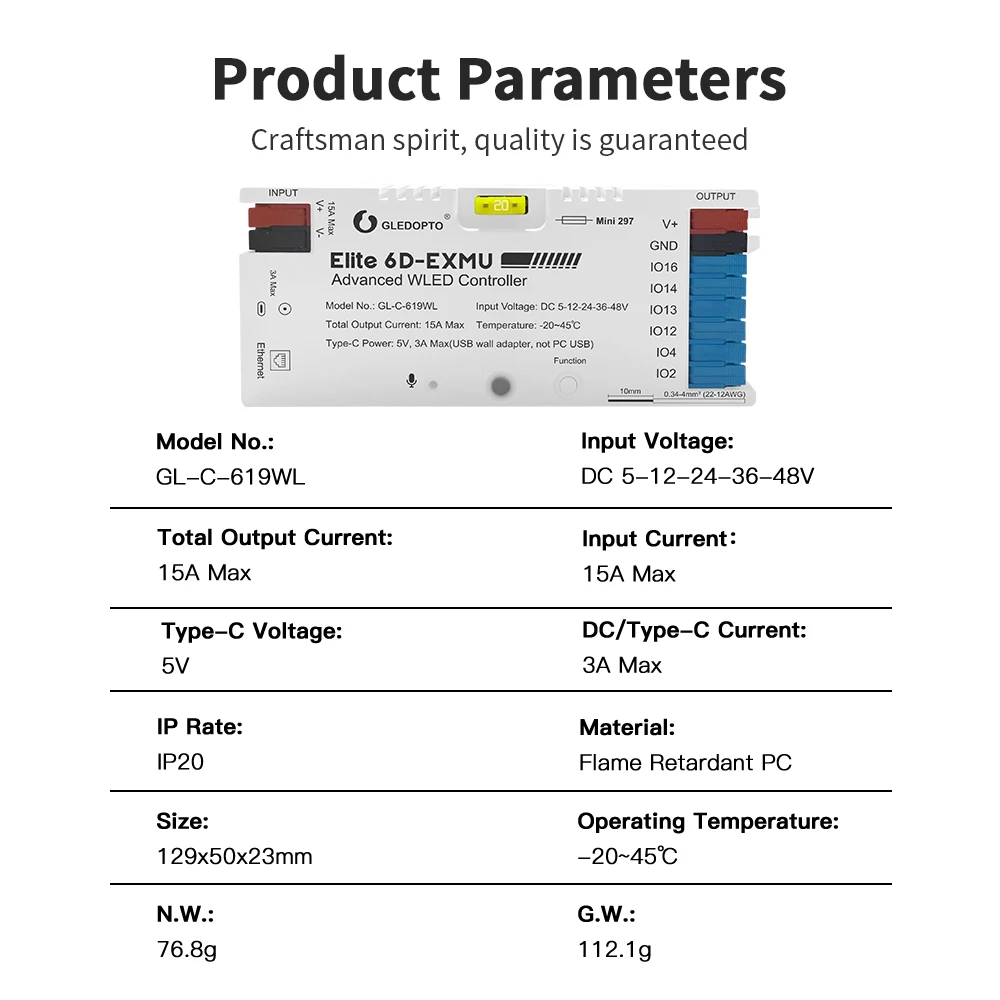

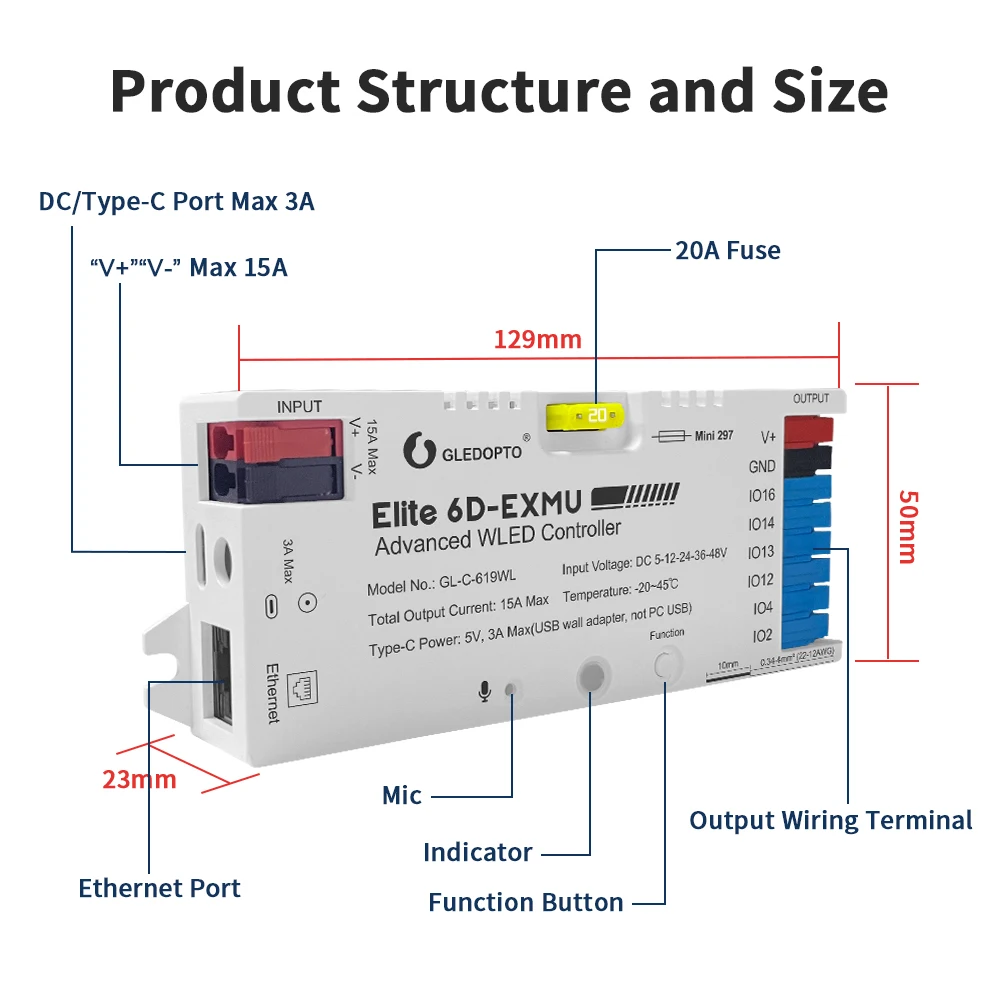

Model No.: GL-C- 618WL/ GL-C- 619WL

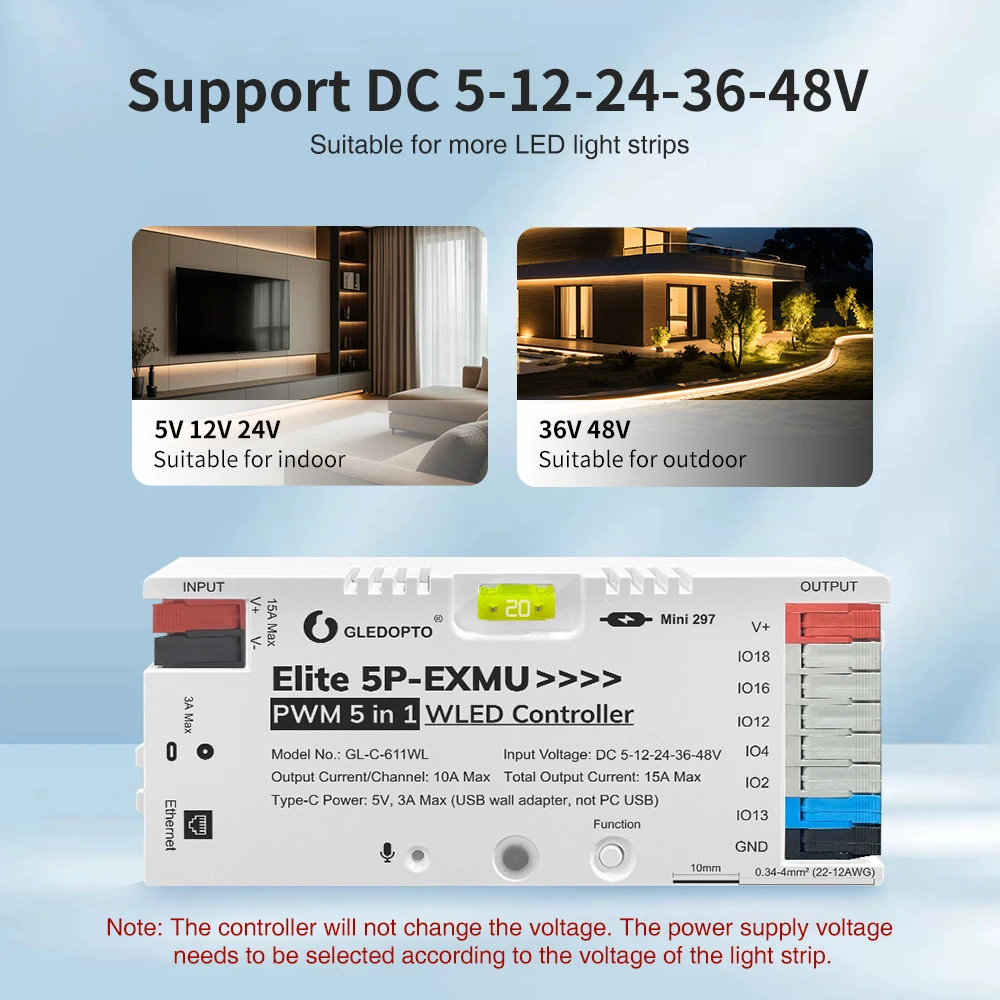

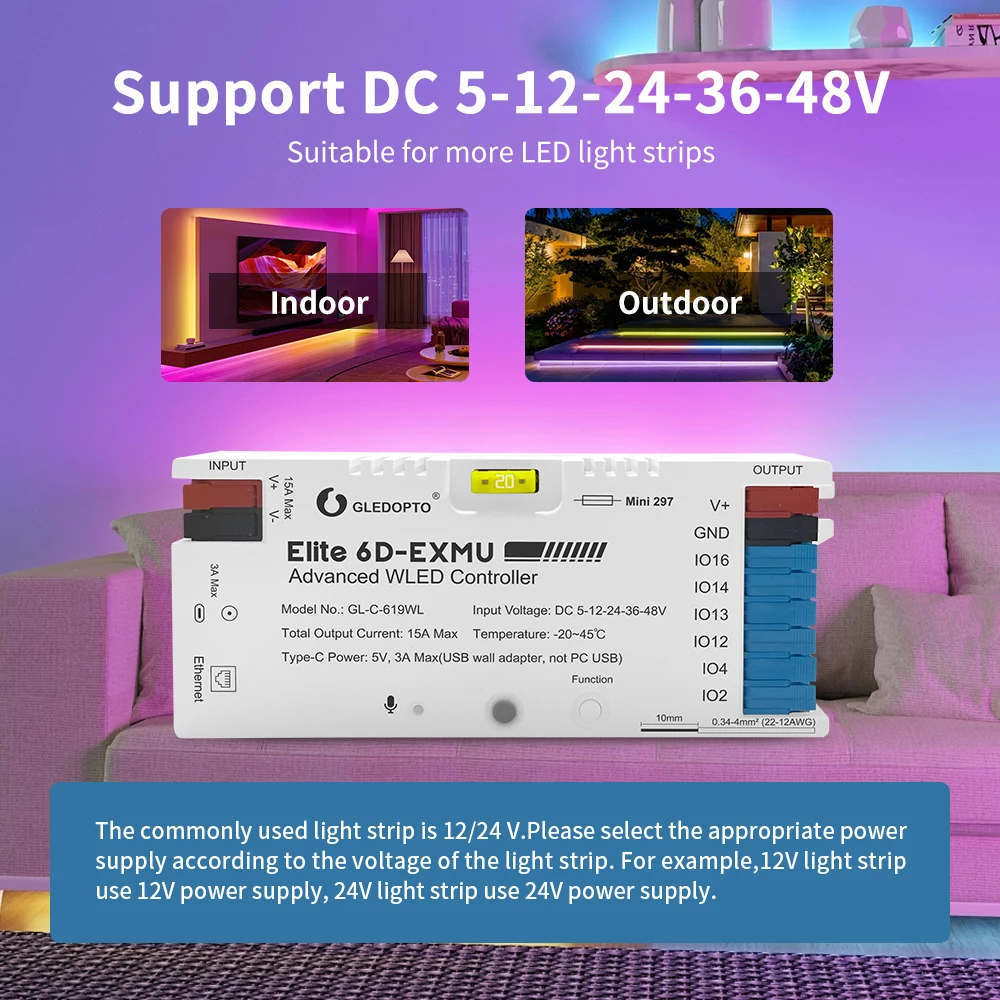

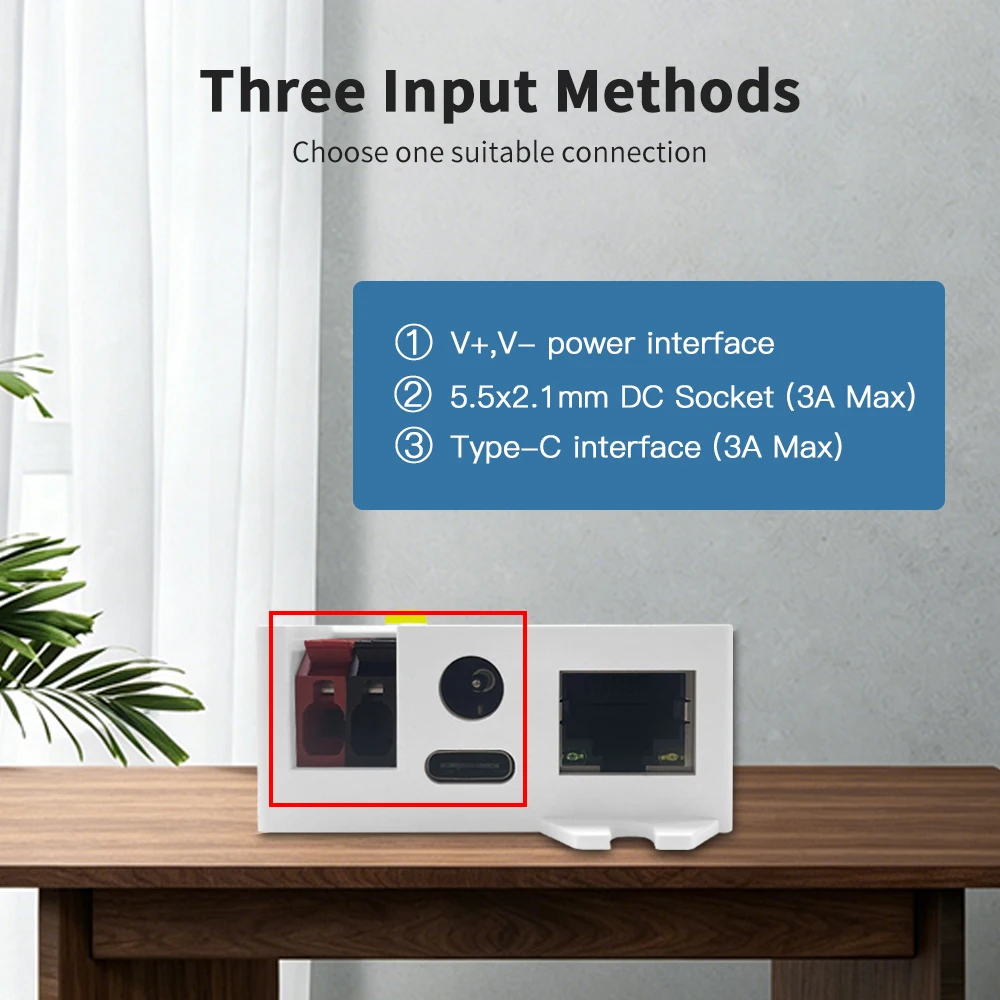

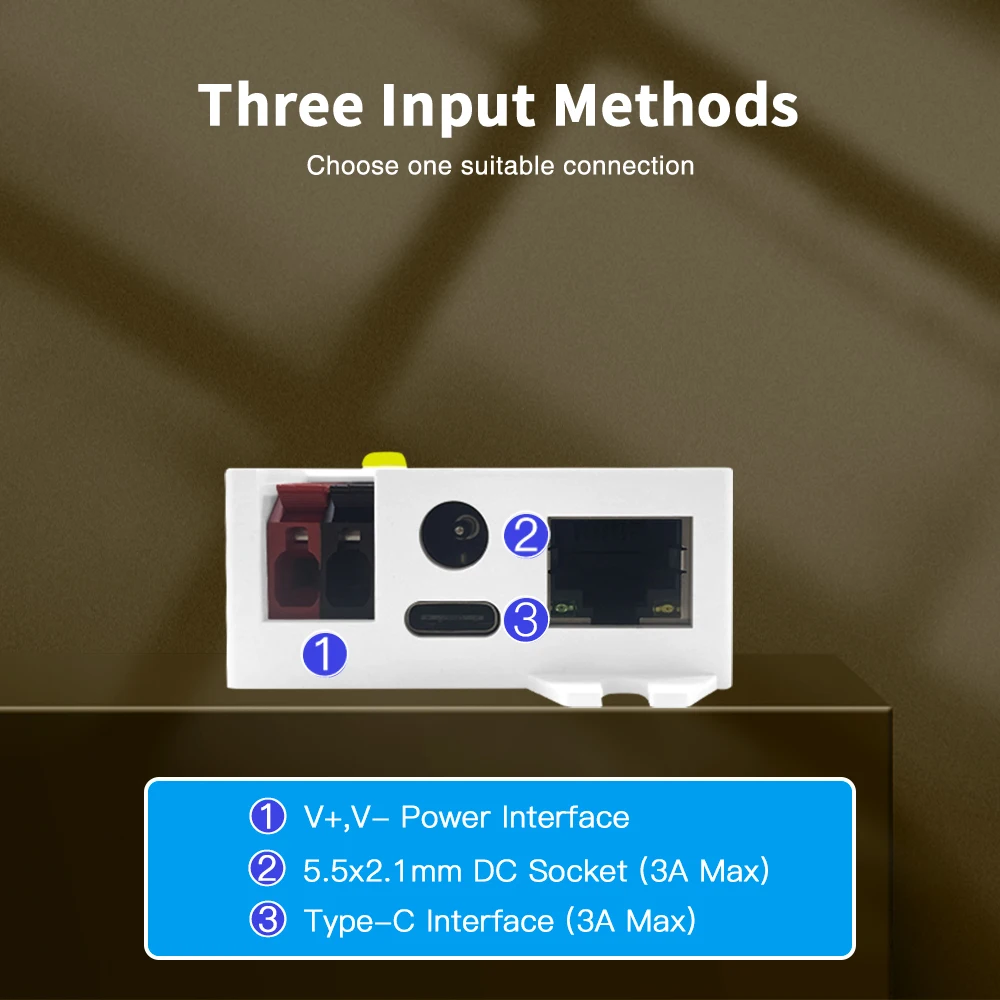

Input voltage: DC 5-12-24V-36V-48V

Total Output Current: 15A Max

Output Current/Channel: 10A Max

Type-C Voltage: 5V

Type-C Current: 3A Max

IP Rate: IP20

Material: Flame Retardant PC

N.W.: 79.6g

G.W.: 112.3g

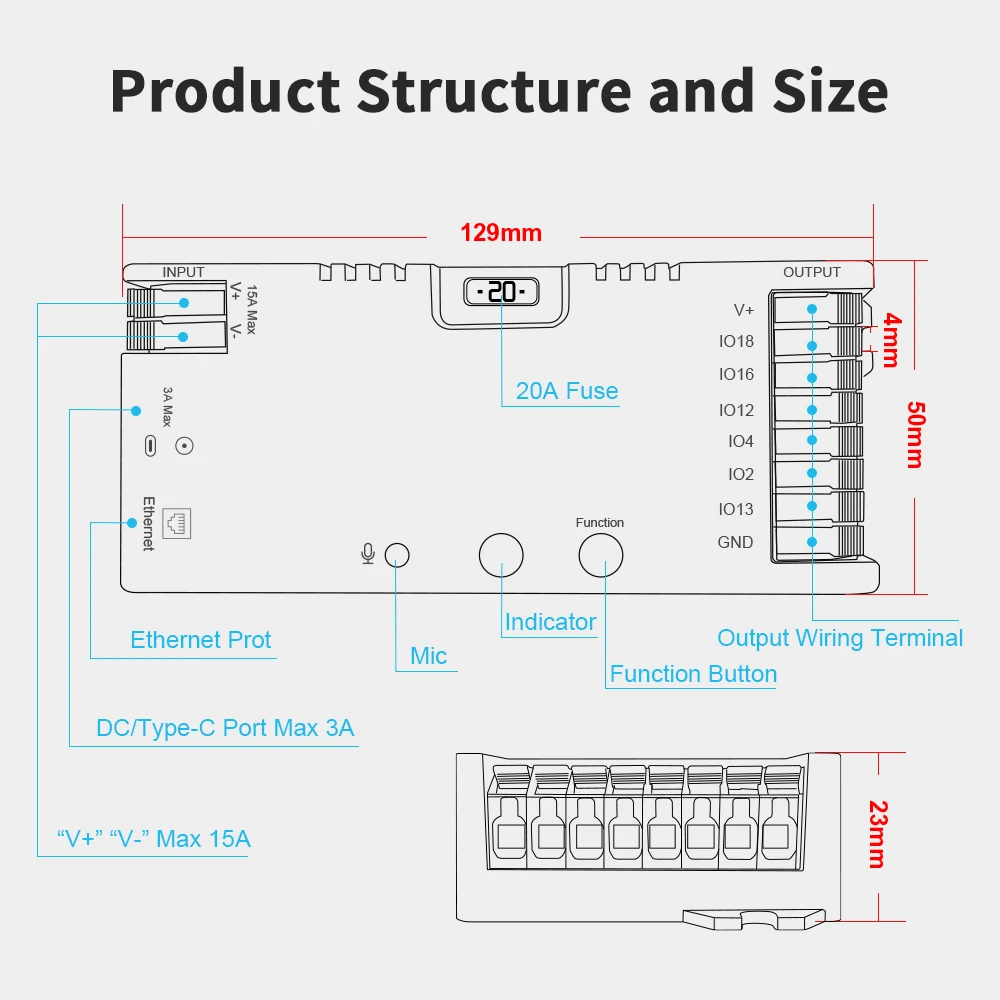

Size: 129x50x23mm

Operating Temperature: 20~45℃

Powerful ESP32-Based Design:

Engineered with a versatile ESP32 chip, this controller delivers robust performance, ensuring reliable operation for advanced lighting setups while enabling seamless firmware updates and customization.

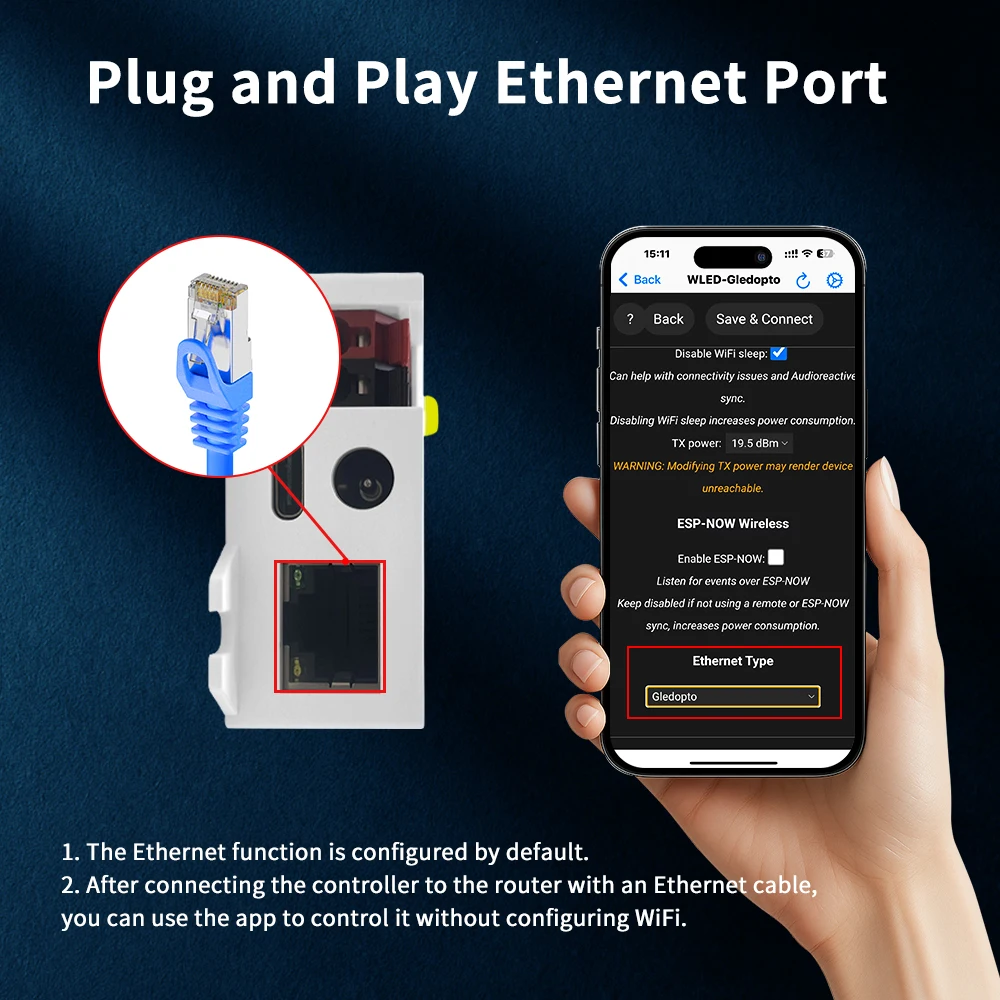

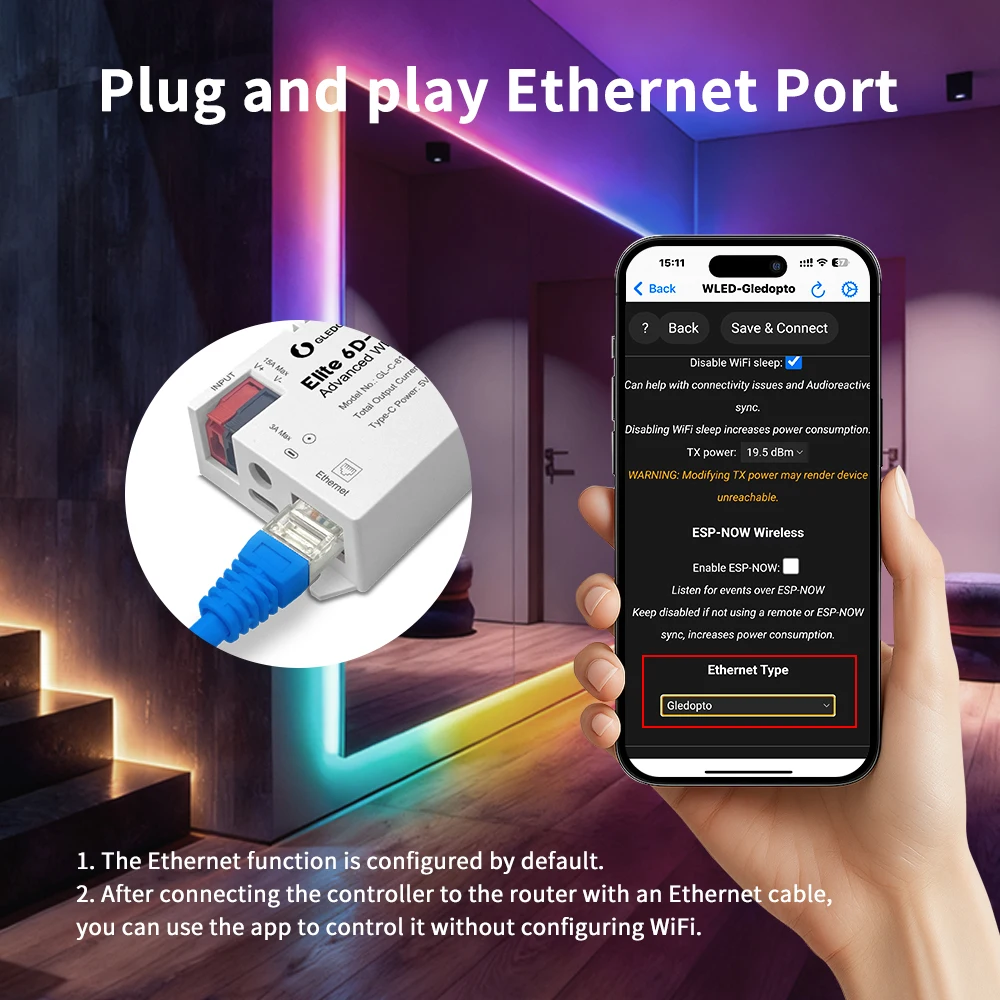

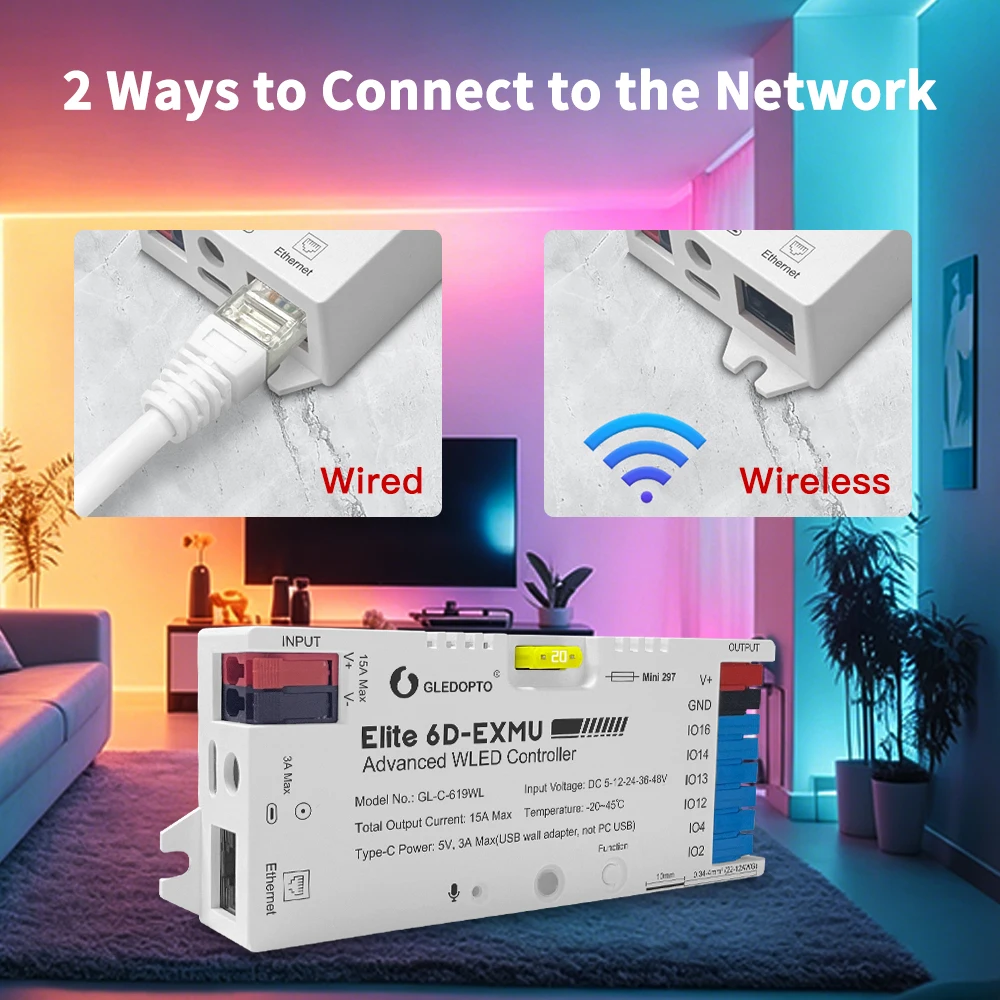

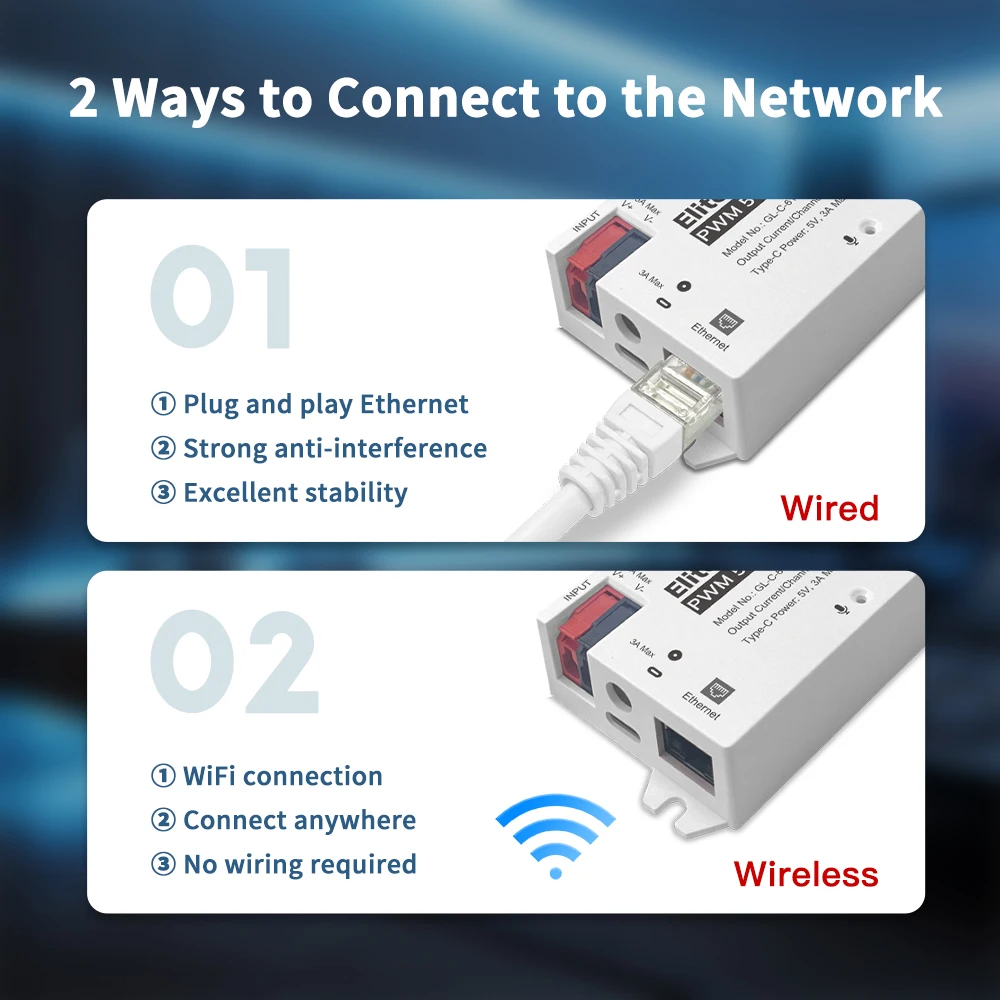

Plug-and-Play Ethernet and Dual Networking:

Features a user-friendly plug-and-play Ethernet port alongside integrated Wi-Fi support, allowing effortless connection to home networks via both wired and wireless options for flexible installation.

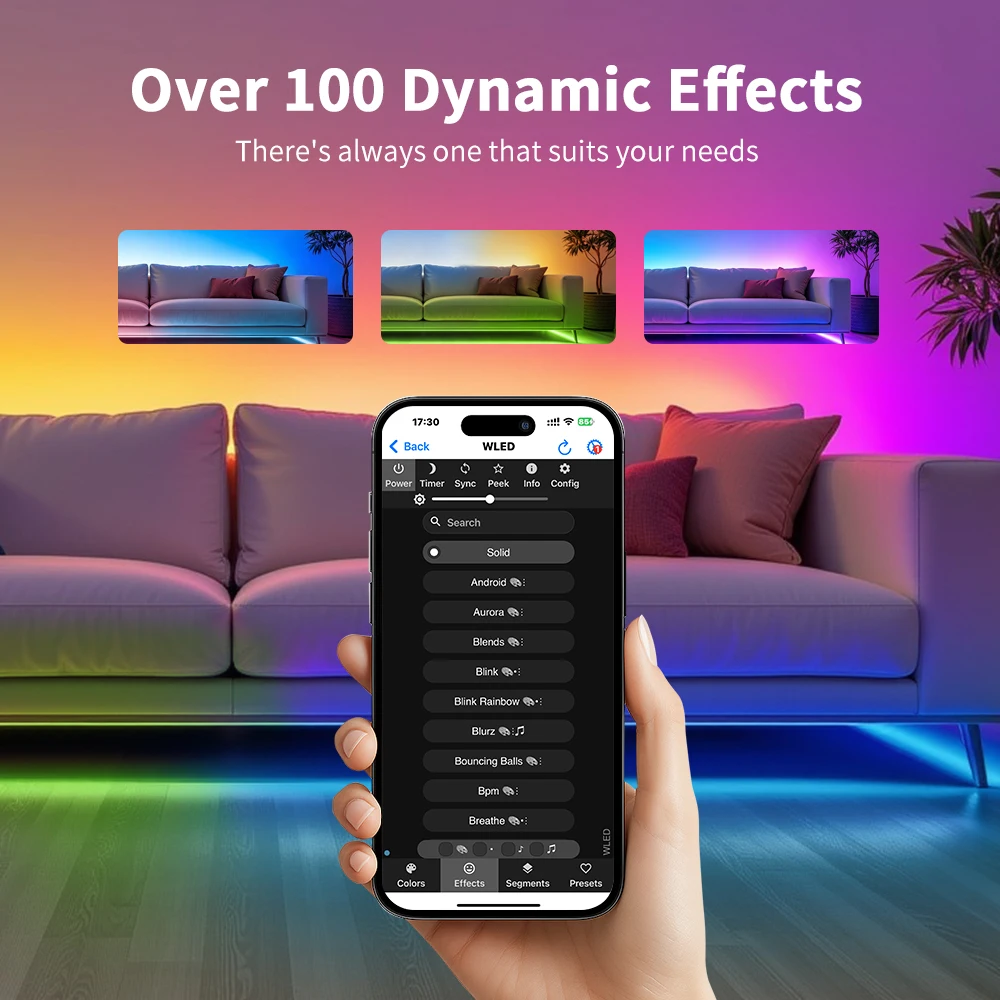

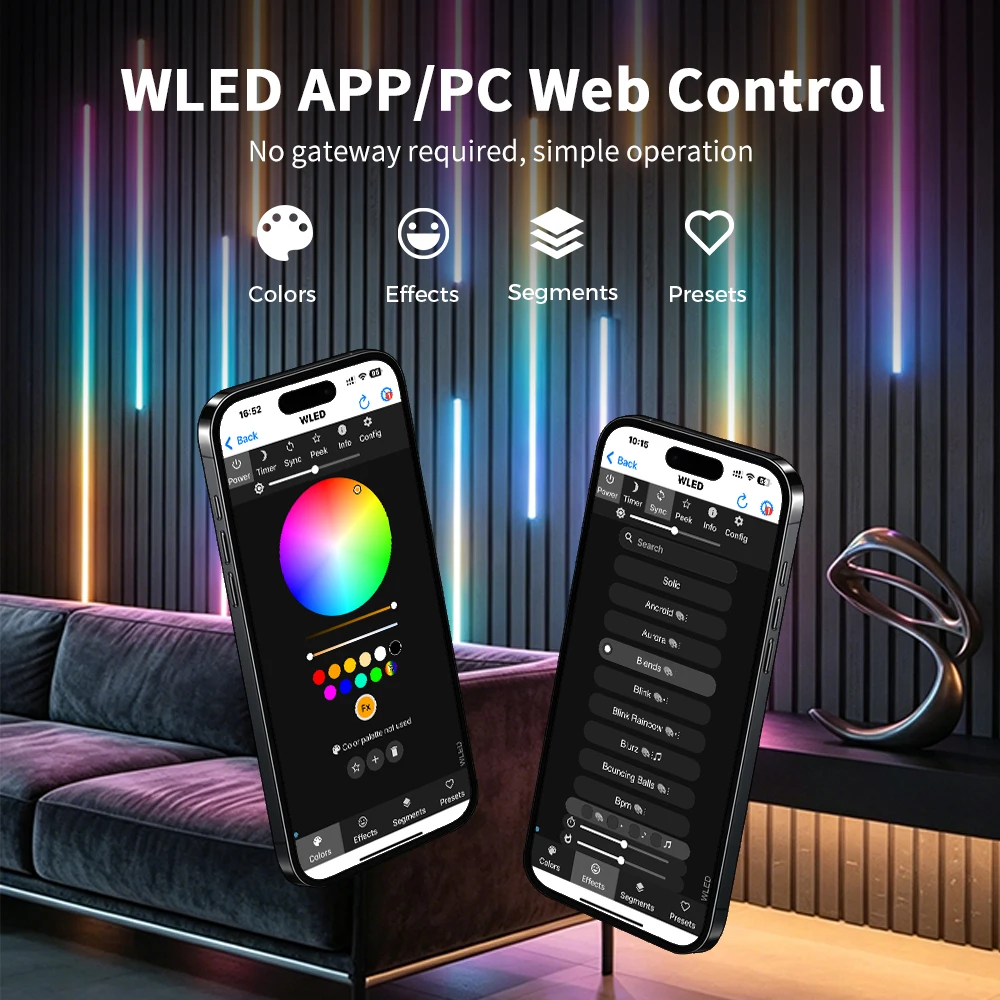

DIY Dynamic Lighting with Over 100 Modes:

Unleash creativity with a suite of DIY dynamic lighting effects, offering more than 100 pre-programmed dynamic modes to transform spaces with vibrant animations and customized scenes.

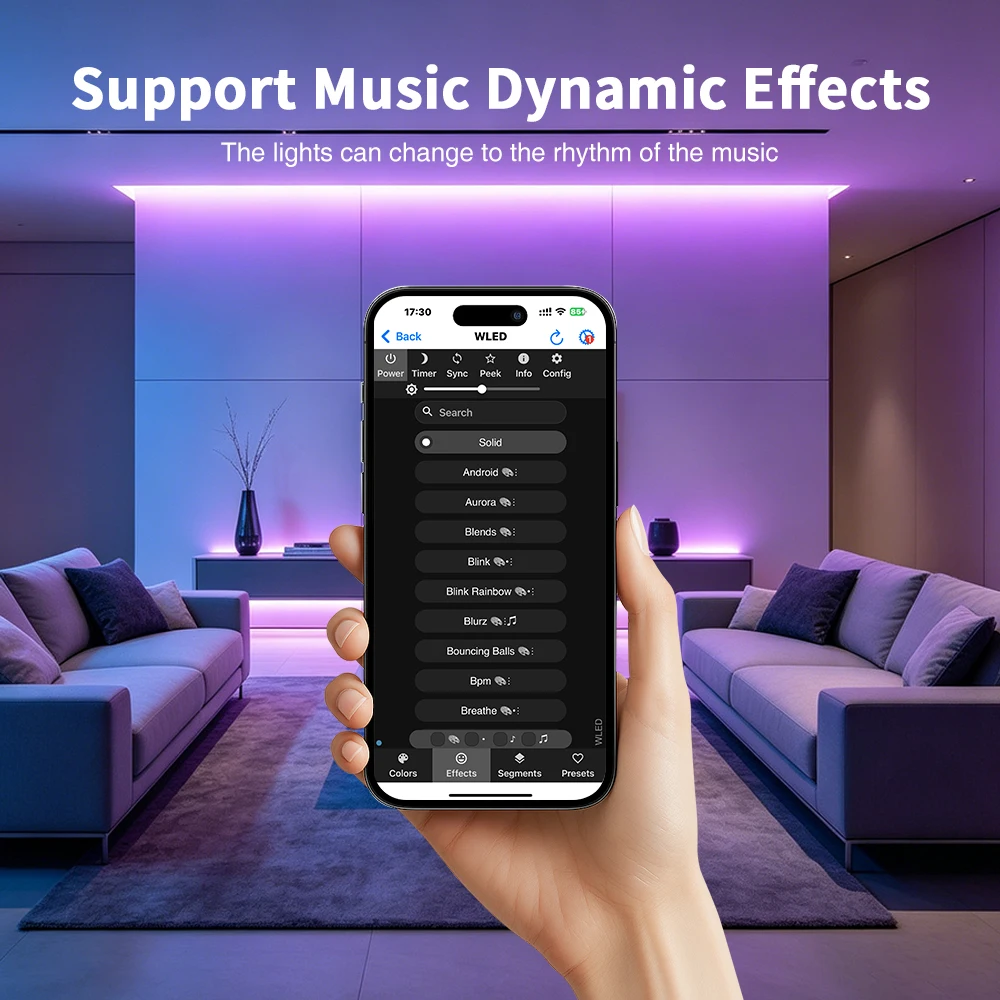

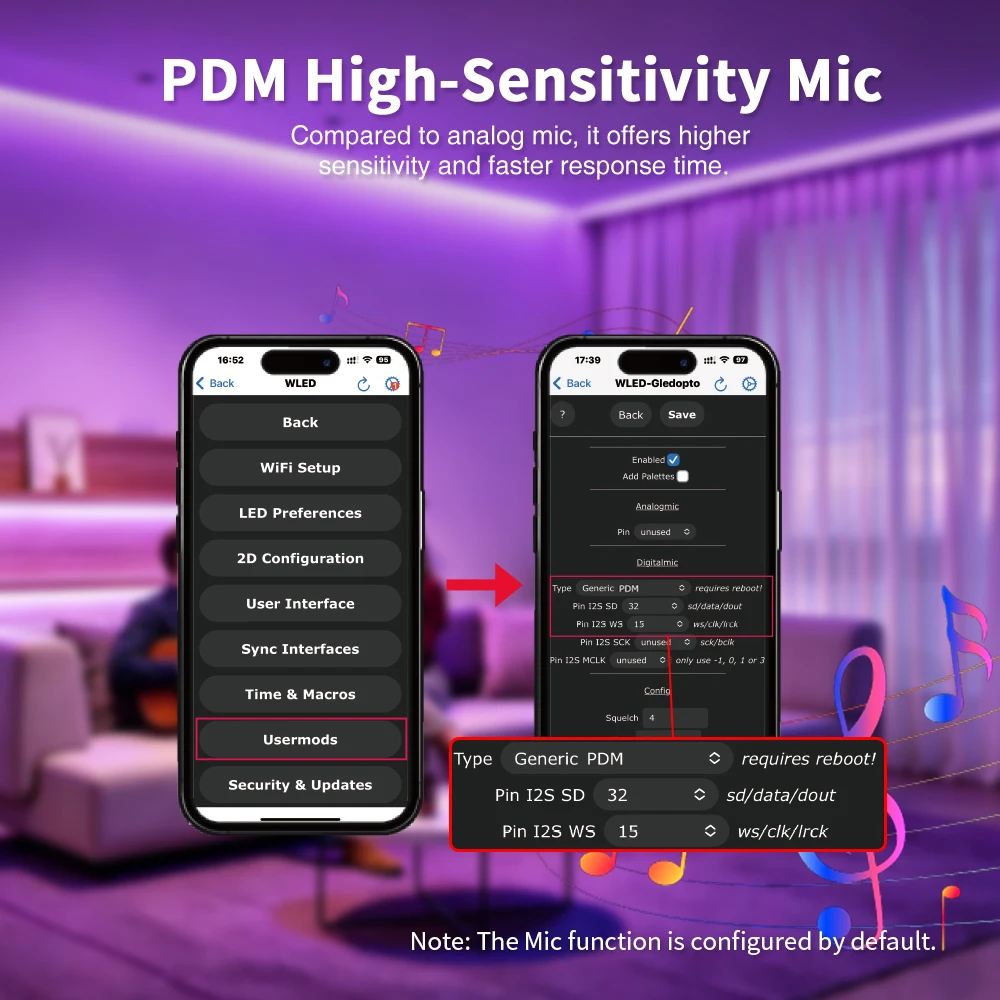

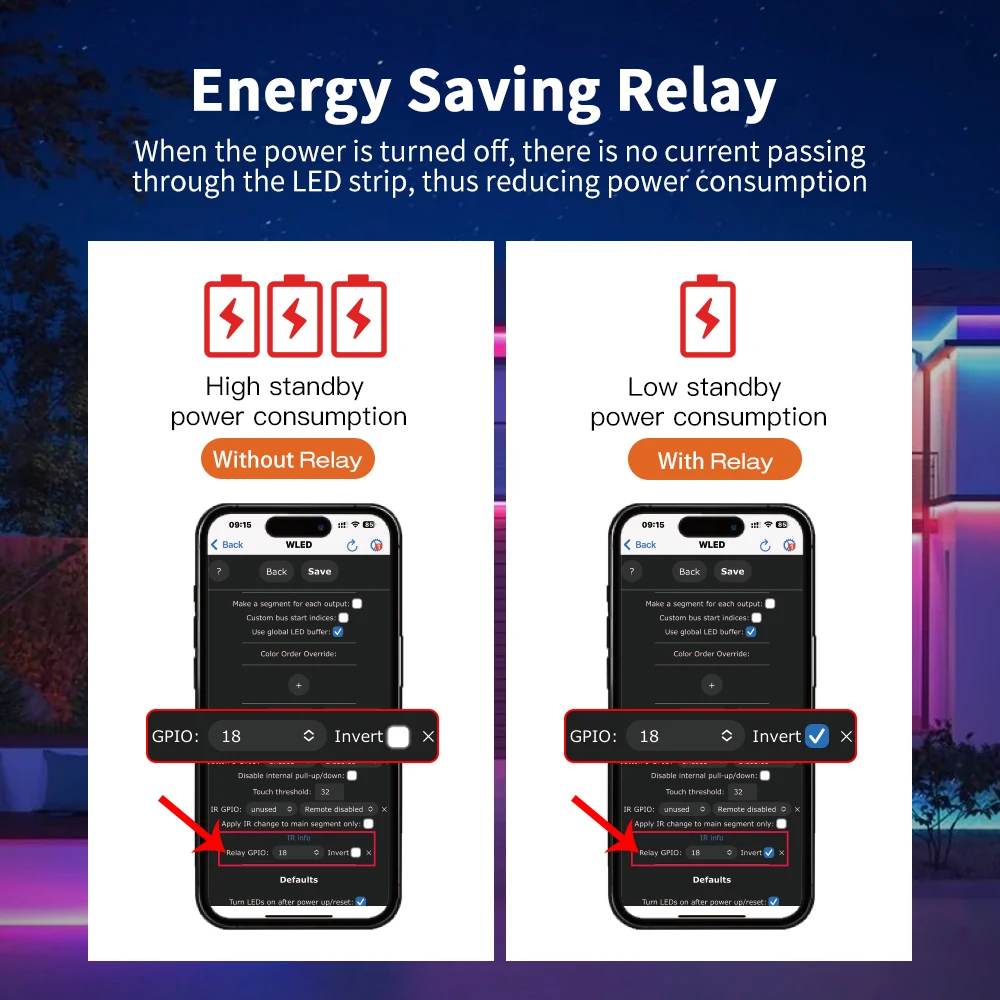

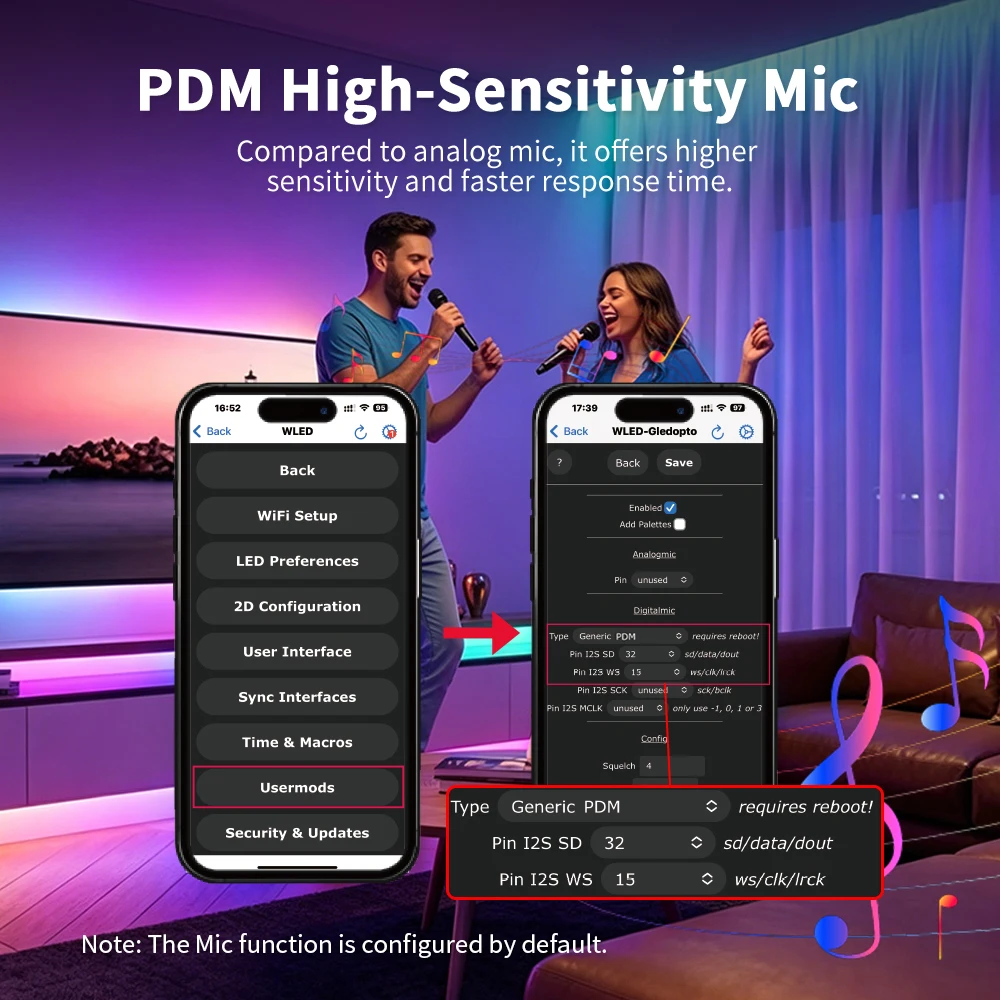

Music Sound Reactivity and Energy-Saving Relay:

Syncs lights to your audio environment with real-time music sound reactivity for immersive experiences, while the integrated energy-saving relay minimizes power consumption when lights are idle.

Safety-Focused with Universal LED Compatibility:

Includes a 20A pluggable fuse for overload protection and supports a wide range of addressable LED strips, such as WS2811, WS2812, SK6812, WS2813, WS2815, and WS2805, ensuring seamless integration with existing lighting systems.

Q&A or more info, please contact us on line, and we will answer you in time.

Product Name:Elite ESP32 WLED Controller with Ethernet

Model No.:GL-C-616WL / 615WL / 017WL / 016WL

Voltage: DC 5-24V

Total Current: 15A Max

Size: 129*50*23mm

Operating Temperature:-20-45°C

Supported Strip: Addressable RGBIC Digital LED Strip Light

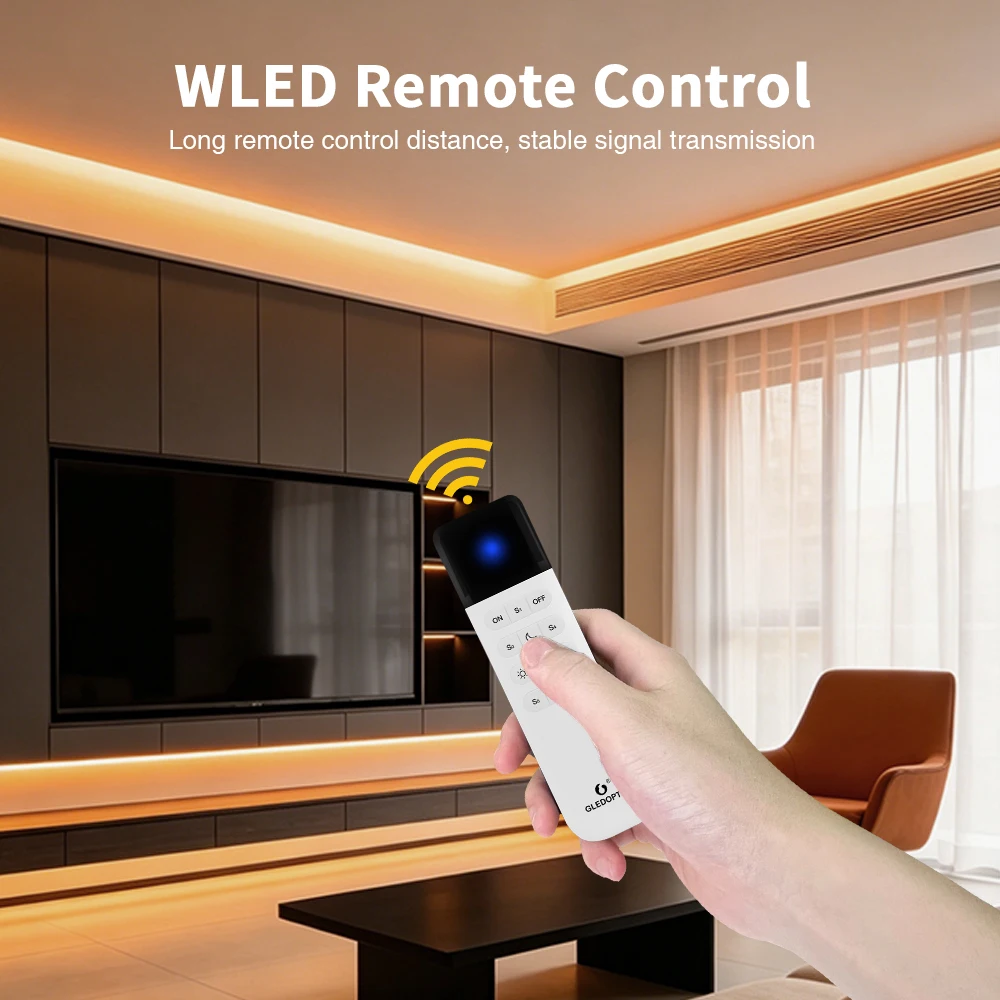

This Remote Control is WLED WiFi(Not Zigbee or 2.4G RF), can adjust the On/Off, Brightness, Secne Preset, Night light, etc.
