DC5V WS2812B Individually Addressable 5050 RGB Led Strip WS2812 Smart Pixels Led Light Black White PCB Waterproof IP67/65/30
3.45$
3.3$
Quantity:
1
Availability:
Emitting Color
Color
Wattage
Length
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Pay attention
1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order!
2. WS2812B Led strip can be cut buy every "one" led chip!
3.
IP30: Non- Waterproof
IP65: Waterproof in Silicon Coating
IP67: Waterproof in SiliconTube

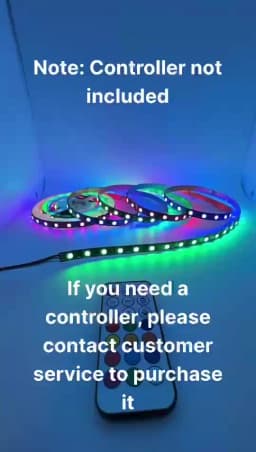

4. WS2812B Led Strip Work With DC5V(5V Power do not include),And it must need a WS2812B Led Controller(not include)Control it
Product Decsription:
1. WS2812B Led Strip is Powered By "5V Power Supply" (Not Included) And Is Controlled By ASingle Data Line From A Suitable Controller(Not Included).
2. 3-Pin JST Connector Included: Red:VCC, Withe:GND, Green:DATA.
3. The Strip Has 3M Adhesive Tape On The Back(Except Ip67). Installation Surface Must Be Smooth, Clean And Dry.

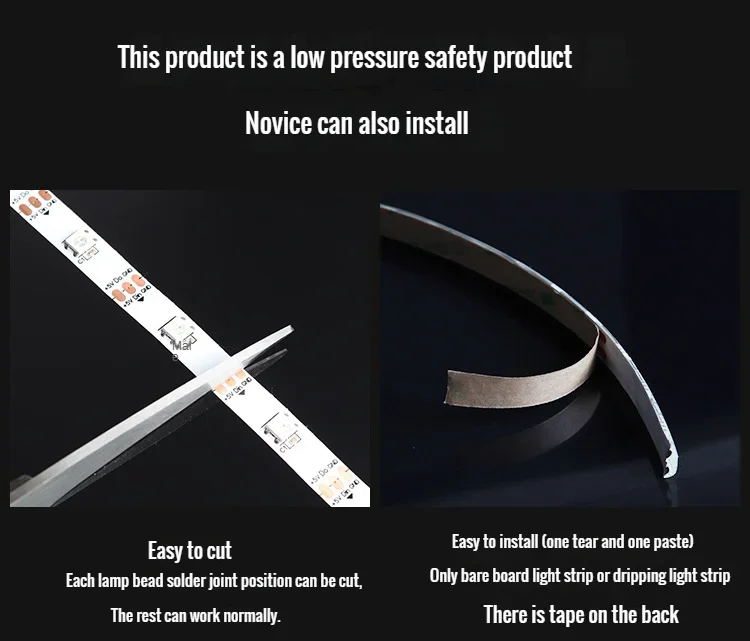

4. Led Strip Can Be Cut Between Every Led To Create Custom Lengths.
5. Do Not Bend Strip Sharply.
6. Longer Runs Should Be Powered From Both Ends To Reduce Voltage Drop.
7. 3-Pin JST Connector Wire is 20AWG.
Products Application:
WS2812B Dream Color Strips Can Be Used For TV Hotel, KTV, Bar, Game Room And Other Leisure, Entertainment Decoration To Heighten The Atmosphere, Car Chassis, Car Decoration, Shop Decoration, Home Decoration And Other Decoration.
Product Details:
Input Voltage: DC5V
Power: 30Leds/m----9Watt/meter
60Leds/m----18Watt/meter
144Leds/m----43.2Watt/meter
LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)
LED: Each Led is Separately Controlled
IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)
Of IC: 1 IC Drives 1 Led Chip
Pixels: 30/60/144/Meters
Pitch: 16.6mm(1000/64)
Grey Scale: 256
Bits/Color: 8-Bits/Color
FPC Width: 30Leds/m----10mm
60Leds/m----10mm
96Leds/m----10mm
144Leds/m----12mm
FPC color: Black/White
Protection Rate: IP30/ IP65 /IP67
Colors: Full Color RGB, Dream Color Changing
Cuttable: Every LED is Cuttable
Package:In Anti-Static Bag,IP30 IP65 With 3M Adhensive Tape On The Back(IP67 Without 3M Adhensive)
Package Include:
1m/2m/3m/4m/5m WS2812B Led Strip
