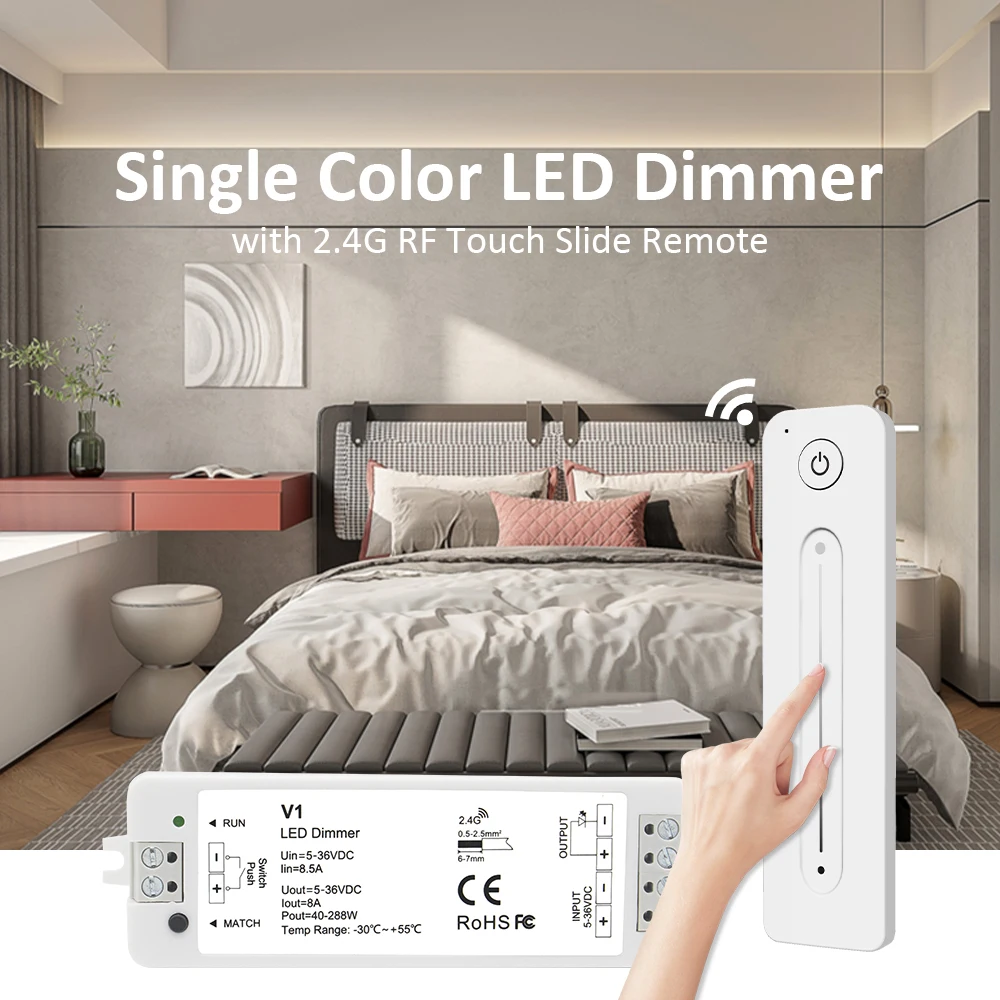

Single Color LED Dimmer 5V 12V 24V 36V 8A Dimming 2835 5050 FCOB Strip Light Controller RF 2.4G Wireless Touch Remote Control V1

Features:
● Remote control or connected with external push switch to achieve on/off and dimming function
● Ultra sensitive brightness adjustment touch slide
● Smooth dimming and switch without any flickering
● Auto-transmitting function: Controller automaticly transmit signal to another controller with 30m control distance
● Synchronize on multiple number of controllers
● Magnet on the back which can be easily stuck on back holder or any metal surfaces
Match Remote Control:
End user must be pair the remote to the receiver before using,the steps as follows:
*** Match:
Short press match key, immediately press on/off key of the remote.
*** Delete:
Press and hold match key for 5s to delete all match,
The light blinks 5 times means all matched remotes
were deleted.
Main Functions:
One V1 receiver can be controlled by max 10 pieces remote within 30m distance

Auto-transmitting:
One receiver can transmit the signals from the remote to another receiver within 30m,
as long as there is a receiver within 30m, the remote control distance can be limitless.
Auto-synchronization:
Multiple receivers within 30m distance can work synchronously when they are controlled
by the same remote.
Receiver placement may offer up to 30m communication distance. However, we recommend for indoor applications
that receiver placements should be no further apart than15m.

V1 (Receiver) and R11 (Sender):

* To extend battery life, no operation after 20 seconds, the touch slide will enter sleep state.
* If the light is on, long press on/off key exceed 1 second, then touch slide to dimming.
* If the light is off, short press on/off key to turn on light, then touch slide to dimming.
***Note: The battery is not included, because of the safety consideration during the shipping, hope you understand.
Back Holder with Magnet

How to connect longer Led strip ?
1pc V1 led dimmer can control max 12v 96w led strip,if you want to control more than 96w led strip light, you have two solution:
1. Buy more V1 receivers,wireless connection, Sync effects 99%.
2. Buy more EV1 LED amplifier, wire connection, Sync effects 100% through the following parrallel connection diagram.

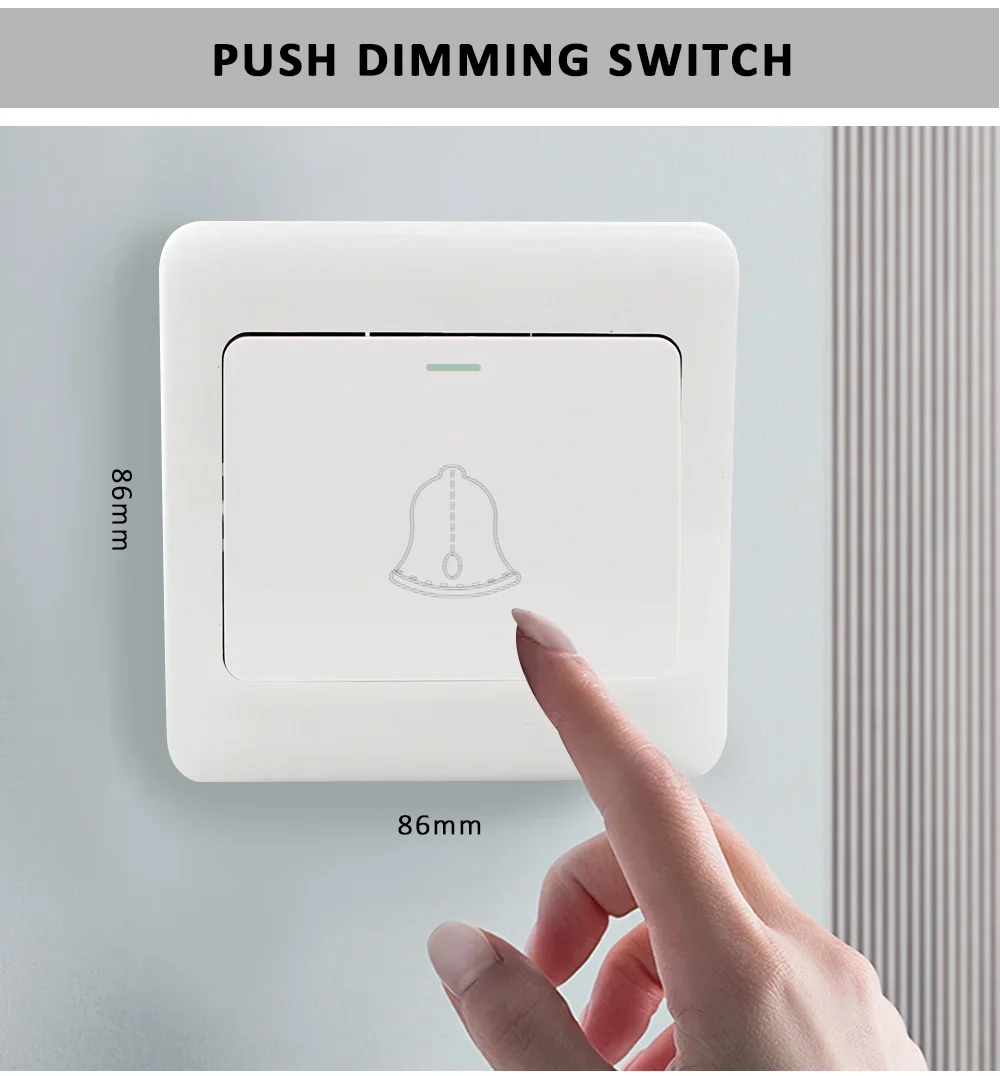

Push Dimming Switch:
You can also add a push switch to realize dimming.
The provided Push-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switchs.
● Short press:
Turn on or off light.
● Long press (1-6s):
Press and hold to step-less dimming,
With every other long press, the light level goes to the opposite direction.
● Dimming memory:
Light returns to the previous dimming level when switched off and on again, even at power failure.
● Synchronization:
If more than one controller are connected to the same push switch, do a long press for more than 10s,then the system is synchronized and all lights in the group dim up to 100%.
This means there is no need for any additional synchrony wire in larger installations.
We recommend the number of controllers connected to a push switch does not exceed 25 pieces,
The maximum length of the wires from push to controller should be no more than 20 meters.
