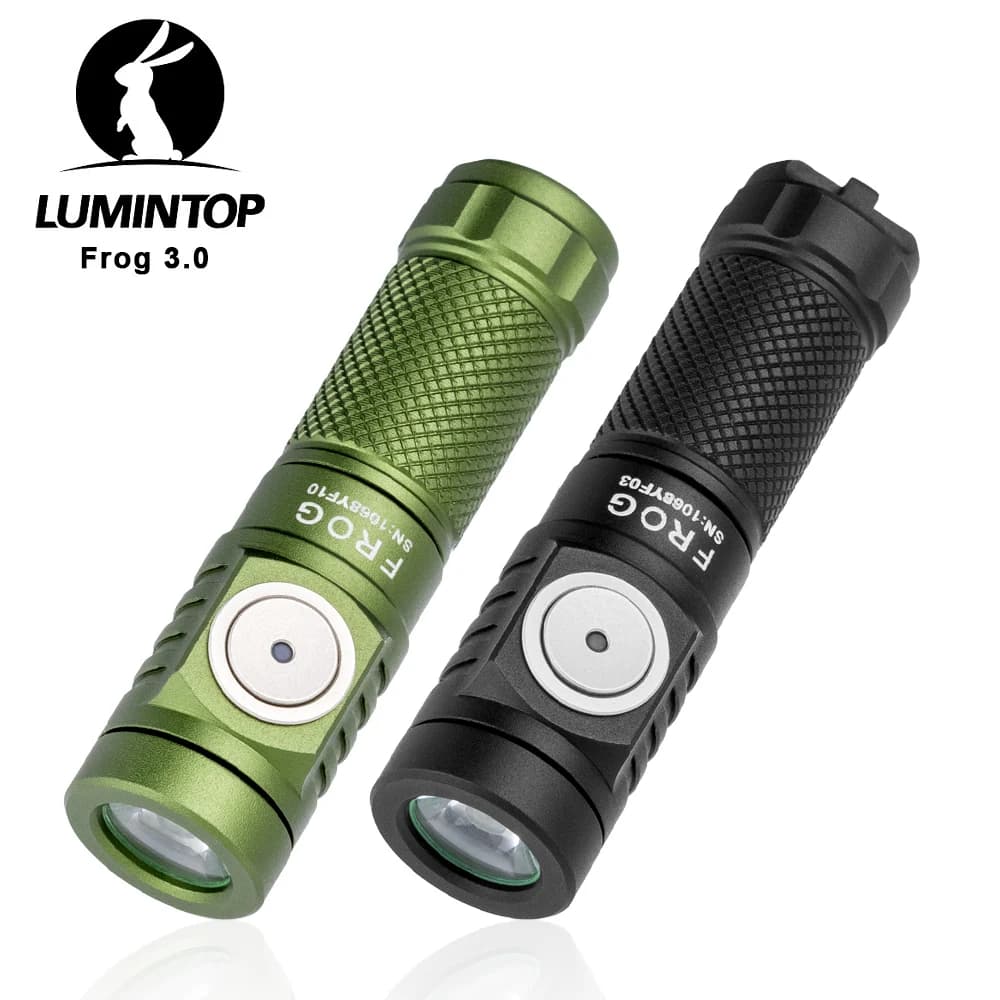

EDC LED Outdoor Flashlight USB C Rechargeable Lamp Camping Lantern Keychain 10280/10750 Li-ion Battery High Power Torch Frog 985

Operation Instructions

! Note: Please remove the insulation sheet inside the flashlight before the first use.
General Modes: Low, Medium, High (with mode memory)
Hidden Modes: Moonlight, Turbo, Blinking Modes
1. ON/OFF: Click the switch once.
2. Output Change:While the flashlight is ON, press and hold the switch to cycle through the output levels (Low, Medium, High). Release the switch to select the desired level.
3. Moonlight: Press and hold the switch from OFF.
4. Turbo: Quickly double-click the switch.
5. Blinking Modes: Triple-click the switch to enter Strobe mode. Another triple-click will change the blinking modes (SOS, Beacon, Strobe).
6. Lock-out/Unlock: Quadruple-click the switch from OFF. In lock-out mode, momentary ON is available by pressing the switch.
7. Switch BacklightON/OFF: Click the switch seven times from OFF to toggle the backlight.

Intelligent Mode Memory Function

The flashlight will remember and recall the last used general output level when turned on again, excluding the hidden modes.

USB-C Charging

1. Rechargeable via a built-in USB-C charging port.
2. Built-in overcharge protection to prevent overcharging.
3. The indicator light is green when the voltage is sufficient and red when the battery is low.
4. The charging indicator is red during charging and turns green once fully charged.
5. After charging is complete, remember to replace the rubber cover to maintain the waterproof capability.

Multiple Protection Functions

1.Overcharge Protection to prevent damage to the battery fromovercharging.
2.Over-Discharge Protection to prevent damage to the battery from over-discharge.
3.Reverse Polarity Protection to prevent damage to the flashlight from incorrect battery installation or short circuit.
4.Overheat Protection: When the flashlight's temperature is high, it will automatically reduce the output to prevent overheating and ensure comfortable use.
5.Low Voltage Protection: When the voltage drops, the flashlight will reduce the output and eventually shut down automatically.
