GLEDOPTO ZigBee 3.0 Pro+ LED Controller 5 in 1 RGB CCT RGBW RGBCCT Strip Light Dimer Alexa Homey Tuya Smart APP Voice Control

PLEASE NOTE: In order to maintain the smoothness of the maximum brightness, all lamp beads will not reach maximum brightness at the same time. When used it is usually warm white + cool white = 100% brightness, such as 100% warm white + 0% cool white, or 50% warm white + 50% cool white. Instead of 100% warm white + 100% cool white.

Please kindly note that our zigbee devices(Zigbee/Plus/Pro version Products) require related zigbee gateways.

If you don't have any gateway, please buy one 2.4G RF remote control or wall switch to work with Plus/Pro Version Products.

The Remote Control and Wall Switch is 2.4G RF, only work with Plus/ Pro Version Products.(Not ZigBee)

Total output current 20A Max:

The maximum total current is 20A, and the maximum single channel current is 15A. It can connect longer strip lights, such as 15-20 meters. Please note that due to the physical phenomenon of voltage drop, strip lights exceeding 20 meters may result in insufficient voltage and insufficient brightness at the end of the strip light.

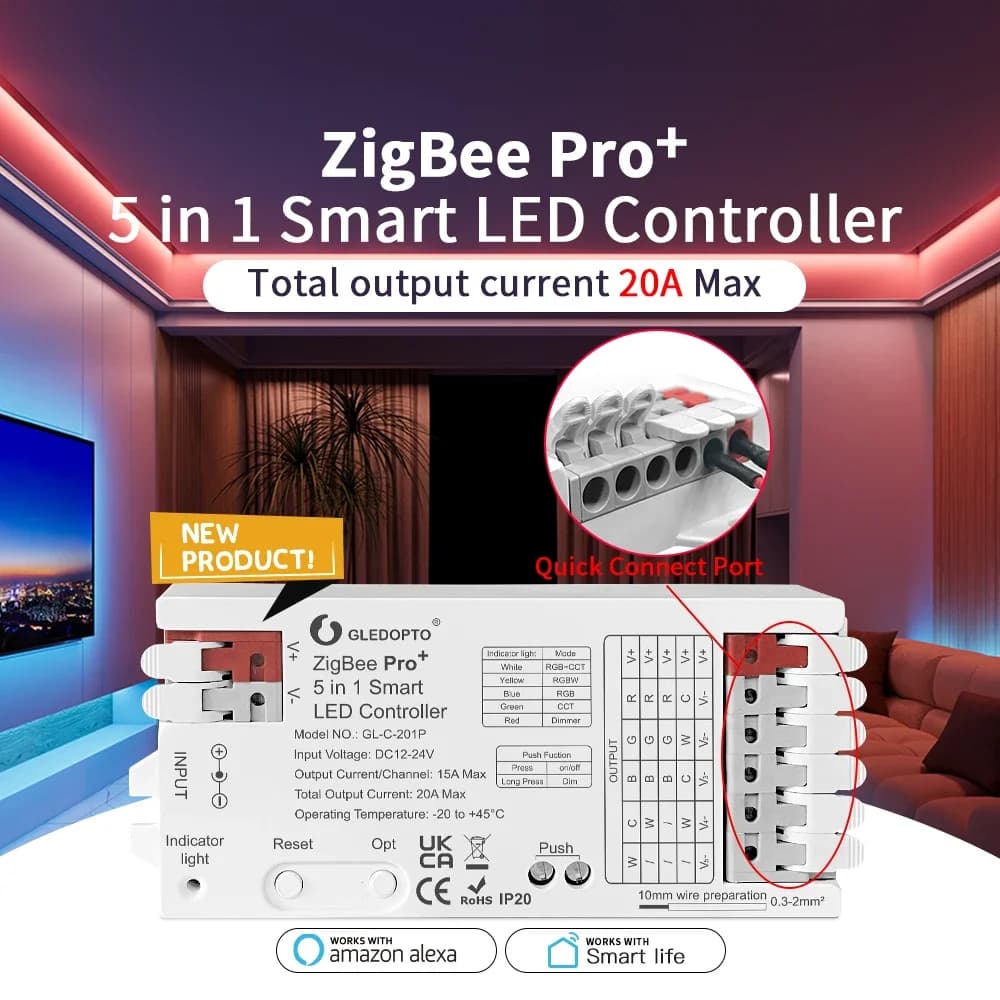

Quick Cnnect Port Design:

1.Open the connector upwards.

2.Press down after inserting the wire.

3.Wiring is complete, and the product is ready for use.

5 in 1 Five Modes:

There has five modes to connect with led strip: RGBCCT/RGBW/RGB/CCT/Dimmer, and different color indicator correspond to different functions.

You can click the "opt" button, short press once to switch one of functions that you want according to the different indicator color, then you can connect between the inport of controller and corresponding wires of your led strip.

Power-on Status Settings:

Long press "opt" button for more than 5 seconds, the indicator will flash in light blue color and resume to previous color after "off" for 4 seconds to complete power-on status setting.

The default power-on status is light on.The indicator flashing 3 times, in light blue means lighting on under power-on status, flashing 4 time in light blue means light off under power-on status.

Selectable Frequency:

In order to be applicable to different power supplies, the frequency of device is selectable as 600Hz、800Hz、1000Hz、2000Hz、4000Hz、8000Hz with default frequency 1000HZ.

Once short pressing “Reset” key, the frequency will switch into the next one.

The indicator will flash in White color and resume to previous color after “off” for 2 seconds.

(There has specifications in user manual.)

Support Tuya /SmartThings /H*ue /Homey/ Echo Alexa App control. Support APP smart life app control in Android/IOS Phone.(There are some compatibility issues with IK*E*A at present)

Support voice control by Alexa Echo/Google Home via SmartThings hub or Tuya Zigbee hub.

Support 2.4G RF remote control directly, without zigbee hub.

Group: Create Rooms, divide your lamps into one or several rooms, to control lamps in each room together or separately.

16 million colors for you to choose and make your life colorful, to create a relaxing and quiet atmosphere. Such as living room, kitchen, bedroom and so on.

Q&A or more info, please contact us on line, and we will answer you in time.

Product Name: ZigBee Pro+ 5 in 1 LED Strip Controller(RGBCCT/RGBW/RGB/CCT/Dimmer)

Model No.:GL-C-201P

Voltage: DC12V-24V

Total Current: 20A Max

Current/Channel: 15A Max

Size: 108*45*18mm

Operating Temperature:-20-45°C

1pcs* ZigBee Pro+ LED Strip Controller

1pcs* User Manual

1pcs* 3cm Stricker
