RF Mini Style LED Dimmer KIT Indoor Lighting 12V 24V 1CH Single Color LED Dimming Controller 2.4G Wireless Smart Remote Control

1CH Single Color LED Dimming Controller KIT

● Suitable for 5-36V Single color lamp (WW.NW.CW) indoor dimmable lighting decoration

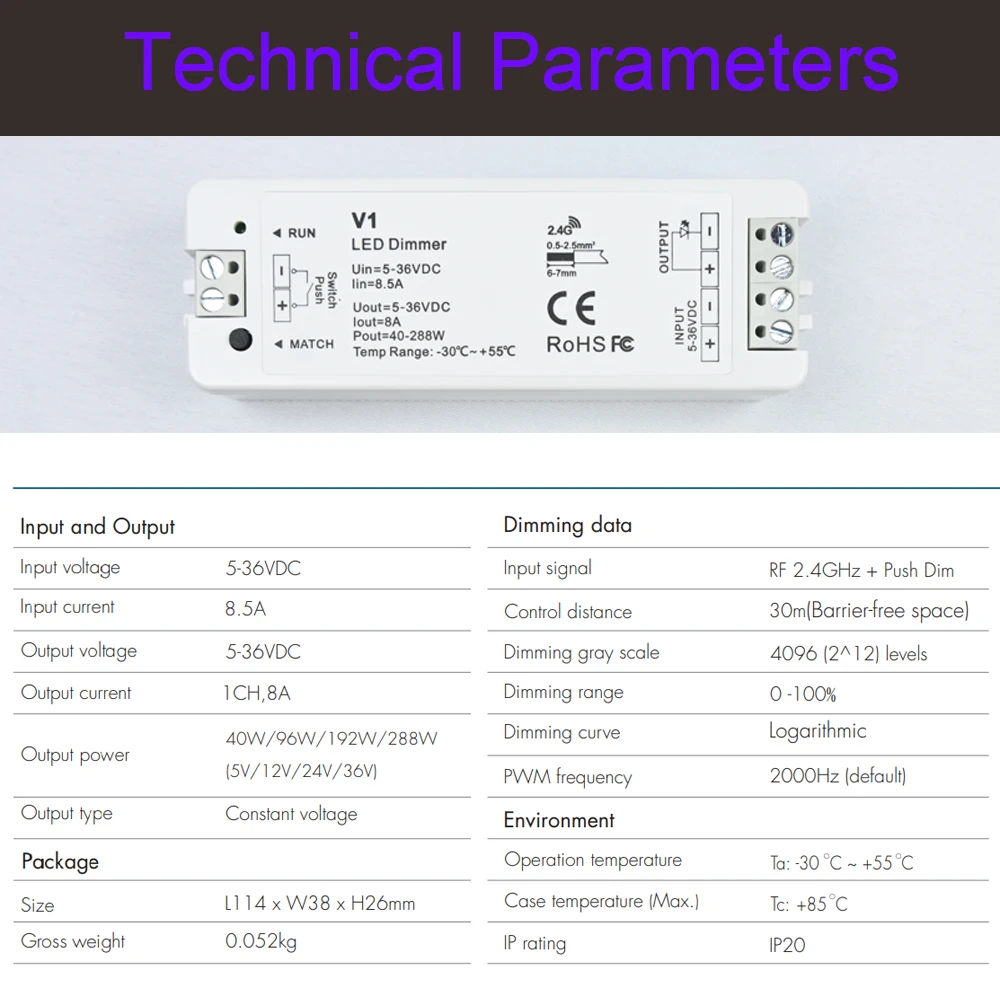

MODEL NO: V1

●1 Channel / Step-less dimming / Wireless remote control /Auto-transmitting / Synchronize / Push Dim / Multiple protection

Features

● 4096 levels 0-100% dimming smoothly without any ash.

● Match with RF 2.4G single zone or multiple zone dimming remote control.

● One RF controller accept up to 10 remote control.

● Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.

● Synchronize on multiple number of controllers.

● Connect with external push switch to achieve on/off and 0-100% dimming function.

● Light on/off fade time 3s selectable.

● Over-heat / Over-load / Short circuit protection, recover automatically.

MODEL NO: RK4-1

Features

● Apply to single color LED controller.

● Each remote can match one or more receiver.

● CR2032 battery powered.

● Operate with LED indicator light.

● Magnet on the back which can be stuck on back holder

Our products have been sold for more than 2 years. The following are some of the real positive reviews from buyers.

How to match V1 to RK4-1?

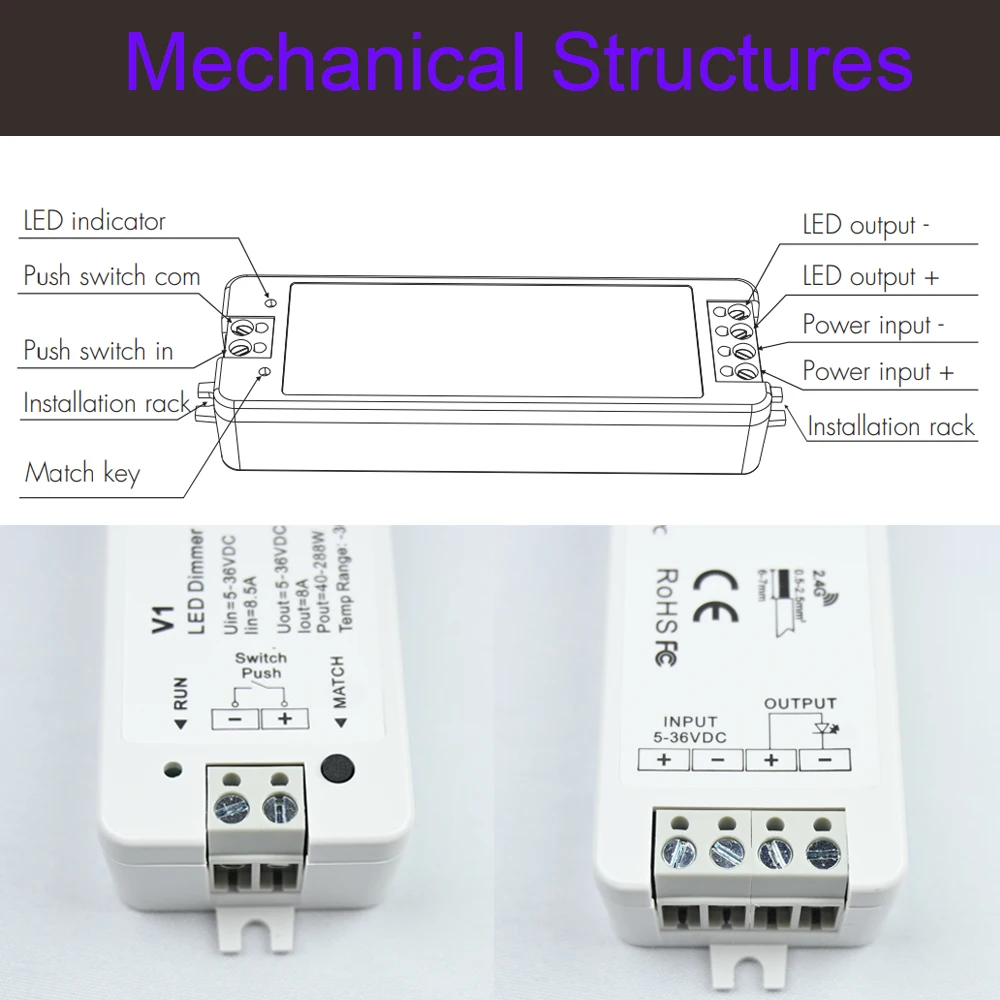

Use the V1’s Match key

Match:

Short press match key(V1), immediately press on/off key (RK4-1)

The V1 LED indicator fast flash a few times means match is successful.

Delete:

Press and hold match key(V1) for 5s to delete all match,

the V1 LED indicator fast flash a few times means all matched remotes were deleted

V1 also has Push Dim Function

The provided Push-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switchs.

● Short press: Turn on or off light.

● Long press (1-6s): Press and hold to step-less dimming, With every other long press, the light level goes to the opposite direction.

● Dimming memory: Light returns to the previous dimming level when switched off and on again, even at power failure.

● Synchronization: If more than one controller are connected to the same push switch, do a long press for more than 10s,then the system is    synchronized and all lights in the group dim up to 100%.

This means there is no need for any additional synchrony wire in larger  installations.

We recommend the number of controllers connected to a push switch does not exceed 25 pieces,

The maximum length of the wires from push to controller should be no more than 20 meters.

Packing List:

●Depends on which you selected.Plaese KIndly check th SKU picture.

●Only V1 = 1pcs V1 only

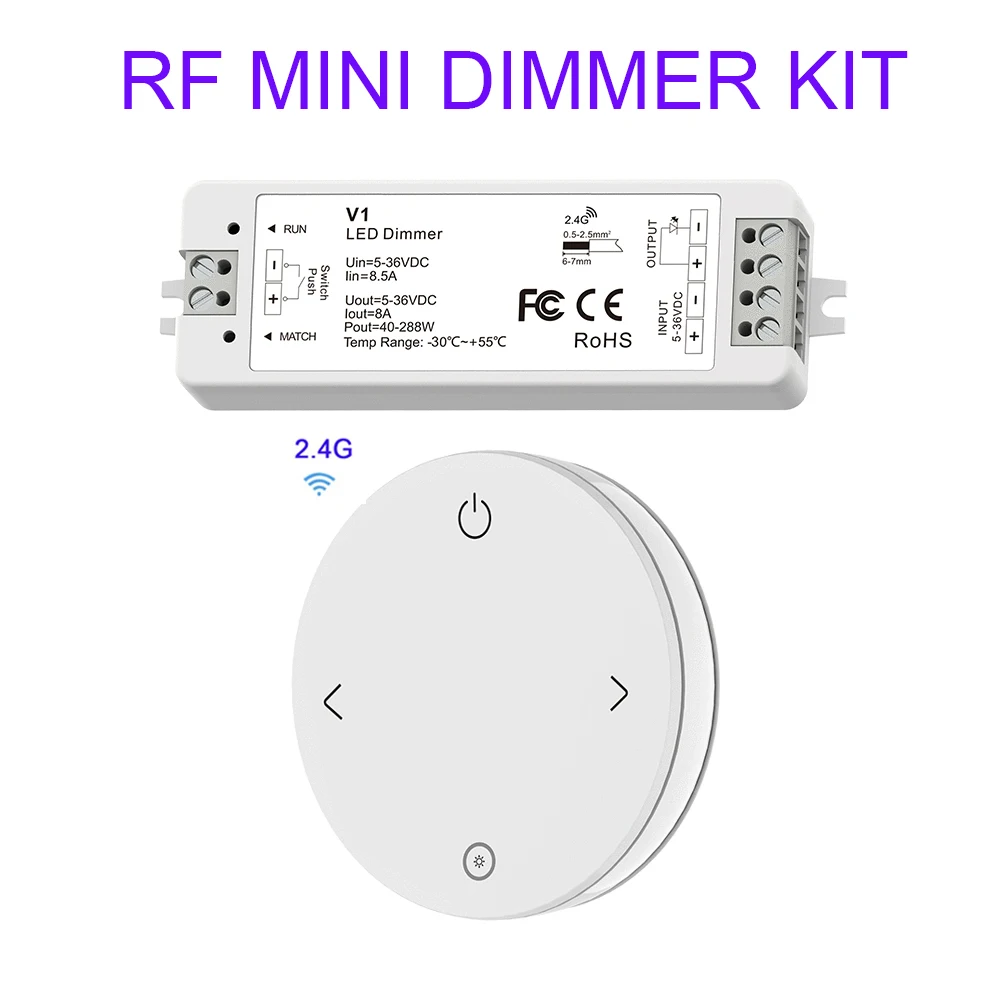

●RF Dimmer KIT=1pcs V1+1pcs RK4-1

Please choose the appropriate KIT according to your needs

For shippment safety, please kindly understand there is no battery included.

Installation Precautions(V1)

1. The products shall not be stacked, the distance should be ≥ 20cm, so as not to affect lifespan of the products due to poor heat dissipation.

2. The product shall not be installed close to the switching power supply with an interval of ≥ 20cm to avoid radiation interference of the switching power supply.

3. The installation height shall be ≥ 1m from the oor to avoid shortening the remote control distance due to too weak reception signal.

4. The products are not allowed to be close to or covered by metal objects, with an interval of ≥ 20cm to avoid signal attenuation and shorten the remote distance.

5. Avoid installation at the corner of the wall or the corner of the beam, with an interval of ≥ 20cm to avoid signal interference.

Safety information(RK4-1)

1. Read all instructions carefully before you begin this installation.

2. When installing battery, pay attention to the battery positive and negative polarity. A long time without the remote control, remove the battery. When remote distance becomes smaller and insensitive, replace the battery.

3. If no response from the receiver, please re-match the remote.

4. Gently handle remote, beware of falling.

5. For indoor and dry location use only.

6. If the LED indicator is not on when press button,it is due to dead battery or bad contact caused by multiple plugging, please replace the battery,or raise the battery shrapnel with a screwdriver
