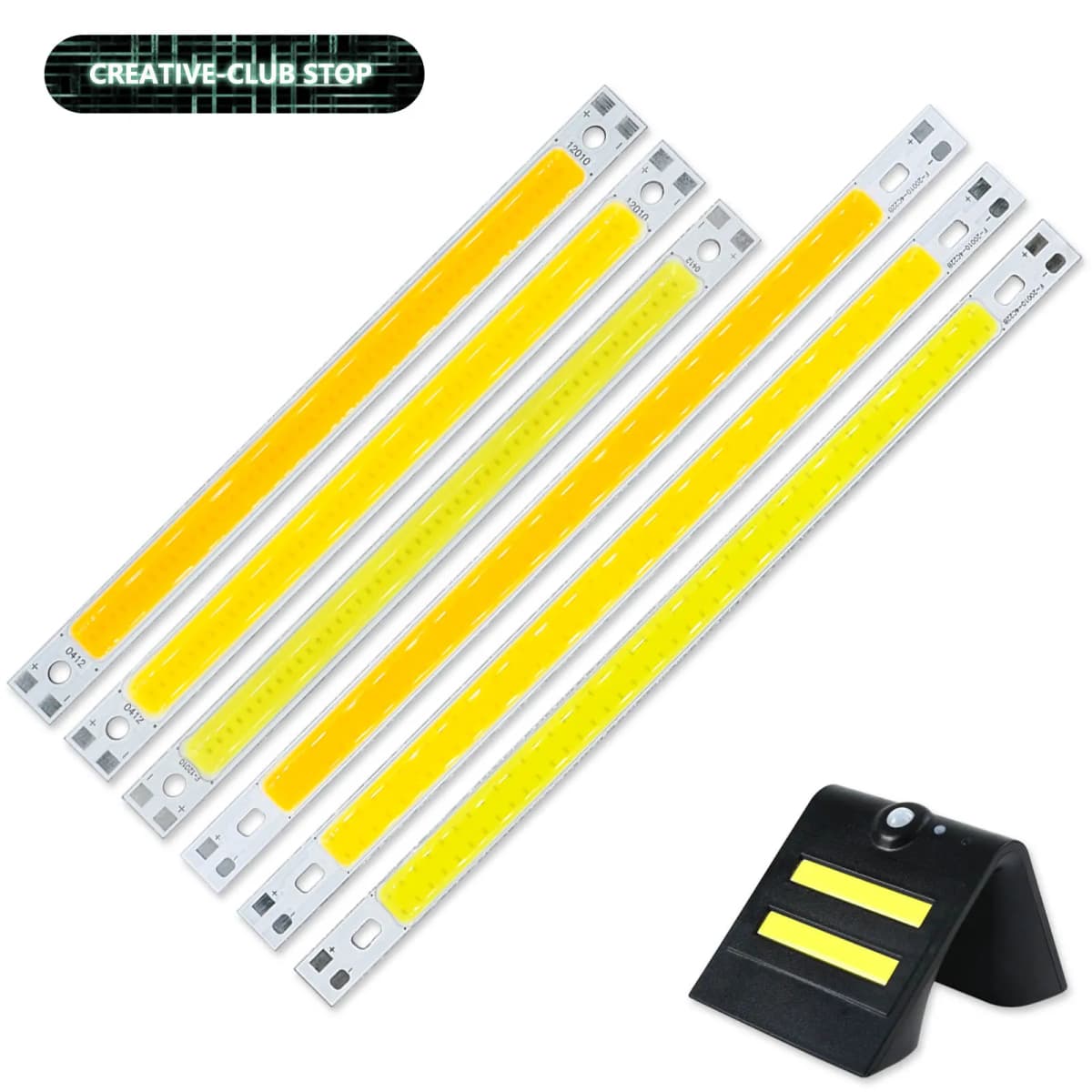

6W 12W 120*10mm 200*10mm LED COB Light Source DC12-14V Warm Natural Cold White 400mA 1000mA Light DIY LED Strip Chip Module Bulb

Product details

6W size: 120*10mm(4.72*0.39inch)

Lighting area: 98*8mm(3.86*0.31inch)

Substrate thickness: 1.2mm

Rated power: 6W

Rated voltage: DC12-14V

Maximum forward current: 400mA

Emission Color (CCT):

_ Warm white (2800-3200K)

_ Cold White (6000-6500K)

_ Natural White (4000-4500K)

Luminous flux:>100LM/W

Launch angle: 120 °

Warranty (course use): 3 years

Attention: Please add necessary heat sinks when using

OEM/ODM: Yes

Application: DIY LED lights for automotive lighting, work lights, street lights, desk lights, wall lights, etc

12W size: 200*10mm(7.87*0.39inch)

Lingting area: 160*8mm(6.30*0.31inch)

Substrate thickness: 1.2mm

Maximum power: 12W

Forward voltage: DC12-14V

Maximum forward current (DC): 1000mA

Color and color temperature:

Warm white: 2800-3200K

Natural white: 4000-4500K

Cold white: 6000-6500K

Luminous flux: 1000-1200LM

Launch angle: 120 °

Warranty (course use): 3 years

Attention: Please add necessary heat sinks when using

OEM/ODM: Yes

Application: DIY LED lights for automotive lighting, work lights, street lights, desk lights, wall lights, etc
