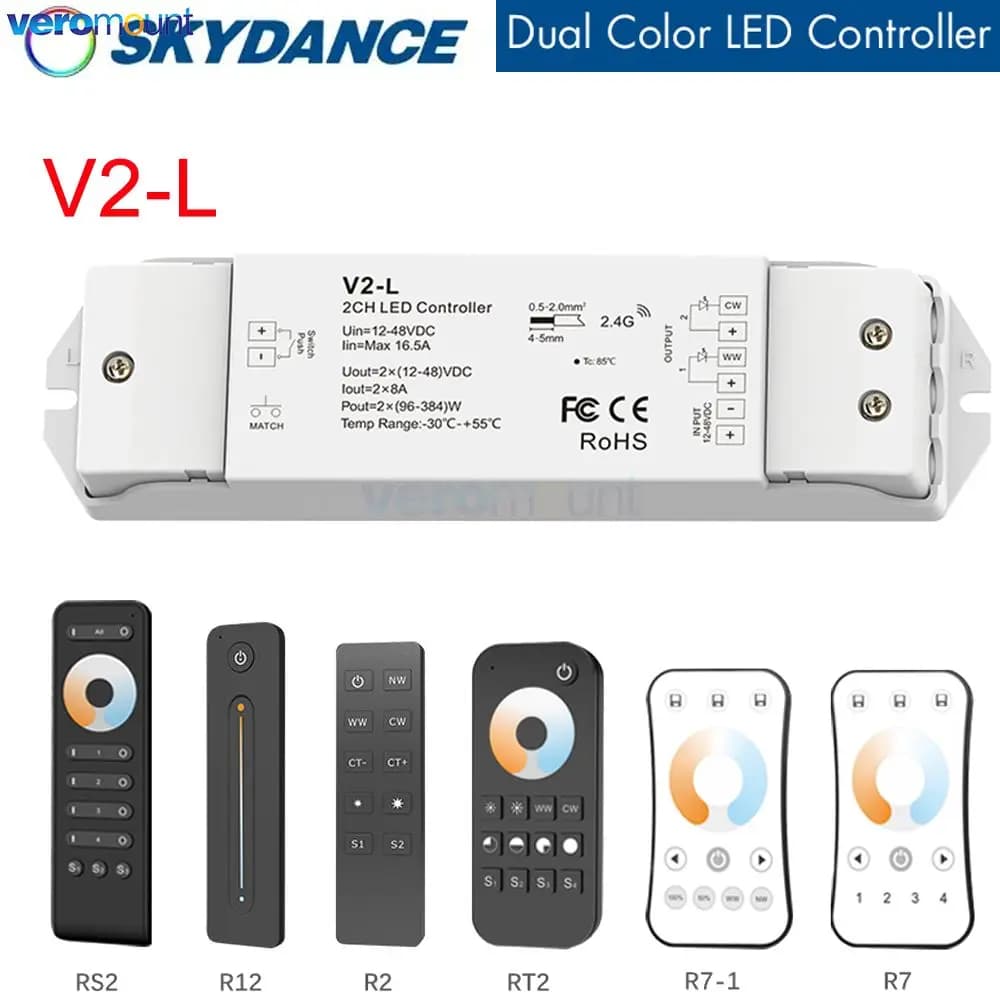

Skydance V2-L LED Dimmer Switch CCT 12V 24V 36V RF Wireless 2.4G Remote Smart 2CH WW CW LED Controller for Dual Color LED Strip

Features:
● RF controller with 2 channel PWM constant voltage or constant current output.
● Default as dual color(WW/CW) controller, need match dual color RF remote.
● Can also be used as single color dimming controller, strong compatibility.
● Smooth dimming and switch without any flickering.
● Full compatibility with a variety of single color, dual color RF remote.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● One receiver can accept up to 10 remote control.
● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.
● Work with power repeater to expand output unlimitedly.

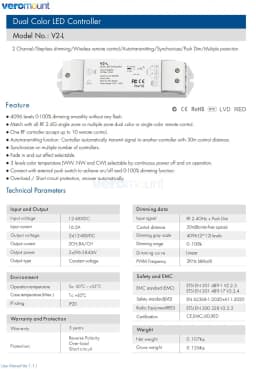

Technical Parameters:
V2-L (Receiver)
Model：V2-L （constant voltage led dimmer )
Input Voltage: 12-36V DC
Output current: 2CH,8A/CH
Output power: 2x(96-288)W
Output type: Constant voltage
Size(mm): 175x45x27

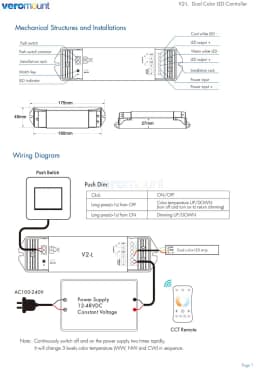

How to Connect to WW+CW LED Strip Lights ?

Match guide:
V2-L receiver match with all kinds of skydance single or multiple zone 2.4G RF remote controller.
After match different color RF remote, the receiver become the same color controller.
1. Match: Short press match key, within 5s, press on/off key or zone key of the remote.
2. Delete: Long press match key for 5s, delete all matched remote.
3. Multiple zone remote only use zone key to match each zone receiver.
External push switch:
● On/Off
1. Short press: Turn on/off light.
2. Long press(1-5s): When light is on, increase or decrease brightness continuously.
3. Long press(10s): When multiple controllers share a on/off key, achieve simultaneous adjustment.
● Scene
1. Short press: Select 8 scenes.
2. Long press(10s): When multiple controllers share a scene key, achieve simultaneous select.

V2-L controller need to work with Skydance 2.4G RF dual white remote:

Match Guide:
The dimmer can match with all kinds of single or multiple zone 2.4G RF dimming remote controller.
Choice 1: Use Match key
1. Match: Short press match key, within 5s, press on/off key of the remote.
2. Delete: Long press match key for 5s, delete all matched remote.
Choice 2: Use Power-up
1. Match: Switch off the power, then switch on power again,short press on/off key 3 times on the remote quickly within 5s after power on, the link is done once the light blinks 3 times.
2. Delete: Switch off the power, then switch on power again,short press on/off key or zone key 5 times on the remote quickly within 5s after power on,the unlink is done once the light blinks 5 times.

Package Include:
as selected!
