Resolume & M5 12Ports Artnet To SPI Pixel Controller Control WS2811 WS2812 DMX512 For Led Strip Light

Resolume / M5 Artnet To SPI Pixel Controller 12Port 12240 Pixels Control WS2811 WS2812 DMX512 For Led Strip Light

Introduction:

This is a 12-port online or SD card offline controller. With 12 groups of output ports, can support DMX512, SPI type lamps, such as: TM1812, WS2811, UCS2903, UCS9812, SM17512 and other IC widely used in the industry.

The Controller uses FPGA as the core processor, and realizes high load, high frame rate, high gray scale and high synchronization control with the super parallel data computing capability of FPGA.

The realization of a single station carrying 12K pixel point is very conducive to the construction of the engineering site wiring.

The controller has an Ethernet interface, supports ART-NET, GC-NET standards,Users can connect to the controller via Ethernet and preview online. In ART-NET mode,support 72 DMX512 universes.

The controller has external DMX512 trigger function, can access control console and KTV intelligent lighting control box, very suitable for bar, KTV room lighting control, accept the command call program, adjust speed, brightness, special effects, support up to 13 channels OF DMX512 instruction.

The controller supports the multi-function editing software "ShadowDraw"
independently developed by our factory, Polar Color technology provides software tools that allow users to simply record M5.0 effect files for offline playback.

it has been widely used in KTV, bars, office buildings, hotels, shop signs and other LED lighting projects.

Function Features:

FPGA as the core processor, to achieve high load, high speed, high gray, high synchronization control.

Offline SD card controller, plug and play.

OLED display screen, display parameters and address code, quick button setting address code and parameters.

Support 12 port output, each port support 1024 pixels, single support 12K pixels.

Can support a variety of lighting driver IC: DMX512, UCS series, TM series, LX series, GW series, TLS series, MY series and so on.

The output interface is compatible with RS485 signal and SPI (TTL) signal.

Support RGBW four-color control and a variety of special control, RGBW can choose energy-saving mode and brightening mode.

Up to 65536 gray level control, built-in user - defined gamma correction curve.

Support SD cards of various capacities, such as 128M-32GB, and supports a maximum of 64 scenario files.

Can be triggered by external DMX512 console for extended use.

Support MIX、Grouping by external DMX512 console.

Support M5.0 online Preview, can record ARTNET scene files.

Support LEDview online Preview, can Generate SD scene file.

Product Parameter:

Working Voltage：AC 90-240V
Power Consumption：3W
Input trigger interface：RJ45（DMX512）
Ethernet interface： RJ45（10M/100M）
Output port: 12 ports
Control Qty/Port:1024 pixels
Output Signal：DMX512/SPI(TTL)
Working Temperature：-20℃～65℃
Dimension:：L250×W175×H35 mm
Weight (G.W):1.3 Kg

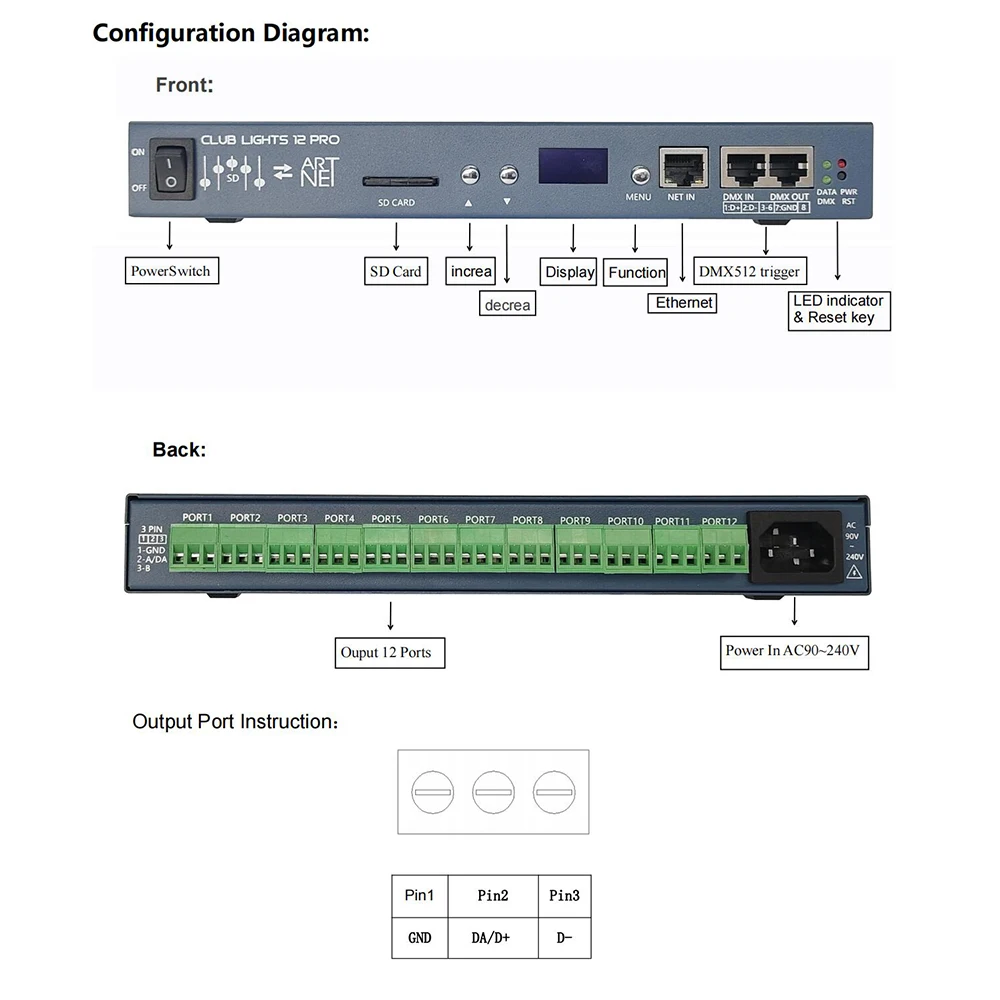

Application diagram:

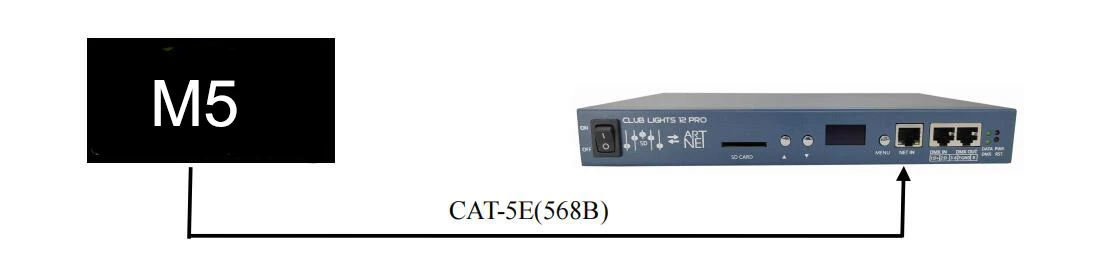

Application 1: M5.0 directly connect Controller online ARTNET preview debugging

Standard Ethernet cable CAT5E- 568B. 100M Ethernet

The CONTROLLER IP address default 192.168.1.11

Output 12 ports, 6 universes/Port, one universe is 170 pixels.

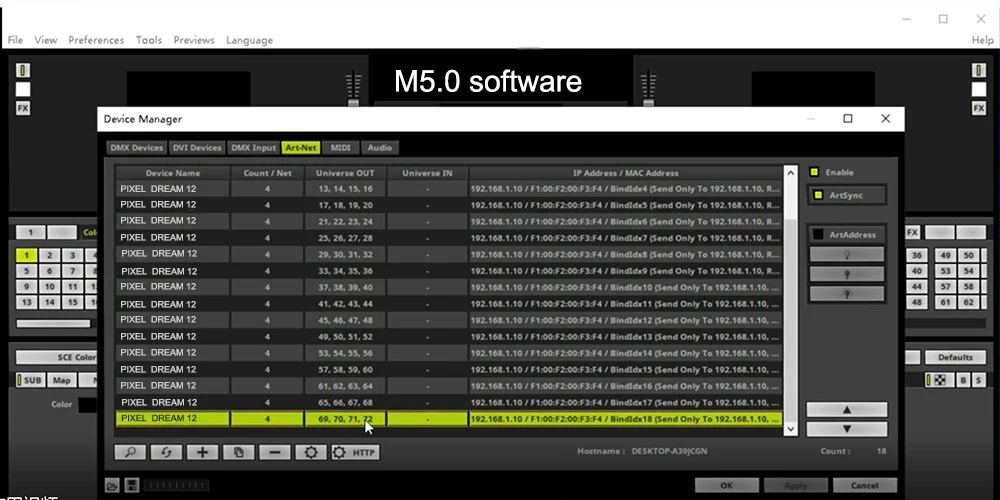

Connect M5, search the device can be used.

After connecting M5 debugging preview, we can use the recording tool torecord ARTNET data package and generate offline copy card file.

Application 2:

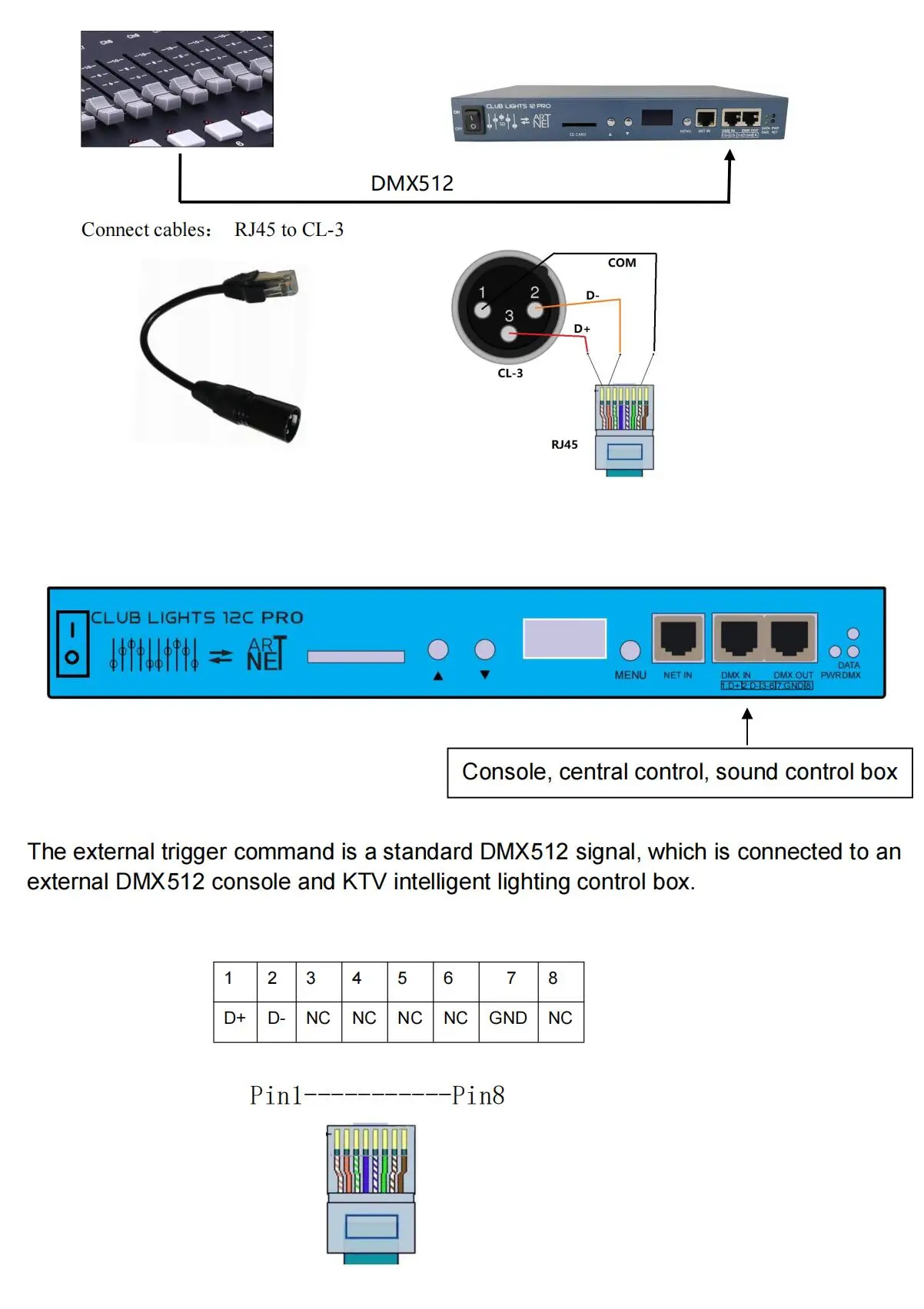

Controller connects to DMX512 console

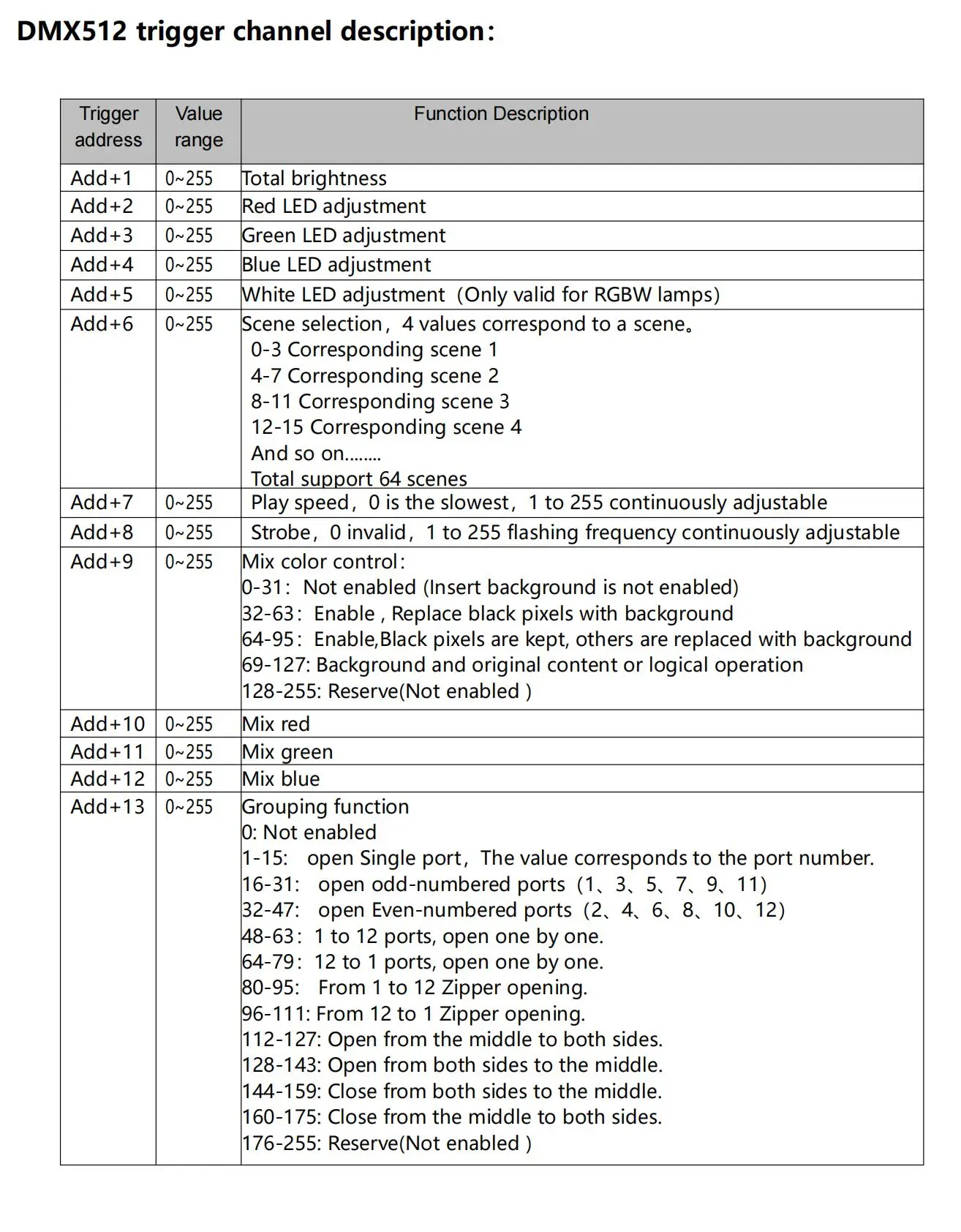

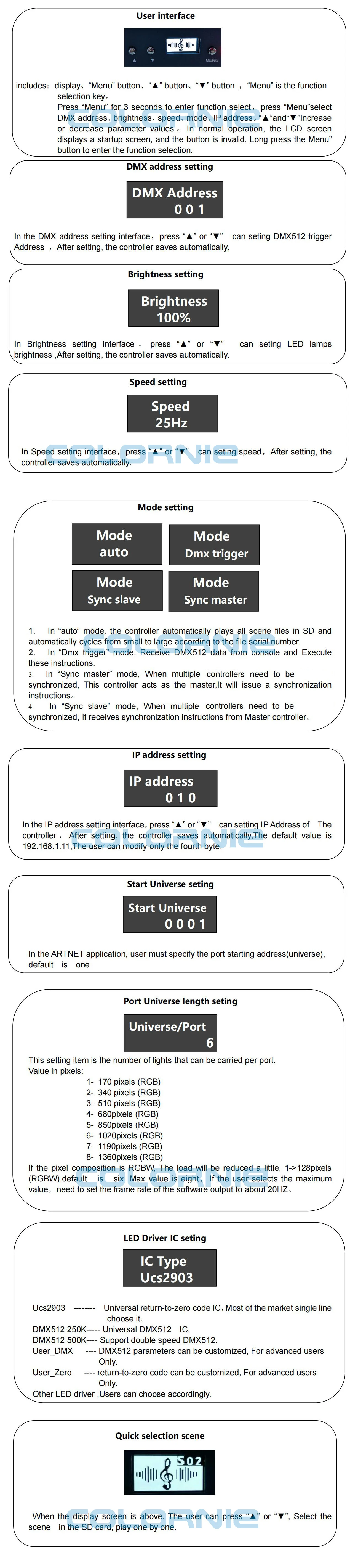

Button Instruction:
