TUYA WiFi 5 In 1 LED Controller KIT RF 2.4G Glass Wall Mounted Touch Panel RGBCCT LED Smart Dimming Control DC 12V 24V Dimmer

WiFi & RF 5 in1 Control Wall Mounted Touch Panel RGBCCT LED Dimming Controller KIT

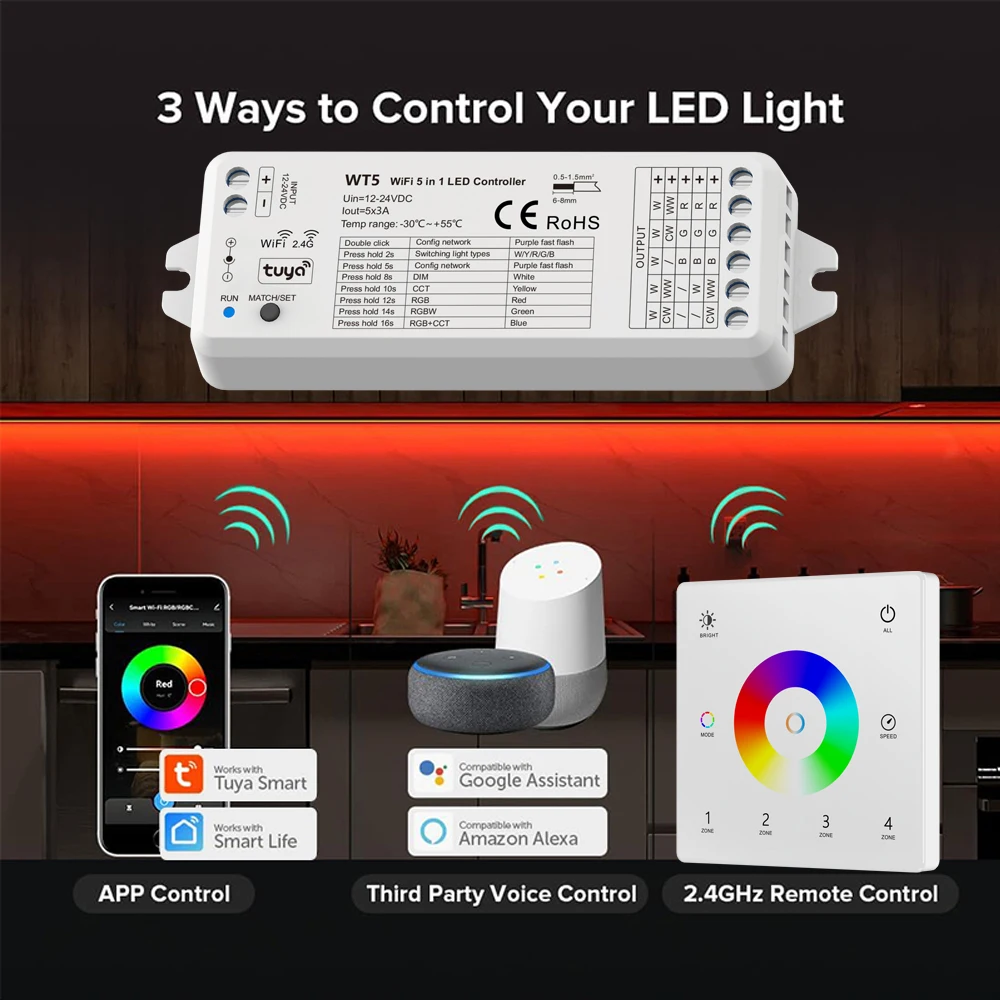

WiFi & RF 5 in1 LED Controller

Model NO:  WT5

● 5 in 1 function, used for control RGB, RGBW, RGB+CCT, color temperature or single color LED strip.

● DC power socket input and 5 channel constant voltage output.

● Tuya APP cloud control, support on/off, RGB color, color temperature and brightness adjust, delay

turn on/off light, timer run, scene edit and music play function.

● Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie

and Xiaodu smart speakers.

● Match with RF 2.4G TW5 WT5-4 remote control optional.

● User need set light type by press key before Tuya APP network connection

and match RF remote of the same light type.

● Each WT5 controller can also work as WiFi-RF converter,

then use Tuya APP to control one or more RF LED controller or RF LED dimming driver synchronously.

● Light on/off fade time 3s selectable.

Wall Mounted Touch Panel

Model NO:  TW5(1 zone)      TW5-4(4 zone)

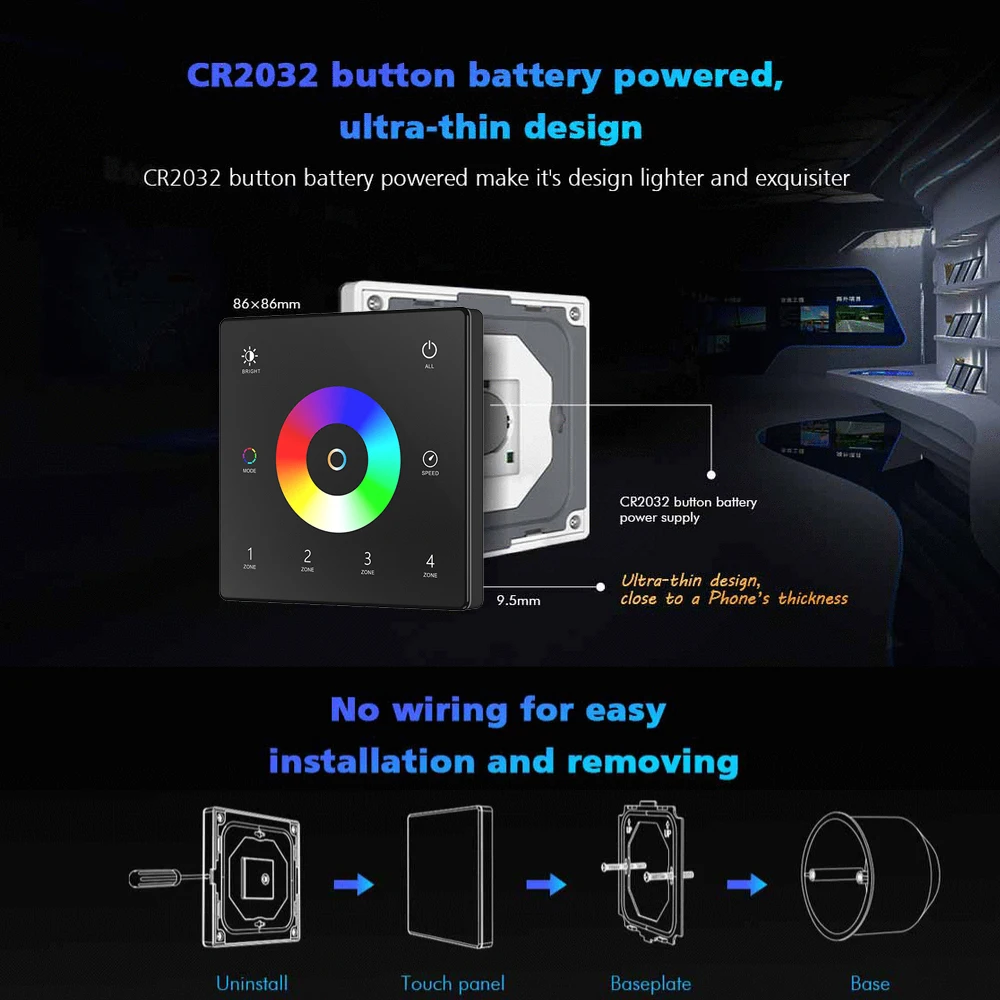

● Wall Mounted Touch Panel

● Touch panel 1-5 color RF remote.

● Each Touch panel can remote control multiple WT5 viaRF 2.4G

● Ultra sensitive high strength glass touch panel with touch color wheel in the middle.

● Touch keys with LED indicator.

● Free installation, no wiring, removable.

● CR2032 battery powered.

● White & Black available

Our products have been sold for more than 2 years. The following are some of the real positive reviews from buyers.

How to connect WT5 to Tuya APP??

Please download the corresponding tuya/smart life app according to your region.

Push twice Match/Set key fastly, or when press and hold Match/Set key for 8-16s to set 5 kinds light type:

Clear previous network connection, enter Smart config mode, the purple LED indicator flash fastly,

the output LED will flash 10 times.

Press and hold Match/Set key for 2s:

Switch 5 kinds light type in sequence, notice this operation does not automatically clear previous network connection.

Press and hold Match/Set key for 5s:

Clear previous network connection, enter AP config mode, the purple LED indicator flash slowly.

If smart config failed, please try AP config.

Repeat power on and off for 5 consecutive times, also clear previous network connection, enter Smart config mode, the output LED will flash 10 times.

If Tuya APP network connection succeed, the RUN LED indicator will stop flash purple, and turn corresponding light type color

(White: DIM, Yellow: CCT, Red: RGB, Green: RGBW, Blue: RGB+CCT). and in Tuya APP, you can find RGB+CCT device(or other DIM, CCT, RGB or RGBW).

How to connect WT5 to TW5(TW5-4)

Use the WT5’s Match key

Match:

Short press match key of WT5,

immediately press on/off key (TW5)

or zone key (TW5-4) on the remote.

The LED indicator fast flash a few times means match is successful.

Delete:

Press and hold match key of WT5 for 20s,

The LED indicator fast flash a few times means all matched remotes

were deleted

WT5 Match with RF 2.4G TW5 WT5-4 remote control optional.

Packing List:

The package contents depends on the type you selected.

The Set with 1 X WT5 + 1 X Remote , kindly check the model carefully before the payment.

WT5 Only= 1 X WT5 Controller

Note:

The parcels is not with battery for safety shipping.(TW5  TW5-4)

Installation Precautions(WT5)

1. The products shall not be stacked, the distance should be ≥ 20cm, so as not to affect lifespan of the products due to poor heat dissipation.

2. The product shall not be installed close to the switching power supply with an interval of ≥ 20cm to avoid radiation interference of the switching power supply.

3. The installation height shall be ≥ 1m from the oor to avoid shortening the remote control distance due to too weak reception signal.

4. The products are not allowed to be close to or covered by metal objects, with an interval of ≥ 20cm to avoid signal attenuation and shorten the remote
distance.

5. Avoid installation at the corner of the wall or the corner of the beam, with an interval of ≥ 20cm to avoid signal interference.

Safety information(TW5 TW5-4)

1. Read all instructions carefully before you begin this installation.

2. When installing battery, pay attention to the battery positive and negative polarity.

A long time without the remote control, remove the battery.

When remote distance becomes smaller and insensitive, replace the battery.

3. If no response from the receiver, please re-match the remote.

4. Gently handle remote, beware of falling.

5. For indoor and dry location use only.
