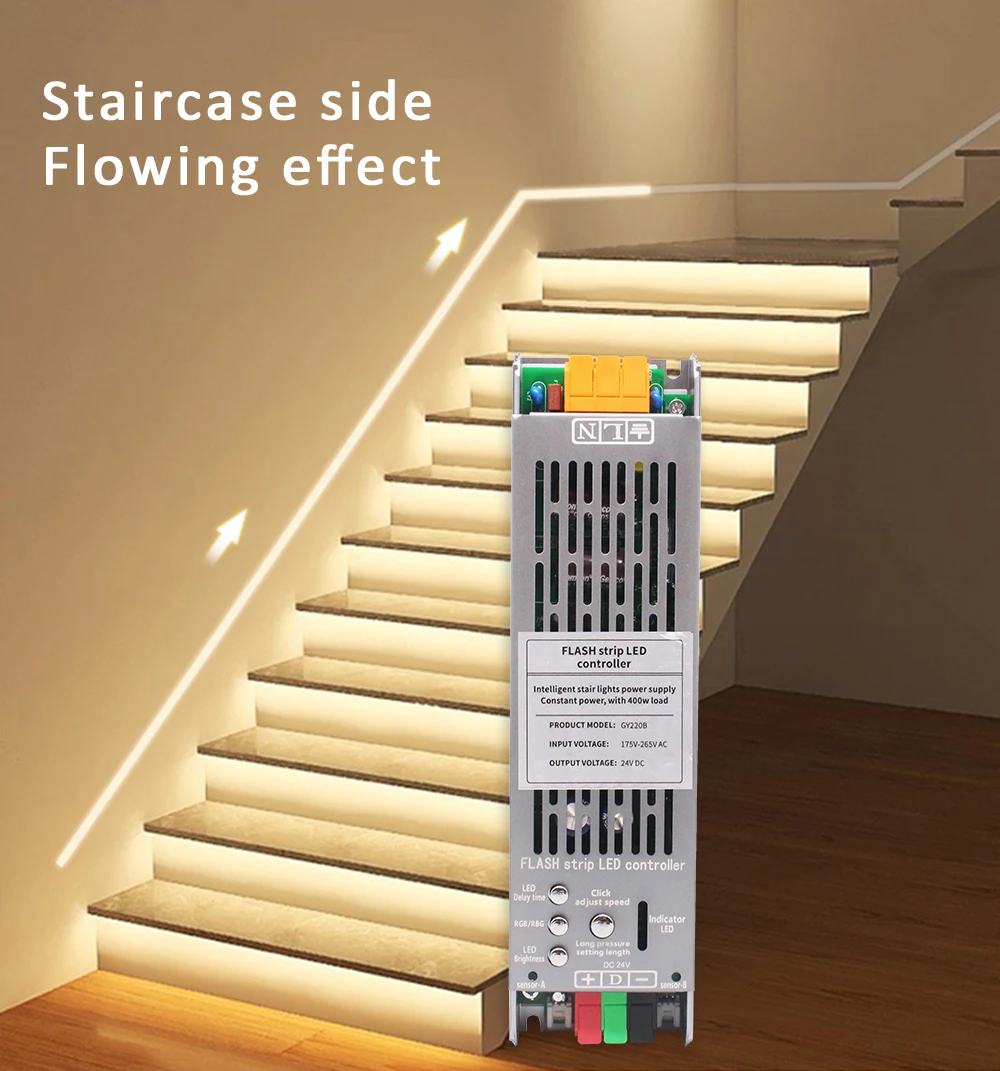

5M 10M 15M WS2811 COB Running Water Strip Light for 24V 400W PIR Motion Sensor LED Stair Controller Staircase Lighting Decor

Features:

New Products: Intelligent stair light controller with motion sensor

Design: 2 in 1 ( 24V 400W Power Supply + Stair Light Controller integration), installation is more convenient.

Input Voltage: 175V-265V AC ( 220V,230V is working, 110V is not working)

Output: DC 24V

Max Power: 400W

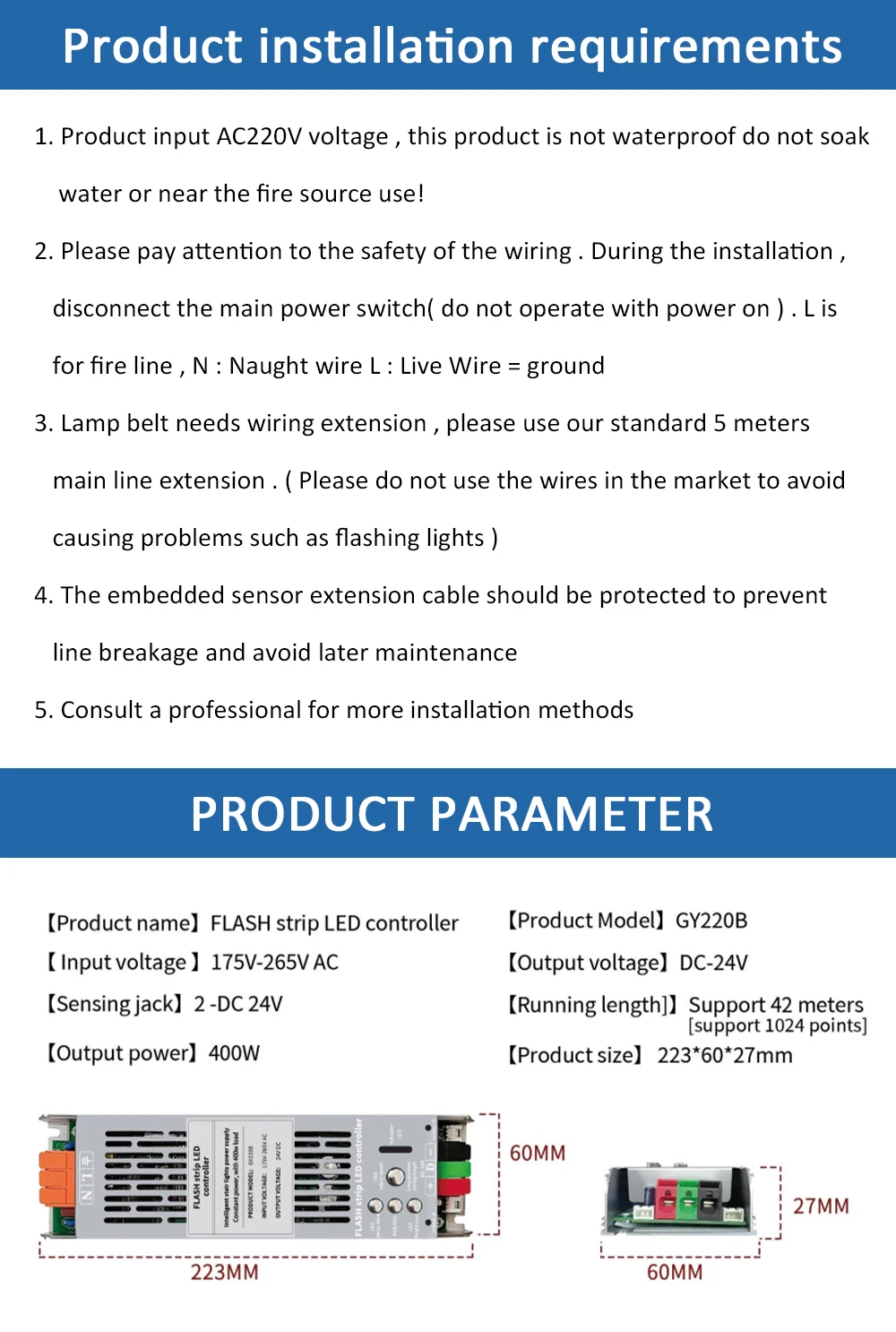

Product size: 223*60*27mm

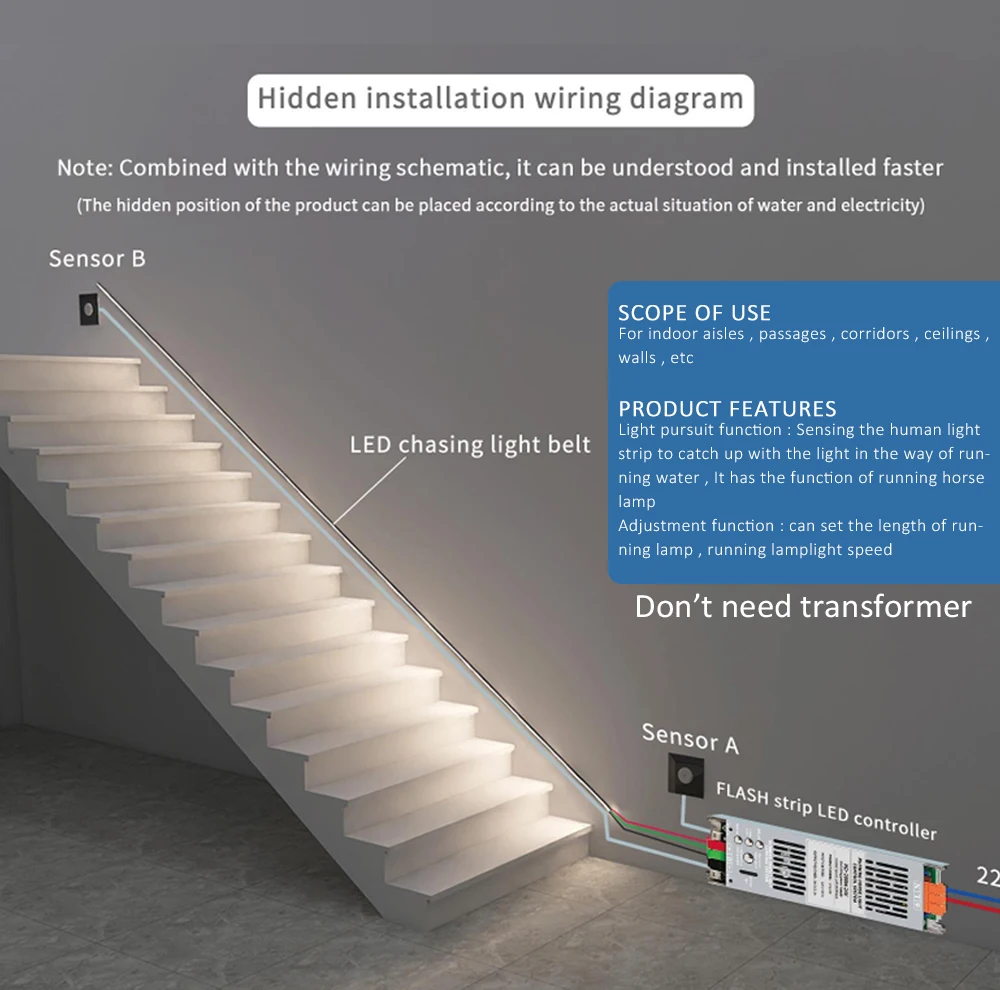

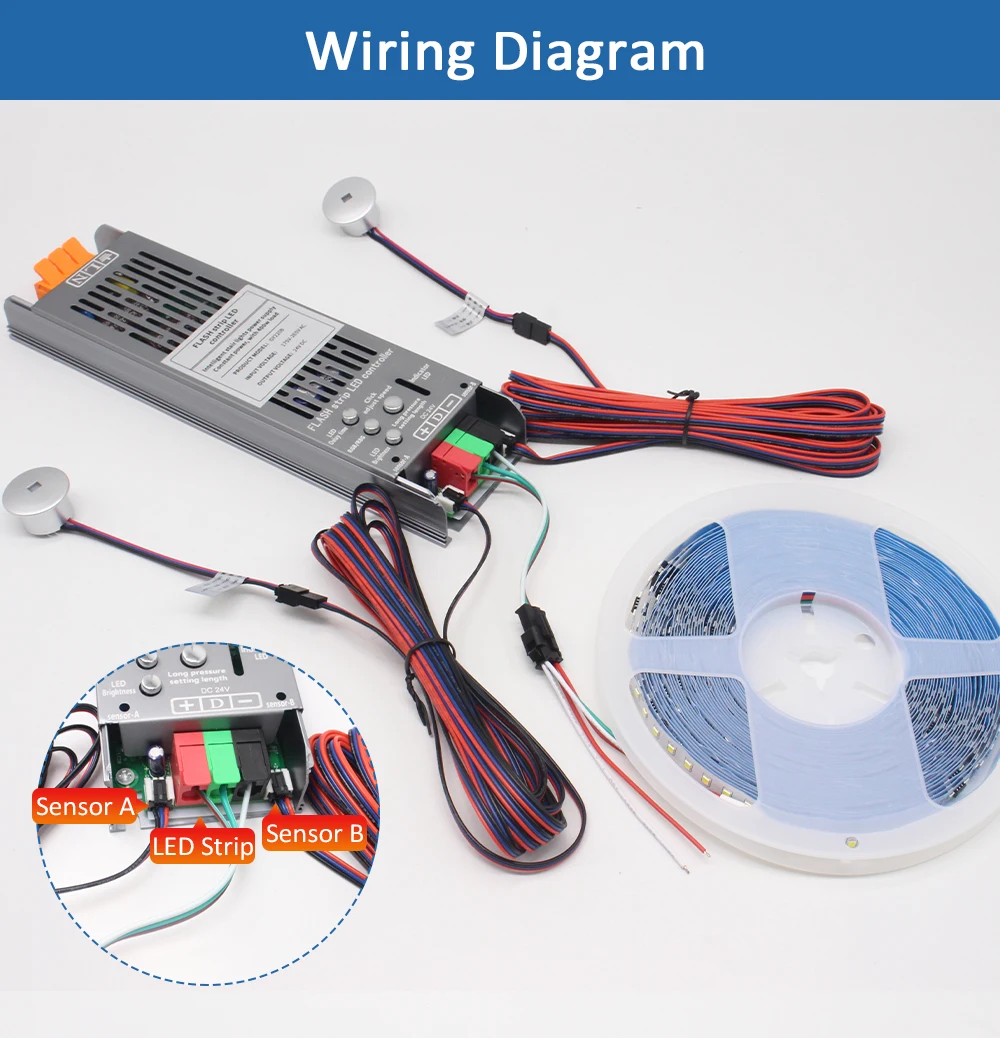

Sensor A: Used for Upstairs

Sensor B: Used for Downstairs

2pcs Extension Cable Length: 5Meters ( Sensor to controller)

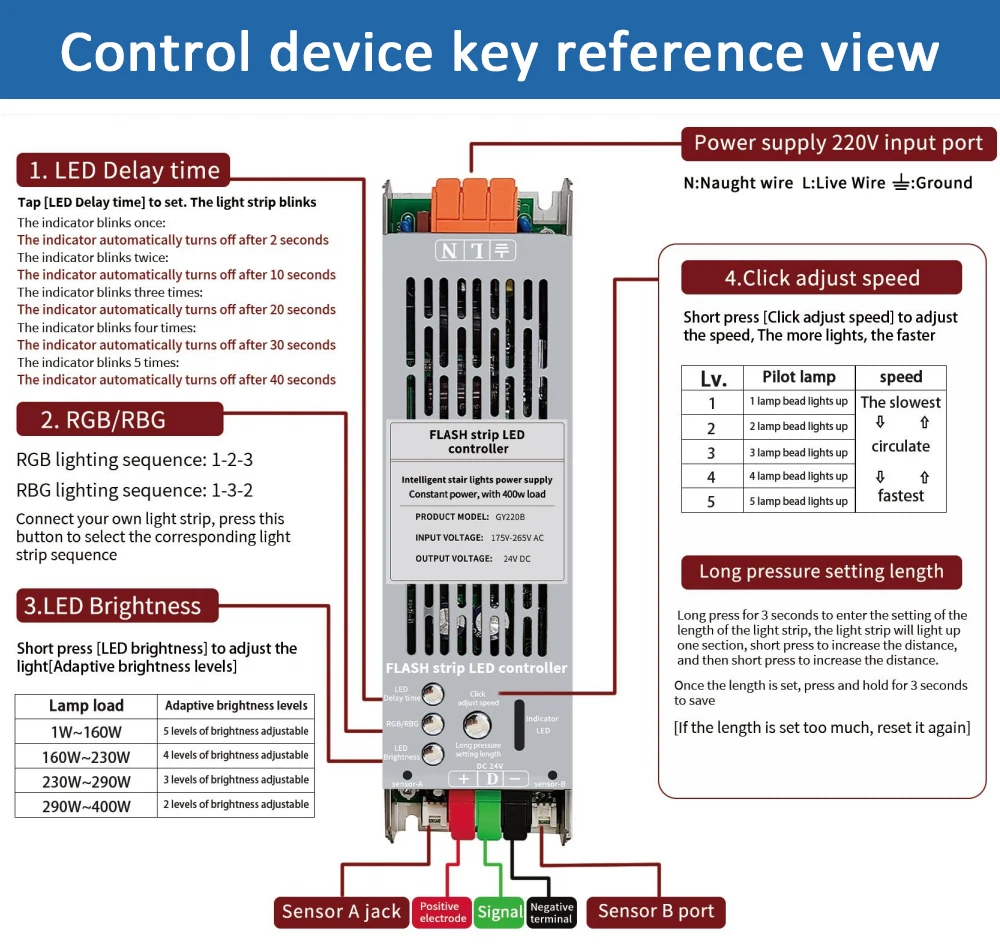

Function:

1. Timer Delay OFF (2s,10s,20s,40s,60s,80s Auto-delay-off adjustable)

2. Brightness & Speed is adjustable

3. Pixel Number is adjustable, Max. up to 1024 Pixels. Strip Length Max. up to 42 Meters.

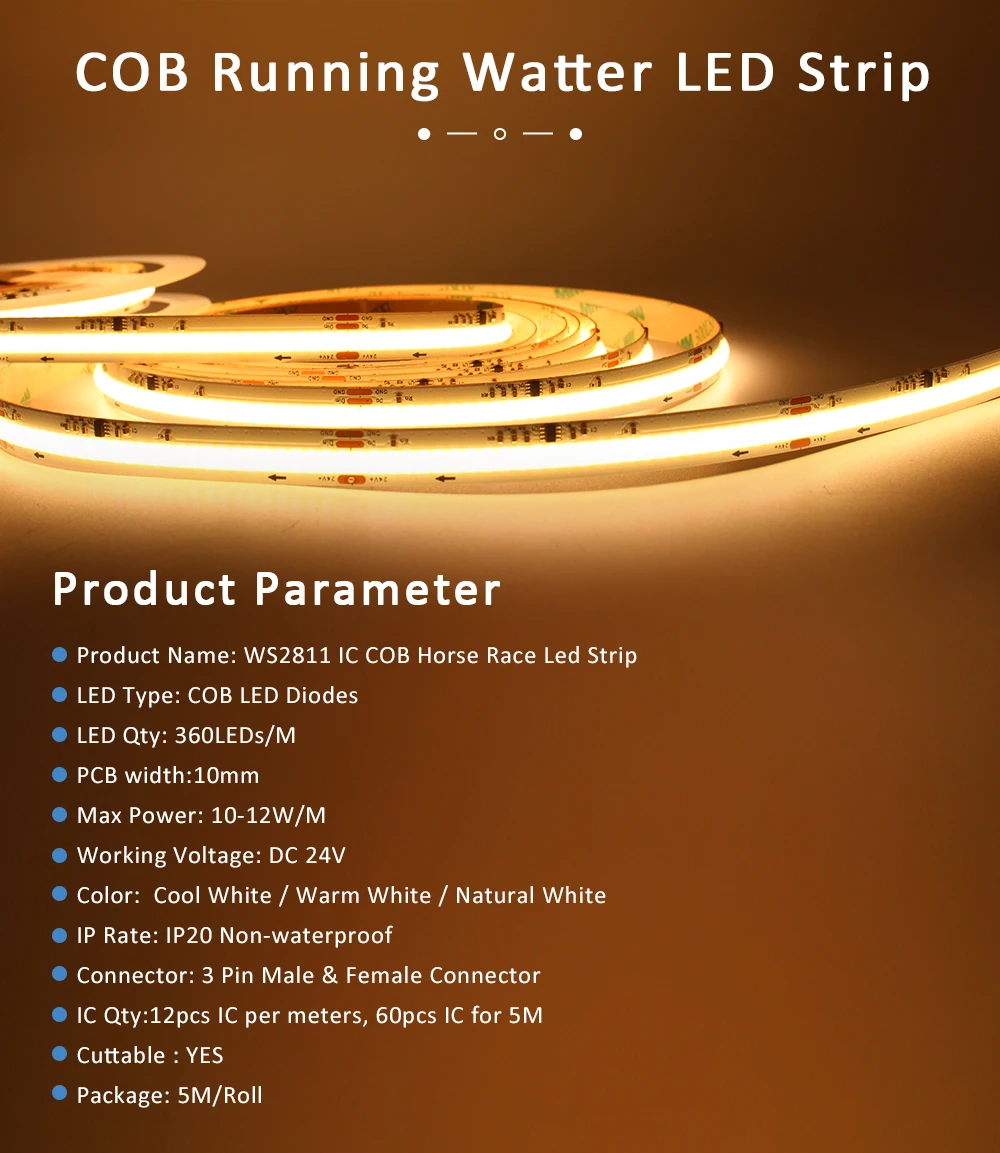

Compatiable SPI Led Strip Light:

Working Voltage: 24V

LED Type: COB

Chips Qty: 360 Chips/meter

Length: 2X5M/5M/10M/15M/2X10M

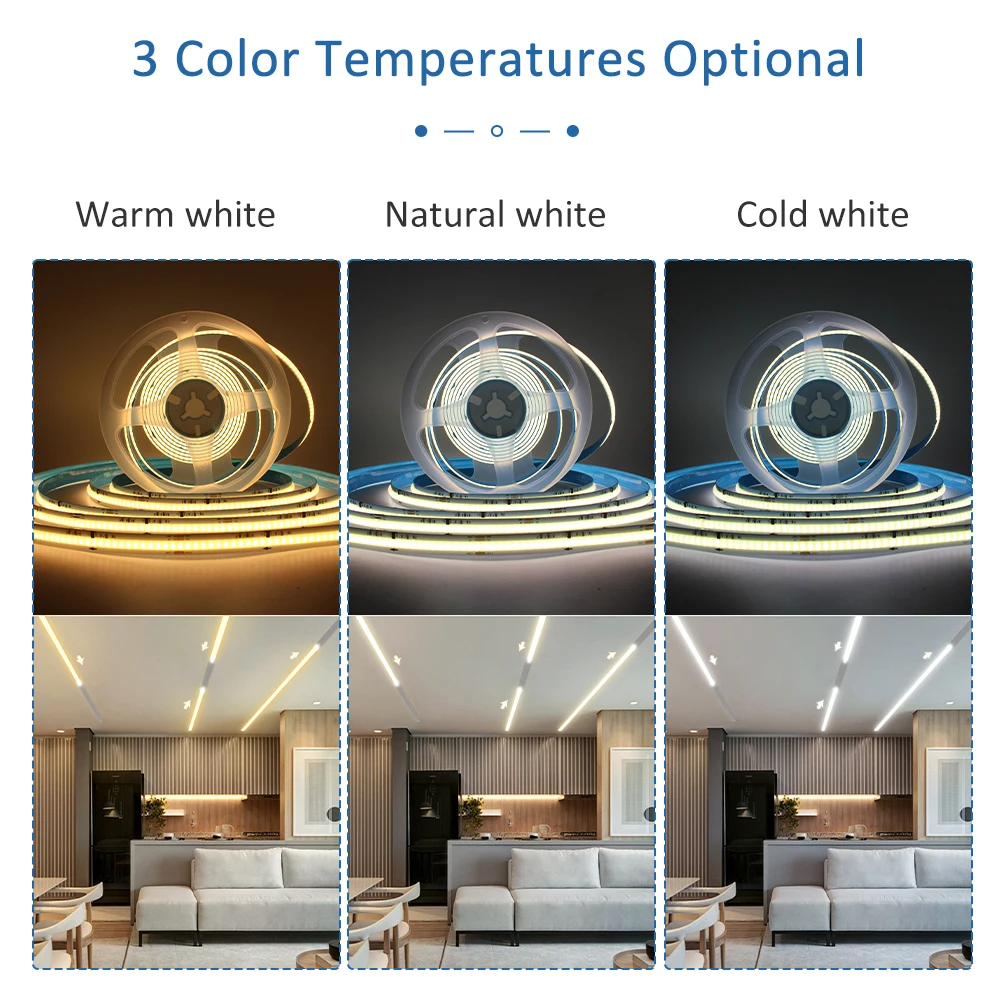

Color: Warm White 3000K, Natural White 4000K, Cool White 6000K

PCB Width: 10mm

Strip Wire:

Red Wire--- Postive +24V

Green Wire ---- GND signal wire

White Wire ---- Negative -24V

NOTE:

You must read the User Manual for Setting when testing. IF not, Only half led strip working. THAT IS NOT Quality Problem!!!

Step A: Set Pixel Number make sure all diodes are working for the whole led strip.

Step B: Set Strp Order through Pressing RGB/RBG button

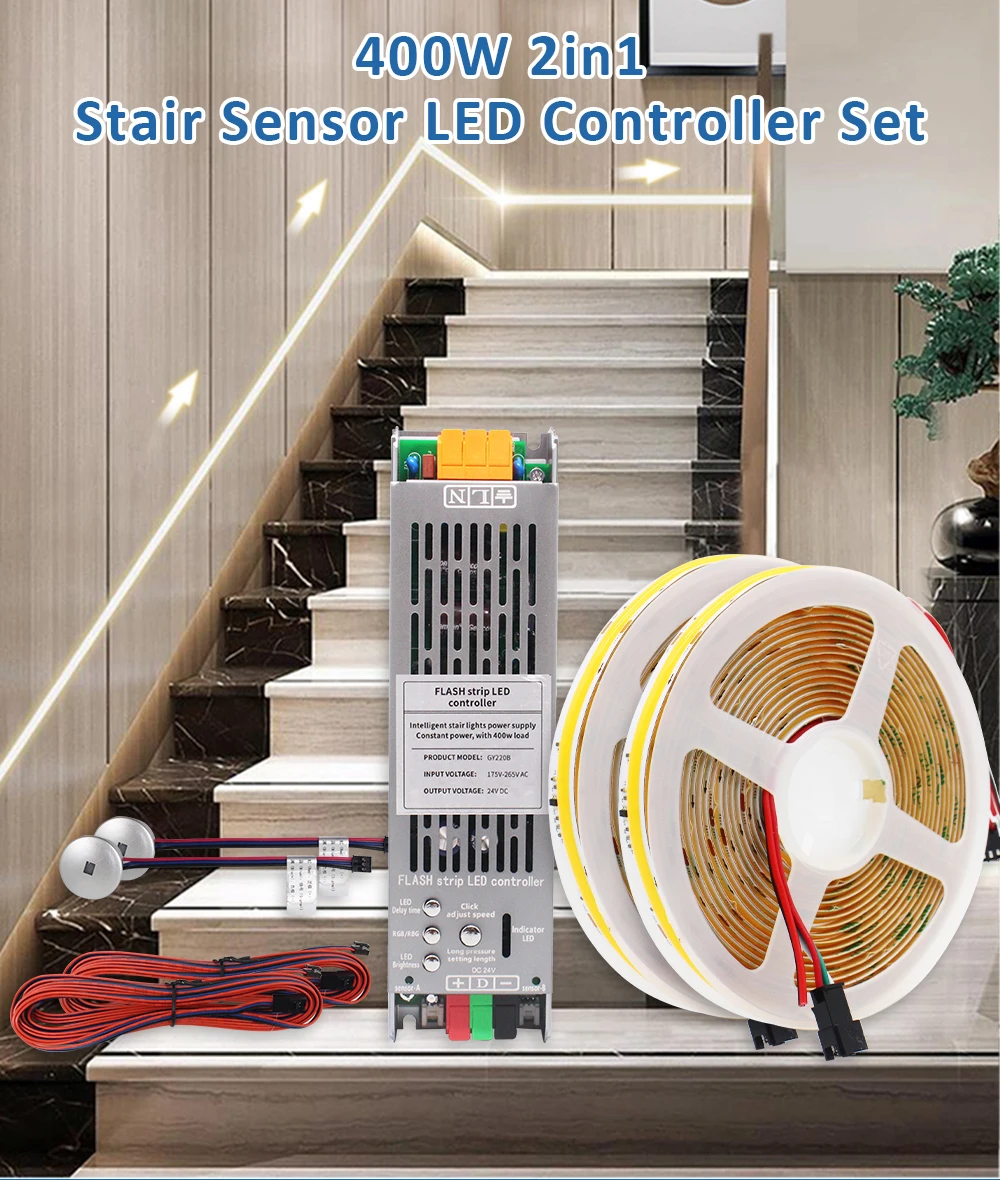

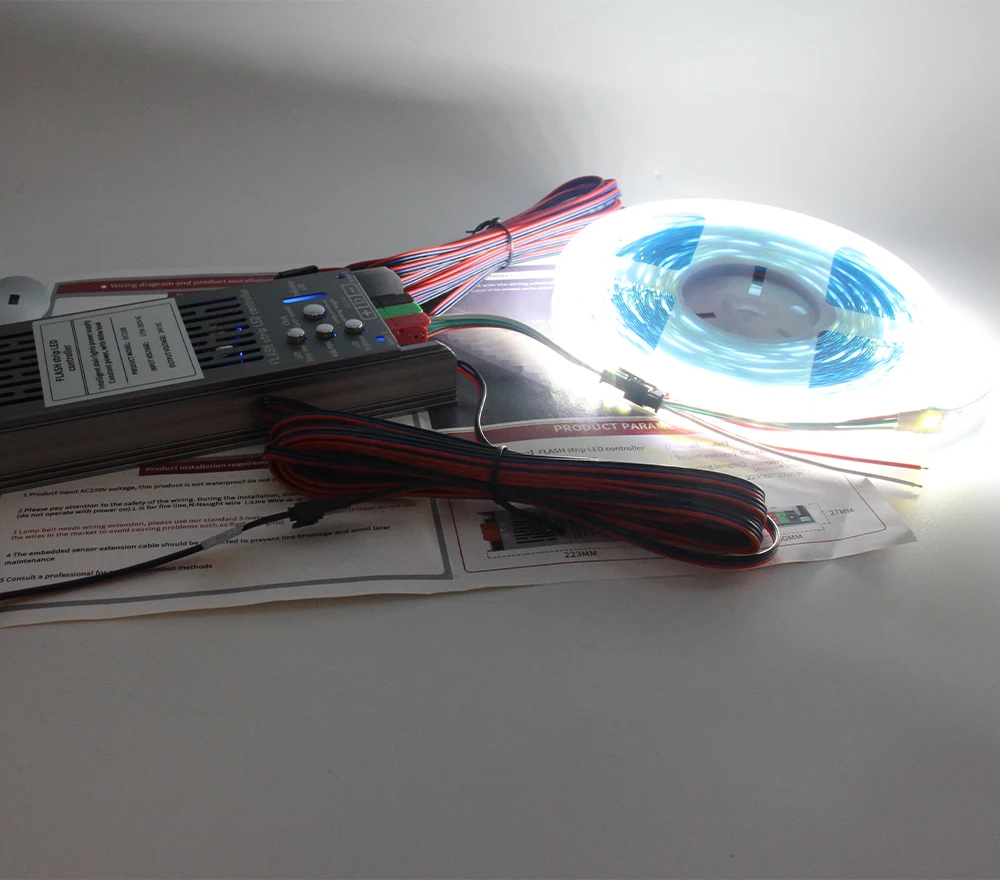

Package Including: (Depends on the models you choosed)

1 x 2 in 1 24V 400W Stair Light Controller with Motion Sensor

1 x 24V SPI COB Led Strip Light
