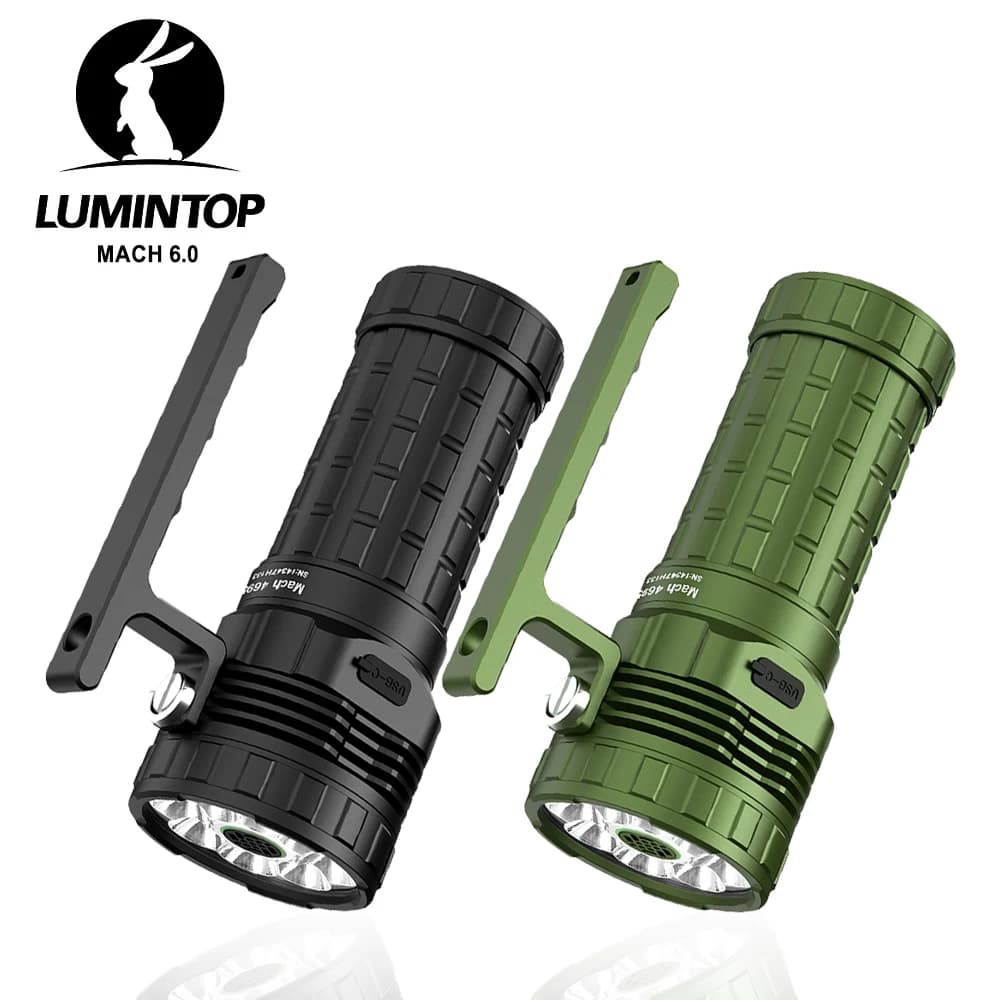

EDC LED Flashlight USB Type C Rechargeable Lamp Self Defense Torch With Fan LED Display 30000 Lumen Outdoor Lighting MACH 6.0

Operation Instruction

General mode: Low to High

Hidden mode: Moonlight, Turbo, Strobe, SOS, Beacon

1. Power On / Off: Click the switch.

2. Output Adjustment: While on, press and hold the switch to adjust output up (Low-High). Hold again to adjust outputdown. Triple click to toggle ramping and stepped modes. Release to set.

3. Turbo: Double-click the switch.

4. Moonlight Mode: From off, press and hold for 1 second to enter Moonlight.

5. Strobe Modes: In Moonlight mode, double-click to activate Strobe.

Keep double-clicking to cycle: SOS - Beacon - Strobe.

6. Fan Control: From off, triple-click to turn the fan on. It shuts off after 5 minutes or with another triple-click.

7. Lockout Mode: From off, click 4 times to lock. Click once for momentary on.

Click 4 times again (or remove power) to unlock.

8. Fan Mode Toggle: From off, click 5 times to switch between Fan and Non-Fan modes. In Fan Mode, the fan auto-starts in High and Turbo, then turns off when cool.

9. Locator Light: From off, press the switch 7 times to turn the locator light on or off.

Mode Memory Function

The flashlight features mode memory and will automatically resume the last used brightness level when powered back on, except for Moonlight, Turbo, and blinking modes.

USB Type-C Fast Charging

1. Supports fast charging via USB Type-C port. Peak charging current up to 4.0A with adaptive current control. A 46950 battery takes about 9 hours to fully charge.

2. OLED display, it shows parameters such as brightness, runtime, battery level, temperature, charging voltage, and current.

Multiple protection functions

1. Overcharge protection to prevent damage to the battery from overcharging.

2. Over-discharge protection to prevent over-discharge from damaging the battery.

3. Reverse protection to prevent the flashlight from being damaged from the battery reverse installation and short circuit.

4. Over-heat protection, when the temperature of the flashlight is high, the flashlight will automatically reduce the output to prevent overheating and ensure the comfort of use.

5. Low voltage protection, when the battery is dropped, the flashlight will downshift the output until shut down automatically.
