1W 5W 10W 12W 15W 20W 25W 40W 60W Power Transformer Input AC 220V 50HZ Output AC 6V 9V 12V 15V 18V 24V 36V 48V 110V Dual V 3Line

Description:

For example, I=P/U,

Dual Output, 18-0-18v ,Power 50W ,it is ablout 1.39A, I=P/U, 50W/(18V+18V)≈1.39A

Model: EI

Rated power: 1W 2W 3W 5W 8W 10W 12W 15W 20W 25W 30W 40W 50W 60W 80W

Input voltage: AC 220V~50Hz

AC Dual -6V-0-6V ,9V-0-9V,12V-0-12V, 15V-0-15V, 18V-0-18V,24V-0-24V,36V-0-36V,110V-0-110V,220V-0-220V.

Frequency characteristics: low frequency

Structural form: single-phase transformer

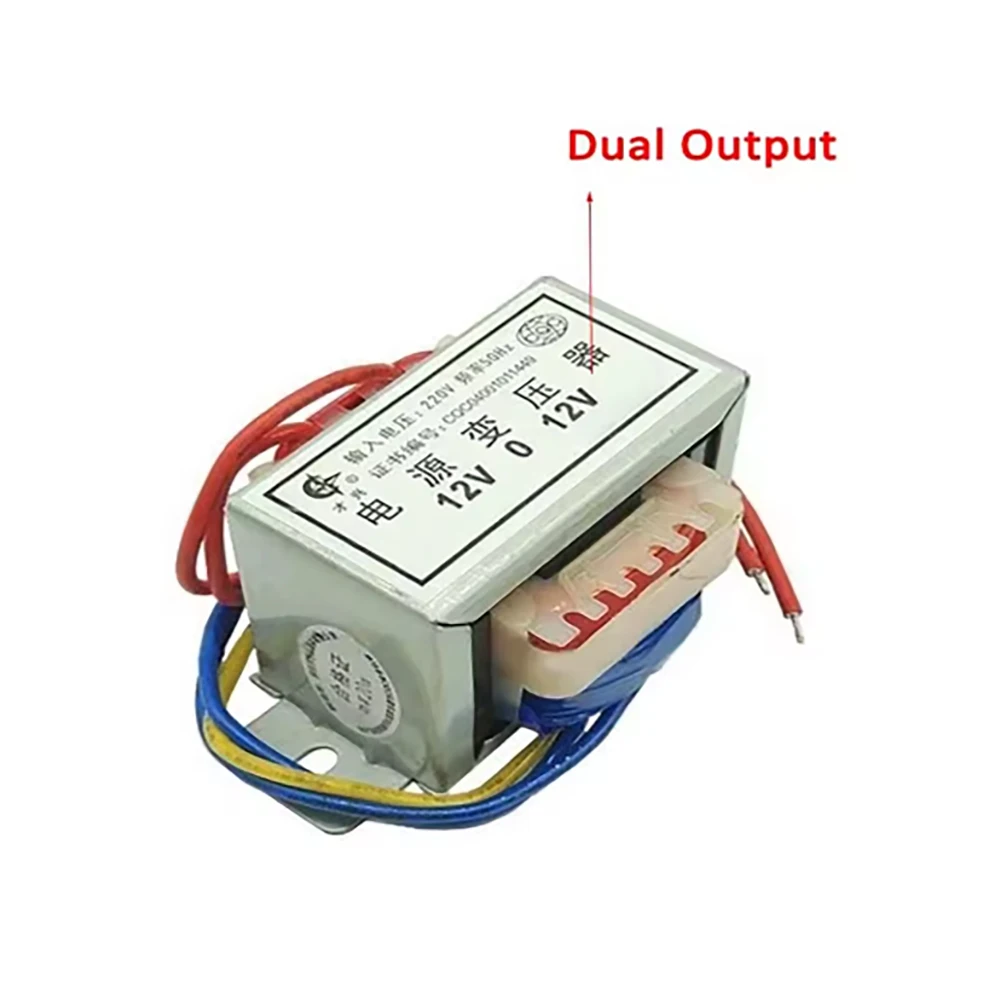

Dual Voltage, input 2 wires, output 3 wires.

Note:

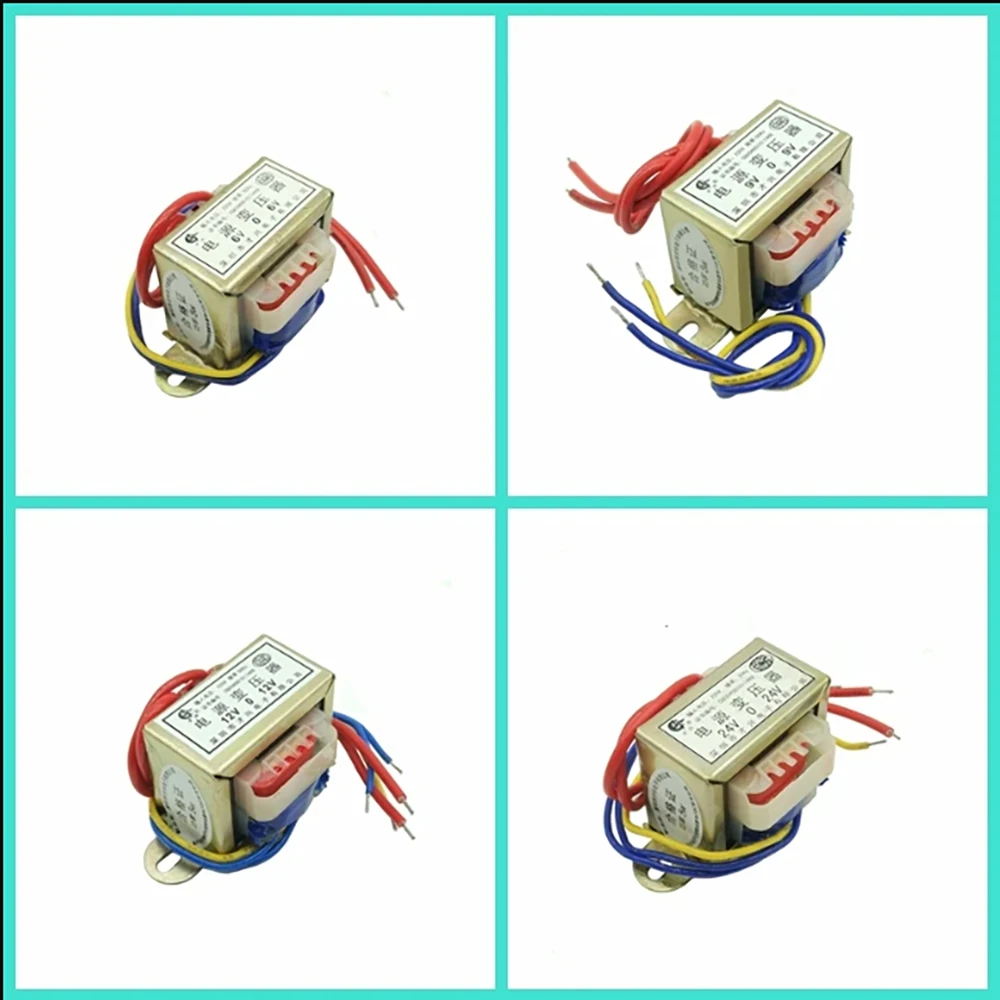

The red line represents the input line, and the blue line represents the output line.

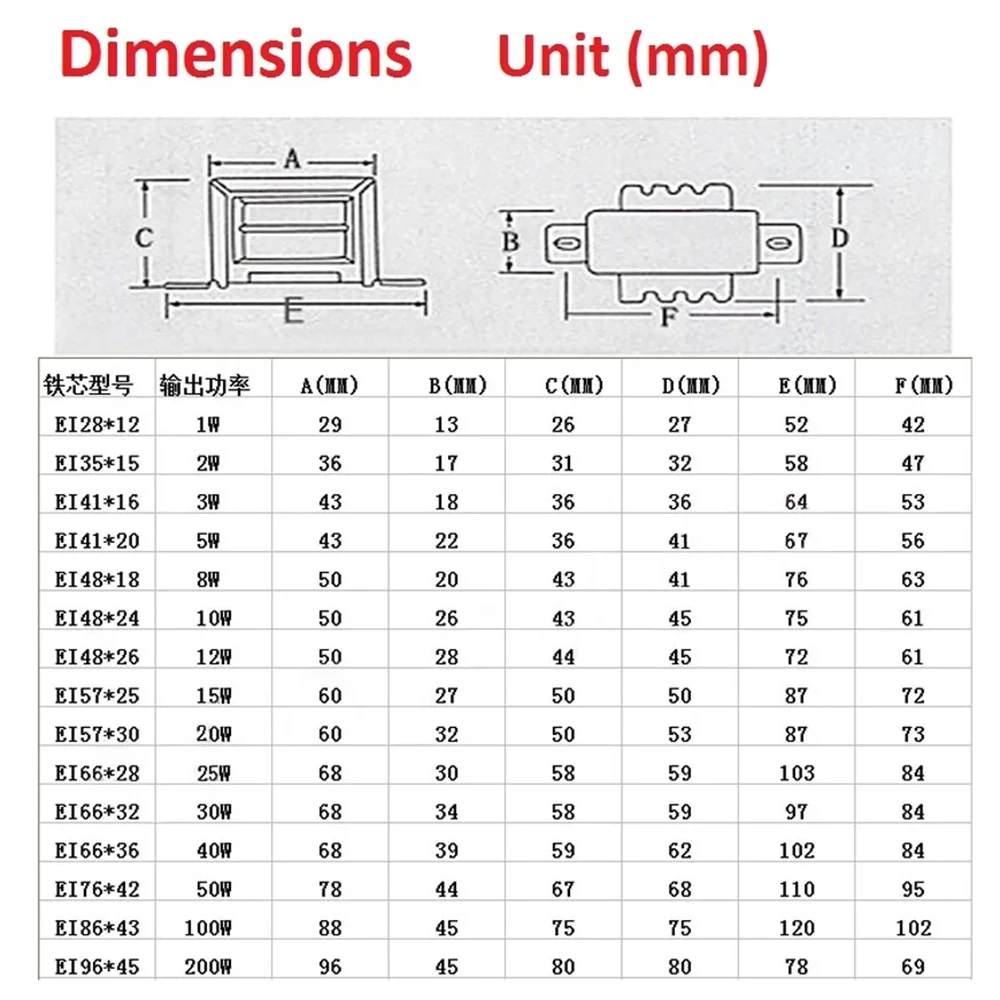

The size can refer to the picture.

The package includes:

1Pcs x your choice.

Special note: The issue of the no-load voltage of the transformer being higher than the actual marked voltage is not a quality issue or a description error.
