LED Lamp Beads XHP70 XHP90 XHP110 18W 24W 45W 72W LED Diodes DC3V DC6-8V DC24V LED For Flashlight Headlight DIY LED Accessories

Product details

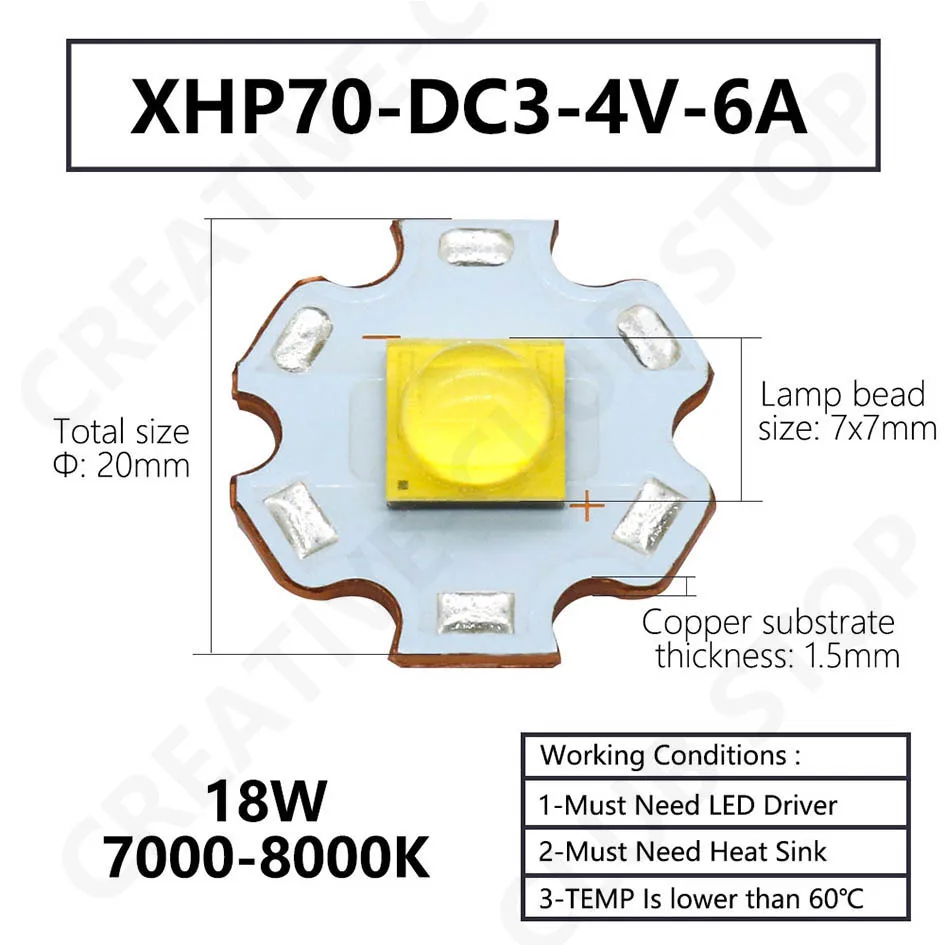

XHP70 DC3-4V 6A

Name: XHP70 DC3-4V 6A
Voltage: DC3-4V
Current: 6A
Lumens: 1800LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 7x7mm
Copper substrate thickness: 1.5mm

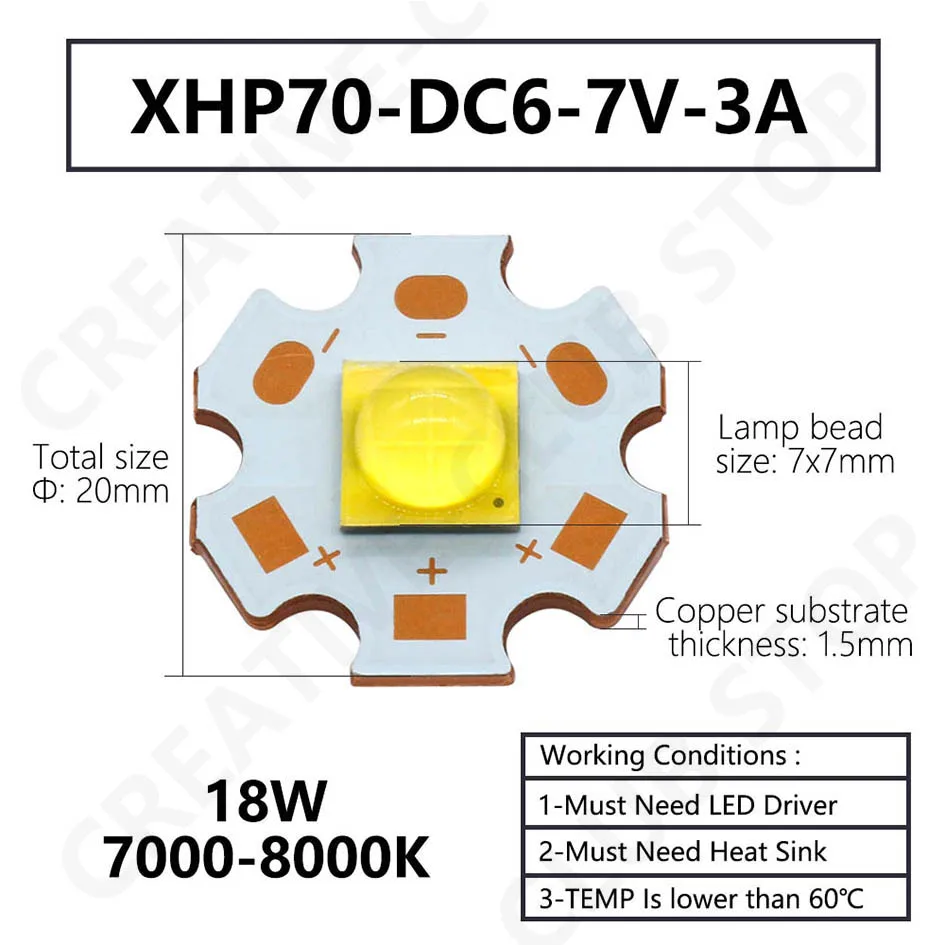

XHP70 DC6-7V 3A

Name: XHP70 DC6-7V 3A
Voltage: DC6-7V
Current: 3A
Lumens: 1800LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 7x7mm
Copper substrate thickness: 1.5mm

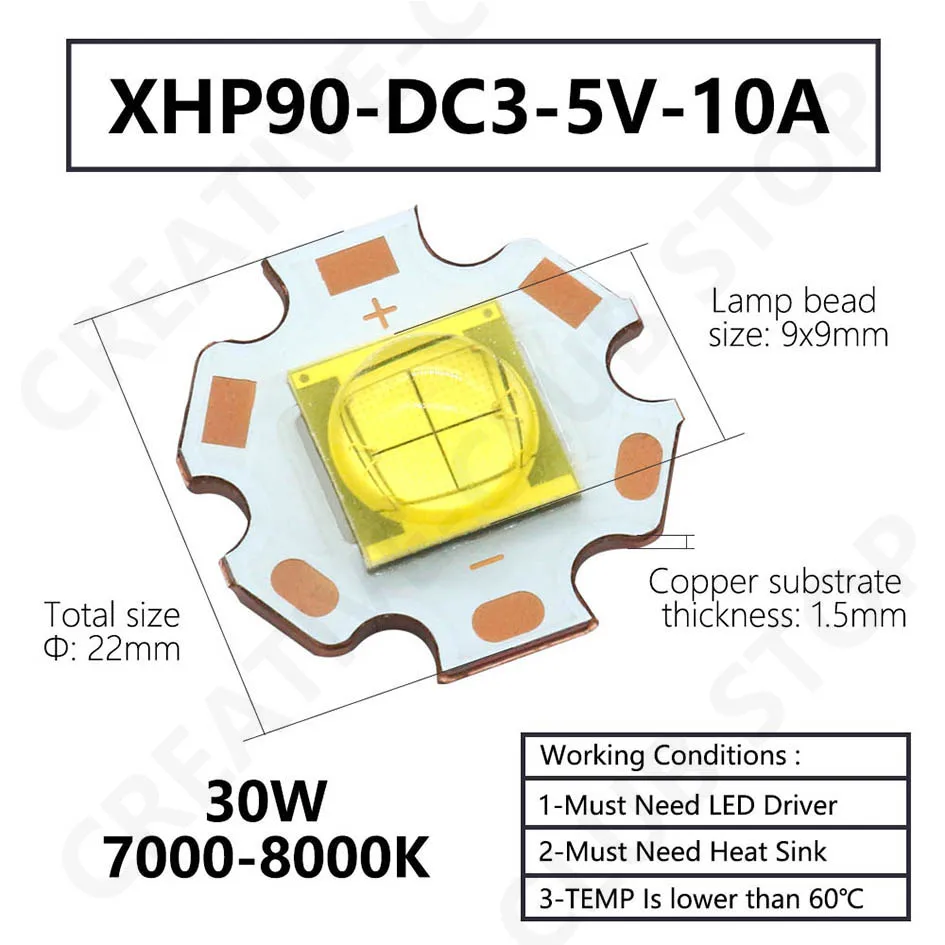

XHP90 DC3-5V 10A

Name: XHP90 DC3-5V 10A
Voltage: DC3-5V
Current: 10A
Lumens: 3000LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 9x9mm
Copper substrate thickness: 1.5mm

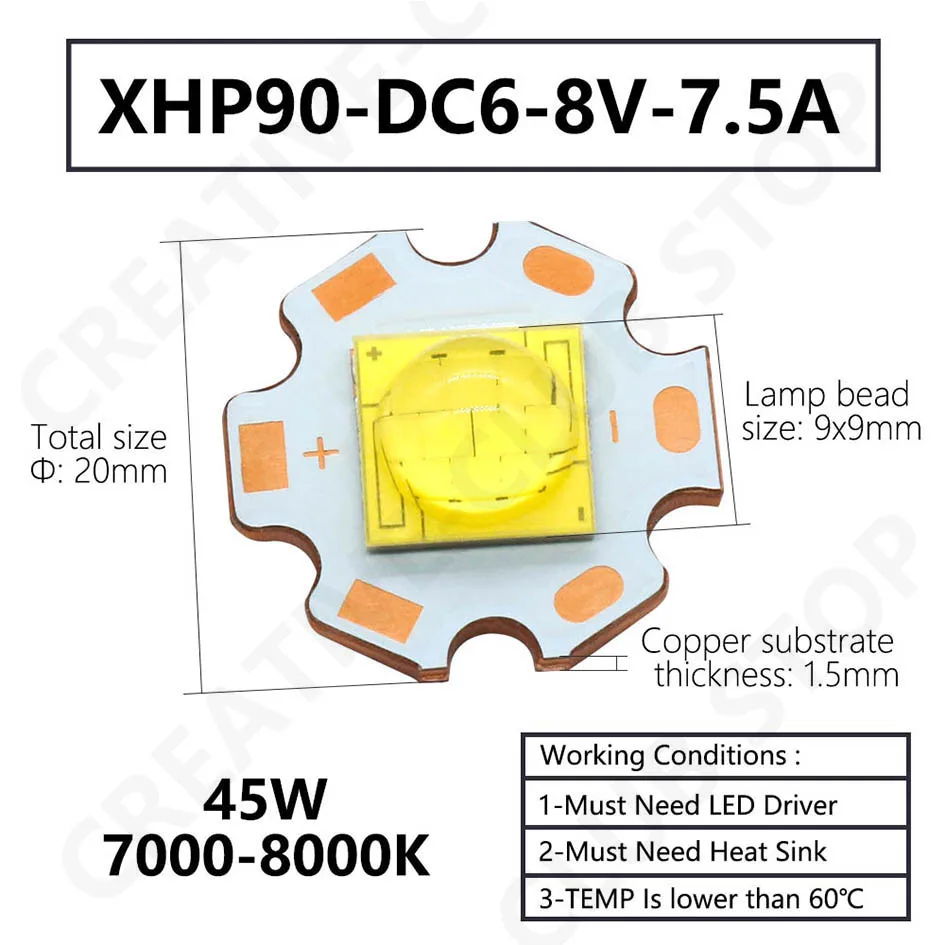

XHP90 DC6-8V 7.5A

Name: XHP90 DC6-8V 7.5A
Voltage: DC6-8V
Current: 7.5A
Lumens: 4500LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 9x9mm
Copper substrate thickness: 1.5mm

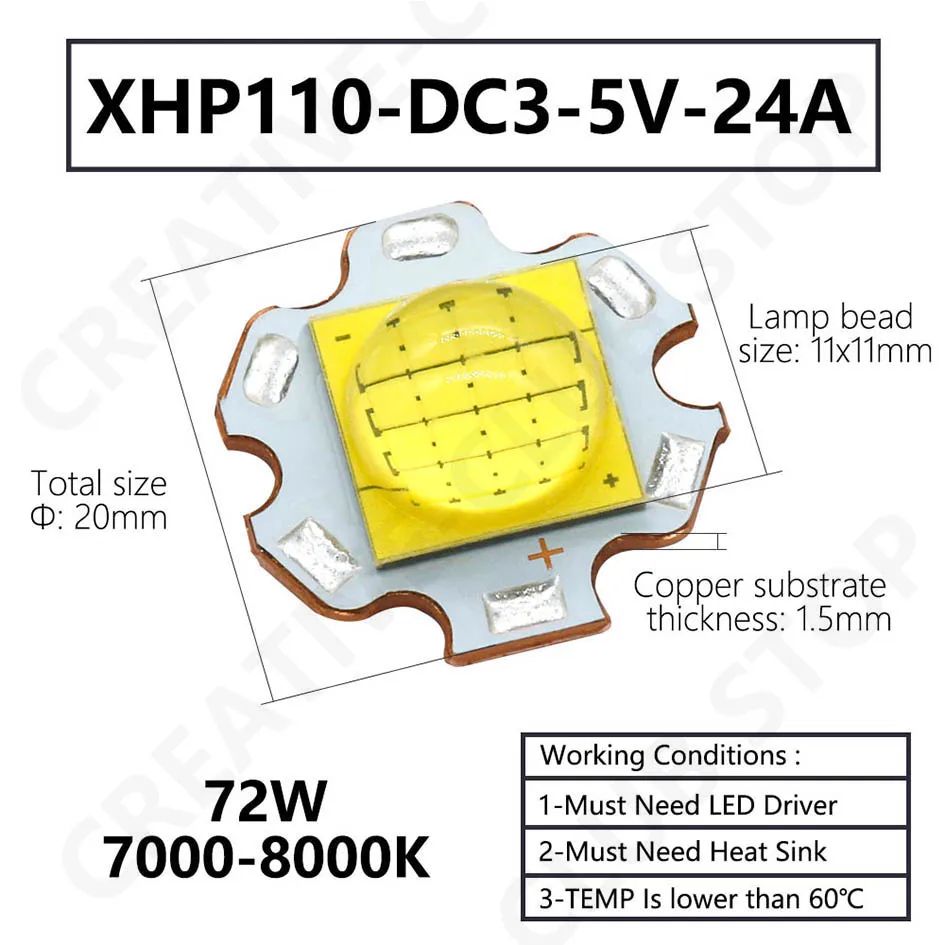

XHP110 DC3-5V 24A

Name: XHP110 DC3-5V 24A
Voltage: DC3-5V
Current: 24A
Lumens: 7200LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 11x11mm
Copper substrate thickness: 1.5mm

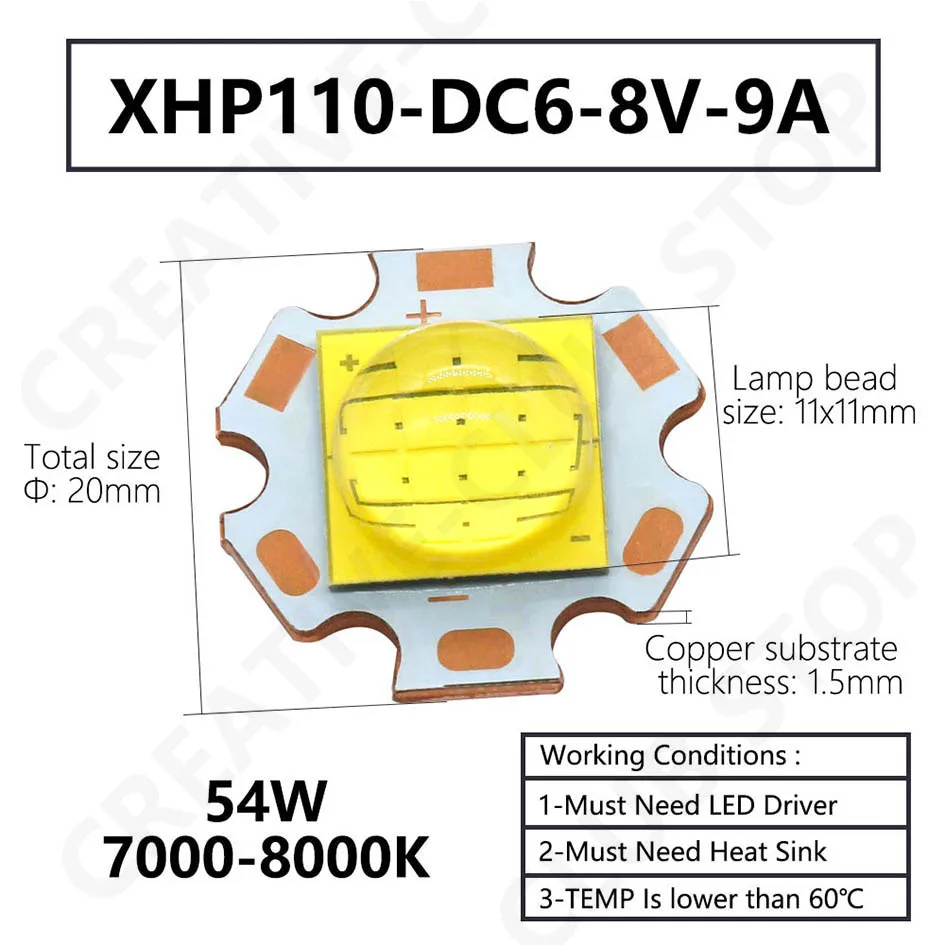

XHP110 DC6-8V 9A

Name: XHP110 DC6-8V 9A
Voltage: DC6-8V
Current: 9A
Lumens: 5400LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 11x11mm
Copper substrate thickness: 1.5mm

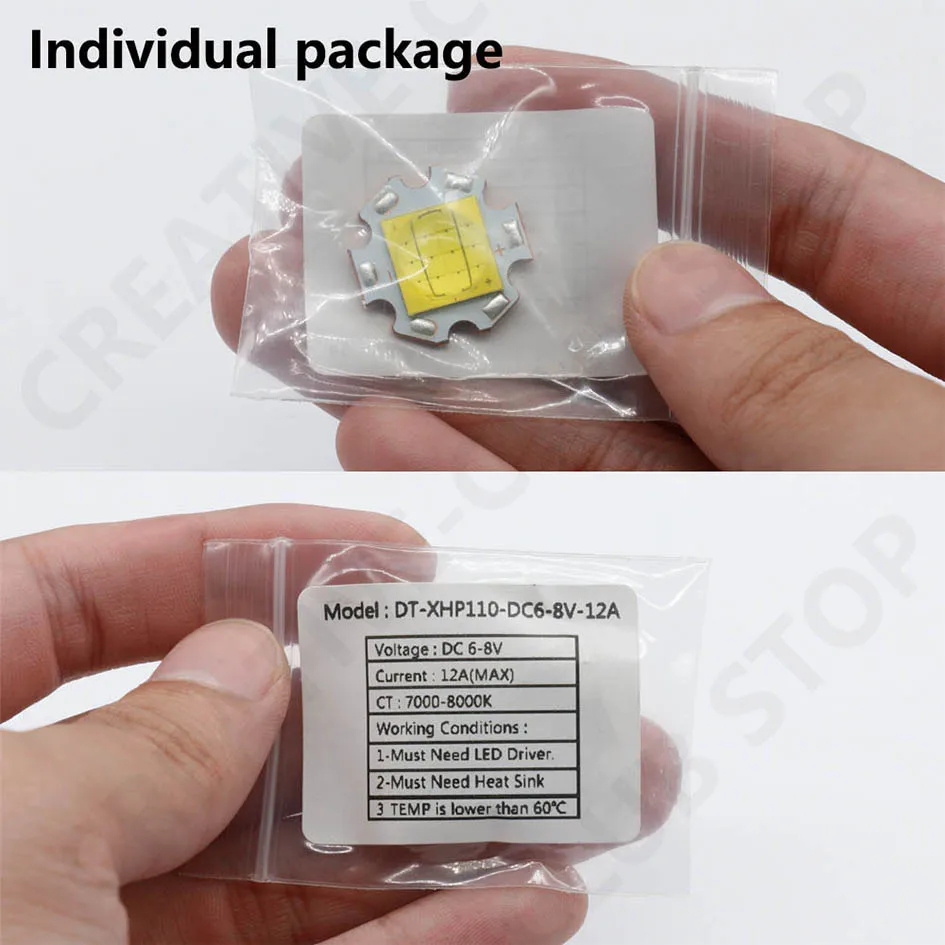

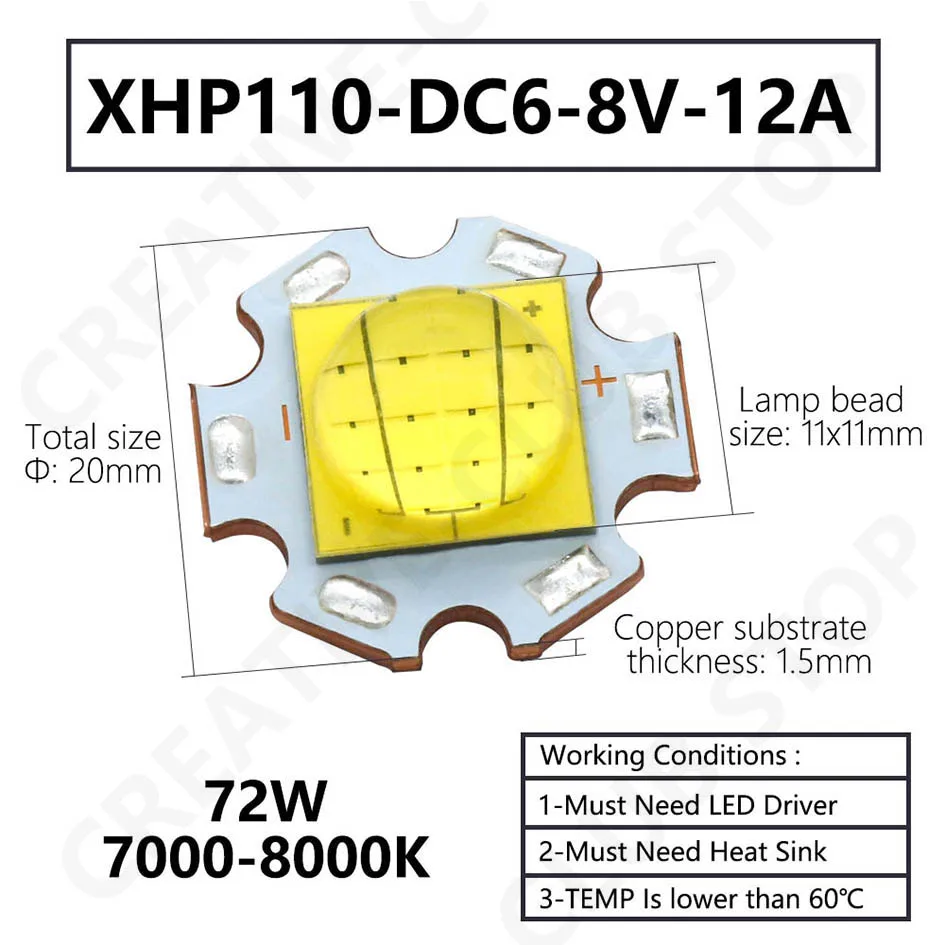

XHP110 DC6-8V 12A

Name: XHP110 DC6-8V 12A
Voltage: DC6-8V
Current: 12A
Lumens: 7200LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 11x11mm
Copper substrate thickness: 1.5mm

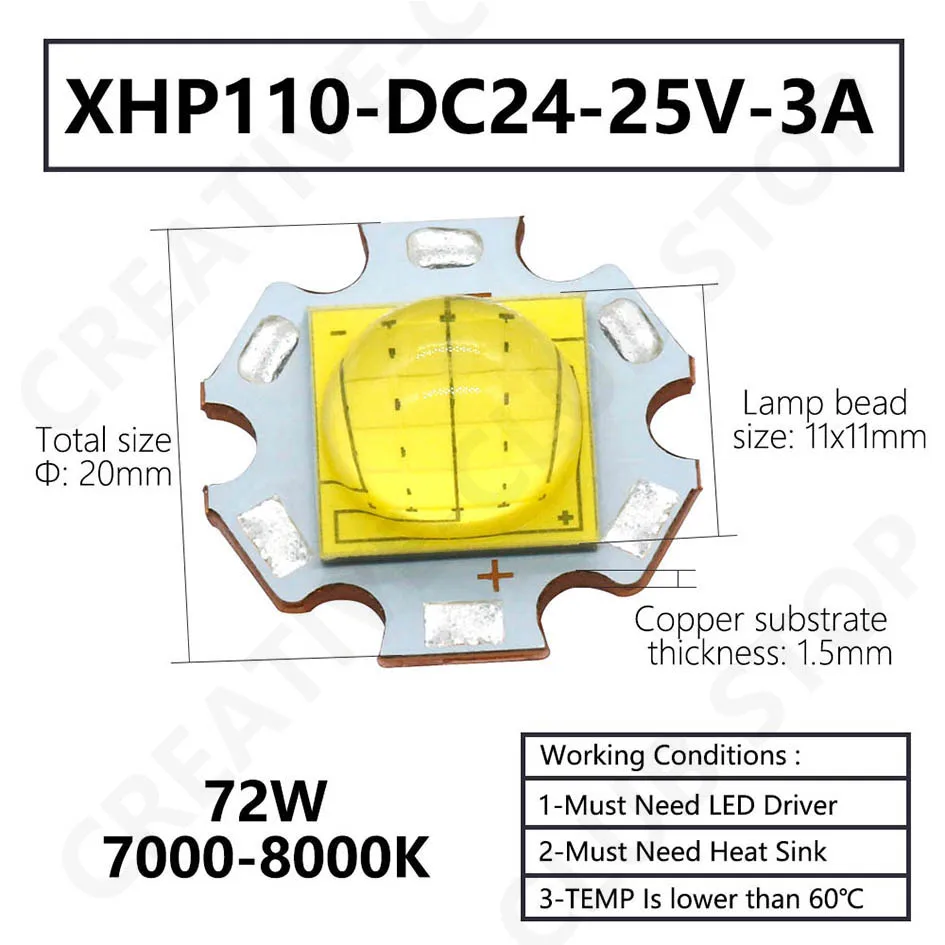

XHP110 DC24-25V 3A

Name: XHP110 DC24-25V 3A
Voltage: DC24-25V
Current: 3A
Lumens: 7200LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 11x11mm
Copper substrate thickness: 1.5mm
