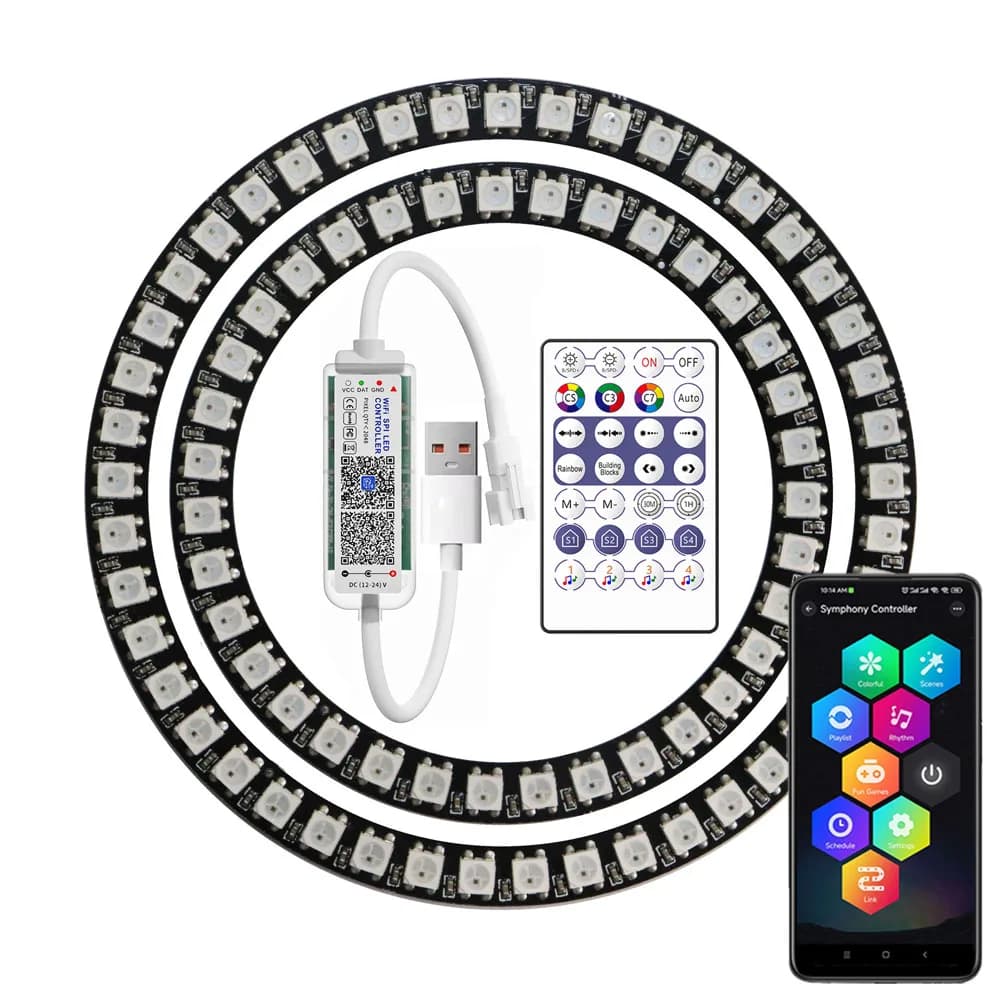

WS2812B 8/16/24/35/45Leds Ring Module Surperlife Controller USB Kit RGB Ring Individul AddressabIe WS2812 IC BuiIt-in Light 5V

Pay Attention:

The led ring is DC5V led ring Must Use DC5V led power Over 6V will burn LEDs

The led ring Must need WS2812B led controller and 5V led power Light up

Your USB power Must ONLY Output DC5V,If your USB power Can Output 5V 9V 12V also maybe Burn LEDs

8/16/24/35/45Leds Ring：

Description:

There is a single data line with a very timing-specific protocol.

Since the protocol is very sensitive to timing,

it requires a real-time microconroller such as an AVR, A rduino, PIC, mbed, etc.

It cannot be used with a Linux-based microcomputer or interpreted microcontroller

such as the netduino or Basic Stamp.

Chip: WS2812 (built-in LED)

LED:8/16/24/35/45pcs 5050 RGB full color highlighting

Voltage:DC5V

Product Parameter

Rated voltage: USB-5V,

Controllable points: Max 2048 points

Support IC: 2812, 2811, 16703, 16704, 1903, 6812, 1003, 2904, etc.

Remote control battery: 1* CR2025 (Not included)

Connection method: USB

Control method: mobile phone APP remote control

Control range: 40m(open area)

1. Download the application app

Download the "Surflife" application from the app store and Google Play Store, or scan the QR code.

2. How to connect to the Surface App?

(1) Register/log in to your Surflife account.

(2) You can log in as a tourist.

(3) Turn on the device and enable the Bluetooth function of the phone

(4) Enter the "Surlife" app, click "Add Device" or "+" to add a device. Then select your Wi Fi network (only applicable to 2.4GHz networks) and enter your password.

(5) Renaming the device and selecting a room for it

3. Regarding settings:

Click on the "Settings" icon to enter the settings interface, where you can set the chip type, color calibration, and number of lights for the controlled device (the number of lights in each segment cannot exceed 500, and the total number of points cannot exceed 2048), The setting of IC points should be applied to the application function. When the color of the light strip is incorrect, color calibration can be performed.

4. Detailed introduction to APP functions:

(1) Colorful functions

(2) Scenario function

(3) Rotation function

(4) Rhythmic function

① Music mode: The lights jump and change with the rhythm of the music

② Microphone

(5) Timing function

(a) According to the time you set, set the switch settings for the lighting fixtures it controls.

(b) When turning on the lights, you can freely choose between colorful or different lighting effects in the scene.

(6) Fun Play

There are 6 fun mini games inside (sliding meteors, falling colors, recognizing colors, shaking, color picker, small piano)

(a) Sliding meteor: You can freely draw different meteors on the screen, and the light changes according to the meteor.

(b) Dropped Color: Select a color based on the light and click on the falling color block.

(c) Understanding colors: Select text by looking at the light, observe the color of the light, and click on the corresponding text.

(e) Shake: The light changes with the shaking of the phone.

(f) Color picker: The light follows the color captured by the phone to change color selection, and can be manually or automatically selected.

(g) Piano: The lighting changes color in segments according to the rhythm of the piano.

(7) Group control function

Classifying multiple controllers into the same group allows for one click dimming, color adjustment, and switch control of the devices within the group simultaneously

(8) Linkage function

By grouping the lighting fixtures into the same group, multiple lighting fixtures can be linked to experience the functions of the APP. Long press and drag the order of lighting fixtures in the device list, and you can also change the direction of the lights.

① Series connection: sequential linkage of lighting fixtures within the group

② Parallel connection: synchronous linkage of lighting fixtures within the group

(9) Scene functions

In the scene interface, create different lighting colors or dynamic effects for different scenes according to personal needs. (Note: "Widgets" and "Siri shortcuts" can be applied)

(10) Siri Shortcut-10S

Attention:

1. Siri can only control the scene (setting the scene function in advance). The system comes with shortcut functions for 2.10S 12.0 and above. 3. Please ensure that your device is in "Online Cloud", go to the page "My">click "Siri Shortcut">add scene here.

(11) Steps for adding widgets (setting scene function in advance): Go to the page "My">Click on "Widget">Add Scene to Widget.

(12) Create Intelligence

In the intelligent interface, create different intelligent scenarios according to personal needs, such as waking up/falling asleep, leaving/returning home, sunrise/sunset, or DIY customization for devices and scenes.

(13) Voice function

On the "My" page, you can choose a third-party voice service platform (Alexa GoogleHome、 Tmall Genie, etc., connect the device according to the instructions, and once the connection is successful, voice control can be activated, which is convenient and fast.

Kind reminder

1. Please use the product in a dry environment;

2. Please use an appropriate DC voltage for input voltage, and do not directly use 220V AC power;

3. The product should not be connected incorrectly in the anode connection method, as it can easily lead to product failure.
