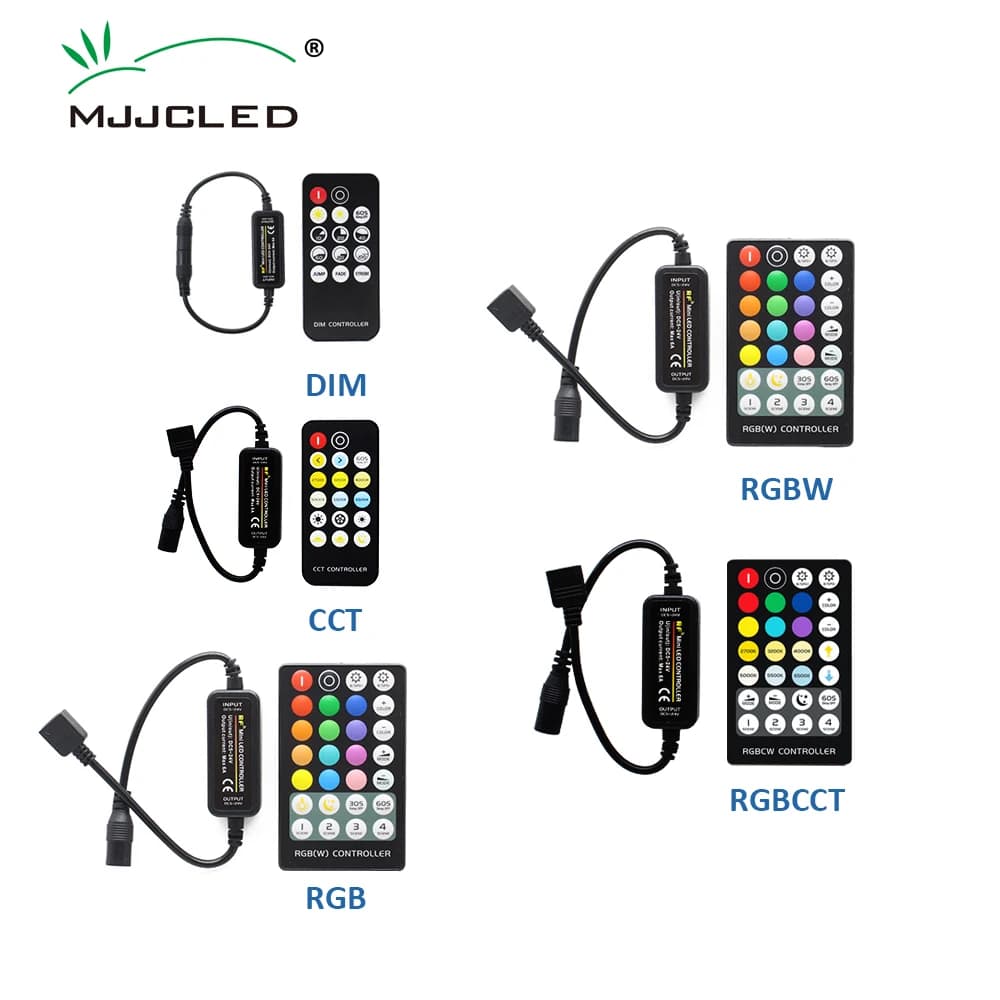

12V 4Pin RGB 24V 5Pin LED Controller 14Key 5V 28Key RF Remote Control for Single Color CCT RGB RGBW RGBCCT LED Strip Tape Lights

Specifications:

Working Temperature: -20-60℃
Input Voltage: DC5-24V
Connection Mode: Common anode
Static Power Consumption: <0.5W
Remote distance: up to 20M
Remote battery type: 1pcs CR2025 Button cell
RF frequency: 433.92MHz
Output Current:
DIM - 1CH*6A
CCT - 2CH*3A
RGB - 3CH*2A
RGBW - Max Toghther 6A
RGB+CCT - RGB 3*2A + CCT 2*2A Toghther 6A

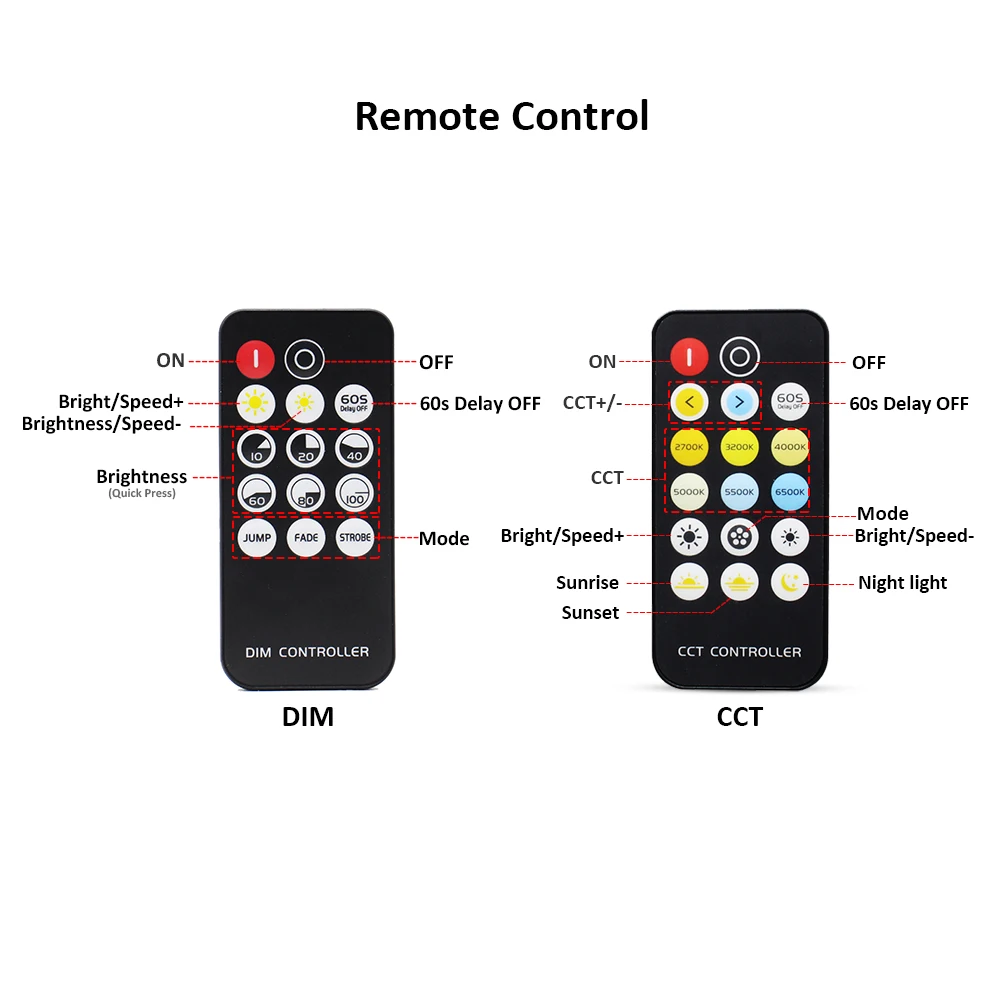

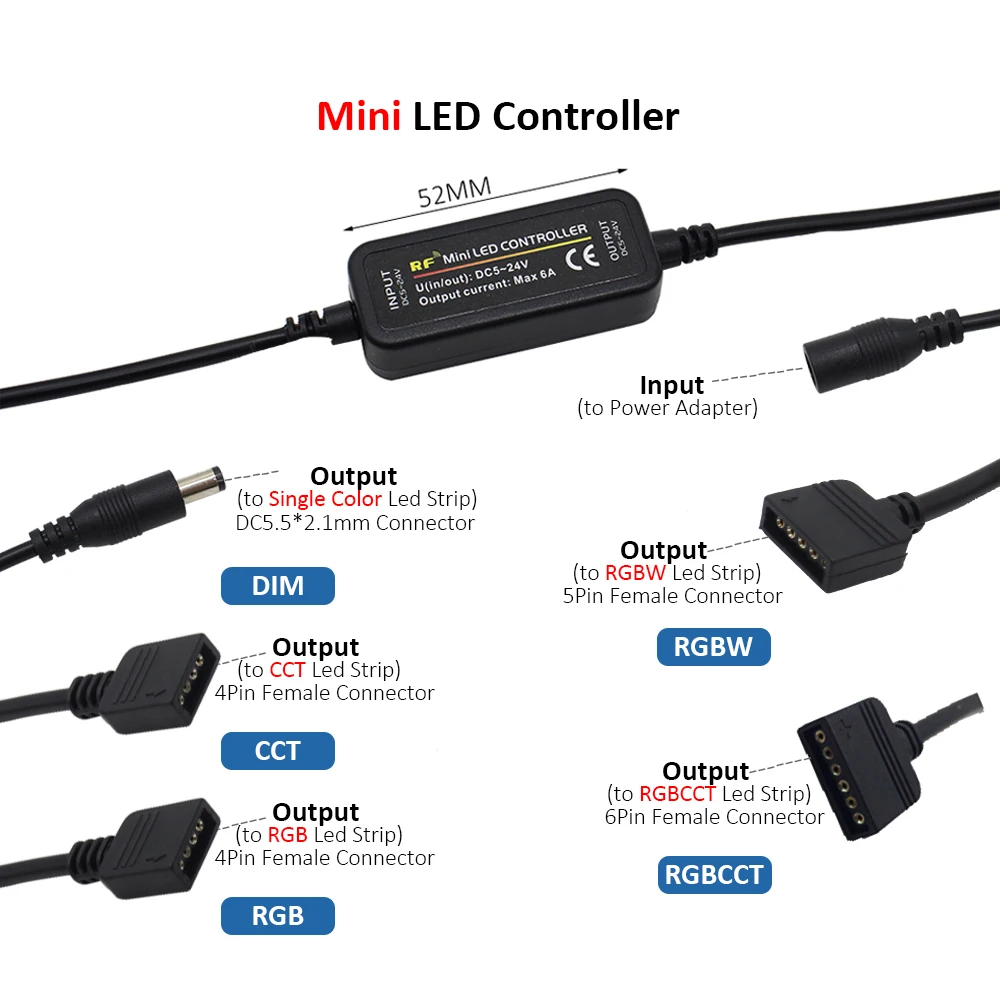

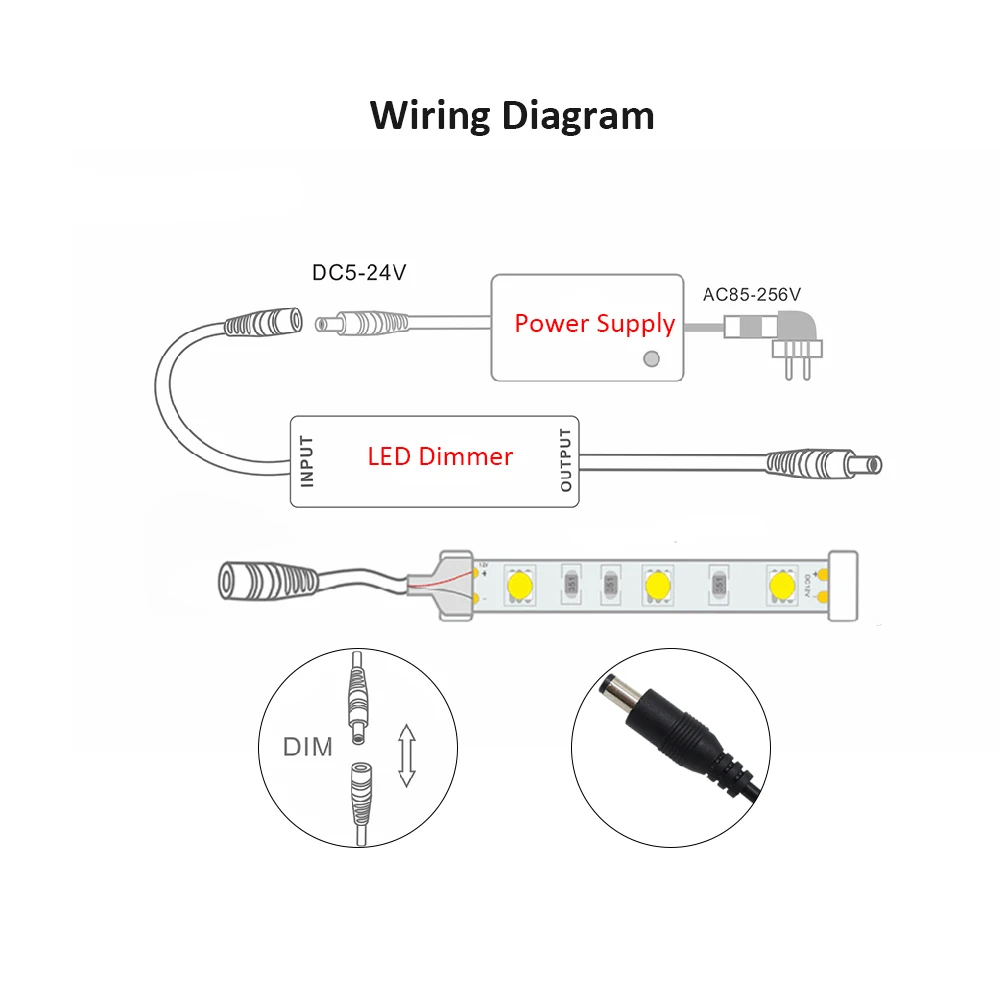

DIM（DC Dimmer)+(14Key Remote Control)Brightness Dimming for Single Color LED Strip

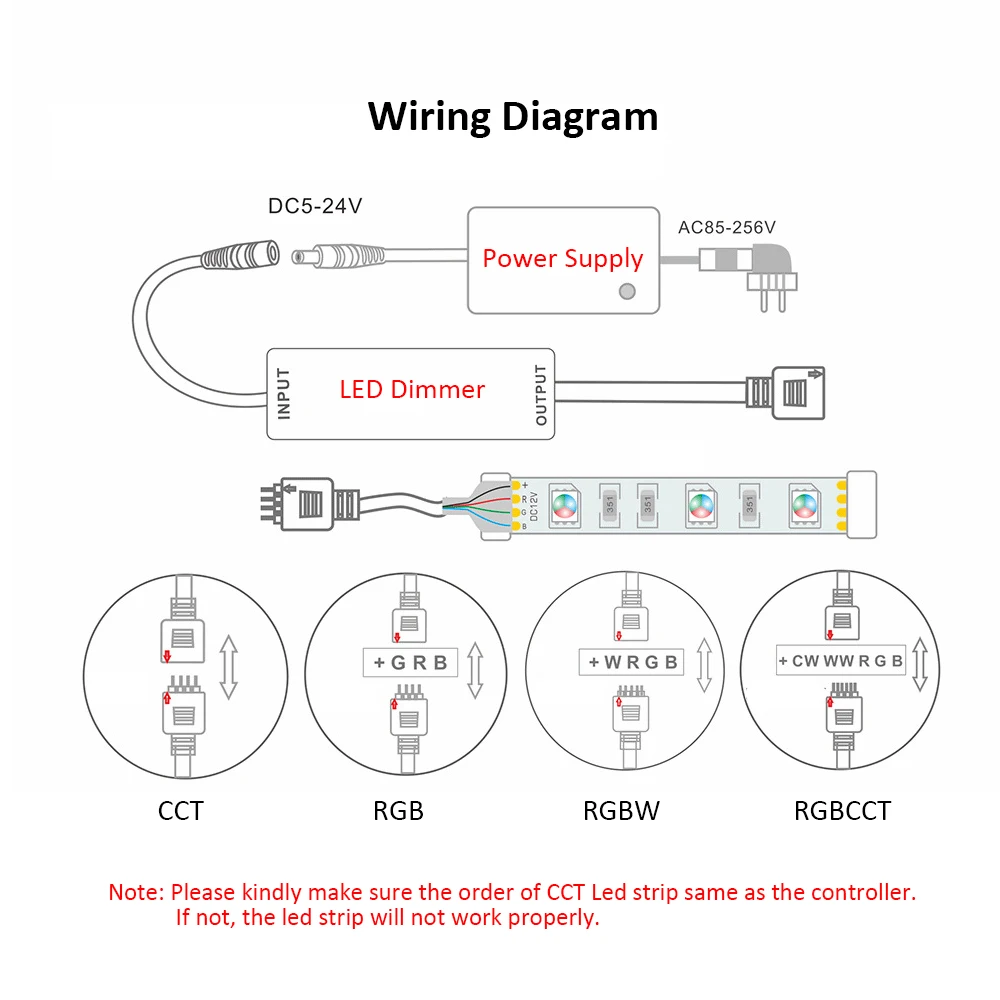

CCT (4pin LED Controller) + (17Key Remote Control)Brightnrss Dimming & Color Temperature Adjustable for Dual White LED Strip

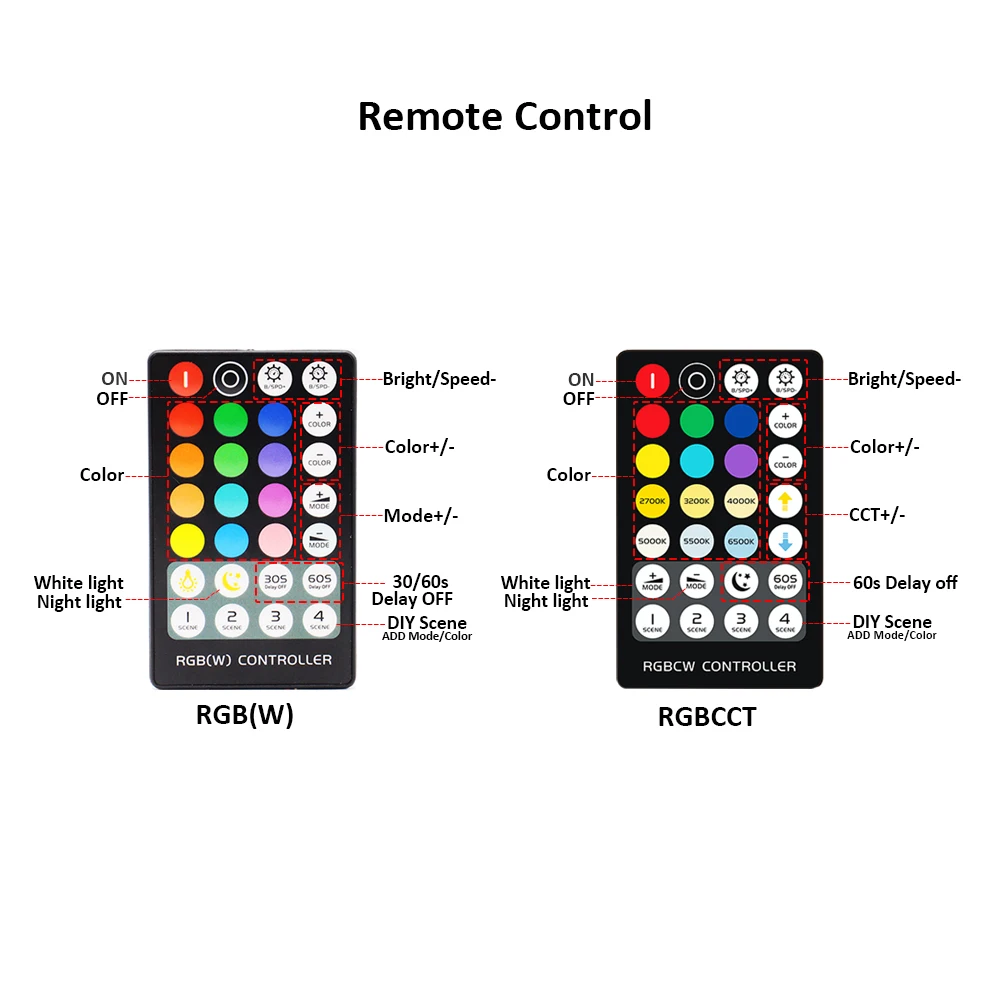

RGB (4pin LED Controller) + (28Key Remote Control)Brightnrss Dimming & RGB Color Changing for RGB LED Strip 3 Color
RGBW (5pin LED Controller) + (28Key Remote Control)Brightnrss Dimming & RGB+W/WW Color Changing for RGBW LED Strip 4 Color
RGB+CCT (6pin LED Controller) + (28Key Remote Control)Brightnrss Dimming + Color Temperature Adjustable + RGB Color Changing + Saturation Control for RGB+W+WW LED Strip 5 Color

Package Including:

1 * LED Controller with Remote Control (Not with CR2025 battery)
1* User Manual (English version)
